Name: SUMMIT ALRF49BSSHV 20" Wide Built-in Refrigerator-freezer, ADA Compliant
Brand: SUMMIT
SKU: ALRF49BSSHV-KT
Price: 1083.57 USD
Availability: InStock

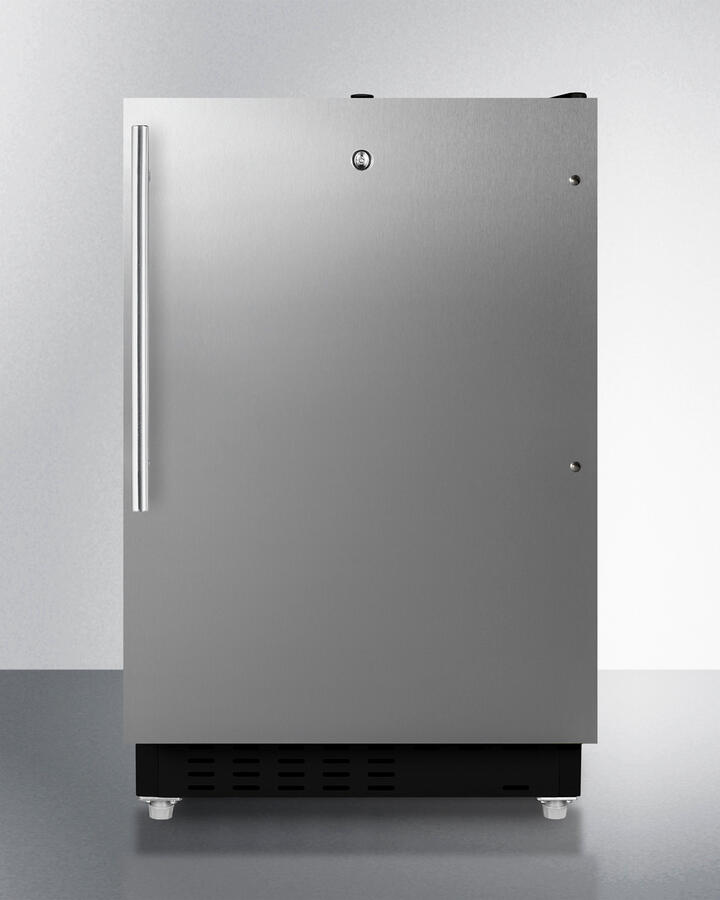

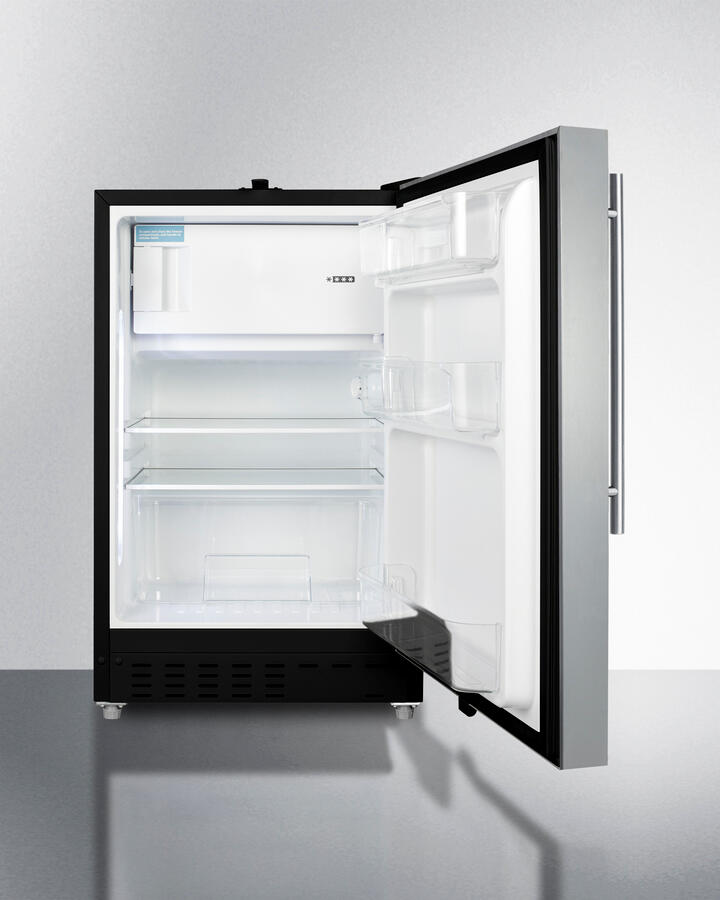

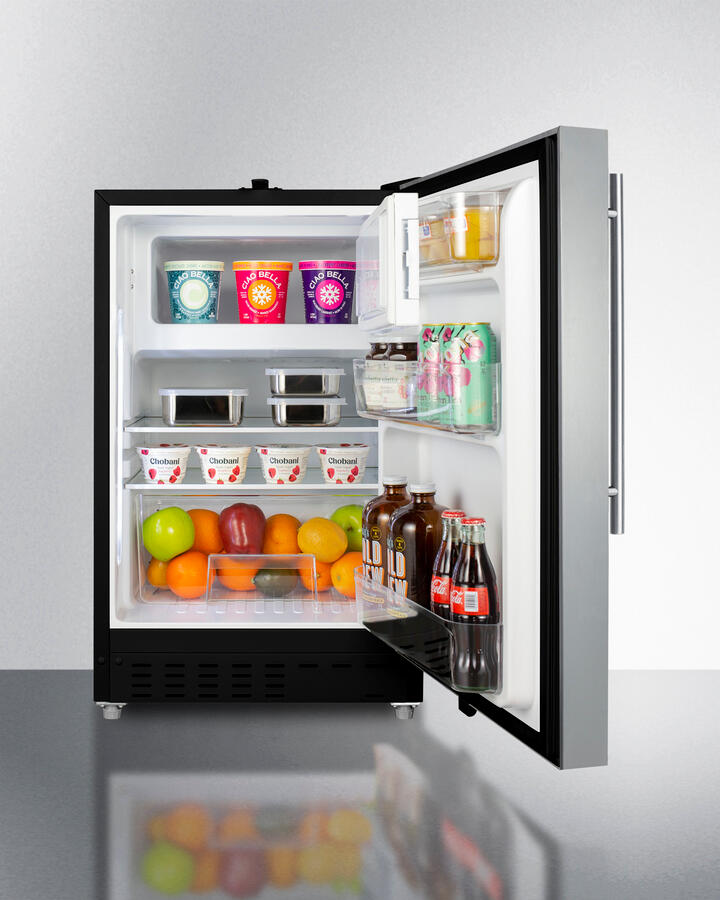

SUMMIT ALRF49BSSHV 20" Wide Built-in Refrigerator-freezer, ADA Compliant

Key Specs

Type: Compact refrigerators
Width: 19.88 Inch
Depth: 24.0 Inch
Height: 32.0 Inch

More details

Translation missing: en.products.product.product_variants

$1,083.57 $1,390.00 Save $306.43

Check Delivery Options

More on the way

Quantity:

Extended Protection

3 Year Major Appliance True Extended under $1,500.00
$115.99
5 Year Major Appliance True Extended under $1,500.00
$163.99
Decline Protection

Product Information
Technical Details
Manuals & Guides
Features
Reviews

General
Model: ALRF49BSSHV
Brand: Summit Appliance
Height: 32.0
Width: 19.88
Length: 24.0
Capacity & Storage
Number of Shelves: 3
Counter depth: No
Features
Ice Maker: No
Water Dispenser: No
Sabbath mode: No
Advanced Features
Wi-Fi Connectivity: No

Summit Appliance offers a quality selection of 20" wide built-in undercounter all-freezers designed for installation under lower ADA compliant counters, with advanced features for user convenience.

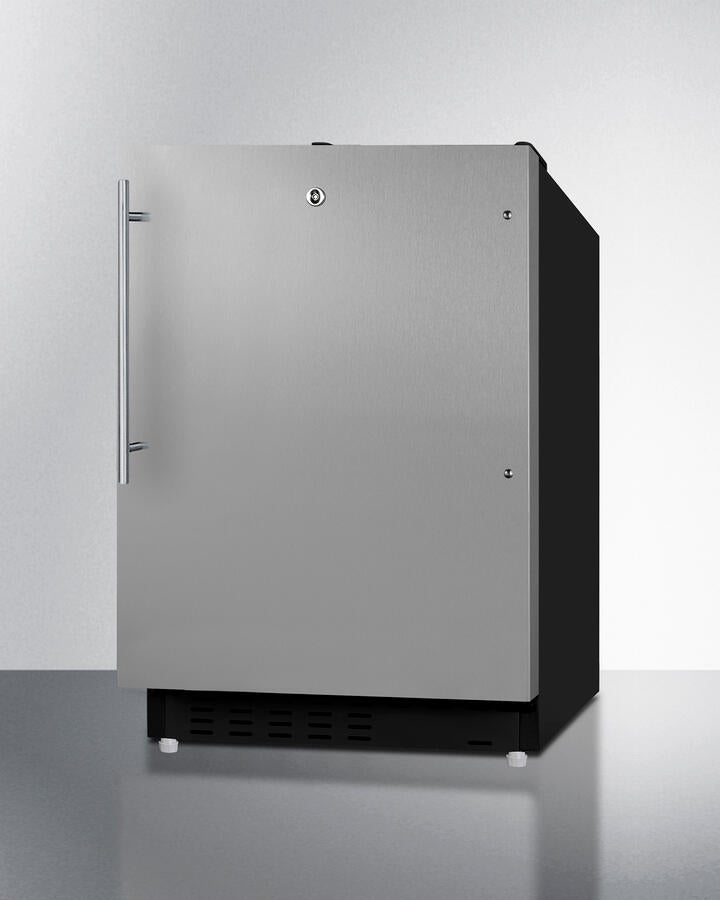

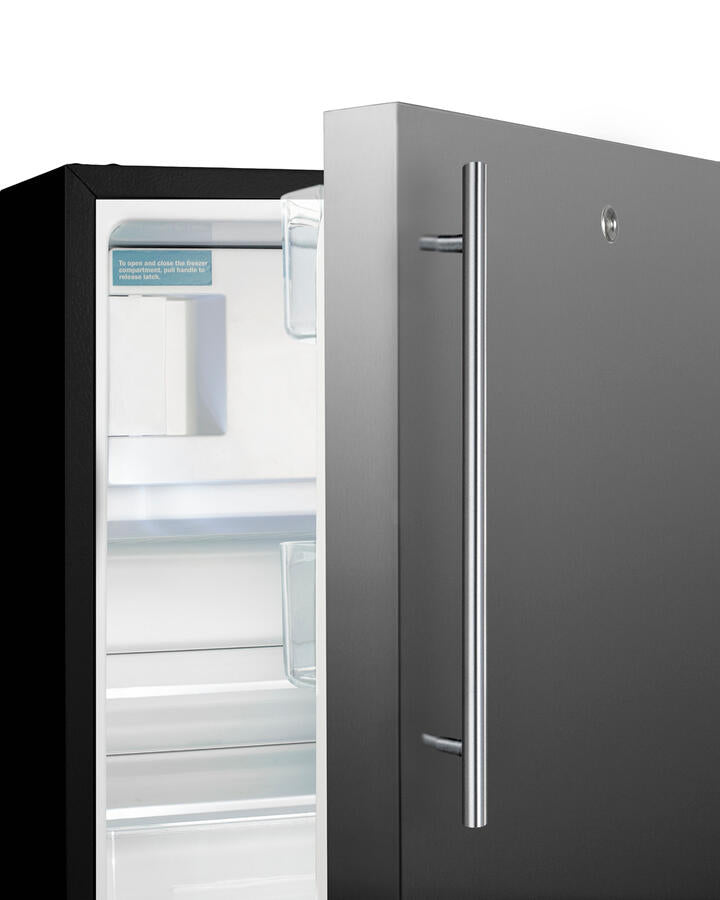

32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished stainless steel cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The stainless steel, user-reversible door is 3" thick for efficient insulation, with a curved towel bar handle included for added convenience. This unit comes with a right angle cord to allow for easier placement without added depth. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius.

Overview
Height of Cabinet	31.75" (81 cm)
Height to Hinge Cap	32.0" (81 cm)
Width	19.88" (50 cm)
Width with Door Open	20.88" (53 cm)
Depth	22.5" (57 cm)
Depth with Handle	24.0" (61 cm)
Depth with door at 90°	40.25" (102 cm)
Capacity	2.68 cu.ft. (76 L)
Defrost Type	Manual
Door	Stainless Steel
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Energy Usage/Year	259.0kWh/year
Amps	1.1
Voltage/Frequency	115 V AC/60 Hz
Weight	85.0 lbs. (39 kg)
Shipping Weight	90.0 lbs. (41 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101076546
Refrigerator-Freezer
Door Swing	RHD
Reversible	Yes
Crisper Qty	1
Crisper Finish	Transparent
Crisper Cover	Glass
Interior Light	Yes
Refrigerator - Interior Height	17.5" (44 cm)
Refrigerator - Interior Width	16.25" (41 cm)
Refrigerator - Interior Depth	17.0" (43 cm)
Refrigerator - Shelf Type	Glass
Refrigerator - Shelf Qty	3
Refrigerator - Full Door Shelves	3
Refrigerator - Temperature Range	35-46 F
Refrigerator - Refrigerant Type	R600a
Refrigerator - Refrigerant Amount	0.92 oz.
Freezer - Interior Height	5.75" (15 cm)
Freezer - Interior Width	16.25" (41 cm)
Freezer - Interior Depth	11.25" (29 cm)
Thermostat Type	Dial
Refrigerant Type	R600a
Refrigerant Amount	0.92 oz.
High Side PSI	180.0
Low Side PSI	80.0
Level Legs	2
Compressor Step Height	6.25" (16 cm)
Compressor Step Width	16.25" (41 cm)
Compressor Step Depth	6.0" (15 cm)
Lock
AC Keypad	KEYPAD
Exterior
LHD - Left hand door swing	ODA - Open door alarm
Overview
Height of Cabinet	31.75" (81 cm)
Height to Hinge Cap	32.0" (81 cm)
Width	19.88" (50 cm)
Width with Door Open	20.88" (53 cm)
Depth	22.5" (57 cm)
Depth with Handle	24.0" (61 cm)
Depth with door at 90°	40.25" (102 cm)
Capacity	2.68 cu.ft. (76 L)
Defrost Type	Manual
Door	Stainless Steel
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Energy Usage/Year	259.0kWh/year
Amps	1.1
Voltage/Frequency	115 V AC/60 Hz
Weight	85.0 lbs. (39 kg)
Shipping Weight	90.0 lbs. (41 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101076546
Refrigerator-Freezer
Door Swing	RHD
Reversible	Yes
Crisper Qty	1
Crisper Finish	Transparent
Crisper Cover	Glass
Interior Light	Yes
Refrigerator - Interior Height	17.5" (44 cm)
Refrigerator - Interior Width	16.25" (41 cm)
Refrigerator - Interior Depth	17.0" (43 cm)
Refrigerator - Shelf Type	Glass
Refrigerator - Shelf Qty	3
Refrigerator - Full Door Shelves	3
Refrigerator - Temperature Range	35-46 F
Refrigerator - Refrigerant Type	R600a
Refrigerator - Refrigerant Amount	0.92 oz.
Freezer - Interior Height	5.75" (15 cm)
Freezer - Interior Width	16.25" (41 cm)
Freezer - Interior Depth	11.25" (29 cm)
Thermostat Type	Dial
Refrigerant Type	R600a
Refrigerant Amount	0.92 oz.
High Side PSI	180.0
Low Side PSI	80.0
Level Legs	2
Compressor Step Height	6.25" (16 cm)
Compressor Step Width	16.25" (41 cm)
Compressor Step Depth	6.0" (15 cm)
Lock
AC Keypad	KEYPAD
Exterior
LHD - Left hand door swing	ODA - Open door alarm

ADA compliant design : 32" height allows easy installation under lower ADA compliant counters
Factory installed lock : Lock provides added security of unit (2 keys included)
Built-in capable : Front-breathing design lets you make the best use of space by installing your appliance under the counter

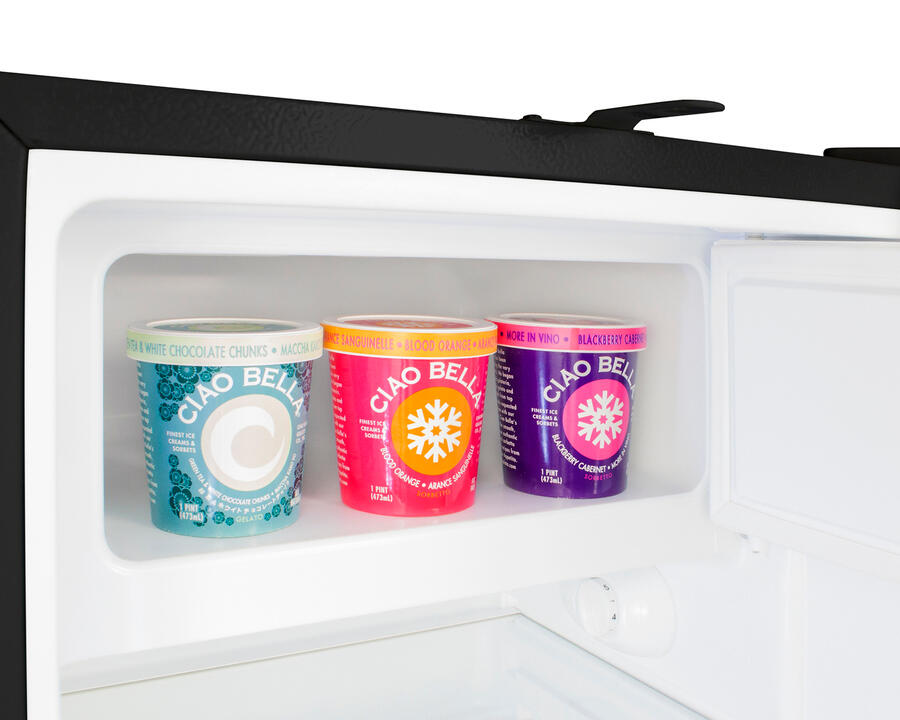

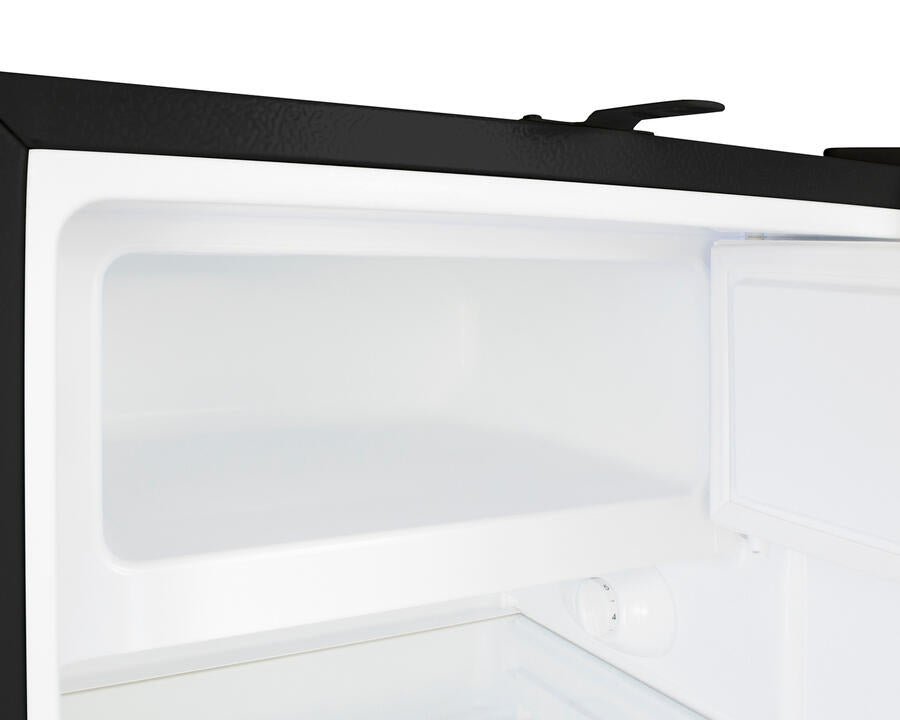

Freezer compartment : Interior freezer compartment offers convenient storage for frozen items

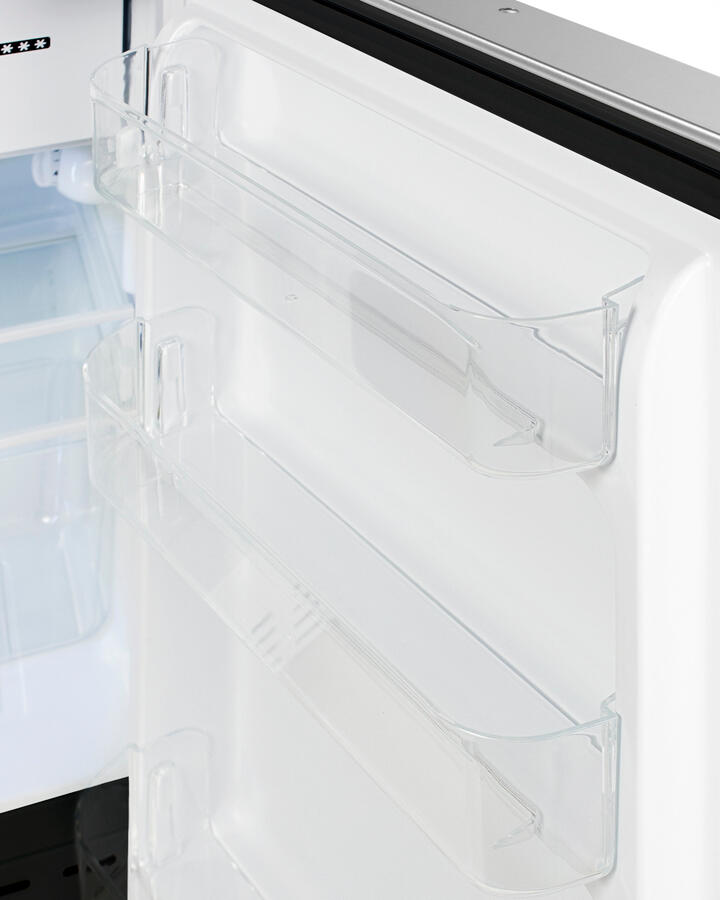

Door shelves : Three removable door racks for additional storage of larger items

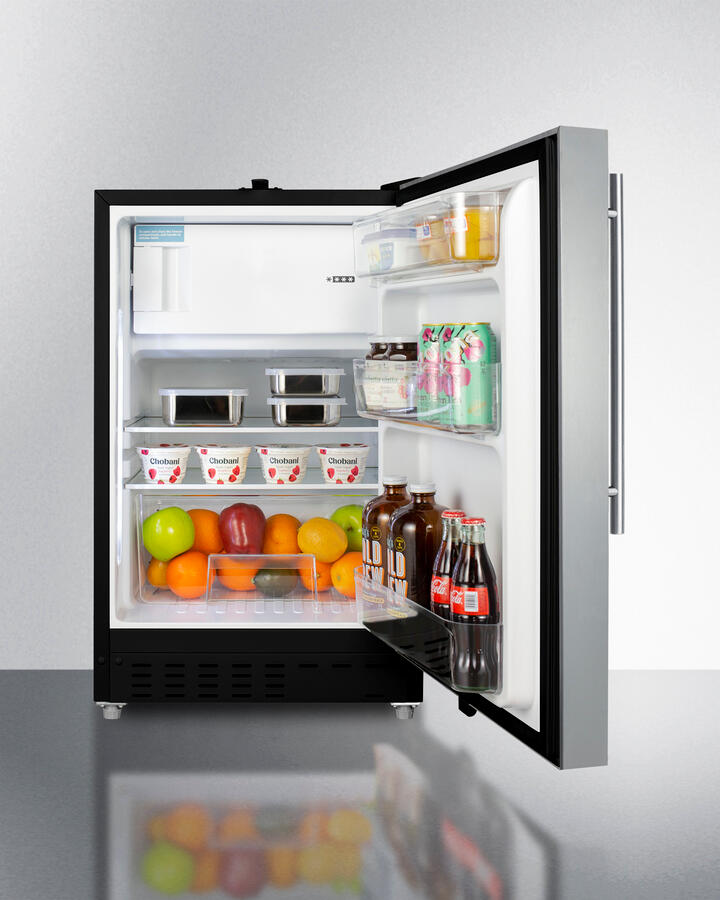

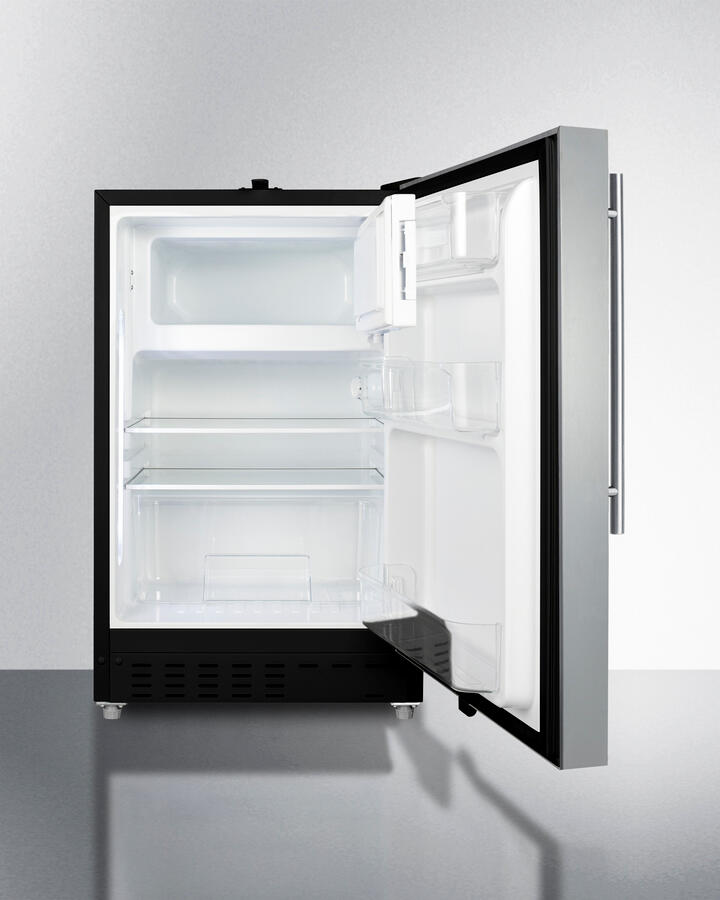

Adjustable shelves : Three adjustable, spill-proof glass shelves for optimal storage in the 2.68 cu. ft. interior
Fruit and vegetable crisper : Get the longest life and best taste out of produce by storing greens in a convenient slide drawer
Adjustable thermostat : Dial thermostat located inside for easy temperature management
Reversible stainless steel door : Stainless steel user-reversible door swing for added flexibility to best accommodate your setting
3" thick door : Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does open in its own radius. If installing this refrigerator-freezer against a wall, please see our drawings to ensure adequate space
