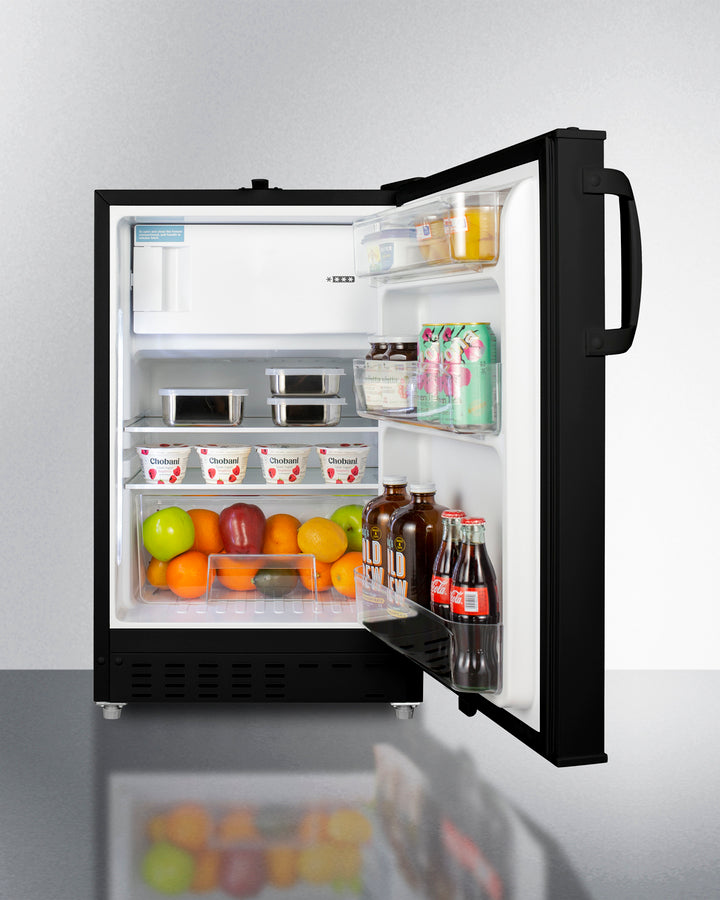

SUMMIT ALRF49B 20" Wide Built-in Refrigerator-freezer, ADA Compliant

Summit

SKU: ALRF49B

  • On Sale

Key Specs

  • Type: Compact refrigerators
  • Width: 19.75 Inch
  • Depth: 24.38 Inch
  • Height: 32 Inch

More details

Sale price $668.67 Regular price $970.00 Save $301.33

Check Delivery Options

More on the way

Notify Me

Extended Protection

?

Extend your appliance's warranty beyond the manufacturer's terms with our Extended Protection Plan.

Enjoy added peace of mind long after the original warranty expires.

This Protection Plan includes:

  • Full parts and labor coverage during the whole period of the extension plan.
  • Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty
  • Food loss protection
  • 24/7 toll-free number for support

Click here for full details.

  • $115.99
  • $163.99
  • Product Information
  • Specifications
  • Manuals & Guides
  • Features
  • Reviews
  • General
  • Model: ALRF49B
  • Brand: Summit Appliance
  • Type: Refrigerators
  • Height: 32
  • Width: 19.75
  • Length: 24.38
  • Capacity & Storage
  • Number of Shelves: 3
  • Counter depth: No
  • Features
  • Ice Maker: No
  • Water Dispenser: No
  • Sabbath mode: No
  • Advanced Features
  • Wi-Fi Connectivity: No
Summit Appliance offers a quality selection of 20" wide built-in undercounter all-freezers designed for installation under lower ADA compliant counters, with advanced features for user convenience. 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished stainless steel cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The stainless steel, user-reversible door is 3" thick for efficient insulation, with a curved towel bar handle included for added convenience. This unit comes with a right angle cord to allow for easier placement without added depth. A digital...
Summit Appliance offers a quality selection of 20" wide built-in undercounter all-freezers designed for installation under lower ADA compliant counters, with advanced features for user convenience. 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished stainless steel cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The stainless steel, user-reversible door is 3" thick for efficient insulation, with a curved towel bar handle included for added convenience. This unit comes with a right angle cord to allow for easier placement without added depth. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius.
Overview
Height of Cabinet 31.75" (81 cm)
Height to Hinge Cap 32.0" (81 cm)
Width 19.75" (50 cm)
Width with Door Open 20.25" (51 cm)
Depth 22.5" (57 cm)
Depth with Handle 24.38" (62 cm)
Depth with door at 90° 40.25" (102 cm)
Capacity 2.68 cu.ft. (76 L)
Defrost Type Manual
Door Black
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 259.0kWh/year
Amps 1.1
Voltage/Frequency 115 V AC/60 Hz
Weight 65.0 lbs. (29 kg)
Shipping Weight 70.0 lbs. (32 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101074009
Refrigerator-Freezer
Door Swing RHD
Reversible Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Interior Light Yes
Refrigerator - Interior Height 17.5" (44 cm)
Refrigerator - Interior Width 16.25" (41 cm)
Refrigerator - Interior Depth 17.0" (43 cm)
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 3
Refrigerator - Full Door Shelves 3
Refrigerator - Temperature Range 35-46 F
Refrigerator - Refrigerant Type R600a
Refrigerator - Refrigerant Amount 0.92 oz.
Freezer - Interior Height 5.75" (15 cm)
Freezer - Interior Width 16.25" (41 cm)
Freezer - Interior Depth 11.25" (29 cm)
Thermostat Type Dial
Refrigerant Type R600a
Refrigerant Amount 0.92 oz.
High Side PSI 180.0
Low Side PSI 80.0
Level Legs 2
Compressor Step Height 6.25" (16 cm)
Compressor Step Width 16.25" (41 cm)
Compressor Step Depth 6.0" (15 cm)
Exterior
ODA - Open door alarm LHD - Left hand door swing
Lock
KEYPAD AC Keypad
Overview
Height of Cabinet 31.75" (81 cm)
Height to Hinge Cap 32.0" (81 cm)
Width 19.75" (50 cm)
Width with Door Open 20.25" (51 cm)
Depth 22.5" (57 cm)
Depth with Handle 24.38" (62 cm)
Depth with door at 90° 40.25" (102 cm)
Capacity 2.68 cu.ft. (76 L)
Defrost Type Manual
Door Black
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 259.0kWh/year
Amps 1.1
Voltage/Frequency 115 V AC/60 Hz
Weight 65.0 lbs. (29 kg)
Shipping Weight 70.0 lbs. (32 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101074009
Refrigerator-Freezer
Door Swing RHD
Reversible Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Interior Light Yes
Refrigerator - Interior Height 17.5" (44 cm)
Refrigerator - Interior Width 16.25" (41 cm)
Refrigerator - Interior Depth 17.0" (43 cm)
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 3
Refrigerator - Full Door Shelves 3
Refrigerator - Temperature Range 35-46 F
Refrigerator - Refrigerant Type R600a
Refrigerator - Refrigerant Amount 0.92 oz.
Freezer - Interior Height 5.75" (15 cm)
Freezer - Interior Width 16.25" (41 cm)
Freezer - Interior Depth 11.25" (29 cm)
Thermostat Type Dial
Refrigerant Type R600a
Refrigerant Amount 0.92 oz.
High Side PSI 180.0
Low Side PSI 80.0
Level Legs 2
Compressor Step Height 6.25" (16 cm)
Compressor Step Width 16.25" (41 cm)
Compressor Step Depth 6.0" (15 cm)
Exterior
ODA - Open door alarm LHD - Left hand door swing
Lock
KEYPAD AC Keypad
  • ADA compliant design : 32" height allows easy installation under lower ADA compliant counters
  • Factory installed lock : Lock provides added security of unit (2 keys included)
  • Built-in capable : Front-breathing design lets you make the best use of space by installing your appliance under the counter

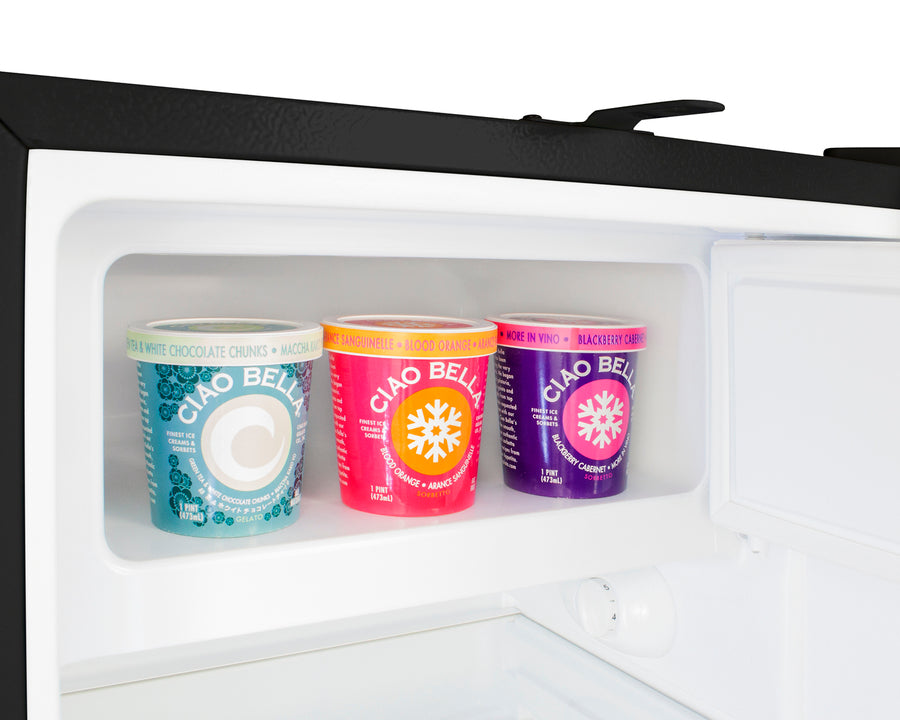

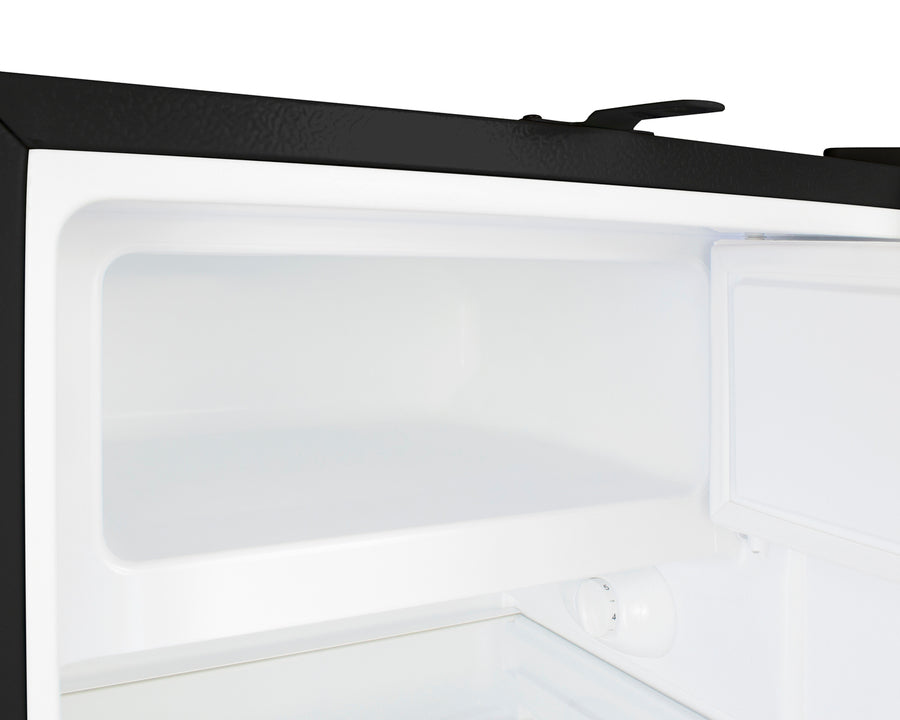

  • Freezer compartment : Interior freezer compartment offers convenient storage for frozen items

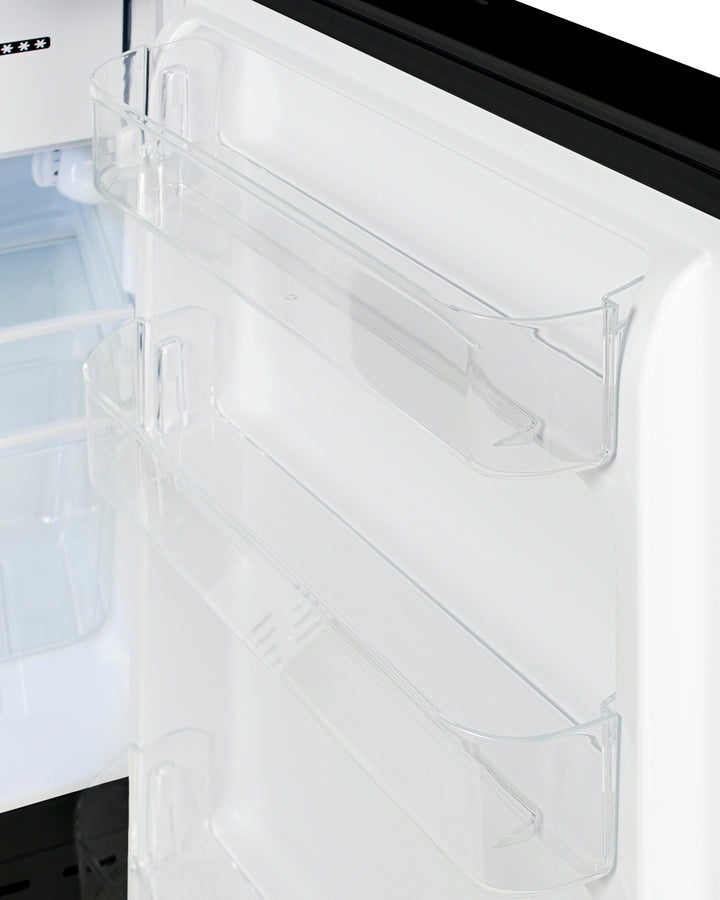

  • Door shelves : Three removable door racks for additional storage of larger items
  • Adjustable shelves : Three adjustable, spill-proof glass shelves for optimal storage in the 2.68 cu. ft. interior
  • Fruit and vegetable crisper : Get the longest life and best taste out of produce by storing greens in a convenient slide drawer
  • Adjustable thermostat : Dial thermostat located inside for easy temperature management
  • Reversible door : User-reversible door swing for added flexibility to best accommodate your setting
  • 3" thick door : Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does open in its own radius. If installing this refrigerator-freezer against a wall, please see our drawings to ensure adequate space
