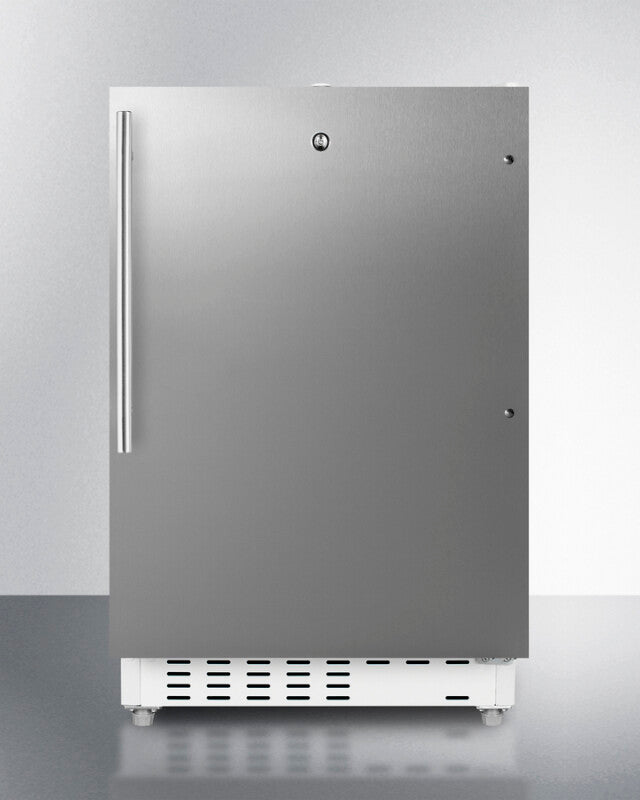

Summit ALRF48SSHV 21" Wide Built-in Refrigerator-Freezer, ADA Compliant White

Quick Specification More details

Width:
20.88"
Depth:
22.5"
Height:
31.75"
Type:
Compact Refrigerators

About this product

ADA compliant design
Fruit and vegetable crisper
Door shelves
Adjustable shelves

Summer Sale

Clearance

SKU: ALRF48SSHV | UPC: 761101076669

Summit ALRF48SSHV 21" Wide Built-in Refrigerator-Freezer, ADA Compliant White

$1,286.03 ~~$1,524.97~~ Save $238.94 / 15% OFF

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
20.88"
Depth:
22.5"
Height:
31.75"
Type:
Compact Refrigerators

About this product

ADA compliant design
Fruit and vegetable crisper
Door shelves
Adjustable shelves

Product Details
Manuals & Guides
From The Manufacturer
Reviews

$1,286.03 ~~$1,524.97~~ Save $238.94 / 15% OFF

Product Details for Summit ALRF48SSHV

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

Dimensions & weight

Width	20.88 in.
Height	31.75 in.
Length	22.5 in.
Weight	85 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	8.63 ft³
Dimensional Weight	107.31 lbs.
Total of Cubes	8.63 ft³
Total of Dimensional Weight	107.31 lbs.

Overview refrigerator-freezer

Nominal Height	32.0" (81 cm)
Height of Cabinet	31.75" (81 cm)
Height to Hinge Cap	32.0" (81 cm)
Nominal Width	21.0" (53 cm)
Width	20.88" (53 cm)
Nominal Depth	23.0" (58 cm)
Depth	22.5" (57 cm)
Depth with Handle	24.0" (61 cm)
Depth with door at 90°	40.25" (102 cm)
Capacity	2.68 cu.ft. (76 L)
Defrost Type	Manual
Door	Stainless Steel
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Energy Usage/Year	259.0kWh/year
Amps	1.1
Voltage/Frequency	115 V AC/60 Hz
Weight	85.0 lbs. (39 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101076669
Door Swing	RHD
Reversible	Yes
Adjustable Shelves	Yes
Crisper Qty	1
Crisper Finish	Transparent
Crisper Cover	Glass
Interior Light	Yes
Refrigerator - Interior Height	17.5" (44 cm)
Refrigerator - Interior Width	16.25" (41 cm)
Refrigerator - Interior Depth	17.0" (43 cm)
Refrigerator - Shelf Type	Glass
Refrigerator - Shelf Qty	3
Refrigerator - Full Door Shelves	3
Refrigerator - Temperature Range	35-46º F
Refrigerator - Refrigerant Type	R600a
Refrigerator - Refrigerant Amount	0.92 oz.
Freezer - Interior Height	5.75" (15 cm)
Freezer - Interior Width	16.25" (41 cm)
Freezer - Interior Depth	11.25" (29 cm)
Thermostat Type	Dial
Refrigerant Type	R600a
Refrigerant Amount	0.92 oz.
High Side PSI	180.0
Low Side PSI	80.0
Level Legs	2
Compressor Step Height	6.25" (16 cm)
Compressor Step Width	16.25" (41 cm)
Compressor Step Depth	6.0" (15 cm)
Sound Level	32.9 dB

Description

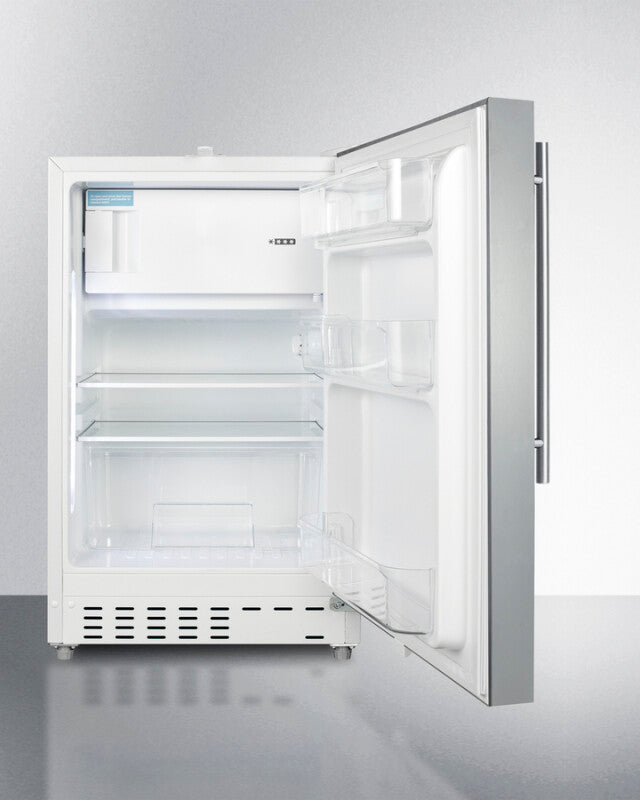

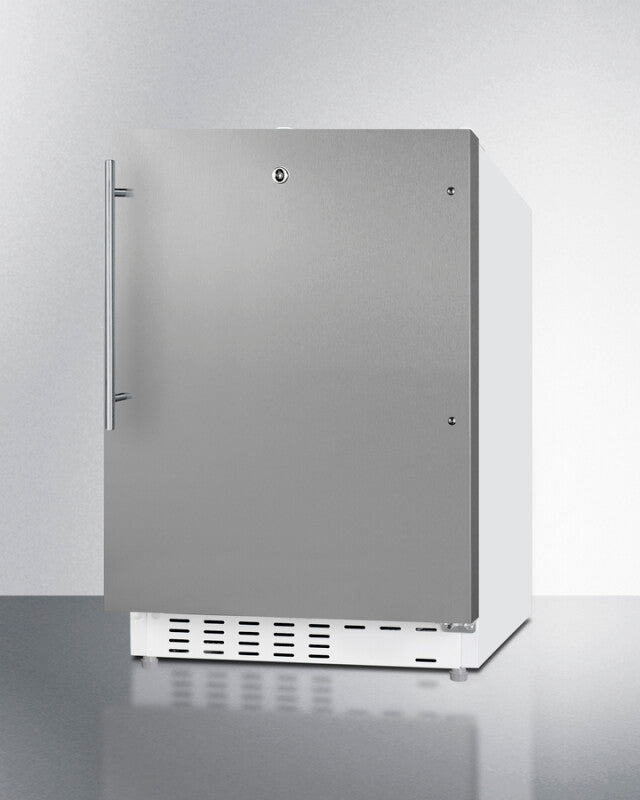

Summit Appliance offers a wide range of built-in undercounter refrigerator-freezers designed for installation under lower ADA compliant counters, with advanced features for user convenience. The ALRF48SSHV is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The stainless steel, user-reversible door is 3" thick for efficient insulation, with a sleek vertical handle with a thin 14mm diameter, a popular style that matches many common cabinet handles. This unit comes with a right angle cord to allow for easier placement without added depth. A factory-installed lock is conveniently located towards the top of the door to provide security as needed. Inside, the ALRF48SSHV features an all-white interior for easy cleaning and viewing of contents. Static manual defrost operation provides efficient cooling inside the 2.68 cu.ft. interior, while the dial thermostat makes temperature management simple. An automatic LED light located toward the front of the unit attractively illuminates the interior when the door opens. Three spill-proof adjustable glass shelves offer flexible storage options for large and small items, while a pull-out crisper drawer provides storage for fruits and vegetables. Three removable door racks accommodate additional storage as needed. This unit includes a compact freezer compartment with a cover. With its compact size and convenient features, the ALRF48SSHV is the perfect unit for offices, dormitories, and other residential settings in need of an easy-fitting refrigerator-freezer.

Product Features

ADA compliant design
32" height allows easy installation under lower ADA compliant counters
Fruit and vegetable crisper
Get the longest life and best taste out of produce by storing greens in a convenient slide drawer

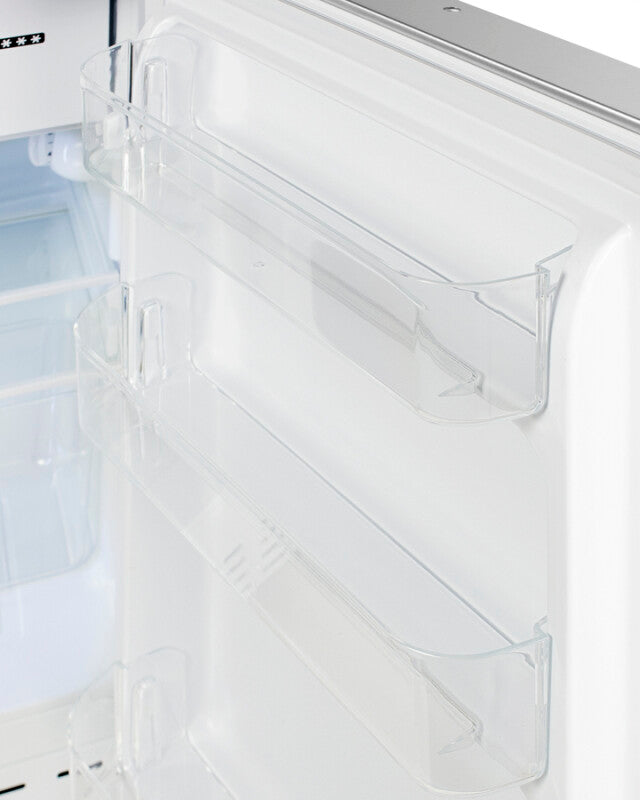

Door shelves
Three removable door racks for additional storage of larger items

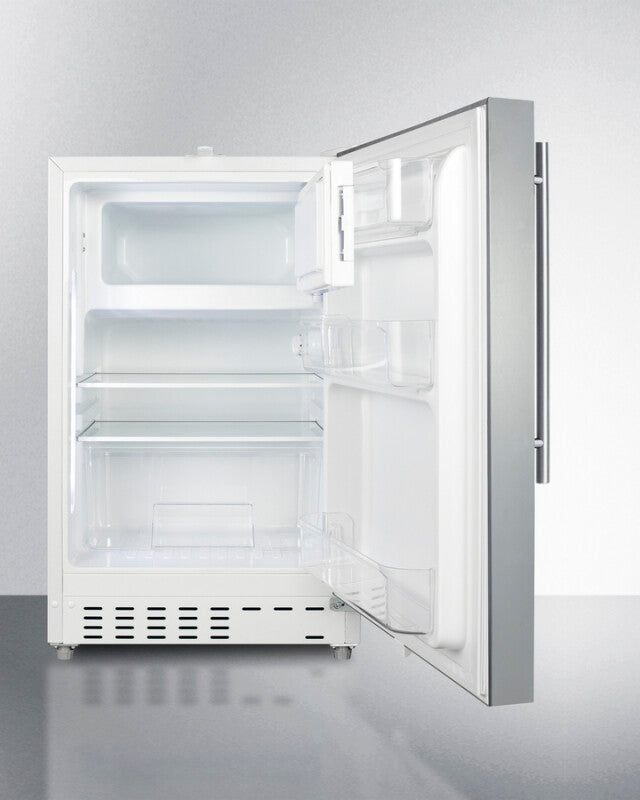

Adjustable shelves
Three adjustable, spill-proof glass shelves for optimal storage in the 2.68 cu. ft. interior
Adjustable thermostat
Dial thermostat located inside for easy temperature management
Factory installed lock
Lock provides added security of unit (2 keys included)
Reversible stainless steel door
Stainless steel user-reversible door swing for added flexibility to best accommodate your setting

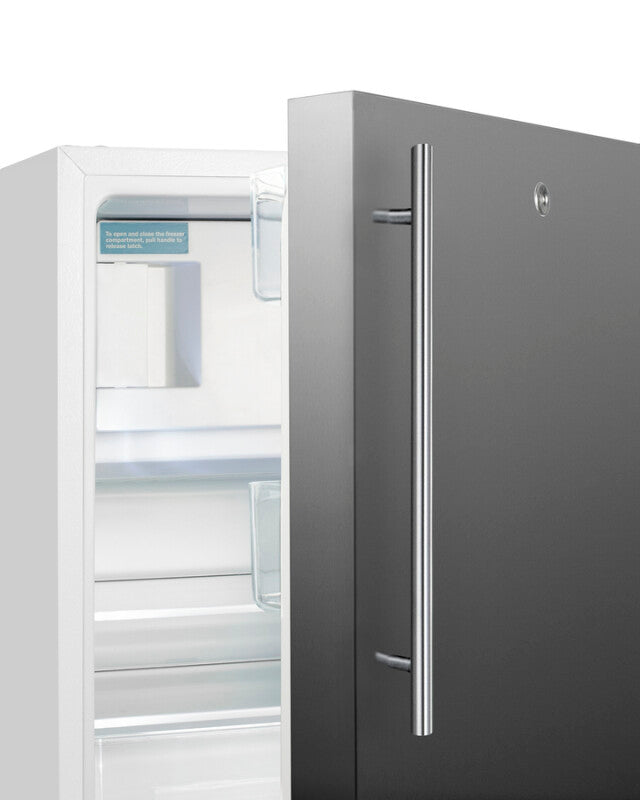

Professional handle
Brushed stainless steel handle with a thin 14mm diameter is mounted vertically for a sleek look
Sealed back
Space-saving design that offers easier cleanability
Manual defrost
Efficient performance with reliable temperature stability
Right-angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Fully finished white cabinet
Allows the unit to be used freestanding
Interior light
Front-located LED light ensures entire interior is lit when door opens
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
Built-in capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

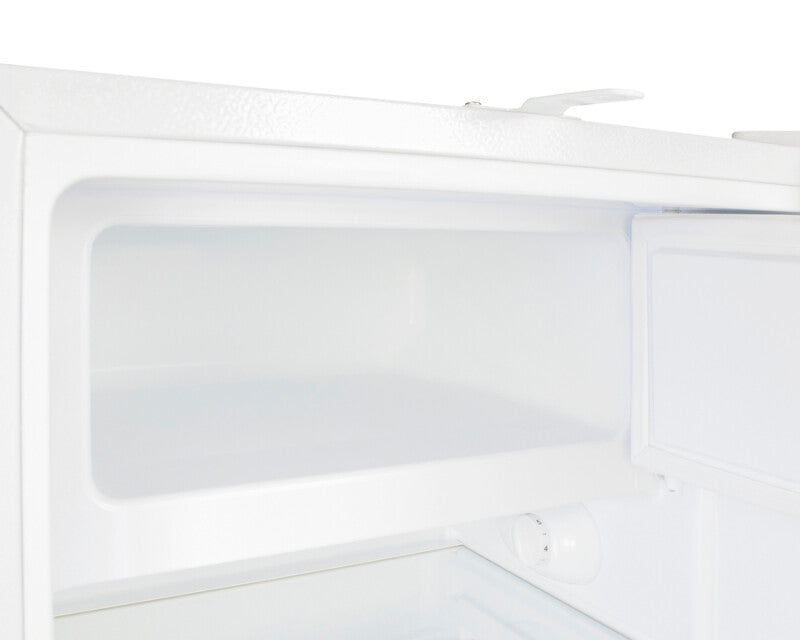

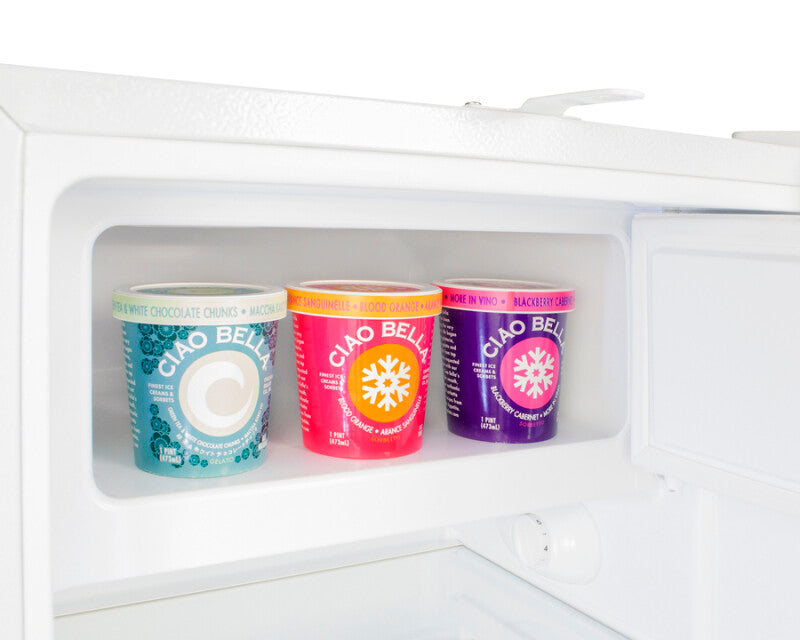

Freezer compartment
Interior freezer compartment offers convenient storage for frozen items
3" thick door
Improved insulation for an efficient performance
