Name: SUMMIT ALR47BCSSHV 20" Wide Built-in All-refrigerator, ADA Compliant
Brand: SUMMIT
SKU: ALR47BCSSHV-KT
Price: 1720.00 USD
Availability: InStock

SUMMIT ALR47BCSSHV 20" Wide Built-in All-refrigerator, ADA Compliant

Key Specs

Type: Compact refrigerators
Width: 19.88 Inch
Depth: 22.5 Inch
Height: 32.0 Inch

More details

Translation missing: en.products.product.product_variants

$1,720.00 $2,408.00 Save $688.00

More on the way

Quantity:

Extended Protection

5 Year Major Appliance True Extended under $2,500.00
$195.99
3 Year Major Appliance True Extended under $2,500.00
$131.99
Decline Protection

Check Delivery Options

Product Information
Technical Details
Manuals & Guides
Features
Reviews

General
Model: ALR47BCSSHV
Brand: Summit Appliance
Height: 32.0
Width: 19.88
Length: 22.5
Capacity & Storage
Capacity (cu. ft.): 3.53
Number of Shelves: 3
Counter depth: No
Features
Ice Maker: No
Water Dispenser: No
Sabbath mode: No
Advanced Features
Wi-Fi Connectivity: No

Summit Appliance offers a quality selection of 20" wide built-in undercounter all-freezers designed for installation under lower ADA compliant counters, with advanced features for user convenience.

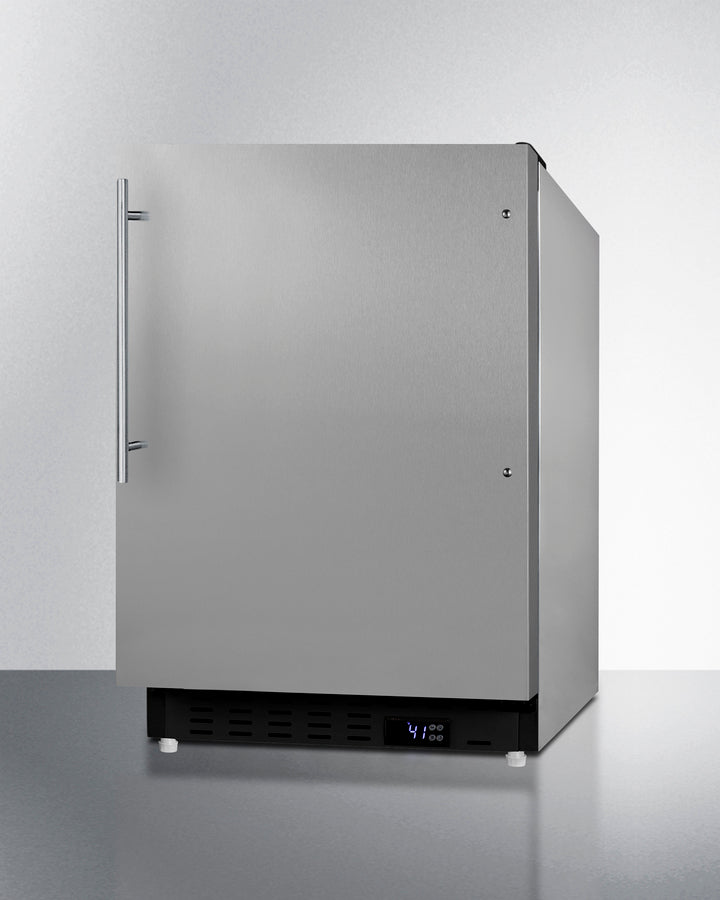

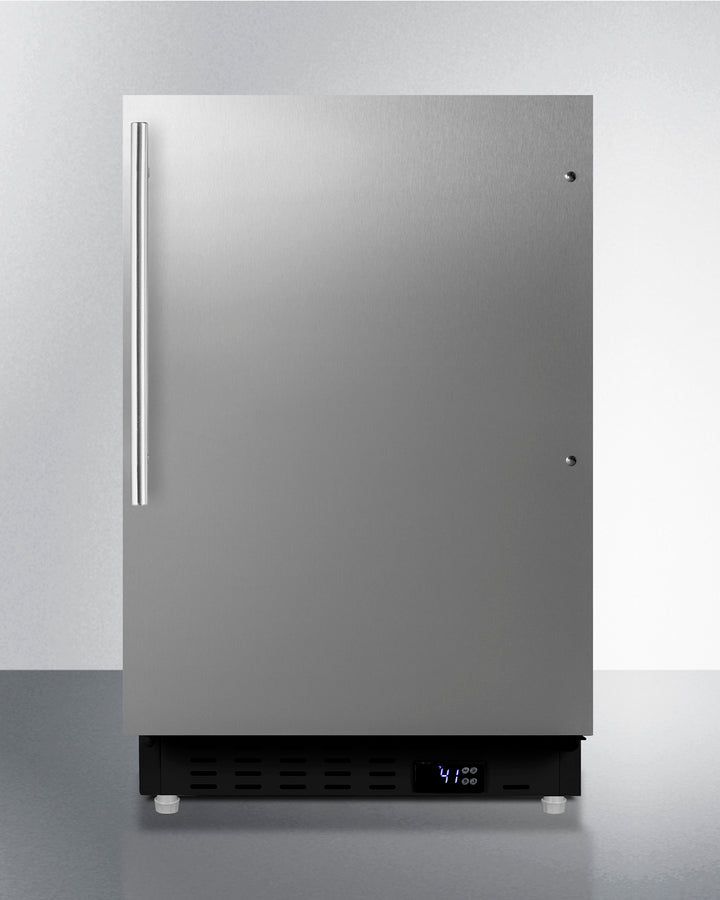

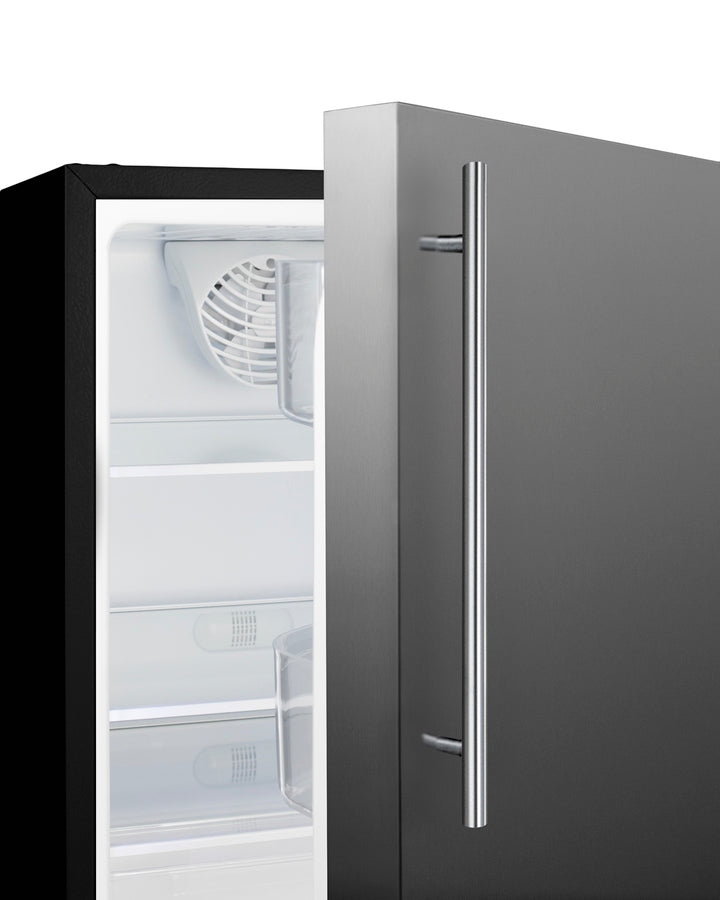

32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished stainless steel cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The stainless steel, user-reversible door is 3" thick for efficient insulation, with a curved towel bar handle included for added convenience. This unit comes with a right angle cord to allow for easier placement without added depth. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius.

Overview
Height of Cabinet	31.75" (81 cm)
Height to Hinge Cap	32.0" (81 cm)
Width	19.88" (50 cm)
Width with Door Open	20.88" (53 cm)
Depth	22.5" (57 cm)
Depth with Handle	24.0" (61 cm)
Depth with door at 90°	40.25" (102 cm)
Capacity	3.53 cu.ft. (100 L)
Defrost Type	Automatic
Door	Stainless Steel
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Energy Usage/Year	251.0kWh/year
Amps	1.1
Voltage/Frequency	115 V AC/60 Hz
Weight	105.0 lbs. (48 kg)
Shipping Weight	110.0 lbs. (50 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101076812
Refrigerator Features
Door Swing	RHD
Reversible	Yes
Crisper Qty	1
Crisper Finish	Transparent
Crisper Cover	Glass
Shelf Type	Glass
Shelf Qty	3
Full Door Shelf Qty	3
Thermostat Type	Digital
Fan Type	Interior
Refrigerant Type	R600a
Refrigerant Amount	0.99oz.
High Side PSI	180.0
Low Side PSI	80.0
Level Legs Qty	2
Wheel Qty	2

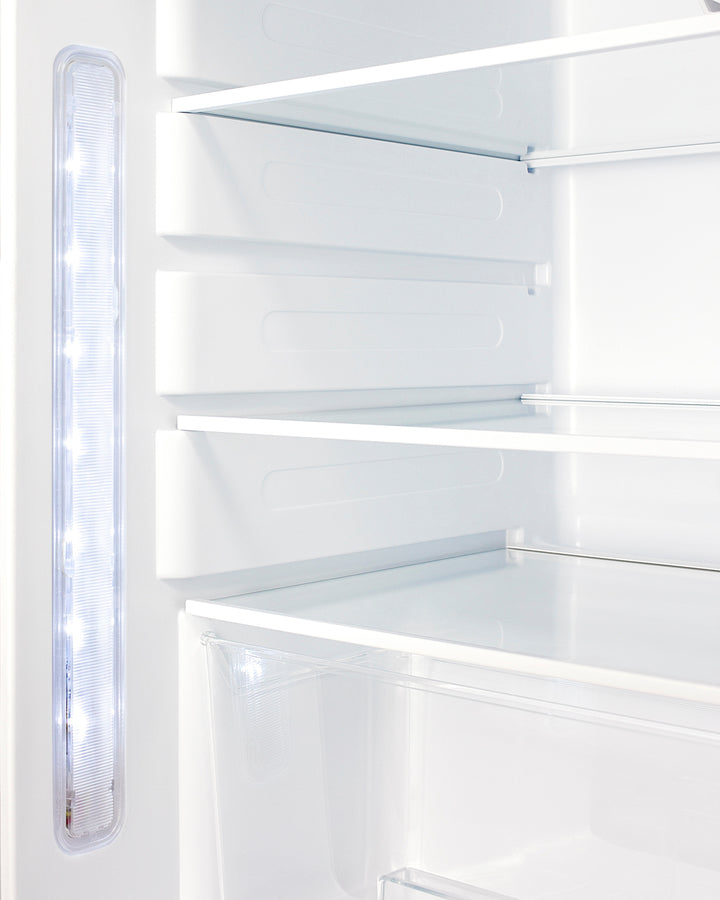

Interior Light	Yes
Temperature Range	35 to 46°F
Dimensions
Interior Height	23.5" (60 cm)
Interior Width	16.25" (41 cm)
Interior Depth	17.0" (43 cm)
Compressor Step Height	6.25" (16 cm)
Compressor Step Width	16.25" (41 cm)
Compressor Step Depth	6.0" (15 cm)
Exterior
DL2B - Factory installed NIST calibrated digital data logger (DDL)	Alarm
HG - Hospital grade cord	LHD - Left hand door swing
PH - Probe Hole	SCD - Self-closing door
TT - Installed thermometer	-
Lock
AC Keypad	L-Installed Lock
KEYPAD	-
Overview
Height of Cabinet	31.75" (81 cm)
Height to Hinge Cap	32.0" (81 cm)
Width	19.88" (50 cm)
Width with Door Open	20.88" (53 cm)
Depth	22.5" (57 cm)
Depth with Handle	24.0" (61 cm)
Depth with door at 90°	40.25" (102 cm)
Capacity	3.53 cu.ft. (100 L)
Defrost Type	Automatic
Door	Stainless Steel
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Energy Usage/Year	251.0kWh/year
Amps	1.1
Voltage/Frequency	115 V AC/60 Hz
Weight	105.0 lbs. (48 kg)
Shipping Weight	110.0 lbs. (50 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101076812
Refrigerator Features
Door Swing	RHD
Reversible	Yes
Crisper Qty	1
Crisper Finish	Transparent
Crisper Cover	Glass
Shelf Type	Glass
Shelf Qty	3
Full Door Shelf Qty	3
Thermostat Type	Digital
Fan Type	Interior
Refrigerant Type	R600a
Refrigerant Amount	0.99oz.
High Side PSI	180.0
Low Side PSI	80.0
Level Legs Qty	2
Wheel Qty	2
Interior Light	Yes
Temperature Range	35 to 46°F
Dimensions
Interior Height	23.5" (60 cm)
Interior Width	16.25" (41 cm)
Interior Depth	17.0" (43 cm)
Compressor Step Height	6.25" (16 cm)
Compressor Step Width	16.25" (41 cm)
Compressor Step Depth	6.0" (15 cm)
Exterior
DL2B - Factory installed NIST calibrated digital data logger (DDL)	Alarm
HG - Hospital grade cord	LHD - Left hand door swing
PH - Probe Hole	SCD - Self-closing door
TT - Installed thermometer	-
Lock
AC Keypad	L-Installed Lock
KEYPAD	-

No
ADA compliant design : 32" height allows easy installation under lower ADA compliant counters
Open door alarm : Audible alarm will sound if the door is left ajar for over a minute
Built-in capable : Front-breathing design lets you make the best use of space by installing your appliance under the counter
Adjustable thermostat : Digital thermostat offers easy temperature management with a readout in Fahrenheit or Celsius

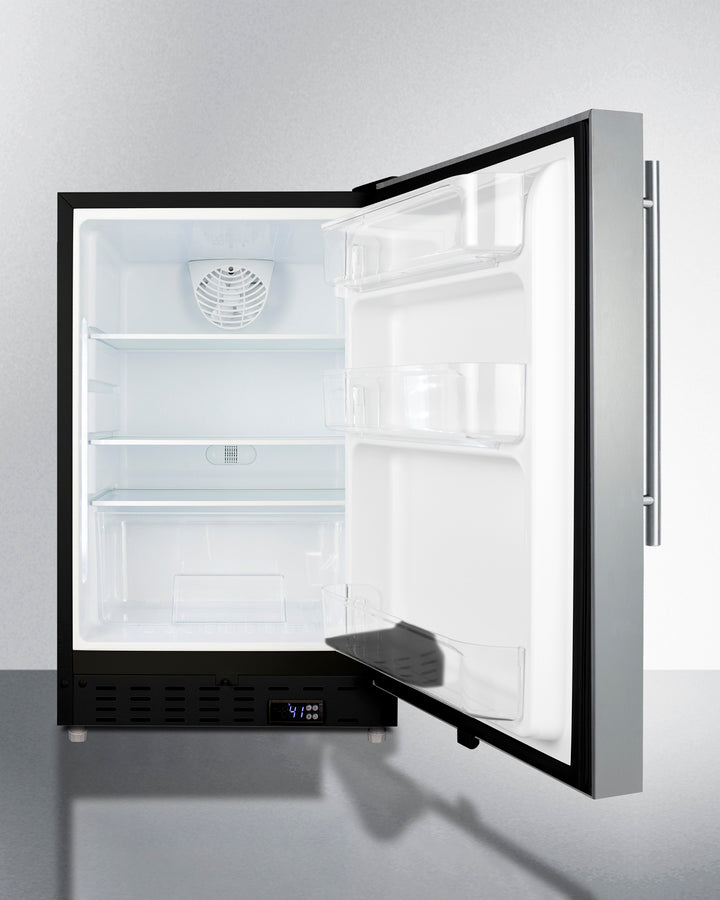

Door shelves : Three removable door racks for additional storage of larger items

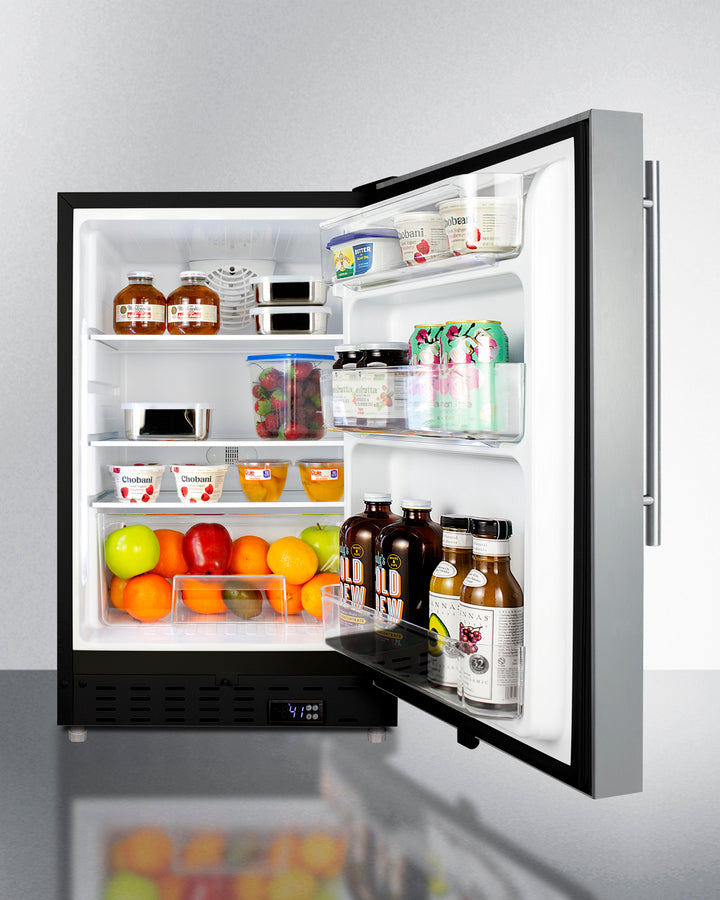

Adjustable glass shelves : Three adjustable spill-proof shelves for optimal storage in 3.53 cu. ft. interior
Fruit and vegetable crisper : Get the longest life and best taste out of produce by storing greens in a convenient slide drawer
3" thick door : Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does open in its own radius. If installing this refrigerator against a wall, please see our drawings to ensure adequate space
Reversible stainless steel door : User-reversible stainless steel door for added flexibility to best accommodate your setting
Temperature alarms : User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
