Summit ALR46WCSSHV 21" Wide Built-In All-Refrigerator, ADA Compliant Stainless Steel
Sale price
$1,563.27
Regular price
$1,974.97
Save
$411.70
/ 20% OFF
Out of stock
Active Rebates
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Sale price
$1,563.27
Regular price
$1,974.97
Save
$411.70
/ 20% OFF
Product Details for Summit ALR46WCSSHV
Technical Details
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Overview refrigerator features dimensions
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.75" (81 cm) |
| Height to Hinge Cap | 32.0" (81 cm) |
| Nominal Width | 21.0" (53 cm) |
| Width | 20.88" (53 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.5" (57 cm) |
| Depth with Handle | 24.0" (61 cm) |
| Depth with door at 90° | 40.25" (102 cm) |
| Capacity | 3.53 cu.ft. (100 L) |
| Defrost Type | Automatic |
| Door | Stainless Steel |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 251.0kWh/year |
| Amps | 1.1 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 105.0 lbs. (48 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101076843 |
| Door Swing | RHD |
| Reversible | Yes |
| Crisper Qty | 1 |
| Crisper Finish | Transparent |
| Crisper Cover | Glass |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Full Door Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.99oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Level Legs Qty | 2 |
| Wheel Qty | 2 |
| Interior Light | Yes |
| Temperature Range | 35 to 46°F |
| Sound Level | 33.2 dB |
| Interior Height | 23.5" (60 cm) |
| Interior Width | 16.25" (41 cm) |
| Interior Depth | 17.0" (43 cm) |
| Compressor Step Height | 6.25" (16 cm) |
| Compressor Step Width | 16.25" (41 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
Description

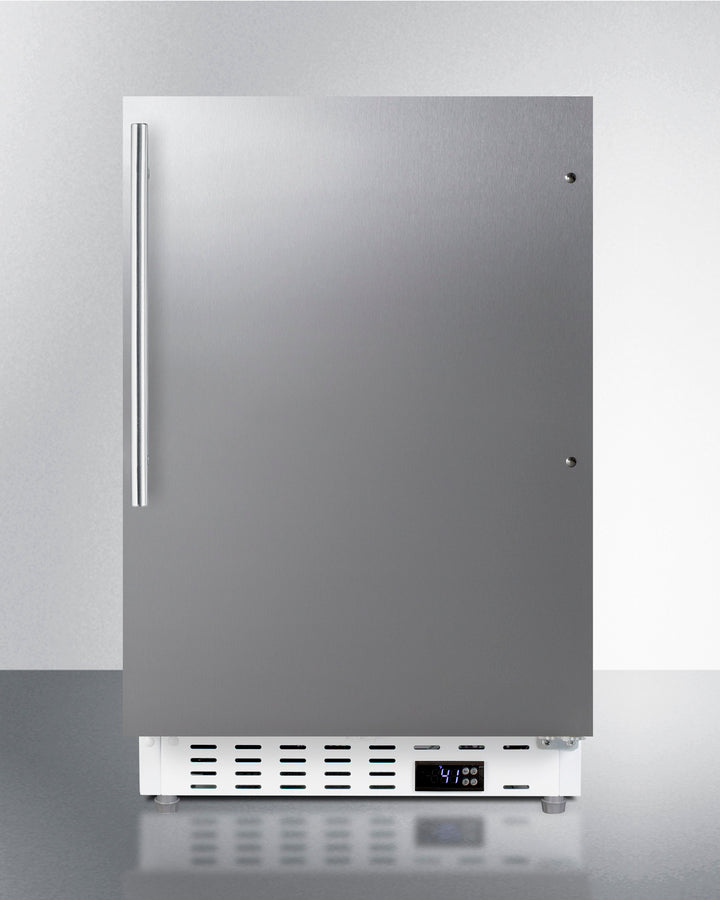

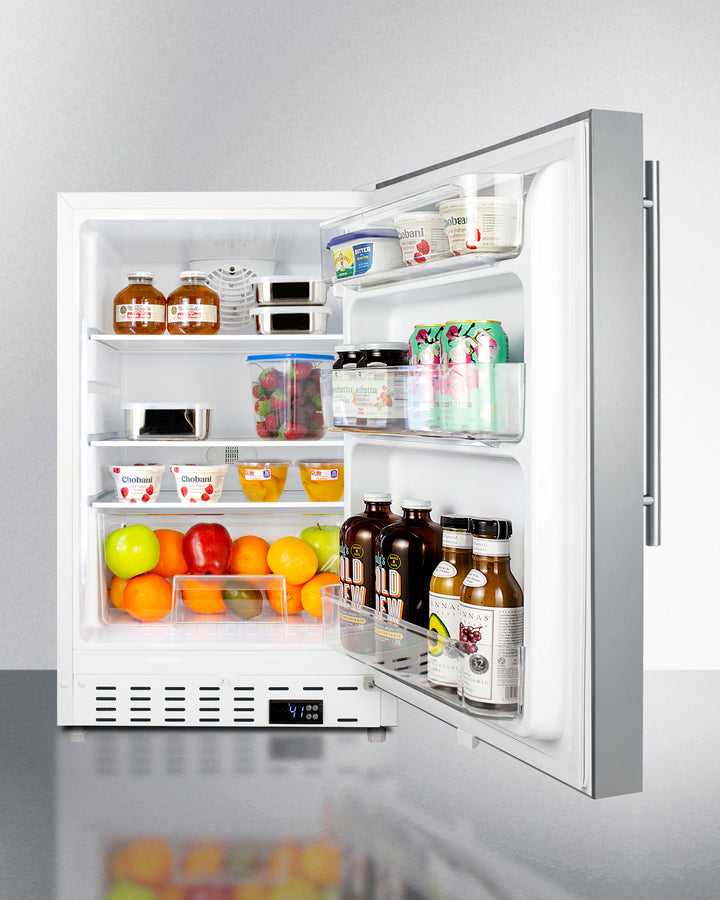

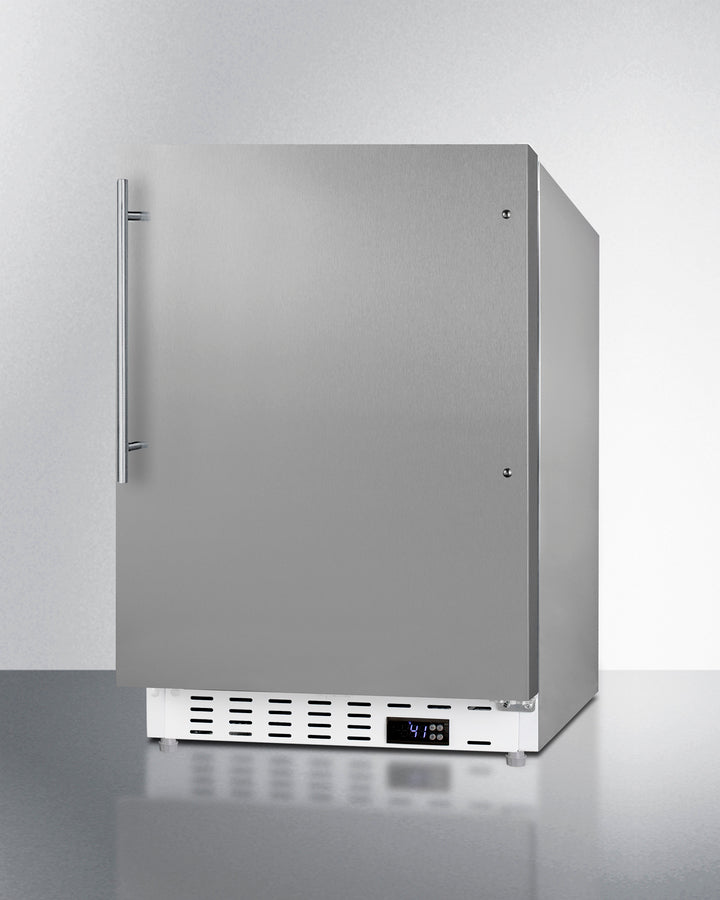

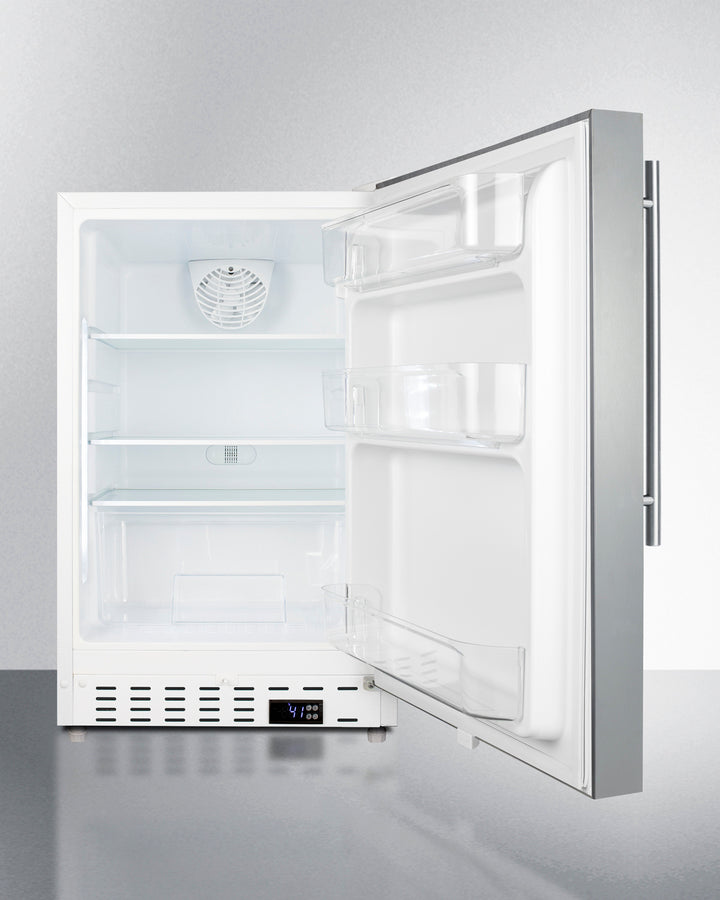

Summit Appliance offers a quality selection of 21" wide built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters, with advanced features for user convenience. The ALR46WCSSHV is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished stainless steel cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The user-reversible, stainless steel, door is 3" thick for efficient insulation, with a sleek vertical handle with a thin 14mm diameter, a popular style that matches many common cabinet handles. This unit comes with a right angle cord to allow for easier placement without added depth. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius. Inside, the ALR46WCSSHV features an all-white interior for easy cleaning and viewing of contents. An LED light located toward the front of the unit attractively illuminates the interior when the door opens. Automatic defrost operation ensures minimal user maintenance, with an internal fan to help ensure even cooling throughout the 3.53 cu.ft. interior. Three adjustable glass shelves offer optimal storage options for large and small items, while a pull-out crisper drawer provides storage for fruits and vegetables. Three removable door racks accommodate additional storage as needed. The user-set high and low-temperature alarms provide added security should the temperature go beyond the setpoint, while the open door alarm sounds if the door is ajar over one minute for added peace-of-mind. These alarms can be disabled depending on your needs. Sized at just 21" wide, the ALR46WCSSHV is the perfect addition for space-challenged environments seeking dependable freezer options in a durable design. For a complete set, pair this unit with the matching ALFZ36CSSHV all-freezer. Additional choices with a white exterior and panel-ready styles are available.
Product Features
-
ADA compliant design
32" height allows easy installation under lower ADA compliant counters -

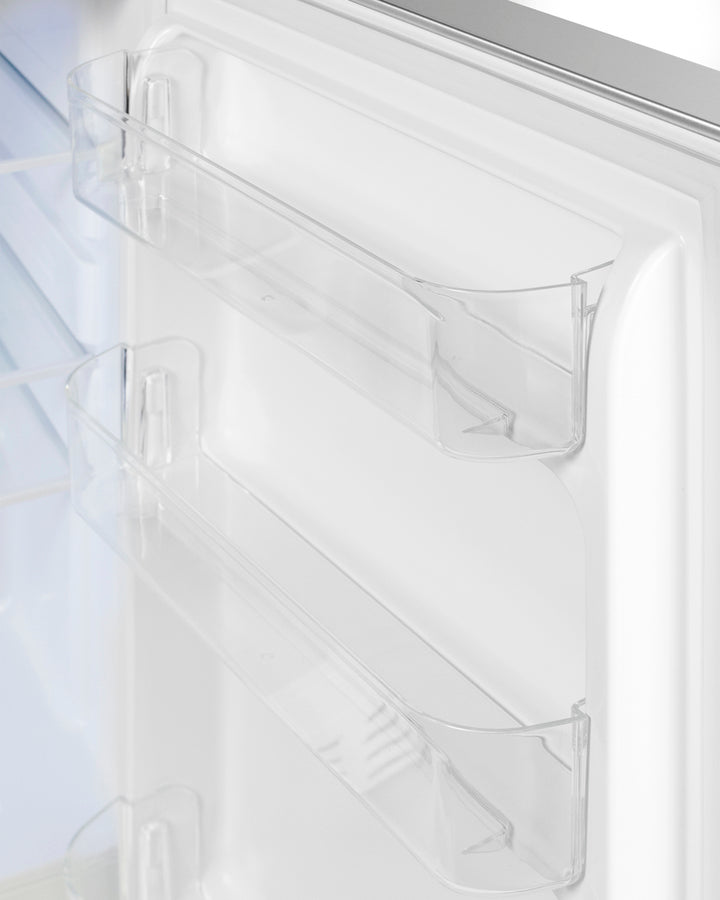

Door shelves
Three removable door racks for additional storage of larger items -
Adjustable glass shelves
Three adjustable spill-proof shelves for optimal storage in 3.53 cu. ft. interior -
Built-in capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter -
Fruit and vegetable crisper
Get the longest life and best taste out of produce by storing greens in a convenient slide drawer -
Adjustable thermostat
Digital thermostat offers easy temperature management with a readout in Fahrenheit or Celsius -
Open door alarm
Audible alarm will sound if the door is left ajar for over a minute -
3" thick door
Improved insulation for an efficient performance -
Sealed back
Space-saving design that offers easier cleanability -
Reversible stainless steel door
User-reversible stainless steel door for added flexibility to best accommodate your setting -
Temperature alarms
User-set high/low temperature alarms provide added security if temperature goes beyond setpoint -
Automatic defrost
Reduced user maintenance with an auto defrost system -
Right-angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth -
Professional handle
Brushed stainless steel handle with a thin 14mm diameter is mounted vertically for a sleek look -

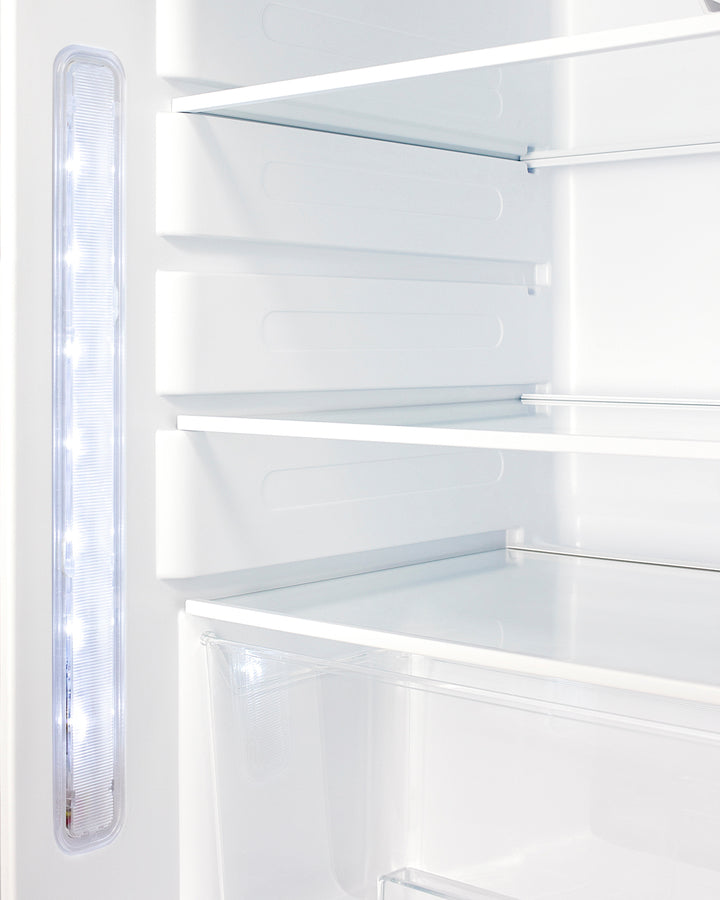

Interior light
Front-located LED light ensures entire interior is lit when door opens -
Matching all-freezer
This unit can be paired with the ALFZ36CSSHV all-freezer for a complete set -
Fully finished stainless steel cabinet
Allows the unit to be used freestanding -
100% CFC free
Environmentally friendly design without ozone-damaging chemicals -
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
