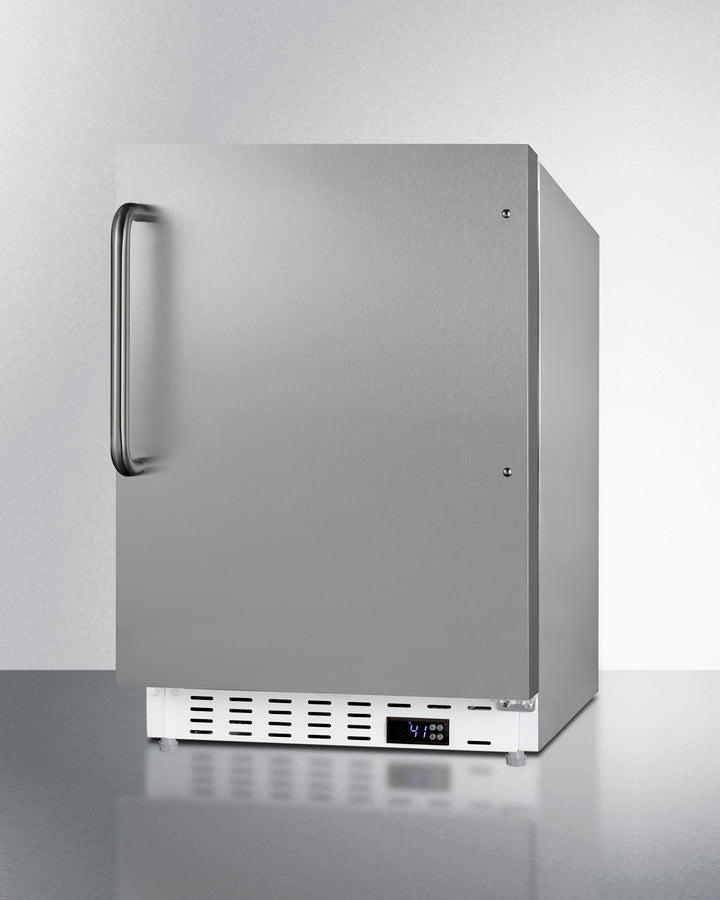

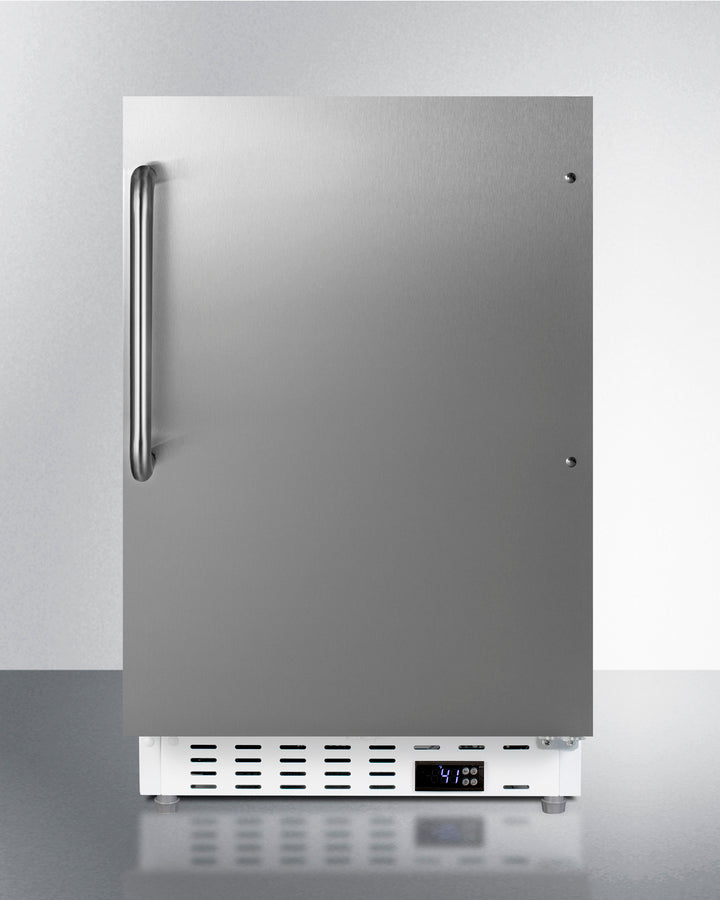

SUMMIT ALR46WCSS 20" Wide Built-in All-refrigerator, ADA Compliant

Summit

SKU: ALR46WCSS

  • On Sale

Key Specs

  • Type: Compact refrigerators
  • Width: 19.88 Inch
  • Depth: 22.5 Inch
  • Height: 32 Inch

More details

Sale price $1,179.70 Regular price $1,845.00 Save $665.30

Check Delivery Options

More on the way

Notify Me

Extended Protection

?

Extend your appliance's warranty beyond the manufacturer's terms with our Extended Protection Plan.

Enjoy added peace of mind long after the original warranty expires.

This Protection Plan includes:

  • Full parts and labor coverage during the whole period of the extension plan.
  • Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty
  • Food loss protection
  • 24/7 toll-free number for support

Click here for full details.

  • $115.99
  • $163.99
  • Product Information
  • Specifications
  • Manuals & Guides
  • Features
  • Reviews
  • General
  • Model: ALR46WCSS
  • Brand: Summit Appliance
  • Type: Refrigerators
  • Height: 32
  • Width: 19.88
  • Length: 22.5
  • Capacity & Storage
  • Capacity (cu. ft.): 3.53
  • Number of Shelves: 3
  • Counter depth: No
  • Features
  • Ice Maker: No
  • Water Dispenser: No
  • Sabbath mode: No
  • Advanced Features
  • Wi-Fi Connectivity: No
Summit Appliance offers a quality selection of 20" wide built-in undercounter all-freezers designed for installation under lower ADA compliant counters, with advanced features for user convenience. 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished stainless steel cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The stainless steel, user-reversible door is 3" thick for efficient insulation, with a curved towel bar handle included for added convenience. This unit comes with a right angle cord to allow for easier placement without added depth. A digital...
Summit Appliance offers a quality selection of 20" wide built-in undercounter all-freezers designed for installation under lower ADA compliant counters, with advanced features for user convenience. 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished stainless steel cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The stainless steel, user-reversible door is 3" thick for efficient insulation, with a curved towel bar handle included for added convenience. This unit comes with a right angle cord to allow for easier placement without added depth. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius.
Overview
Height of Cabinet 31.75" (81 cm)
Height to Hinge Cap 32.0" (81 cm)
Width 19.88" (50 cm)
Width with Door Open 20.88" (53 cm)
Depth 22.5" (57 cm)
Depth with Handle 25.0" (64 cm)
Depth with door at 90° 40.25" (102 cm)
Capacity 3.53 cu.ft. (100 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 251.0kWh/year
Amps 1.1
Voltage/Frequency 115 V AC/60 Hz
Weight 105.0 lbs. (48 kg)
Shipping Weight 110.0 lbs. (50 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101076638
Refrigerator Features
Door Swing RHD
Reversible Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Shelf Type Glass
Shelf Qty 3
Full Door Shelf Qty 3
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 0.99oz.
High Side PSI 180.0
Low Side PSI 80.0
Level Legs Qty 2
Wheel Qty 2
Interior Light Yes
Temperature Range 35 to 46°F
Dimensions
Interior Height 23.5" (60 cm)
Interior Width 16.25" (41 cm)
Interior Depth 17.0" (43 cm)
Compressor Step Height 6.25" (16 cm)
Compressor Step Width 16.25" (41 cm)
Compressor Step Depth 6.0" (15 cm)
Exterior
DL2B - Factory installed NIST calibrated digital data logger (DDL) Alarm
HG - Hospital grade cord LHD - Left hand door swing
PH - Probe Hole SCD - Self-closing door
TT - Installed thermometer -
Lock
AC Keypad L-Installed Lock
KEYPAD -
Overview
Height of Cabinet 31.75" (81 cm)
Height to Hinge Cap 32.0" (81 cm)
Width 19.88" (50 cm)
Width with Door Open 20.88" (53 cm)
Depth 22.5" (57 cm)
Depth with Handle 25.0" (64 cm)
Depth with door at 90° 40.25" (102 cm)
Capacity 3.53 cu.ft. (100 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 251.0kWh/year
Amps 1.1
Voltage/Frequency 115 V AC/60 Hz
Weight 105.0 lbs. (48 kg)
Shipping Weight 110.0 lbs. (50 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101076638
Refrigerator Features
Door Swing RHD
Reversible Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Shelf Type Glass
Shelf Qty 3
Full Door Shelf Qty 3
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 0.99oz.
High Side PSI 180.0
Low Side PSI 80.0
Level Legs Qty 2
Wheel Qty 2
Interior Light Yes
Temperature Range 35 to 46°F
Dimensions
Interior Height 23.5" (60 cm)
Interior Width 16.25" (41 cm)
Interior Depth 17.0" (43 cm)
Compressor Step Height 6.25" (16 cm)
Compressor Step Width 16.25" (41 cm)
Compressor Step Depth 6.0" (15 cm)
Exterior
DL2B - Factory installed NIST calibrated digital data logger (DDL) Alarm
HG - Hospital grade cord LHD - Left hand door swing
PH - Probe Hole SCD - Self-closing door
TT - Installed thermometer -
Lock
AC Keypad L-Installed Lock
KEYPAD -
  • ADA compliant design : 32" height allows easy installation under lower ADA compliant counters
  • Open door alarm : Audible alarm will sound if the door is left ajar for over a minute
  • Built-in capable : Front-breathing design lets you make the best use of space by installing your appliance under the counter
  • Adjustable thermostat : Digital thermostat offers easy temperature management with a readout in Fahrenheit or Celsius

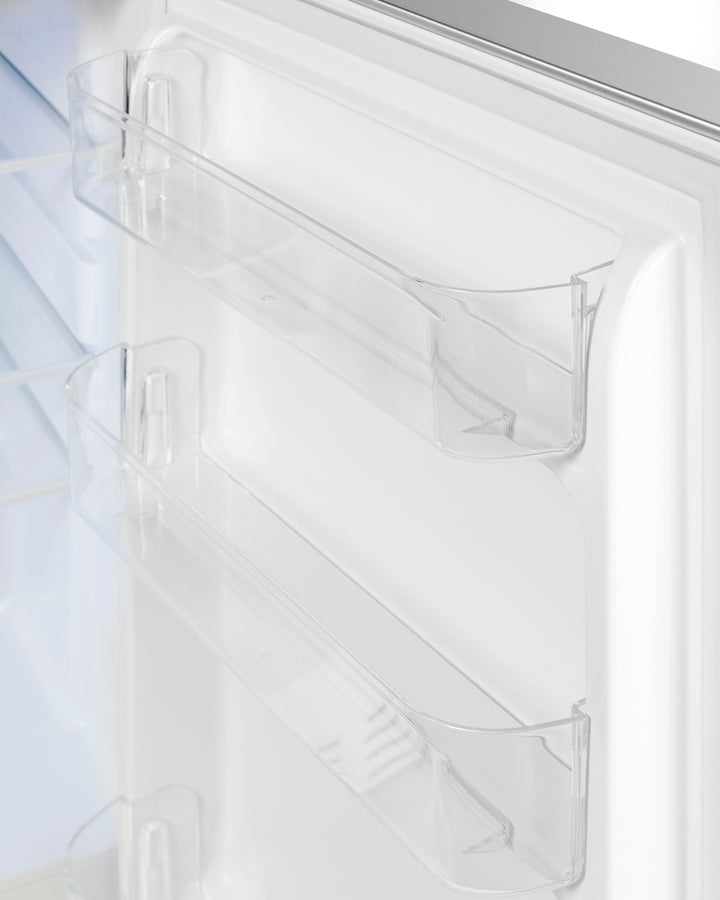

  • Door shelves : Three removable door racks for additional storage of larger items

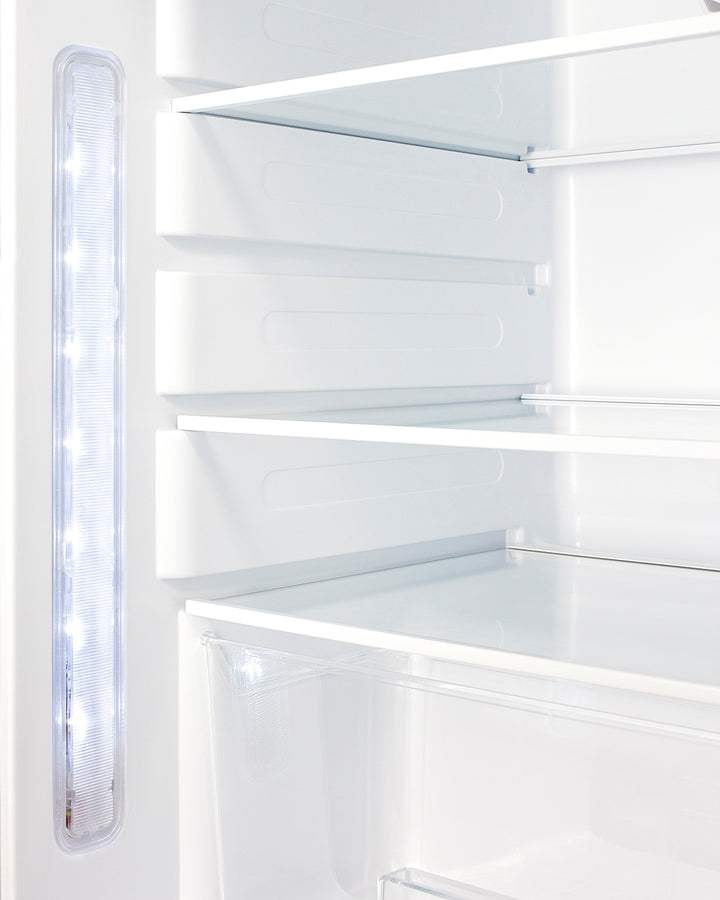

  • Adjustable glass shelves : Three adjustable spill-proof shelves for optimal storage in 3.53 cu. ft. interior
  • Fruit and vegetable crisper : Get the longest life and best taste out of produce by storing greens in a convenient slide drawer
  • 3" thick door : Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does open in its own radius. If installing this refrigerator against a wall, please see our drawings to ensure adequate space
  • Reversible stainless steel door : User-reversible stainless steel door for added flexibility to best accommodate your setting
  • Temperature alarms : User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
