SUMMIT ALR46W 20" Wide Built-in All-refrigerator, ADA Compliant

SKU: ALR46W

On Sale

SUMMIT ALR46W 20" Wide Built-in All-refrigerator, ADA Compliant

Key Specs

Type: Compact refrigerators
Width: 19.75 Inch
Depth: 24.38 Inch
Height: 32.0 Inch

More details

Translation missing: en.products.product.product_variants

$706.02 $960.00 Save $253.98

Check Delivery Options

More on the way

Quantity:

Extended Protection

3 Year Major Appliance True Extended under $1,500.00
$115.99
5 Year Major Appliance True Extended under $1,500.00
$163.99
Decline Protection

Product Information
Technical Details
Manuals & Guides
Features
Reviews

Just 32" high for an easy fit under lower ADA compliant counters
(BULL)Flexible design allows built-in or freestanding use in 20" wide spaces
(BULL)Adjustable glass shelving and door racks offer convenient storage for a variety of items
(BULL)Easy temperature management with a digital thermostat

Summit Appliance offers a quality selection of 20" wide built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters, with advanced features for user convenience. The ALR46W is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The user-reversible door is 3" thick for efficient insulation, with a handle included for added convenience. This unit comes with a right angle cord to allow for easier placement without added depth. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius. Inside, the ALR46W features an all-white interior for easy cleaning and viewing of contents. An LED light located toward the front of the unit attractively illuminates the interior when the door opens. Automatic defrost operation ensures minimal user maintenance, with an internal fan to help ensure even cooling throughout the 3.53 cu.ft. interior. Three adjustable glass shelves offer optimal storage options for large and small items, while a pull-out crisper drawer provides storage for fruits and vegetables. Three removable door racks accommodate additional storage as needed. The user-set high and low-temperature alarms provide added security should the temperature go beyond the setpoint, while the open door alarm sounds if the door is ajar over one minute for added peace-of-mind. These alarms can be disabled depending on your needs. Sized at just 20" wide, the ALR46W is the perfect addition for space-challenged environments seeking dependable freezer options in a durable design. For a complete set, pair this unit with the matching ALFZ36 all-freezer. Additional choices in stainless steel and panel-ready styles will be available later this summer.

Overview
Height of Cabinet	31.75" (81 cm)
Height to Hinge Cap	32.0" (81 cm)
Width	19.75" (50 cm)
Width with Door Open	20.25" (51 cm)
Depth	22.5" (57 cm)
Depth with Handle	24.38" (62 cm)
Depth with door at 90°	40.25" (102 cm)
Capacity	3.53 cu.ft. (100 L)
Defrost Type	Automatic
Door	White
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Energy Usage/Year	251.0kWh/year
Amps	1.1
Voltage/Frequency	115 V AC/60 Hz
Weight	65.0 lbs. (29 kg)
Shipping Weight	70.0 lbs. (32 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101063027
Refrigerator Features
Door Swing	RHD
Reversible	Yes
Crisper Qty	1
Crisper Finish	Transparent
Crisper Cover	Glass
Shelf Type	Glass
Shelf Qty	3
Full Door Shelf Qty	3
Thermostat Type	Digital
Fan Type	Interior
Refrigerant Type	R600a
Refrigerant Amount	0.99oz.
High Side PSI	180.0
Low Side PSI	80.0
Level Legs Qty	2
Wheel Qty	2
Interior Light	Yes
Temperature Range	35 to 46°F
Dimensions
Interior Height	23.5" (60 cm)
Interior Width	16.25" (41 cm)
Interior Depth	17.0" (43 cm)
Compressor Step Height	6.25" (16 cm)
Compressor Step Width	16.25" (41 cm)
Compressor Step Depth	6.0" (15 cm)
Lock
KEYPAD	L-Installed Lock
AC Keypad	-
Exterior
TT - Installed thermometer	SCD - Self-closing door
PH - Probe Hole	LHD - Left hand door swing
HG - Hospital grade cord	Alarm
DL2B - Factory installed NIST calibrated digital data logger (DDL)	-
Overview
Height of Cabinet	31.75" (81 cm)
Height to Hinge Cap	32.0" (81 cm)
Width	19.75" (50 cm)
Width with Door Open	20.25" (51 cm)
Depth	22.5" (57 cm)
Depth with Handle	24.38" (62 cm)
Depth with door at 90°	40.25" (102 cm)
Capacity	3.53 cu.ft. (100 L)
Defrost Type	Automatic
Door	White
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Energy Usage/Year	251.0kWh/year
Amps	1.1
Voltage/Frequency	115 V AC/60 Hz
Weight	65.0 lbs. (29 kg)
Shipping Weight	70.0 lbs. (32 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101063027
Refrigerator Features
Door Swing	RHD
Reversible	Yes
Crisper Qty	1
Crisper Finish	Transparent
Crisper Cover	Glass
Shelf Type	Glass
Shelf Qty	3
Full Door Shelf Qty	3
Thermostat Type	Digital
Fan Type	Interior
Refrigerant Type	R600a
Refrigerant Amount	0.99oz.
High Side PSI	180.0
Low Side PSI	80.0
Level Legs Qty	2
Wheel Qty	2
Interior Light	Yes
Temperature Range	35 to 46°F
Dimensions
Interior Height	23.5" (60 cm)
Interior Width	16.25" (41 cm)
Interior Depth	17.0" (43 cm)
Compressor Step Height	6.25" (16 cm)
Compressor Step Width	16.25" (41 cm)
Compressor Step Depth	6.0" (15 cm)
Lock
KEYPAD	L-Installed Lock
AC Keypad	-
Exterior
TT - Installed thermometer	SCD - Self-closing door
PH - Probe Hole	LHD - Left hand door swing
HG - Hospital grade cord	Alarm
DL2B - Factory installed NIST calibrated digital data logger (DDL)	-

ADA compliant design : 32" height allows easy installation under lower ADA compliant counters
Open door alarm : Audible alarm will sound if the door is left ajar for over a minute
Built-in capable : Front-breathing design lets you make the best use of space by installing your appliance under the counter
Adjustable thermostat : Digital thermostat offers easy temperature management with a readout in Fahrenheit or Celsius

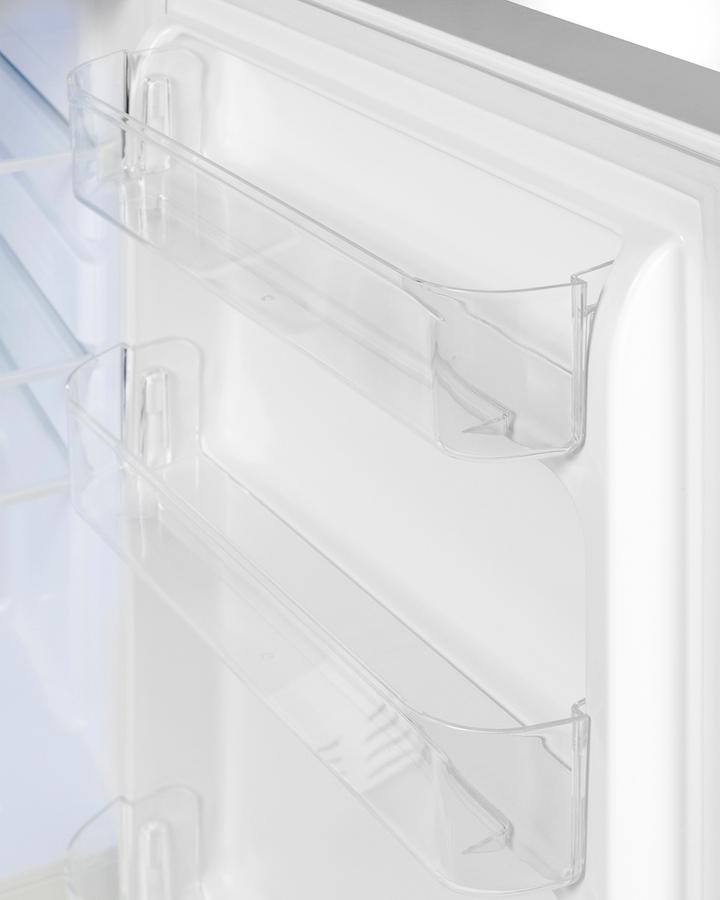

Door shelves : Three removable door racks for additional storage of larger items
Adjustable glass shelves : Three adjustable spill-proof shelves for optimal storage in 3.53 cu. ft. interior
Fruit and vegetable crisper : Get the longest life and best taste out of produce by storing greens in a convenient slide drawer
Reversible door : User-reversible door swing for added flexibility to best accommodate your setting
3" thick door : Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does open in its own radius. If installing this refrigerator against a wall, please see our drawings to ensure adequate space
Temperature alarms : User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
