Summit ALR15BIF 15" Wide Built-In All-Refrigerator, ADA Compliant (Panel Not Included) Black

Quick Specification More details

Width:
14.75"
Depth:
23.75"
Height:
31.5"
Type:
Column Refrigerators

About this product

ADA Compliant
Panel-ready door
Built-in capable
Frost-free operation

Summer Sale

Clearance

SKU: ALR15BIF | UPC: 761101061511

Summit ALR15BIF 15" Wide Built-In All-Refrigerator, ADA Compliant (Panel Not Included) Black

$1,325.56 ~~$1,574.97~~ Save $249.41 / 15% OFF

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
14.75"
Depth:
23.75"
Height:
31.5"
Type:
Column Refrigerators

About this product

ADA Compliant
Panel-ready door
Built-in capable
Frost-free operation

Product Details
Manuals & Guides
From The Manufacturer
Reviews

$1,325.56 ~~$1,574.97~~ Save $249.41 / 15% OFF

Product Details for Summit ALR15BIF

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

Dimensions & weight

Width	14.75 in.
Height	31.5 in.
Length	23.75 in.
Weight	60 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	6.39 ft³
Dimensional Weight	79.39 lbs.
Total of Cubes	6.39 ft³
Total of Dimensional Weight	79.39 lbs.

Overview refrigerator features dimensions

Nominal Height	32.0" (81 cm)
Height of Cabinet	31.5" (80 cm)
Nominal Width	15.0" (38 cm)
Width	14.75" (37 cm)
Nominal Depth	24.0" (61 cm)
Depth	23.75" (60 cm)
Capacity	2.2 cu.ft. (62 L)
Defrost Type	Frost-Free
Door	Panel-Ready
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Energy Usage/Year	240.0kWh/year
Amps	1.0
Voltage/Frequency	115 V AC/60 Hz
Weight	60.0 lbs. (27 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101061511
Sabbath Mode	Yes
Door Swing	RHD
Reversible	Factory Reversible
Shelf Type	Glass
Shelf Qty	3
Full Door Shelf Qty	2
Adjustable Shelves	Yes
Thermostat Type	Digital
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	0.78oz.
High Side PSI	270.0
Low Side PSI	105.0
Level Legs Qty	4
Interior Light	Yes
Temperature Range	36°F to 43°F
Sound Level	32.6 dB
Interior Height	23.0" (58 cm)
Interior Width	10.5" (27 cm)
Interior Depth	17.5" (44 cm)
Compressor Step Height	3.5" (9 cm)
Compressor Step Width	10.5" (27 cm)
Compressor Step Depth	5.0" (13 cm)

Description

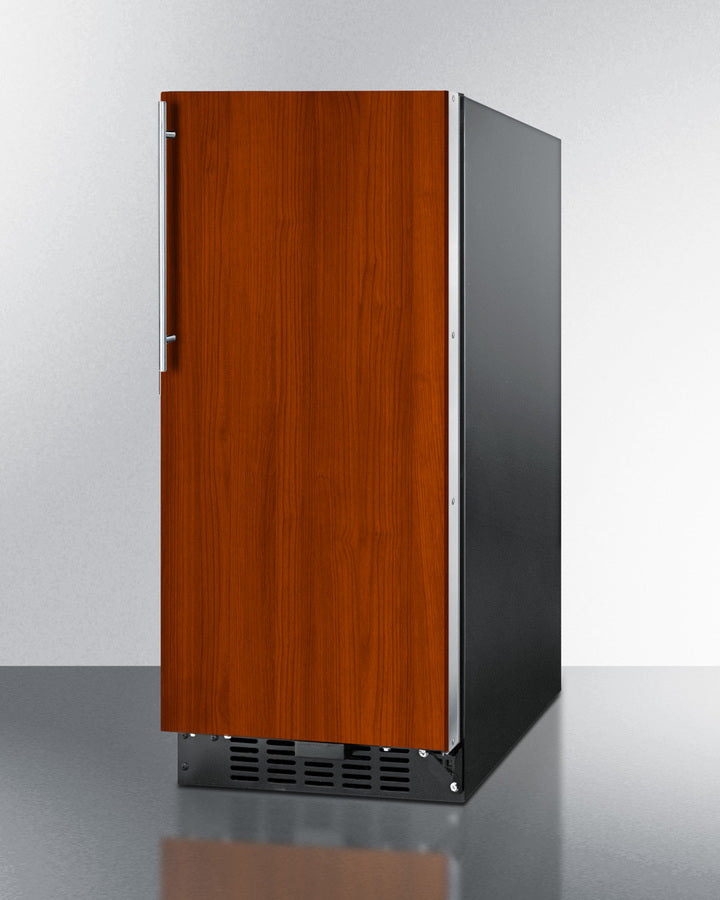

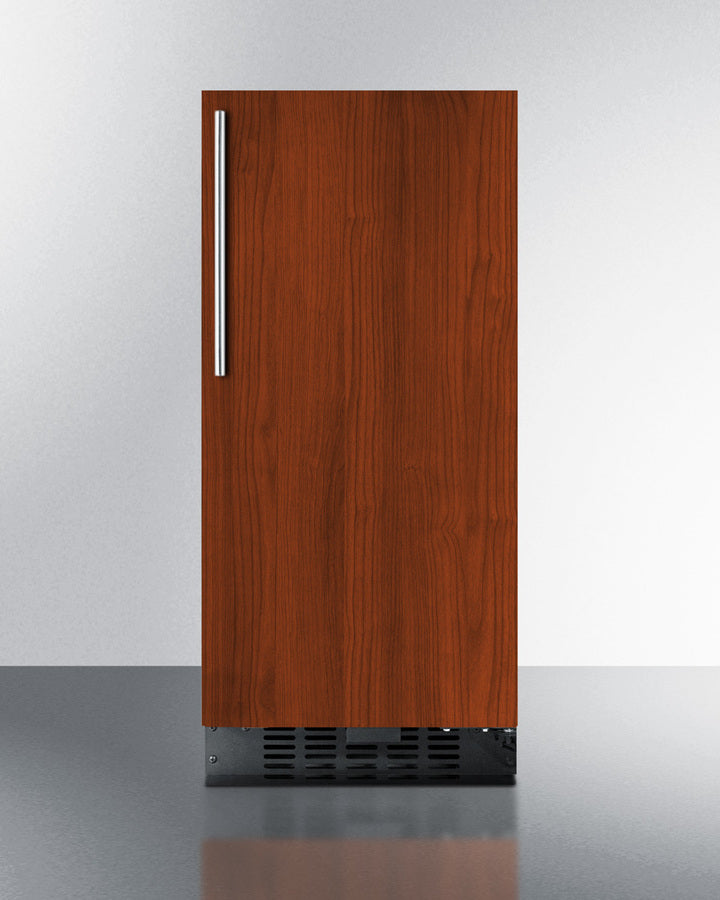

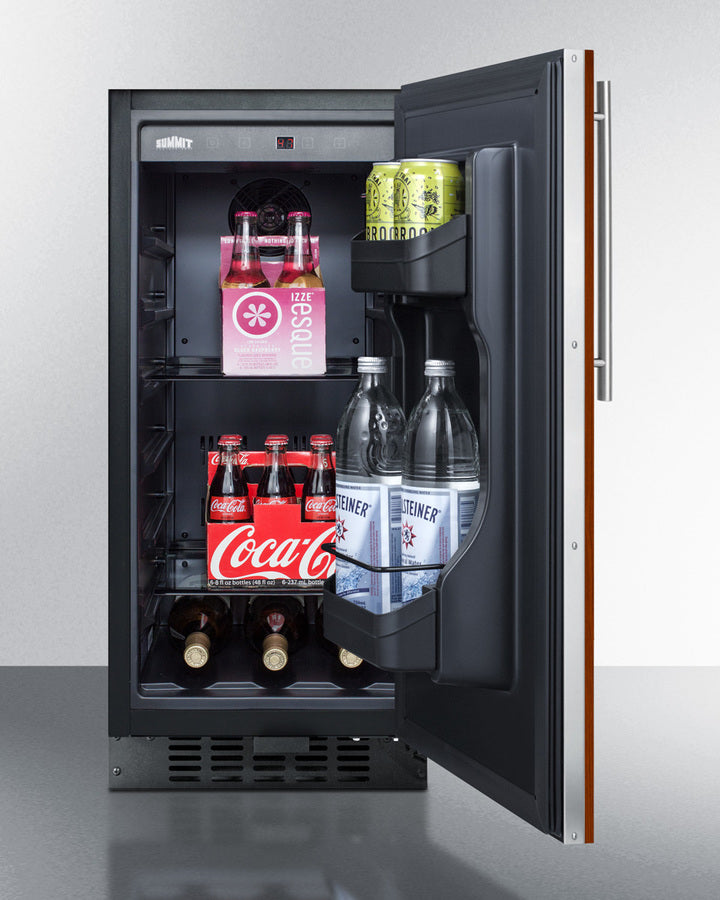

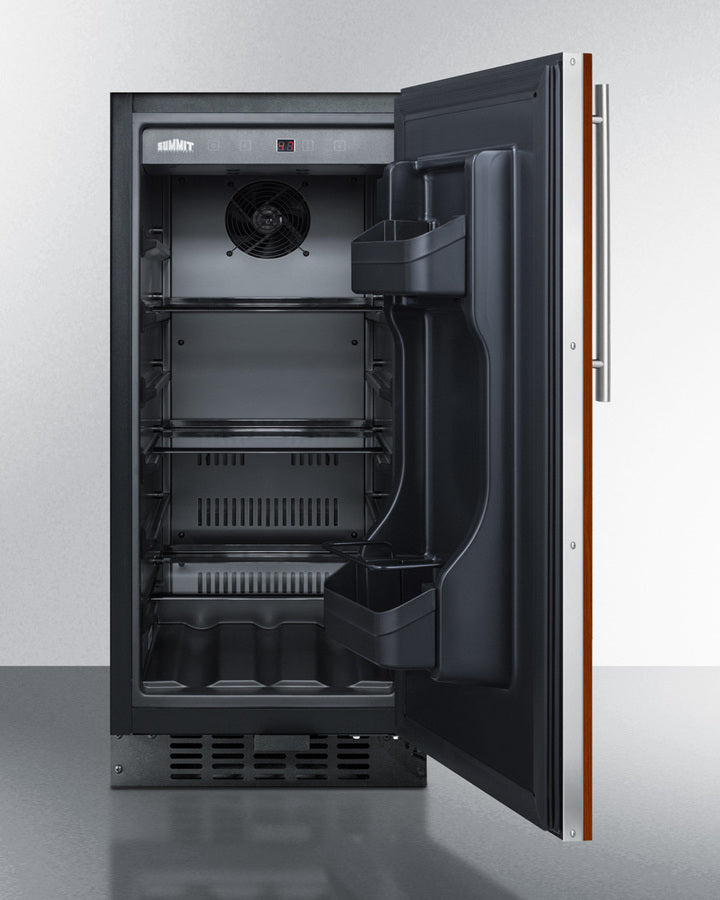

Summit offers the industry's largest selection of 32" high ADA compliant appliances, with quality choices for built-in or freestanding use in 15" wide spaces. The ALR15BIF is a 2.2 cu.ft. all-refrigerator with a front-breathing system for built-in use. The door features an integrated stainless steel frame designed to accept custom overlay panels, allowing you to match your refrigerator to your cabinetry for a customized look (panel size: 27 3/8" H x 14 11/16" W). This unit has a black cabinet and sealed back for easier cleanup. At just under 32" high, it's perfect for fitting under lower counters following ADA guidelines. Inside, the ALR15BIF features a jet black finish and convenient frost-free operation for minimum maintenance. Fan-forced cooling helps to stabilize the temperature inside. Adjustable glass shelves offer spill-proof storage and two door racks are ideal for keeping condiments and bottles within reach. This unit comes with a digital control panel for easy temperature management, with a temperature readout viewable in Celsius and Fahrenheit. Additional features include an open door and high temperature alarm, temperature memory function, and Sabbath mode to allow users to disable certain electrical functions during periods of observance. Recessed LED lighting offers an attractive, energy efficient view. The ALR15BIF is approved for both residential and commercial use, and is ETL-S listed to NSF-7 commercial standards. Additional choices for 15" wide spaces, as well as ADA compliant applications, can be found in Summit's extensive product catalog. Browse our website for more options.

Product Features

ADA Compliant
Sized just under 32" high to fit under lower ADA compliant counters
Panel-ready door
Integrated stainless steel door frame accepts full overlay panels for a custom look; panel size should be 27 3/8" H x 14 11/16" W at 3/4" thickness
Built-in capable

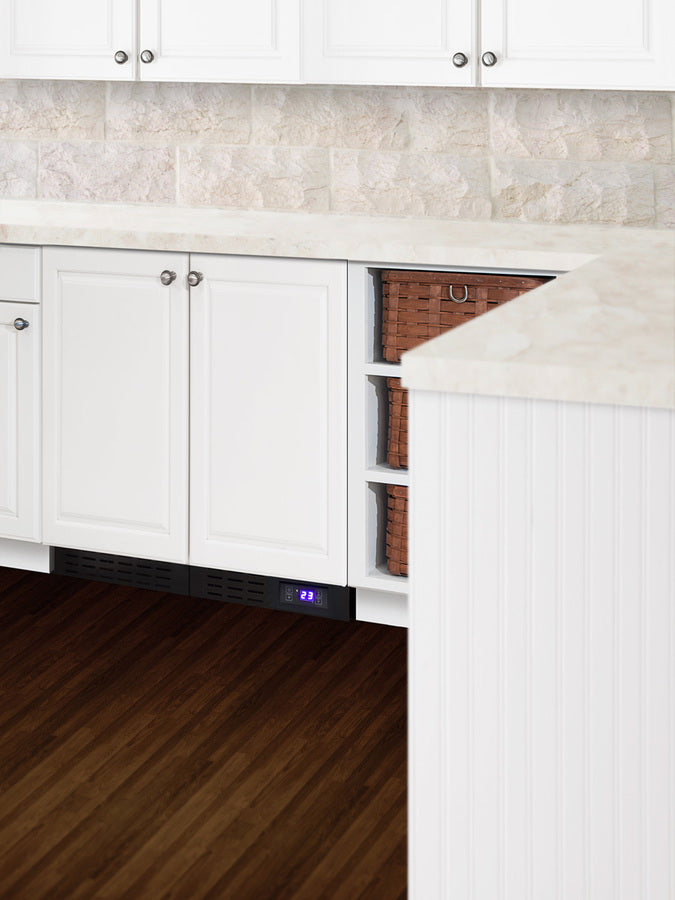

Make the best use of space by installing your appliance under the counter
Frost-free operation
No-frost operation ensures reduced maintenance
Digital thermostat
Electronic controls for precise temperature management.
Digital display
Temperature readout can be shown in Celsius or Fahrenheit
LED lighting
Gentle illumination with an on/off switch
Adjustable glass shelves
Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Door storage
Two racks offer the perfect storage solution for tall bottles and condiments
Reversible door
User-reversible door swing on the refrigerator for added flexibility
Flush back
Space saving design that is easy to clean
Sabbath mode setting
Optional setting lets you disable the lighting and alarm for up to 48 hours
Open door alarm
Alarm sounds if the door is left open for more than 60 seconds
High temperature alarm
Audible alarm sounds if the interior temperature rises out of set range
Right angle cord
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Multiple door finishes available
Can be ordered with a stainless steel wrapped door or with an integrated frame that accepts custom panels
Temperature memory function
In the event of power loss, unit will return to its last settings when power is restored
Fully finished black cabinet
Allows the unit to be used freestanding
Commercially approved
ETL-S listed to NSF-7 commercial standards
Handle not included
Customers provide their own handle to match their own cabinetry style
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
