Summit ALFD24WBVPANTRY 24" Built-In Dual-Zone Produce Refrigerator, ADA Compliant Black

Quick Specification More details

Width:
23.38"
Depth:
22.75"
Height:
32"
Type:
Beverage Centers

About this product

Dual-zone design
Built-in capable
Height adjustable
Cold Zone

Summer Sale

Clearance

SKU: ALFD24WBVPANTRY | UPC: 761101077499

Summit ALFD24WBVPANTRY 24" Built-In Dual-Zone Produce Refrigerator, ADA Compliant Black

$2,170.57 ~~$2,629.97~~ Save $459.40 / 17% OFF

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
23.38"
Depth:
22.75"
Height:
32"
Type:
Beverage Centers

About this product

Dual-zone design
Built-in capable
Height adjustable
Cold Zone

Product Details
Manuals & Guides
From The Manufacturer
Reviews

$2,170.57 ~~$2,629.97~~ Save $459.40 / 17% OFF

Product Details for Summit ALFD24WBVPANTRY

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

Dimensions & weight

Width	23.38 in.
Height	32 in.
Length	22.75 in.
Weight	105 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	9.85 ft³
Dimensional Weight	122.45 lbs.
Total of Cubes	9.85 ft³
Total of Dimensional Weight	122.45 lbs.

Overview refrigerator features dimensions

Nominal Height	32.0" (81 cm)
Height of Cabinet	32.0" (81 cm)
Nominal Width	24.0" (61 cm)
Width	23.38" (59 cm)
Nominal Depth	23.0" (58 cm)
Depth	22.75" (58 cm)
Depth with Handle	24.63" (63 cm)
Depth with door at 90°	33.0" (84 cm)
Capacity	4.6 cu.ft. (130 L)
Bottles	21 bottles
Defrost Type	Automatic
Door	Glass
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	1.0
Voltage/Frequency	115 V AC/60 Hz
Weight	105.0 lbs. (48 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101077499
Sabbath Mode	Yes
Door Swing	French
Reversible	No
Height Adjustable	Yes
Shelf Type	Glass Shelves and Wire Baskets
Shelf Qty	3
Adjustable Shelves	Yes
Wine Bottle Shelves	Yes
Thermostat Type	Digital
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.06oz.
High Side PSI	270.0
Low Side PSI	105.0
Level Legs Qty	4
Interior Light	Yes
Temperature Range	Cold Zone: 36-43°F; Pantry Zone: 41-68°F
Sound Level	33.3 dB
Interior Height	25.38" (64 cm)
Interior Width	8.38" (21 cm)
Interior Depth	17.5" (44 cm)
Compressor Step Height	3.5" (9 cm)
Compressor Step Width	8.38" (21 cm)
Compressor Step Depth	5.0" (13 cm)

Description

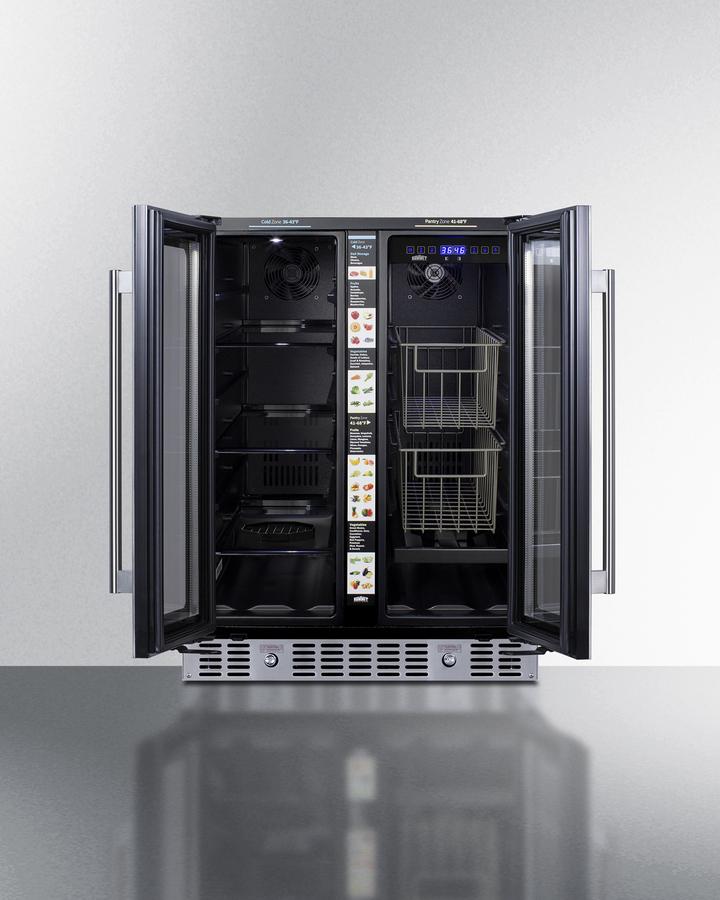

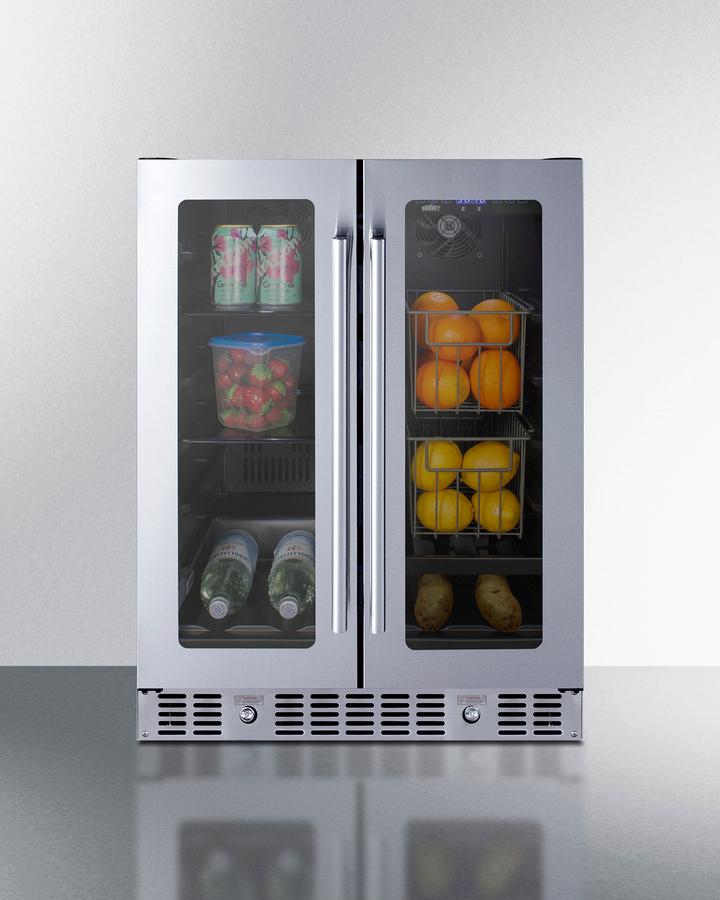

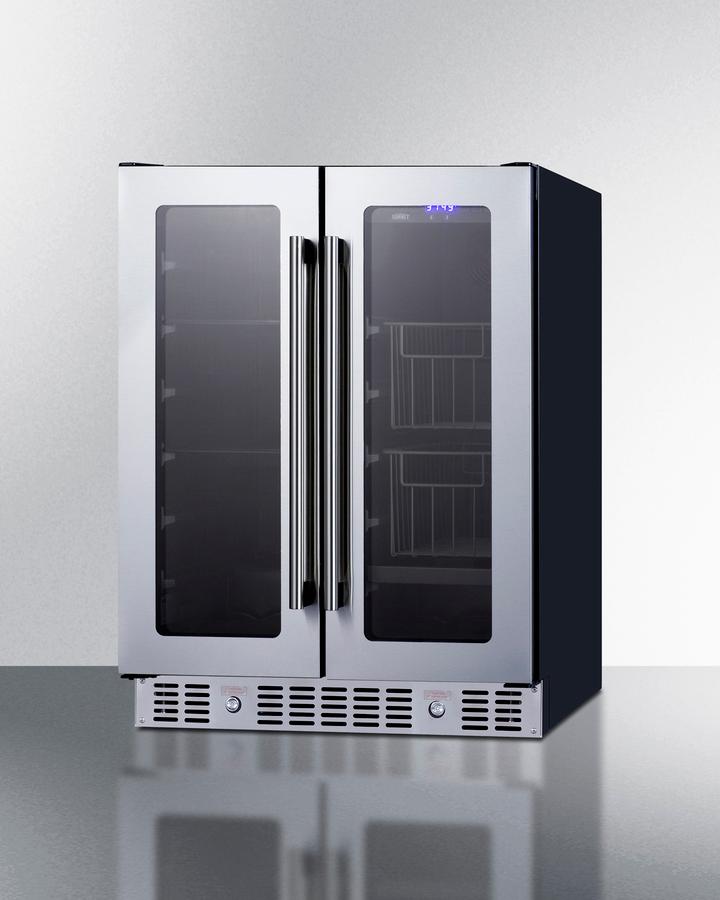

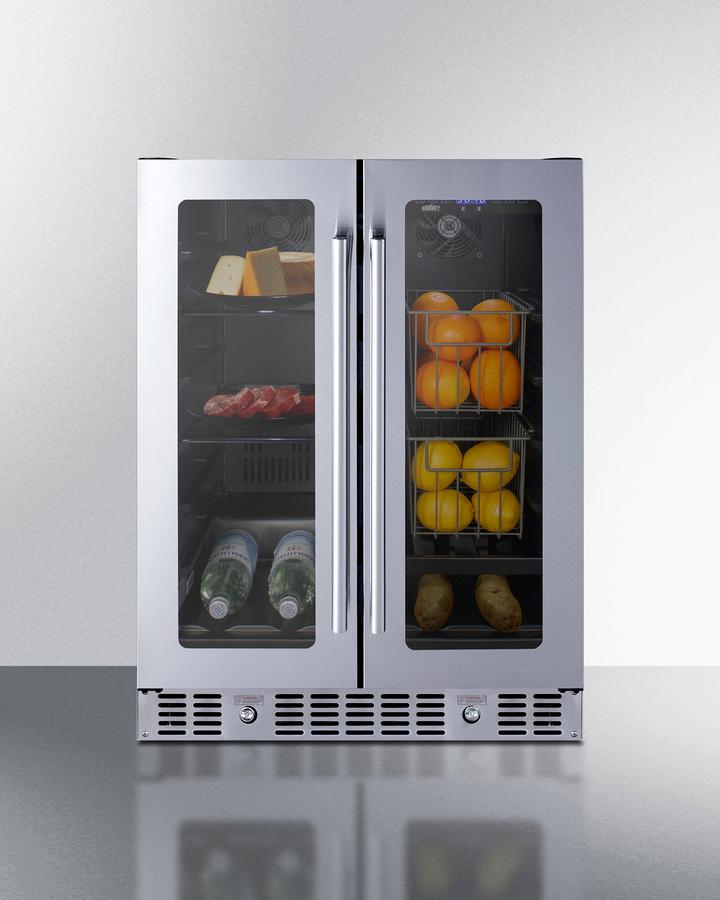

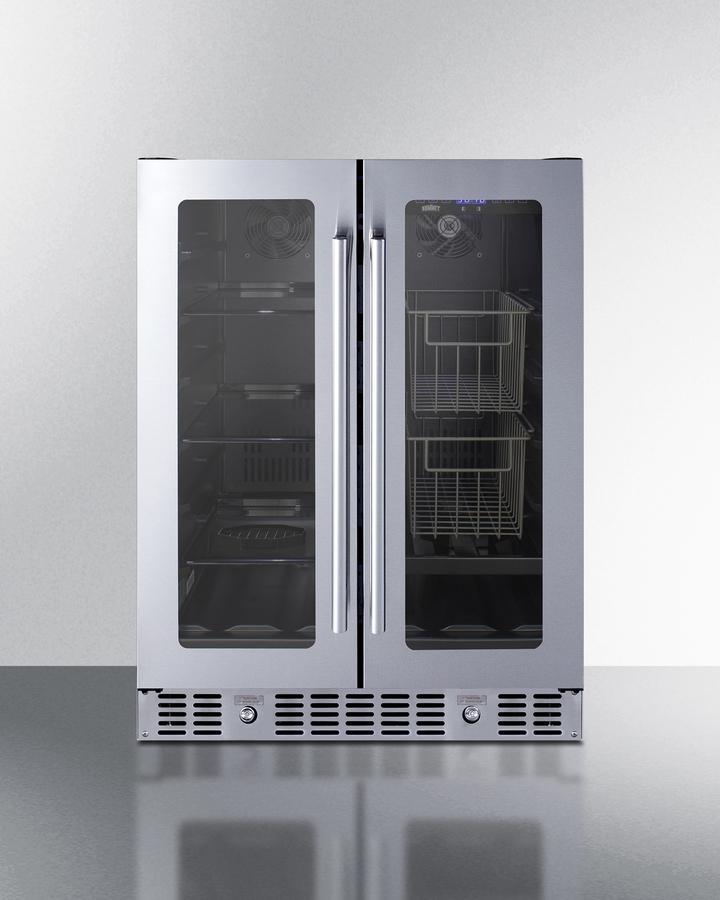

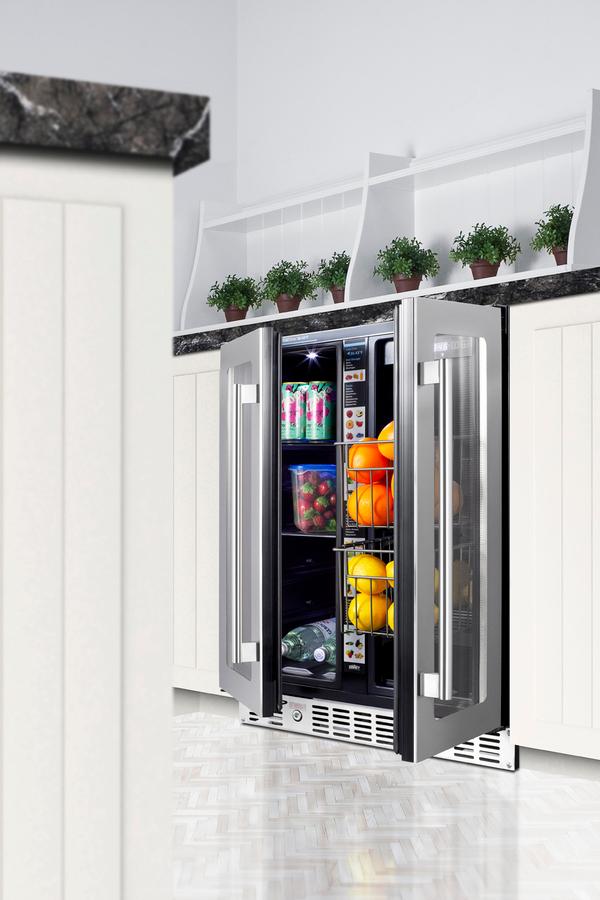

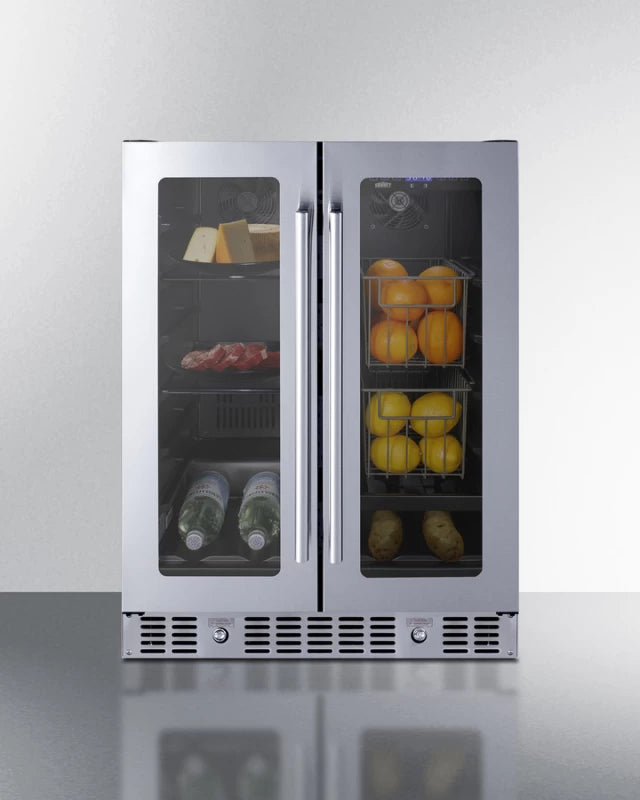

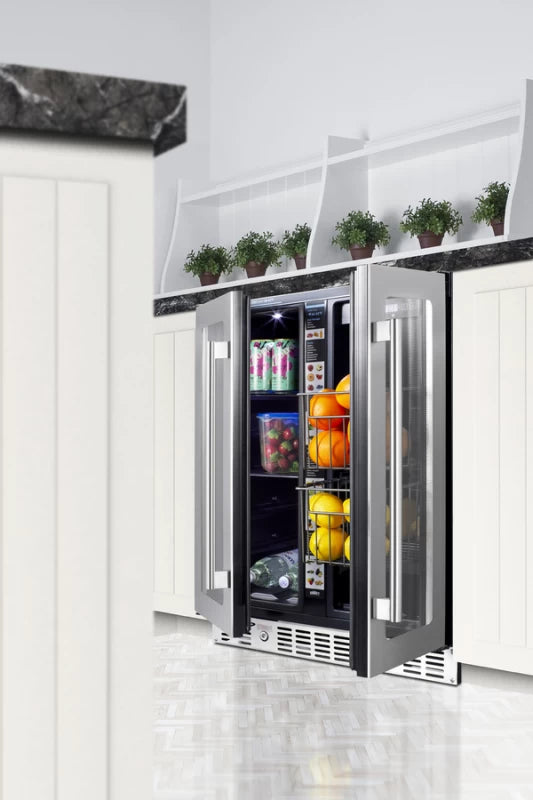

Summit brings an innovative solution to storing fruits and vegetables in the home with the ALFD24WBVPANTRY, a dual zone produce refrigerator for use under standard or ADA compliant counters. Sized with a convenient 24" footprint, the ALFD24WBVPANTRY is 32" high, allowing it to fit under lower ADA compliant counters. Adjustable leveling legs let you raise the height up to 33.5", with a kickplate extender included to ensure a clean look under taller counters. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This model has a French door swing, with two double pane tempered glass doors in a seamless stainless steel trim. Each door includes a front lock and pro style handle in brushed stainless steel. The space-saving right-angle plug and integrated hinges provide added flexibility in unit placement. The ALFD24WBVPANTRY features two distinct temperature zones to best store certain food items and beverages. The left Cold Zone has a temperature range of 36-43°F ideal for cheeses, meats, and produce requiring cooler temperatures that are slightly warmer than a standard fridge. The right Pantry Zone has a temperature range of 41-68°F, perfect for fresh produce in need of slightly warmer temperatures for proper storage. Adjustable glass shelves offer spill-proof storage and two pull-out wire baskets make storing and transporting certain fruits and vegetables more convenient. This unit comes with "Cold Zone" and "Pantry Zone" decals affixed above each compartment for easy identification of the temperature ranges. A vertical decal down the center of the unit identifies each compartment, as well as recommendations for which types of produce should be stored in which side. A pantry storage booklet is also included overviewing detailed guidance for properly storing fresh produce. Additional features include digital temperature controls for user-friendly temperature management, with a readout in Fahrenheit or Celsius. Internal fans ensure even cooling within the unit, while automatic defrost operation affords minimal user maintenance. LED lighting offers an attractive and energy efficient presentation of the interior. This unit is equipped with audible alarms that warn if the doors are opened for over one minute and if the temperature exceeds the recommended range. The temperature memory function will restore the set temperature in the case of power loss, and Sabbath mode disables certain functions during periods of religious observance. Two octagonal trays are also included allowing users to increase the humidity as needed (note: the trays should be cleaned regularly to assure proper use and are dishwasher safe). With its unique design and luxury features, the ALFD24WBVPANTRY lets you elevate your grocery storage, ensuring fresher tasting, longer lasting fruits, vegetables, and other food and beverage items.

Product Features

Dual-zone design
Allows for safe storage of meats, cheeses, beverages, and fresh produce
Built-in capable
Make the best use of space by installing your appliance under the counter
Height adjustable
Leveling legs can raise the unit to up to 33.5" for more standardized counters
Cold Zone
The left "Cold Zone" has a temperature range of 36-43° for storing meats, cheeses, and produce needing cooler temperatures
Pantry Zone
The right "Pantry Zone" has a temperature range of 41-68° for proper storage of produce requiring slightly warmer temperatures

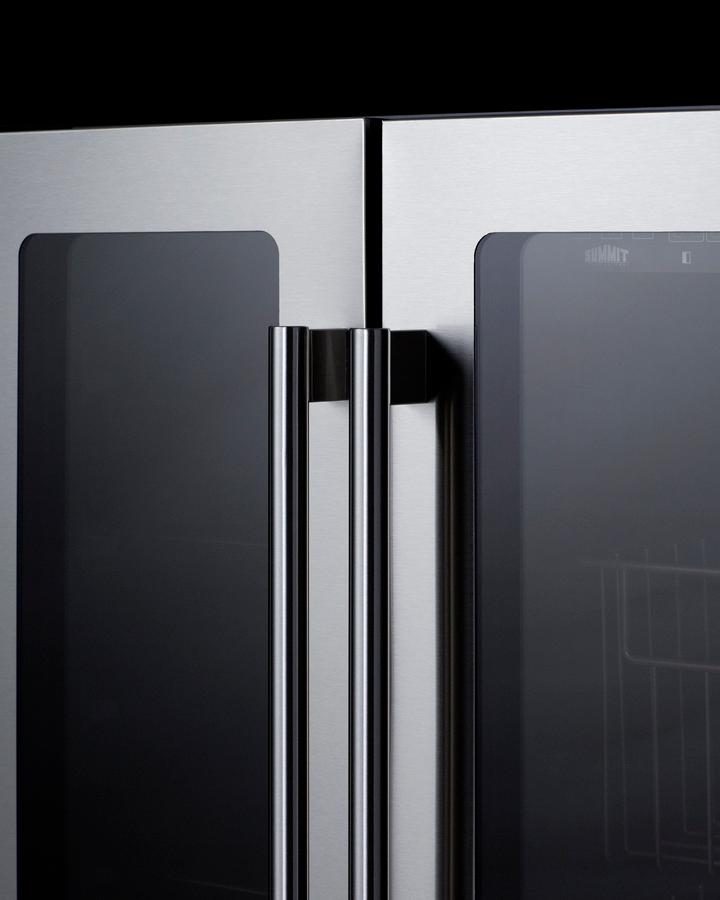

Seamless stainless steel trim
Glass is framed by seamless 304 grade stainless steel
Digital thermostats
Set and adjust two temperature zones separately with easy-to-use digital controls that display the temperature in Celsius or Fahrenheit
Factory installed locks
Each door includes a keyed lock for optional security

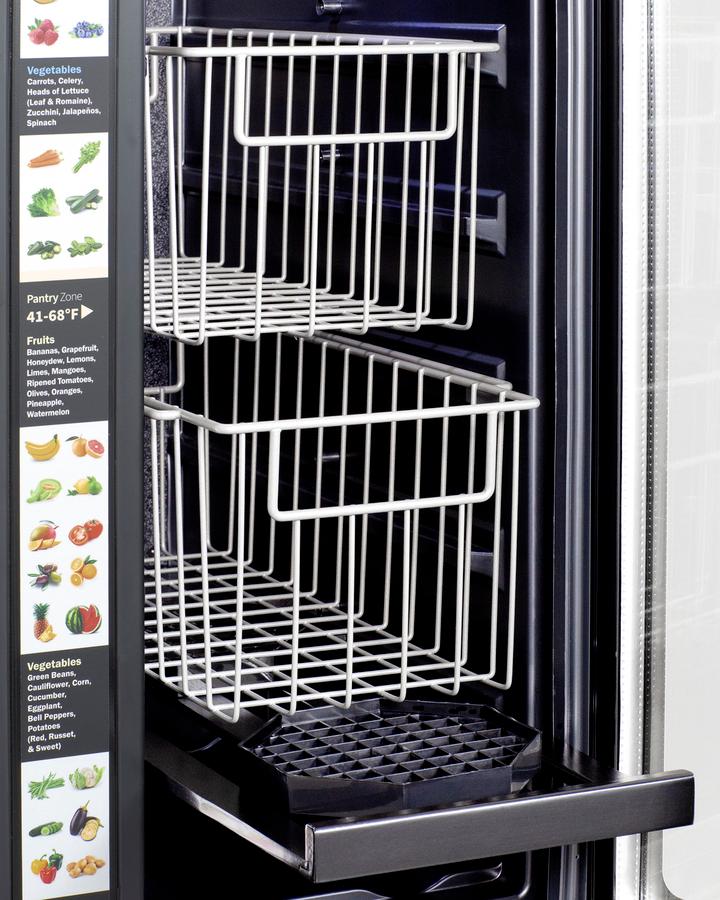

Adjustable wire baskets
Pantry Zone includes two removable wire baskets for easy storage and transport of contents as needed
Adjustable glass shelves
Spill-proof glass shelves make it easy to store food and beverages in the Cold Zone
Humidity trays
Two trays included for users to easily increase humidity as needed (Note: the trays should regularly be cleaned to assure proper use and are dishwasher safe)
LED lighting
Attractive and energy efficient LED lighting offers an elegant presentation
Automatic defrost
Reduced user maintenance with automatic defrost operation
Fan-forced cooling
Internal fans ensure both interiors are evenly cooled from top to bottom

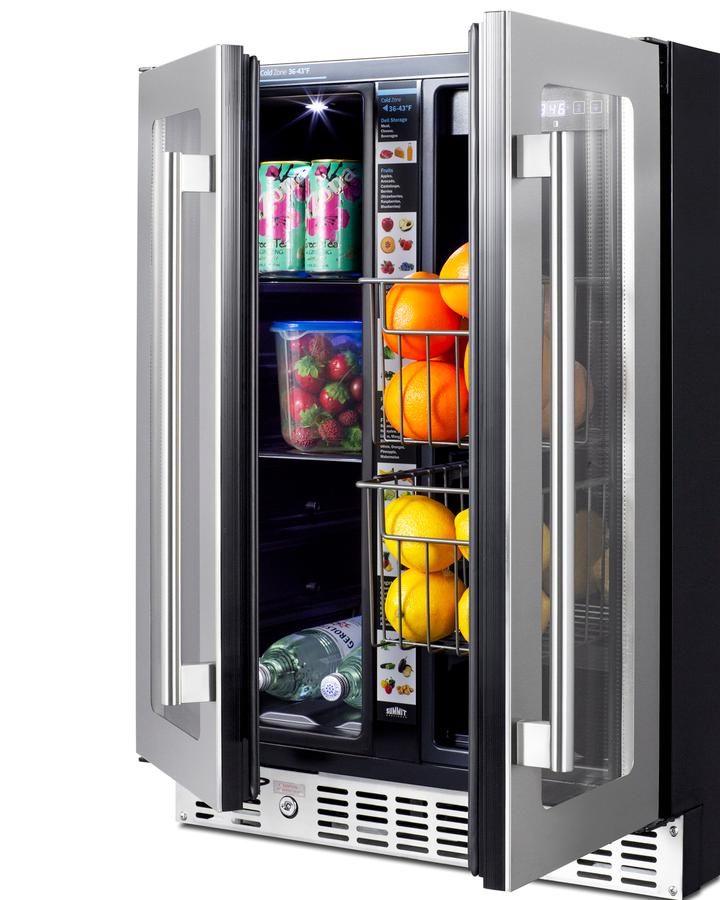

French door swing
Two side-by-side doors with French door opening
High temperature alarm
Audibly alerts if the interior temperature rises out of the recommended wine storage range
Open door alarm
Audible alarm will sound if the doors are left ajar for over 60 seconds
Sabbath mode
Allows you to disable certain electrical functions for up to 48 hours for periods of observance
Temperature memory function
Unit will retain its last settings when power is restored in the event of power loss
Usage stickers
Ships with affixed usage stickers for "COLD ZONE," "PANTRY ZONE," and "COLD ZONE/PANTRY ZONE STORAGE RECOMMENDATIONS"
Pantry storage booklet
Included storage guide provides tips and tricks on how to properly store produce
Stainless steel kickplate
Completes the professional look down to the toe kick
Right angle cord
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Sealed back
Space saving design with easier cleanability
Integrated hinge
Door hinge adds no additional height, making it easier to install under a counter

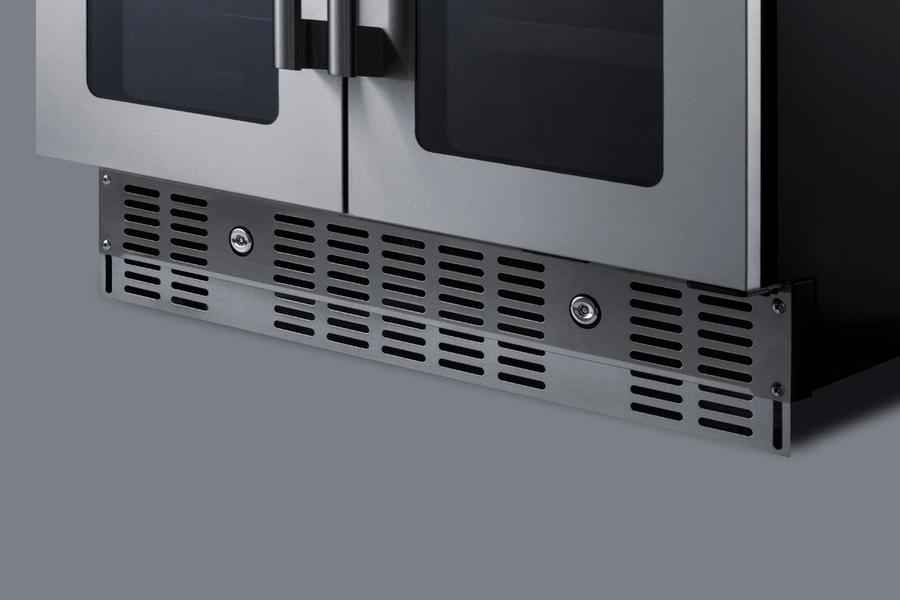

Kickplate extender included
Includes an extra stainless steel kickplate piece to cover the legs if the unit's height is raised
Fully finished black cabinet
Allows the unit to be used freestanding
100% CFC free
Environmentally friendly design does not contain ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
ADA compliant
Sized at just 32" high for installation under lower ADA compliant counters
