Sale price $1,774.01 Regular price $2,134.97 Save $360.96 / 16% OFF

Product Details for Summit ALFD24WBV

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Dimensions & weight

Width 23.38 in.
Height 32 in.
Length 22.75 in.
Weight 105 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 9.85 ft³
Dimensional Weight 122.45 lbs.
Total of Cubes 9.85 ft³
Total of Dimensional Weight 122.45 lbs.

Overview wine cellar

Nominal Height 32.0" (81 cm)
Height of Cabinet 32.0" (81 cm)
Nominal Width 24.0" (61 cm)
Width 23.38" (59 cm)
Nominal Depth 23.0" (58 cm)
Depth 22.75" (58 cm)
Depth with Handle 24.63" (63 cm)
Depth with door at 90° 33.0" (84 cm)
Capacity 4.6 cu.ft. (130 L)
Bottles 21 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 105.0 lbs. (48 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101058580
Number of Zones 2
Door Swing French
Reversible No
Height Adjustable Yes
Adjustable Shelves Yes
Shelf Type Glass and Wood
Shelf Qty 7
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.06 oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Height 1 25.38" (64 cm)
Interior Width 1 8.38" (21 cm)
Interior Depth 1 17.5" (44 cm)
Compressor Step Height 3.5" (9 cm)
Compressor Step Width 8.38" (21 cm)
Compressor Step Depth 5.0" (13 cm)
Level Legs 4
Temperature Range Beverage zone: 36 to 43°F; Wine zone: 41 to 72ºF
Interior Height 2 25.38" (64 cm)
Interior Width 2 8.38" (21 cm)
Interior Depth 2 17.5" (44 cm)
Sound Level 33.3 dB

Description

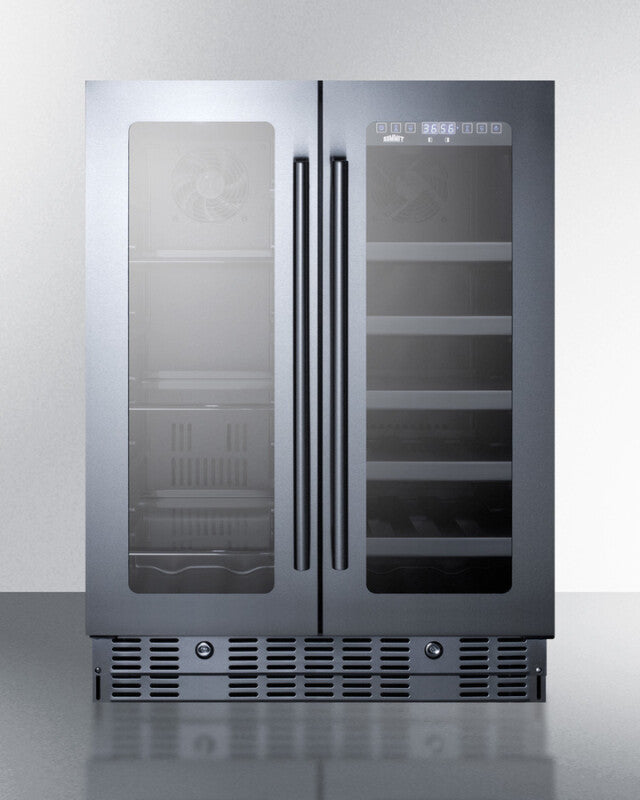

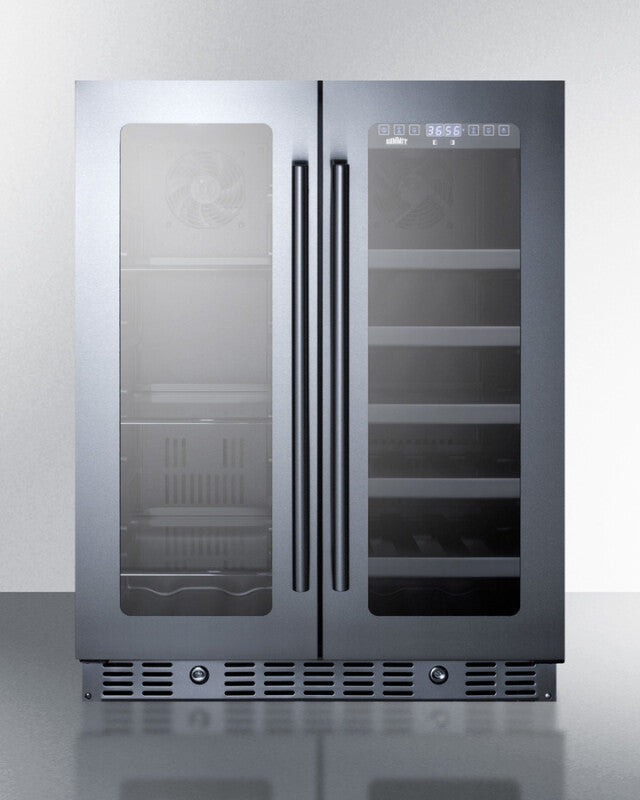

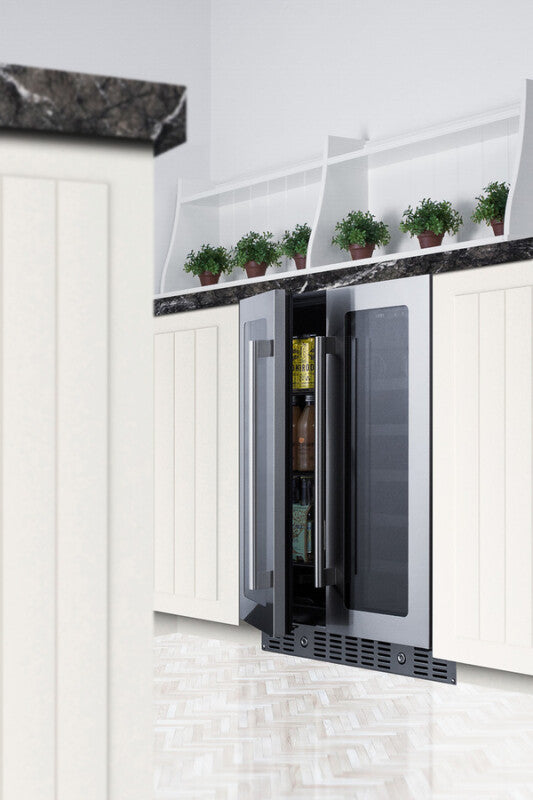

NOTE: product image may vary slightly from actual product. Summit offers a unique selection of built-in wine and beverage coolers for use in ADA compliant settings, with user-friendly features and luxury design. Sized with a convenient 24" footprint, the ALFD24WBV is 32" high, allowing it to fit under lower ADA compliant counters. Adjustable leveling legs let you raise the height up to 33.5" for added versatility. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This model has a French door swing, with two double pane tempered glass doors in a seamless stainless steel trim. Each door includes a front lock and pro style handle in brushed stainless steel. The ALFD24WBV features two distinct temperature zones to best store beverages and wine at their proper temperatures. The digital temperature controls make it easy to manage the temperature of each compartment, with a readout switchable from Fahrenheit to Celsius at the touch of a button. The left side includes adjustable glass shelves for spill-proof beverage storage and features a 36 to 43ºF temperature range. The right compartment includes adjustable wooden shelves in a jet black finish to store red or white wine between 41 and 72ºF. LED lighting offers an attractive and energy efficient presentation. This unit is equipped with audible alarms that warn if the doors are opened for over one minute and if the temperature exceeds the recommended range. Sabbath mode allows you to disable certain electrical features during periods of observance. With its unique design and advanced features, the ALFD24WBV offers versatile storage for any undercounter space. Additional ADA compliant choices are available in Summit's line. Browse our website for more information.


Product Features

  • ADA compliant
    Sized at just 32" high for installation under lower ADA compliant counters

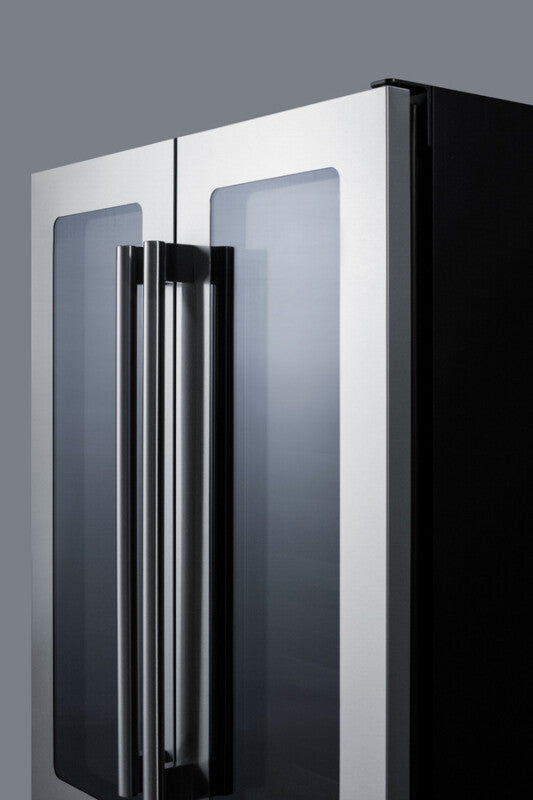

  • Seamless stainless steel trim
    Glass is framed by seamless 304 grade stainless steel
  • Two temperature zones
    Independent zones let you store beverages in the left compartment and wine in the right
  • Built-in capable
    Make the best use of space by installing your appliance under the counter
  • Height adjustable
    Leveling legs can raise the unit to up to 33.5" for more standardized counters

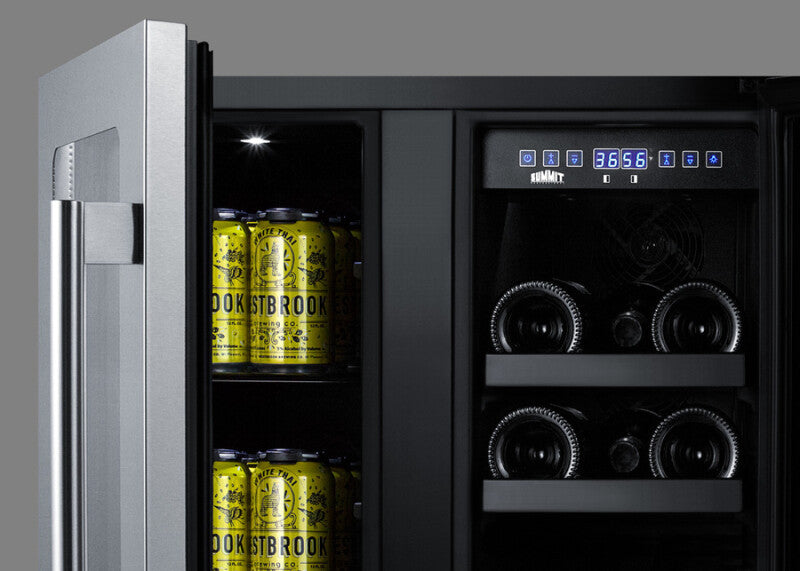

  • Digital thermostats
    Set and adjust two temperature zones separately with easy-to-use digital controls that display the temperature in Celsius or Fahrenheit
  • Factory installed locks
    Each door includes a keyed lock for optional security

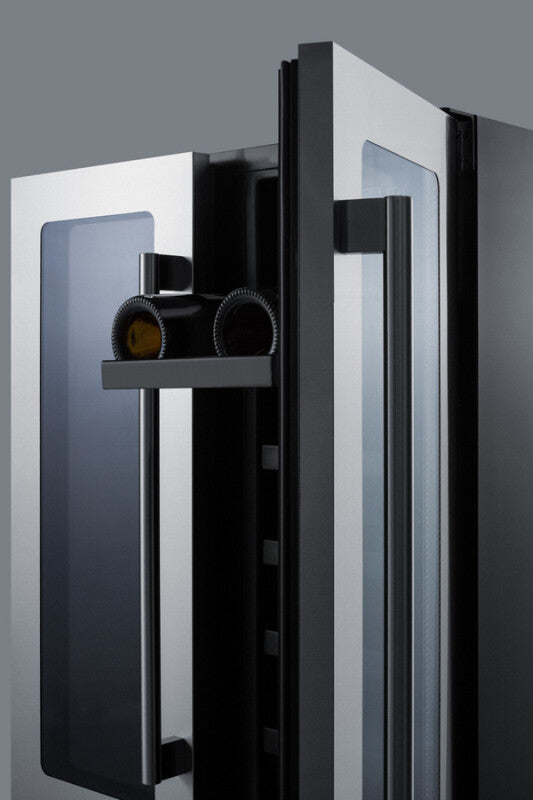

  • Adjustable wooden shelves
    Wine zone includes size adjustable wooden shelves in a modern jet black finish
  • Adjustable glass shelves
    Spill-proof glass shelves make it easy to store and display bottles and cans in the beverage zone
  • LED lighting
    Attractive and energy efficient LED lighting offers an elegant presentation
  • Automatic defrost
    Reduced user maintenance with automatic defrost operation
  • Fan-forced cooling
    Internal fans ensure both interiors are evenly cooled from top to bottom
  • French door swing
    Two side-by-side doors with French door opening

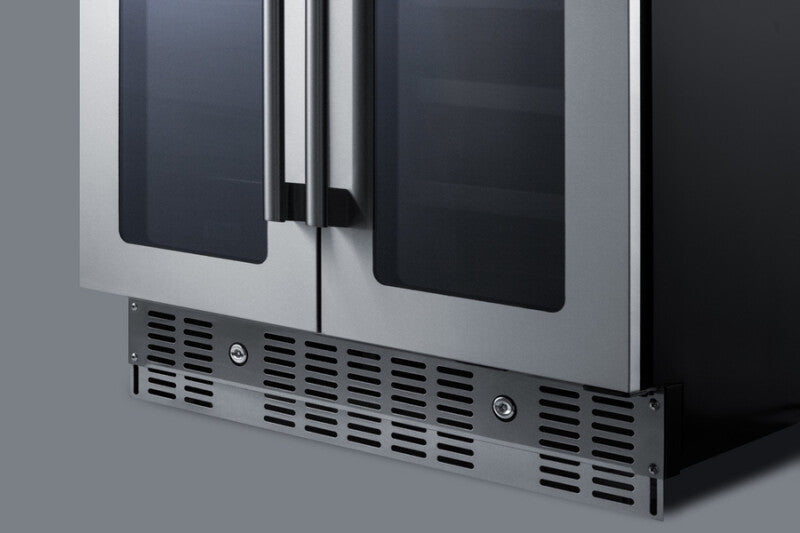

  • Stainless steel kickplate
    Completes the professional look down to the toe kick
  • High temperature alarm
    Audibly alerts if the interior temperature rises out of the recommended wine storage range
  • Open door alarm
    Audible alarm will sound if the doors are left ajar for over 60 seconds
  • Sabbath mode
    Allows you to disable certain electrical functions for up to 48 hours for periods of observance
  • Temperature Memory Function
    Unit will retain its last settings when power is restored in the event of power loss
  • Right angle cord
    Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
  • Sealed back
    Space saving design with easier cleanability
  • Integrated hinge
    Door hinge adds no additional height, making it easier to install under a counter
  • Kickplate extender included
    Includes an extra stainless steel kickplate piece to cover the legs if the unit's height is raised

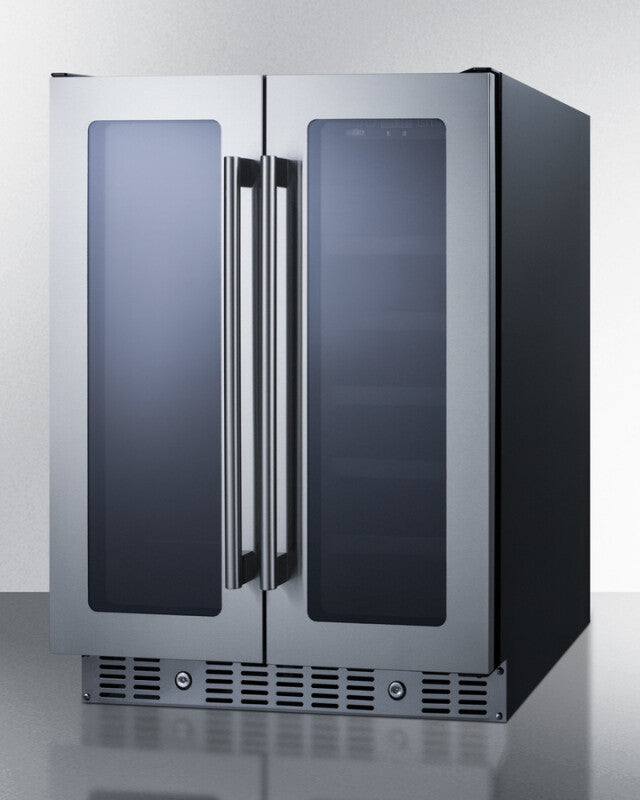

  • Fully finished black cabinet
    Allows the unit to be used freestanding
  • 100% CFC free
    Environmentally friendly design does not contain ozone-damaging chemicals
  • CARB Compliant
    Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
