Sale price $1,203.25 Regular price $1,424.97 Save $221.72 / 15% OFF

Product Details for Summit ALBV15

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Dimensions & weight

Width 14.75 in.
Height 32 in.
Length 23.63 in.
Weight 68 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 6.45 ft³
Dimensional Weight 80.24 lbs.
Total of Cubes 6.45 ft³
Total of Dimensional Weight 80.24 lbs.

Overview refrigerator features dimensions

Nominal Height 32.0" (81 cm)
Height of Cabinet 32.0" (81 cm)
Nominal Width 15.0" (38 cm)
Width 14.75" (37 cm)
Nominal Depth 24.0" (61 cm)
Depth 23.63" (60 cm)
Depth with Handle 25.38" (64 cm)
Depth with door at 90° 38.25" (97 cm)
Capacity 2.6 cu.ft. (74 L)
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 280.0kWh/year
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 68.0 lbs. (31 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101056388
Door Swing RHD
Reversible Yes
Shelf Type Glass
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.78oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs Qty 4
Interior Light Yes
Temperature Range 36 - 43ºF
Sound Level 33 dB
Interior Height 21.25" (54 cm)
Interior Width 10.5" (27 cm)
Interior Depth 17.25" (44 cm)
Compressor Step Height 3.5" (9 cm)
Compressor Step Width 10.5" (27 cm)
Compressor Step Depth 5.0" (13 cm)

Description

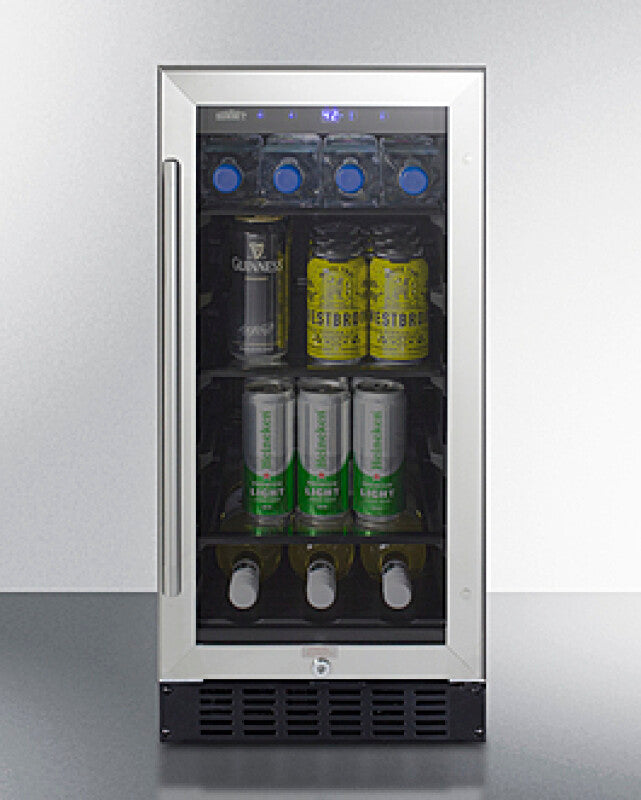

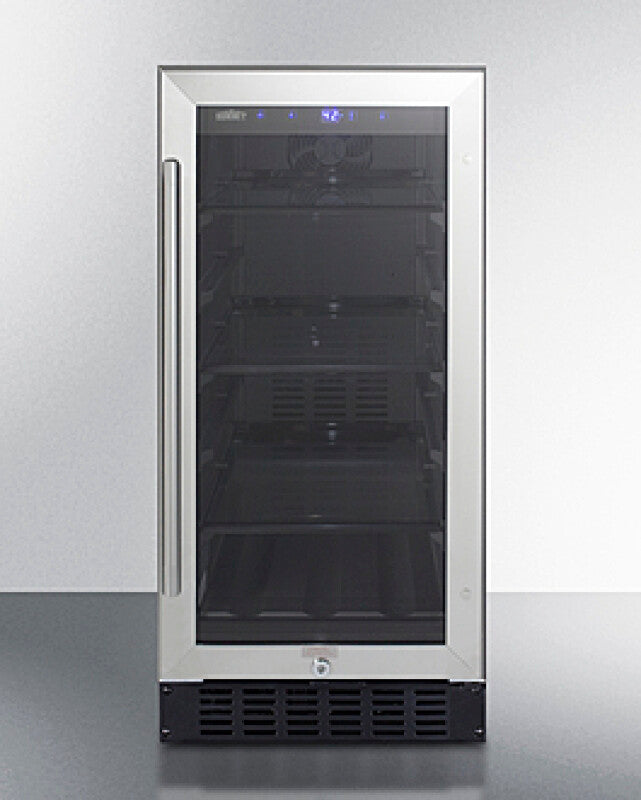

Summit offers the industry's largest selection of 32" high ADA compliant appliances, with quality choices for built-in or freestanding use in 15" wide spaces. The ALBV15 is a beverage center sized just under 15" wide and 32" high to fit under lower ADA compliant counters. The front-breathing system allows built-in installation, while the fully finished black cabinet also makes it safe for freestanding use. This unit features a user-reversible double pane tempered glass door complete with seamless stainless steel trim, a European-style fully articulating hinge, and pro style handle. The front lock offers added security. For added space savings, the ALBV15 is designed with a sealed back, integrated hinge, and right angle cord. This unit is also height adjustable with adjustable leveling legs and an extra kickplate that allows you to raise the unit up to an additional 3". Three adjustable glass shelves offer flexible, spill-proof storage, with black trim for added color matched style. This model utilizes automatic defrost for easy maintenance and includes an internal fan to ensure more even temperature distribution. An audible alarm sounds if the door has been left open for over one minute, or if the temperature has risen out of the recommended storage range. This unit is also equipped with Sabbath mode to allow users the option of disabling certain electrical functions during periods of religious observance. With its unique size and user-friendly features, the ALBV15 is the perfect choice for space-constrained ADA compliant settings. For a matching wine cellar, see the ALWC15.


Product Features

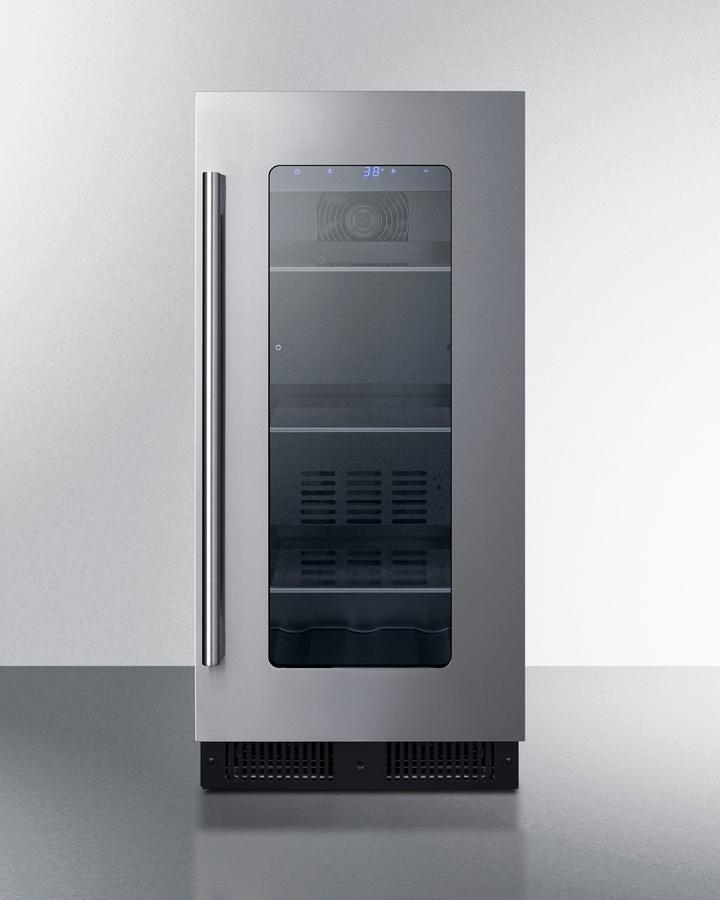

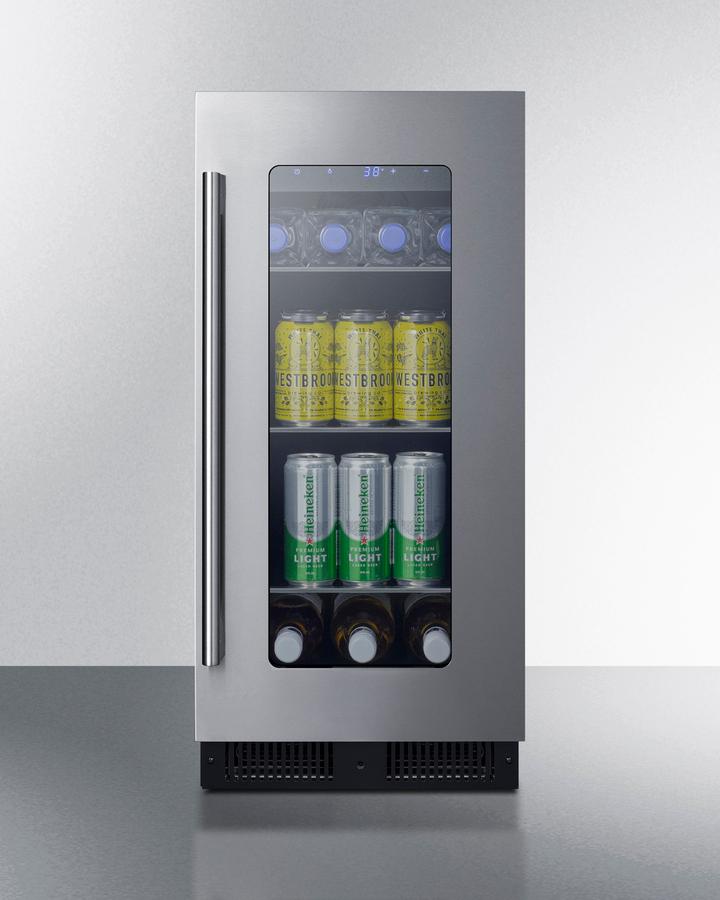

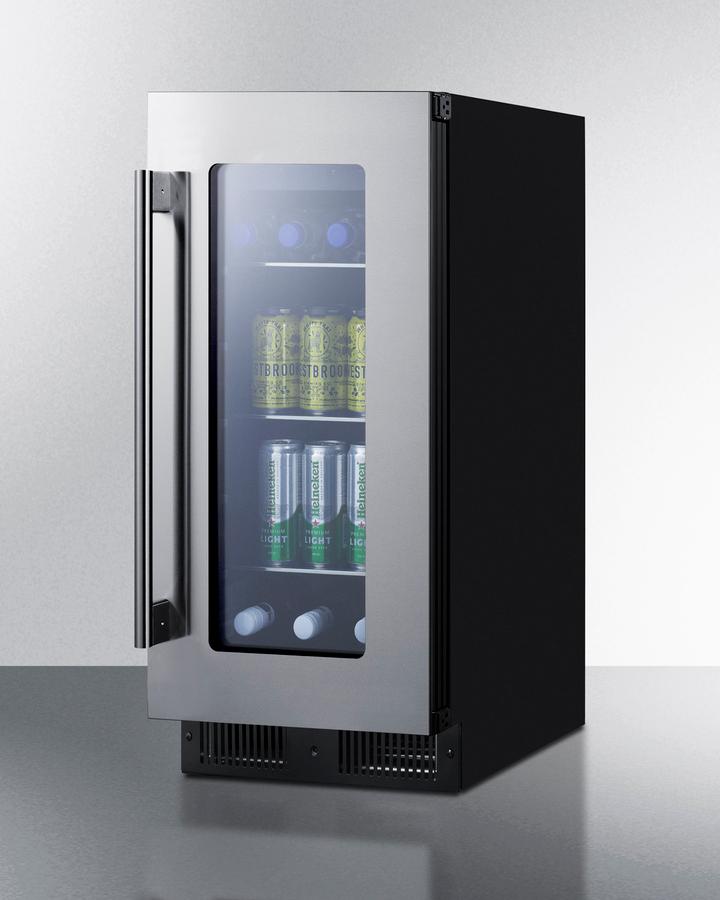

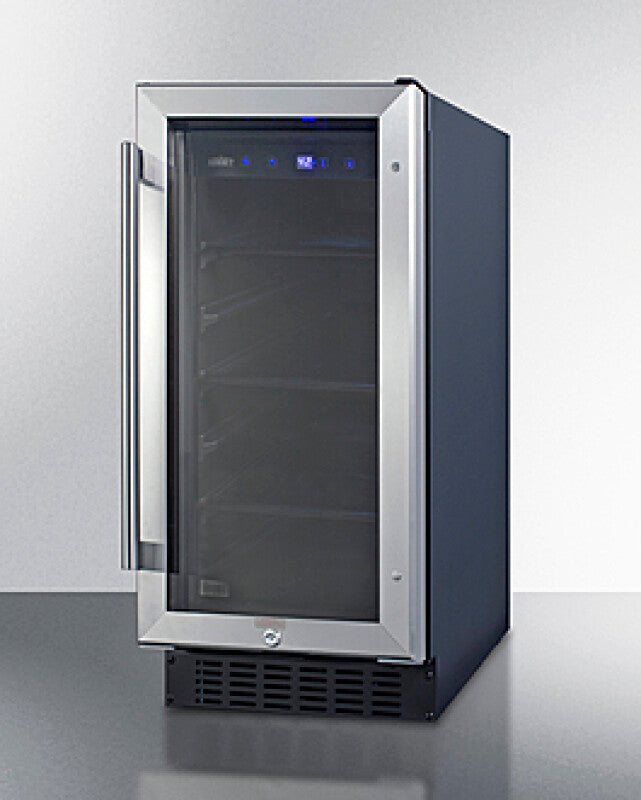

  • 15" Wide Beverage Center
    Slim-fitting glass door refrigerator sized for undercounter installation in ADA compliant spaces
  • ADA compliant
    Sized at 32" high for use under lower ADA compliant counters
  • Built-in capable
    Make the best use of space by installing your appliance under the counter

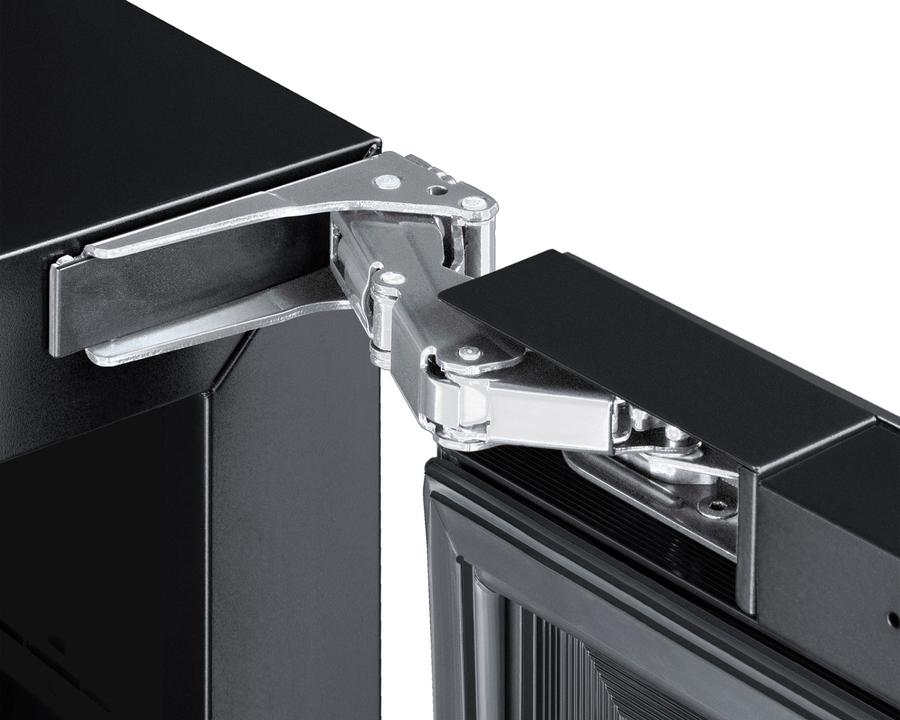

  • Fully articulating European style hinge
    Cleaner openings with a fully extended hinge system

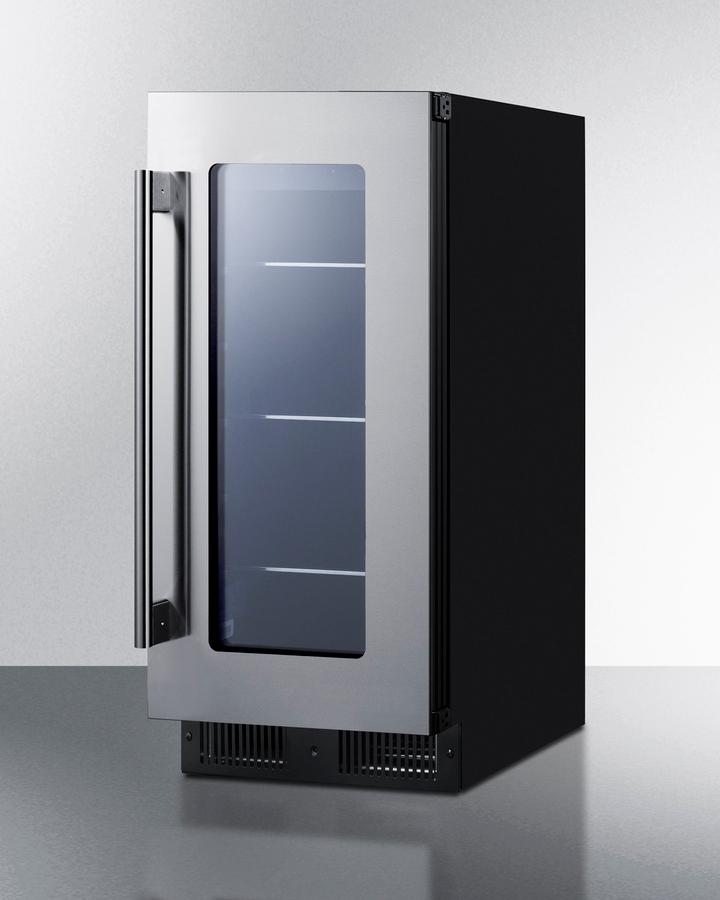

  • Glass door with stainless steel trim
    Provides a full display of stored contents with a heat-safe double tempered design
  • Factory installed lock
    Keyed lock for a secure interior, with two keys included

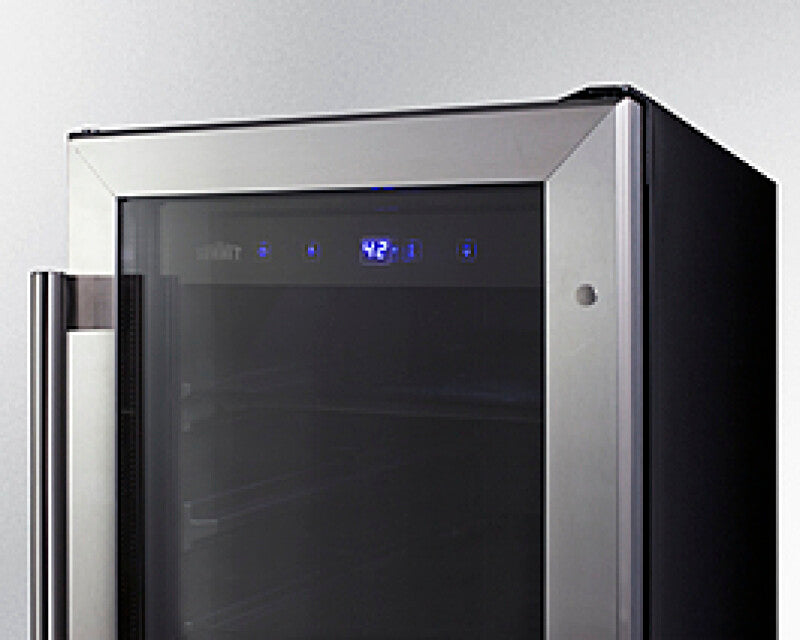

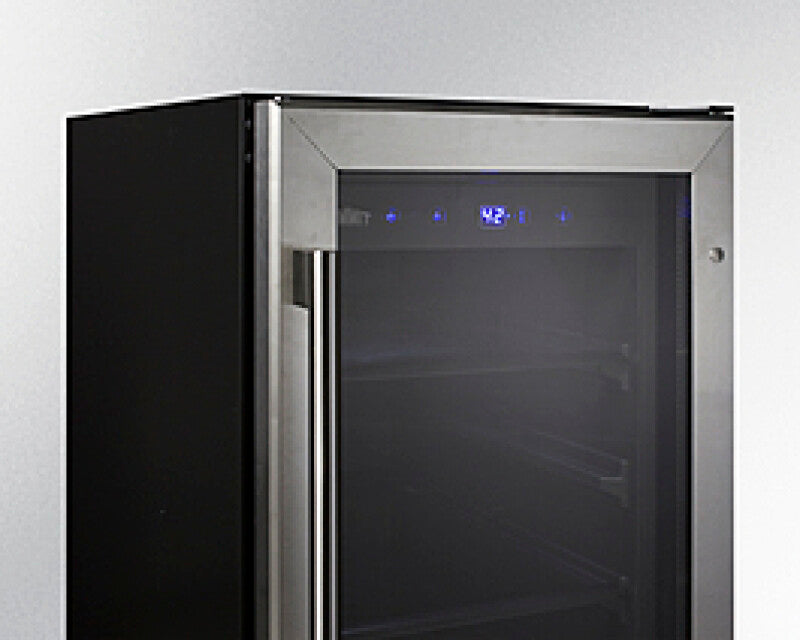

  • Digital thermostat
    Electronic controls for precise temperature management.
  • Digital display
    Temperature readout can be shown in Celsius or Fahrenheit
  • LED lighting
    Gentle illumination with an on/off switch
  • Automatic defrost
    Reduced maintenance with the convenience of auto defrost

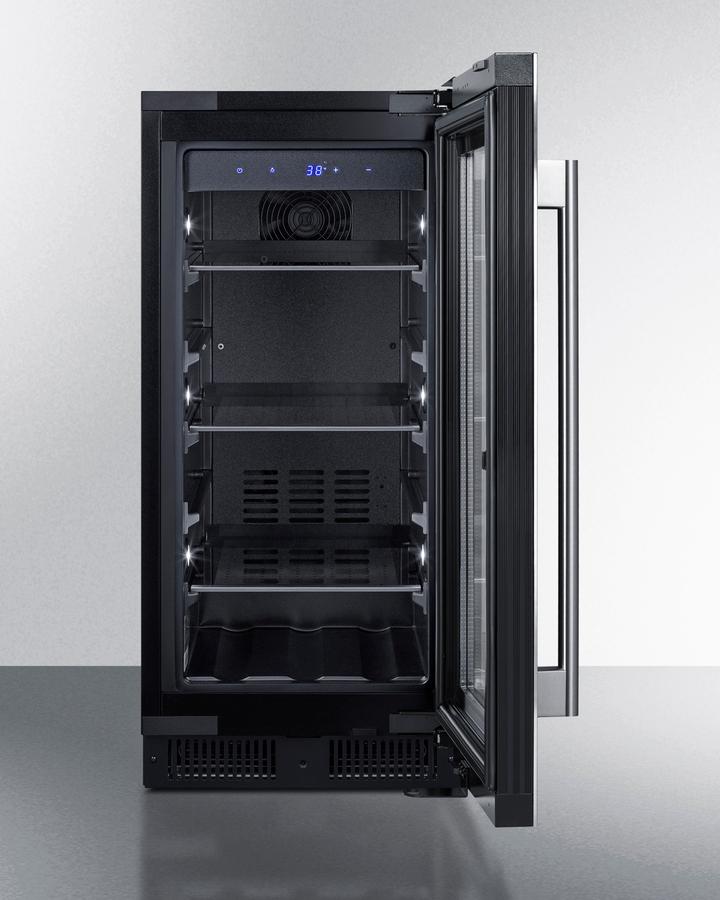

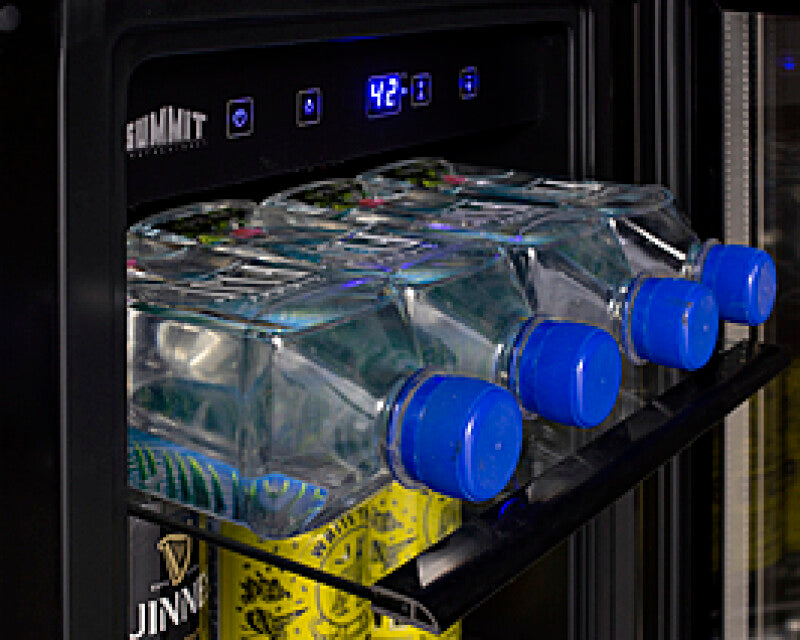

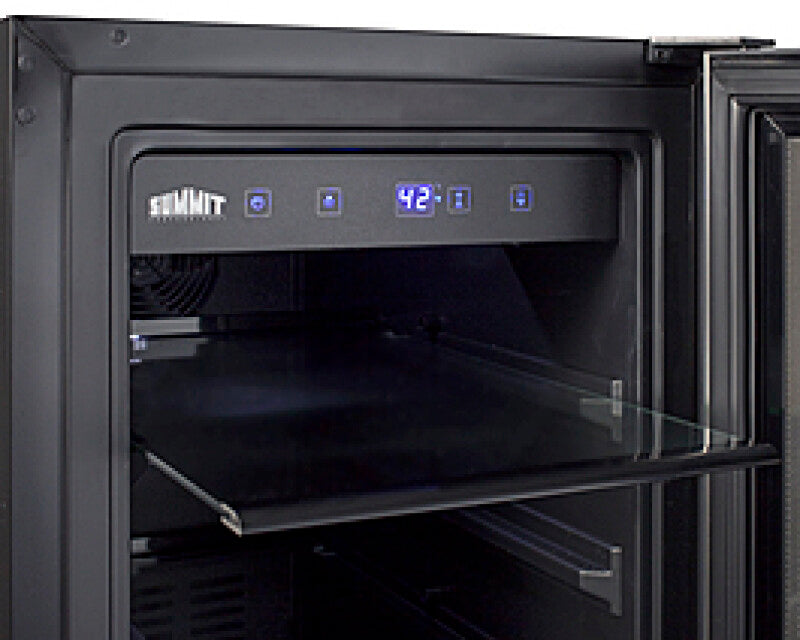

  • Adjustable glass shelves
    Flexible storage with spill-proof convenience

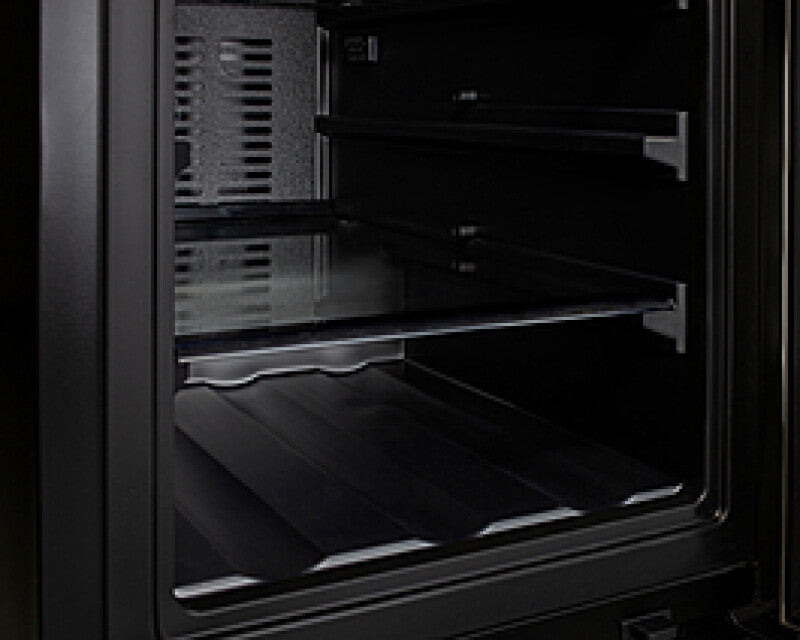

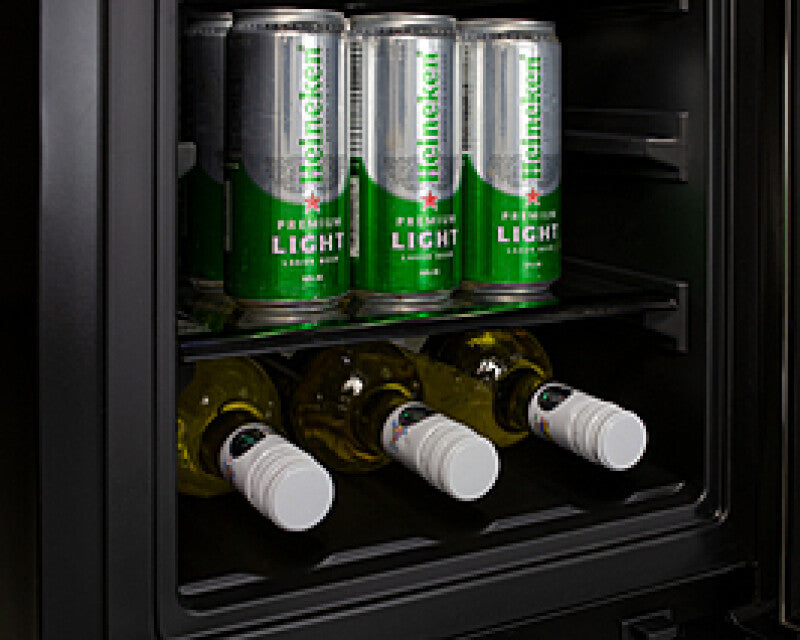

  • Slotted floor
    Floor includes slots to hold bottles in place
  • Reversible door
    User-reversible door swing on the refrigerator for added flexibility
  • Height adjustable
    Leveling legs can raise the unit to up to 34.5" for more standardized counters. An extra kickplate cover is included to cover the added space

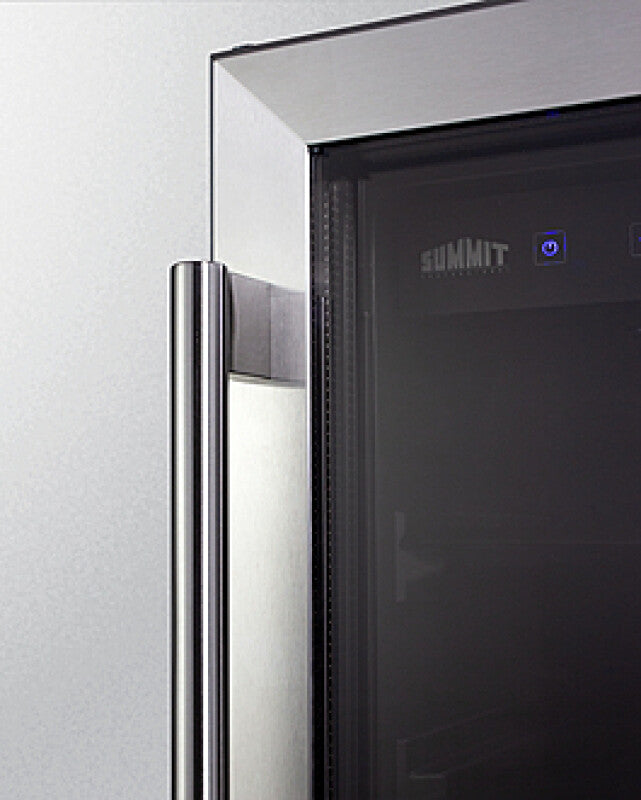

  • Professional handle
    Stainless steel look for added elegance
  • Sabbath mode setting
    Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance
  • High temperature alarm
    Audible alarm sounds if the interior temperature rises out of set range
  • Open door alarm
    Alarm sounds if the door is left open for more than 60 seconds
  • Right angle plug
    Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
  • Flush back
    Space saving design makes it easier to install flush against the wall
  • Matching wine cellar available
    Pair with the ALWC15 for a perfectly matched set
  • Fully finished black cabinet
    Allows the unit to be used freestanding
  • 100% CFC Free
    Environmentally friendly design with no ozone-damaging chemicals
  • CARB Compliant
    Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
  • HTS CODE: 8418.50.0080
    Upright coolers incorporating refrigerating equipment, each measuring not more than 77 cm/30.315" in width, not more than 78 cm/30.7" in depth and not more than 200 cm/78.75" in height, weighing not more than 127 kg/280 lb, with one swing-type transparent glass door
