Name: SUMMIT AL752BKBIIF ADA Compliant Built-in Undercounter All-refrigerator for General Purpose Use, Auto Defrost W/integrated Door Frame for Custom Overlay Panels and Black Cabinet
Brand: SUMMIT
SKU: AL752BKBIIF-KT
Price: 1651.47 USD
Availability: InStock

SUMMIT AL752BKBIIF ADA Compliant Built-in Undercounter All-refrigerator for General Purpose Use, Auto Defrost W/integrated Door Frame for Custom Overlay Panels and Black Cabinet

Key Specs

Type: Compact refrigerators
Width: 23.63 Inch
Depth: 23.5 Inch
Height: 32.25 Inch

More details

Translation missing: en.products.product.product_variants

$1,651.47 $2,005.00 Save $353.53

Check Delivery Options

More on the way

Quantity:

Extended Protection

5 Year Major Appliance True Extended under $2,500.00
$195.99
3 Year Major Appliance True Extended under $2,500.00
$131.99
Decline Protection

General
Model: AL752BKBIIF
Brand: Summit Appliance
Type: Refrigerators
Height: 32.25
Width: 23.63
Length: 23.5
Capacity & Storage
Capacity (cu. ft.): 5.5
Number of Shelves: 3
Counter depth: No
Features
Ice Maker: No
Water Dispenser: No
Sabbath mode: No
Advanced Features
Wi-Fi Connectivity: No

Description
Specifications
Manuals & Guides
Features
Reviews

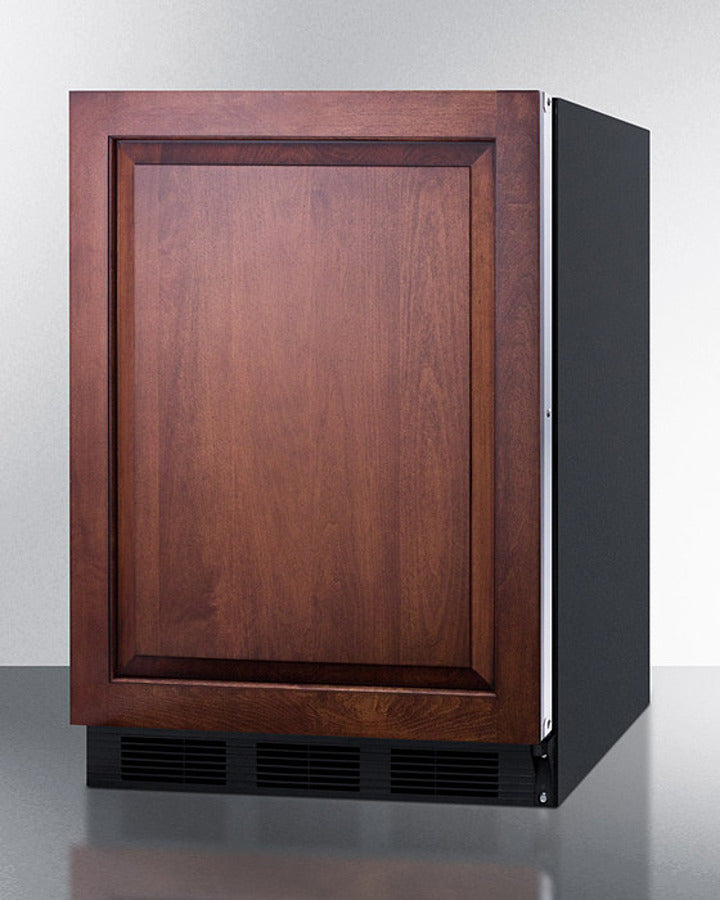

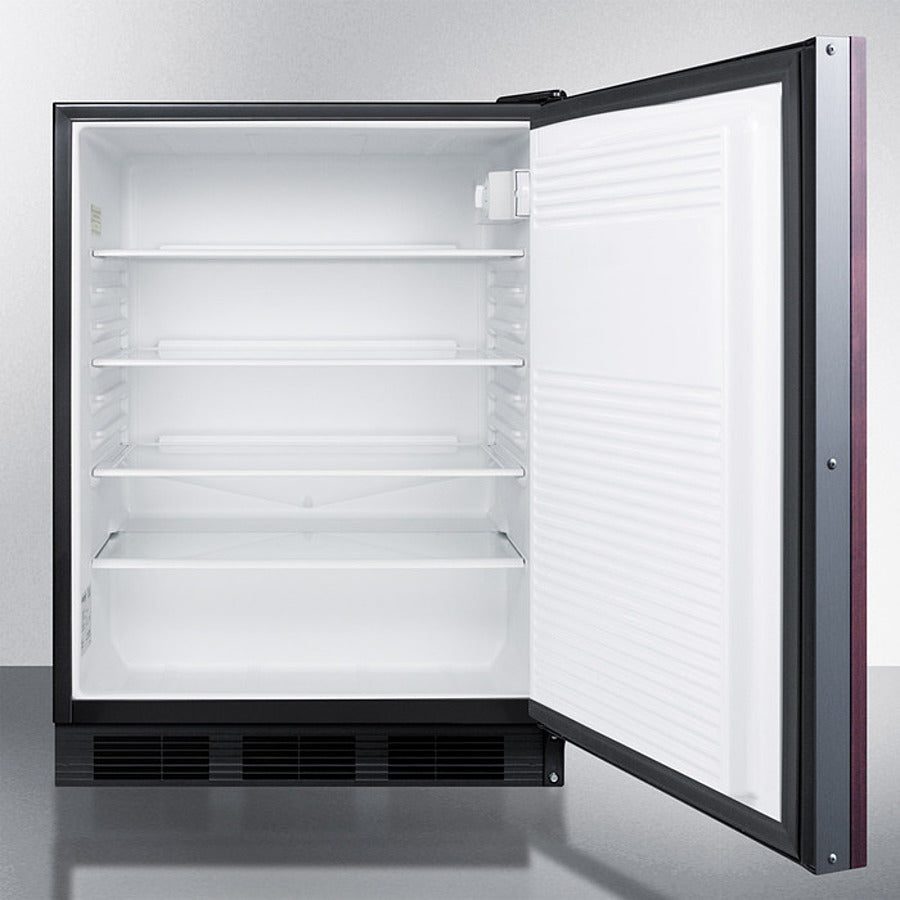

Accucold by Summit Appliance offers a wide range of all-refrigerators for general purpose storage. The AL750BI Series features 24" wide all-refrigerators designed for built-in installation under lower ADA compliant counters. The AL752BKBIIF is a 32" high all-refrigerator with a full 5.5 cu.ft. capacity inside a slim 24" footprint. The front-breathing design allows built-in use under counters, while the fully finished cabinet also lets this unit be used freestanding. This model has a black cabinet. The door includes an integrated stainless steel frame to accept overlay panels for a custom look. Users provide their own handle. Inside, the AL752BKBIIF utilizes low maintenance automatic defrost operation. Our unique "hidden" evaporator is set behind the rear wall to create a seamless, easy-to-clean interior that also maximizes shelf space. This unit has a flat door liner that allows it to accept larger trays (up to 19 1/2" x 16"). Adjustable glass shelves allow users to reconfigure the interior to accommodate a variety of sizes. The interior light is controlled by an on/off rocker switch located behind the thermostat dial. For more finish options, browse the entire AL750BI Series. Note: This product is intended for a wide variety of basic storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals require a product offering tighter temperature control and/or alarms, monitoring, and backup. For more information, browse Accucold's purpose-built line or contact our product specialists at 1-888-4-MED-LAB.

Overview
Height of Cabinet	32.0" (81 cm)
Height to Hinge Cap	32.25" (82 cm)
Width	23.63" (60 cm)
Depth	23.5" (60 cm)
Depth with door at 90°	45.63" (116 cm)
Capacity	5.5 cu.ft. (156 L)
Defrost Type	Automatic
Door	Panel-Ready
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	1.4
Voltage/Frequency	115 V AC/60 Hz
Weight	100.0 lbs. (45 kg)
Shipping Weight	105.0 lbs. (48 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101071923
Refrigerator Features
Door Swing	RHD
Reversible	Factory Reversible
Shelf Type	Glass
Shelf Qty	3
Adjustable Shelves	Yes
Thermostat Type	Dial
Fan Type	Exterior
Refrigerant Type	R600a
Refrigerant Amount	0.64oz.
High Side PSI	180.0
Low Side PSI	80.0
Level Legs Qty	4
Interior Light	Yes
Dimensions
Interior Height	26.25" (67 cm)
Interior Width	21.0" (53 cm)
Interior Depth	17.75" (45 cm)
Compressor Step Height	5.5" (14 cm)
Compressor Step Width	21.0" (53 cm)
Compressor Step Depth	5.5" (14 cm)
Exterior
HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix	SSK Stainless steel kickplate factory installed
LHD - Left hand door swing Door reversal to left hand swing	ODA - Open door alarm Add an open door alarm to audibly buzz when the door is left ajar.
Alarm Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations	DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management
PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices	TT - Installed thermometer ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user	set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Interior
FC - Internal Fan Internal fan for even temperature distribution throughout the unit interior	FCGP internal fan with gel packs Internal fan with gel packs included for a stabilized interior

ADA compliant: 32 inch height fits under standard ADA counters

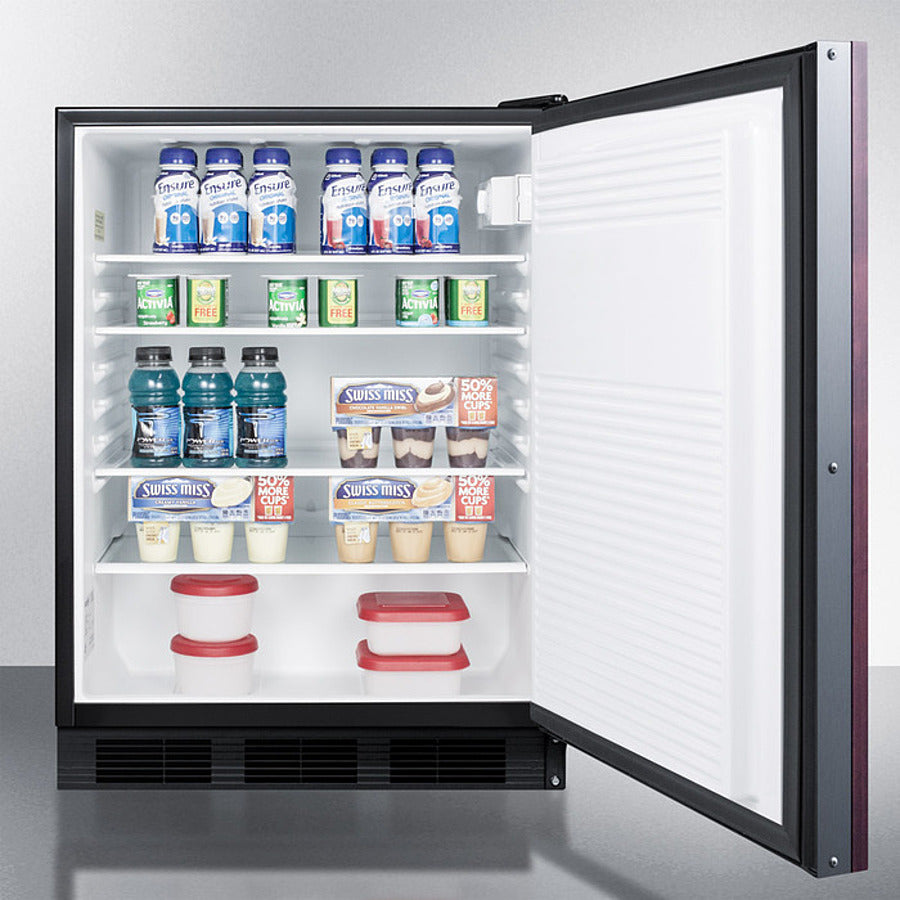

Flat door liner: An easy-to-clean flat liner accepts large trays
Slim undercounter dimensions: Less than 24 inches wide with a full 5.5 c.f. capacity
Built-in capable: Make the best use of space by installing your appliance under the counter and flush with other cabinets
Fully finished black cabinet: Allows the refrigerator to be used freestanding

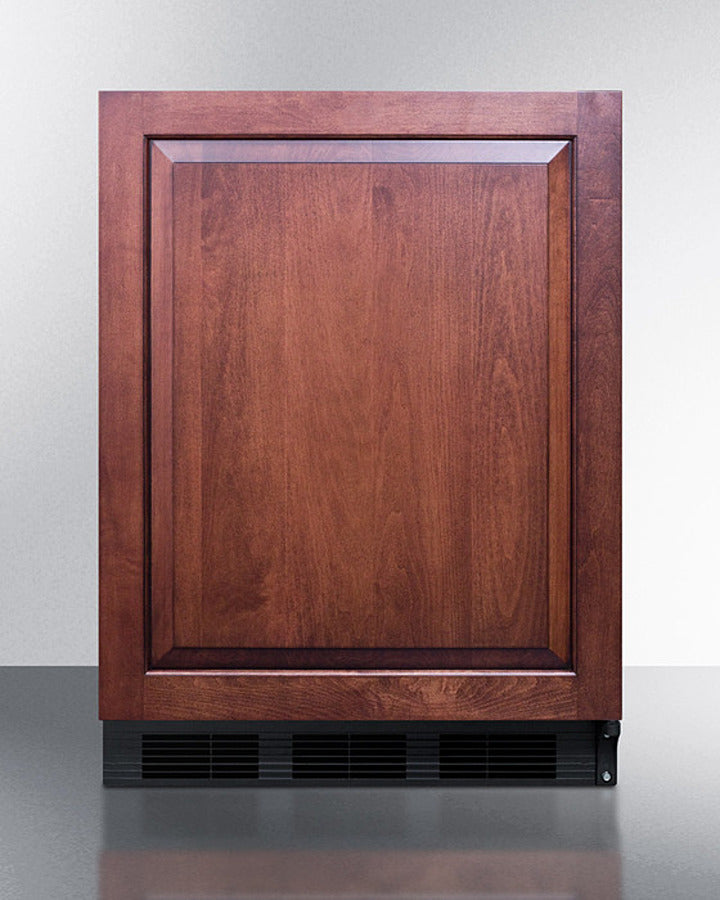

Integrated door frame: Customize the front by mounting an overlay panel over the door; seamless look can blend into other cabinetry with no exposed frame. Handle not included (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)
Automatic defrost: Reduced user maintenance with automatic defrost operation
One piece interior liner: Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Hidden evaporator: Cold wall design with hidden evaporator and seamless interior
Adjustable glass shelves: Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
