Summit AL57GPNRLHD 24" Wide Built-In Beverage Center, ADA Compliant (Panel Not Included) Black
Sale price
$1,682.59
Regular price
$2,019.97
Save
$337.38
/ 16% OFF
Out of stock
Active Rebates
Electrical Requirement Notice: This appliance may require a dedicated electrical circuit or special voltage (e.g., 120V or 240V). Please verify your home’s electrical setup or consult a licensed electrician before installation. If you have any questions, please contact us.
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
⚠️ Please note: This product is a part or accessory, not a complete appliance unit.
Sale price
$1,682.59
Regular price
$2,019.97
Save
$337.38
/ 16% OFF
Product Details for Summit AL57GPNRLHD
Technical Details

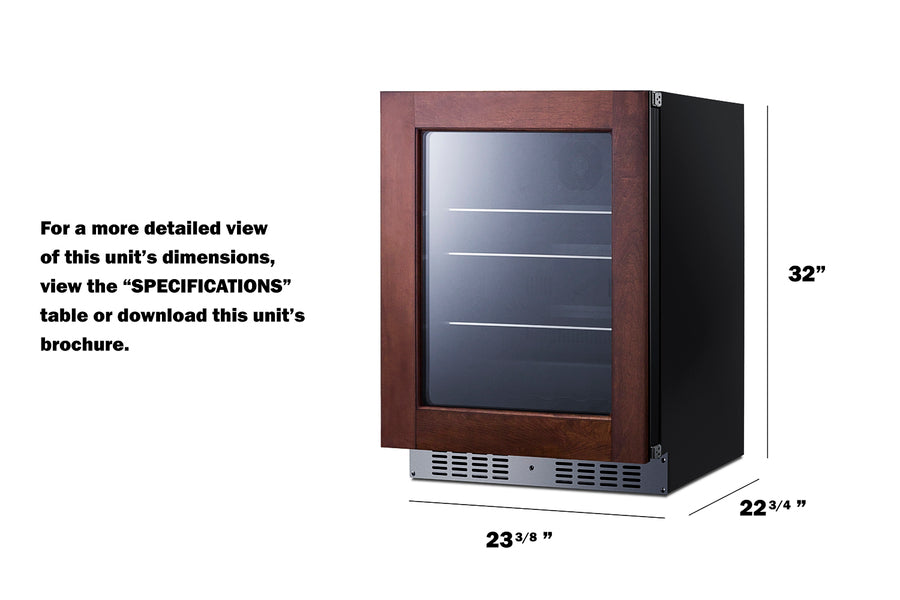

Overview refrigerator features dimensions
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.75" (58 cm) |
| Depth with door at 90° | 46.0" (117 cm) |
| Capacity | 4.63 cu.ft. (131 L) |
| Defrost Type | Frost-Free |
| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 290.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 95.0 lbs. (43 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101091266 |
| Sabbath Mode | Yes |
| Door Swing | LHD |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.99oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 36 to 43ºF |
| Sound Level | 33.6 dB |
| Interior Height | 24.38" (62 cm) |
| Interior Width | 20.0" (51 cm) |
| Interior Depth | 16.75" (43 cm) |
| Compressor Step Height | 3.25" (8 cm) |
| Compressor Step Width | 20.0" (51 cm) |
| Compressor Step Depth | 5.25" (13 cm) |
Description
Summit's ADA compliant line of 24" wide built-in refrigerators brings quality and style to settings with space restraints. Model AL57GPNRLHD is a 32" high beverage center designed for built-in or freestanding use under lower ADA compliant counters. The glass door features a seamless stainless steel trim and two included brackets that let you customize the look to best match adjacent cabinetry (recommended panel dimensions: 28.34" H x 23.4" W with a 3 1/4" H x 3 1/4" W frame; panel thickness: 3/4"). The European style fully articulating hinge ensures the door opens in its own radius. A factory-installed lock offers additional security, while the sealed rear and right angle plug provide added space savings. This unit ships with a left hand door swing. Inside, the AL57GPNRLHD utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes adjustable glass shelves for flexible, spill-proof storage. The floor is specially slotted to hold bottles in place. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. With its deluxe style and user-friendly features, this unit is the perfect choice for any ADA compliant kitchen, bar, or recreational area. Note: Panel is not included. The images provided are meant only to be suggestive of what the product with a wood panel installed could look like. Users must supply their own wood panel.
Product Features
-
24" Wide Undercounter Beverage Center
Glass door refrigerator sized at 32" high for built-in or freestanding use in ADA compliant settings -
ADA compliant design
32" height allows easy installation under lower ADA compliant counters -
Built-in capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter -

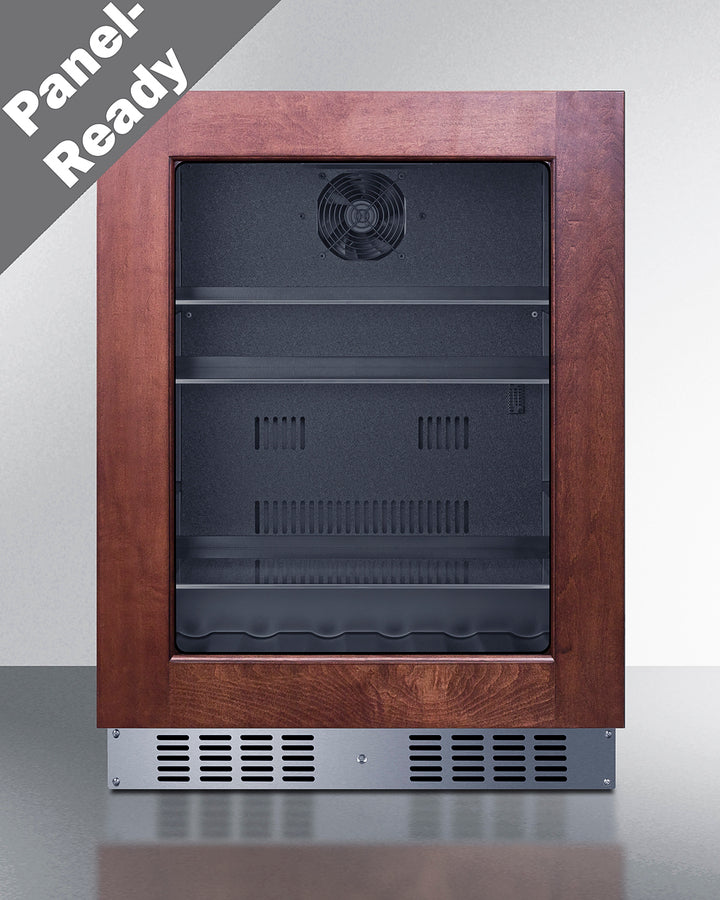

Panel-ready door trim

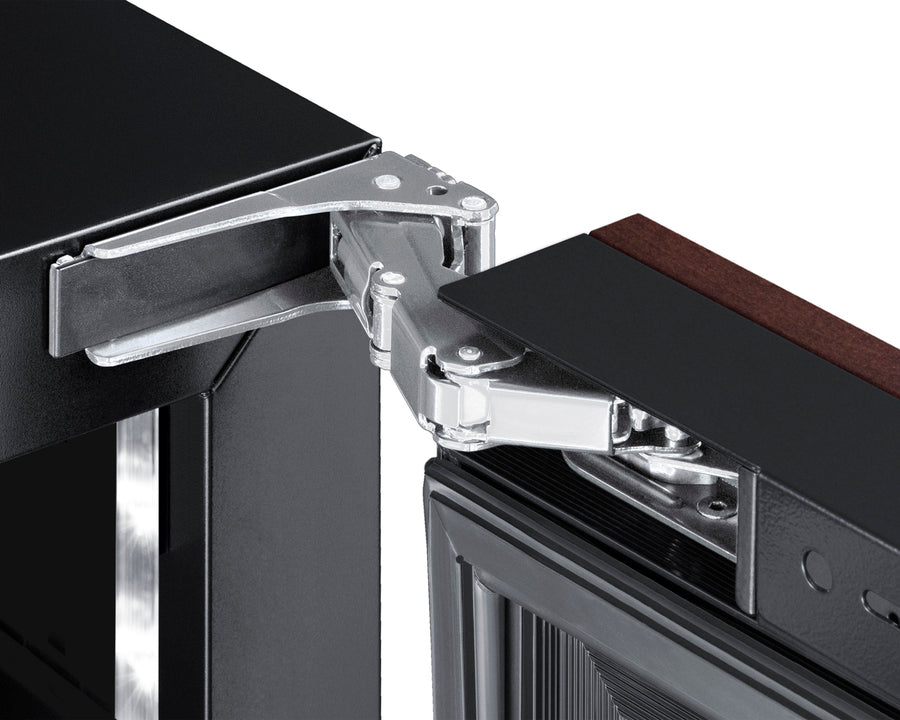

European style articulating door hinge and bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry; recommended panel dimensions: 28.34" H x 23.4" W with a 3 1/4" H x 3 1/4" W frame; panel thickness: 3/4" -
Stainless steel door trim
Fully finished door trim also allows you to choose a traditional stainless steel and glass front if not installing an overlay panel -
Double pane tempered glass door
Stainless steel trimmed glass door offers a heat-safe view of the interior -
Factory installed lock
Keyed lock for a secure interior -
Frost-free operation
No-frost operation for minimum user maintenance -
Digital thermostat
Electronic controls located inside the unit for precise temperature management -
Recessed LED light
Efficient and attractive presentation with LED lighting -
Adjustable glass shelves
Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup -
Bottle slots
Floor is specially slotted to store wine and other bottles safely in place -
Internal fan
Fan-forced cooling ensures the unit is evenly cooled from top to bottom -
Open door alarm
Audible alarm will sound if the door is left open longer than one minute -
High temperature alarm
High temperature alarm sounds if the unit's interior goes out of the recommended range -
Sabbath mode setting
Optional setting lets you disable the lighting and alarm for up to 48 hours -
Temperature Memory Function
Unit will retain its last settings when power is restored in the event of power loss -
Sealed back
Space-saving design that offers easier cleanability -
Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth -
Fully finished black cabinet
Allows the unit to be used freestanding -
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals -
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
