Sale price $1,246.47 Regular price $1,624.97 Save $378.50 / 23% OFF

Product Details for Summit AL57G

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Dimensions & weight

Width 23.63 in.
Height 32 in.
Length 22.63 in.
Weight 95 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 9.9 ft³
Dimensional Weight 123.11 lbs.
Total of Cubes 9.9 ft³
Total of Dimensional Weight 123.11 lbs.

Overview refrigerator features dimensions

Nominal Height 32.0" (81 cm)
Height of Cabinet 32.0" (81 cm)
Nominal Width 24.0" (61 cm)
Width 23.63" (60 cm)
Nominal Depth 23.0" (58 cm)
Depth 22.63" (57 cm)
Depth with Handle 24.63" (63 cm)
Depth with door at 90° 45.0" (114 cm)
Capacity 5.0 cu.ft. (142 L)
Defrost Type Frost-Free
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 290.0kWh/year
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 95.0 lbs. (43 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101052274
Sabbath Mode Yes
Door Swing RHD
Reversible Yes
Shelf Type Glass
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.99oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs Qty 4
Interior Light Yes
Temperature Range 36 to 43ºF
Sound Level 33.6 dB
Interior Height 25.0" (64 cm)
Interior Width 20.0" (51 cm)
Interior Depth 17.5" (44 cm)
Compressor Step Height 3.25" (8 cm)
Compressor Step Width 20.0" (51 cm)
Compressor Step Depth 5.25" (13 cm)

Description

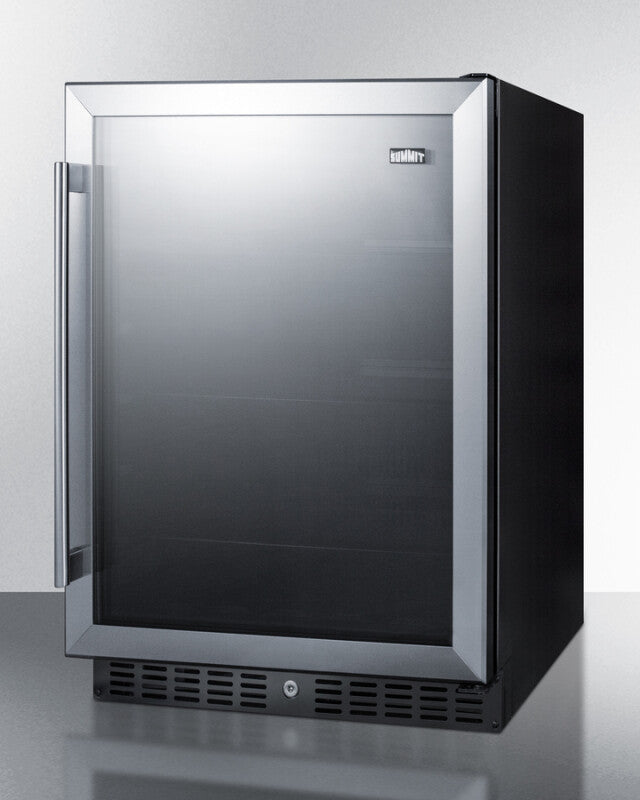

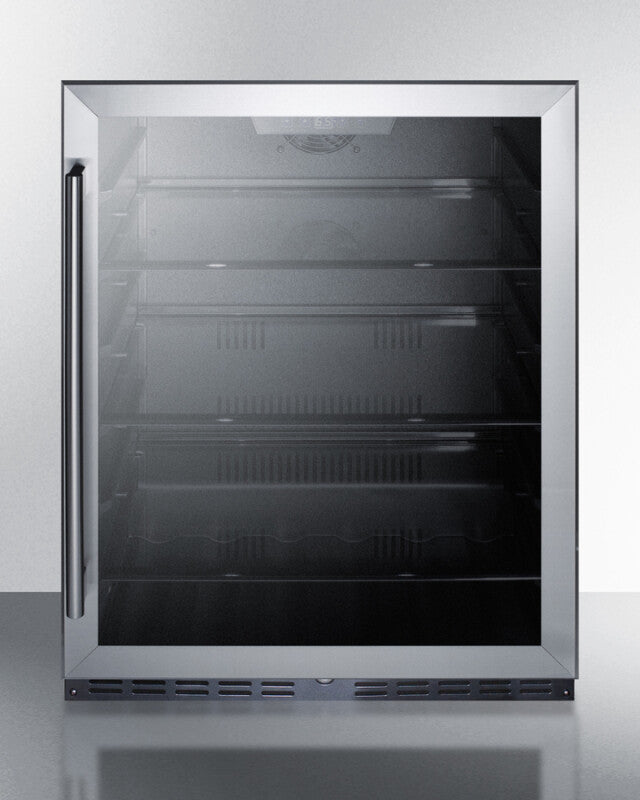

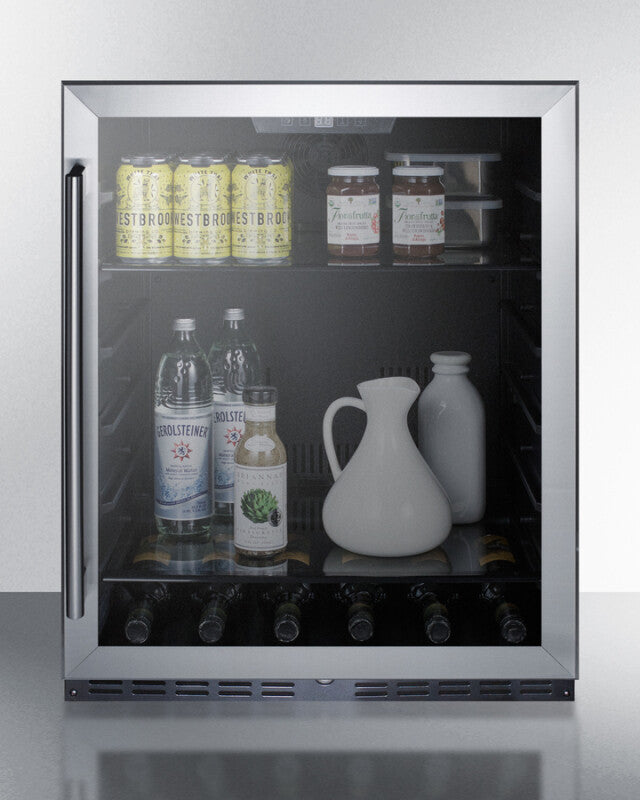

SUMMIT's extensive selection of built-in refrigerators brings quality and style to commercial settings designed to incorporate lower ADA compliant counter height. Sized with a convenient 24" footprint, the AL57G is just 32" high to fit under lower counters complying with ADA guidelines for accessibility in commercial settings. The fully finished black cabinet allows freestanding use, while the front-breathing system also allows this unit to be built-in with minimum clearance. This unit has a user-reversible double pane tempered glass door with attractive stainless steel trim. A stainless steel handle completes the look and a factory installed lock in the kickplate offers additional security. The flush back design helps to make cleaning easier, while the right angle cord offers added space savings. Inside, the AL57G utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes adjustable glass shelves for flexible, spill-proof storage. The floor is specially slotted to hold bottles in place. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. The AL57G refrigerator is ETL-S listed to NSF-7 commercial standards. With its deluxe style and user-friendly features, this unit is the perfect choice for bars, restaurants, hotel lobbies, waiting areas, and other settings looking to store beverages under the proper conditions.


Product Features

  • 24" wide commercial beverage center
    Glass door all-refrigerator designed for use in commercial settings
  • Commercially approved
    ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments
  • Factory installed lock
    Keyed lock for a secure interior
  • ADA compliant design
    32" height allows easy installation under lower ADA compliant counters
  • Built-in capable
    Front-breathing design lets you make the best use of space by installing your appliance under the counter

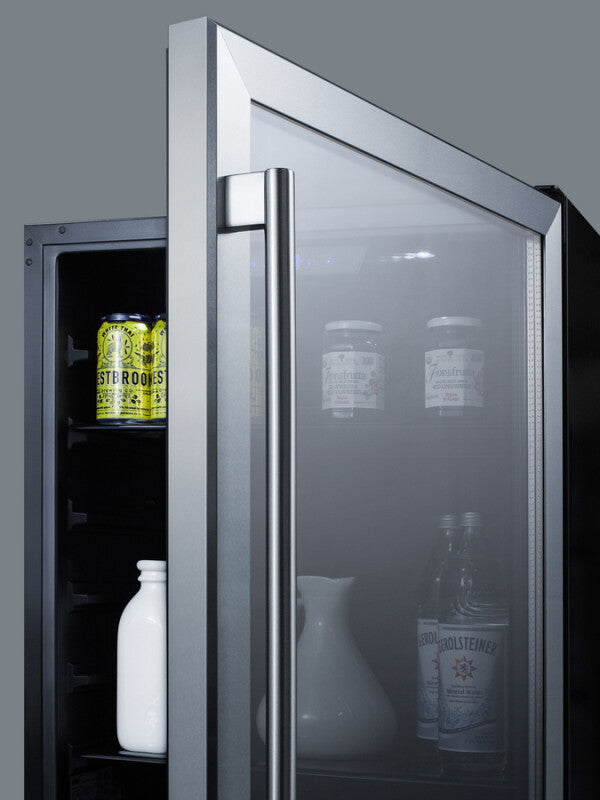

  • Double pane tempered glass door
    Stainless steel trimmed glass door offers a heat-safe view of the interior
  • Professional handle
    Stainless steel handle completes the look
  • Popular commercial applications
    Perfectly designed to store and display beverages in a variety of commercial settings, including energy drinks and water bottles in gyms, refreshments in lobbies, sparkling water and juices in restaurants, and much more
  • Frost-free operation
    No-frost operation for minimum user maintenance
  • Digital thermostat
    Electronic controls located inside the unit for precise temperature management
  • Recessed LED light
    Efficient and attractive presentation with LED lighting
  • Adjustable glass shelves
    Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
  • Bottle slots
    Floor is specially slotted to store wine and other bottles safely in place
  • Internal fan
    Fan-forced cooling ensures the unit is evenly cooled from top to bottom
  • Reversible door
    User-reversible door swing for added flexibility
  • Open door alarm
    Audible alarm will sound if the door is left open longer than one minute
  • High temperature alarm
    High temperature alarm sounds if the unit's interior goes out of the recommended range
  • Sabbath mode setting
    Optional setting lets you disable the lighting and alarm for up to 48 hours
  • Temperature Memory Function
    Unit will retain its last settings when power is restored in the event of power loss
  • Right angle plug
    Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
  • Sealed back
    Space-saving design that offers easier cleanability
  • Fully finished black cabinet
    Allows the unit to be used freestanding
  • 100% CFC Free
    Environmentally friendly design with no ozone-damaging chemicals
  • CARB Compliant
    Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
