SKU: AL55OSCSSIFLHD

SUMMIT AL55OSCSSIFLHD 24" Built-in Outdoor Refrigerator, ADA Compliant

Quick Specification More details

About this product

Made with a 24" footprint that offers full storage capacity in a uniquely slim fit and an ADA-compliant height
32 height allows for installation within ADA-compliant spaces

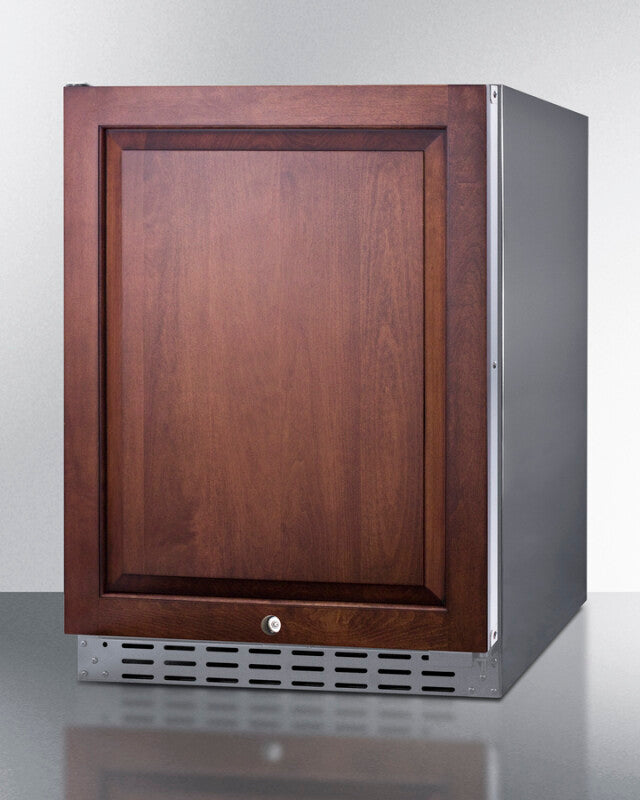

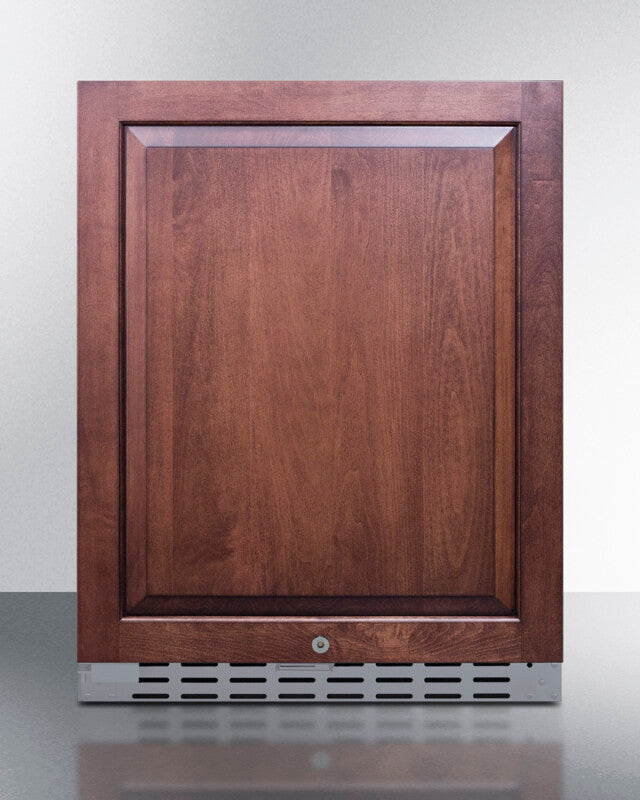

Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size: 23 3/16" W x 27 3/4" H and at least 3/4" thick; 10 lbs. maximum; customers provide their own handles
ETL-S listed to NSF-7 commercial standards

SKU: AL55OSCSSIFLHD

SUMMIT AL55OSCSSIFLHD 24" Built-in Outdoor Refrigerator, ADA Compliant

Active Rebates

Electrical Requirement Notice: This appliance may require a dedicated electrical circuit or special voltage (e.g., 120V or 240V). Please verify your home’s electrical setup or consult a licensed electrician before installation. If you have any questions, please contact us.

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

⚠️ Please note: This product is a part or accessory, not a complete appliance unit.

Quick Specification More details

About this product

Made with a 24" footprint that offers full storage capacity in a uniquely slim fit and an ADA-compliant height
32 height allows for installation within ADA-compliant spaces
Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size: 23 3/16" W x 27 3/4" H and at least 3/4" thick; 10 lbs. maximum; customers provide their own handles
ETL-S listed to NSF-7 commercial standards

Product Details for SUMMIT AL55OSCSSIFLHD

Technical Details

Overview

Height of Cabinet	12.45
Width	9.25
Depth	9.2
Depth with Panel	9.5
Depth with door at 90(degree)	17.72
Capacity	4.2
Defrost Type	Automatic

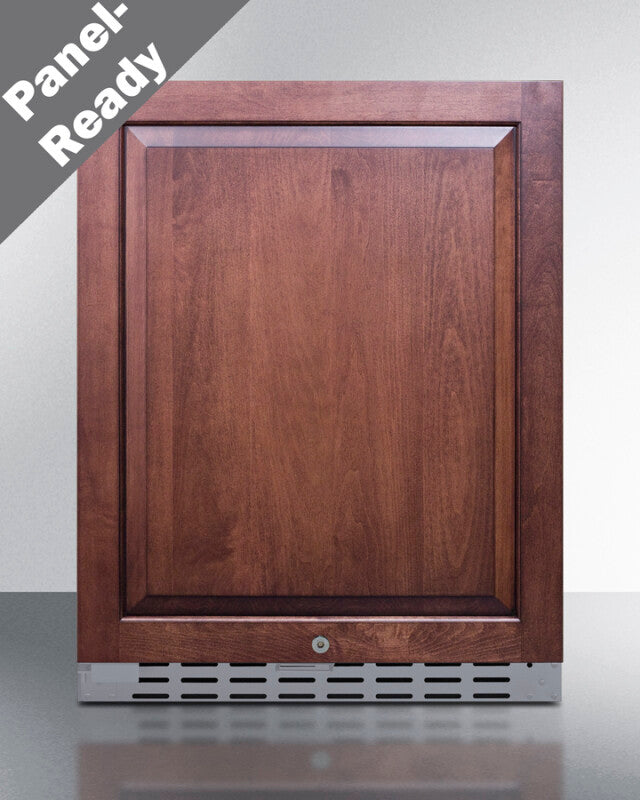

Door	Panel-Ready
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Energy Usage/Year	250.0
Amps	1.0
Voltage/Frequency	115
Weight	95.0
Parts & Labor Warranty	1
Compressor Warranty	5
UPC	761101149417

Refrigerator features

Door Swing	LHD
Reversible	No
Shelf Type	Glass
Shelf Qty	3
Full Door Shelf Qty	2
Adjustable Shelves	Yes
Thermostat Type	Digital
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.23
High Side PSI	150.0
Low Side PSI	50.0
Level Legs Qty	4
Interior Light	Yes
Temperature Range	36
Sound Level	33.2

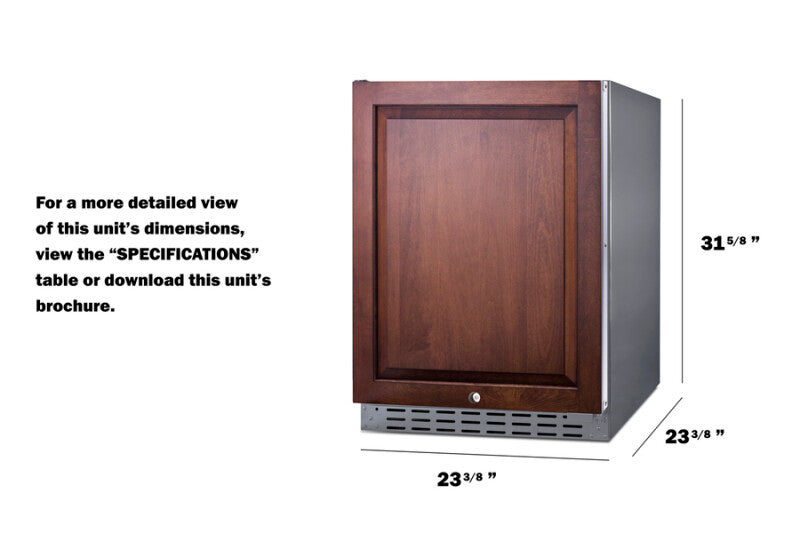

Dimensions

Interior Height	9.25
Interior Width	7.48
Interior Depth	6.3
Compressor Step Height	2.17
Compressor Step Width	7.48
Compressor Step Depth	1.97

Features

Made with a 24" footprint that offers full storage capacity in a uniquely slim fit and an ADA-compliant height
32 height allows for installation within ADA-compliant spaces
Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size: 23 3/16" W x 27 3/4" H and at least 3/4" thick; 10 lbs. maximum; customers provide their own handles
ETL-S listed to NSF-7 commercial standards
Durable construction for safe installation in outdoor kitchens
Front-breathing design allows the unit to be built-in under counters

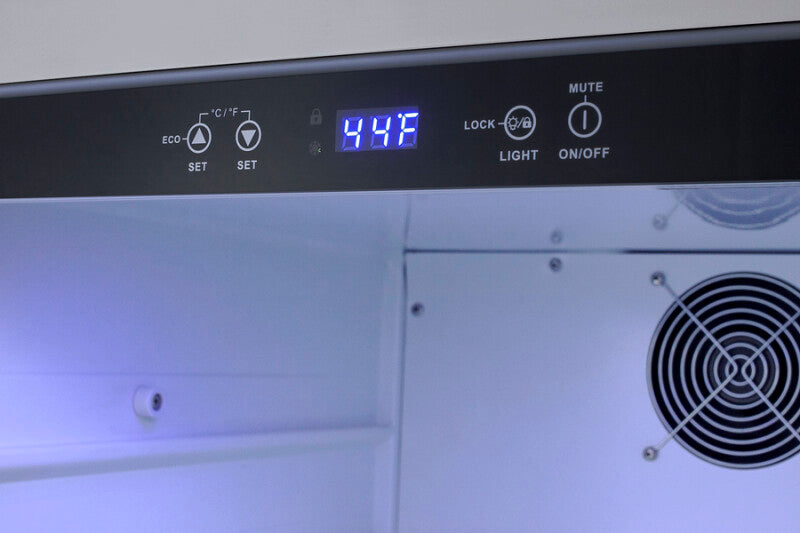

Makes for easy temperature reading/management with electronic controls inside
Keyed lock for secure interior
Durable construction with a stylish look

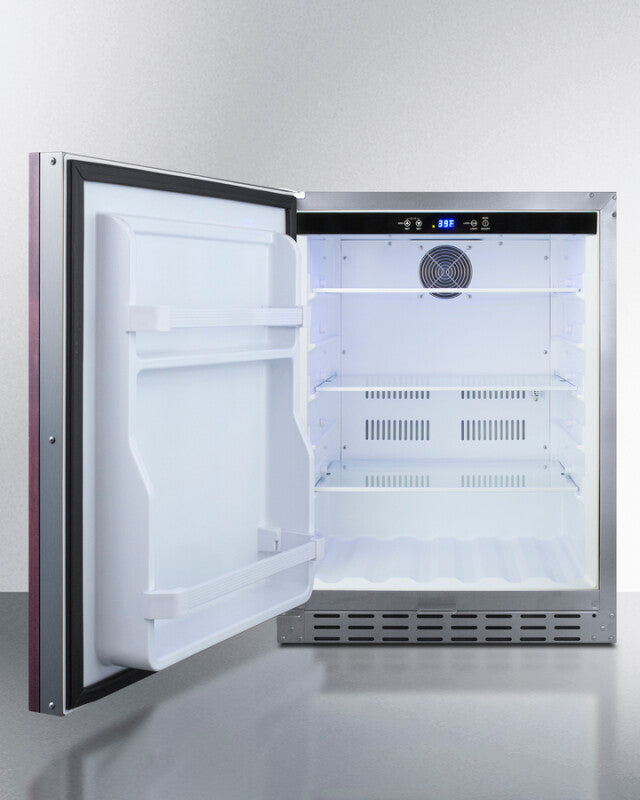

Classic interior allows for easy cleaning and viewing of products

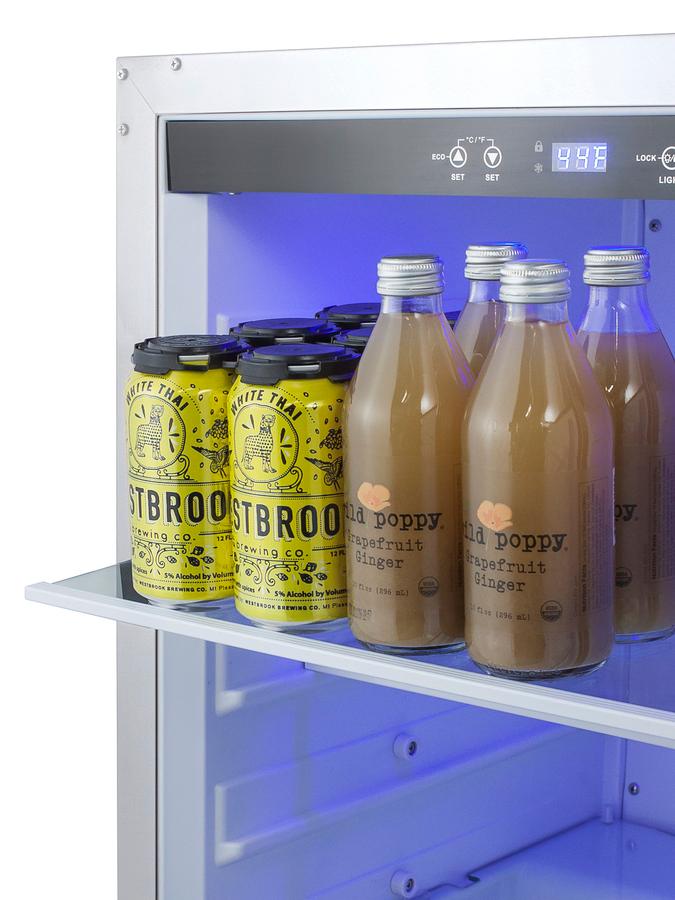

Three easy-glide shelves that extend 50% give space and flexibility when organizing the interior s contents
Provides added safety when loading and unloading the unit's 3 shelves

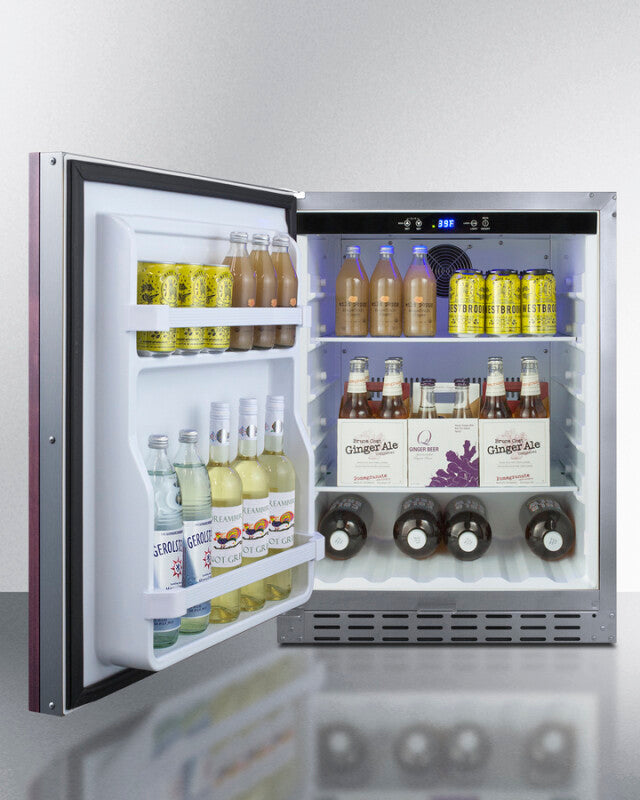

Allows for easy storage of bottles
Reduced maintenance with auto defrost system
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Dimmable LED lighting (with 3 brightness settings) in a blue hue allows for easy viewing of contents while maintaining an elegant feel
Alarm sounds if temperature goes out of recommended range after 2 hours
Optional feature disables alarms, interior light, and displays for up to 96 hours
Runs under 34 dB for a quiet performance that won't interrupt your conversation
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Description

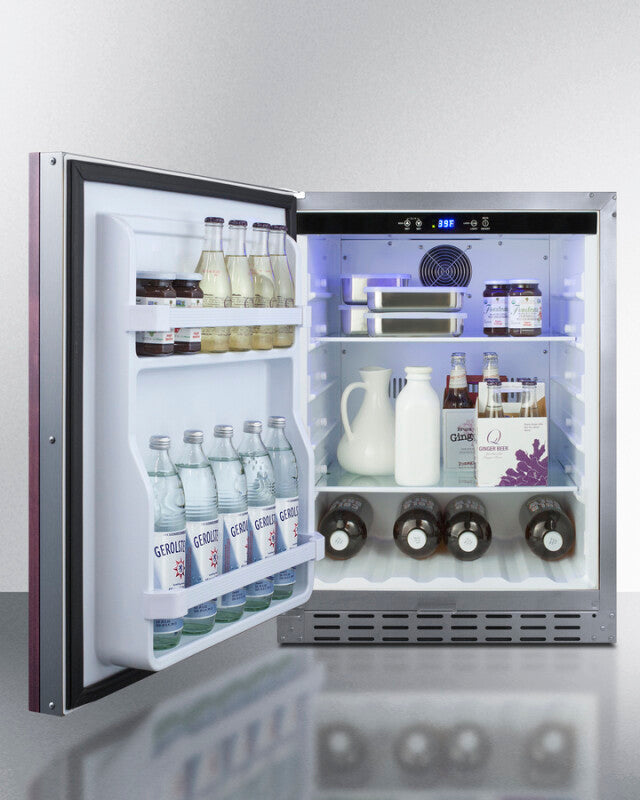

Summit's innovative lineup features built-in undercounter all-refrigerators designed for installation under lower ADA-compliant counters, with advanced weatherproof construction for convenient use in any outdoor kitchen. The AL55OSCSSIFLHD is a 24" wide outdoor refrigerator that meets residential and commercial standards and is ETL-S listed to NSF-7. Its sealed rear and complete stainless steel exterior offer true luxury designed to last outdoors. The front-breathing system allows built-in installation under lower ADA compliant counters, while the fully finished cabinet allows freestanding use. The door features an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 27 3/4" H x 23 3/16" W; 3/4" thick with a maximum weight of 10 lbs.). The door ships with a left hand swing, and users must supply their own door handle. A factory-installed lock offers security. Inside, the AL55OSCSSIFLHD has a digital control panel that allows you to manage the unit's temperature with ease. An adjustable temperature range between 36 and 46 F ensures contents are kept cold. Three easy-glide glass shelves that extend 50% provide flexible storage, and the shelving brake system keeps unit contents safe when loading and unloading. Two-door racks are ideal for keeping condiments within easy reach, while the slotted floor ensures easy storage of bottles. The dimmable soft LED lighting in a gentle blue hue with three brightness settings offers an attractive and efficient presentation inside the white interior. Additional features include a high temperature alarm, Sabbath mode, and internal fan to ensure an evenly cooled interior. With its advanced user features and versatile design, the AL55OSCSSIFLHD is an excellent addition to any ADA-compliant outdoor setting looking for a customizable, reliable refrigerator. For this unit in complete stainless steel, see the AL55OSCSS.
