SKU: AL54PLHD | UPC: 761101091167

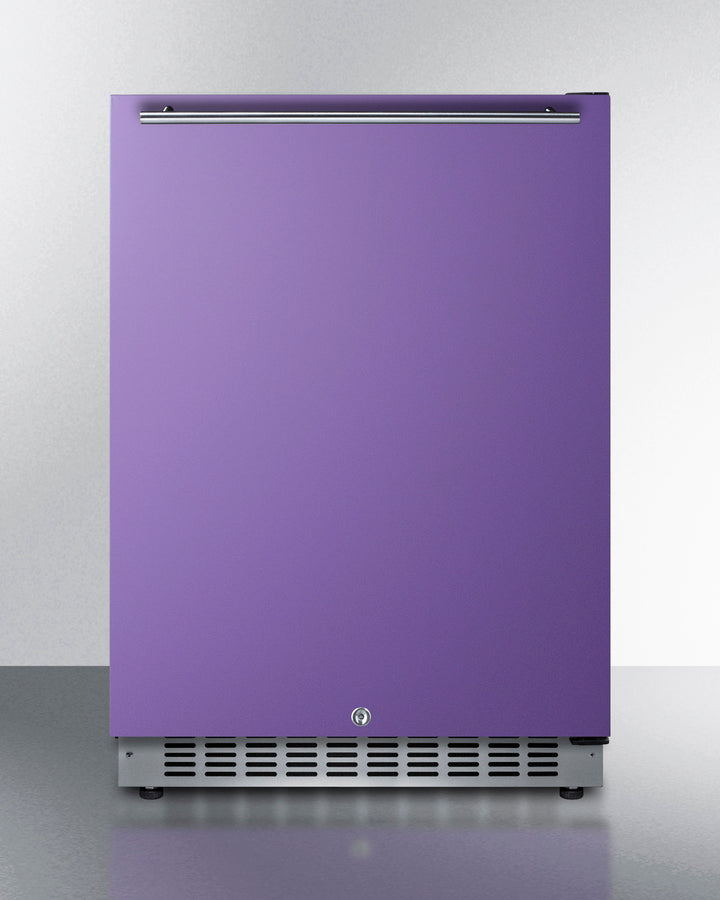

Summit AL54PLHD 24" Wide Built-In All-Refrigerator, ADA Compliant Purple

Quick Specification More details

Width:
23.63" (60 cm)
Depth:
22.63" (57 cm)
Type:
Built-In Refrigerators

About this product

ADA compliant design
Built-in capable
Lavender purple door
Professional handle

Summer Sale

Clearance

SKU: AL54PLHD | UPC: 761101091167

Summit AL54PLHD 24" Wide Built-In All-Refrigerator, ADA Compliant Purple

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
23.63" (60 cm)
Depth:
22.63" (57 cm)
Type:
Built-In Refrigerators

About this product

ADA compliant design
Built-in capable
Lavender purple door
Professional handle

Product Details for Summit AL54PLHD

Technical Details

Overview refrigerator features dimensions

Nominal Height	32.0" (81 cm)
Height of Cabinet	32.0" (81 cm)
Nominal Width	24.0" (61 cm)
Width	23.63" (60 cm)
Nominal Depth	23.0" (58 cm)
Depth	22.63" (57 cm)
Depth with door at 90°	45.0" (114 cm)
Capacity	4.8 cu.ft. (136 L)
Defrost Type	Frost-Free
Door	Purple
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Energy Usage/Year	270.0kWh/year
Amps	1.0
Voltage/Frequency	115 V AC/60 Hz
Weight	110.0 lbs. (50 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101091167
Sabbath Mode	Yes
Door Swing	LHD
Reversible	No
Shelf Type	Glass
Shelf Qty	3
Full Door Shelf Qty	2
Adjustable Shelves	Yes
Thermostat Type	Digital
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	0.99oz.
High Side PSI	270.0
Low Side PSI	105.0
Level Legs Qty	4
Interior Light	Yes
Temperature Range	36 to 43ºF
Sound Level	33.3 dB
Interior Height	25.0" (64 cm)
Interior Width	20.0" (51 cm)
Interior Depth	17.5" (44 cm)
Compressor Step Height	3.25" (8 cm)
Compressor Step Width	20.0" (51 cm)
Compressor Step Depth	5.25" (13 cm)

Description

Make a statement under the counter with Summit's exclusive collection of boldly colored refrigerators and matching freezers. Model AL54P is a 24" wide refrigerator sized at just 32" high for easy installation under lower ADA compliant counters. The front-breathing cooling system allows built-in use, while the fully finished black cabinet also enables freestanding applications. The door finish comes in an attractive lavender purple hue, with a sleek horizontally mounted stainless steel handle and matching stainless steel kickplate to complete the unique look. Inside, the AL54P utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes adjustable glass shelves for flexible, spill-proof storage and two large door racks ideal for keeping condiments in easy reach. The floor is specially slotted to hold bottles in place. An open door alarm and high temperature alarm audibly warn if stored items are being exposed. An optional Sabbath mode setting lets you disable some of the electrical elements during periods of observance. Additional features include a factory-installed lock for optional security, right angle plug to save on depth, and sealed rear to ensure easier cleaning. The AL54P can be paired with the ALFZ53P frost-free freezer to create a matching undercounter ADA compliant set. Additional colors are available, including saffron gold, emerald green, and cobalt blue. Browse the full Summit selection to find the perfect addition to your kitchen.

Product Features

ADA compliant design
32" height allows easy installation under lower ADA compliant counters
Built-in capable
Front-breathing design lets you make the best use of space by installing your appliance under the counter
Lavender purple door
Elegant purple finish with a slight gloss to elevate your undercounter space
Professional handle
Brushed stainless steel handle with a thin 14mm diameter is mounted horizontally across the door for a sleek look
Factory installed lock
Keyed lock offers added security
Frost-free operation
No-frost operation for minimum user maintenance
Digital thermostat
Electronic controls located inside the unit for precise temperature management
Recessed LED light
Efficient and attractive presentation with LED lighting
Adjustable glass shelves
Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Door storage
Two door racks offer convenient storage for condiments and bottles
Bottle slots
Floor is specially slotted to store wine and other bottles safely in place
Internal fan
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Open door alarm
Audible alarm will sound if the door is left open longer than one minute
High temperature alarm
High temperature alarm sounds if the unit's interior goes out of the recommended range
Sabbath mode setting
Optional setting lets you disable the lighting and alarm for up to 48 hours
Temperature Memory Function
Unit will retain its last settings when power is restored in the event of power loss
Sealed back
Space-saving design with no exposed coils for easier cleanability
Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Stainless steel kickplate
Added touch of style to complement the handle and complete the look
Fully finished black cabinet
Allows the unit to be used freestanding
Matching freezer available
Pair with the ALFZ53P frost-free freezer to create the perfect set
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
