Sale price $1,453.47 Regular price $1,854.97 Save $401.50 / 21% OFF

Product Details for Summit AL54IF

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Dimensions & weight

Width 23.38 in.
Height 32 in.
Length 22.63 in.
Weight 100 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 9.8 ft³
Dimensional Weight 121.8 lbs.
Total of Cubes 9.8 ft³
Total of Dimensional Weight 121.8 lbs.

Overview refrigerator features dimensions

Nominal Height 32.0" (81 cm)
Height of Cabinet 32.0" (81 cm)
Nominal Width 24.0" (61 cm)
Width 23.38" (59 cm)
Nominal Depth 23.0" (58 cm)
Depth 22.63" (57 cm)
Depth with door at 90° 46.0" (117 cm)
Capacity 4.4 cu.ft. (125 L)
Defrost Type Frost-Free
Door Panel-Ready
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 270.0kWh/year
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101053998
Sabbath Mode Yes
Door Swing RHD
Reversible Yes
Shelf Type Glass
Shelf Qty 3
Full Door Shelf Qty 2
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.99oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs Qty 4
Interior Light Yes
Temperature Range 36 to 43ºF
Sound Level 33.3dB
Interior Height 24.38" (62 cm)
Interior Width 20.0" (51 cm)
Interior Depth 16.63" (42 cm)
Compressor Step Height 3.25" (8 cm)
Compressor Step Width 20.0" (51 cm)
Compressor Step Depth 5.25" (13 cm)

Description

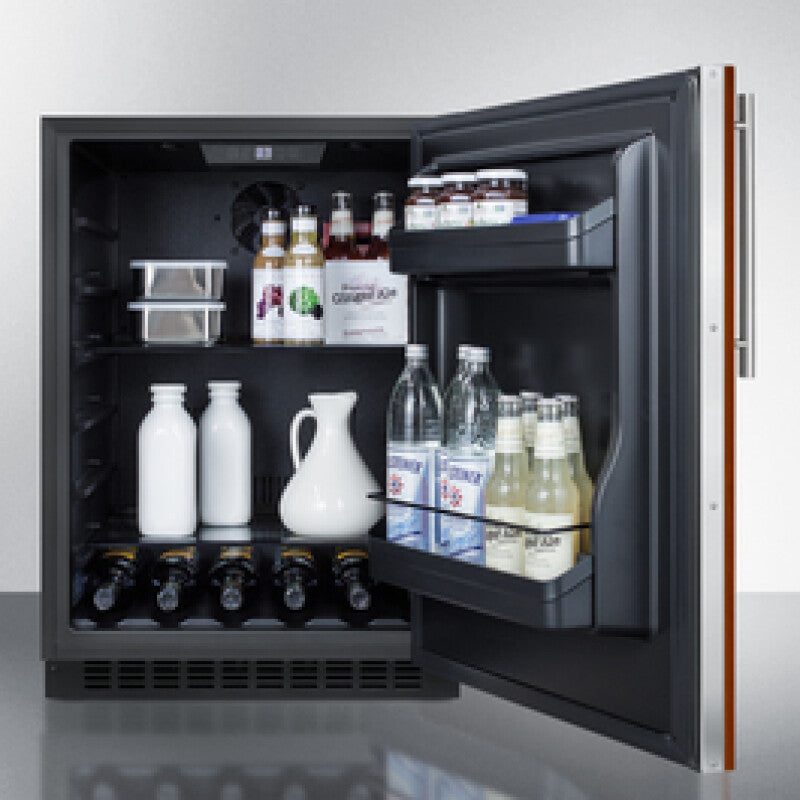

Summit's AL54 series features built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters, with advanced features for user convenience. Sized with a convenient 24" footprint, the AL54IF is just 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished black cabinet allows freestanding use, while the front-breathing system also allows this unit to be built-in with minimum clearance. The reversible stainless steel door features a European-style fully articulating hinge for zero clearance opening. We include a 2-piece bracket kit that allows easy installation of overlay panels to create a custom look that can seamlessly blend into your existing cabinetry design (panel size: 28.38" H x 23.4" W; maximum weight: 10 lbs.). This unit has a flush back for easy cleaning and a right angle plug for a better fit. A factory-installed lock is located in the kickplate. Inside, the AL54IF utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes adjustable glass shelves for flexible, spill-proof storage and two large door racks ideal for keeping condiments and bottles in easy reach. The floor is specially slotted to hold bottles in place. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. With its deluxe style and user-friendly features, this unit is the perfect choice for ADA compliant kitchens. Additional styles are available, as well a matching frost-free freezer (model ALFZ53IF). Browse the full Summit line to explore your endless options.


Product Features

  • ADA compliant design
    32" height allows easy installation under lower ADA compliant counters

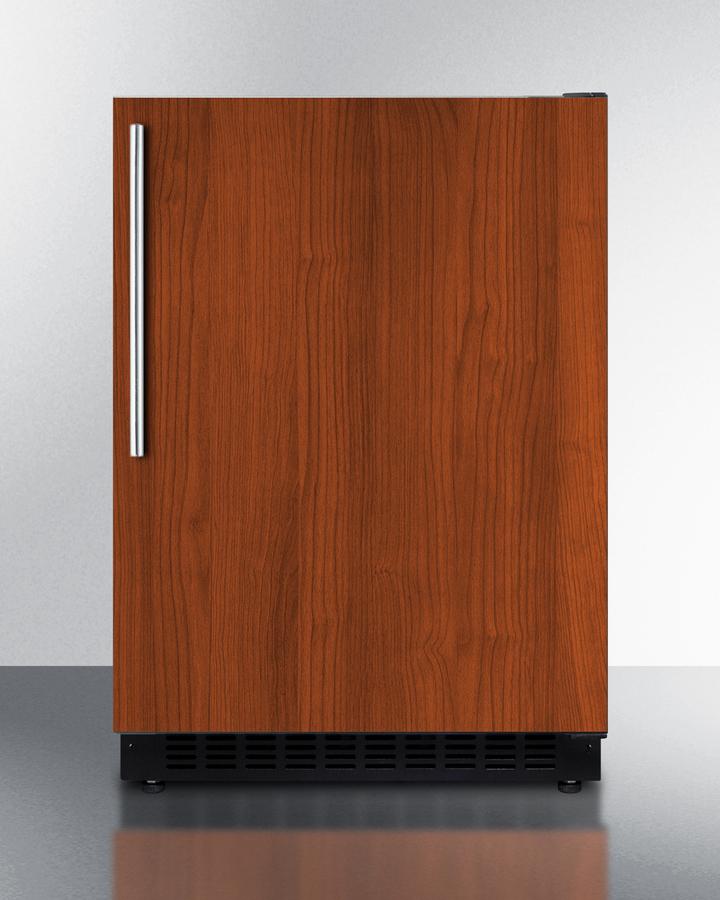

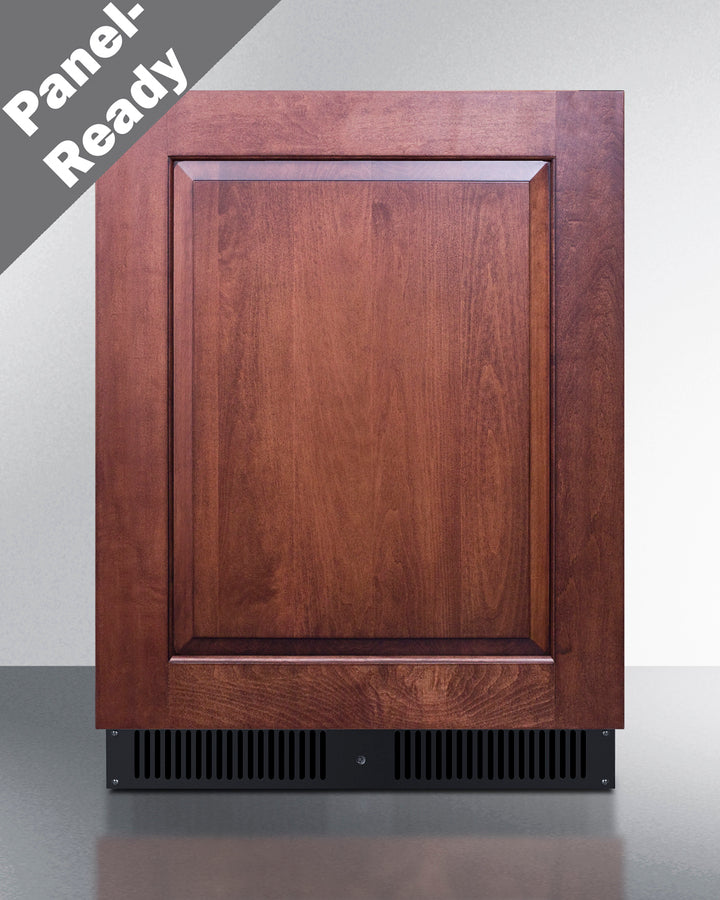

  • Panel-ready door
    Customize this unit using the included 2-piece bracket system (panel size: 23.4" W x 28.38" H at 3/4" thick and 10 lbs. maximum)
  • Built-in capable
    Front-breathing design lets you make the best use of space by installing your appliance under the counter
  • Recessed LED light
    Efficient and attractive presentation with LED lighting

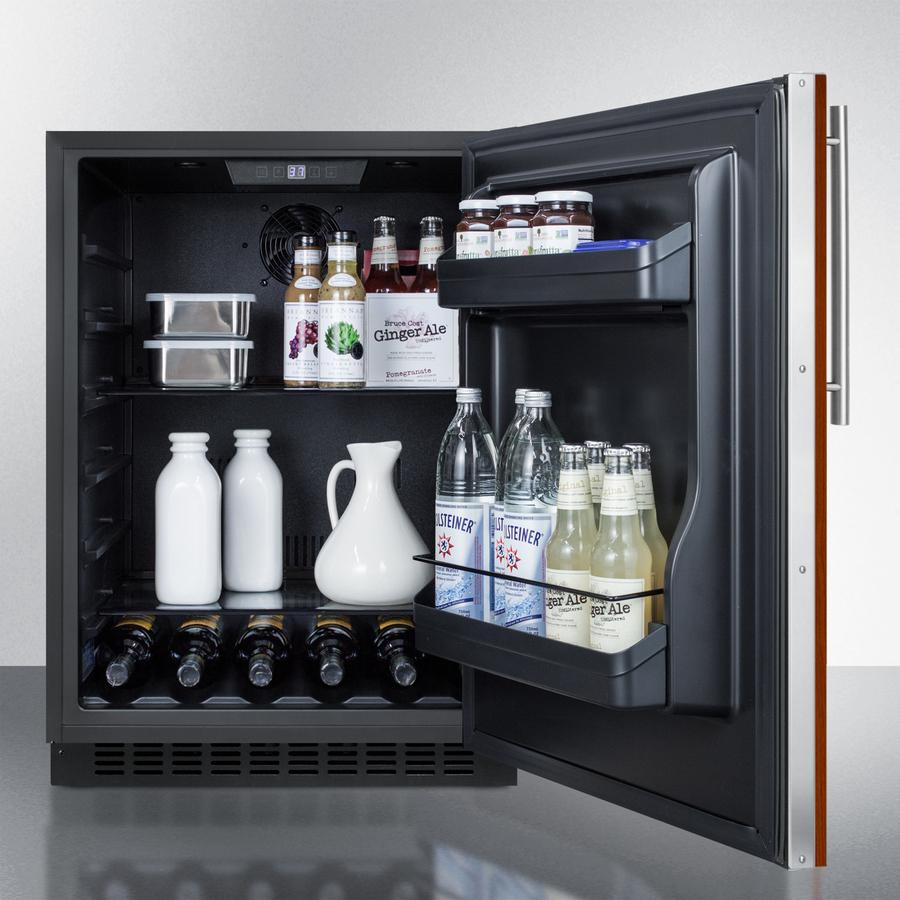

  • Door storage
    Two removable door racks offer convenient storage for condiments and bottles

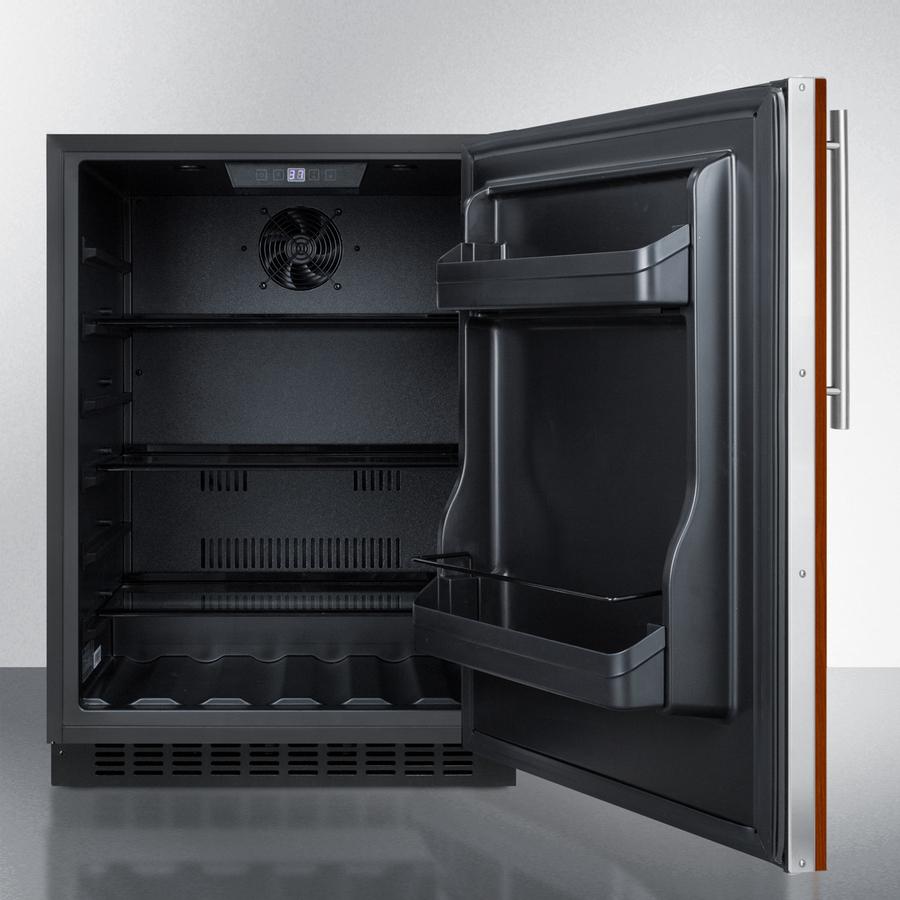

  • Adjustable glass shelves
    Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
  • Frost-free operation
    No-frost operation for minimum user maintenance
  • Bottle slots
    Floor is specially slotted to store wine and other bottles safely in place
  • Digital thermostat
    Electronic controls located inside the unit for precise temperature management

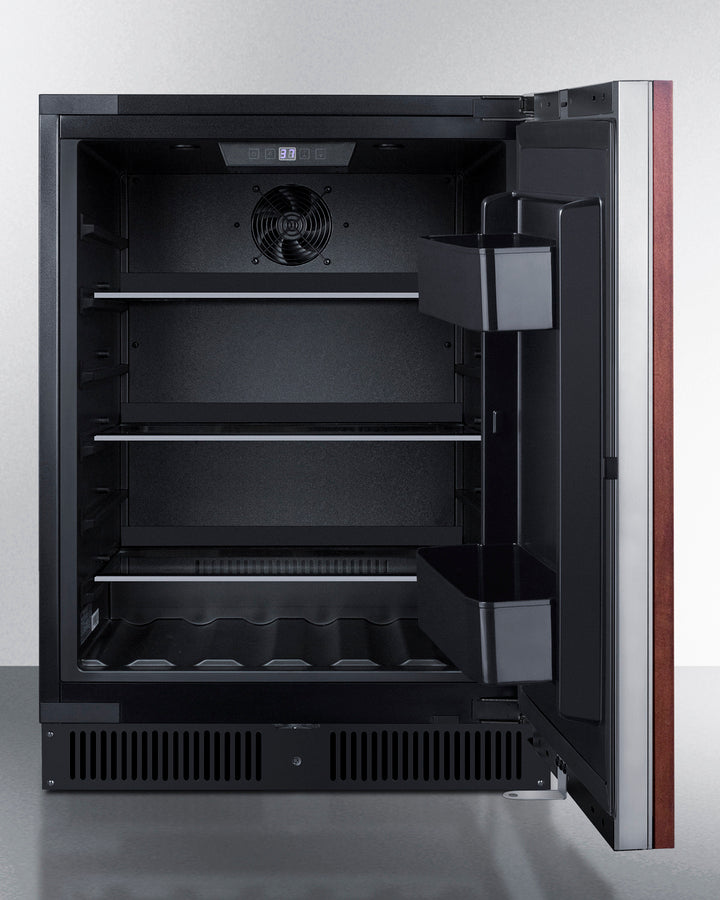

  • Internal fan
    Fan-forced cooling ensures the unit is evenly cooled from top to bottom
  • Open door alarm
    Audible alarm will sound if the door is left open longer than one minute
  • Sabbath mode setting
    Optional setting lets you disable the lighting and alarm for up to 96 hours
  • High temperature alarm
    High temperature alarm sounds if the unit's interior goes out of the recommended range
  • Temperature Memory Function
    Unit will retain its last settings when power is restored in the event of power loss
  • Sealed back
    Space-saving design that offers easier cleanability
  • Right angle plug
    Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
  • Matching freezer
    Pair with the ALFZ53IF frost-free freezer to create a complete refrigerator/freezer set under the counter
  • CARB Compliant
    Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

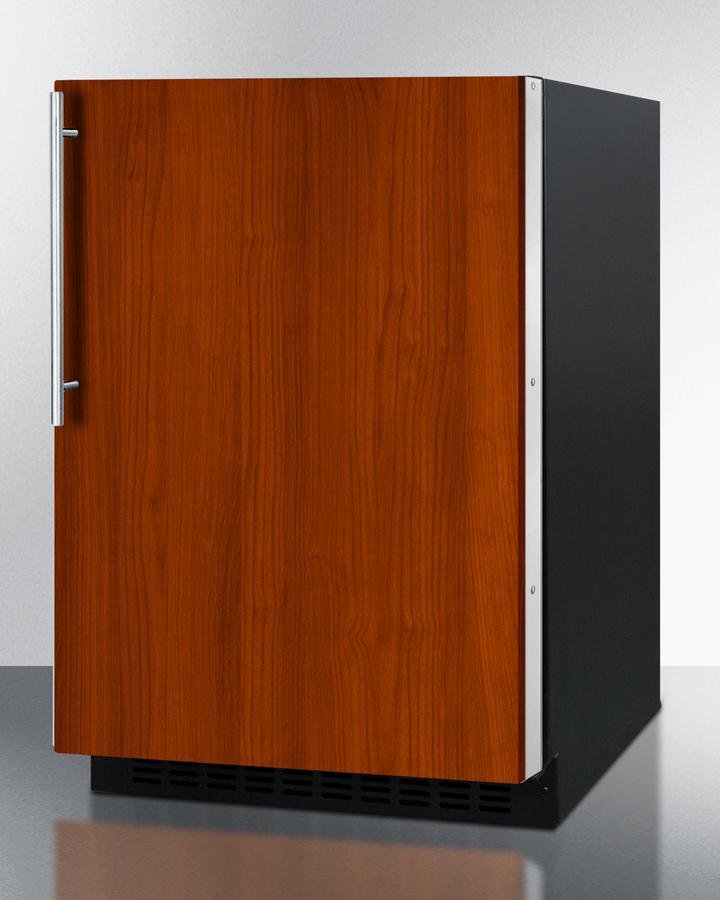

  • Fully finished black cabinet
    Allows the unit to be used freestanding
  • 100% CFC Free
    Environmentally friendly design with no ozone-damaging chemicals
  • 24" Wide ADA Height All-Refrigerator
    Panel-ready refrigerator sized at 32" high for built-in installation under ADA compliant counters

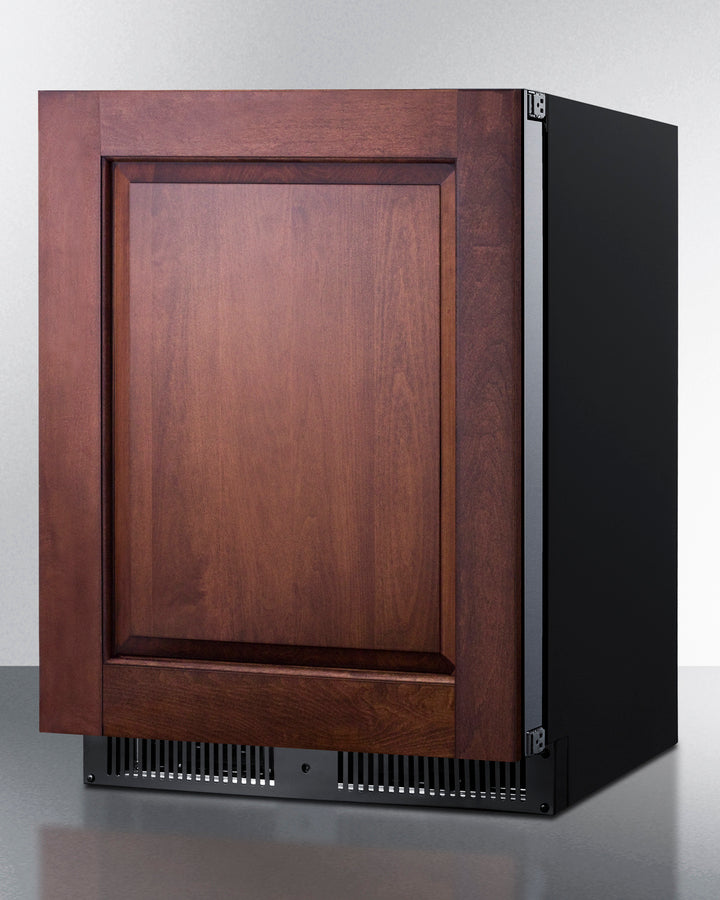

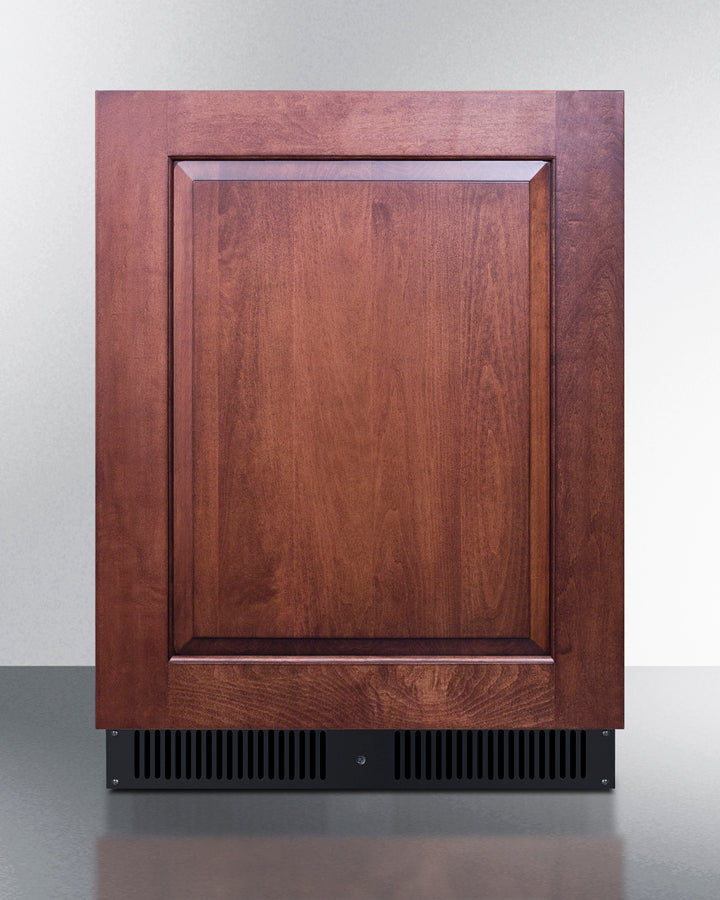

  • Custom style
    Door accepts overlay panel, allowing you to seamlessly blend the refrigerator into your space
  • Easy panel installation with included 2-piece bracket kit
    Enhanced panel execution allows the unit to be flush with cabinets
  • Stainless steel door
    Fully finished door also allows you to choose a traditional stainless steel front if not installing an overlay panel

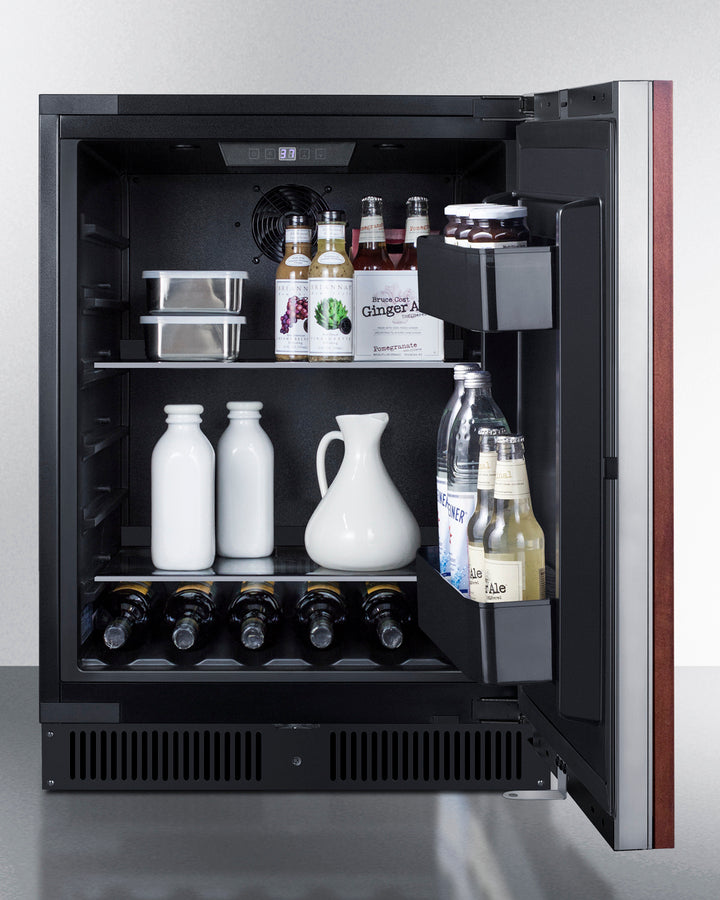

  • Fully articulating hinge
    European style hinge design ensures a flush fit and allows for a smoother opening
  • Factory-installed lock
    Keyed lock located in the kickplate for optional security
