Product Details for Summit AL54B

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Dimensions & weight

Width 23.63 in.
Height 32 in.
Length 22.63 in.
Weight 110 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 9.9 ft³
Dimensional Weight 123.11 lbs.
Total of Cubes 9.9 ft³
Total of Dimensional Weight 123.11 lbs.

Overview refrigerator features dimensions

Nominal Height 32.0" (81 cm)
Height of Cabinet 32.0" (81 cm)
Nominal Width 24.0" (61 cm)
Width 23.63" (60 cm)
Nominal Depth 23.0" (58 cm)
Depth 22.63" (57 cm)
Depth with Handle 24.13" (61 cm)
Depth with door at 90° 45.0" (114 cm)
Capacity 4.8 cu.ft. (136 L)
Defrost Type Frost-Free
Door Blue
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 270.0kWh/year
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 110.0 lbs. (50 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101087627
Sabbath Mode Yes
Door Swing RHD
Reversible Yes
Shelf Type Glass
Shelf Qty 3
Full Door Shelf Qty 2
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.99oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs Qty 4
Interior Light Yes
Temperature Range 36 to 43ºF
Sound Level 33.3 dB
Interior Height 25.0" (64 cm)
Interior Width 20.0" (51 cm)
Interior Depth 17.5" (44 cm)
Compressor Step Height 3.25" (8 cm)
Compressor Step Width 20.0" (51 cm)
Compressor Step Depth 5.25" (13 cm)

Description

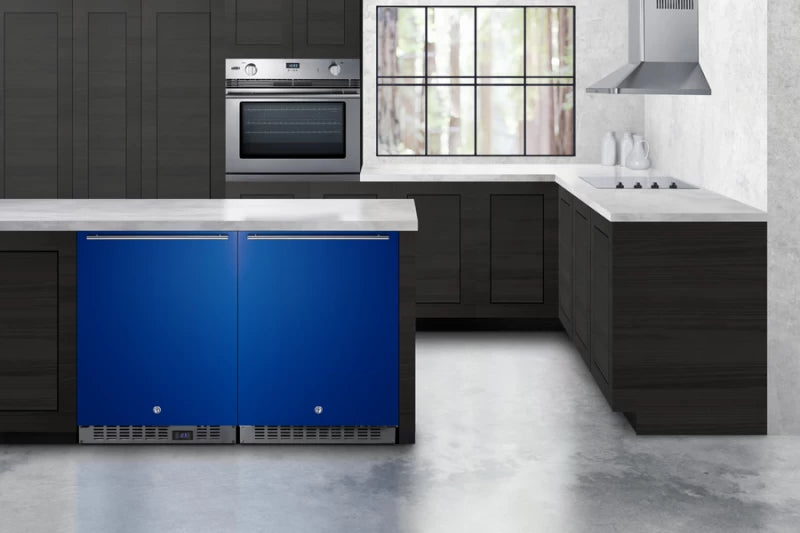

Make a statement under the counter with Summit's exclusive collection of boldly colored refrigerators and matching freezers. Model AL54B is a 24" wide refrigerator sized at just 32" high for easy installation under lower ADA compliant counters. The front-breathing cooling system allows built-in use, while the fully finished black cabinet also enables freestanding applications. The door finish comes in a striking cobalt blue, with a sleek horizontally mounted stainless steel handle and matching stainless steel kickplate to complete the unique look. Inside, the AL54B utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes adjustable glass shelves for flexible, spill-proof storage and two large door racks ideal for keeping condiments in easy reach. The floor is specially slotted to hold bottles in place. An open door alarm and high temperature alarm audibly warn if stored items are being exposed. An optional Sabbath mode setting lets you disable some of the electrical elements during periods of observance. Additional features include a factory-installed lock for optional security, user-reversible door swing to best fit your space, right angle plug to save on depth, and sealed rear to ensure easier cleaning. The AL54B can be paired with the ALFZ53B frost-free freezer to create a matching undercounter ADA compliant set. Additional colors are available, including saffron gold, emerald green, and lavender. Browse the full Summit selection to find the perfect addition to your kitchen.


Product Features

  • ADA compliant design
    32" height allows easy installation under lower ADA compliant counters
  • Built-in capable
    Front-breathing design lets you make the best use of space by installing your appliance under the counter

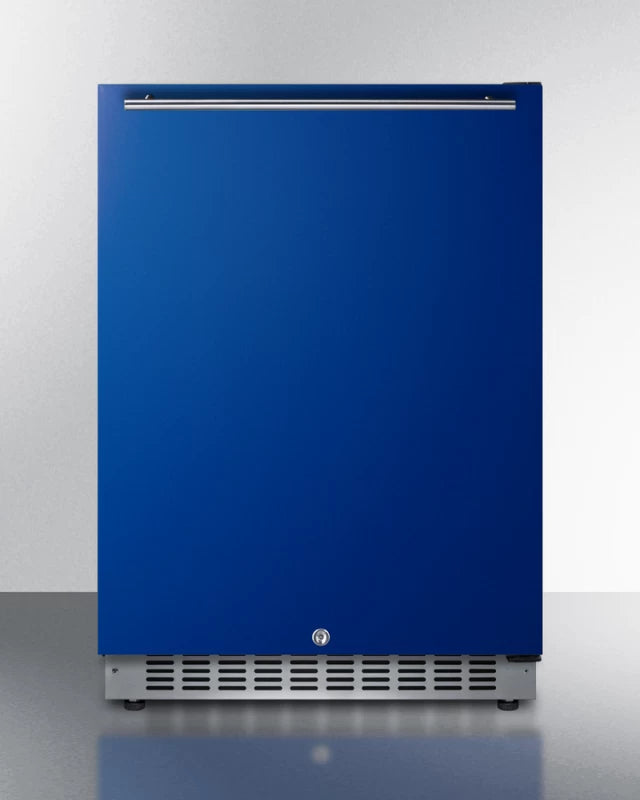

  • Cobalt blue door
    Deep blue finish with a slight gloss to elevate your undercounter space
  • Professional handle
    Brushed stainless steel handle with a thin 14mm diameter is mounted horizontally across the door for a sleek look
  • Factory installed lock
    Keyed lock offers added security
  • Frost-free operation
    No-frost operation for minimum user maintenance
  • Digital thermostat
    Electronic controls located inside the unit for precise temperature management
  • Recessed LED light
    Efficient and attractive presentation with LED lighting

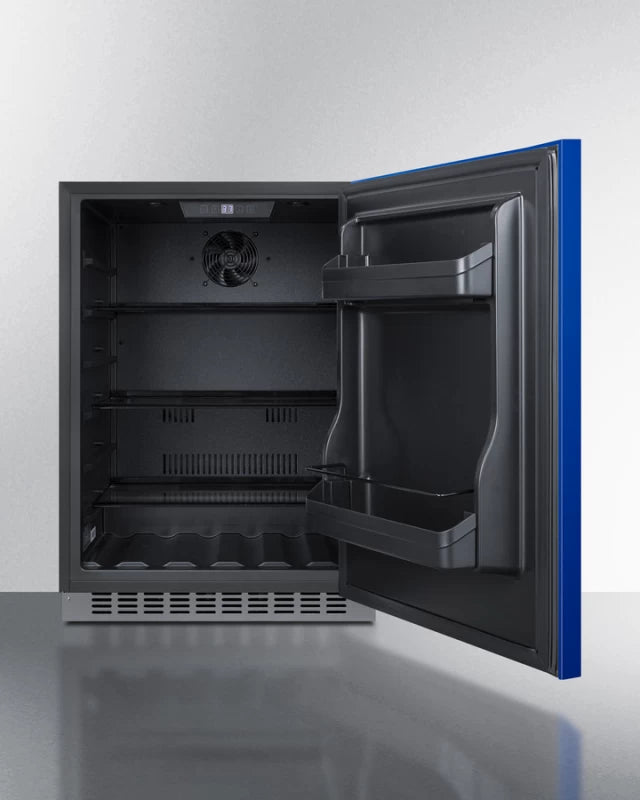

  • Adjustable glass shelves
    Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

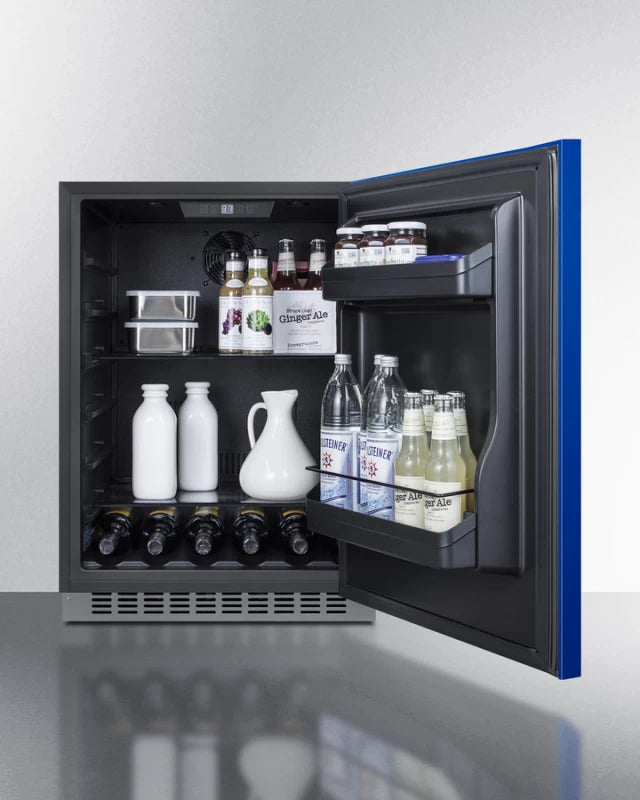

  • Door storage
    Two door racks offer convenient storage for condiments and bottles
  • Bottle slots
    Floor is specially slotted to store wine and other bottles safely in place
  • Internal fan
    Fan-forced cooling ensures the unit is evenly cooled from top to bottom
  • Reversible door
    User-reversible door swing for added flexibility
  • Open door alarm
    Audible alarm will sound if the door is left open longer than one minute
  • High temperature alarm
    High temperature alarm sounds if the unit's interior goes out of the recommended range
  • Sabbath mode setting
    Optional setting lets you disable the lighting and alarm for up to 48 hours
  • Temperature Memory Function
    Unit will retain its last settings when power is restored in the event of power loss
  • Sealed back
    Space-saving design with no exposed coils for easier cleanability
  • Right angle plug
    Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
  • Stainless steel kickplate
    Added touch of style to complement the handle and complete the look

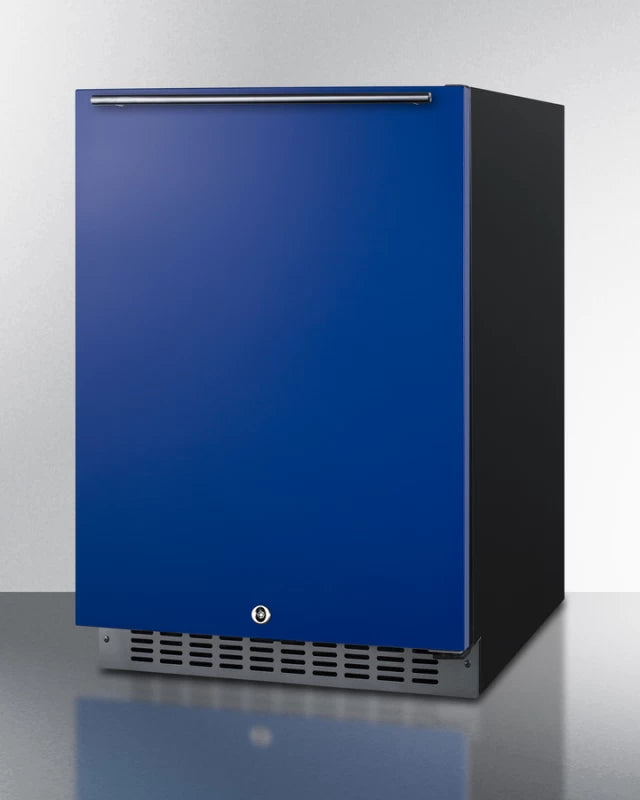

  • Fully finished black cabinet
    Allows the unit to be used freestanding
  • Matching freezer available
    Pair with the ALFZ53B frost-free freezer to create the perfect set
  • 100% CFC Free
    Environmentally friendly design with no ozone-damaging chemicals
  • CARB Compliant
    Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
