Product Details for Accucold AFZ2PVBIADALHD

Technical Details

Overview freezer

Nominal Height 32.0" (81 cm)
Height of Cabinet 32.0" (81 cm)
Nominal Width 20.0" (51 cm)
Width 19.75" (50 cm)
Width with Door Open 20.25" (51 cm)
Nominal Depth 23.0" (58 cm)
Depth 22.63" (57 cm)
Depth with Handle 24.38" (62 cm)
Depth with door at 90° 41.25" (105 cm)
Capacity 2.47 cu.ft. (70 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 99.0 lbs. (45 kg)
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
UPC 761101104041
Door Swing LHD
Reversible No
Interior Height 22.0" (56 cm)
Interior Width 14.25" (36 cm)
Interior Depth 15.5" (39 cm)
Shelf Type Wire
Shelf Qty 4
Adjustable Shelves Yes
Thermostat Type Digital
Interior Light Yes
Refrigerant Type R290
Refrigerant Amount 1.31 oz.
High Side PSI 280.0
Low Side PSI 130.0
Compressor Step Height 6.13" (16 cm)
Compressor Step Width 14.25" (36 cm)
Compressor Step Depth 7.5" (19 cm)
Temperature Range -30 to -10ºC

Description

Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC/VFA guidelines


Product Features

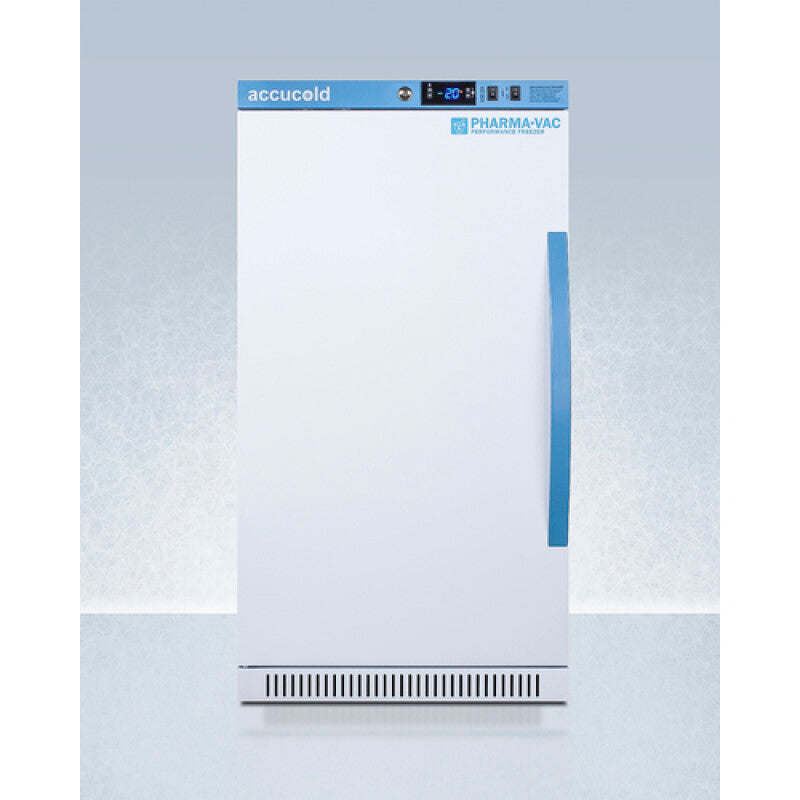

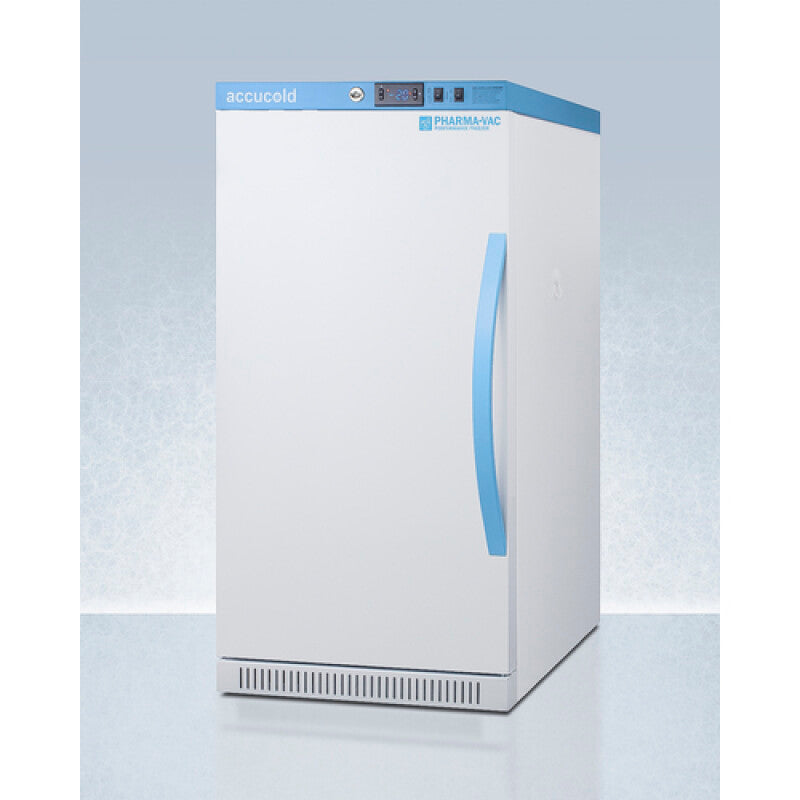

  • Performance Series freezer
    Purpose-built all-freezer for vaccine storage in medical, pharmaceutical, and life science applications
  • Purpose-built design
    Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC/VFA guidelines
  • ADA Compliant
    Just under 32" tall designed to fit under ADA compliant counters

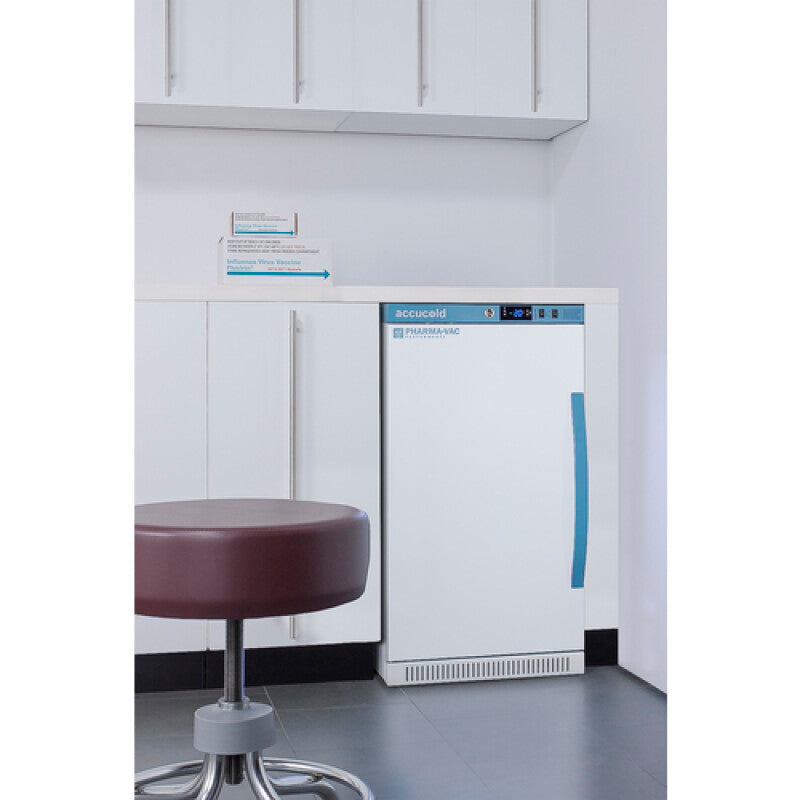

  • Recessed or freestanding use
    Versatile design allows recessed installation under counters or freestanding use
  • +/-1ºC Variation

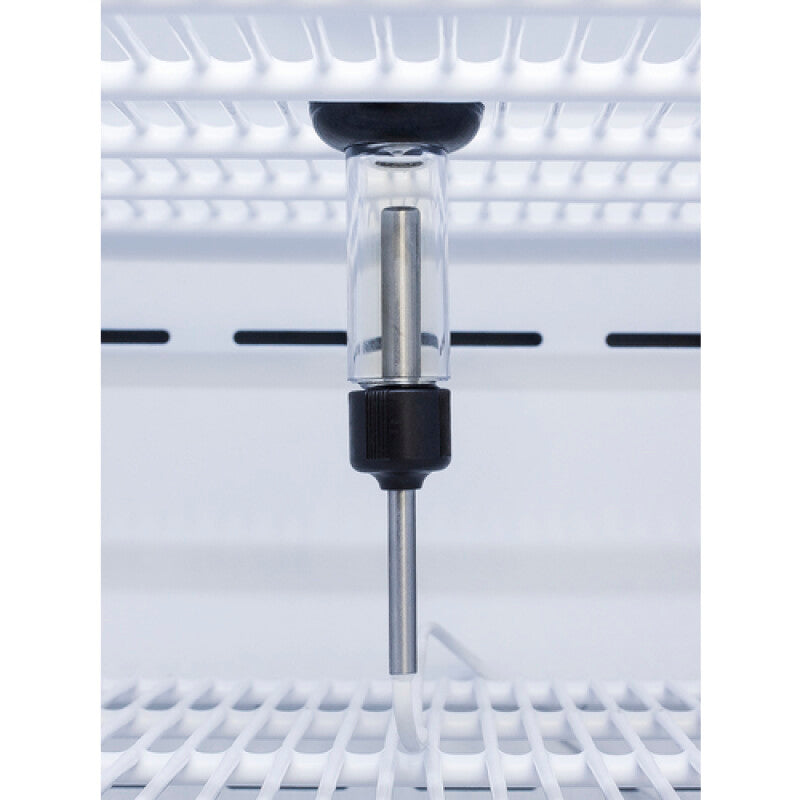

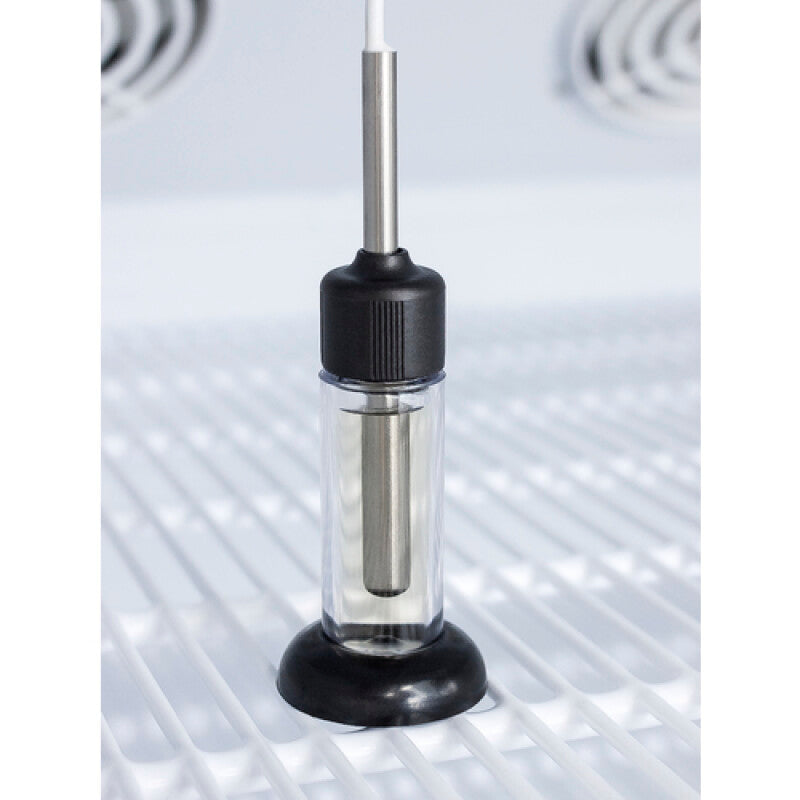

    The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period
  • Commercial design
    Meets UL-471 commercial standards
  • Adjustable temperature
    Intuitive controls let you adjust the interior temperature between -30°C to -10ºC
  • Temperature alarm
    Visual and audible alarms alert if the interior temperature rises or falls out of set range

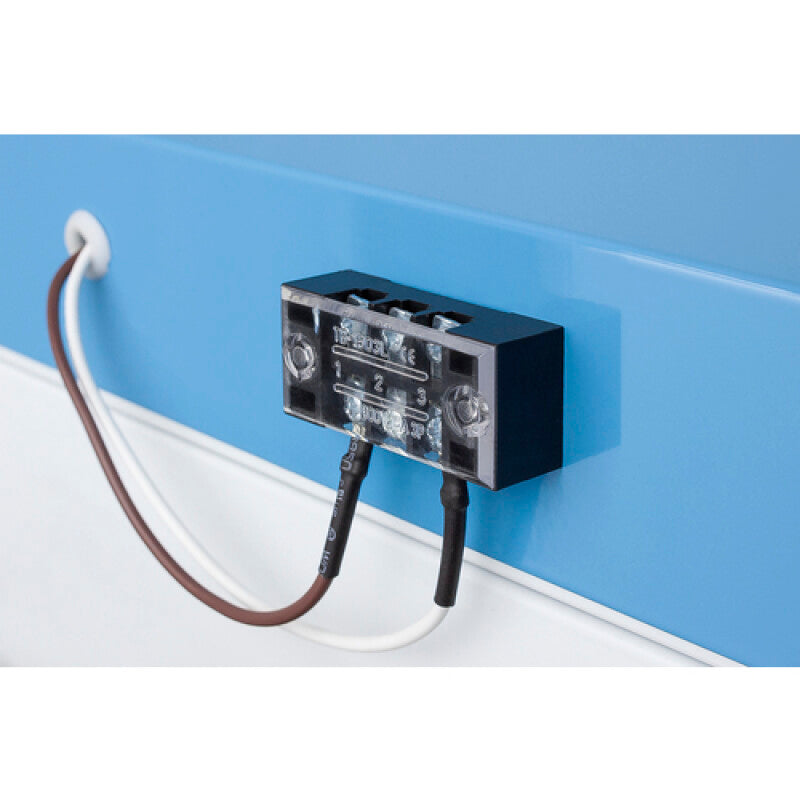

  • Remote alarm contacts
    Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)
  • Manual defrost operation
    Static cooling system for an efficient and stable interior

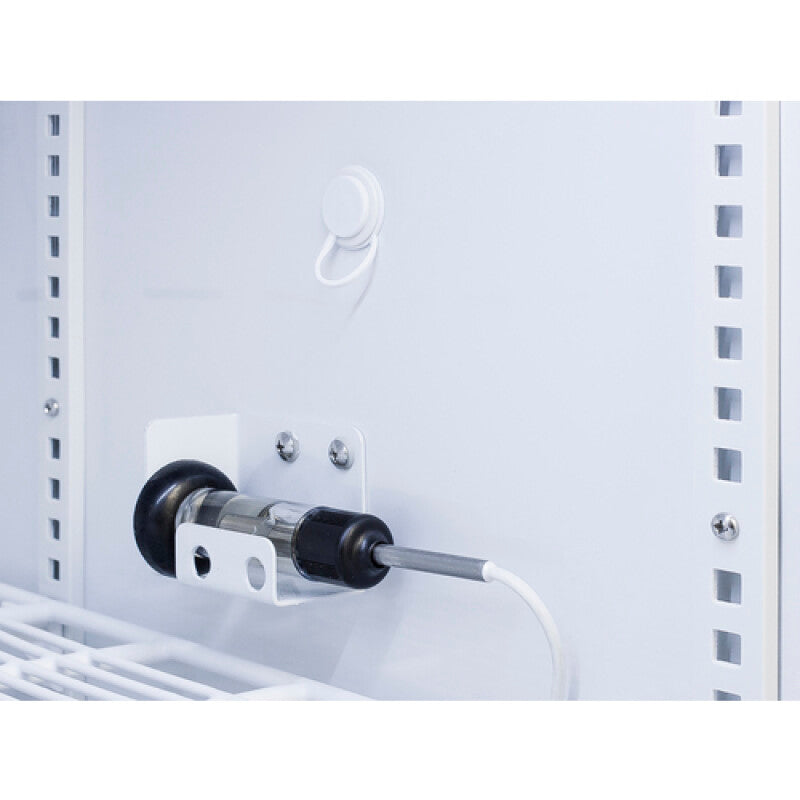

  • Access port

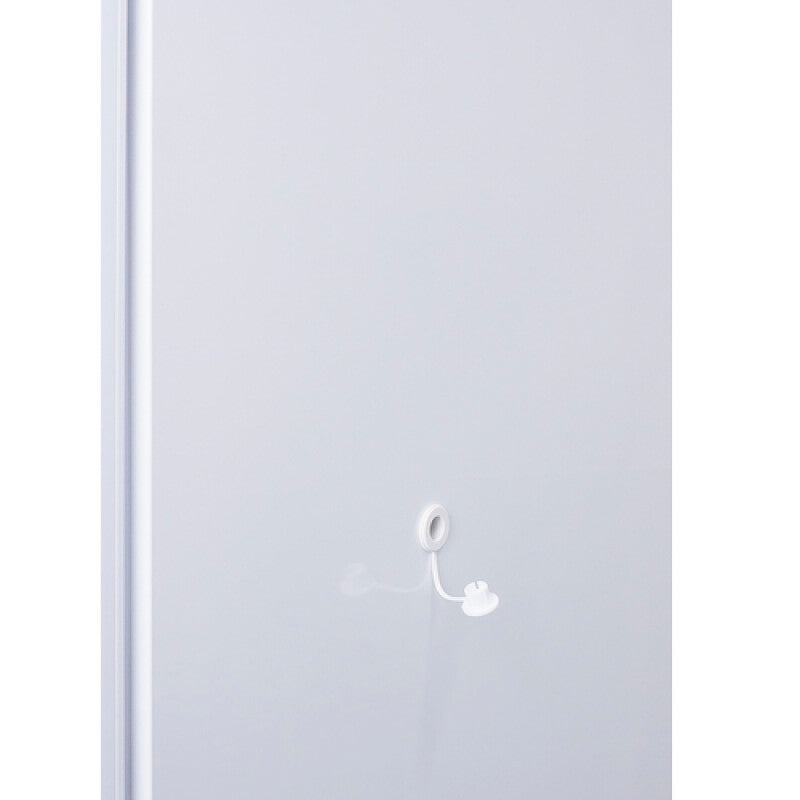

    Includes a pre-installed 1/2" probe hole in the right interior wall to allow easier connection to user-provided monitoring equipment
  • Open door alarm
    Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)
  • Audible power failure alarm
    Battery-powered alarm sounds if the power connection is interrupted
  • Sensor failure alarm
    Audible and visual alarm warns if the sensor is disrupted
  • Password protection
    Control panel requires password entry to adjust the parameters beyond the set point

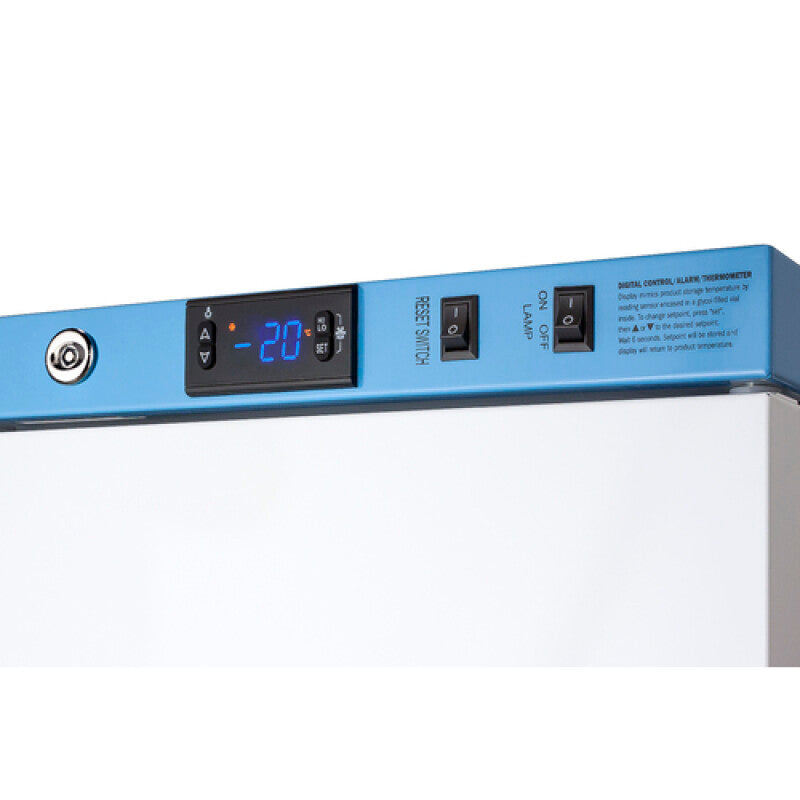

  • Microprocessor control panel
    Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
  • Resettable min/max display
    Control panel provides a readout of the low and high temperatures in 15 minute increments
  • Factory-installed lock
    Keyed lock conveniently located towards the top of the door for added security (2 keys included)

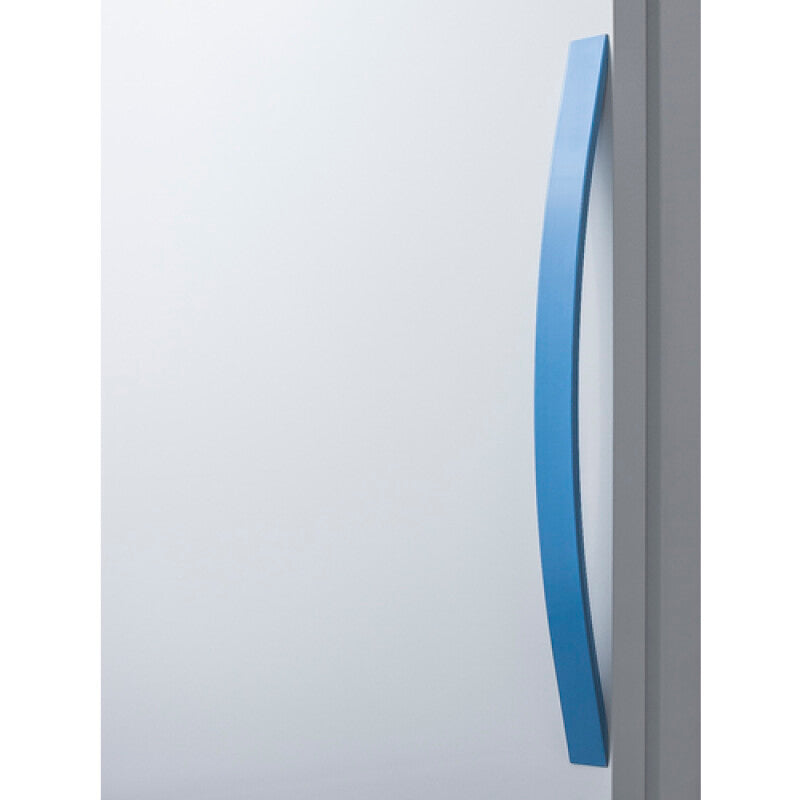

  • Antimicrobial silver ion-coated handle
    Powder-coated handle with naturally occurring silver ions to help reduce the spread of germs

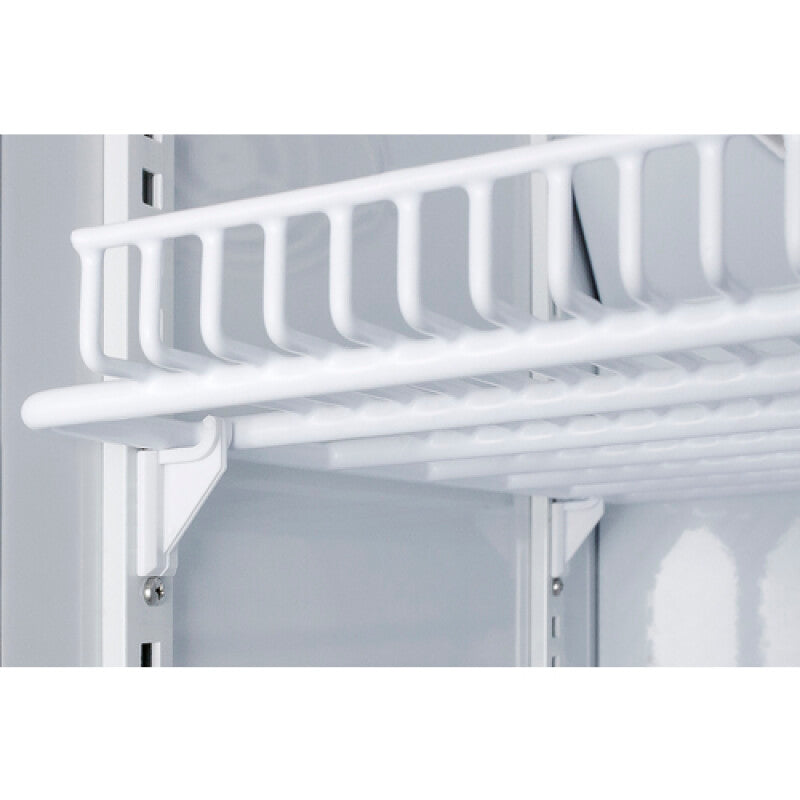

  • Adjustable plastic-coated wire shelves for improved circulation
    Shelves can be positioned with a front lip for small storage items or reversed to a flat position to better hold larger items, with multiple shelf positions spaced at 1/2" to accommodate virtually any size
  • Hospital grade cord with 'green dot' plug
    Secure three-pronged cord for added unit safety
  • Durable interior
    Walls are constructed from white powder coated metal for added strength and improved temperature retention

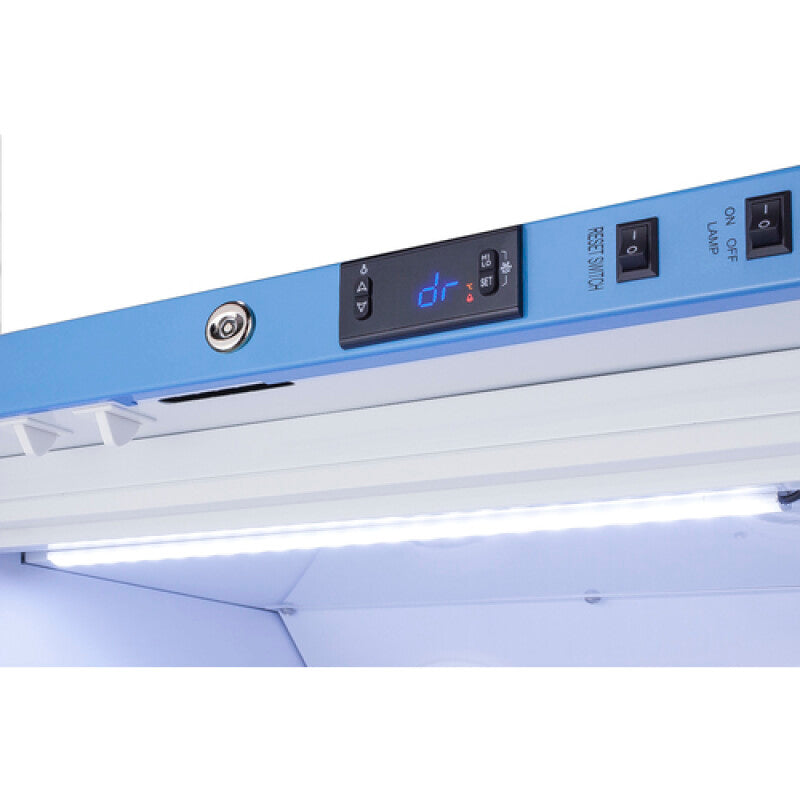

  • Interior light
    Energy efficient LED lighting with internal on/off switch
  • Self-closing door
    Added protection in busy settings
  • Left hand door swing
    For this unit with the door opening from the other side, see model AFZ2PVBIADA
  • Magnetic door gasket
    Quality door gaskets ensure a tight seal for energy savings and improved performance
  • Fully finished white cabinet
    Allows the unit to be used freestanding
  • Extended warranty
    2 years parts and labor/5 years compressor
  • Eco-Friendly
    Using environmentally friendly hydrocarbons refrigerants for a greener footprint
  • Usage stickers
    Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS"
  • Matching refrigerator
    Pair with Accucold ARS32PVBIADA (solid door) or ARG31PVBIADA (glass door) as a stackable or side-by-side set
  • Versatile design
    Compatible with Pyxis®, Omnicell®, and AcuDose RX®
  • CARB Compliant
    Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
  • 100% CFC free
    Environmentally friendly design without ozone-damaging chemicals
