Product Details for Summit AFS23MLLH

Technical Details

Freezer

Door Swing LHD
Reversible No
Interior Height 51.5" (131 cm)
Interior Width 23.5" (60 cm)
Interior Depth 27.0" (69 cm)
Shelf Type Wire
Shelf Qty 4
Adjustable Shelves Yes
Thermostat Type Digital
Interior Light Yes
Fan Type Interior
Refrigerant Type R290a
Refrigerant Amount 3.5 oz.
Wheels 4
Temperature Range -30 to -15ºC
Sound Level 39 dB

Dimensions & weight

Width 27.5 in.
Height 83.75 in.
Length 31 in.
Weight 273 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 41.32 ft³
Dimensional Weight 513.65 lbs.
Total of Cubes 41.32 ft³
Total of Dimensional Weight 513.65 lbs.

Other

Capacity 23.0 cu.ft. (651 L)
Defrost Type Frost-Free
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety UL
Canadian Electrical Safety ULC
Sanitation ETL-S
Amps 8.0
Voltage/Frequency 115 V AC/60 Hz
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
UPC 761101066738
Number of Boxes 1
Source Calculation

Description

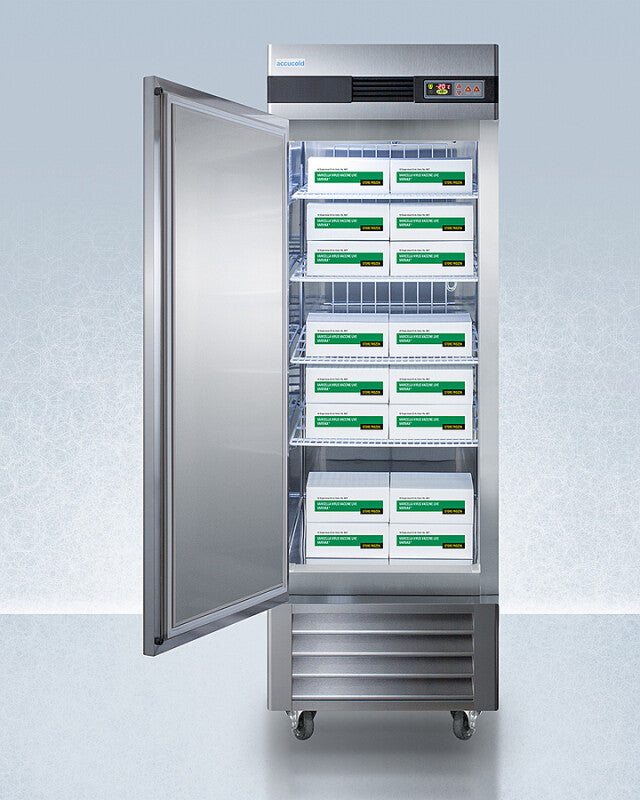

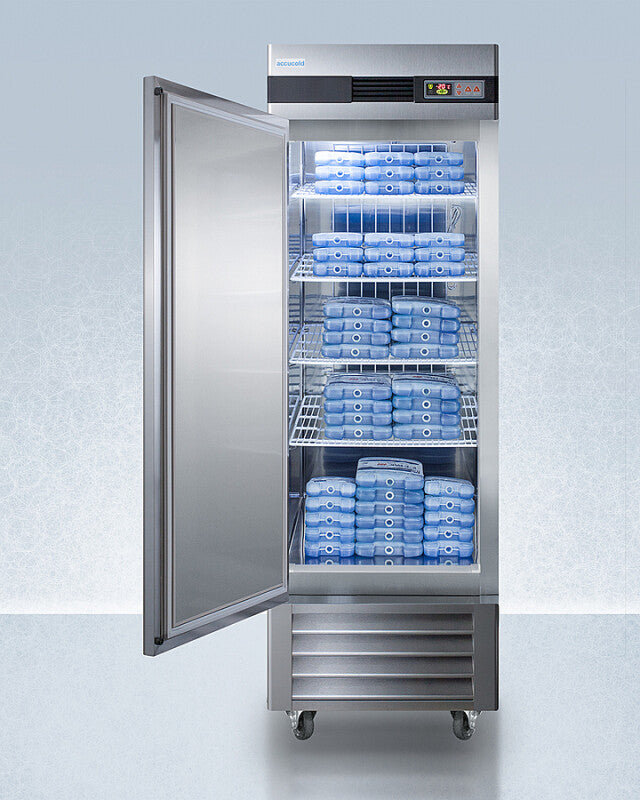

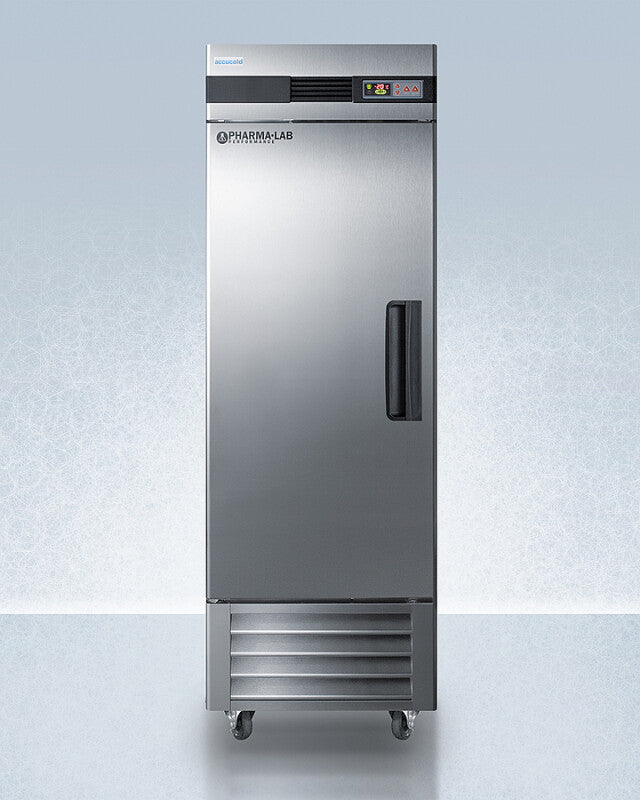

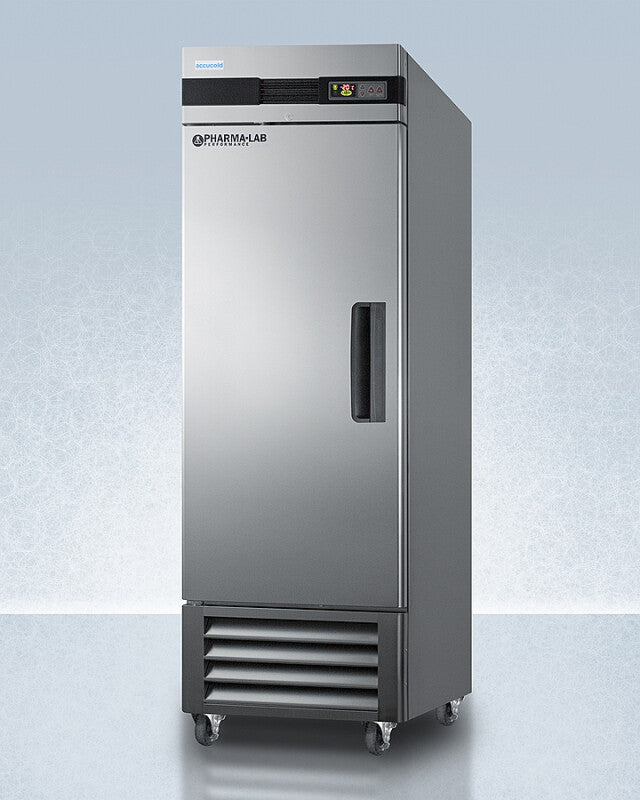

Accucold's Pharma-Lab Performance Series features reach-in refrigerators and matching freezers designed and purpose-built to meet the demanding needs for pharmacy, medication, vaccine, laboratory, and life science applications. The AFS23ML is a 23 cu.ft. all-freezer with an adjustable control range from -30 to -15 C. The microprocessor temperature controller features a large digital LED display viewable in Celsius or Fahrenheit, making it easy for staff to manage and monitor the temperature. The unit is equipped with an air sensor for rapid control response and a product sensor for a more accurate reading of the interior, including a display of the min/max temperature in 15 minute increments The audible and visual temperature alarm sounds if the unit rises or falls above a user-set range. Additional alarms include a power failure alert, door open alarm, and a condenser cleaning reminder. Inside, the AFS23ML utilizes adjustable cycle defrost operation to avoid temperature spikes, with a top-mounted forced air cooling system to ensure rapid temperature recovery. Four vinyl-coated wire shelves on cantilevered clips allow you to accommodate virtually any sized item. The LED lighting displays automatically when the door is open, providing a full and energy efficient display. The AFS23ML features a durable stainless steel cabinet and interior, with a sealed back for easier cleanup. We include a set of casters (2 locking) for optional installation. A factory-installed lock offers added security, with two keys included for your facility. Magnetic door gaskets ensure a strong seal. The door is self-closing to help protect contents, but will remain open at 90 for easier loading. This unit has a left hand door swing. For the same model with the door opening from the other side, see the AFS23ML. Designed with hydrocarbon refrigerant, the AFS23ML provides an energy efficient solution to large capacity storage. This unit is Pyxis, Omnicell, and AcuDose RX compatible and meets NSF-7 commercial standards. For a matching refrigerator, see the ARS23ML. NOTE: Accucold freezers are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate several key features for stable operation. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory. Select Accucold products have been tested and certified to the new NSF 456 standard, and are now available for purchase. For additional information, contact our products specialists.



Product Features

  • Purpose-built design

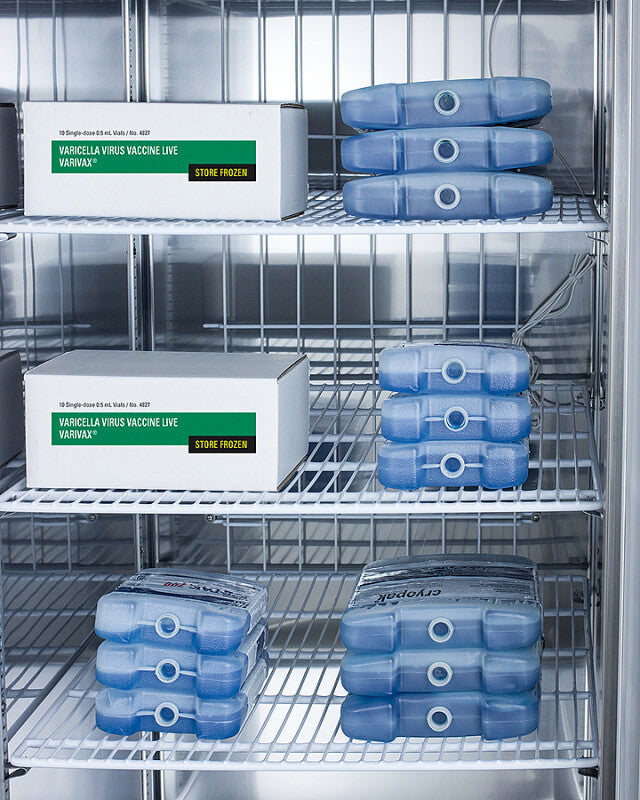

    Designed and engineered to store vaccines and other sensitive materials under stable temperature conditions
  • Adjustable temperature
    Interior is pre-set to -25ºC, with an adjustable control range from -30 to -15ºC
  • Complete stainless steel construction
    Interior and exterior are entirely constructed from stainless steel for lasting durability and easy cleanup
  • Self-closing door
    Closes to save energy but will remain open when the door is opened at a 90º angle for easier loading
  • Open door alarm
    Alarm will beep 3 times if the door is left open for 30 seconds, 5 times at 60 seconds, and will sound continuously if the door is open for more than 5 minutes
  • 6 inch casters
    Ships with a set of casters (2 locking) for optional user installation

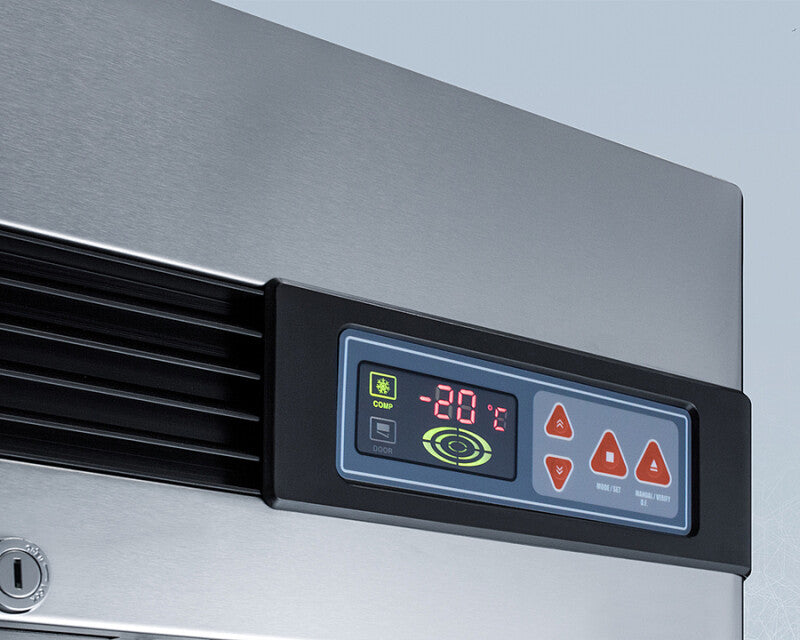

  • Microprocessor control panel
    Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
  • Min/max display
    Control panel provides a readout of the low and high temperatures in 15 minute increments
  • Factory-installed lock
    Keyed lock conveniently located towards the top of the door for added security (2 keys included)
  • Automatic defrost with adjustable cycle defrost
    Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup
  • Interior light
    Energy efficient LED lighting with internal on/off switch

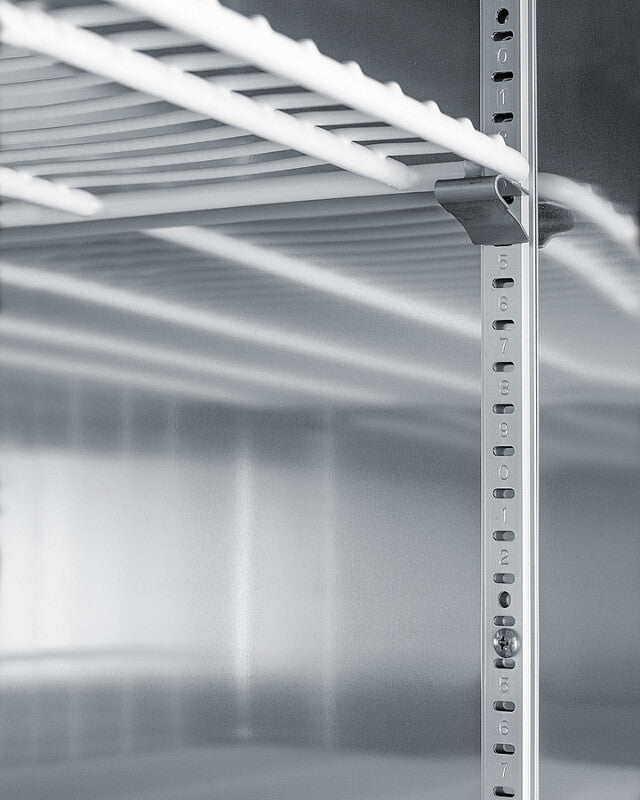

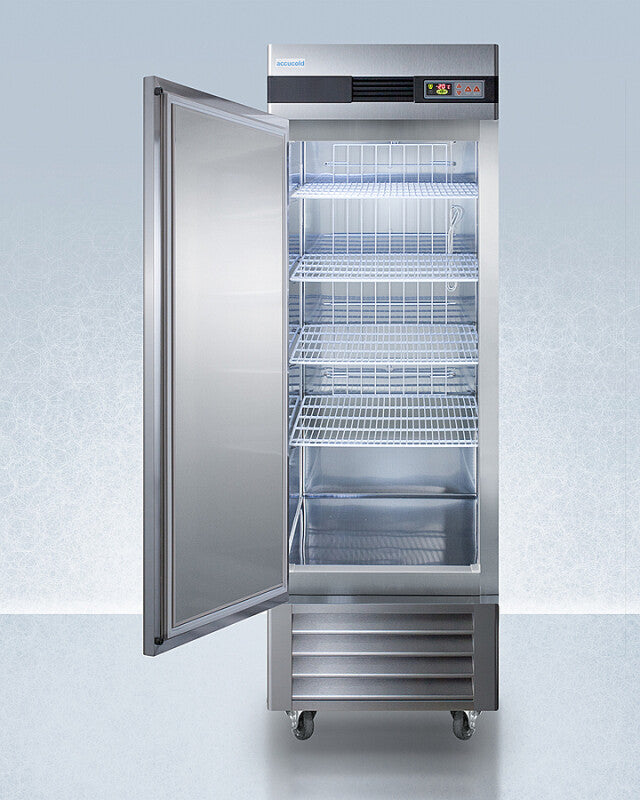

  • Adjustable plastic-coated wire shelves for improved circulation
    Multiple shelf positions spaced at 1/2" to allow flexible adjusting to support smaller items
  • Large capacity
    23 cubic feet of storage space inside
  • Temperature alarm
    Visual and audible alarms alert if the interior temperature rises or falls out of set range
  • Magnetic door gasket
    Quality door gaskets ensure a tight seal for energy savings and improved performance
  • Sealed back
    Space-saving design that ensures easier cleanup
  • Extended warranty
    2 years parts and labor/5 years compressor
  • Condenser cleaning alarm
    In order to prevent dust from impeding performance, this unit is equipped with audible and visual alarm that reminds you to clean the condenser every 6 months
  • Commercially approved
    Commercial construction meeting UL commercial listing standards
  • Left hand door swing
    For the same unit with the door opening from the other side, see the AFS23ML
  • Matching refrigerator
    Pair with ARS23ML for a matching set in stainless steel
  • 100% CFC free
    Environmentally friendly design without ozone-damaging chemicals
  • Eco-Friendly
    Using environmentally friendly hydrocarbons refrigerants for a greener footprint

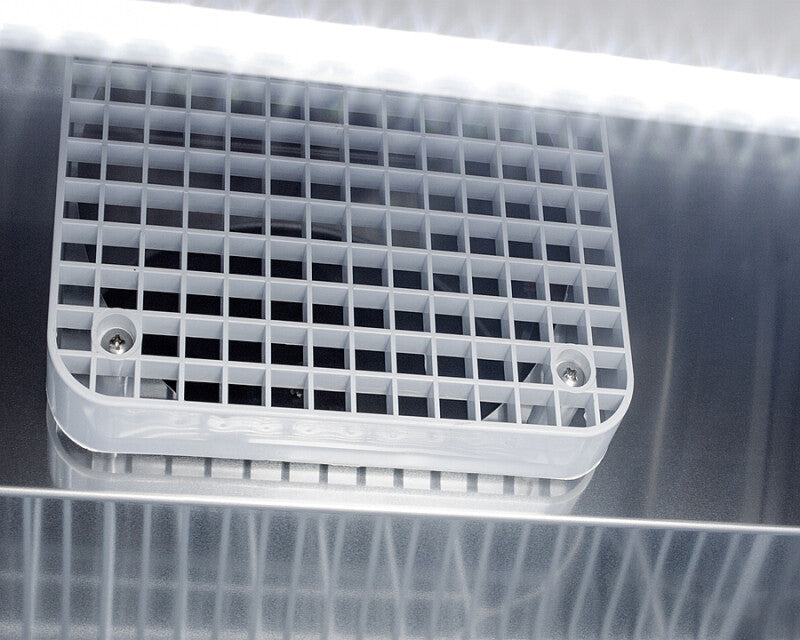

  • Forced air cooling
    Top-mounted commercial fan ensures rapid temperature recovery
  • CARB Compliant
    Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
