SKU: AFS17PVDL2BLHD | UPC: 761101152240

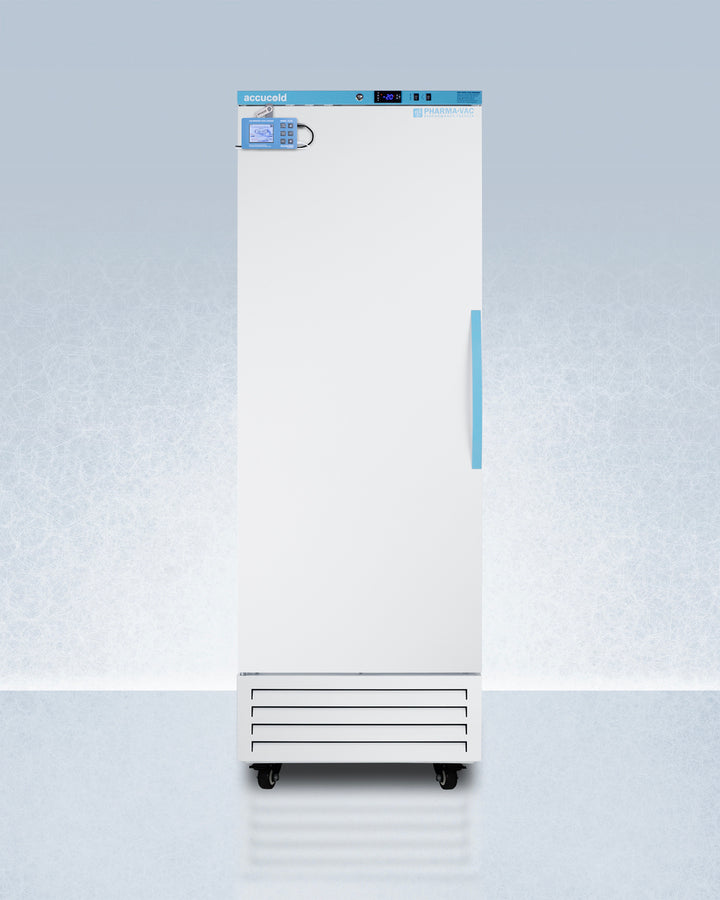

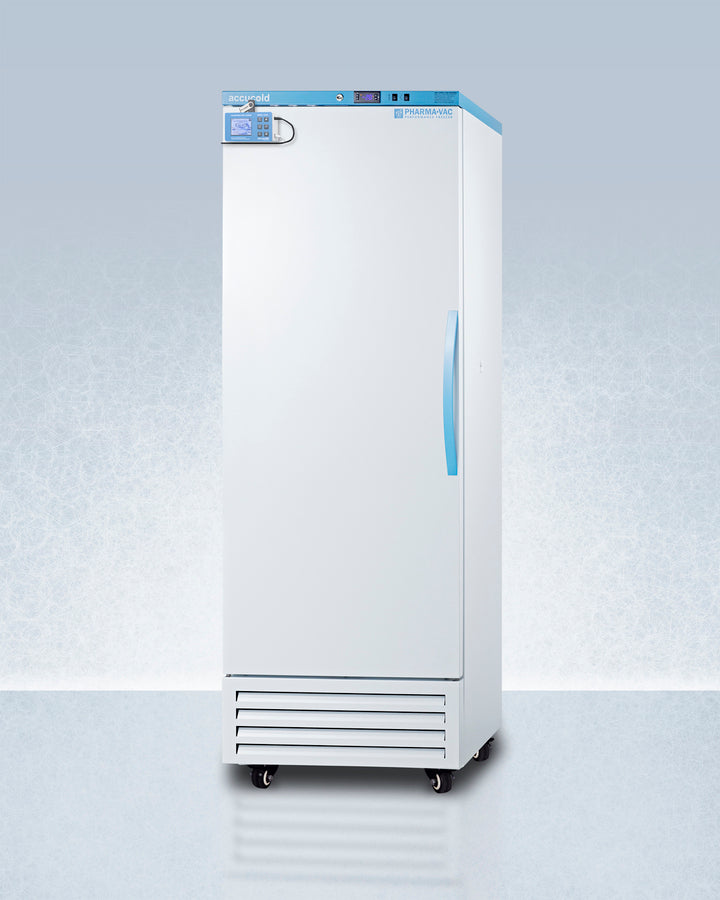

Accucold AFS17PVDL2BLHD 14.83 Cu. Ft. Upright Vaccine All-Freezer White

14.83 Cu. Ft. Upright Vaccine All-Freezer
14.83 Cu. Ft. Upright Vaccine All-Freezer
14.83 Cu. Ft. Upright Vaccine All-Freezer
14.83 Cu. Ft. Upright Vaccine All-Freezer
14.83 Cu. Ft. Upright Vaccine All-Freezer
14.83 Cu. Ft. Upright Vaccine All-Freezer
14.83 Cu. Ft. Upright Vaccine All-Freezer
14.83 Cu. Ft. Upright Vaccine All-Freezer
14.83 Cu. Ft. Upright Vaccine All-Freezer
14.83 Cu. Ft. Upright Vaccine All-Freezer
14.83 Cu. Ft. Upright Vaccine All-Freezer
14.83 Cu. Ft. Upright Vaccine All-Freezer
14.83 Cu. Ft. Upright Vaccine All-Freezer
14.83 Cu. Ft. Upright Vaccine All-Freezer
14.83 Cu. Ft. Upright Vaccine All-Freezer
14.83 Cu. Ft. Upright Vaccine All-Freezer
14.83 Cu. Ft. Upright Vaccine All-Freezer
14.83 Cu. Ft. Upright Vaccine All-Freezer
14.83 Cu. Ft. Upright Vaccine All-Freezer
14.83 Cu. Ft. Upright Vaccine All-Freezer
14.83 Cu. Ft. Upright Vaccine All-Freezer
14.83 Cu. Ft. Upright Vaccine All-Freezer
14.83 Cu. Ft. Upright Vaccine All-Freezer
14.83 Cu. Ft. Upright Vaccine All-Freezer
14.83 Cu. Ft. Upright Vaccine All-Freezer
14.83 Cu. Ft. Upright Vaccine All-Freezer
14.83 Cu. Ft. Upright Vaccine All-Freezer
14.83 Cu. Ft. Upright Vaccine All-Freezer

Quick Specification More details

  • Width:
    27.5" (70 cm)
  • Depth:
    26.63" (68 cm)
  • Type:
    Upright Freezers

About this product

  • Upright All-Freezer
  • Performance Series freezer
  • Purpose-built design
  • Digital data logger (DDL) included

SKU: AFS17PVDL2BLHD | UPC: 761101152240

Accucold AFS17PVDL2BLHD 14.83 Cu. Ft. Upright Vaccine All-Freezer White

Contact us for Pricing

Active Rebates

KT Appliance

We’ll confirm fit, specs & delivery before you order.

  •  Chat  • Email  • Call Us

Quick Specification More details

  • Width:
    27.5" (70 cm)
  • Depth:
    26.63" (68 cm)
  • Type:
    Upright Freezers

About this product

  • Upright All-Freezer
  • Performance Series freezer
  • Purpose-built design
  • Digital data logger (DDL) included
  • Product Details
  • Manuals & Guides
  • From The Manufacturer
  • Reviews
Contact us for Pricing

Product Details for Accucold AFS17PVDL2BLHD

Technical Details

Overview freezer

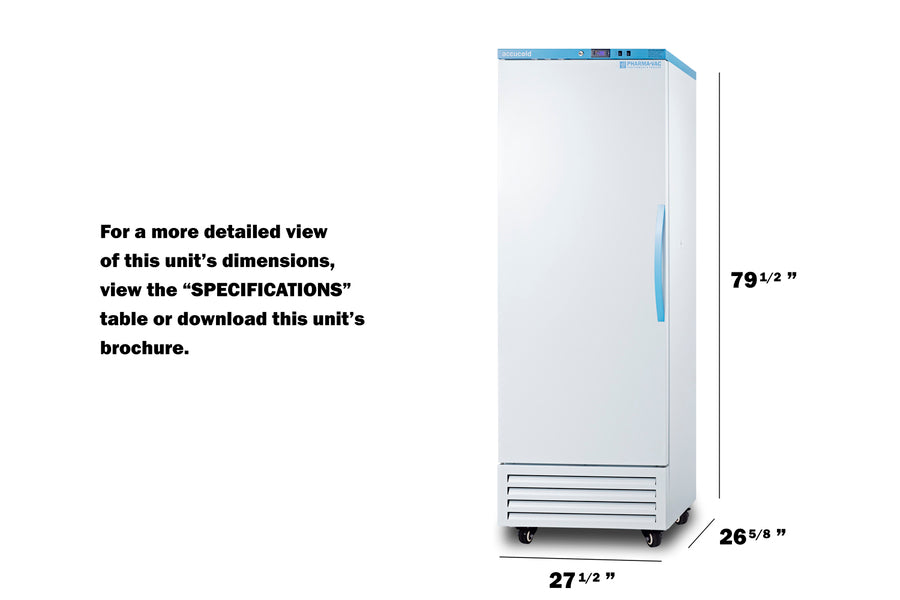

Nominal Height 80.0" (203 cm)
Height of Cabinet 79.5" (202 cm)
Nominal Width 28.0" (71 cm)
Width 27.5" (70 cm)
Width with Door Open 27.75" (70 cm)
Nominal Depth 27.0" (69 cm)
Depth 26.63" (68 cm)
Depth with Handle 28.13" (71 cm)
Depth with door at 90° 54.75" (139 cm)
Capacity 14.83 cu.ft. (420 L)
Defrost Type Frost-Free
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 4.3
Voltage/Frequency 115 V AC/60 Hz
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
UPC 761101152240
Door Swing RHD
Interior Height 49.0" (124 cm)
Interior Width 19.25" (49 cm)
Interior Depth 18.0" (46 cm)
Shelf Type Wire
Shelf Qty 6
Adjustable Shelves Yes
Thermostat Type Digital
Interior Light Yes
Fan Type Interior
Refrigerant Type R290a
Refrigerant Amount 3.27 oz.
High Side PSI 280.0
Low Side PSI 130.0

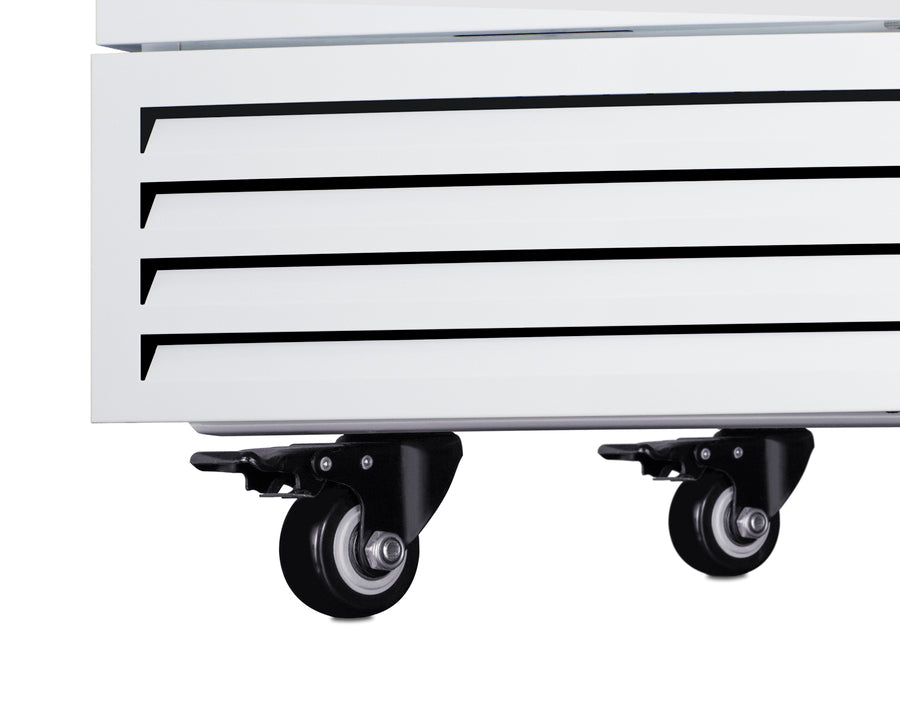

Wheels 4
Compressor Step Height 10.0" (25 cm)
Compressor Step Width 19.25" (49 cm)
Compressor Step Depth 16.0" (41 cm)
Temperature Range -30 to -10ºC

Description

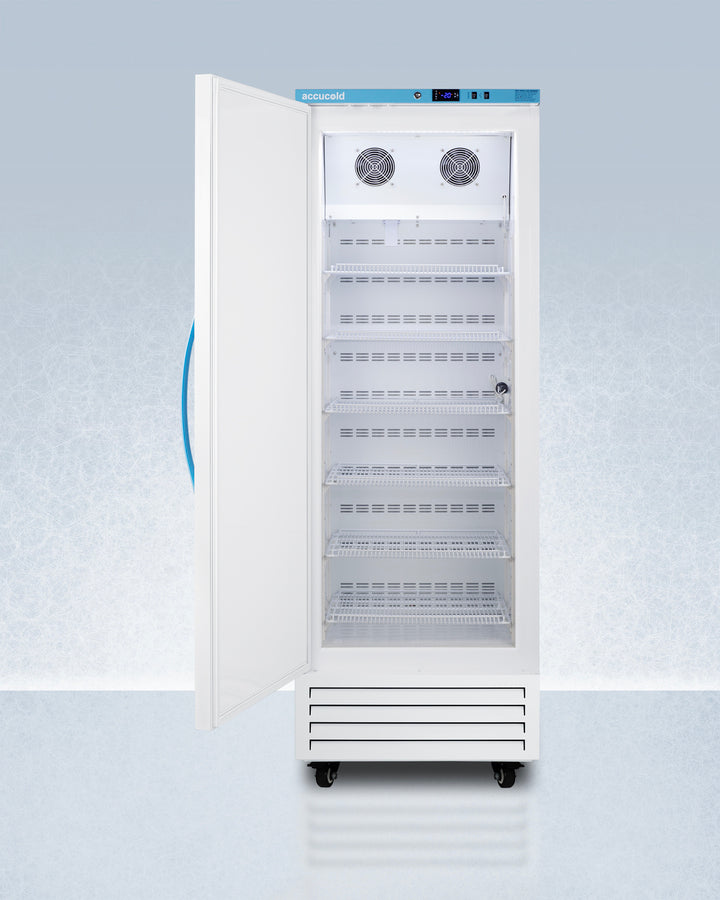

Accucold's Pharma-Vac Performance Series upright freezers are designed and purpose-built for pharmacy, medication, and vaccine applications, supporting compliance with CDC/VFC/VFA guidelines. The AFS17PVDL2BLHD is an upright frost-free all-freezer with a temperature range of -30°C to -10°C as recommended for various vaccines and pharmaceuticals. The microprocessor temperature controller is externally located to minimize door openings, helping to protect stored contents from ambient temperature. The buffered temperature probe is encased in a glycol-filled bottle to better simulate the temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit . The audible and visual temperature alarm sounds if the unit's interior goes out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. This model is equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices. A hospital-grade cord with a 'green dot' plug is also included for added safety in high-traffic areas. We also include our DL2B digital data logger to be mounted to the door, a feature recommended by the CDC, VFC and VFA for vaccine storage. This password-protected DDL is NIST calibrated in our ISO/IEC 17025:2017 accredited laboratory and offers a large LCD display of the current and high/low temperature, recording up to 32,000 data groups to its internal memory or even more on the included 4GB USB flash drive. Data can be viewed through a PC or Mac in Microsoft Excel or any .CSV compatible program. Users can set their own recording intervals starting at increments of 10 seconds to best meet a facility's specific logging needs. We include a 2-year certificate of calibration beginning the date of manufacture. The logger can be re-calibrated in our laboratories after the certificate expires. (For additional information on the DDL, see the DL2BKit listing on our website.) Inside, this freezer has 14.83 cu. ft of storage space and features six adjustable plastic-coated wire shelves that can be positioned at 1/2" increments to accommodate virtually any sized item. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder-coated metal to ensure added durability and better temperature retention. The AFS17PVDL2BLHD comes in a white exterior finish with a blue accented control panel. The factory-installed antimicrobial handle is powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. This model includes a factory-installed lock and ships with two keys for staff use. Powerful magnetic gaskets ensure a positive seal. Four pre-installed 4" high casters with brakes make it easier to move as needed. Additional sizes and matching all-refrigerators are also available. Explore the entire Pharma-Vac series at accucold.com NOTE: Accucold freezers are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate microprocessor controls, as well as a calibrated digital data logger (DDL) to display the current and high/low temperature.


Product Features

  • Upright All-Freezer
    Full-sized frost-free freezer designed for medical and life science storage
  • Performance Series freezer
    Purpose-built all-freezer for vaccine storage in medical, pharmaceutical, and life science applications
  • Purpose-built design
    Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC/VFA guidelines
  • Digital data logger (DDL) included
    Accucold DL2B data logger is NIST calibrated in our ISO/IEC 17025:2017 laboratory, with user-set logging intervals, a large LCD readout of the current and high/low temperature, and virtually unlimited storage through internal memory and a convenient USB drive; for additional information on this logger's features, view the DL2BKit on our website
  • Spacious capacity
    Over 14.5 cu.ft. of storage inside
  • Frost-free operation
    No-frost operation for minimal user maintenance
  • +/-1ºC Variation
    The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period

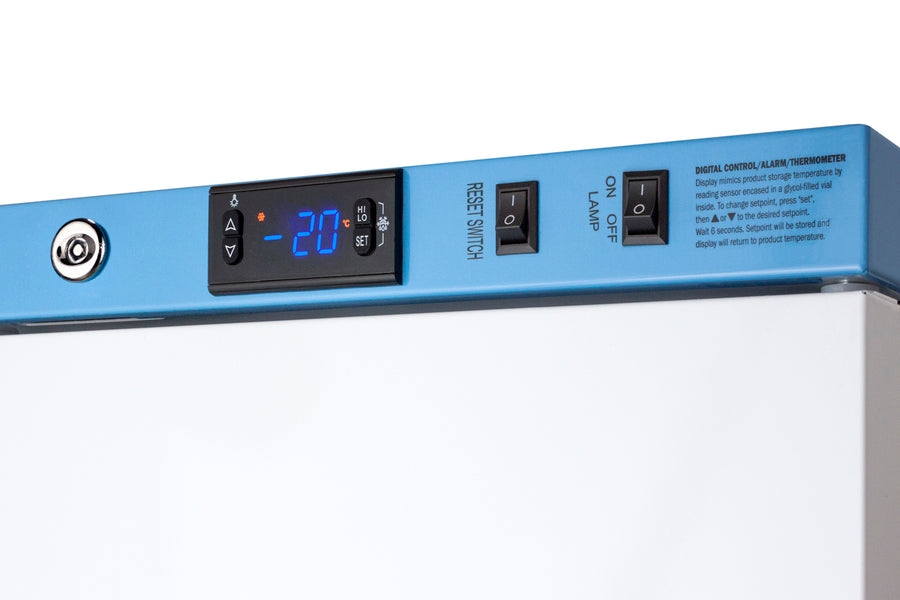

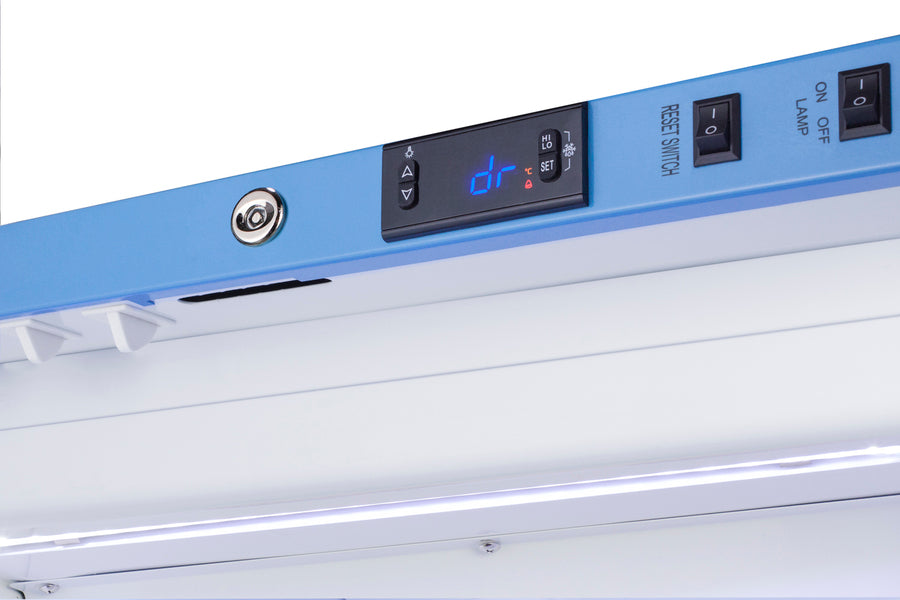

  • Microprocessor control panel
    Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
  • Adjustable temperature
    Intuitive controls let you adjust the interior temperature between -30°C to -10ºC
  • High/low temperature alarm
    Visual and audible alarms alert if the interior temperature rises or falls out of set range

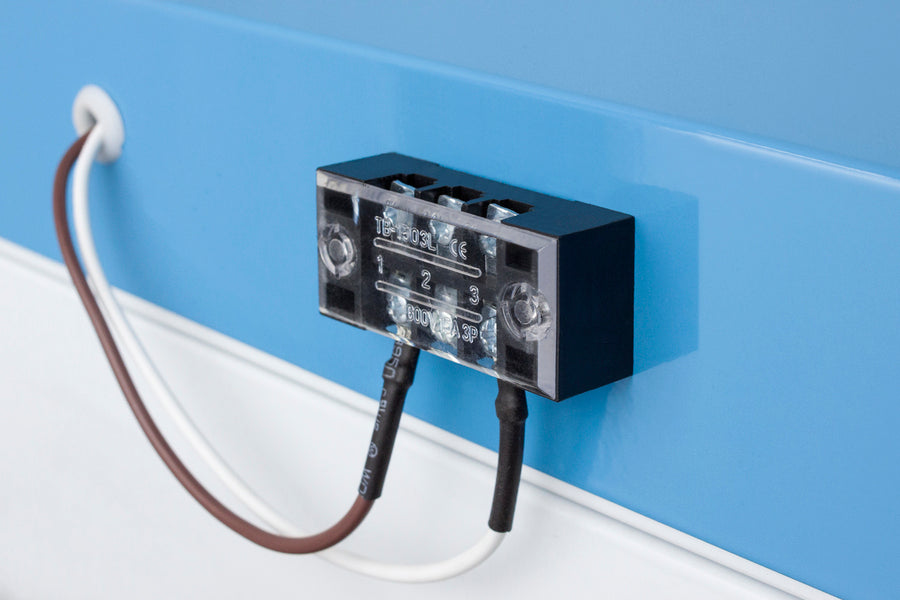

  • Remote alarm contacts
    Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)

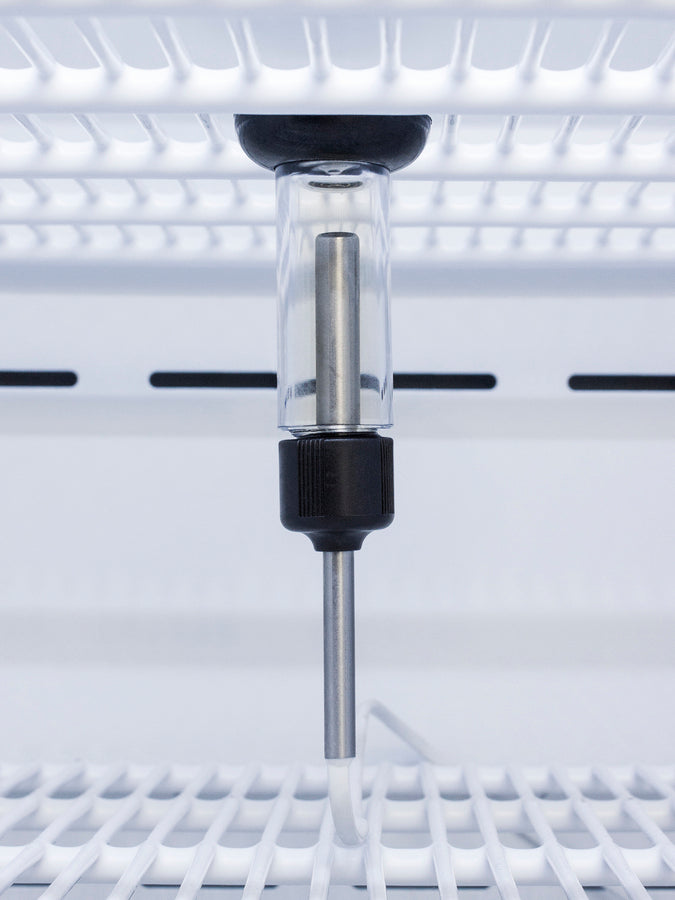

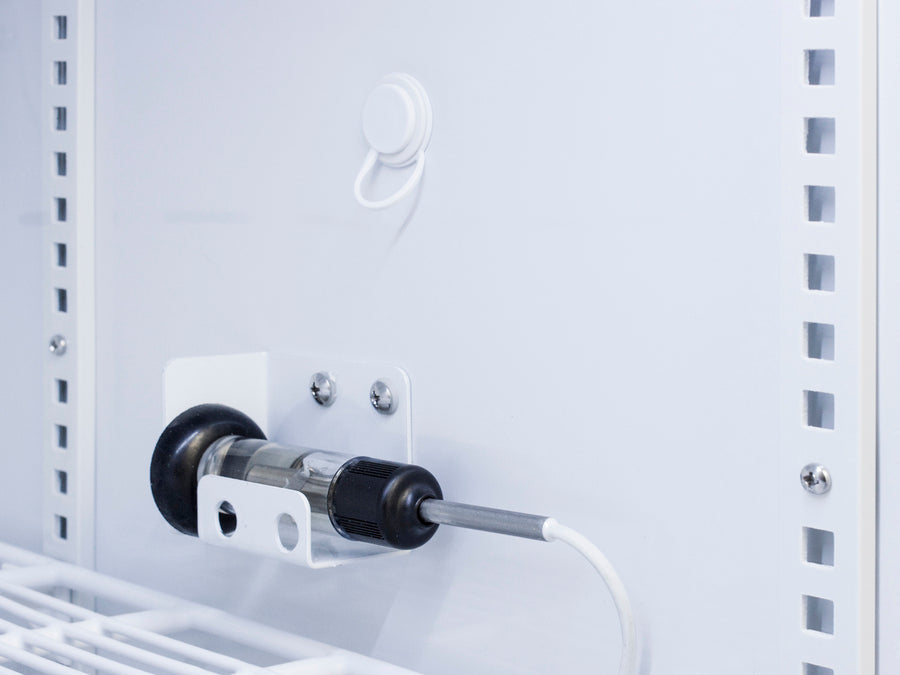

  • Buffered temperature probe
    Thermometer probe is encased in a glass bead-filled bottle to better simulate temperature readings closest to stored contents
  • Open door alarm
    Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)
  • Audible power failure alarm
    Battery-powered alarm sounds if the power connection is interrupted
  • Sensor failure alarm
    Audible and visual alarm warns if the sensor is disrupted

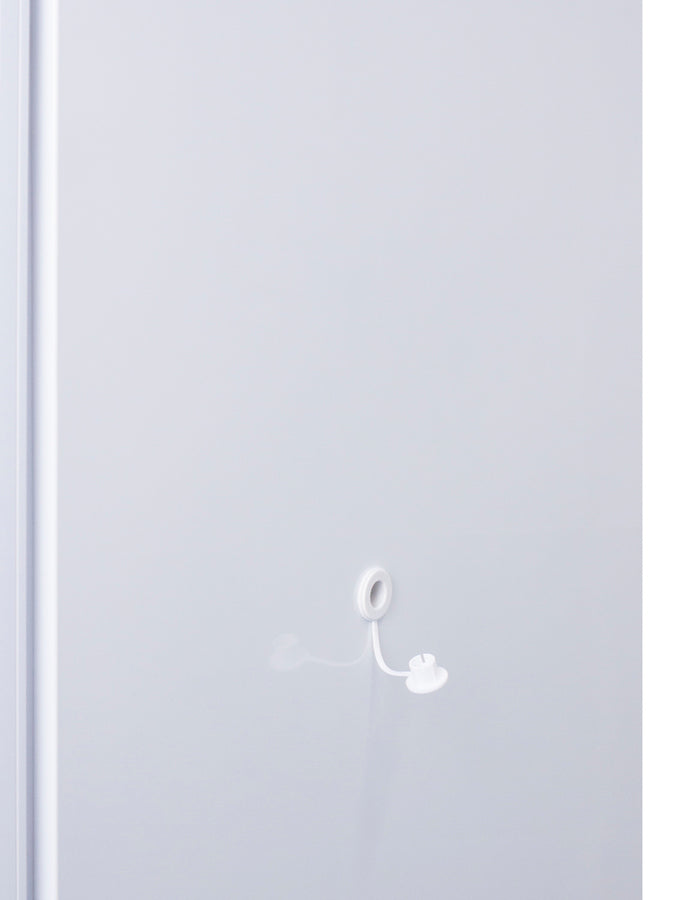

  • Access port
    Includes a pre-installed 1/2" probe hole in the right interior wall to allow easier connection to user-provided monitoring equipment
  • Password protection
    Control panel requires password entry to adjust the parameters beyond the set point
  • Resettable min/max display
    Control panel provides a readout of the low and high temperatures in 15 minute increments
  • Interior light
    Energy efficient LED lighting with internal on/off switch
  • Durable interior
    Walls are constructed from white powder coated metal for added strength and improved temperature retention

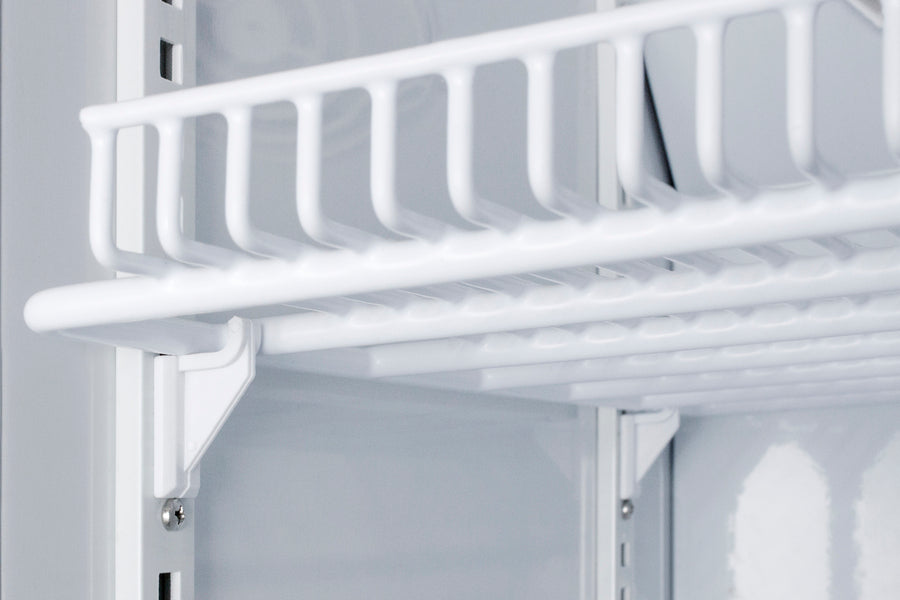

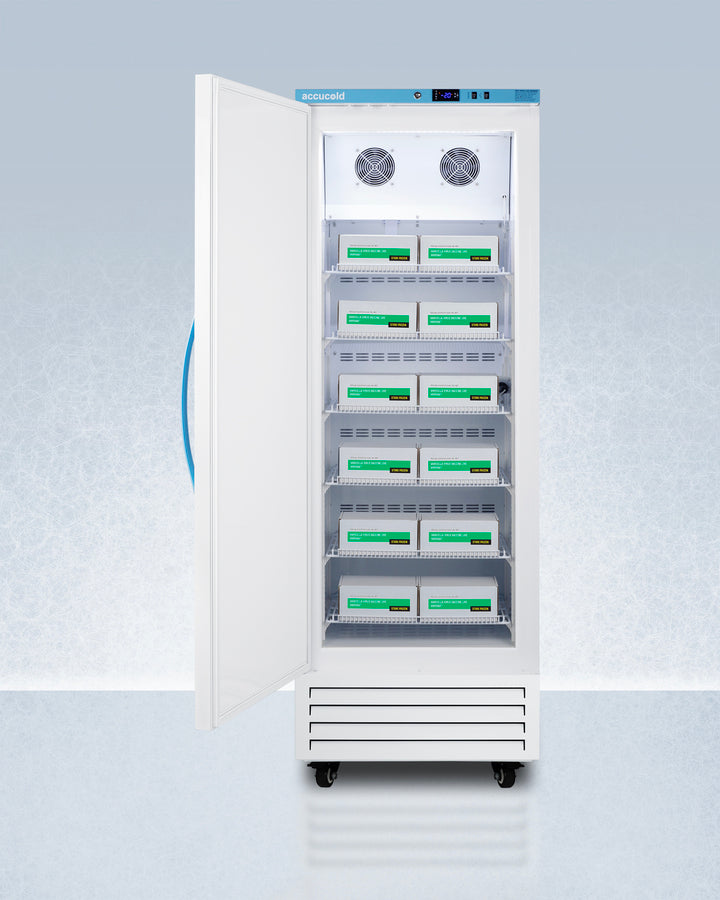

  • Adjustable plastic-coated wire shelves for improved circulation
    Unit's six shelves can be positioned with a front lip for small storage items or reversed to a flat position to better hold larger items, with multiple shelf positions spaced at 1/2" to accommodate virtually any size
  • Flat door liner
    No door storage to allow for the interior to accommodate deeper trays
  • Self-closing door
    Added protection in busy settings
  • Magnetic door gasket
    Quality door gaskets ensure a tight seal for energy savings and improved performance
  • Factory-installed lock
    Conveniently located towards the top of the door for easier user access (2 keys included)

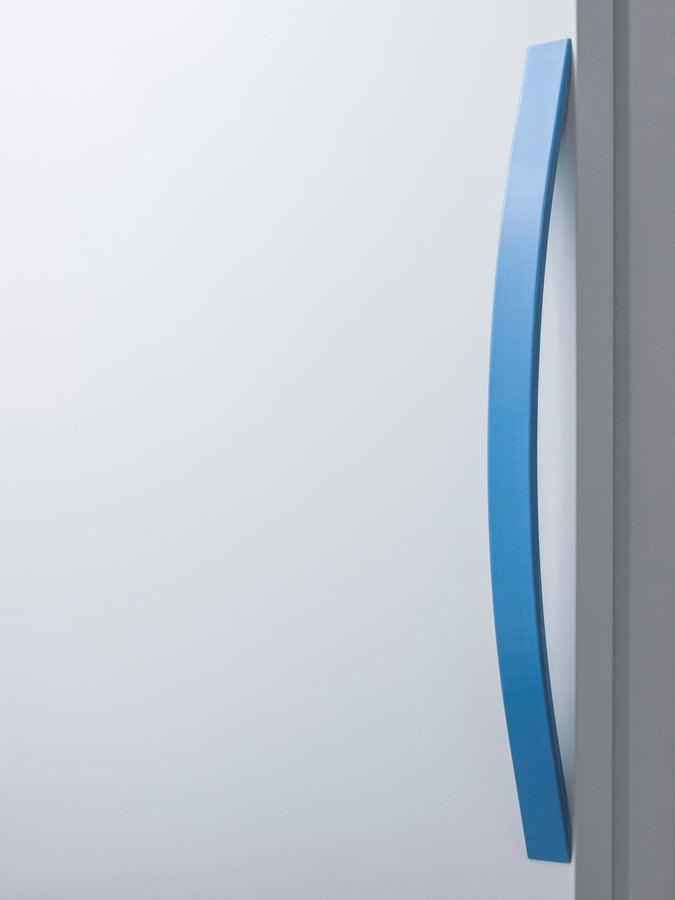

  • Antimicrobial silver ion-coated handle
    Powder-coated handle with naturally occurring silver ions to help reduce the spread of germs
  • Hospital grade cord with 'green dot' plug
    Secure three-pronged cord for added unit safety
  • Extended warranty
    2 years parts and labor/5 years compressor
  • Versatile design
    Compatible with Pyxis®, Omnicell®, and AcuDose RX®
  • 100% CFC free
    Environmentally friendly design without ozone-damaging chemicals
  • CARB compliant
    Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
