Product Details for Accucold AFS14PVDL2B

Technical Details

Overview freezer

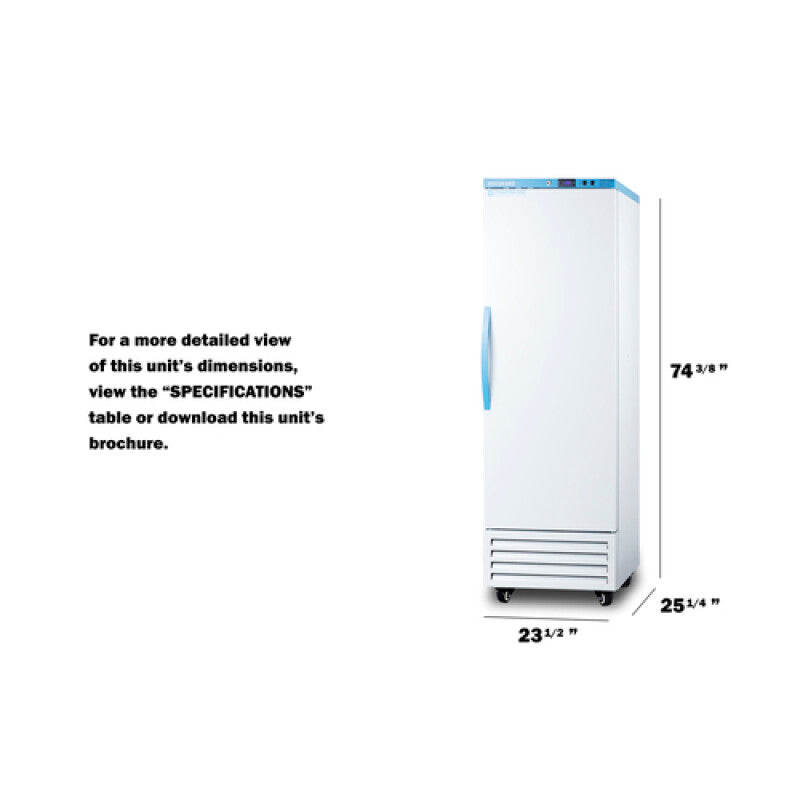

Nominal Height 75.0" (191 cm)
Height of Cabinet 74.38" (189 cm)
Nominal Width 24.0" (61 cm)
Width 23.5" (60 cm)
Width with Door Open 23.75" (60 cm)
Nominal Depth 26.0" (66 cm)
Depth 25.25" (64 cm)
Depth with Handle 26.75" (68 cm)
Depth with door at 90° 49.38" (125 cm)
Capacity 9.53 cu.ft. (270 L)
Defrost Type Frost-Free
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 4.3
Voltage/Frequency 115 V AC/60 Hz
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
UPC 761101152196
Door Swing RHD
Reversible Factory Reversible
Interior Height 43.75" (111 cm)
Interior Width 15.25" (39 cm)
Interior Depth 16.5" (42 cm)
Shelf Type Wire
Shelf Qty 6
Adjustable Shelves Yes
Thermostat Type Digital
Interior Light Yes
Fan Type Interior
Refrigerant Type R290a
Refrigerant Amount 3.27 oz.
High Side PSI 280.0
Low Side PSI 130.0

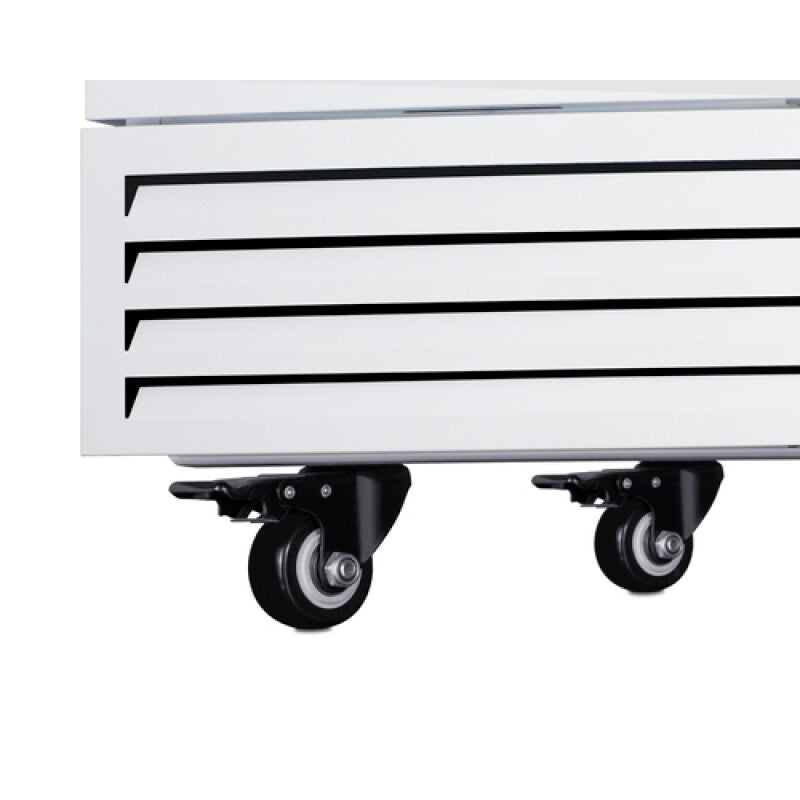

Wheels 4
Compressor Step Height 10.0" (25 cm)
Compressor Step Width 15.25" (39 cm)
Compressor Step Depth 15.25" (39 cm)
Temperature Range -30 to -10ºC

Description

Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC/VFA guidelines, with a NIST calibrated data logger included


Product Features

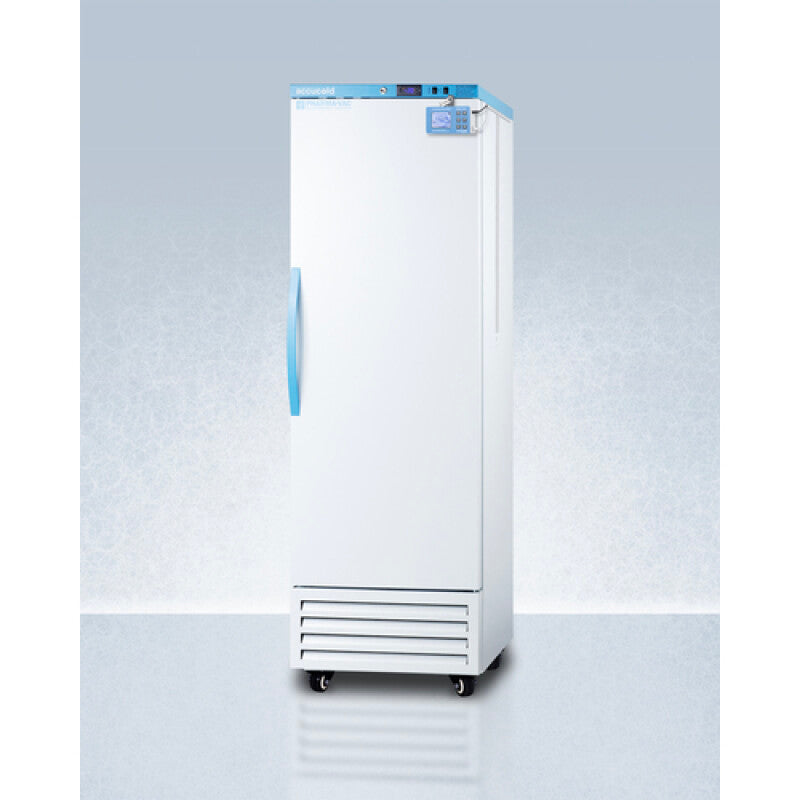

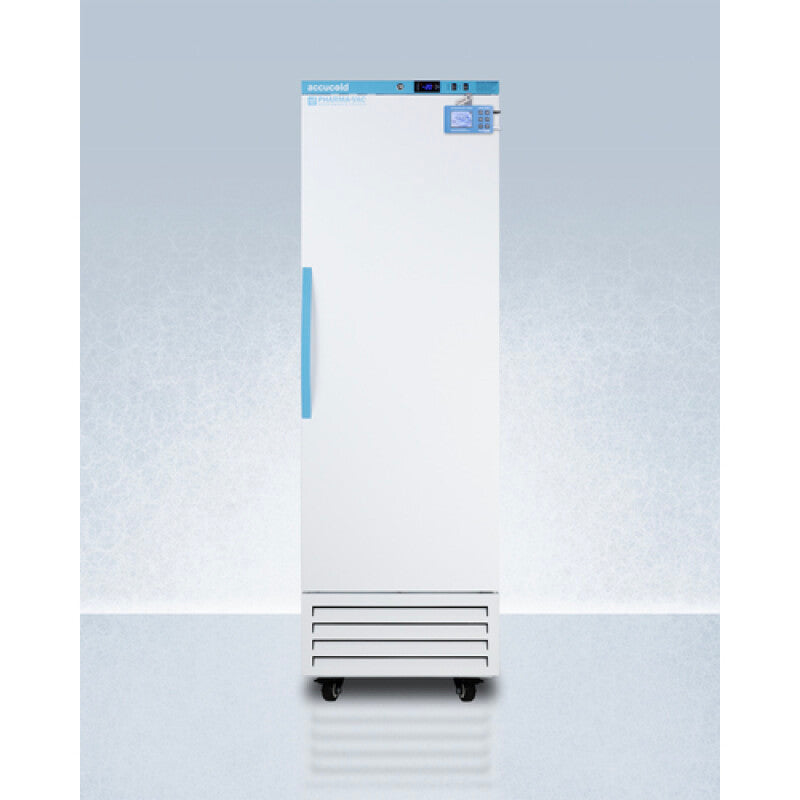

  • 24" Wide Upright All-Freezer

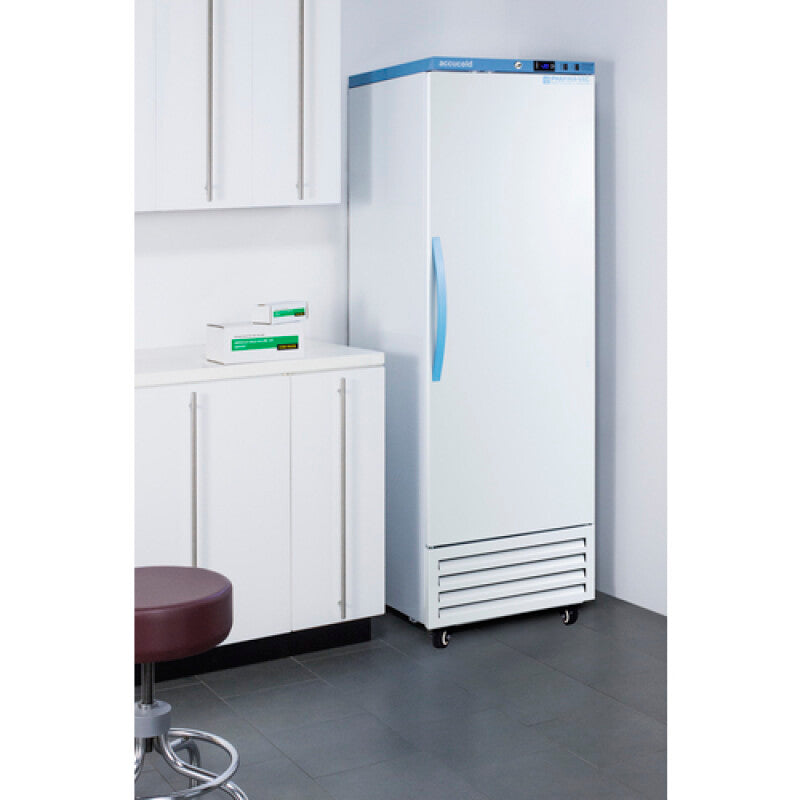

    24" Wide upright Performance Series vaccine all-freezer designed for healthcare settings
  • Performance Series freezer
    Purpose-built all-freezer for vaccine storage in medical, pharmaceutical, and life science applications
  • Purpose-built design
    Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC/VFA guidelines
  • Digital data logger (DDL) included
    Accucold DL2B data logger is NIST calibrated in our ISO/IEC 17025:2017 laboratory, with user-set logging intervals, a large LCD readout of the current and high/low temperature, and virtually unlimited storage through internal memory and a convenient USB drive; for additional information on this logger's features, view the DL2BKit on our website
  • Spacious capacity
    Over 9.5 cu.ft. of storage inside
  • Frost-free operation
    No-frost operation for minimal user maintenance
  • +/-1ºC Variation
    The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period

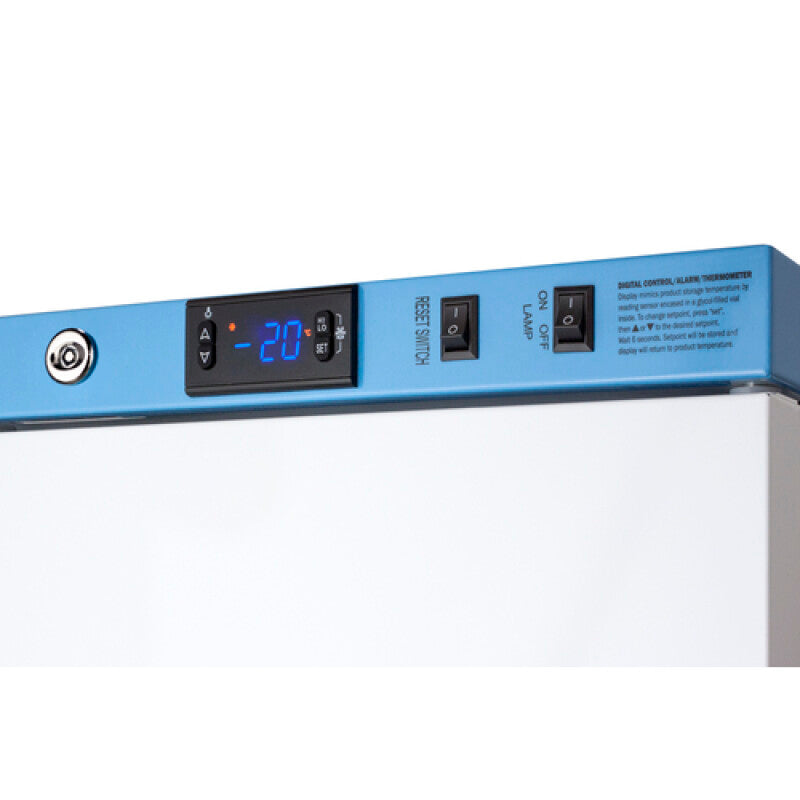

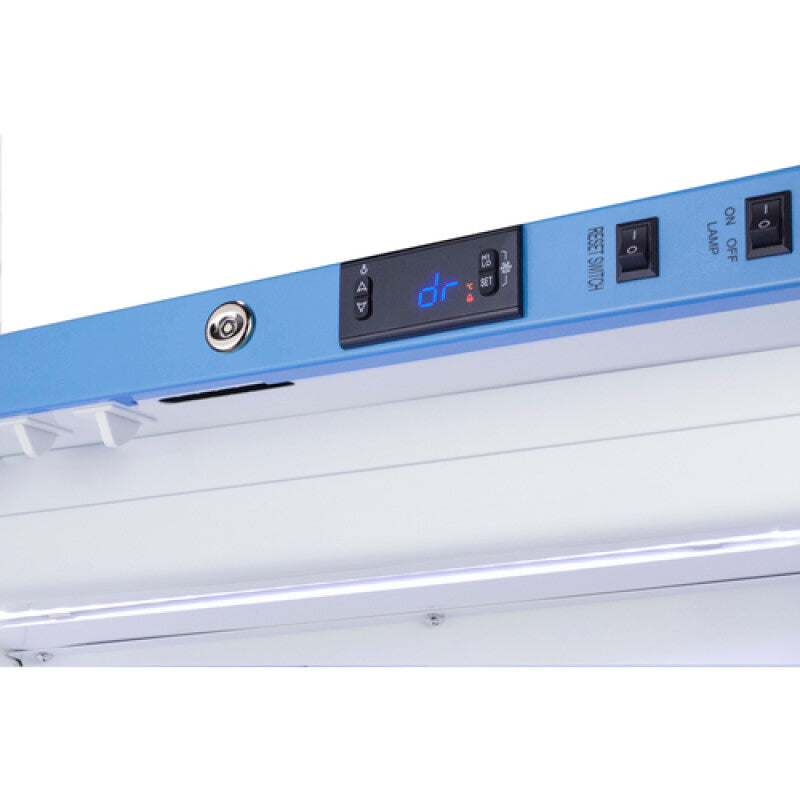

  • Microprocessor control panel
    Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
  • Adjustable temperature
    Intuitive controls let you adjust the interior temperature between -30°C to -10ºC
  • High/low temperature alarm
    Visual and audible alarms alert if the interior temperature rises or falls out of set range

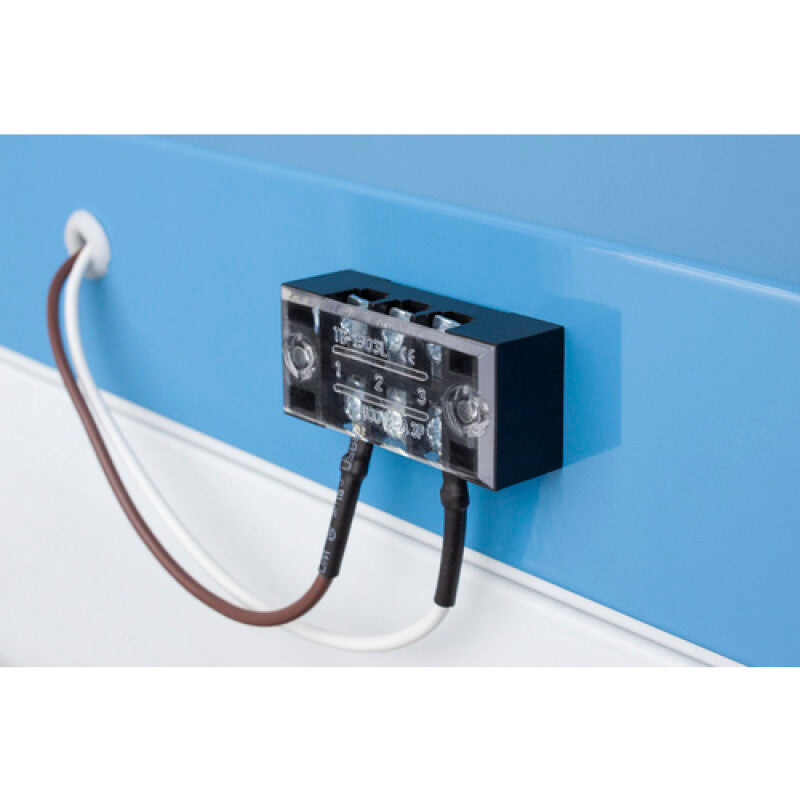

  • Remote alarm contacts
    Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)

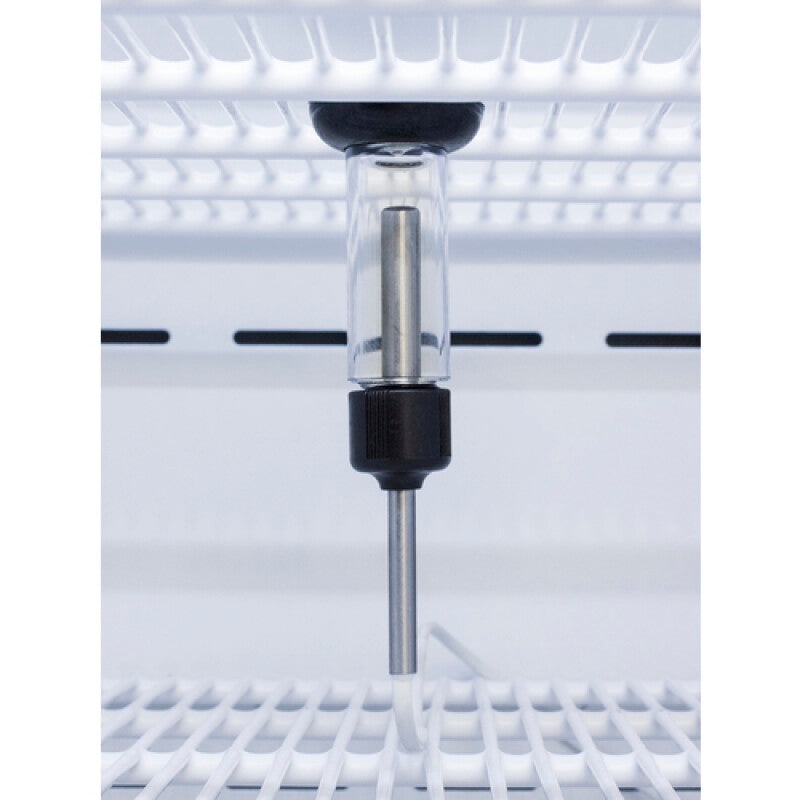

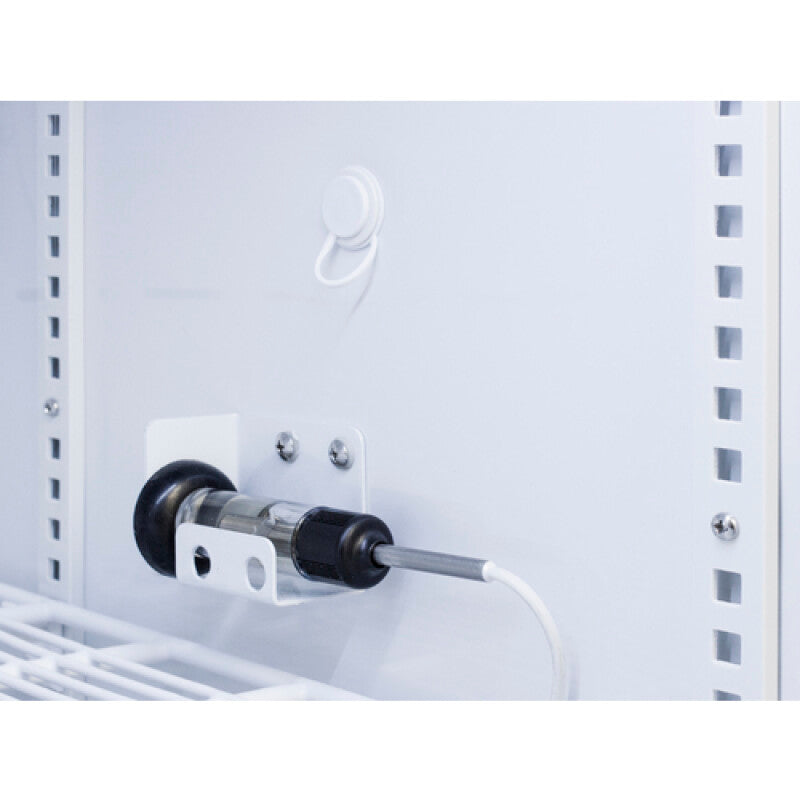

  • Buffered temperature probe
    Thermometer probe is encased in a glass bead-filled bottle to better simulate temperature readings closest to stored contents
  • Open door alarm
    Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)
  • Audible power failure alarm
    Battery-powered alarm sounds if the power connection is interrupted
  • Sensor failure alarm
    Audible and visual alarm warns if the sensor is disrupted
  • Access port

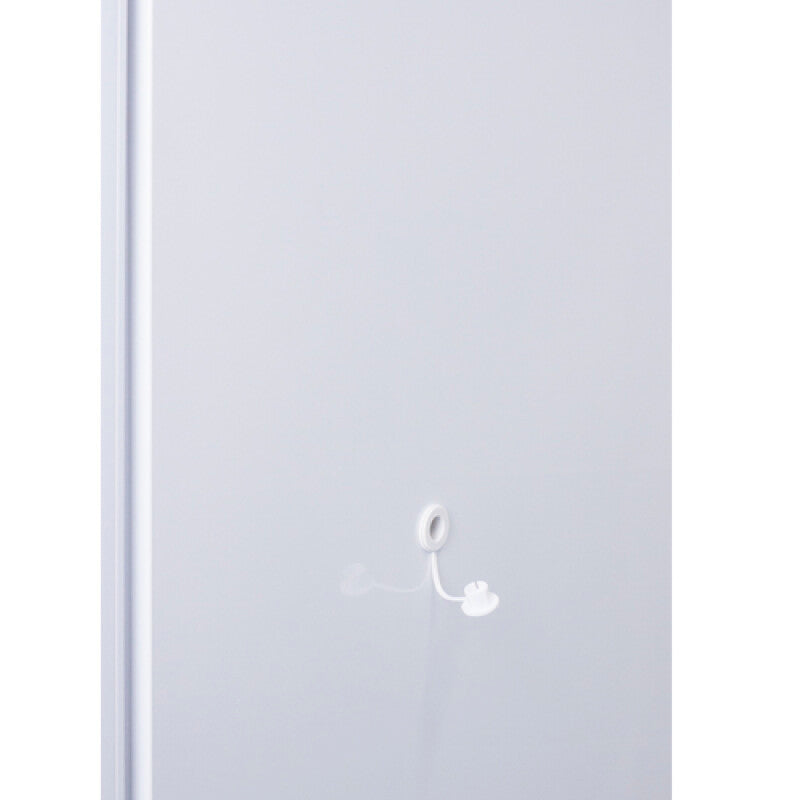

    Includes a pre-installed 1/2" probe hole in the right interior wall to allow easier connection to user-provided monitoring equipment
  • Password protection
    Control panel requires password entry to adjust the parameters beyond the set point
  • Resettable min/max display
    Control panel provides a readout of the low and high temperatures in 15 minute increments
  • Interior light
    Energy efficient LED lighting with internal on/off switch
  • Durable interior
    Walls are constructed from white powder coated metal for added strength and improved temperature retention

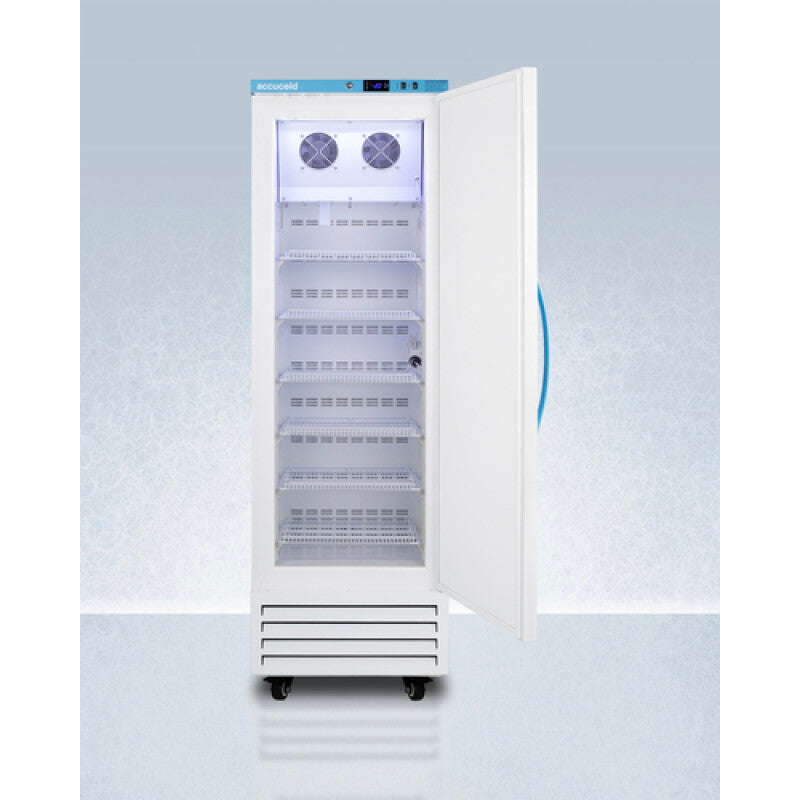

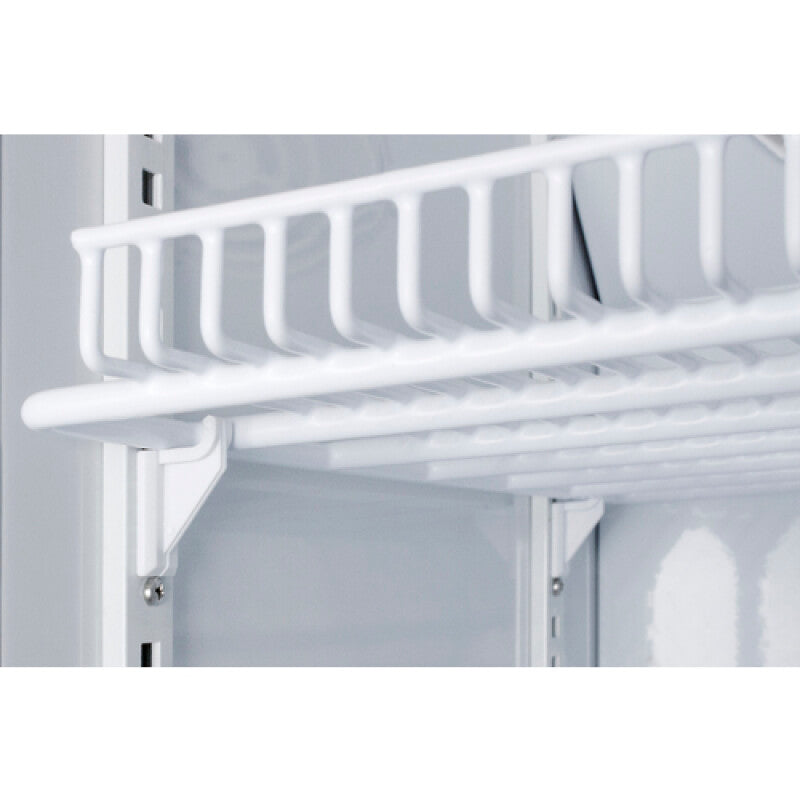

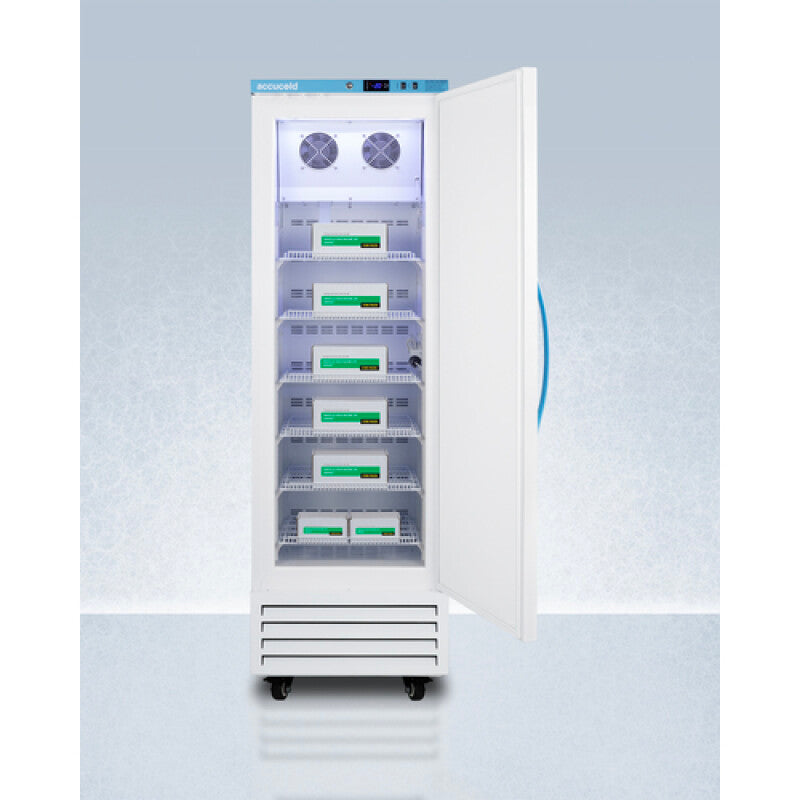

  • Adjustable plastic-coated wire shelves for improved circulation
    Unit's six shelves can be positioned with a front lip for small storage items or reversed to a flat position to better hold larger items, with multiple shelf positions spaced at 1/2" to accommodate virtually any size
  • Flat door liner
    No door storage to allow for the interior to accommodate deeper trays
  • Self-closing door
    Added protection in busy settings
  • Magnetic door gasket
    Quality door gaskets ensure a tight seal for energy savings and improved performance
  • Factory-installed lock
    Conveniently located towards the top of the door for easier user access (2 keys included)

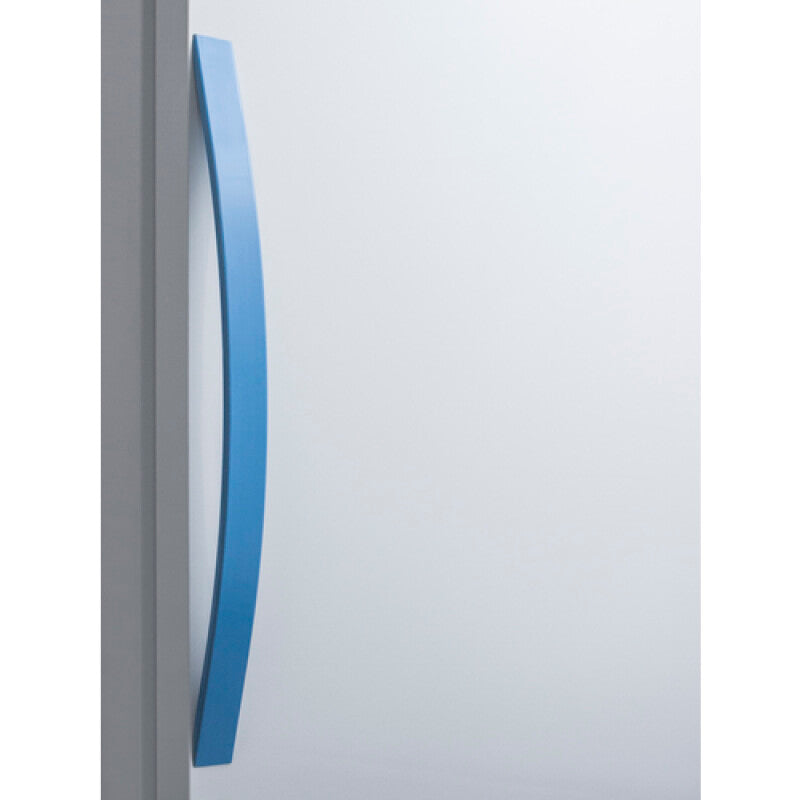

  • Antimicrobial silver ion-coated handle
    Powder-coated handle with naturally occurring silver ions to help reduce the spread of germs
  • Hospital grade cord with 'green dot' plug
    Secure three-pronged cord for added unit safety
  • Extended warranty
    2 years parts and labor/5 years compressor
  • Versatile design
    Compatible with Pyxis®, Omnicell®, and AcuDose RX®
  • 100% CFC free
    Environmentally friendly design without ozone-damaging chemicals
  • CARB compliant
    Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
