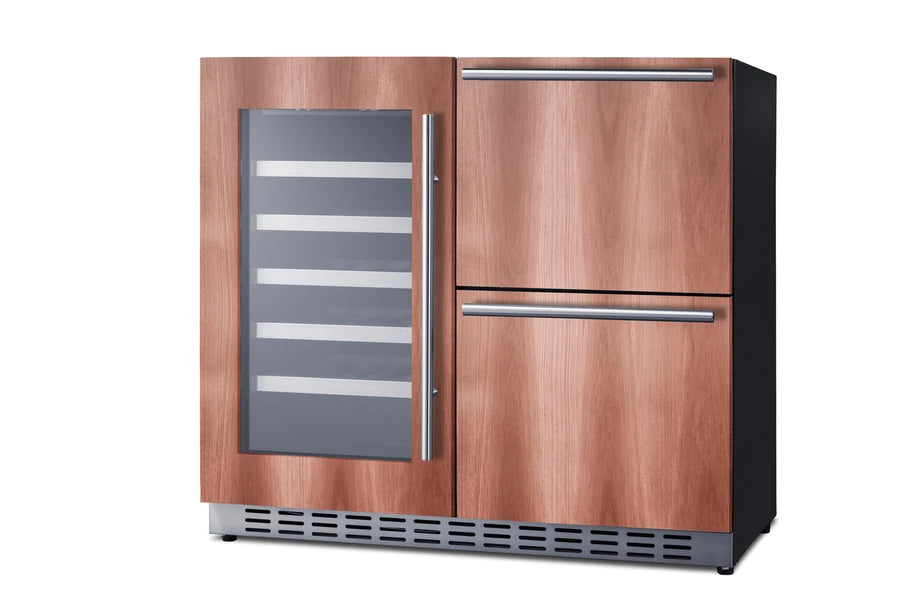

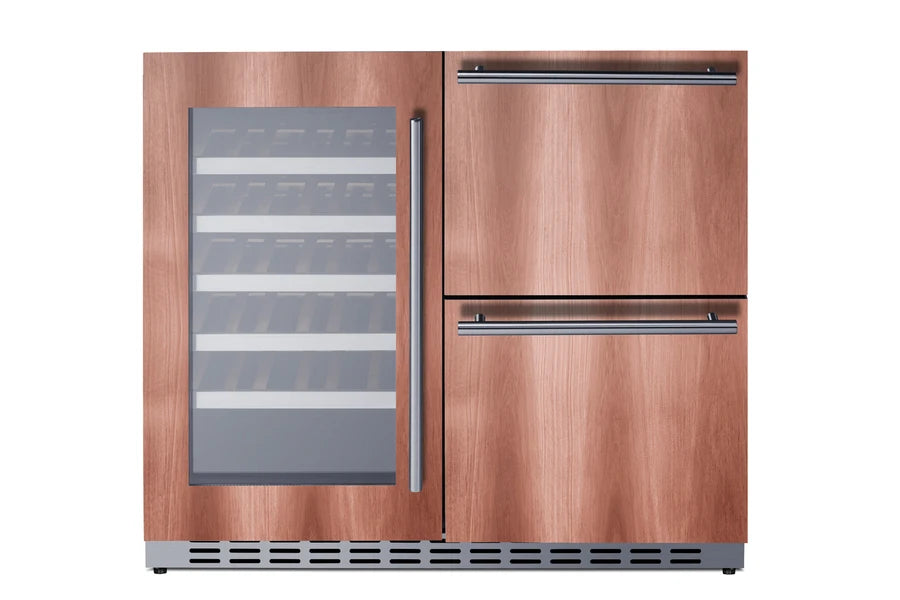

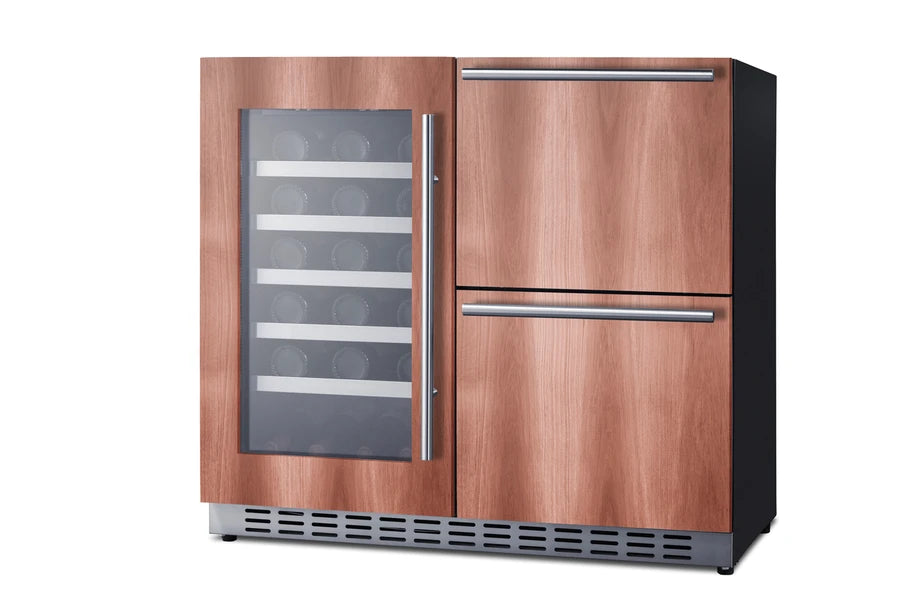

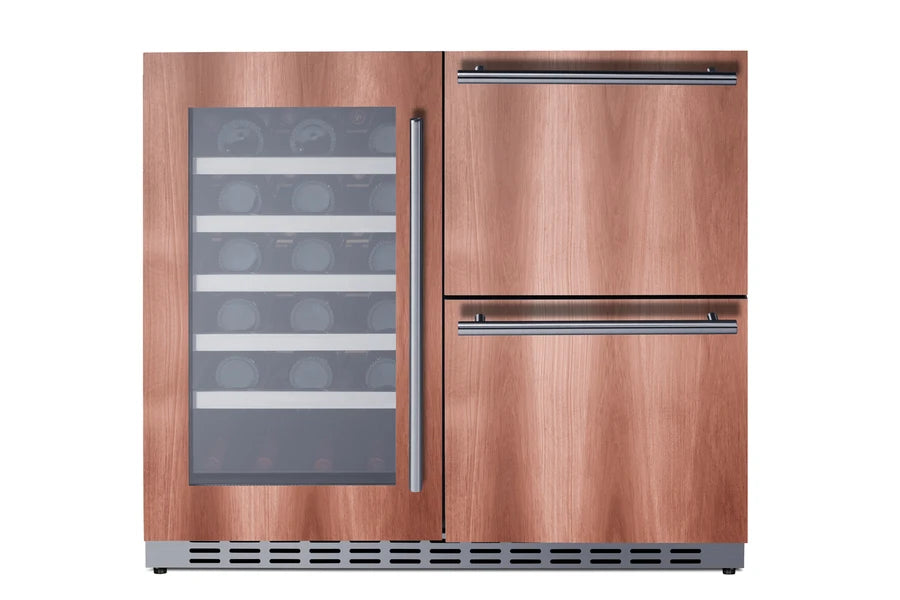

Summit ADRWC36PNR 36" Wide Combination Wine Cellar & 2-Drawer Refrigerator , ADA Compliant (Panel Not Included) Panel-Ready
Sale price
$3,023.08
Regular price
$4,224.97
Save
$1,201.89
/ 28% OFF
Out of stock
Active Rebates
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Sale price
$3,023.08
Regular price
$4,224.97
Save
$1,201.89
/ 28% OFF
Product Details for Summit ADRWC36PNR
Technical Details
Overview wine cellar
| Height of Cabinet | 32.38" (82 cm) |
| Width | 35.5" (90 cm) |
| Depth | 23.63" (60 cm) |
| Depth with Panel | 24.13" (61 cm) |
| Depth with door at 90° | 44.25" (112 cm) |
| Defrost Type | Frost-Free |
| Door | Stainless Steel/Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.3 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 159.0 lbs. (72 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101160672 |
| Number of Zones | 2 |
| Adjustable Shelves | Yes |
| Shelf Type | Wood |
| Shelf Qty | 5 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.23 oz. |
| Interior Height 1 | 23.75" (60 cm) |
| Interior Width 1 | 14.25" (36 cm) |
| Interior Depth 1 | 17.75" (45 cm) |
| Interior Height - Drawer 1 | 8.75" (22 cm) |
| Interior Width - Drawer 1 | 12.75" (32 cm) |
| Interior Depth - Drawer 1 | 17.25" (44 cm) |
| Interior Height - Drawer 2 | 10.5" (27 cm) |
| Interior Width - Drawer 2 | 12.75" (32 cm) |
| Interior Depth - Drawer 2 | 10.5" (27 cm) |
| Compressor Step Height | 6.0" (15 cm) |
| Compressor Step Width | 12.75" (32 cm) |
| Compressor Step Depth | 4.75" (12 cm) |
| Temperature Range | 40° to 72°F |
| Sabbath Mode | Yes |
Description
Summit's unique lineup of wine and drawer refrigeration creates perfect all-in-one solutions for elevated entertainment, with versatile built-in choices that can be used in any kitchen or bar complying with ADA guidelines. Sized at 32.38" high and just under 36" wide, the ADRWC36PNR is combination wine cellar and drawer refrigerator with a customizable front to accept overlay panels to seamlessly match the rest of your kitchen or bar. The front-breathing design allows built-in installation under counters, with a fully finished exterior cabinet in black that also allows freestanding use. This unit is ETL-S listed to NSF-7 commercial standards for use in foodservice or residential settings. On the left side of the ADRWC36PNR is the wine cellar zone, featuring a reversible glass door and fully articulating European style hinge. The door frame can be customized with an overlay panel using our innovative bracket kit. Inside, this model can store up to 34 standard sized wine bottles. The slotted floor can also accommodate champagne if needed. The removable slide-out wooden shelves have steel fronts for a modern look. The digital control panel lets you adjust the temperature between 40º and 72ºF to accommodate red, white, or sparkling wine. On the right is a frost-free two-drawer all-refrigerator in a panel-ready stainless steel finish with a vertical grain. Stainless steel construction inside and out offers durability in a professional look. Two adjustable dividers allow you to separate the drawer compartments into two or four zones to accommodate a variety of sizes, perfect for storing beverages or meats and cheeses to pair with your favorite wine. The digital control panel lets you adjust the temperature between 35º and 47ºF. The drawer fronts and wine cellar door can all be customized with overlay panels to match or accent existing cabinetry design. The stainless steel kickplate completes the look. Additional features include a high-temperature alarm and an open drawer alarm for added peace of mind. Sabbath Mode disables certain electrical features during periods of religious observance, while a temperature memory function helps to recover all settings in the event of power loss. Note: This unit comes with an anti-tip bracket, which should be installed to prevent tipping forward. Offering complete refrigeration and wine convenience in an attractive design, the ADRWC36PNR is approved for commercial and residential use, making it ideal for any space seeking to store wine, beverages, and food in a modern style. For this model in a standard counter height, see SWCDAR36UCPNR. Browse the full Summit line for more options.
Product Features
-
36" Wide Combination Wine Cellar & 2-Drawer Refrigerator
Complete refrigeration storage solution with the 34-bottle capacity wine cellar and two-drawer all-refrigerator, perfect for home bars, kitchens, and similar entertainment spaces -
ADA Height
32 3/8" height allows installation under lower counters complying with ADA guidelines -
Built-in undercounter design
Front-breathing design allows the unit to be built-in under counters -
Commercially approved
ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments -

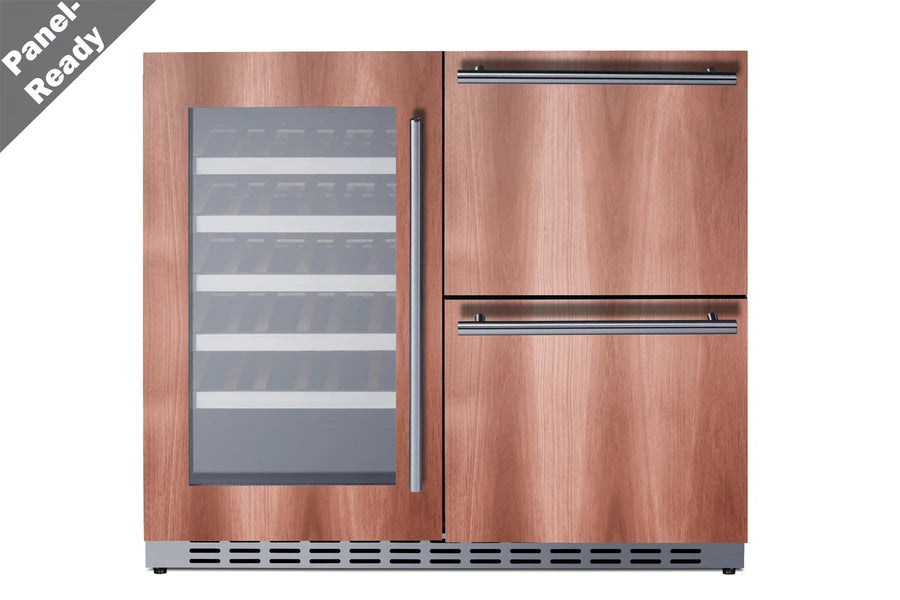

Panel-ready front
Door trim and drawers accept custom overlay panels to let you seamlessly blend the unit into an existing cabinetry; Wine cellar panel dimensions: 29 1/8" H x 17 3/8" W at 3/4" thick, minimum 2 3/4" W side trim and 3 3/8" H; Drawer panels: 14 1/2" H x 17 5/8" W at 3/4" thick -
Two independent temperature zones
Two separate zones, wine cellar and all-refrigerator, allows you to chill wine and refrigerate perishables -
Fully articulating style hinge (wine cellar)
European style door hinge design ensures a flush fit and allows for a smoother opening and cleaner panel installation to ensure zero clearance -
Generous bottle capacity
Wine cellar can store up to 34 standard 750ml Bordeaux style or wider Burgundy style bottles -
Digital thermostat
Electronic controls for seamless temperature management, with readout in either Celsius or Fahrenheit -
Temperature ranges
Wine cellar: 40º to 72ºF. All-refrigerator: 35º to 47ºF -
High/low temperature alarm
Audible alarm sounds if the interior temperature rises or drops out of set range -
Open door alarm
Audible alarm sounds if the drawers or door is left open for over 5 minutes -

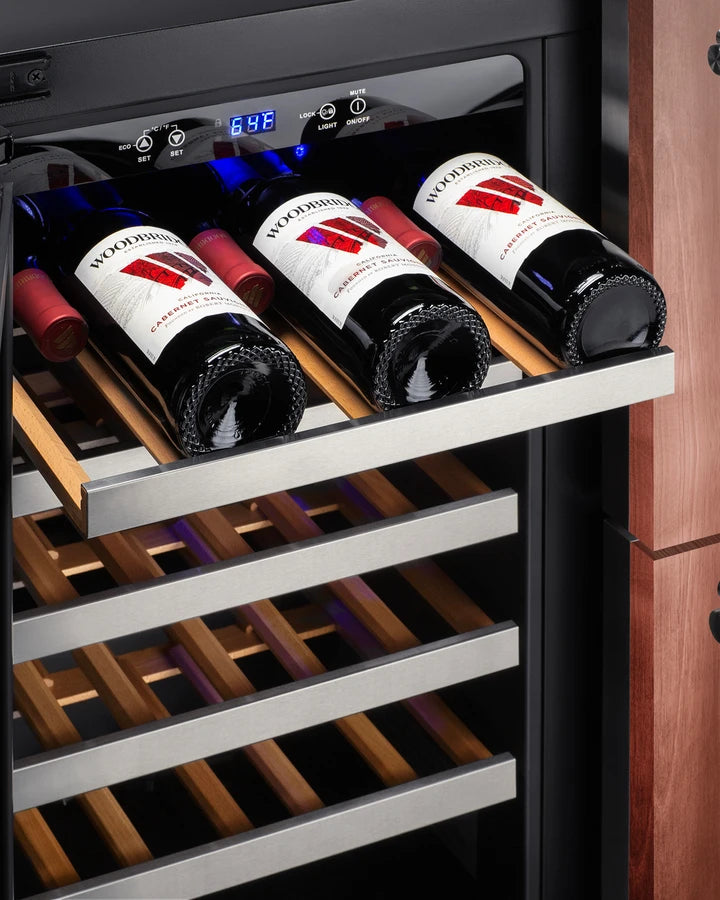

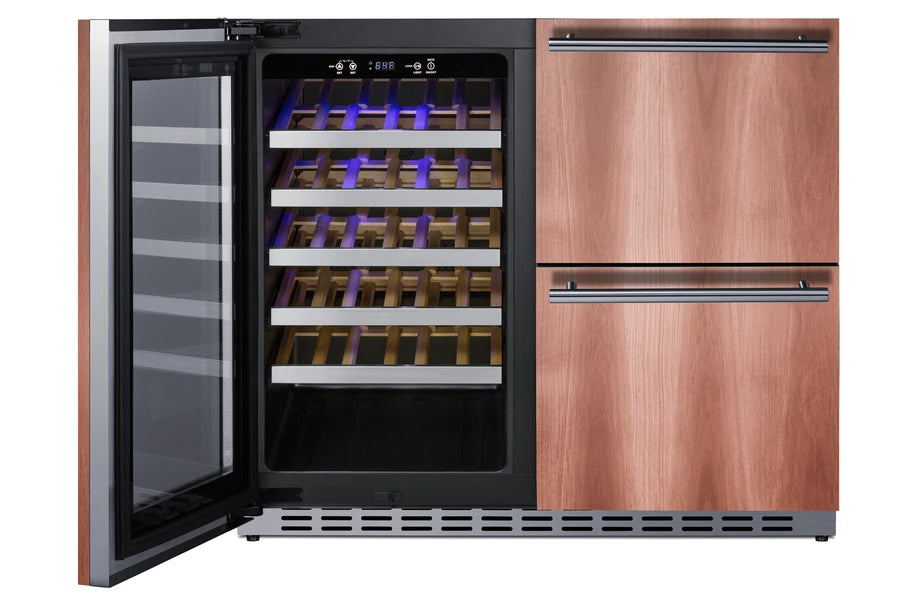

Wine shelving
5 shelves offer the perfect storage for wine bottles in a classic wooden finish with a stainless steel trim -

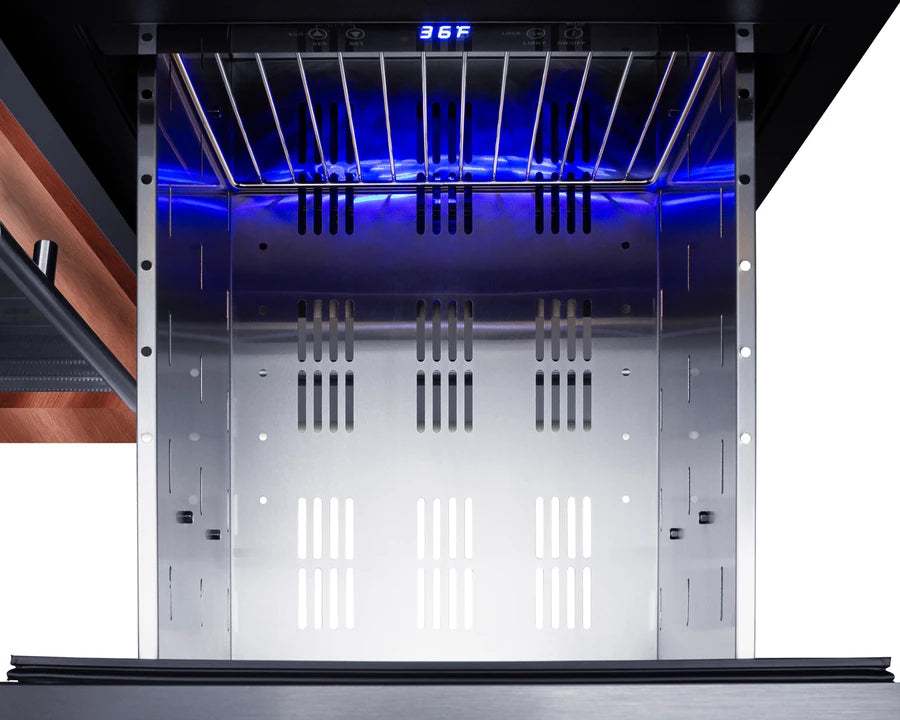

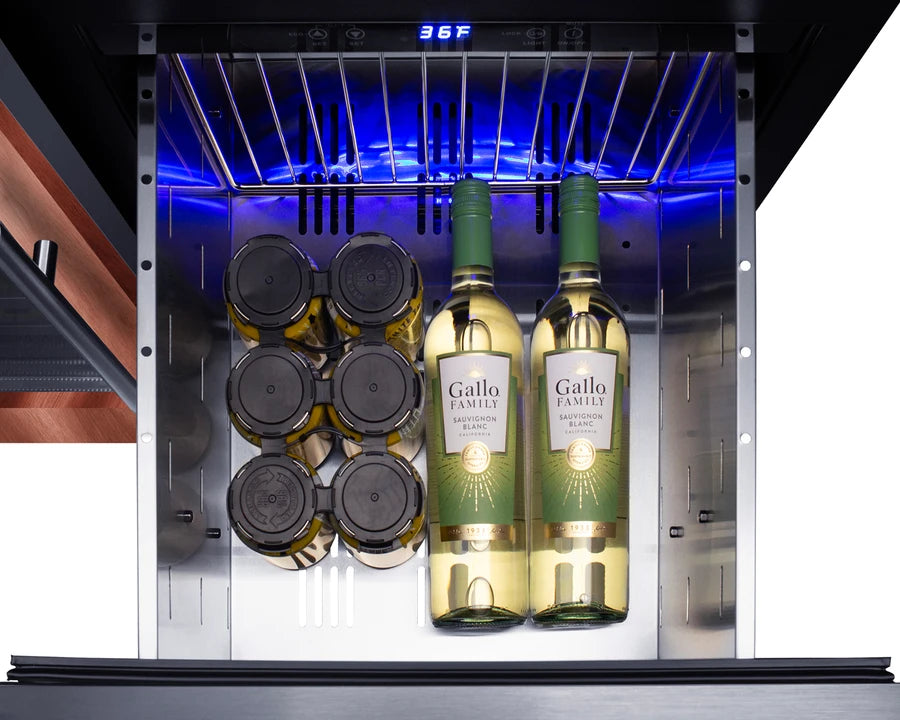

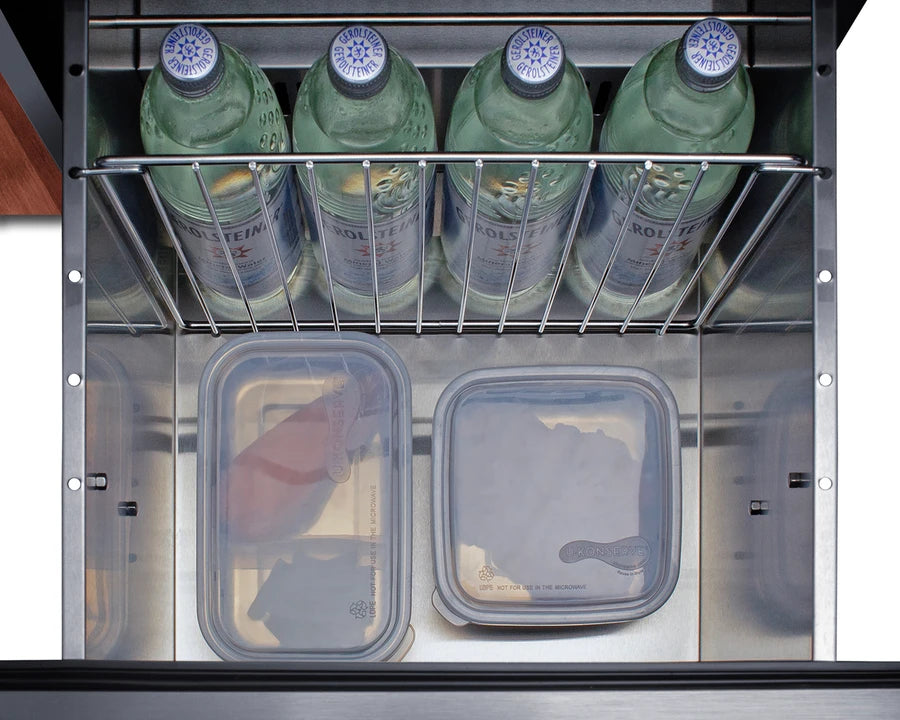

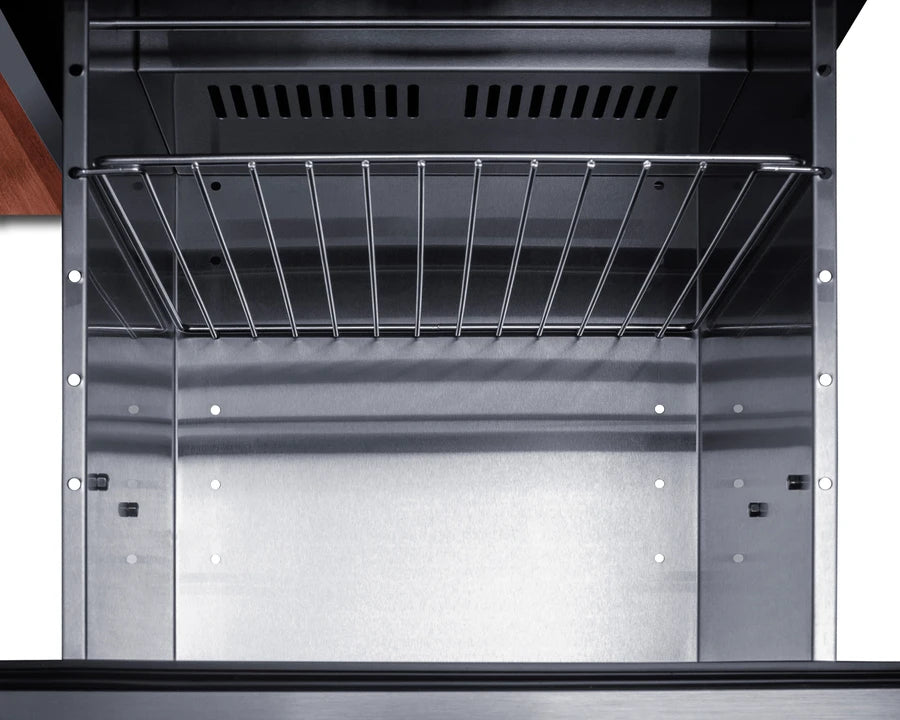

Drawer dividers
Adjustable wire dividers for each drawer makes it easy to organize the interior and separate your storage -
LED lighting
Attractive and efficient illumination for both sections -
Sabbath mode
Optional setting lets you disable the lighting and alarm for up to 96 hours -

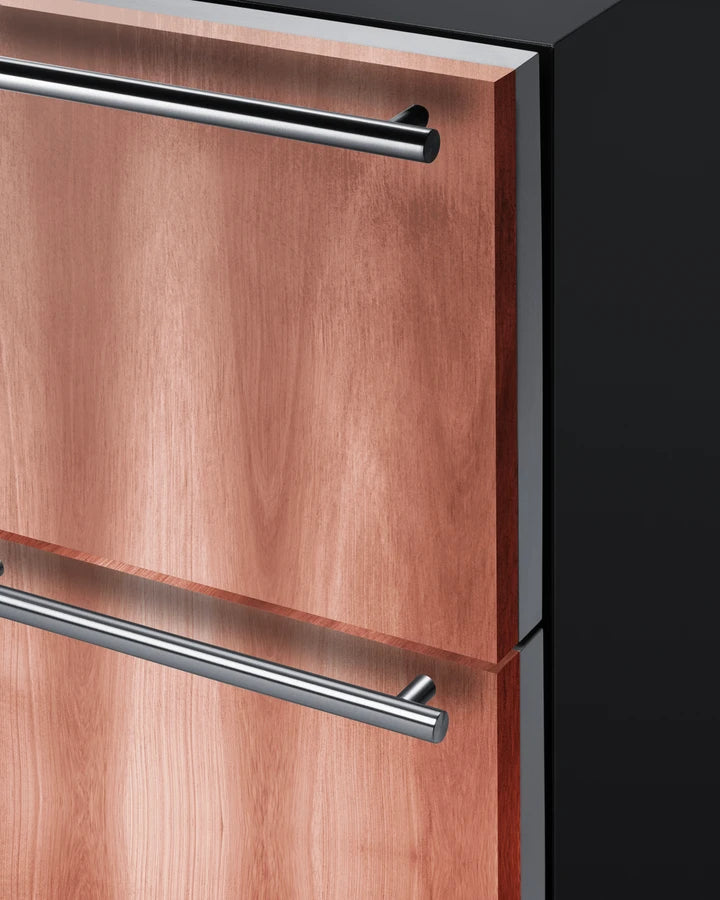

Professional handles
Sleek stainless steel handles add an elegant touch to any setting -
Reversible door (wine cellar)
User-reversible door swing for added flexibility to best accommodate your setting -
Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth -
Anti-tip bracket
Included bracket recommended for installation to help prevent tipping for added safety -
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals -
CARB compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
