Summit ADRF244PNR 24" Wide 2-Drawer Refrigerator-Freezer (Panels Not Included) Panel-Ready
Sale price
$2,406.54
Regular price
$2,924.97
Save
$518.43
/ 17% OFF
Out of stock
Active Rebates
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Sale price
$2,406.54
Regular price
$2,924.97
Save
$518.43
/ 17% OFF
Product Details for Summit ADRF244PNR
Technical Details
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Dimensions & weight
| Width | 23.38 in. |
| Height | 31.88 in. |
| Length | 22.5 in. |
| Weight | 105 lbs. |
Cubic feet measurement & dimensional weight
| Cubic Feet Measurement | 9.71 ft³ |
| Dimensional Weight | 120.65 lbs. |
| Total of Cubes | 9.71 ft³ |
| Total of Dimensional Weight | 120.65 lbs. |
Overview refrigerator-freezer
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.88" (81 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.5" (57 cm) |
| Depth with Handle | 23.88" (61 cm) |
| Depth with door at 90° | 34.25" (87 cm) |
| Capacity | 3.32 cu.ft. (94 L) |
| Defrost Type | Frost-Free |
| Door | Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 370.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 105.0 lbs. (48 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101088211 |
| Door Swing | Drawer |
| Interior Light | Yes |
| Refrigerator - Interior Height | 8.0" (20 cm) |
| Refrigerator - Interior Width | 17.0" (43 cm) |
| Refrigerator - Interior Depth | 14.5" (37 cm) |
| Refrigerator - Temperature Range | 36°F to 43°F |
| Freezer - Interior Height | 8.0" (20 cm) |
| Freezer - Interior Width | 17.0" (43 cm) |
| Freezer - Interior Depth | 14.5" (37 cm) |
| Thermostat Type | Digital |
| Fan Type | Interior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.38 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs | 4 |
| Freezer - Temperature Range | -11°F to 11°F |
| Compressor Step Height | 4.0" (10 cm) |
| Compressor Step Width | 17.0" (43 cm) |
| Compressor Step Depth | 3.5" (9 cm) |
| Sabbath Mode | Yes |
| Sound Level | 34.6 dB |
Description
Summit manufactures an extensive selection of drawer refrigeration for versatile installation indoor or outdoor kitchen spaces, with customizable designs that allow easy integration into any cabinet style. Sized at just under 24" wide and 32" high, model ADRF244PNR is a 2-drawer refrigerator-freezer perfectly designed for built-in or freestanding installation in ADA compliant settings with lower counter height. The drawer front are specially designed to accept user-provided overlay panels, allowing you to create a custom look that blends into existing cabinetry (panel dimensions: 23.43" W x 14.1" H at 3/4" thick). The drawers are fully finished in stainless steel. We include two sleek handles for optional use. This unit comes with a jet black cabinet and sealed back to protect all components from the elements. It can be used in indoor or outdoor spaces. Inside, the ADRF244PNR has a generous 3.3 cu.ft. capacity to accommodate your storage needs. Both the top drawer refrigerator and bottom drawer freezer utilize frost-free operation with fan-forced cooling, ensuring an even temperature distribution with minimum user maintenance. A digital thermostat, located atop the refrigerator drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two adjustable, removable dividers allow you to separate the drawer compartments into two (freezer) or four (refrigerator) zones to easily accommodate a variety of sizes. A full-width sliding removable chrome basket offers added storage convenience, while white LED lighting in the refrigerator drawer makes it easy to view stored contents. A child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, a temporary memory function to recover all settings in the event of power loss, and sabbath mode to disable certain electrical features during periods of religious observance. The ADRF244PNR is ETL-S listed to NSF-7 commercial standards and approved for residential use. Additional refrigerator and freezer drawers are available, with 15" and 18" choices and standard height options. Browse the full Summit line to explore your endless options for ADA compliant undercounter spaces.
Product Features
-
24" Wide 2-Drawer Refrigerator-Freezer
Complete refrigeration storage solution with top drawer refrigerator and bottom drawer freezer -

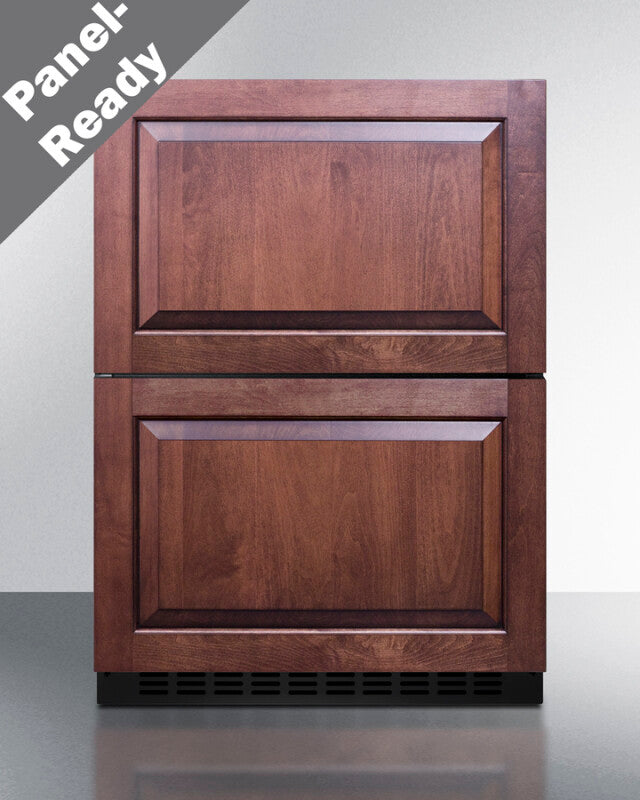

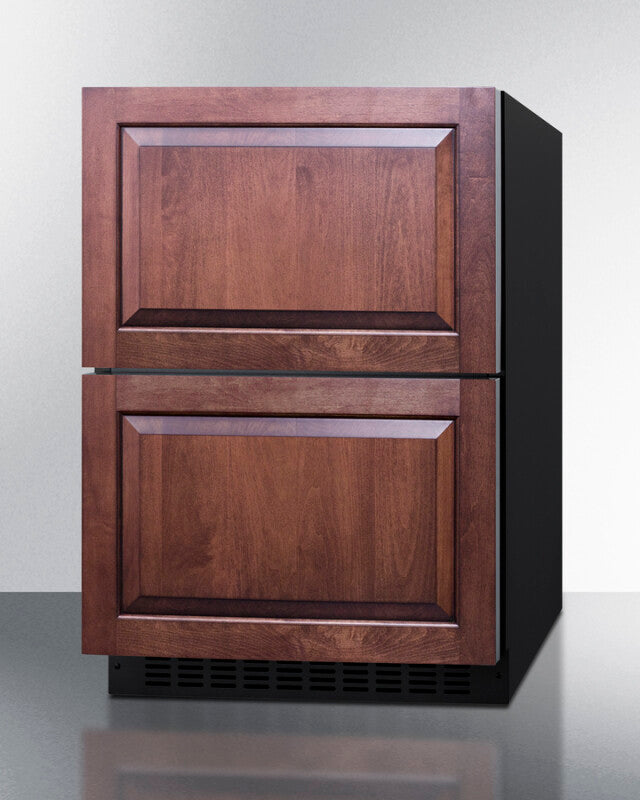

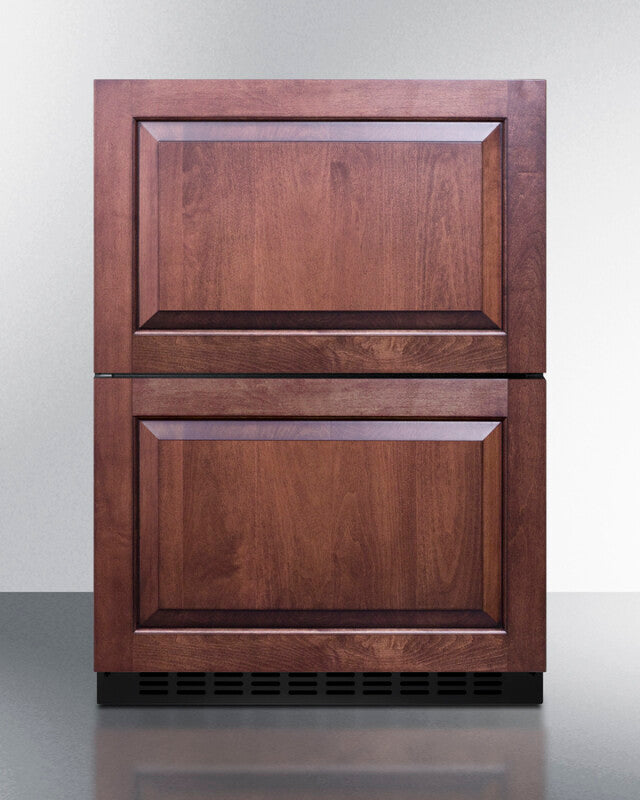

Panel-ready drawer fronts
Drawers accept overlay panels (size: 23.43" x 14.1" at 3/4" thick) to let you seamlessly blend the refrigerator into cabinetry design -
ADA compliant design
Sized just under 32" high to allow installation under lower ADA compliant counters -
Built-in capable
Front-breathing design allows you to make the best use of space by installing your appliance under the counter and flush with other cabinets in 24" wide openings -
Indoor/Outdoor compatible
Constructed and approved for outdoor installation (as well as use indoors) with a fully sealed cooling system and weatherproof exterior -
Professional handles
Sleek stainless steel handles add an elegant touch to any setting -
Frost-free operation
No-frost operation for minimum user maintenance -

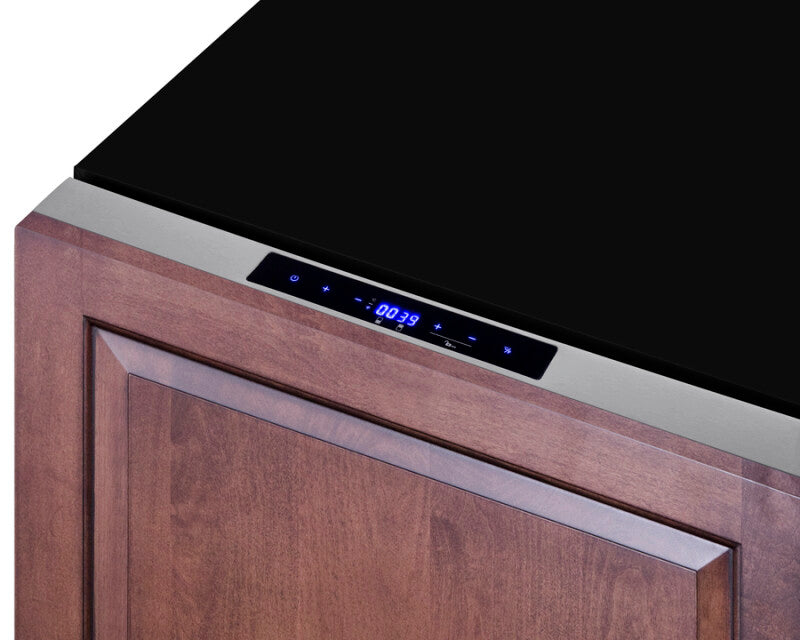

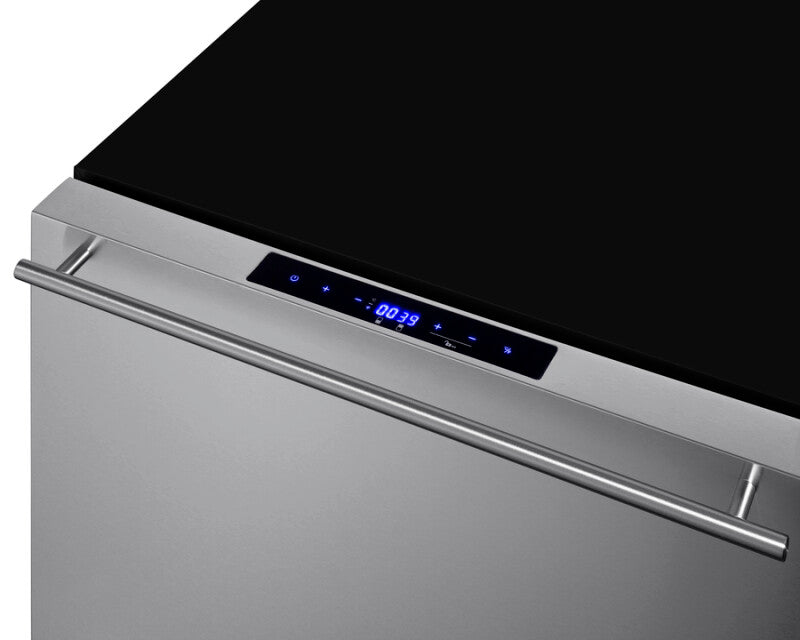

Digital thermostat
Electronic controls located on the top drawer ensure intuitive temperature management, with an external readout that can switch from Celsius to Fahrenheit at the touch of a button -

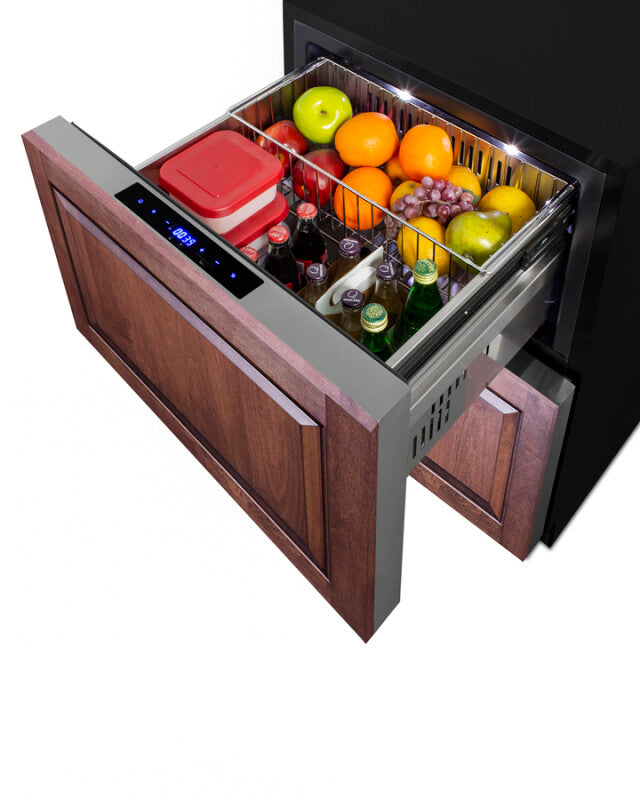

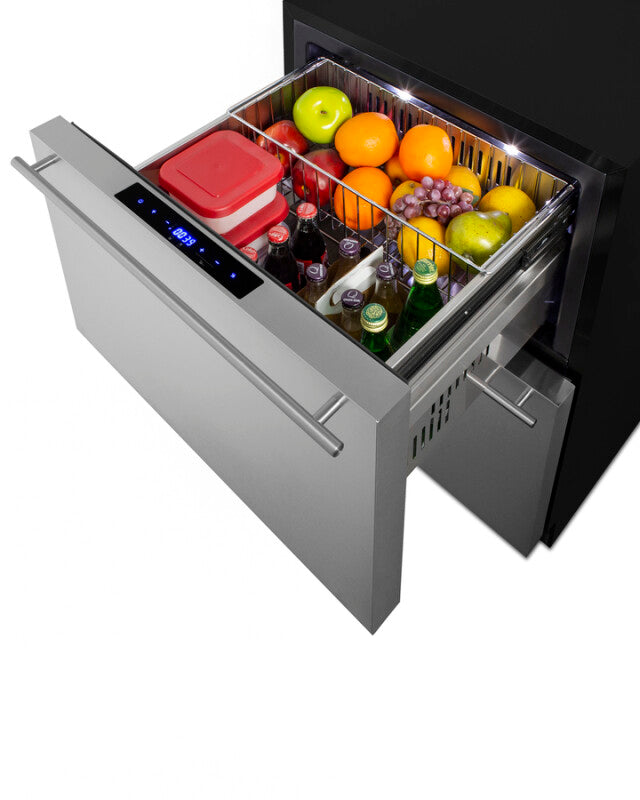

LED lighting
Elegant LED lighting in a gentle white hue illuminates the refrigerator section for an easy view of the interior -

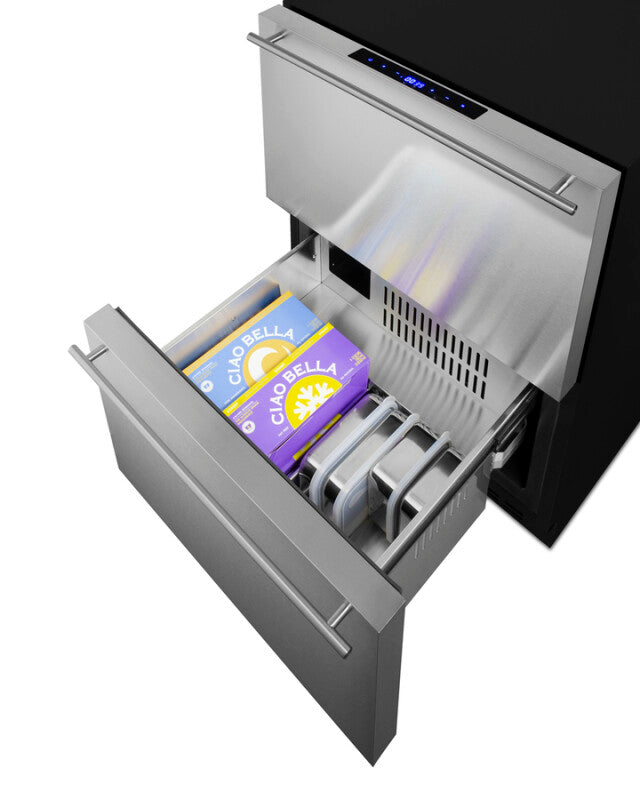

Stainless steel drawers
Drawer interiors and exteriors are fully constructed from 304 grade stainless steel for weatherproof durability and elegant style -
Internal fan
Fan-forced cooling ensures the unit is evenly cooled from top to bottom -

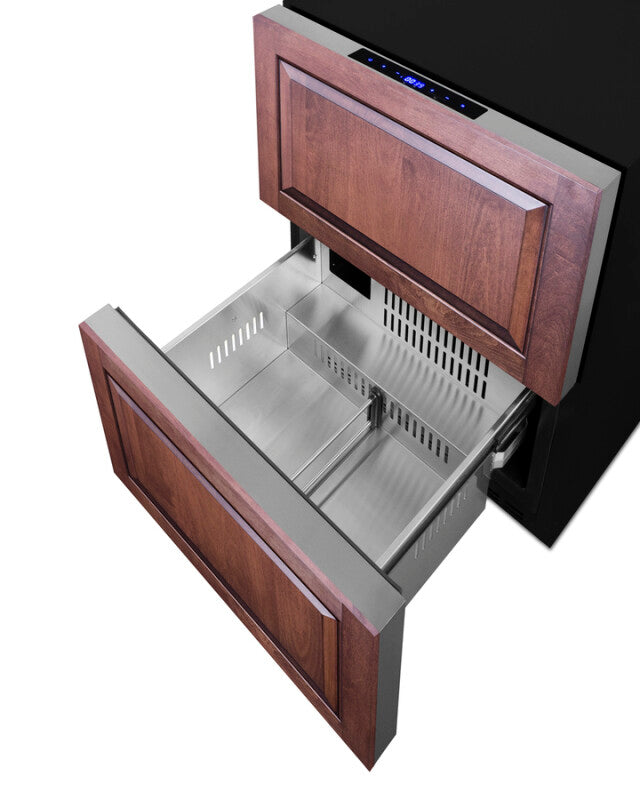

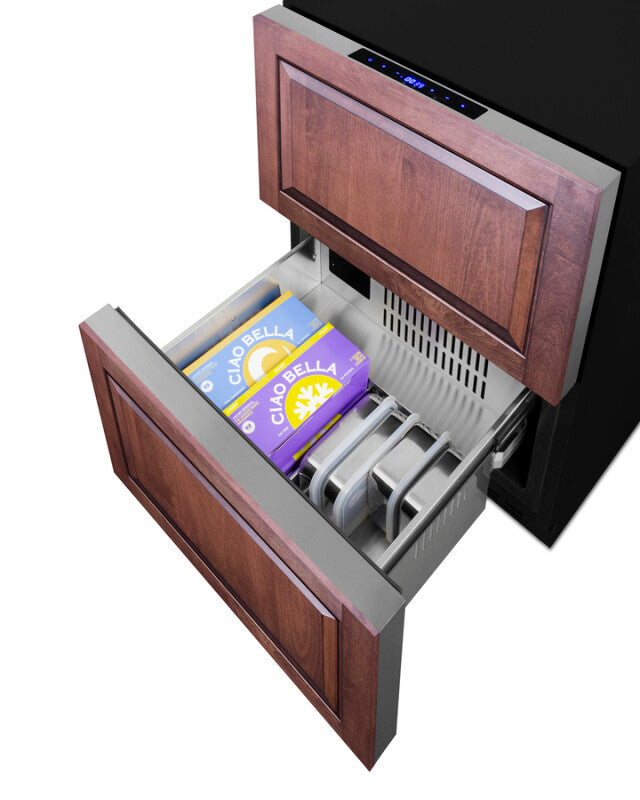

Drawer dividers
Two adjustable dividers make it simple to organize the drawer interiors -

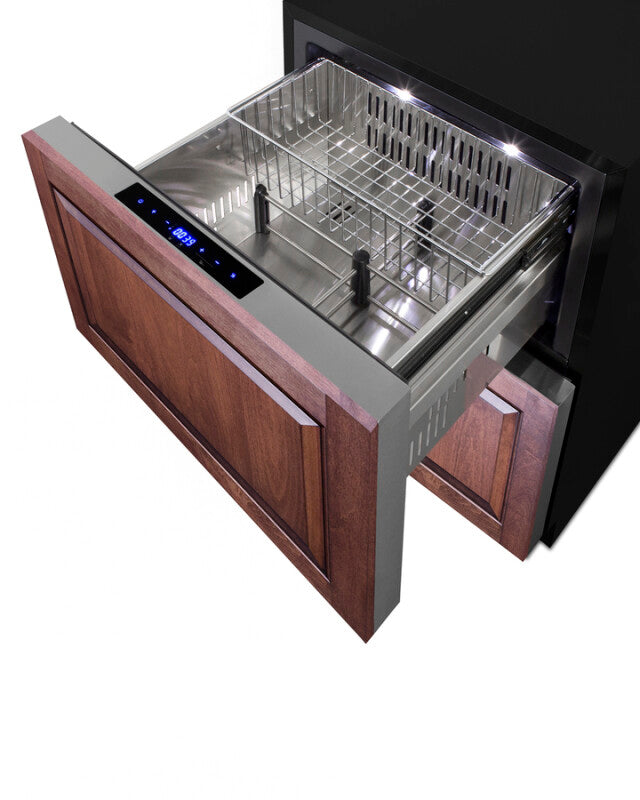

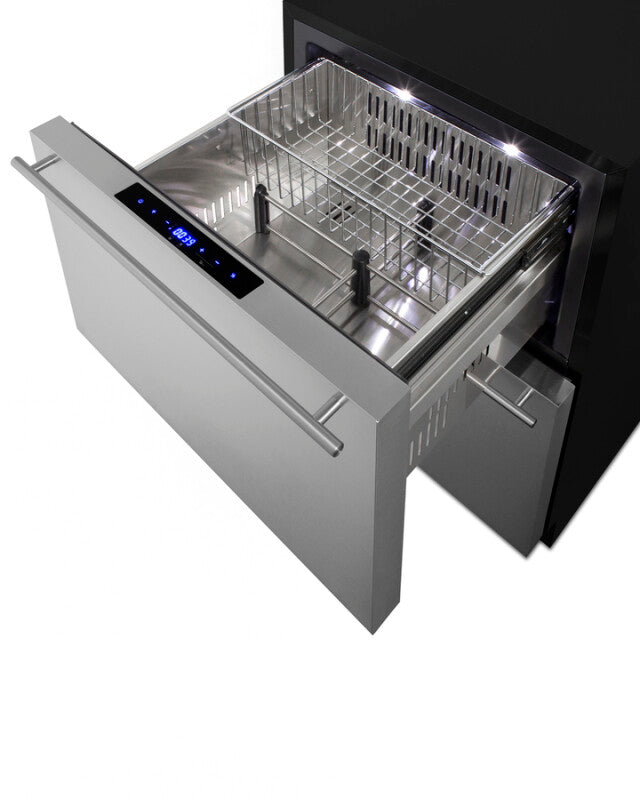

Sliding basket
Removable chrome basket included for added storage convenience -
Temperature alarm
High temperature alarm sounds if the unit's interior goes out of the recommended range -
Open drawer alarm
Audible alarm will sound if either drawer is left open longer than one minute -
Sabbath Mode
Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance -
Temperature memory function
Unit will restore the most recent temperature settings after losing power -
Child lock
Disables digital controls after two minutes of activity for added safety -
Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth -
Fully finished black exterior cabinet
Allows the unit to be used freestanding -
Anti-tip bracket
Included and recommended for user-installation to reduce the risk of tipping -
Commercially approved
ETL-S listed to NSF-7 standards to allow use in commercial establishments -
Sealed back
Space-saving design with no exposed coils for easier cleanability and added protection from the elements -
100% CFC free
Environmentally friendly design without ozone-damaging chemicals -
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations -

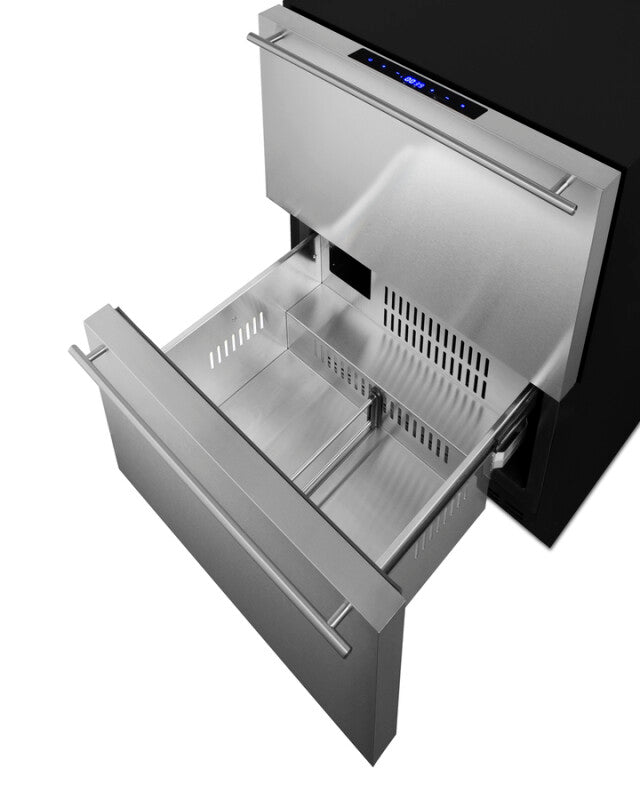

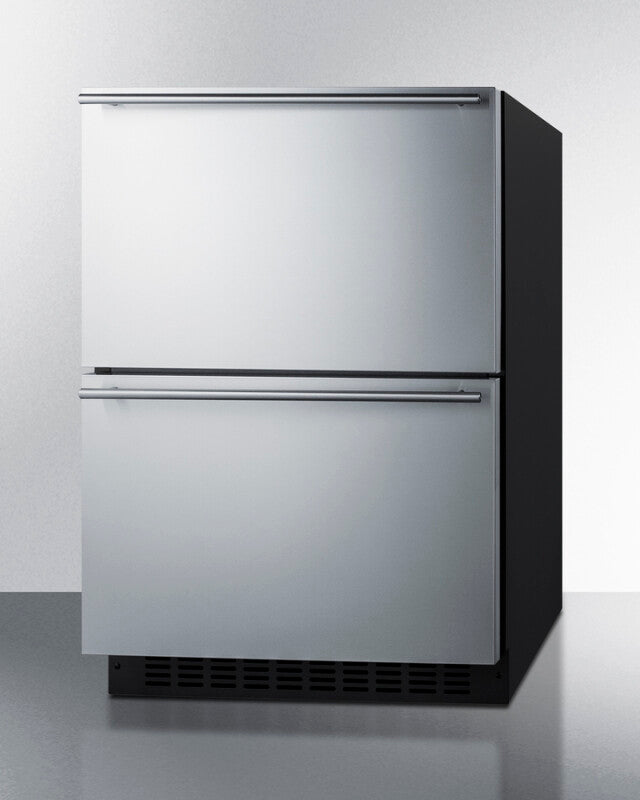

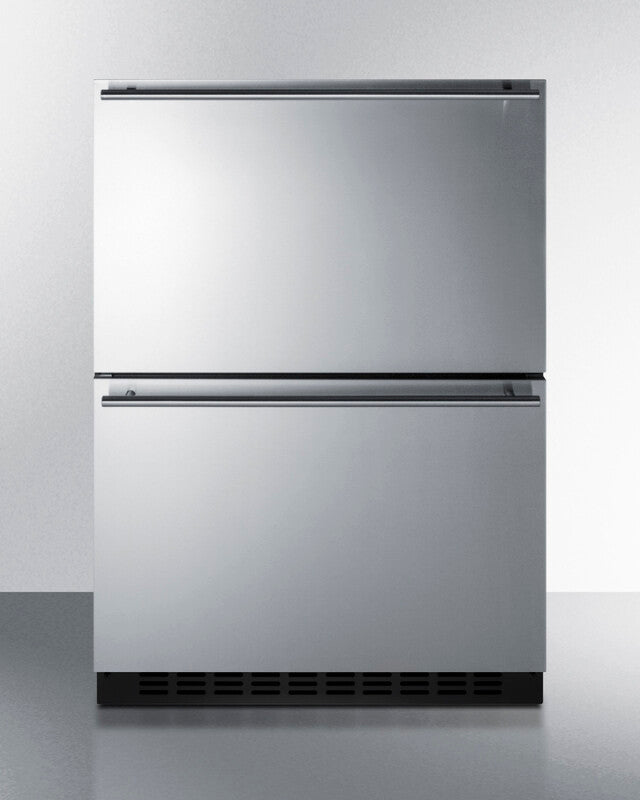

Stainless steel front finish
Fully finished drawer fronts also allows you to choose a traditional stainless steel front if not installing overlay panels
