Product Details for Summit ADA404REFSSHVLHD

Technical Details

Overview

Nominal Height 12.6
Height of Cabinet 12.5
Height to Hinge Cap 12.6
Nominal Width 8.27
Width 8.22
Nominal Depth 9.06
Depth 9.06
Depth with Handle 9.84
Depth with door at 90(degree) 15.85
Capacity 3.32
Defrost Type Automatic
Door Stainless Steel
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.1
Voltage/Frequency 115
Weight 85.0
Parts & Labor Warranty 1
Compressor Warranty 5
UPC 761101151342

Refrigerator features

Door Swing LHD
Reversible Yes
Height Adjustable No
Shelf Type Wire
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 0.99
High Side PSI 180.0
Low Side PSI 80.0
Level Legs Qty 4
Interior Light Yes
Temperature Range 2

Dimensions

Interior Height 9.25
Interior Width 6.4
Interior Depth 6.69
Compressor Step Height 2.46
Compressor Step Width 6.4
Compressor Step Depth 2.36

Features

  • Slim-fitting all-refrigerator for general healthcare applications at an ADA-compliant height
  • Front-breathing design lets you make the best use of space by installing your appliance under the counter
  • 32" height allows easy installation under lower ADA compliant counters
  • Durable and stylish design with lasting elegance

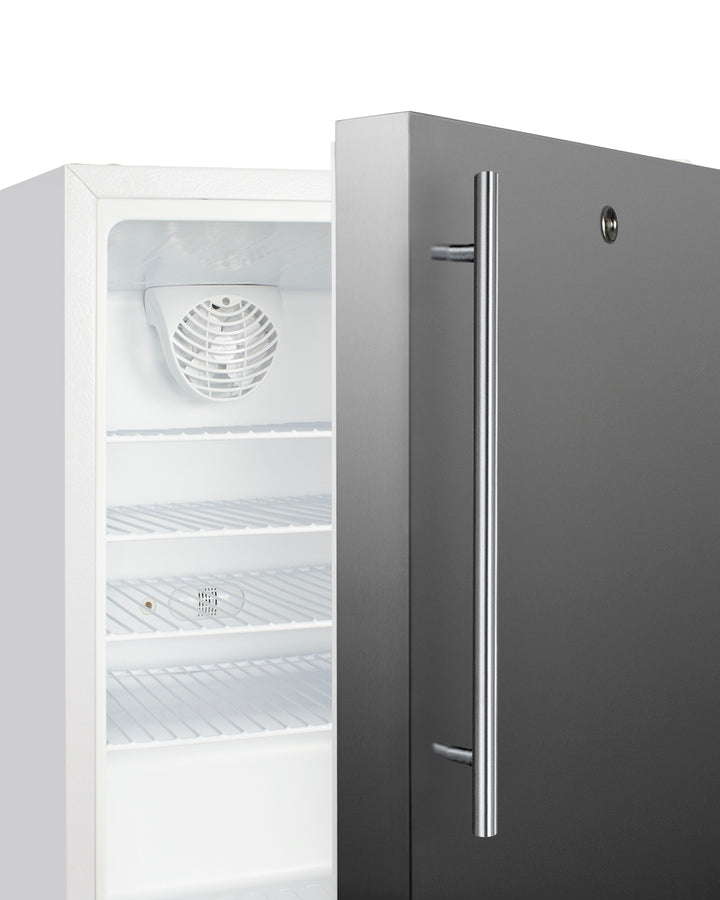

  • Thin (14mm diameter) stainless steel handle mounted vertically for a sleek look that matches many popular styles of cabinetry

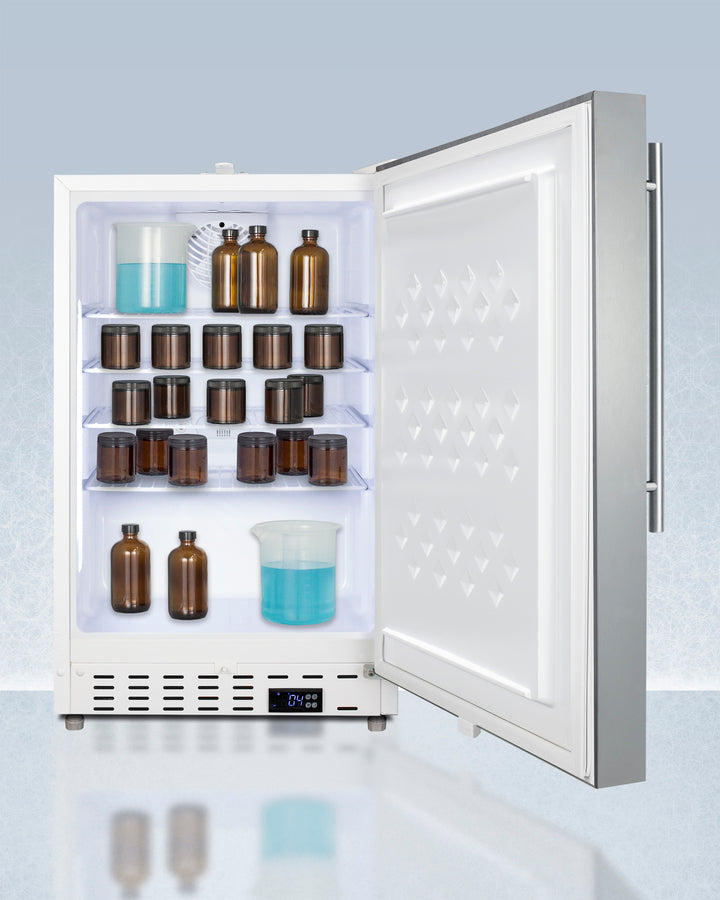

  • Designed to safely store select pharmaceuticals and other materials with strict temperature requirements
  • Reduced user maintenance with an auto defrost system
  • Unit comes with a factory installed probe hole for users to connect their own monitoring equipment
  • Located towards the top of the door for easy access and to provide added security of unit (2 keys included)

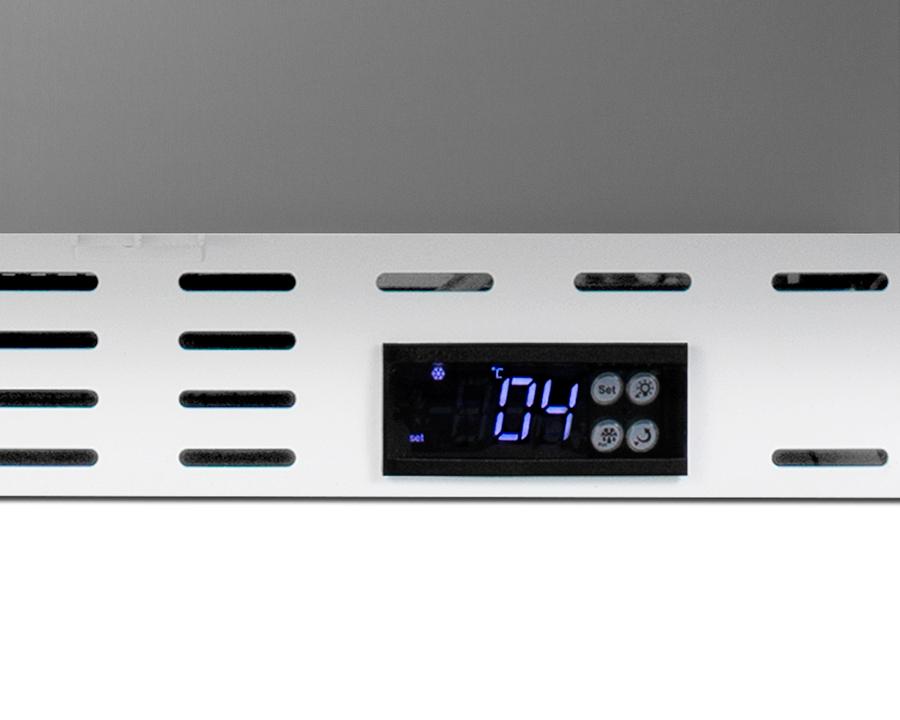

  • Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius

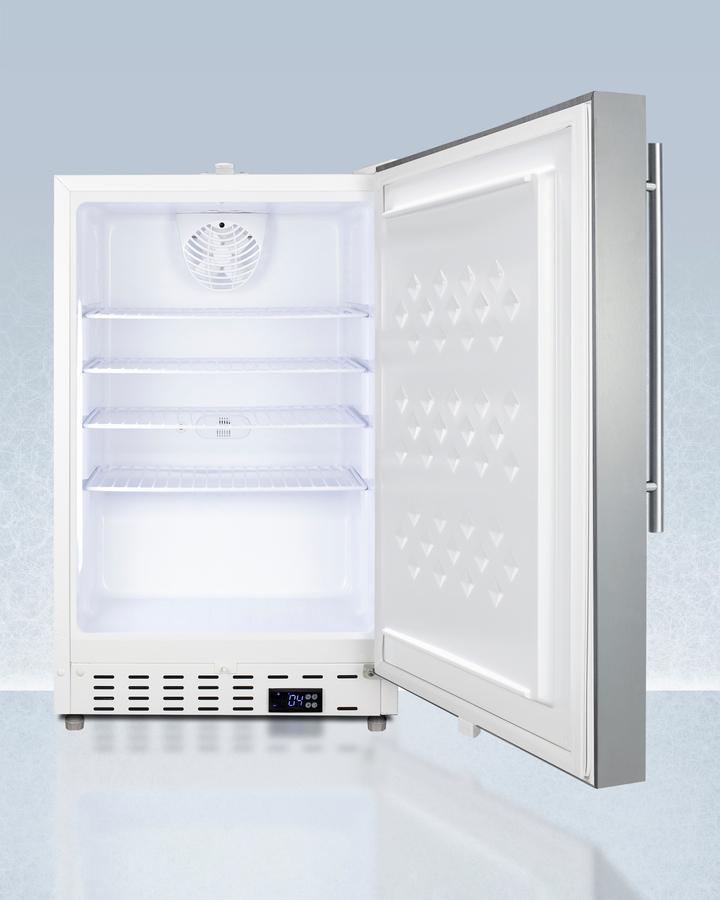

  • Four wire shelves provide optimal storage and improved air circulation in the 3.32 cu. ft. interior
  • User-reversible door swing for added flexibility to best accommodate your setting
  • User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
  • Audible alarm will sound if the door is left ajar for over a minute
  • Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
  • Fan-forced cooling ensures the unit is evenly cooled from top to bottom

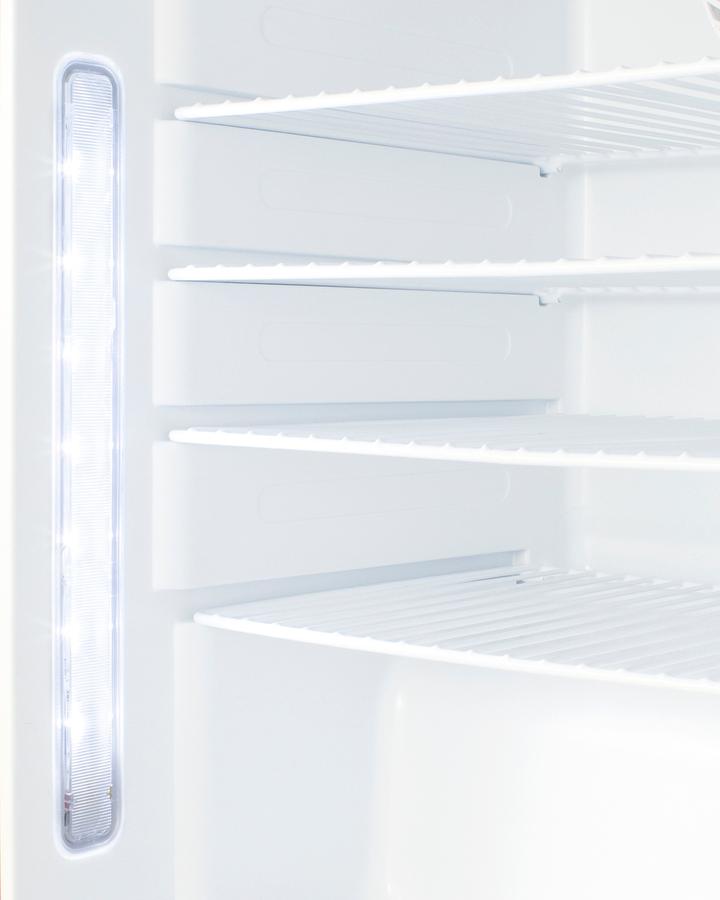

  • Front-located LED light ensures entire interior is lit when door opens
  • Quality door gaskets ensure a tight seal for energy savings and improved performance

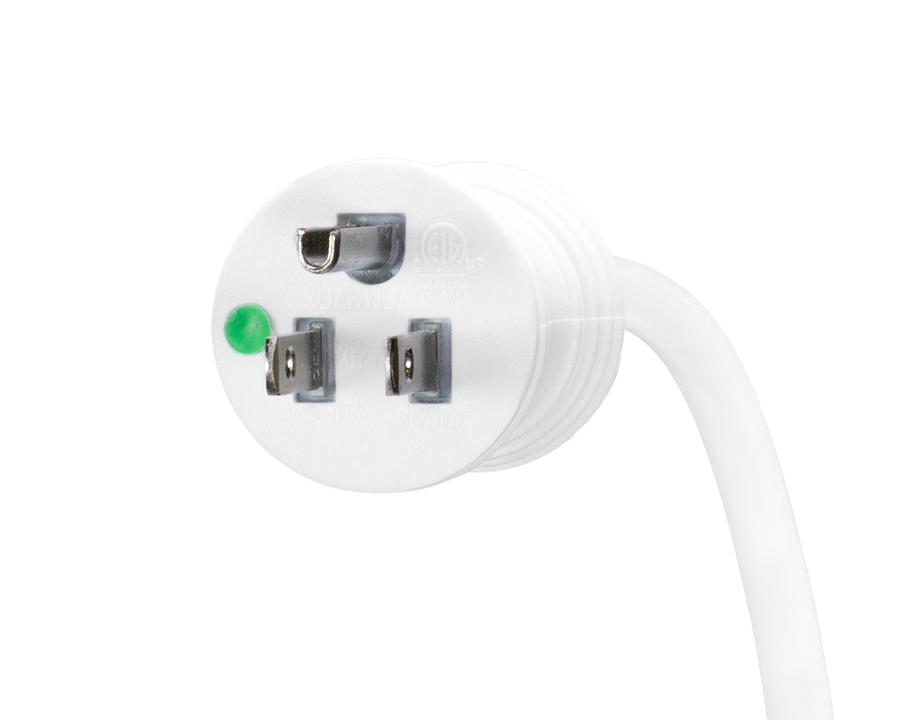

  • Secure three-pronged cord for added unit safety
  • Space-saving design that offers easier cleanability
  • Allows the unit to be freestanding
  • For this unit with a standard right hand door swing, see model ADA404REFSSHV
  • This unit can be paired with the ADA305AFSSHVLHD all-freezer for a complete set
  • Environmentally friendly design without ozone-damaging chemicals
  • Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations



Description

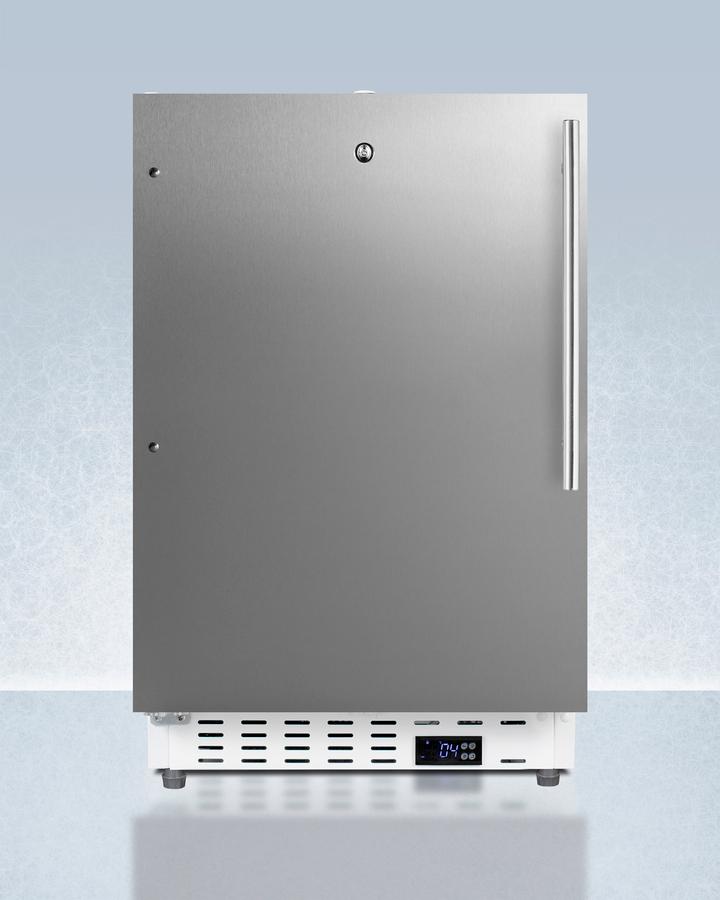

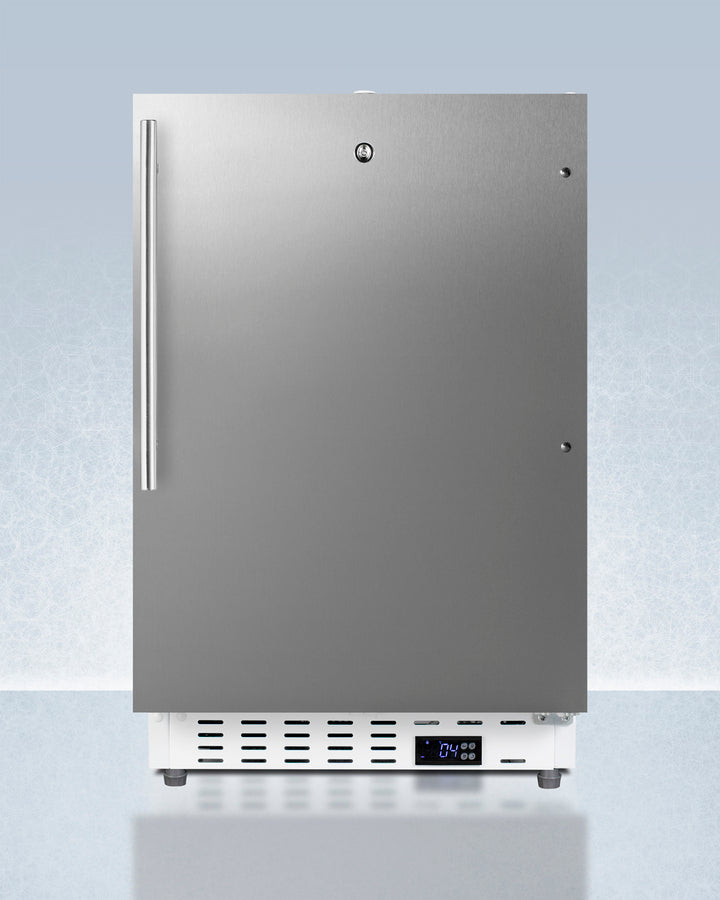

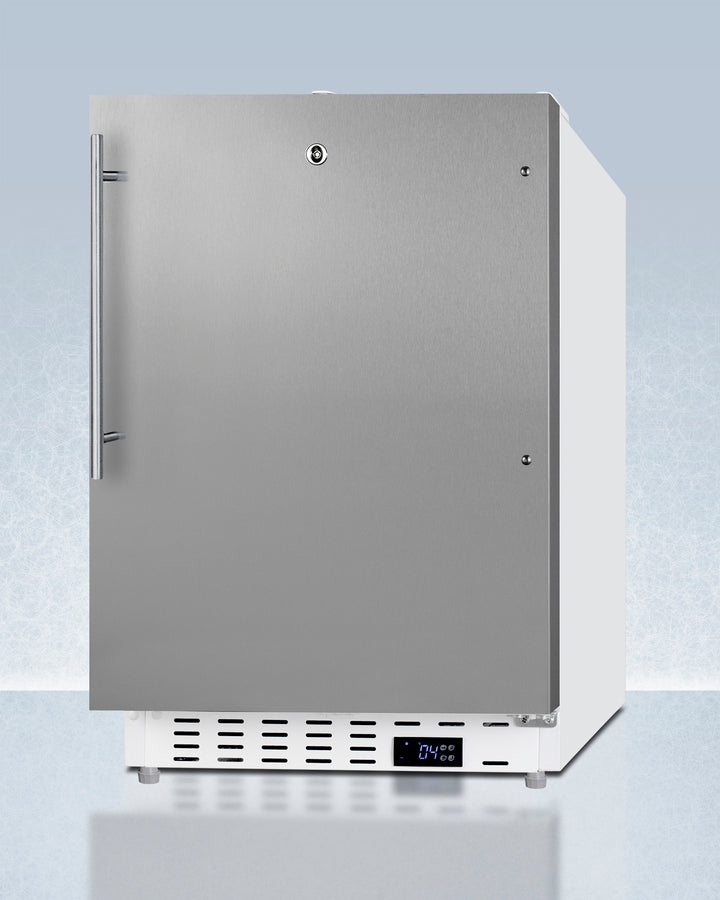

Accucold offers a quality selection of 20" wide built-in undercounter all-refrigerators designed for installation under lower ADA-compliant counters. These refrigerators have advanced features for user convenience. The ADA404REFSSHV is 32" high for use in ADA compliant settings. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The stainless steel, user-reversible door features a sleek, vertically-mounted handlebar that matches many popular cabinetry styles and a top-mounted lock for added security and convenient access. A digital thermostat is located in the kickplate for easy temperature management with a readout in Fahrenheit or Celsius. This unit comes with a hospital-grade cord with a green dot plug for added safety in high-traffic areas. Plus, powerful magnetic gaskets ensure a tight seal. This unit comes with a left-hand door swing. For a right-hand version, see the ADA404REFSSHV. Inside, the ADA404REFSSHV is designed to operate between +2(degree)C and +8(degree)C as recommended for storing select pharmaceuticals and other medical supplies. An LED light located on the front left side of the unit attractively illuminates the interior when the door opens. Automatic defrost operation ensures minimal user maintenance, with an internal fan to help promote even cooling throughout the 3.32 cu.ft. interior. Adjustable wire shelves allow you to rearrange the interior to suit your storage needs best. As recommended by the CDC, this unit has a flat door liner to ensure users don't store sensitive contents on the door. The user-set high and low-temperature alarms provide added security should the temperature exceed the set point. The open door alarm sounds if the door is ajar for more than a minute for added peace of mind. These alarms can be turned off depending on your needs. A preinstalled probe hole is included to allow users to connect their own monitoring equipment. Sized at just under 21" wide, the ADA404REFSSHV makes an ideal choice for various healthcare facilities. For a matching freezer, see model ADA305AFSSHV.
