Product Details for Summit ADA404REFIFLHD

Technical Details

Overview

Nominal Height 12.6
Height of Cabinet 12.5
Height to Hinge Cap 12.6
Nominal Width 8.27
Width 7.97
Nominal Depth 9.06
Depth 9.06
Depth with door at 90(degree) 15.85
Capacity 3.32
Defrost Type Automatic
Door Panel-Ready
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.1
Voltage/Frequency 115
Weight 75.0
Parts & Labor Warranty 1
Compressor Warranty 5
UPC 761101151359

Refrigerator features

Door Swing LHD
Reversible Factory Reversible
Height Adjustable No
Shelf Type Wire
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 0.99
High Side PSI 180.0
Low Side PSI 80.0
Level Legs Qty 4
Interior Light Yes
Temperature Range 2

Dimensions

Interior Height 9.25
Interior Width 6.4
Interior Depth 6.69
Compressor Step Height 2.46
Compressor Step Width 6.4
Compressor Step Depth 2.36

Features

  • Slim-fitting all-refrigerator for general healthcare applications at an ADA-compliant height
  • Front-breathing design lets you make the best use of space by installing your appliance under the counter
  • 32" height allows easy installation under lower ADA compliant counters

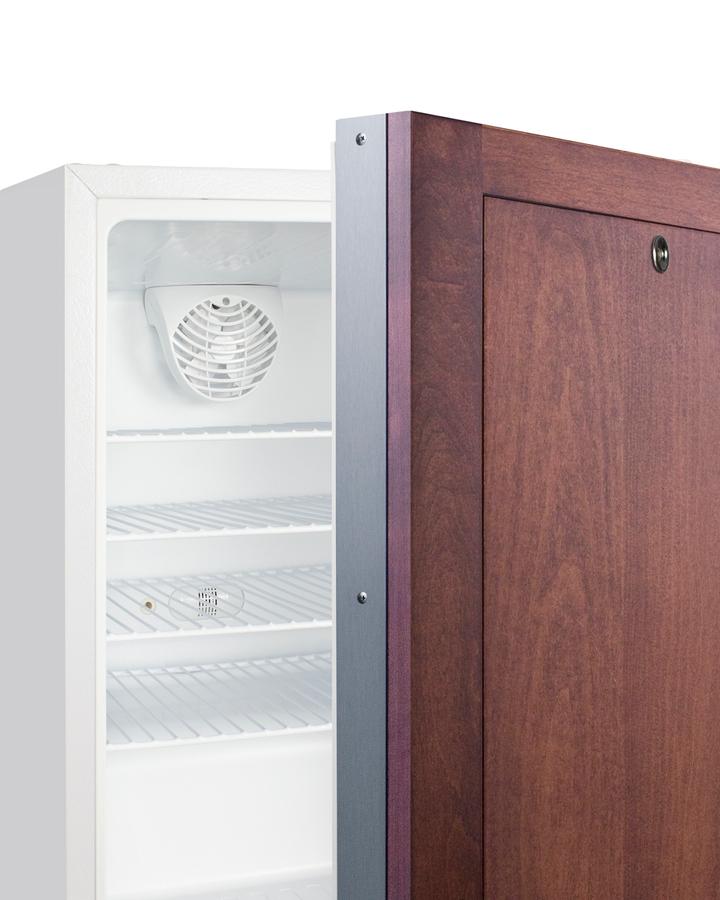

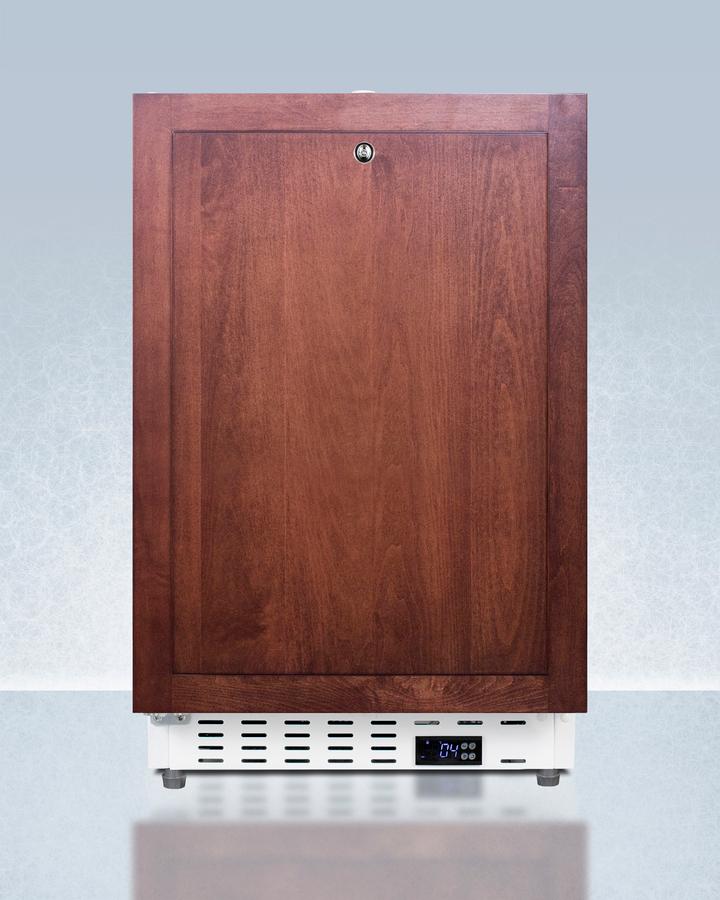

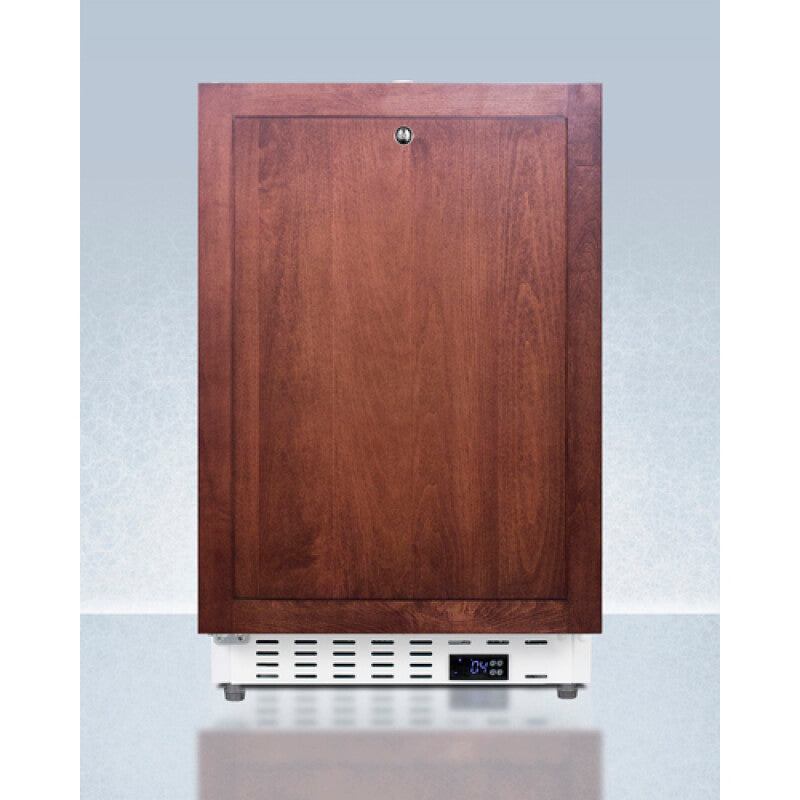

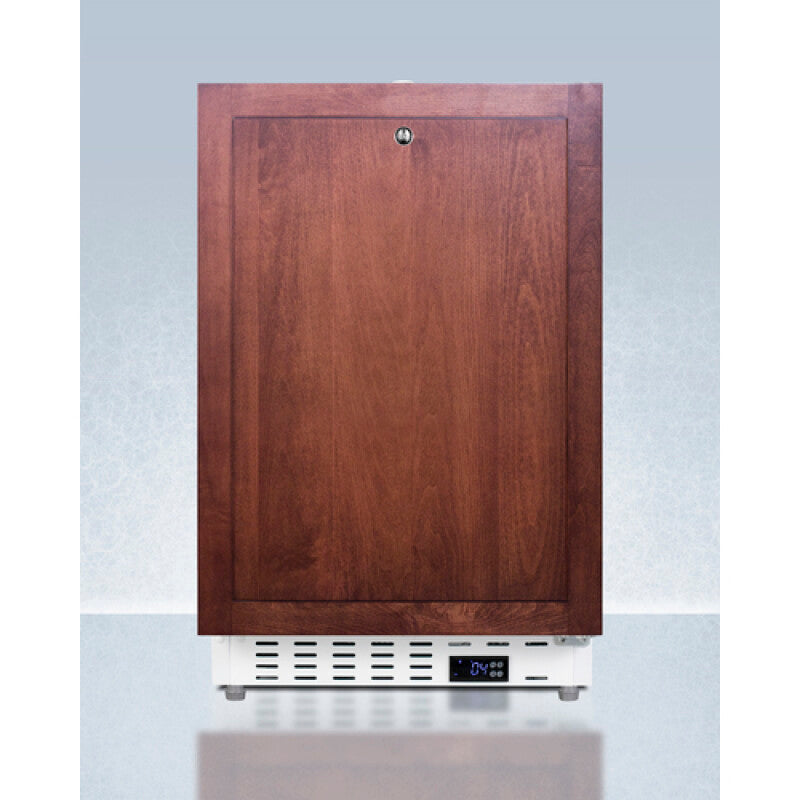

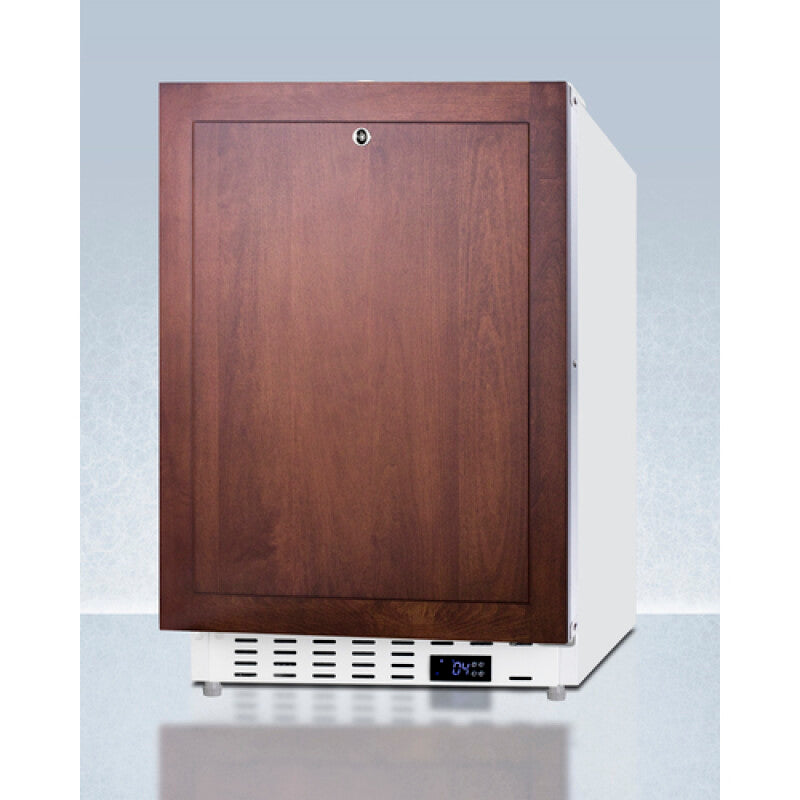

  • Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size:19 13/16" W x 27 1/8" H; customers provide their own handles

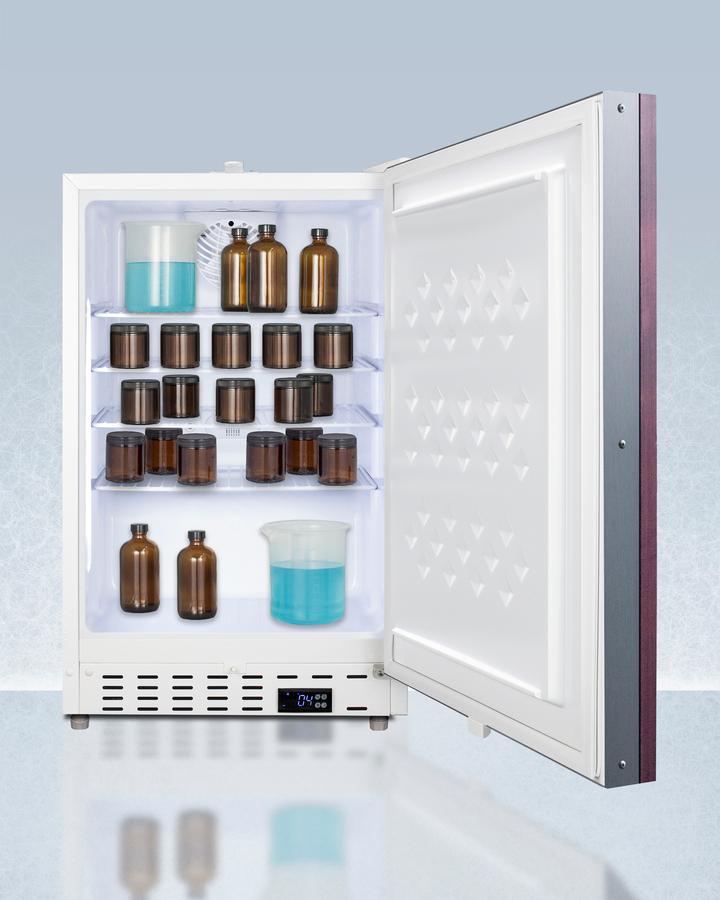

  • Designed to safely store select pharmaceuticals and other materials with strict temperature requirements
  • Reduced user maintenance with an auto defrost system
  • Unit comes with a factory installed probe hole for users to connect their own monitoring equipment
  • Located towards the top of the door for easy access and to provide added security of unit (2 keys included)

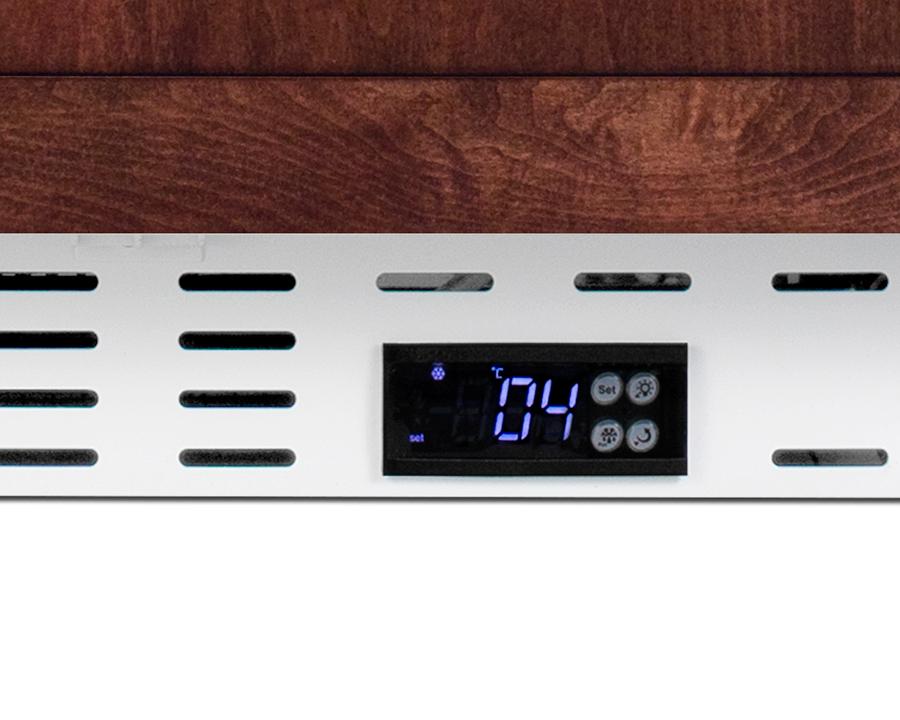

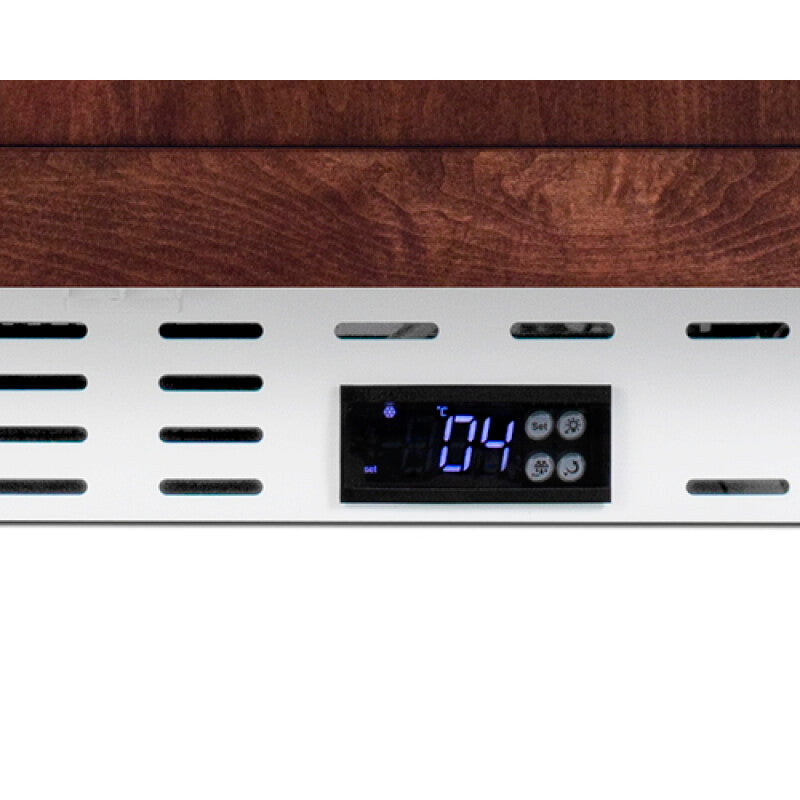

  • Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius

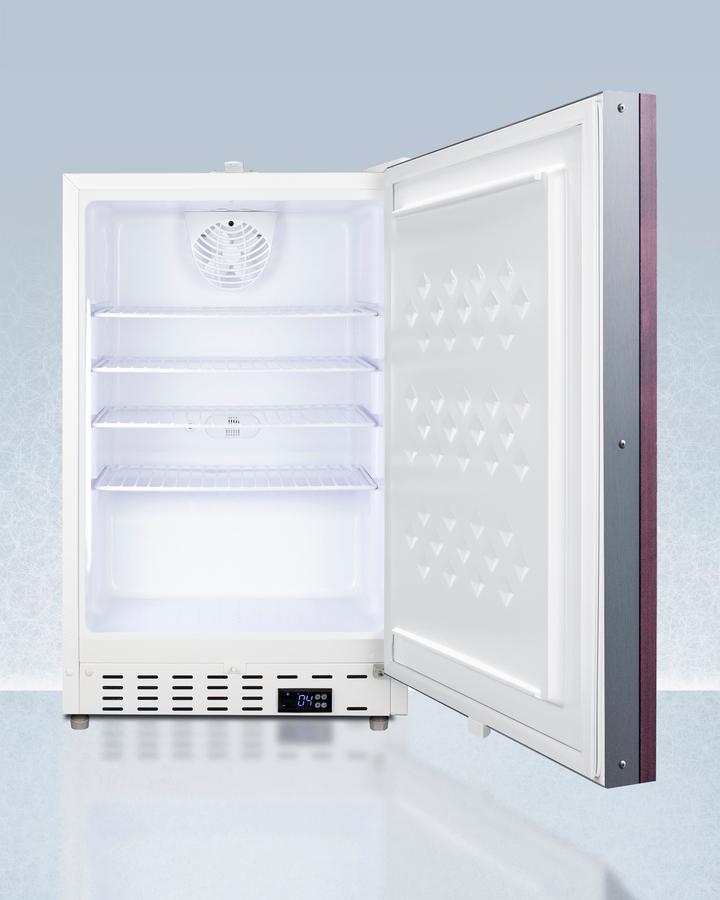

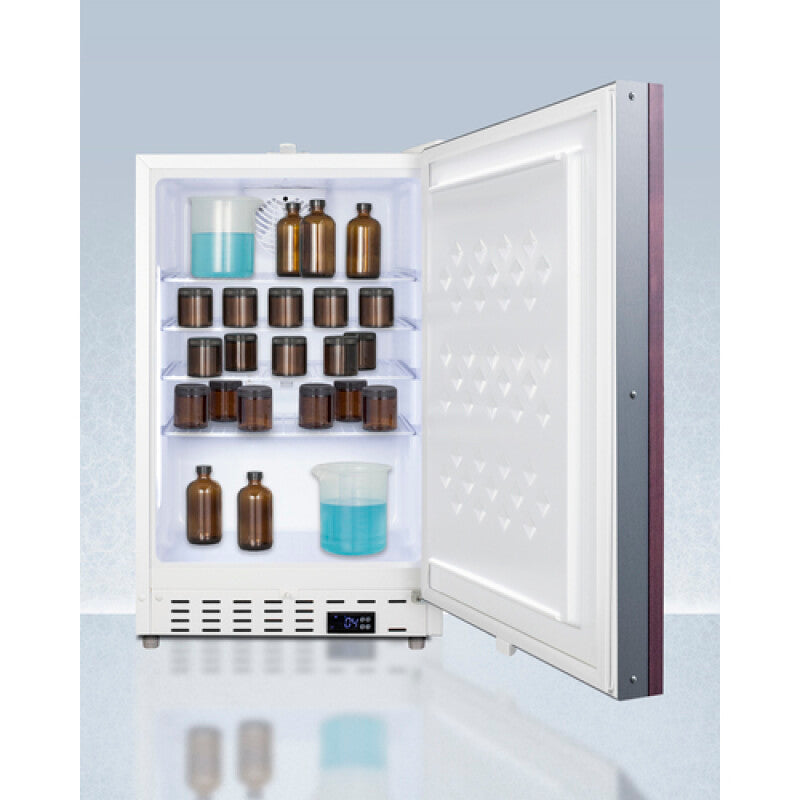

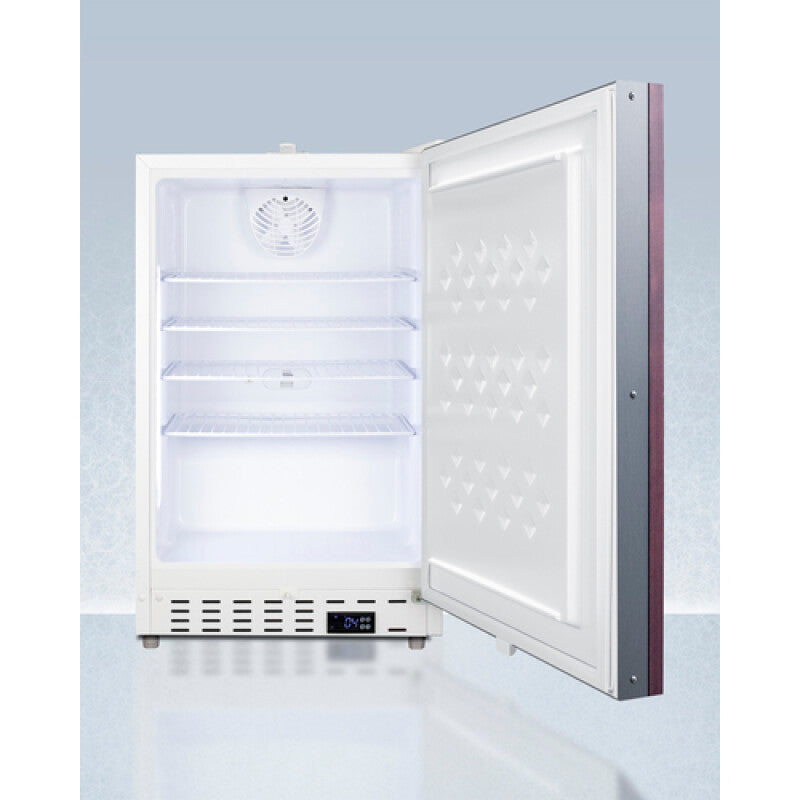

  • Four wire shelves provide optimal storage and improved air circulation in the 3.32 cu. ft. interior
  • User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
  • Audible alarm will sound if the door is left ajar for over a minute
  • Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials

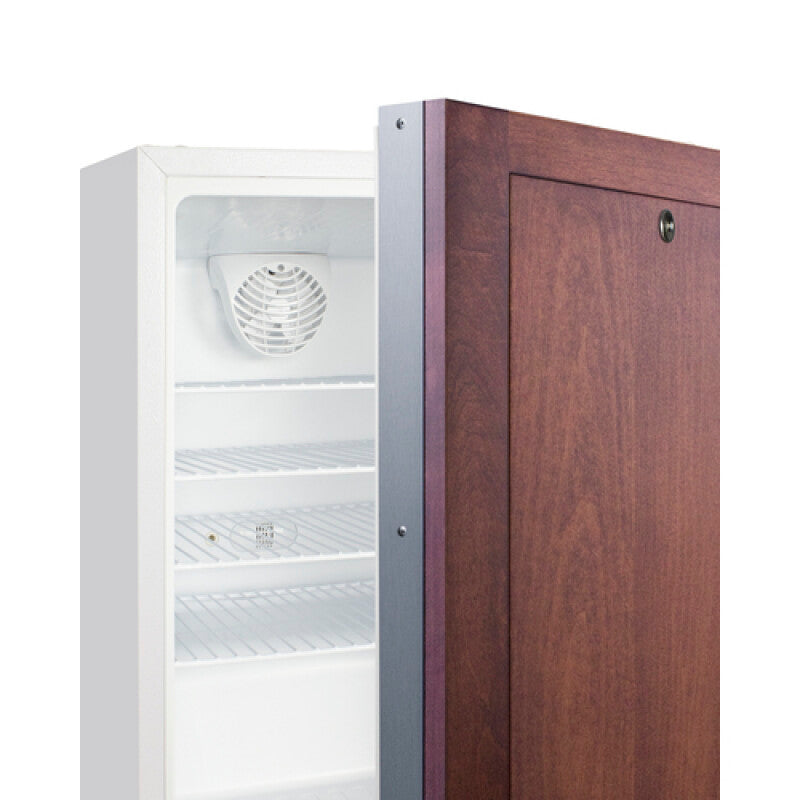

  • Fan-forced cooling ensures the unit is evenly cooled from top to bottom

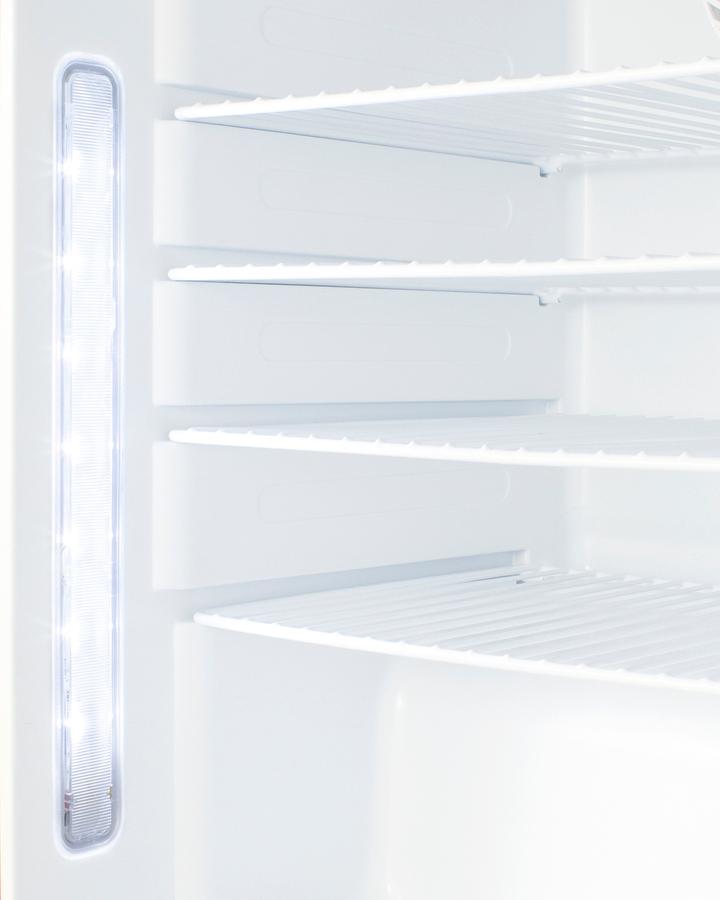

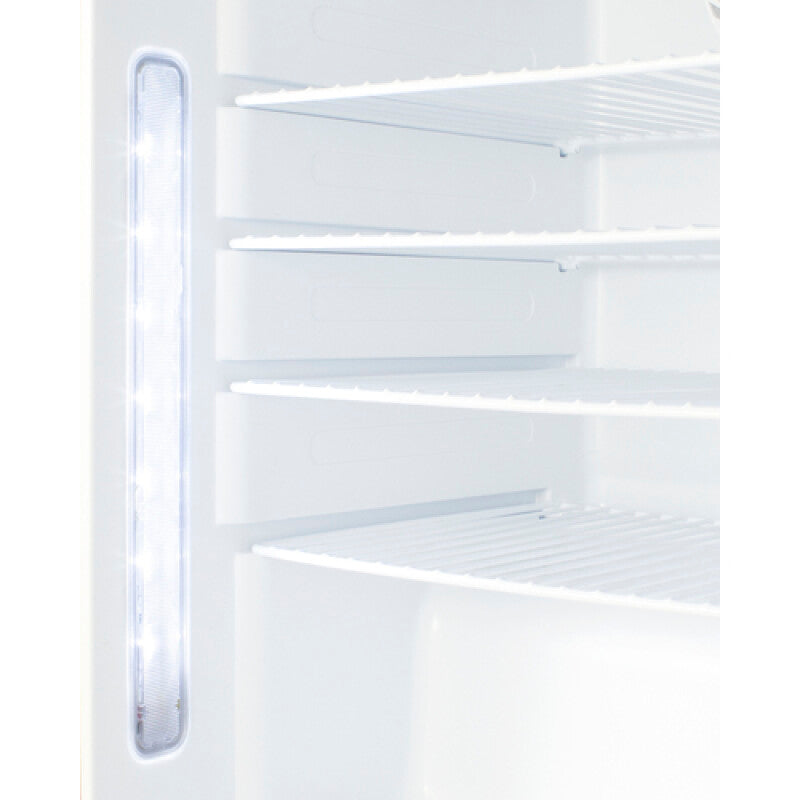

  • Front-located LED light ensures entire interior is lit when door opens
  • Quality door gaskets ensure a tight seal for energy savings and improved performance

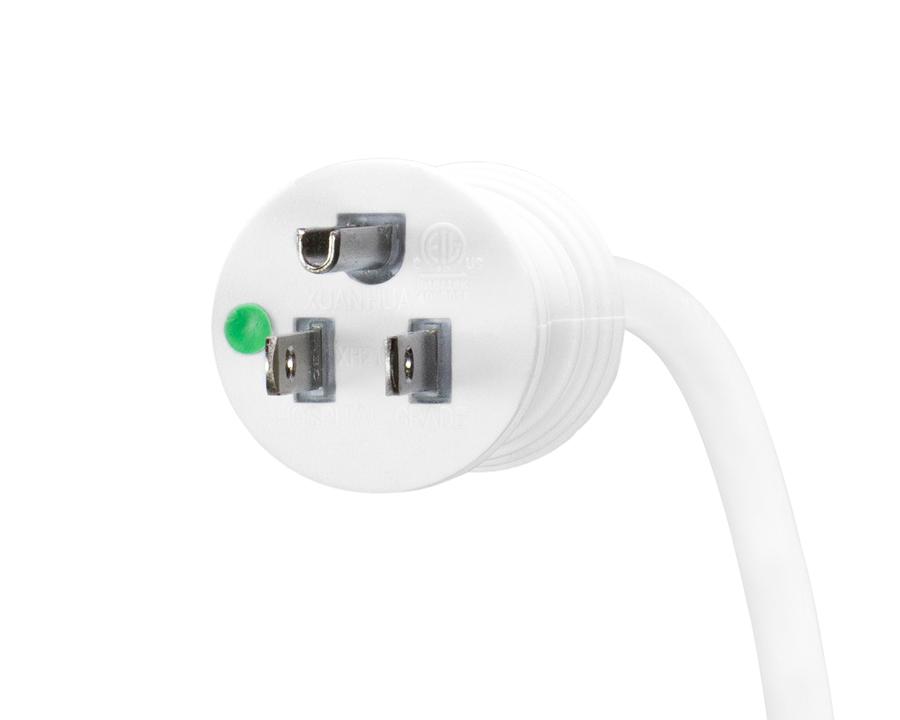

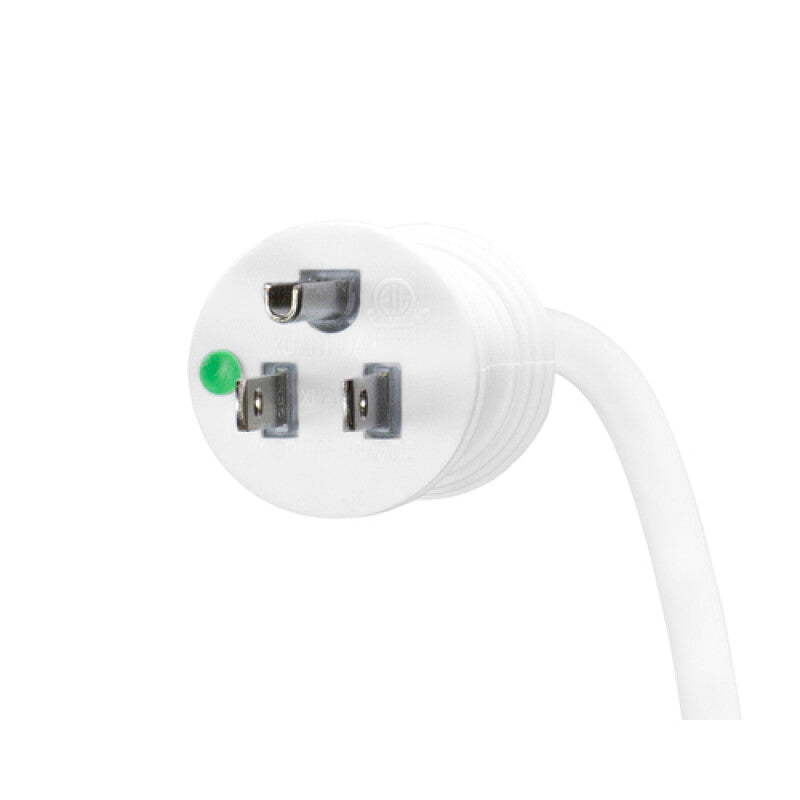

  • Secure three-pronged cord for added unit safety
  • Space-saving design that offers easier cleanability
  • Allows the unit to be freestanding
  • For this unit with a standard right hand door swing, see model ADA404REFIF
  • This unit can be paired with the ADA305AFIF all-freezer for a complete set
  • Environmentally friendly design without ozone-damaging chemicals
  • Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations



Description

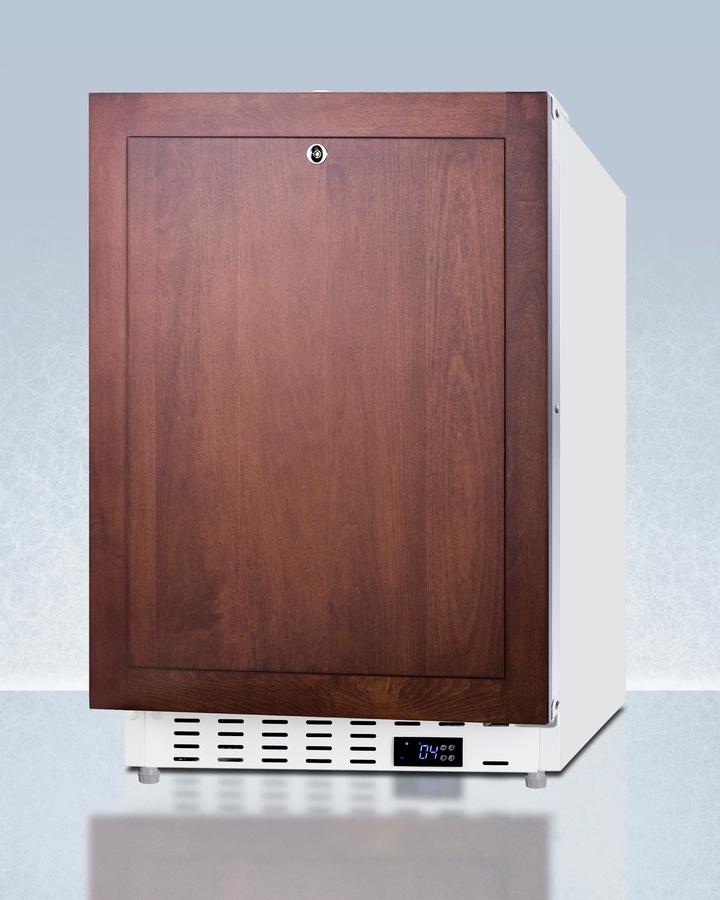

Accucold offers a quality selection of 20" wide built-in undercounter all-refrigerators designed for installation under lower ADA-compliant counters. These refrigerators have advanced features for user convenience. The ADA404REFIFLHD is sized at 32" high for use in ADA-compliant settings. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The door is 3" thick for efficient insulation and features an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 19 13/16" W x 27 1/8" H). This unit comes with a right angle cord to allow for easier placement without added depth. Inside, the ADA404REFIFLHD is designed to operate between +2(degree)C and +8(degree)C as recommended for storing select pharmaceuticals and other medical supplies. An LED light located on the front left side of the unit attractively illuminates the interior when the door opens. Automatic defrost operation ensures minimal user maintenance, with an internal fan to help promote even cooling throughout the 3.32 cu.ft. interior. Adjustable wire shelves allow you to rearrange the interior to suit your storage needs best. As recommended by the CDC, this unit has a flat door liner to ensure users don't store sensitive contents on the door. The user-set high and low-temperature alarms provide added security should the temperature exceed the set point. The open door alarm sounds if the door is ajar for more than a minute for added peace of mind. These alarms can be turned off depending on your needs. A preinstalled probe hole is included to allow users to connect their own monitoring equipment. Sized at just under 21" wide, the ADA404REFIFLHD makes an ideal choice for various healthcare facilities. For a matching freezer, see model ADA305AFIF.
