Product Details for Summit ADA404REFAL

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Overview refrigerator features dimensions

Nominal Height 32.0" (81 cm)
Height of Cabinet 31.75" (81 cm)
Height to Hinge Cap 32.0" (81 cm)
Nominal Width 20.0" (51 cm)
Width 19.75" (50 cm)
Width with Door Open 20.25" (51 cm)
Nominal Depth 23.0" (58 cm)
Depth 22.5" (57 cm)
Depth with Handle 24.38" (62 cm)
Depth with door at 90° 40.25" (102 cm)
Capacity 3.32 cu.ft. (94 L)
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.1
Voltage/Frequency 115 V AC/60 Hz
Weight 59.0 lbs. (27 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101079042
Door Swing RHD
Reversible Factory Reversible
Shelf Type Wire
Shelf Qty 4
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 0.99oz.
High Side PSI 180.0
Low Side PSI 80.0
Level Legs Qty 2
Interior Light Yes
Sound Level 2°C to 8°C
Interior Height 23.5" (60 cm)
Interior Width 16.25" (41 cm)
Interior Depth 17.0" (43 cm)
Compressor Step Height 6.25" (16 cm)
Compressor Step Width 16.25" (41 cm)
Compressor Step Depth 6.0" (15 cm)

Description

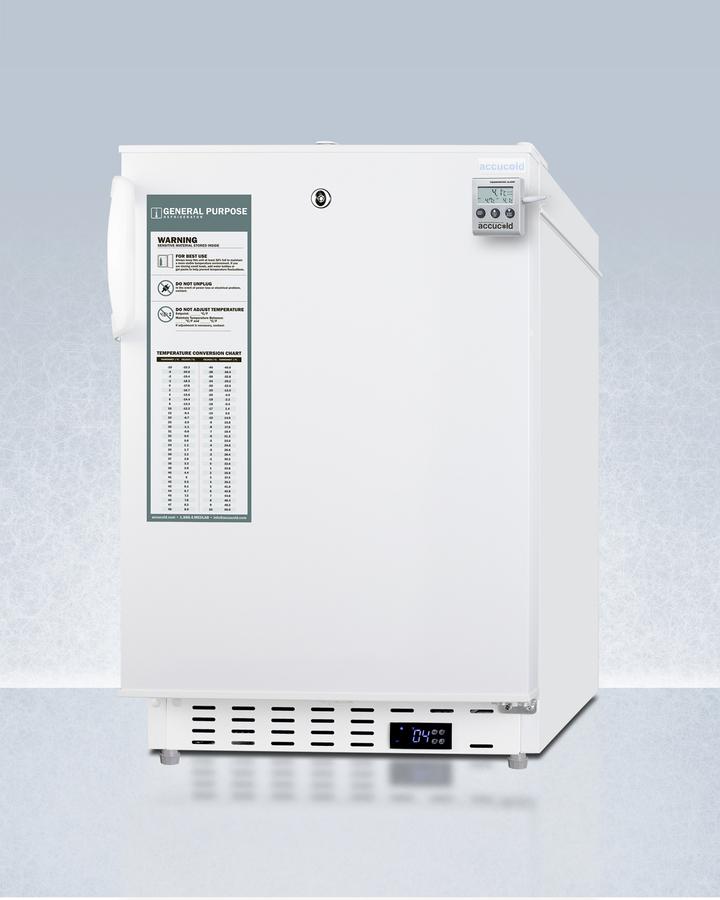

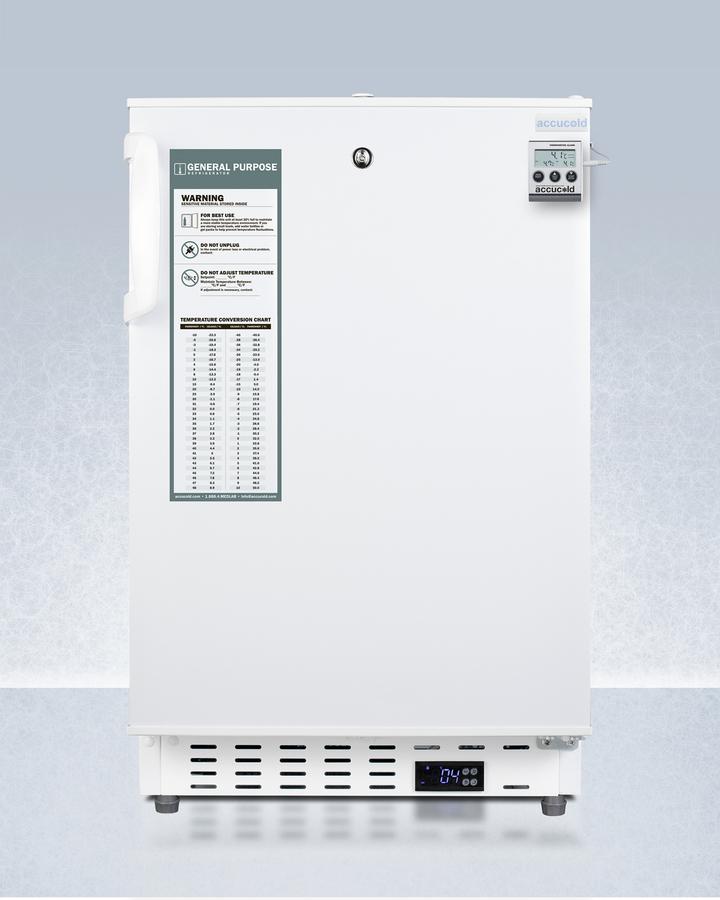

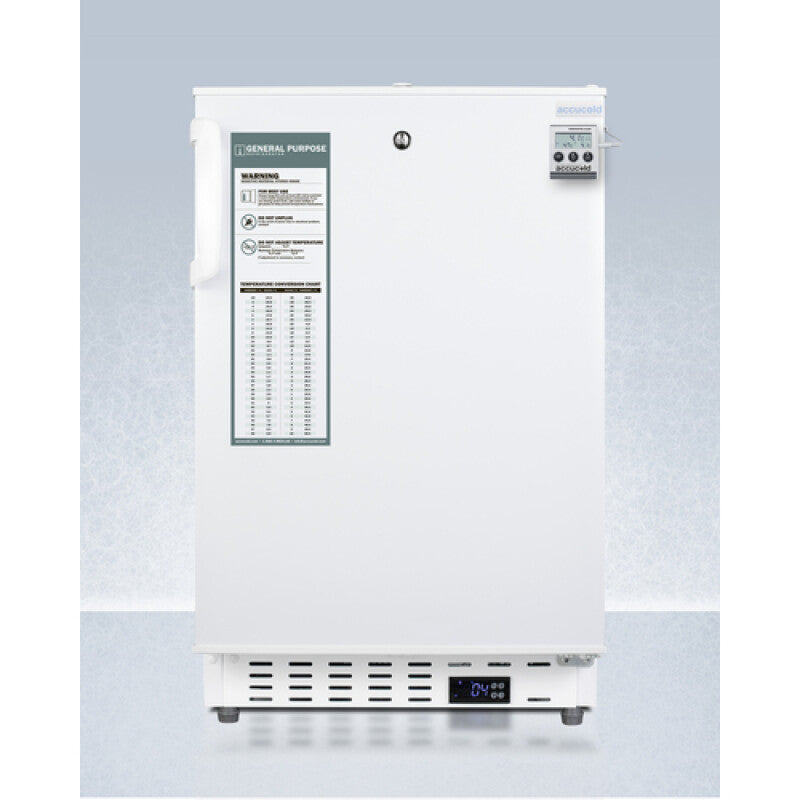

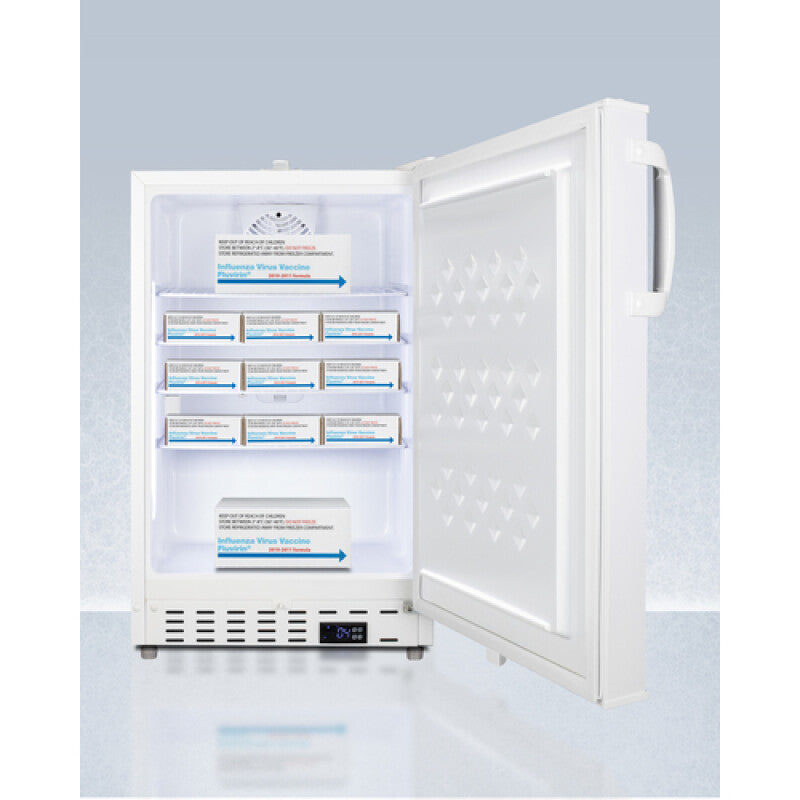

Accucold offers a quality selection of 20" wide built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters and for the storage of vaccines and medical supplies. The ADA404REFAL is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The door is 3" thick for efficient insulation, with a top-mounted lock for added security and convenient access. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius. This unit comes with a hospital grade cord with a green dot plug for added safety in high-traffic areas. Powerful magnetic gaskets ensure a tight seal. This model comes with a right-hand door swing. (Note: For a left-hand door swing, please select option 'LHD' when ordering. The door is not user reversible.) The ADA404REFAL is designed to operate between +2°C and +8°C as recommended for the storage of vaccines, select pharmaceuticals, and other medical supplies. For optimum temperature management, a pre-installed thermometer is included that provides an external readout of the current and high/low temperatures to the nearest tenth of a degree (as recommended by the CDC, VFC and VFA). The display is switchable between Celsius or Fahrenheit at the touch of a button. The thermometer includes an audible alarm to warn users if the interior has gone out of the programmed temperature range. The buffered temperature probe is encased in a glycol-filed bottle and secured on the left wall of the interior cabinet to best simulate the temperature of other stored contents, resulting in the utmost accuracy for temperature reporting. (Note: for this unit with a NIST calibrated thermometer, see the ADA404REFCAL.) Inside, an LED light located on the front left side of the unit attractively illuminates the interior when the door opens. Automatic defrost operation ensures minimal user maintenance, with an internal fan to help promote even cooling throughout the 3.32 cu. ft. interior. Adjustable wire shelves allow you to rearrange the interior to best suit your storage needs. As recommended by the CDC, this unit has a flat door liner to ensure users don't store sensitive contents on the door. The open door alarm sounds if the door is ajar beyond one minute for added peace-of-mind but can be disabled depending on your needs. Sized at just under 20" wide, the ADA404REAL is the ideal storage solution for doctors' offices, clinics, and similar facilities. NOTE: Accucold refrigerators are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. At this time, Accucold refrigerators have not been evaluated to the new NSF 456 standard. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate microprocessor controls and forced air circulation for stable operation between 2 and 8ºC. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory.


Product Features

  • ADA compliant design
    32" height allows easy installation under lower ADA compliant counters
  • 3" thick door
    Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does not open in its own radius. If installing this freezer against a wall, please see our drawings to ensure adequate space

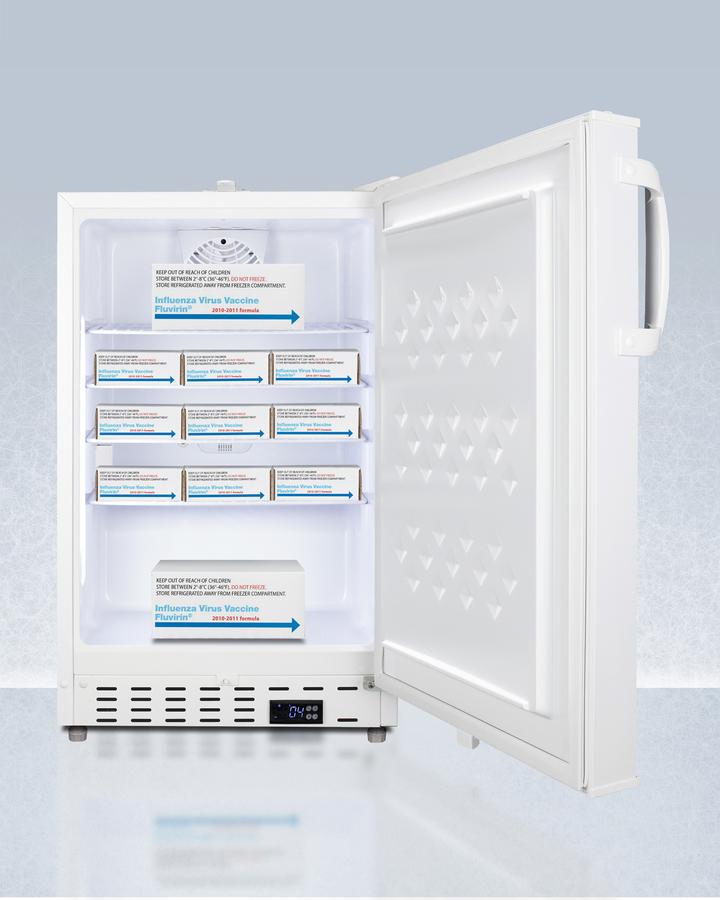

  • +2°C to +8°C operation
    Designed to safely store vaccines, select pharmaceuticals, and other materials with strict temperature requirements
  • Built-in capable
    Front-breathing design lets you make the best use of space by installing your appliance under the counter
  • Open door alarm
    Audible alarm will sound if the door is left ajar for over a minute
  • External temperature readout
    Includes continuous display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button
  • High/low temperature alarm
    Audible alarm sounds if the interior temperature rises or falls out of set range
  • Flat door liner
    Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
  • Buffered temperature probe
    Thermometer probe is encased in a glycol-filled bottle and stored in a fixed box on the left wall of the inner cabinet. This is the ideal way to produce temperature readings closest to stored contents, as recommended by the CDC, VFC and VFA's guidelines

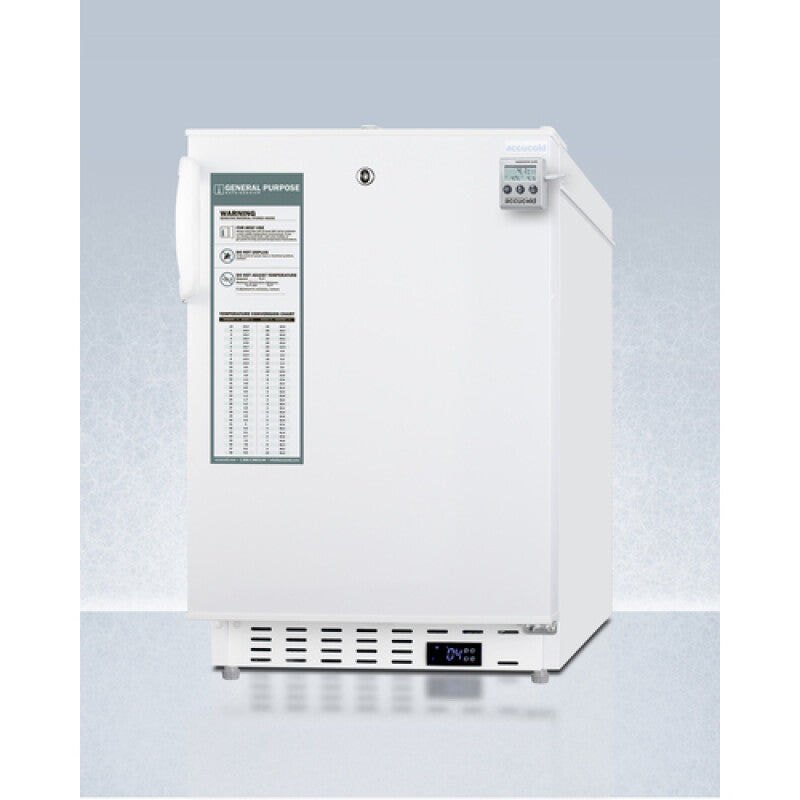

  • Factory-installed lock
    Located towards the top of the door for easy access and to provide added security of unit (2 keys included)

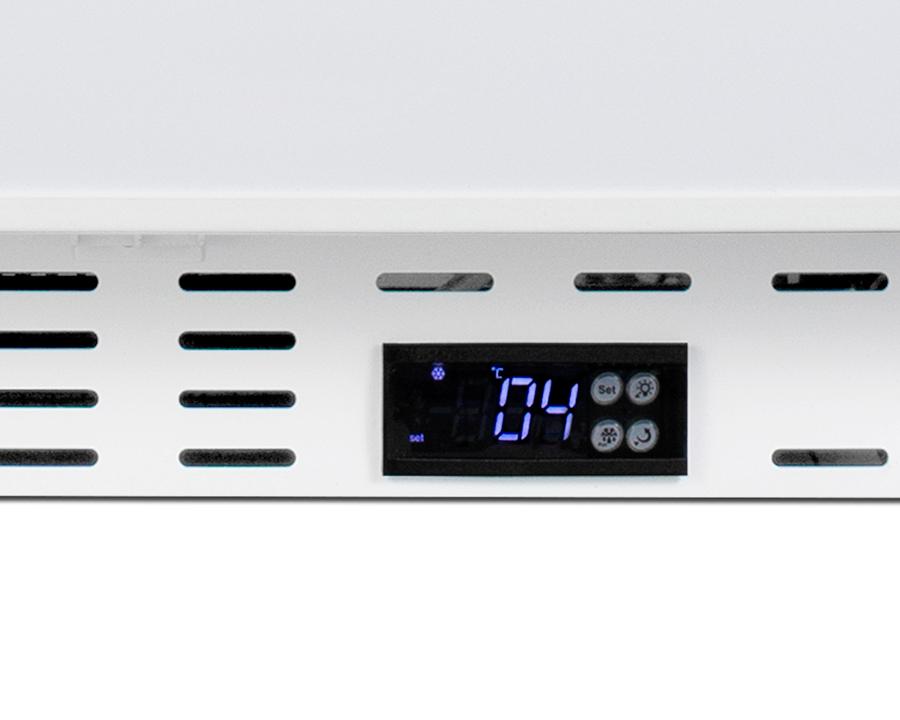

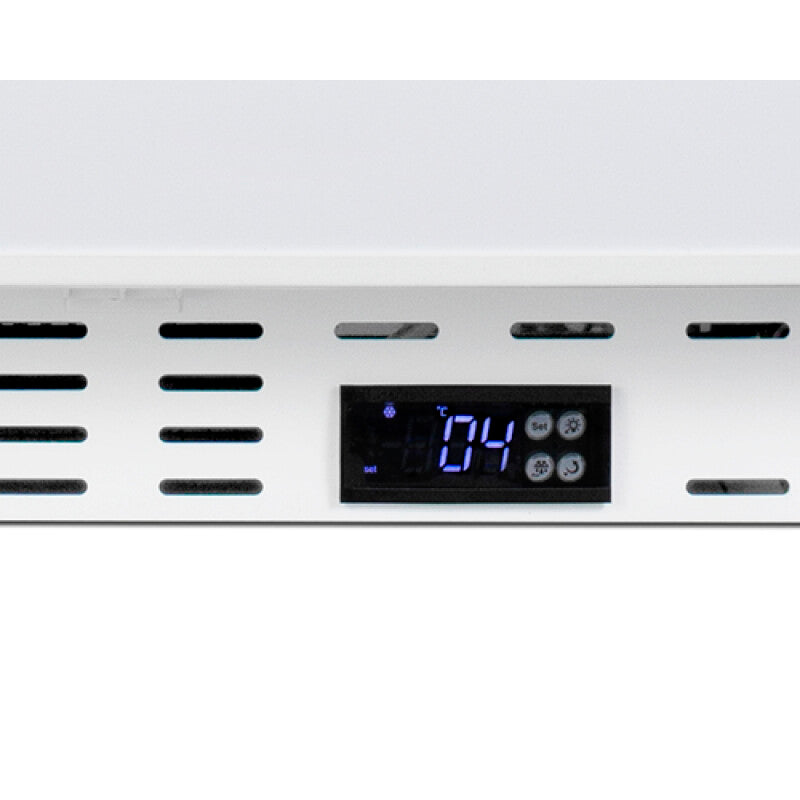

  • Adjustable digital thermostat
    Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius

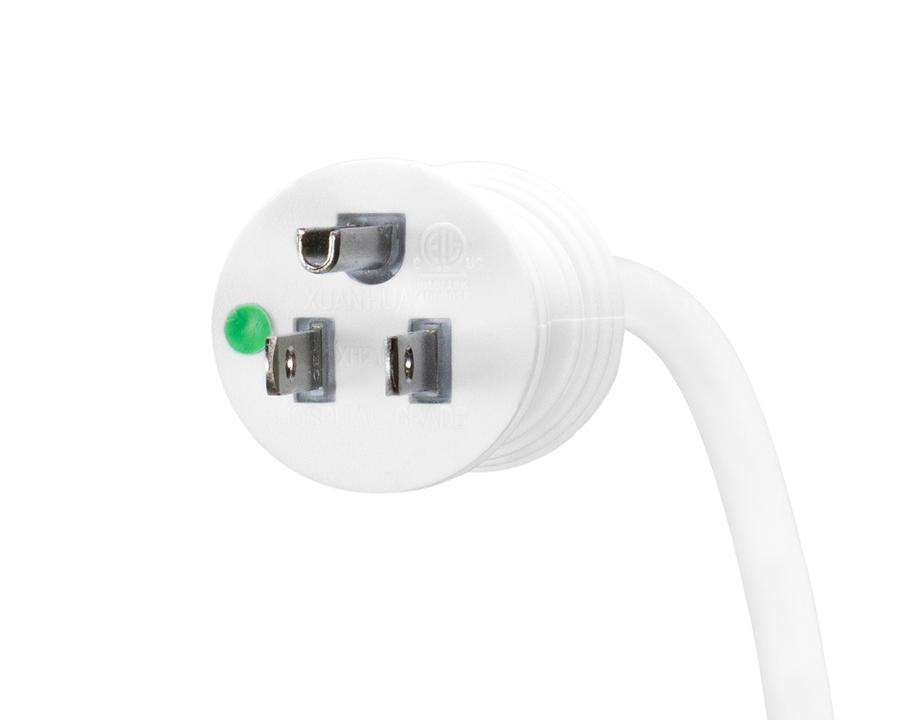

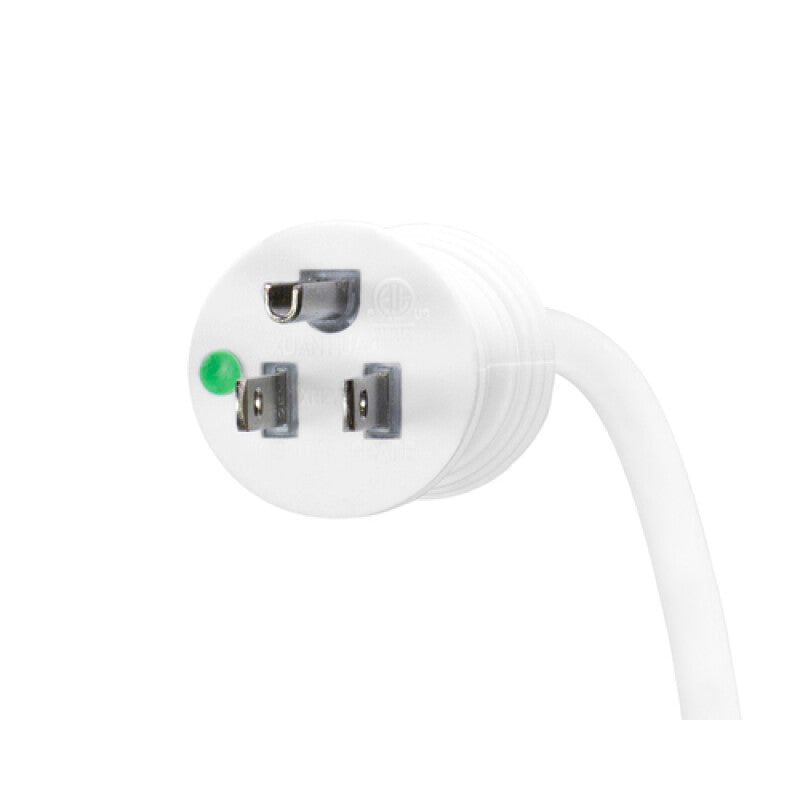

  • Hospital grade cord with 'green dot' plug
    Secure three-pronged cord for added unit safety

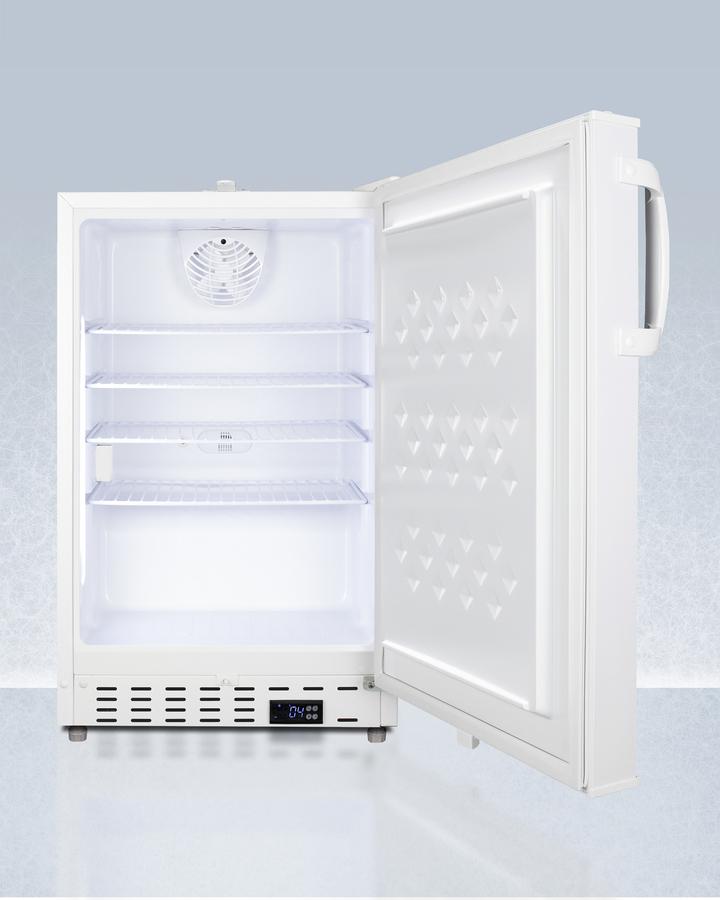

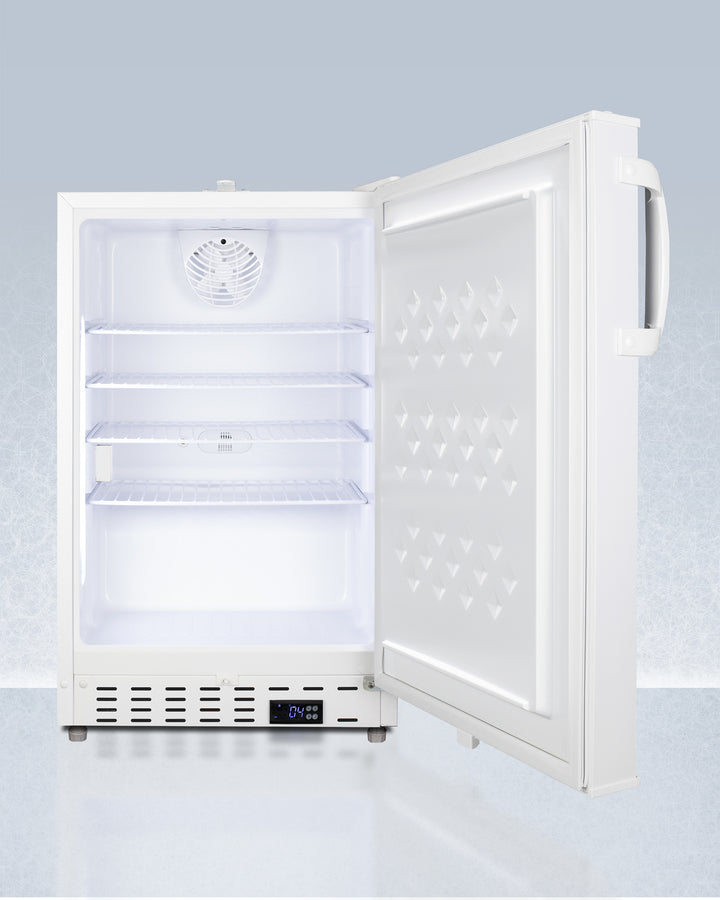

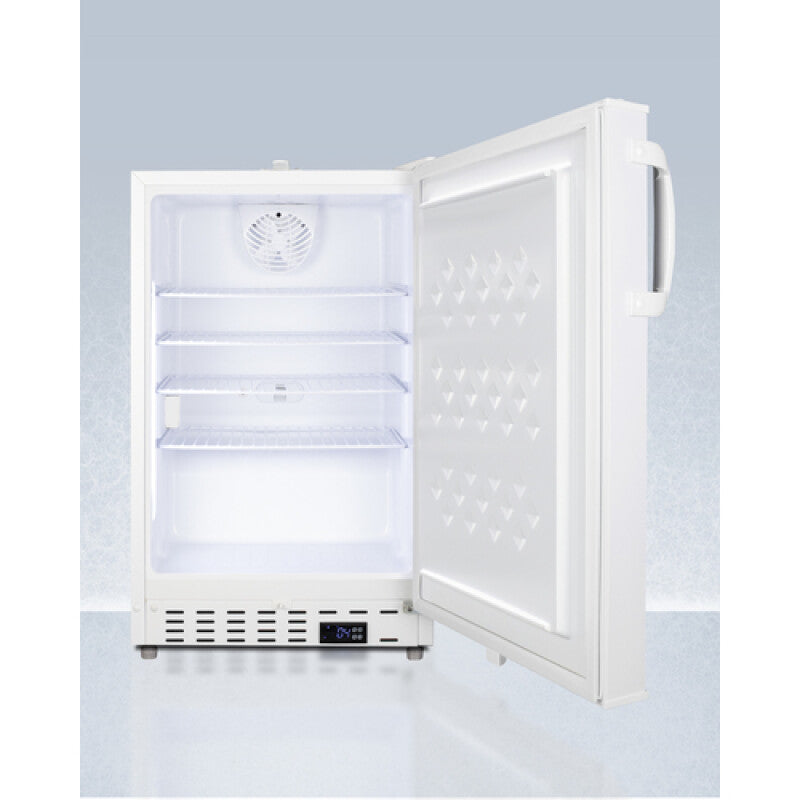

  • Adjustable wire shelves
    Four wire shelves provide optimal storage and improved air circulation in the 3.32 cu. ft. interior
  • Right-hand door swing
    Unit has a right-hand door swing (Note: For a left-hand door swing, please select option 'LHD' when ordering. The door is not user reversible.)
  • Sealed back
    Space-saving design that offers easier cleanability
  • Automatic defrost
    Reduced user maintenance with an auto defrost system
  • Magnetic door gasket
    Quality door gaskets ensure a tight seal for energy savings and improved performance
  • Internal fan
    Fan-forced cooling ensures the unit is evenly cooled from top to bottom
  • Interior light
    Front-located LED light ensures entire interior is lit when door opens
  • 100% CFC free
    Environmentally friendly design without ozone-damaging chemicals
  • Fully finished white cabinet
    Allows the unit to be freestanding
  • CARB Compliant
    Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
