Product Details for Summit ADA305AFIF

Technical Details

Overview

Nominal Height 12.6
Height of Cabinet 12.5
Height to Hinge Cap 12.6
Nominal Width 8.27
Width 7.97
Nominal Depth 9.06
Depth 9.06
Depth with door at 90(degree) 15.85
Capacity 2.47
Defrost Type Manual
Door Panel-Ready
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.1
Voltage/Frequency 115
Weight 75.0
Parts & Labor Warranty 1
Compressor Warranty 5
UPC 761101151298

Freezer

Door Swing RHD
Reversible Factory Reversible
Interior Height 9.35
Interior Width 5.71
Interior Depth 6.69
Shelf Type Drawers
Shelf Qty 3
Thermostat Type Digital
Fan Type Exterior
Refrigerant Type R600a
Refrigerant Amount 1.34
High Side PSI 180.0
Low Side PSI 80.0
Level Legs 2
Interior Drawers Yes
Drawers Qty 3
Compressor Step Height 2.26
Compressor Step Width 5.71
Compressor Step Depth 2.36
Temperature Range -25

Features

  • Slim-fitting all-freezer for general healthcare applications at an ADA-compliant height
  • 32" height allows easy installation under lower ADA compliant counters
  • Low temperature operation ideal for vaccines, pharmaceuticals, and other sensitive materials
  • Front-breathing design lets you make the best use of space by installing your appliance under the counter

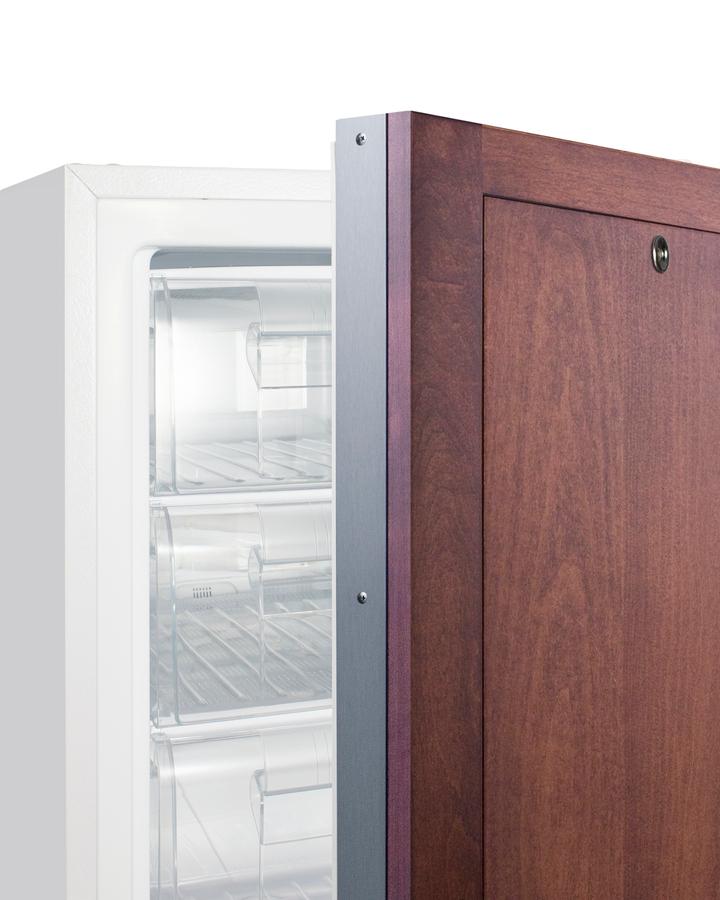

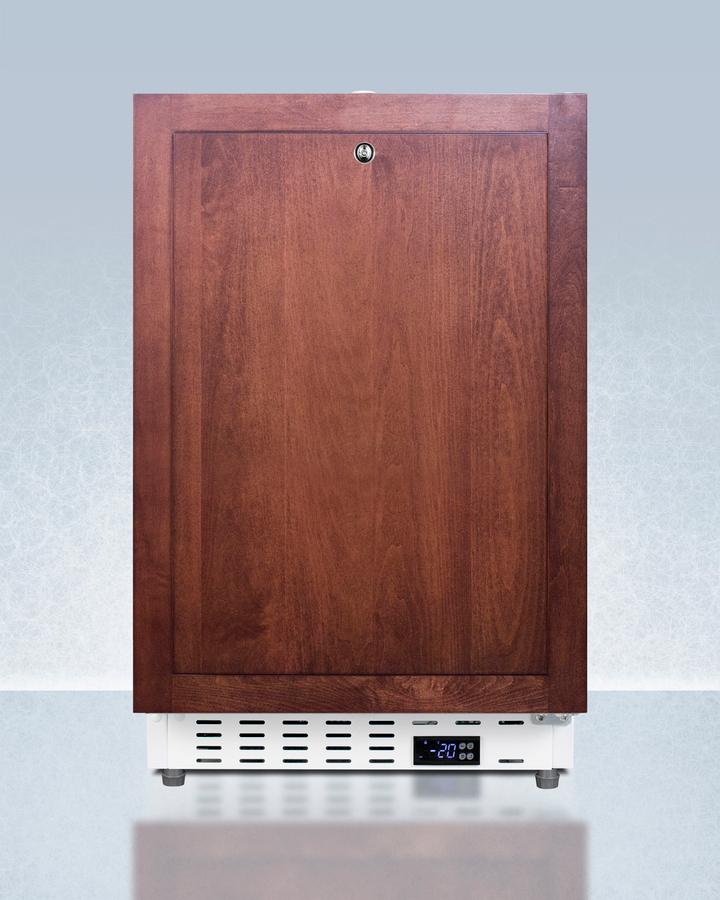

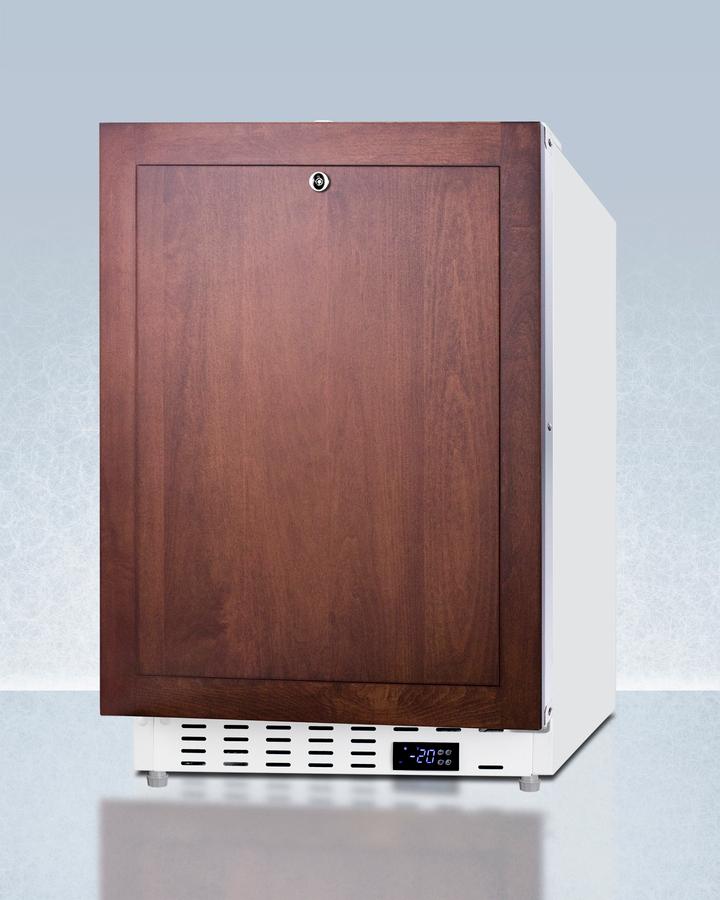

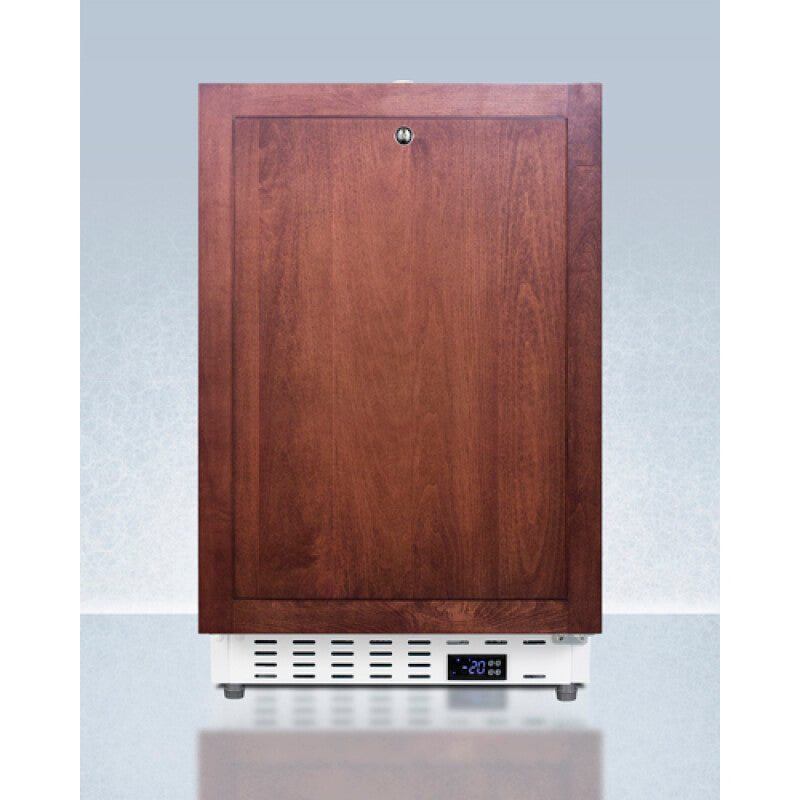

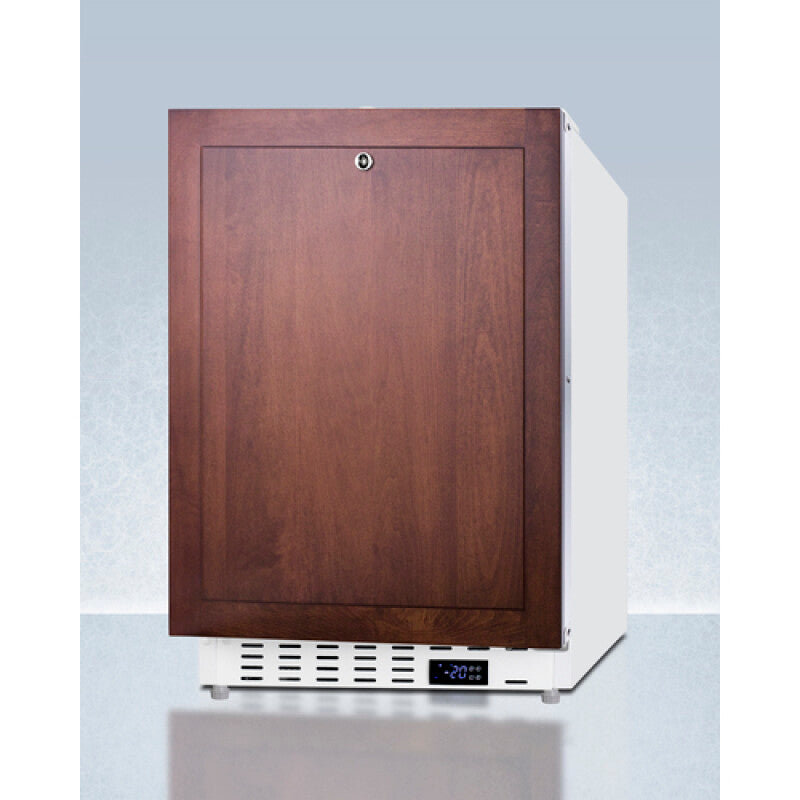

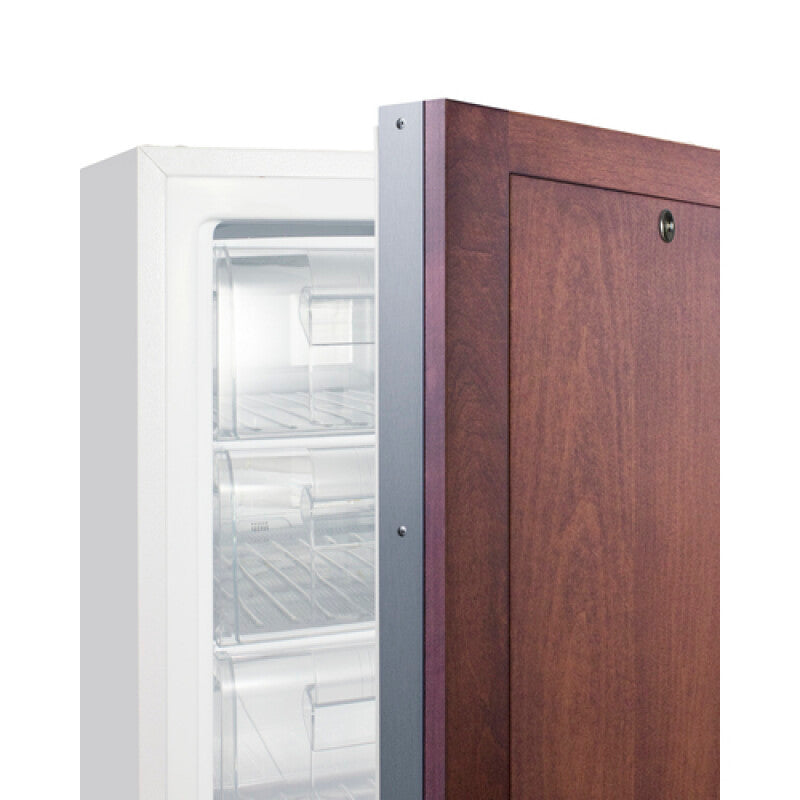

  • Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size:19 13/16" W x 27 1/8" H; customers provide their own handles
  • Located towards the top of the door for easy access and to provide added security of unit (2 keys included)
  • Unit comes with a factory installed probe hole for users to connect their own monitoring equipment

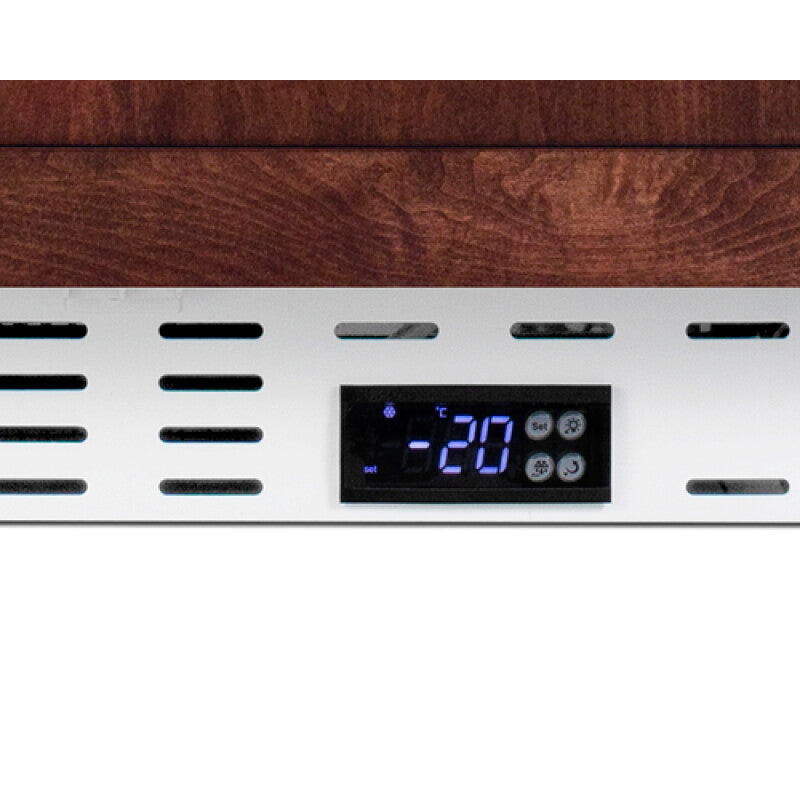

  • Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius

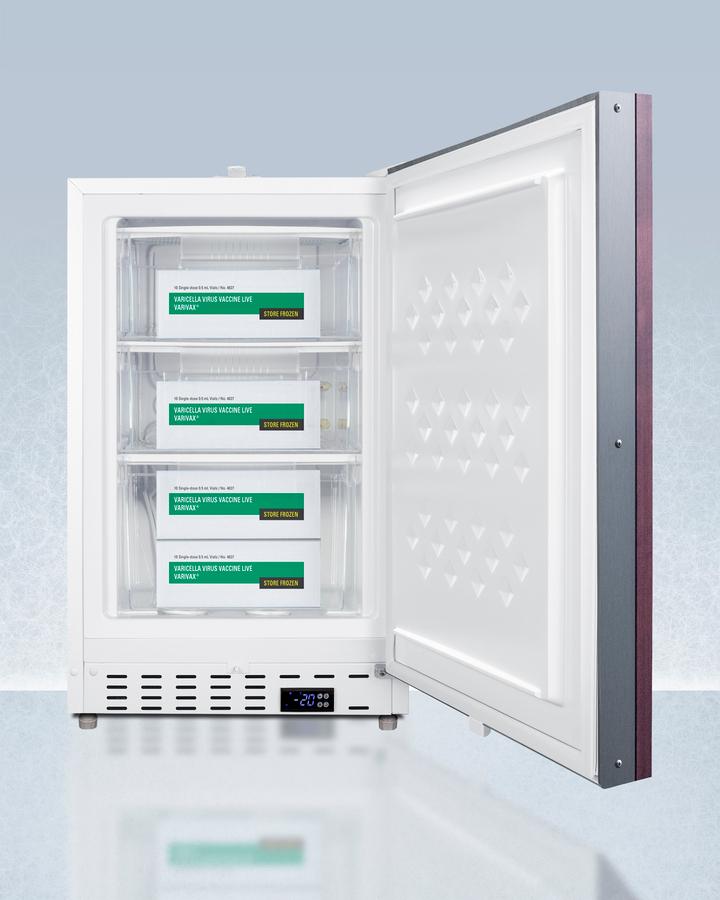

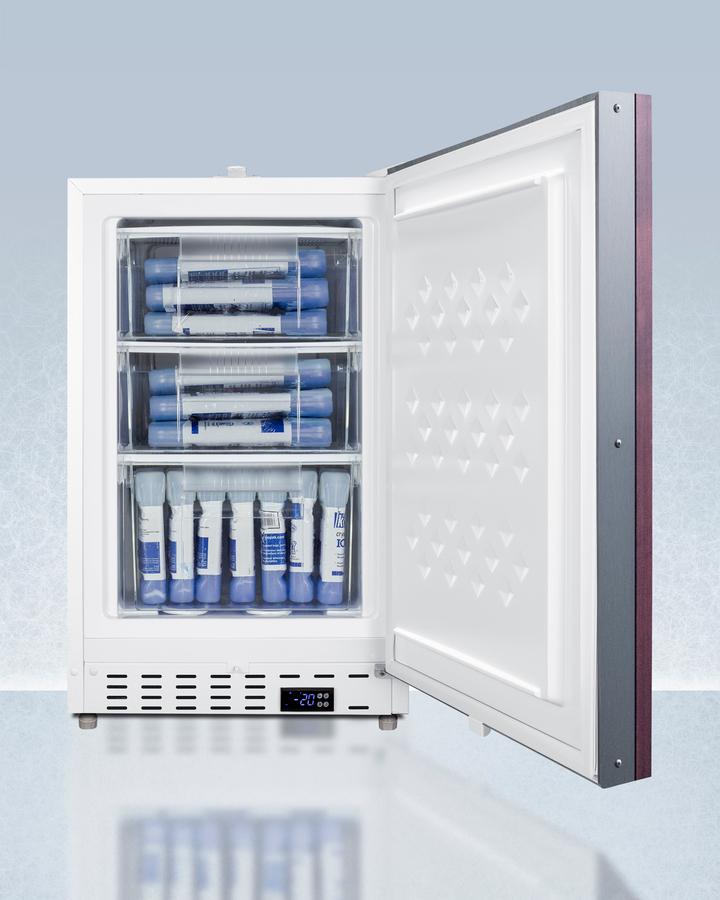

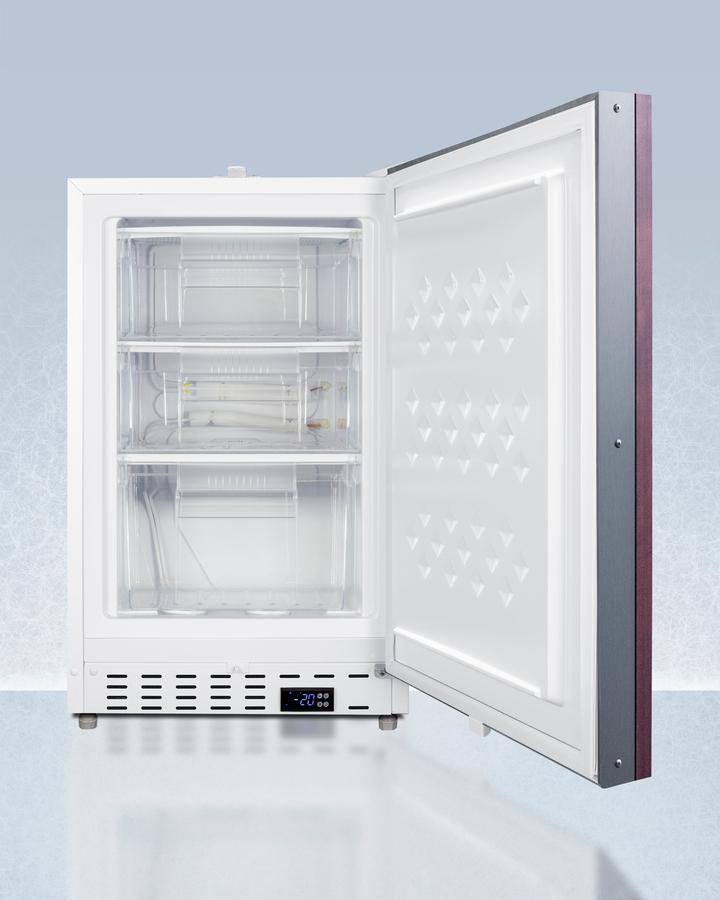

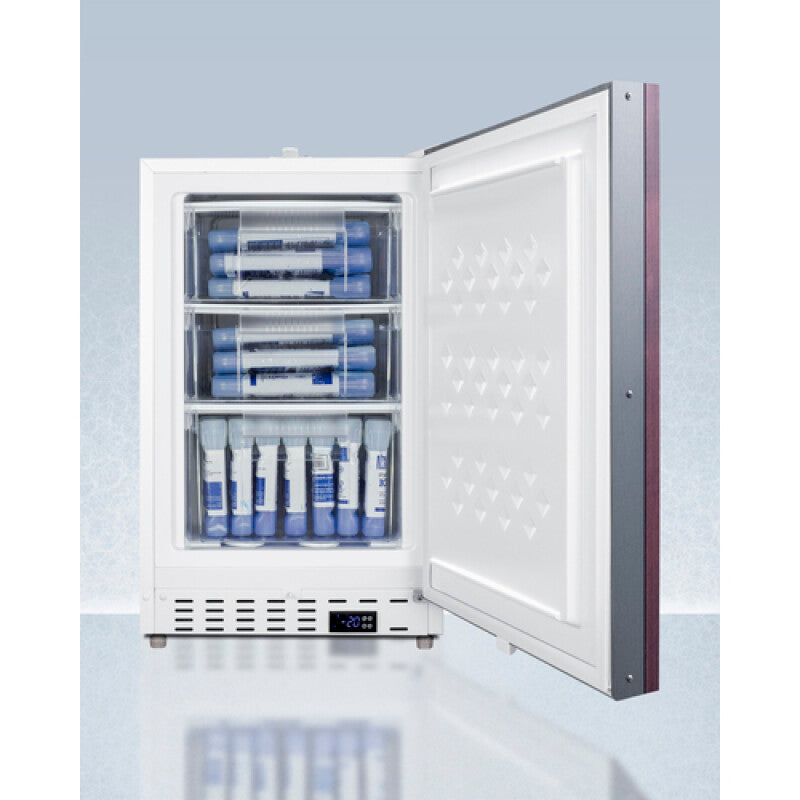

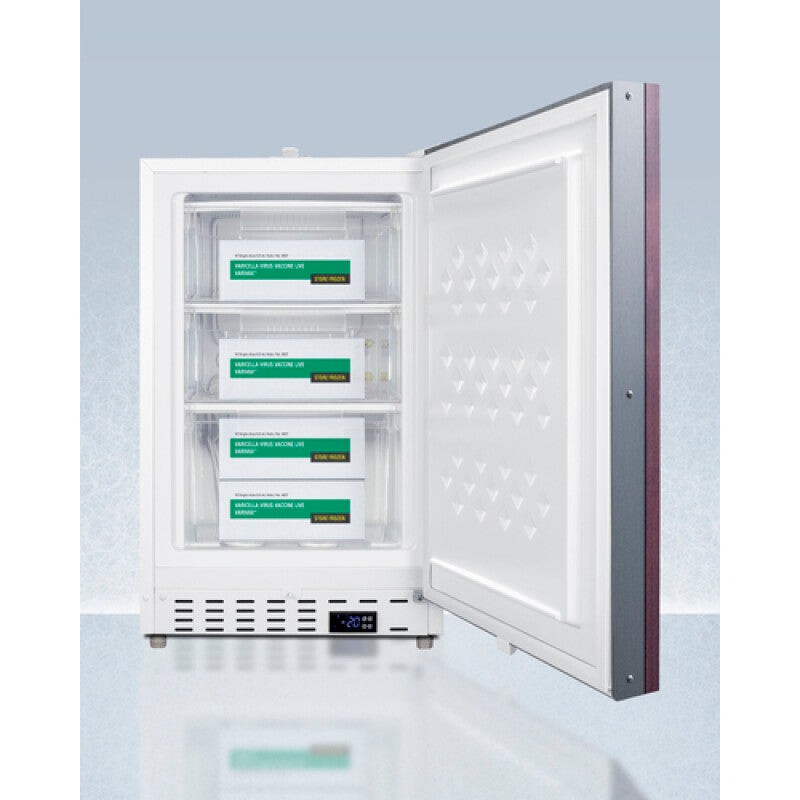

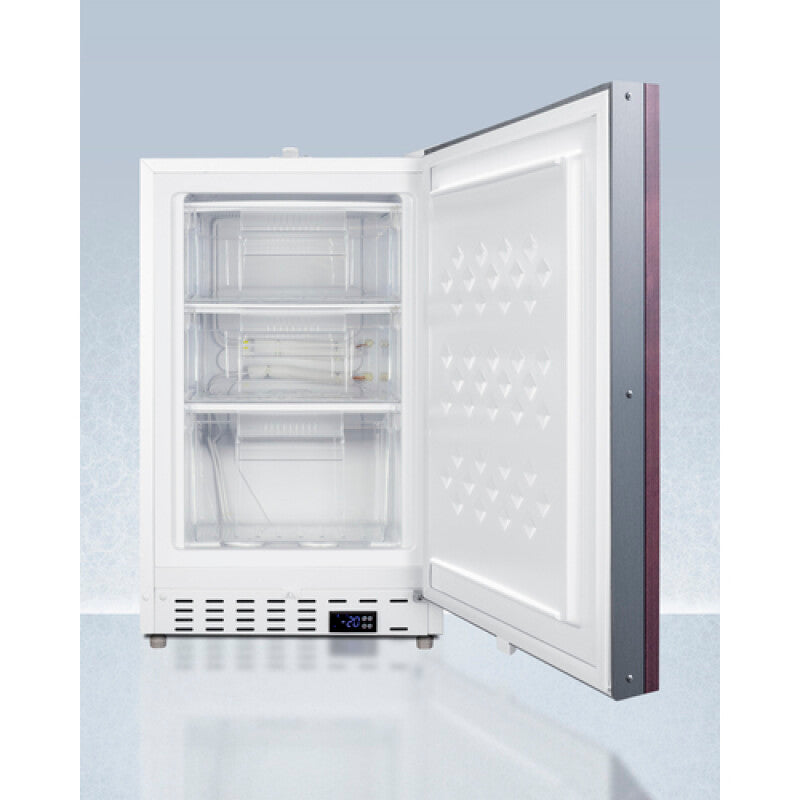

  • Three slide-out baskets offer convenient storage, with plastic fronts to help protect contents from warmer air when the door is opened
  • User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
  • Audible alarm will sound if the door is left ajar for over a minute
  • Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
  • More temperature stability with an energy efficient manual defrost system
  • Temperature remains more stable with a static cooling system
  • Quality door gaskets ensure a tight seal for energy savings and improved performance

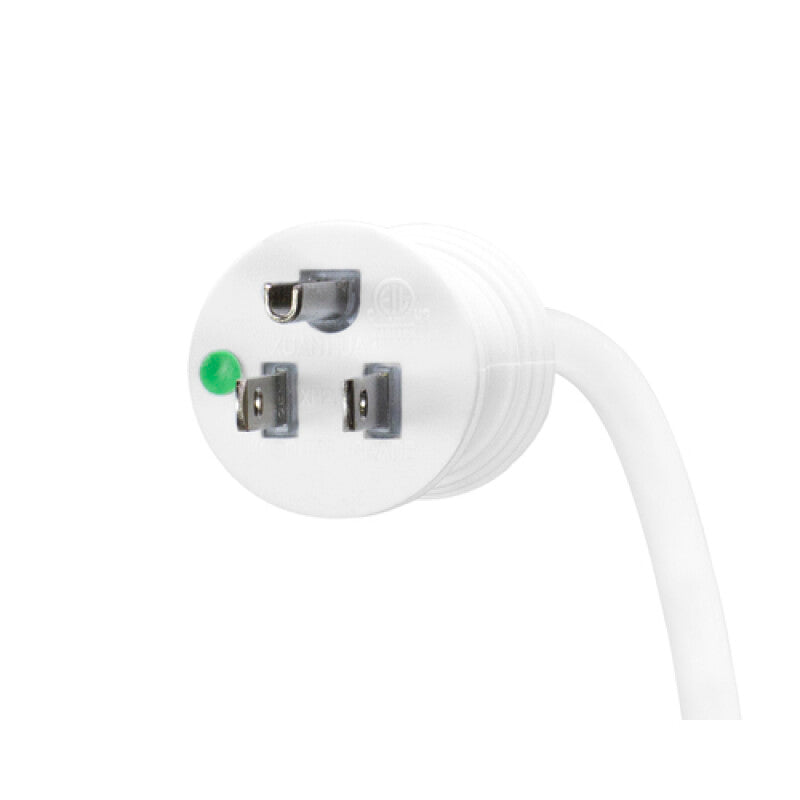

  • Secure three-pronged cord for added unit safety
  • Allows the unit to be freestanding
  • Space-saving design that offers easier cleanability
  • This unit can be paired with the ADA404REFIF all-refrigerator for a complete set
  • Environmentally friendly design without ozone-damaging chemicals
  • Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations



Description

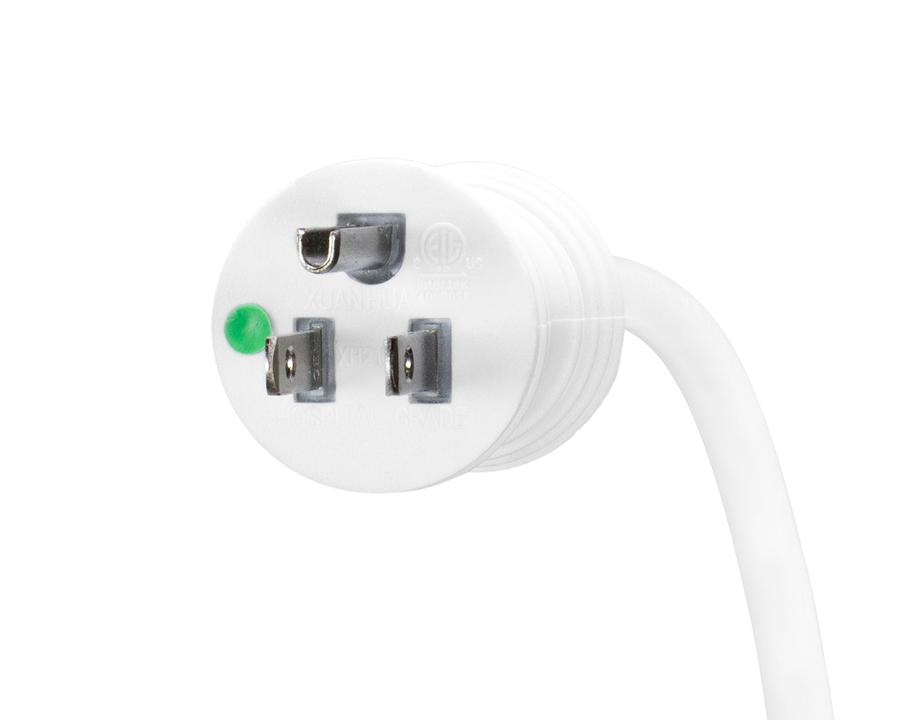

Accucold offers a quality selection of 20" wide built-in undercounter all-freezers designed for installation under lower ADA-compliant counters. These freezers have advanced features for safely storing select healthcare materials with strict storage conditions. The ADA305AFIF is sized at 32" high for use in ADA-compliant settings. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The door is 3" thick for efficient insulation and features an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 19 13/16" W x 27 1/8" H). This unit comes with a right angle cord to allow for easier placement without added depth. A digital thermostat is located in the kickplate for easy temperature management with a readout in Fahrenheit or Celsius. This unit has a hospital-grade cord with a green dot plug for safety in high-traffic areas. Plus, powerful magnetic gaskets ensure a tight seal. Inside, the ADA305AFIF can reach temperatures as low as -25(degree)C. Static manual defrost operation provides efficient cooling inside the 2.47 cu.ft. interior. Three removable pull-out drawers on fixed wire shelving offer convenient storage, with plastic fronts that help to protect contents from warmer ambient temperatures when the door is opened. As recommended by the CDC, this unit has a flat door liner to ensure users don't store sensitive contents on the door. The user-set high and low-temperature alarms provide added security should the temperature exceed the set point, while the open-door alarm sounds if the door is ajar beyond one minute for added peace of mind. These alarms can be turned off depending on your needs. A preinstalled probe hole is included to allow users to connect their own monitoring equipment. Sized at just under 20" wide, the ADA305AFIF makes an ideal choice for various healthcare facilities in need of a dependable freezer capable of -20 C/-25 C operation. For a complete set, pair this unit with the matching ADA404REFIF all-refrigerator.
