SKU: ACR161WNSF456 | UPC: 761101083056

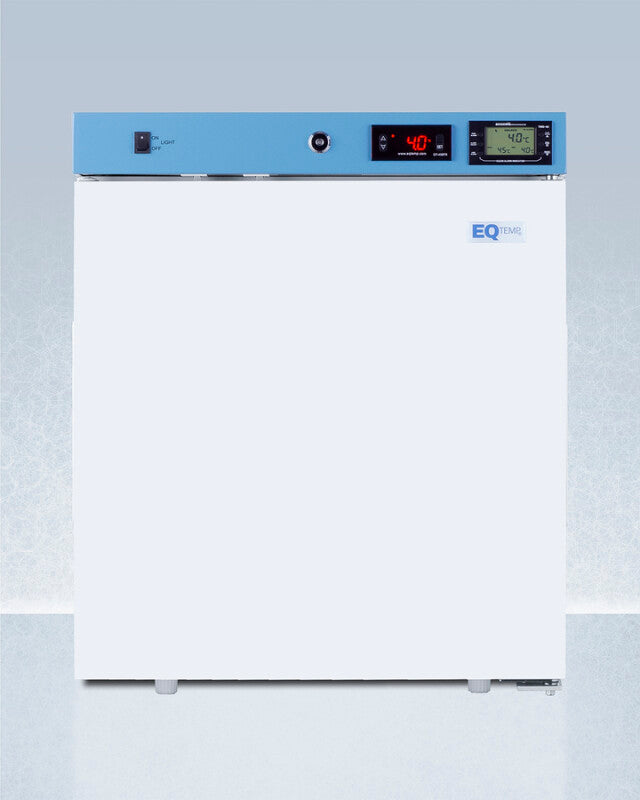

Summit ACR161WNSF456 19" Wide Compact Medical Refrigerator, Certified to NSF/ANSI 456 Vaccine Storage Standard White

Quick Specification More details

Width:
18.75"
Depth:
18.38"
Height:
22.88"
Type:
Compact Refrigerators

About this product

Compact size
EQTemp Medical Refrigerator
Temperature Range: 2º to 8ºC
Certificate of calibration included

Summer Sale

Clearance

SKU: ACR161WNSF456 | UPC: 761101083056

Summit ACR161WNSF456 19" Wide Compact Medical Refrigerator, Certified to NSF/ANSI 456 Vaccine Storage Standard White

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
18.75"
Depth:
18.38"
Height:
22.88"
Type:
Compact Refrigerators

About this product

Compact size
EQTemp Medical Refrigerator
Temperature Range: 2º to 8ºC
Certificate of calibration included

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Product Details for Summit ACR161WNSF456

Technical Details

Dimensions & weight

Width	18.75 in.
Height	22.88 in.
Length	18.38 in.
Weight	38 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	4.56 ft³
Dimensional Weight	56.73 lbs.
Total of Cubes	4.56 ft³
Total of Dimensional Weight	56.73 lbs.

Overview refrigerator features dimensions

Nominal Height	23.0" (58 cm)
Height of Cabinet	22.88" (58 cm)
Nominal Width	19.0" (48 cm)
Width	18.75" (48 cm)
Width with Door Open	19.25" (49 cm)
Nominal Depth	19.0" (48 cm)
Depth	18.38" (47 cm)
Depth with door at 90°	35.63" (91 cm)
Capacity	1.58 cu.ft. (45 L)
Defrost Type	Automatic
Door	White
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S to NSF 456
Amps	0.6
Voltage/Frequency	115 V AC/60 Hz
Weight	38.0 lbs. (17 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101083056
Door Swing	RHD
Reversible	Factory Reversible
Shelf Type	Wire
Shelf Qty	1
Thermostat Type	Digital
Fan Type	Interior
Refrigerant Type	R600a
Refrigerant Amount	0.85oz.
High Side PSI	1.45
Low Side PSI	0.85
Level Legs Qty	2
Interior Light	Yes
Temperature Range	2º to 8ºC
Sound Level	36.8 dB
Interior Height	16.63" (42 cm)
Interior Width	15.63" (40 cm)
Interior Depth	12.13" (31 cm)
Compressor Step Height	7.75" (20 cm)
Compressor Step Width	15.63" (40 cm)
Compressor Step Depth	5.25" (13 cm)

Description

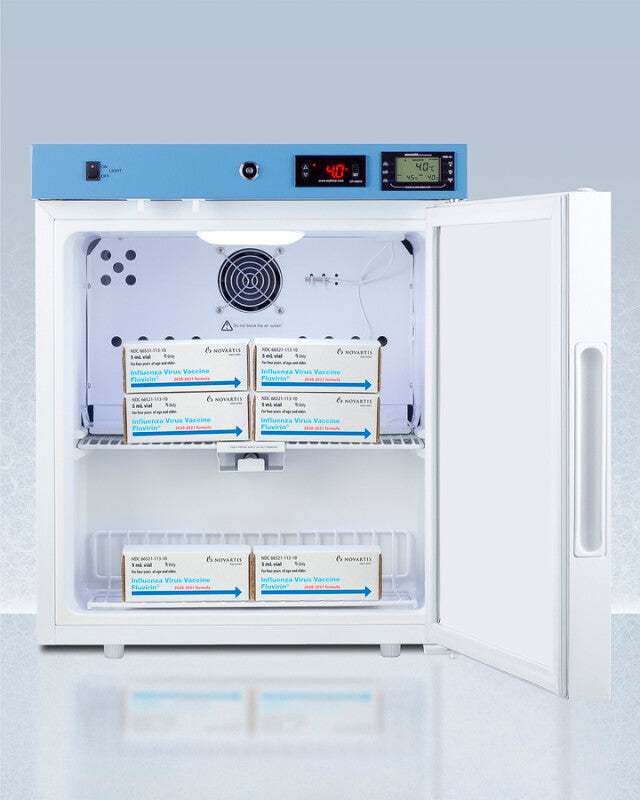

EQTemp introduces a new series of NSF/ANSI 456 certified medical refrigeration designed to store a variety of materials in healthcare facilities. Model ACR161WNSF456 is a compact 1.58 cu.ft. all-refrigerator. It features a clean white exterior and a blue-accented control panel. The solid door is equipped with a self-closing mechanism to help protect stored items from being overexposed to room temperature. A factory-installed lock offers added security, and the hospital-grade cord with a 'green dot' plug ensures a secure connection for high-traffic areas. The ACR161WNSF456 includes an external readout of the interior temperature, as well as the high/low temperature as required for data records. The buffered temperature probe is encased in a bottle filled with glass beads for improved accuracy and calibrated to NIST standards in our in-house ISO/IEC 17025:2017 certified laboratory. The digital temperature controls allow you to set the interior between 2 and 8ºC. An audible alarm sounds if the temperature goes out of range. We also include a pre-installed 3/8" access port for users to add their own monitoring equipment if preferred. The interior includes one wire shelf in the center to hold the temperature probe and additional adjustable shelves to accommodate different sizes. Internal LED lighting provides an efficient and convenient view. Automatic defrost reduces user maintenance and an internal fan ensures powerful temperature recovery after door openings. EQTemp's series of ACR refrigeration is certified to the NSF/ANSI 456 Vaccine Storage Standard. All models feature hydrocarbon refrigerant for a greener footprint. Additional sizes are available, as well as more advanced cold storage equipment purpose-built for laboratory and life science storage. Browse the full product line to explore our extensive selection. Note: EQTemp's ACR Series refrigerators are intended for a wide variety of healthcare storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals require a product offering tighter temperature control and/or alarms, monitoring, and backup. For these applications, browse Accucold's purpose-built PHARMA-VAC line or contact our product specialists at 1-888-4-MED-LAB.

Product Features

Compact size
Full 1.58 cu.ft. capacity inside conveniently slim footprint
EQTemp Medical Refrigerator
All-refrigerator designed to operate between 2 and 8ºC for a variety of storage application in medical offices and other healthcare facilities
Temperature Range: 2º to 8ºC
Preset to 5ºC as recommended for many storage applications
Certificate of calibration included
The temperature monitoring device (TMD) is calibrated to NIST standards in our ISO/IEC 17025:2017 certified calibration laboratory and ships with a 2-year certificate of calibration for your records
High/low temperature alarm
Audible alarm sounds if the interior temperature rises or falls out of set range

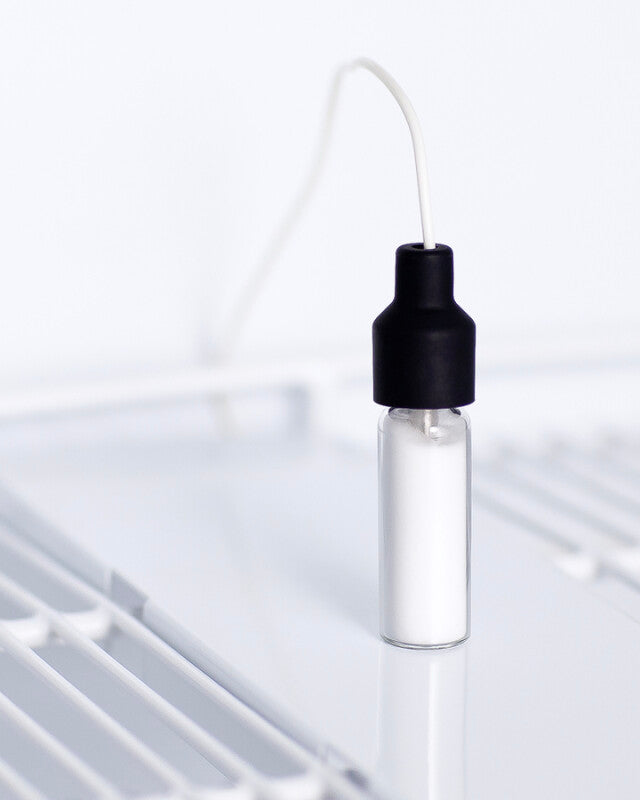

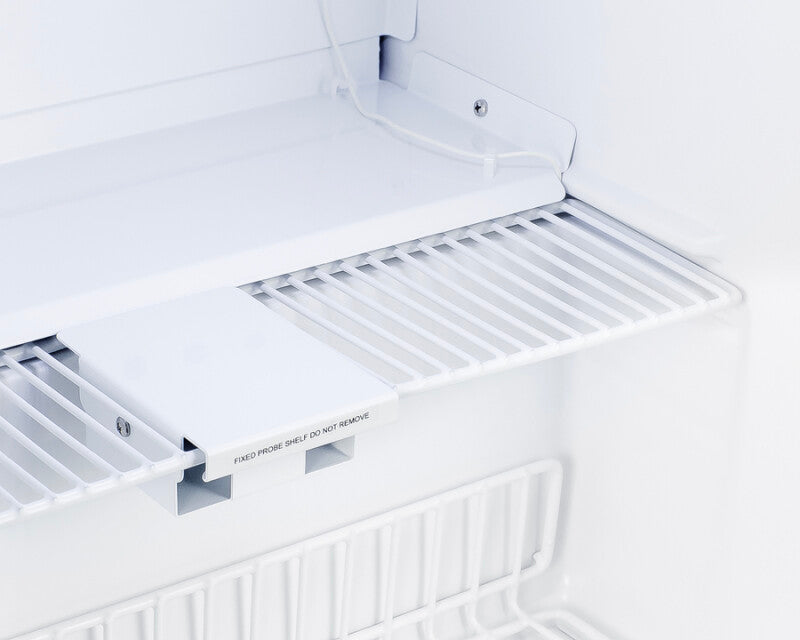

Buffered temperature probe
Thermometer probe is encased in a glass bead-filled bottle and stored in a fixed box on the center shelf. This is the ideal way to produce temperature readings closest to stored contents, as recommended by the CDC, VFC and VFA's guidelines
Factory installed lock
Keyed lock for a secure interior (2 keys included)
Automatic defrost
Reduced user maintenance with automatic defrost
Internal fan
Fan-forced cooling ensures the unit is evenly cooled from top to bottom

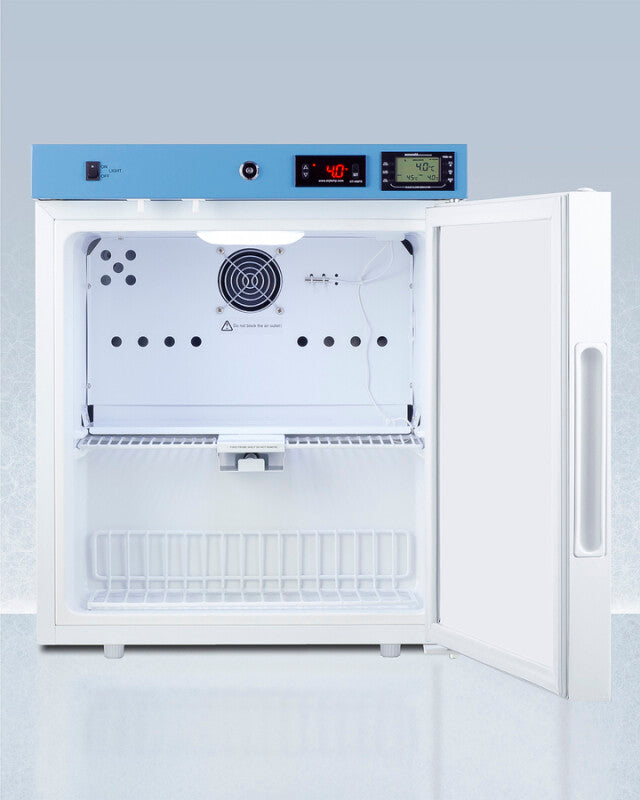

Fixed center shelf
Center shelf is fixed in place in order to provide the optimum position for the TMD to provide the most accurate temperature readings
Flat door liner
No door storage to allow for the interior to accommodate deeper trays
Foamed-in-place cabinet
Quality design ensures efficiently insulated interior
LED lighting
Attractively illuminates the interior in a gentle white hue for easy viewing
Temperature memory function
Unit will retain its last settings when power is restored in the event of power loss
Self-closing door
Door will automatically close when left ajar, preventing items from accidentally being left exposed to ambient temperatures
Pocket handle
Handle is recessed into the side of the door to ensure no added depth
Open door alarm
Audible alarm sounds if the door is left open for more than one minute
Digital thermostat
Digital microprocessor for easy and precise temperature management, with all controls externally located for added convenience
Magnetic door gasket
Quality door gaskets ensure a tight seal for energy savings and improved performance
Fully finished white cabinet
Allows the unit to be used freestanding
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

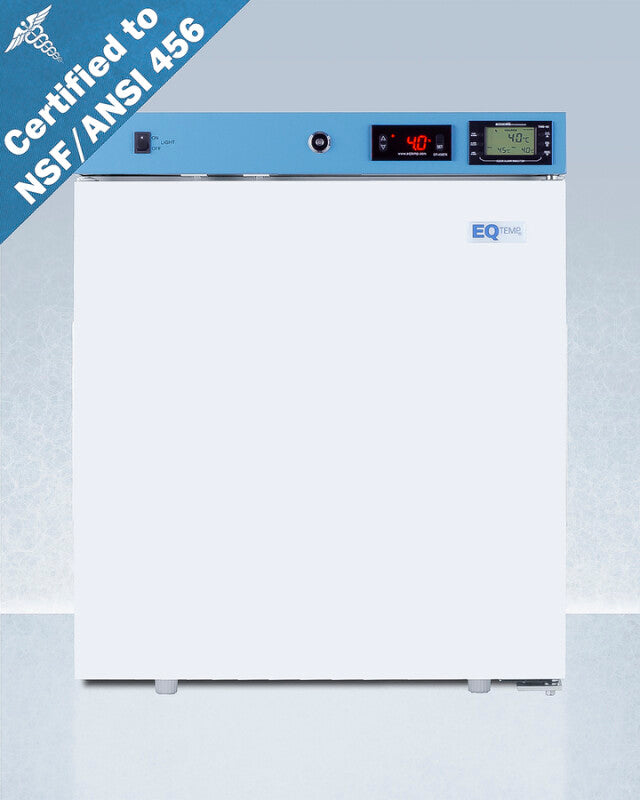

Certified to NSF/ANSI 456 Vaccine Storage Standard
Tested to comply with the latest standards

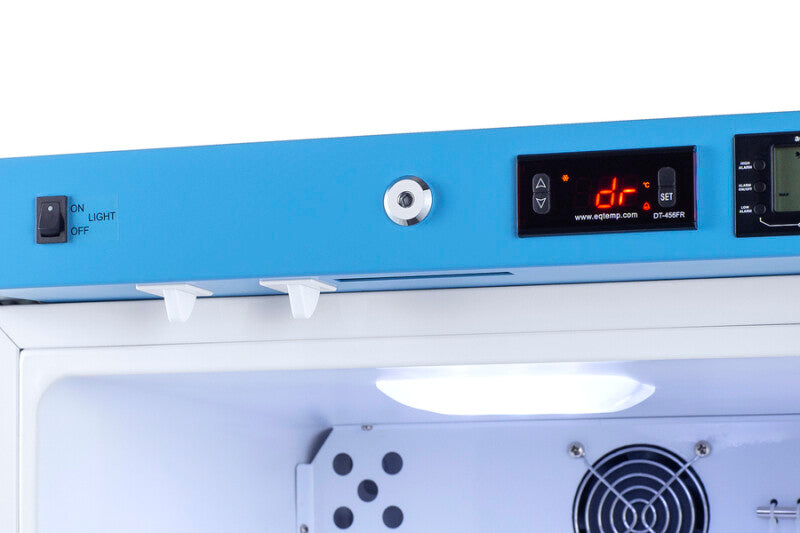

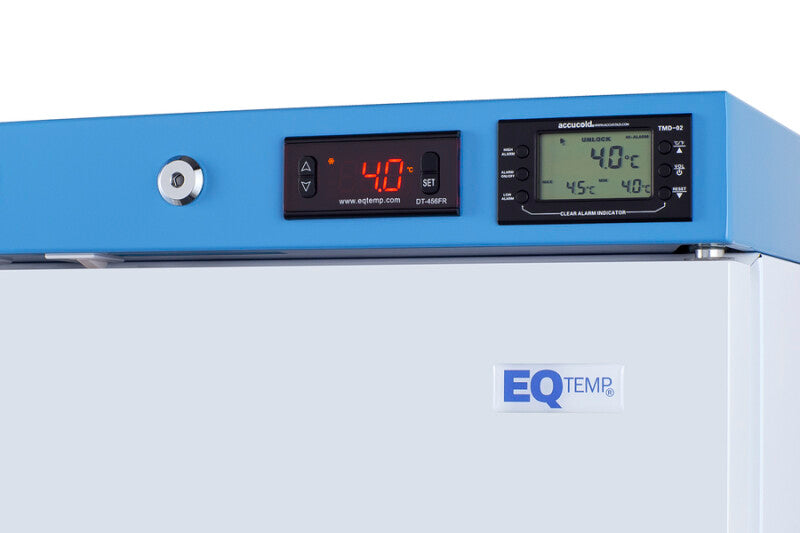

External temperature readout
Includes continuous display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button

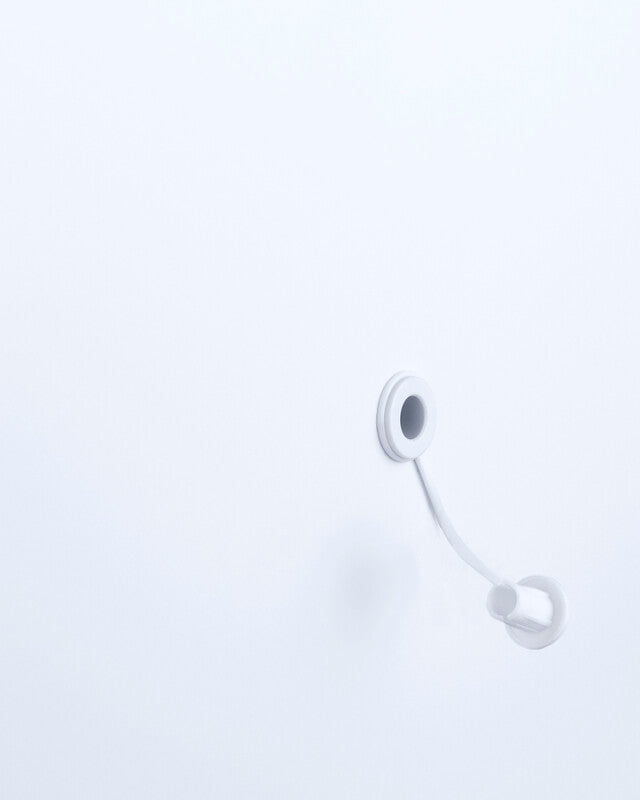

Access port
3/8" probe hole with cover is pre-installed in unit's side to allow easy installation of user-provided monitoring equipment
Hospital grade cord with 'green dot' plug
Secure three-pronged cord for added unit safety in high traffic areas
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
