Product Details for Accucold ABOD18LHD

Technical Details

Overview refrigerator features dimensions

Nominal Height 79.0" (201 cm)
Height of Cabinet 78.5" (199 cm)
Nominal Width 28.0" (71 cm)
Width 27.5" (70 cm)
Width with Door Open 28.0" (71 cm)
Nominal Depth 26.0" (66 cm)
Depth 26.0" (66 cm)
Depth with Handle 27.75" (70 cm)
Depth with door at 90° 52.0" (132 cm)
Capacity 18.0 cu.ft. (510 L)
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.5
Voltage/Frequency 115 V AC/60 Hz
Weight 270.0 lbs. (122 kg)
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
UPC 761101155159
Door Swing LHD
Reversible No
Shelf Type Wire
Shelf Qty 7
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R290
Refrigerant Amount 1.75oz.
High Side PSI 280.0
Low Side PSI 90.0
Wheel Qty 4
Interior Light Yes
Temperature Range 4 to 60ºC (39.2 to 140ºF)
Interior Height 68.5" (174 cm)
Interior Width 24.13" (61 cm)
Interior Depth 18.75" (48 cm)
Compressor Step Height 6.5" (17 cm)
Compressor Step Width 24.13" (61 cm)
Compressor Step Depth 6.5" (17 cm)

Description

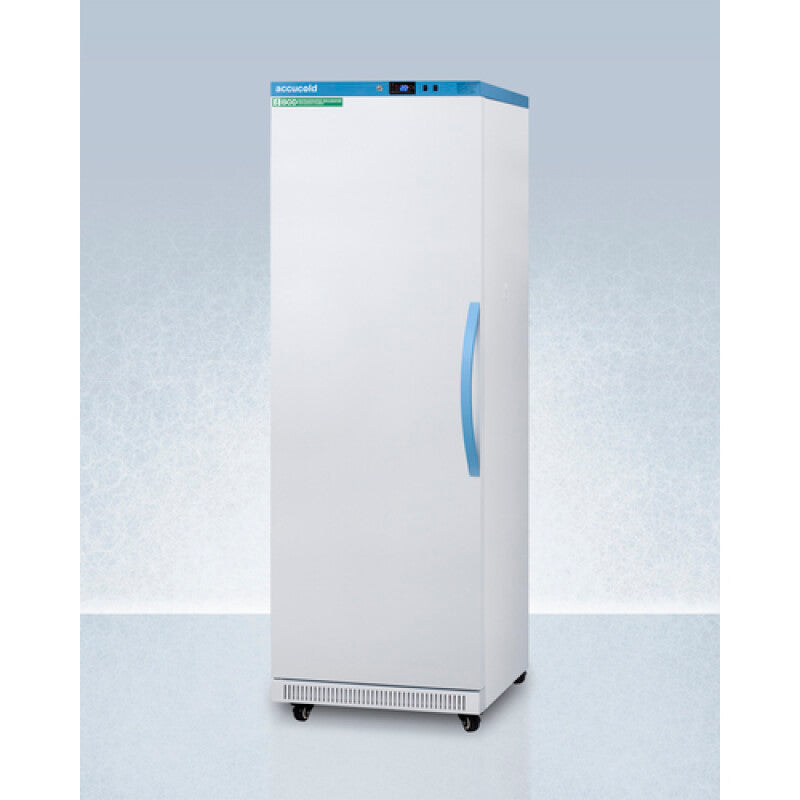

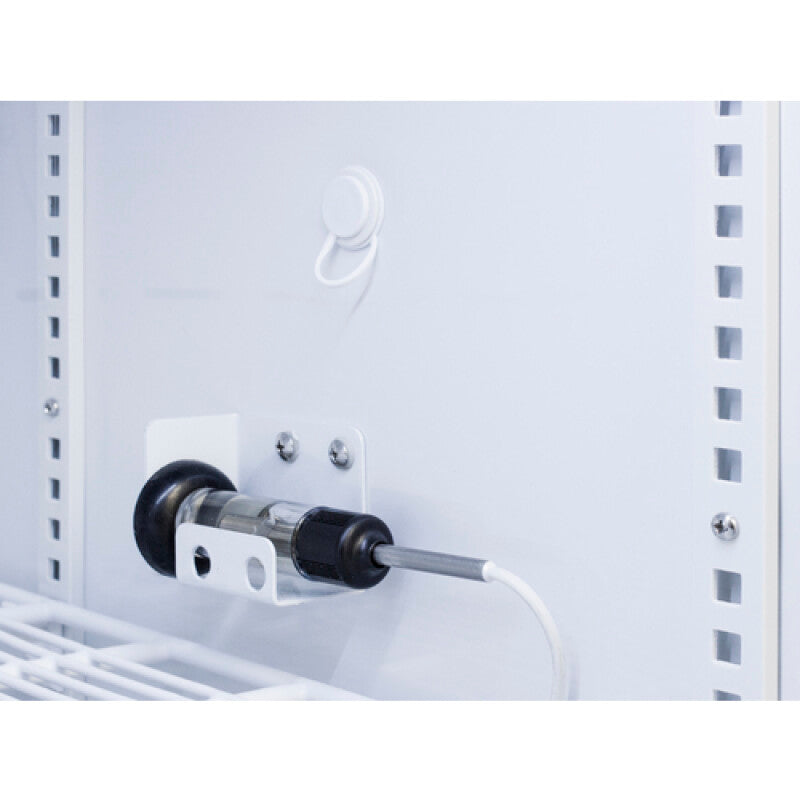

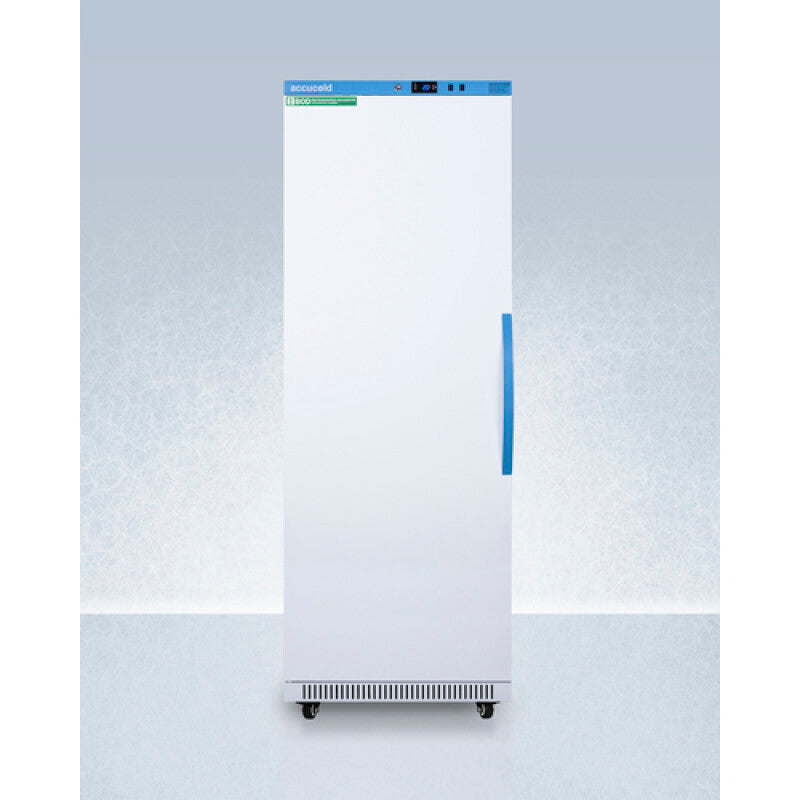

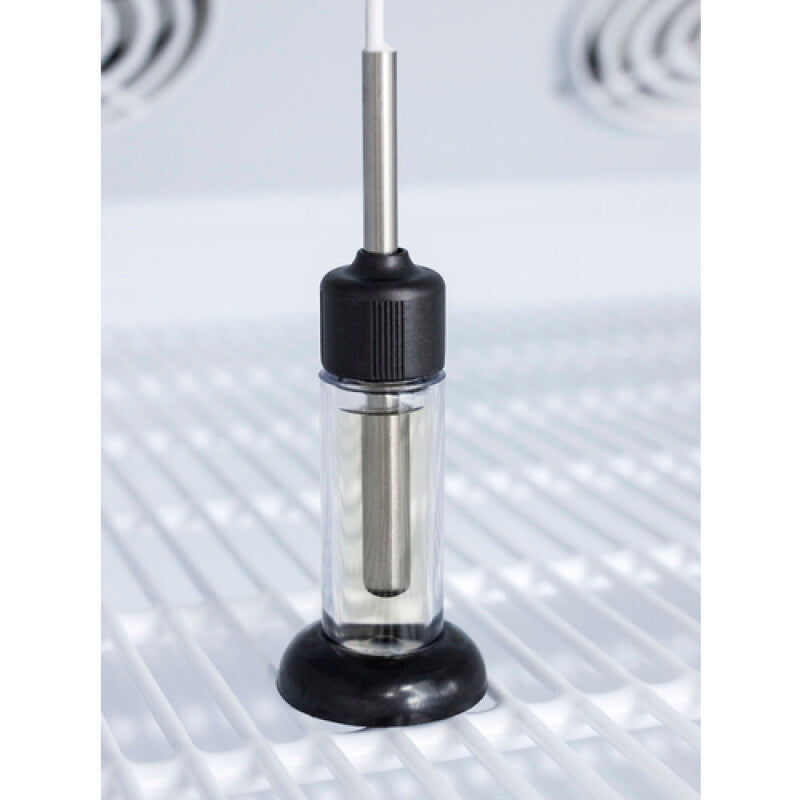

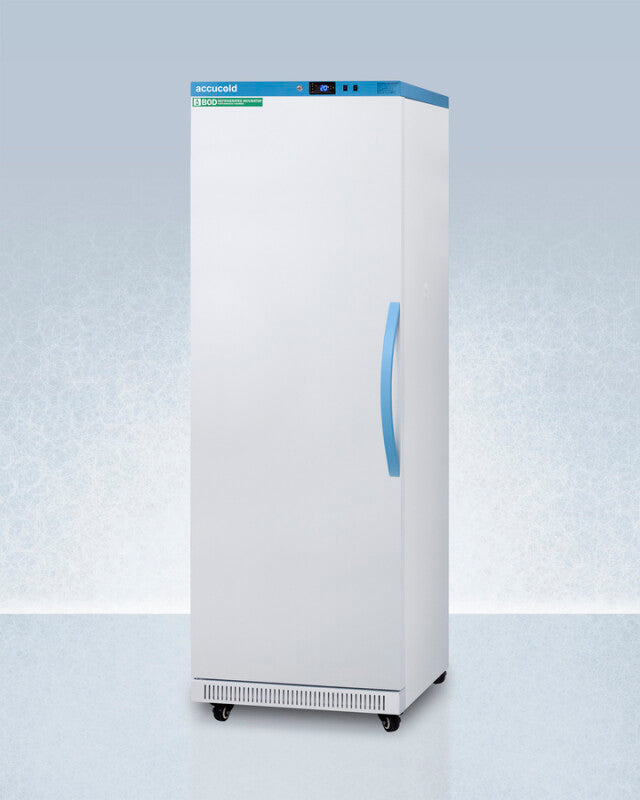

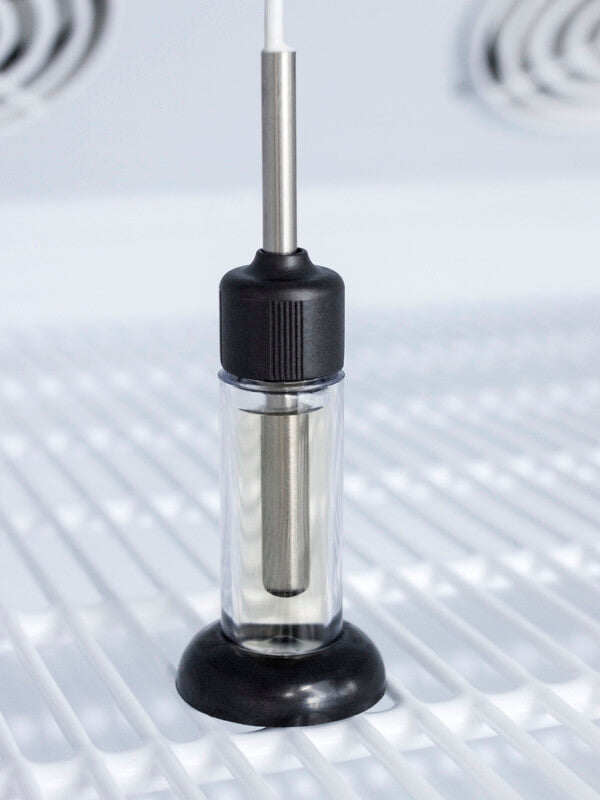

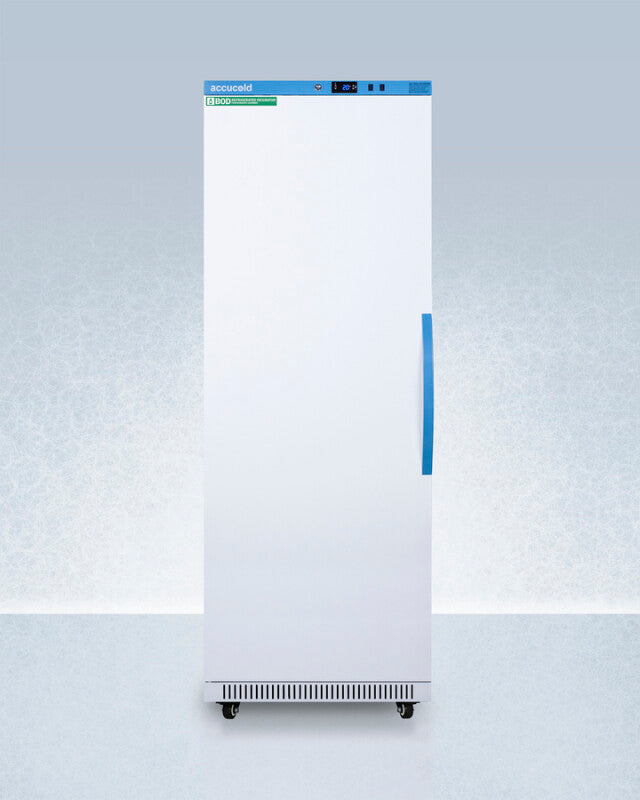

Accucold's Performance Series includes BOD refrigerated incubators designed to provide reliable cold storage in water treatment centers, environmental laboratories, and other research facilities. Model ABOD18LHD is an 18 cu.ft. refrigerated incubator. The adjustable control range allows you to manage the temperature between 4º and 60ºC (39.2 to 140ºF) and comes preset at 20ºC. The microprocessor temperature controller is externally located to minimize door openings, helping to protect stored contents from ambient temperature. The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. The audible and visual temperature alarm sounds if the unit's interior goes out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. This unit is equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices. It comes with a hospital grade cord with a green dot plug for added safety in high traffic laboratory and research areas. Inside, the ABOD18LHD utilizes adjustable cycle defrost operation to avoid temperature spikes. Optimized forced air cooling with one internal fan ensures excellent temperature stability and uniformity with rapid recovery after door openings. The adjustable plastic-coated wire shelves can be positioned at 1/2" increments to accommodate virtually any sized bottle. This unit includes LED internal lighting with an on/off rocker switch so you can ensure the interior contents are not unnecessarily exposed to light. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention. This refrigerated incubator comes in a white cabinet finish with a blue accented control panel. The factory-installed antimicrobial handle is powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. The door ships with a left hand swing and self-closing function. This model includes a factory-installed lock and ships with two keys for staff use. Powerful magnetic gaskets ensure a positive seal. Designed with hydrocarbon refrigerant, the ABOD18LHD provides an energy efficient solution to water storage. Additional size are available, as well as upgrades including digital data loggers, keyless entry locks, and more. Browse the complete Accucold lineup at accucold.com.


Product Features

  • BOD Refrigerated/Heated Incubator
    Designed to store water samples under reliable temperature conditions for optimum research results
  • Purpose-built design
    Constructed and featured for the storage of water samples
  • Pre-set to 20ºC
    Ideal temperature for bottle incubation
  • +/-1ºC Variation
    The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period

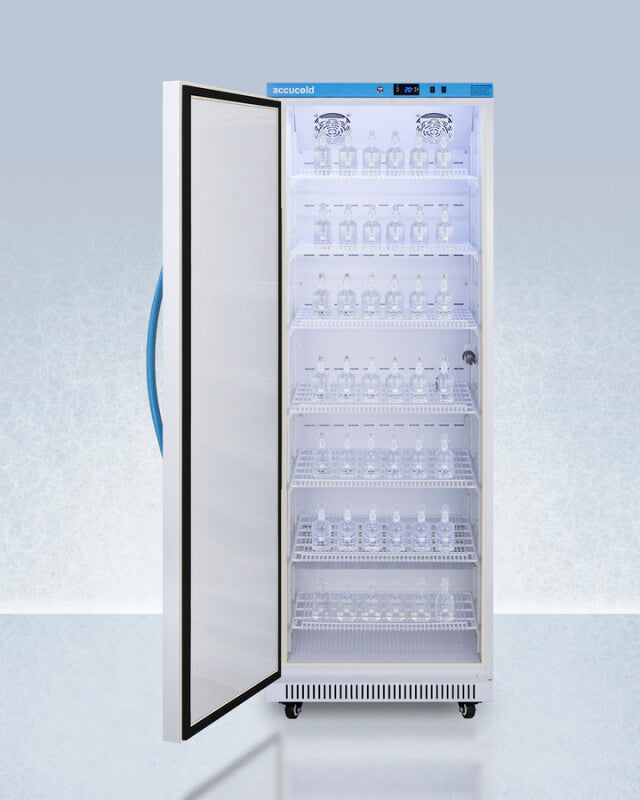

  • Large capacity

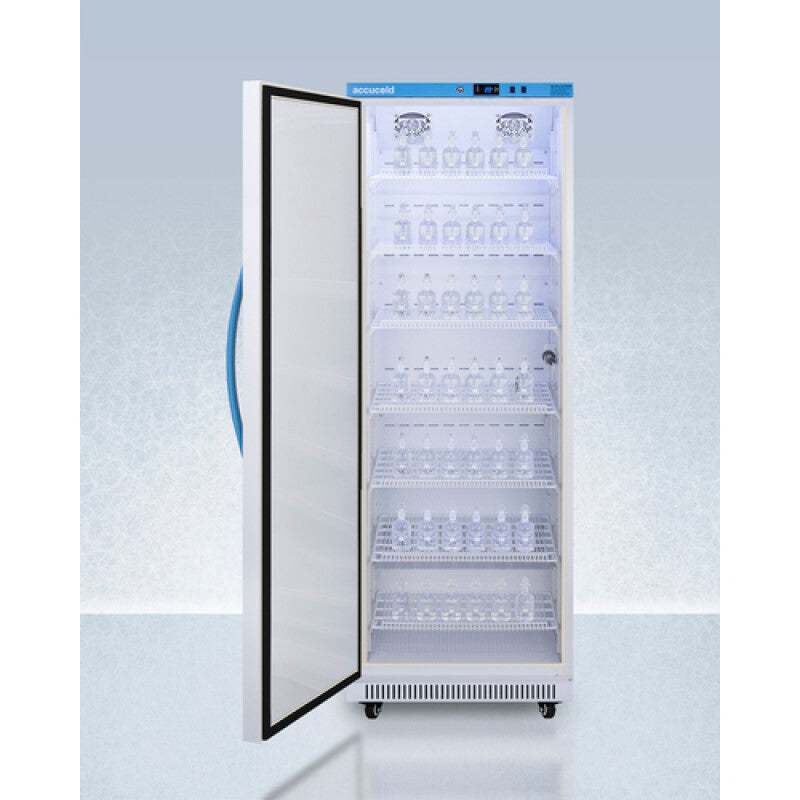

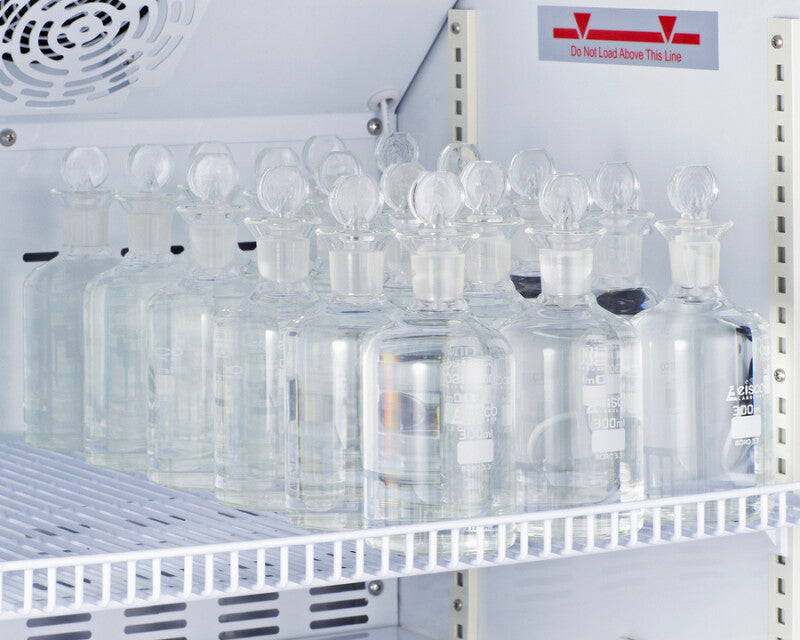

    18 cu.ft. interior can hold up to 300 300ml incubator glass bottles (note: bottle capacity varies by exact bottle design and size)
  • Antimicrobial silver ion-coated handle
    Powder-coated handle with naturally occurring silver ions to help reduce the spread of germs
  • Adjustable temperature
    Intuitive controls let you adjust the interior temperature between +4 to +60ºC
  • Temperature alarm
    Visual and audible alarms alert if the interior temperature rises or falls out of set range

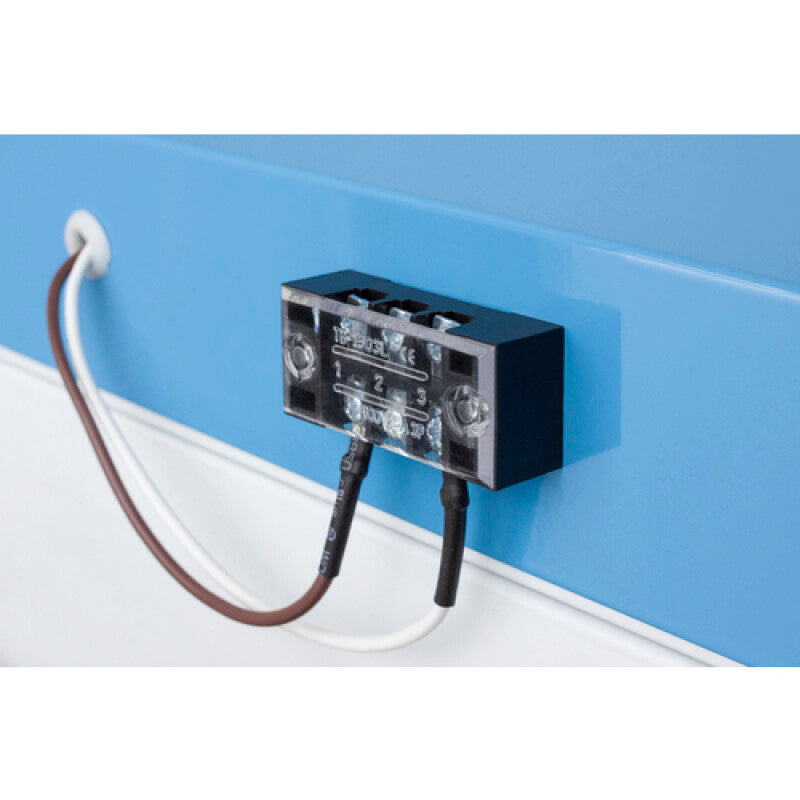

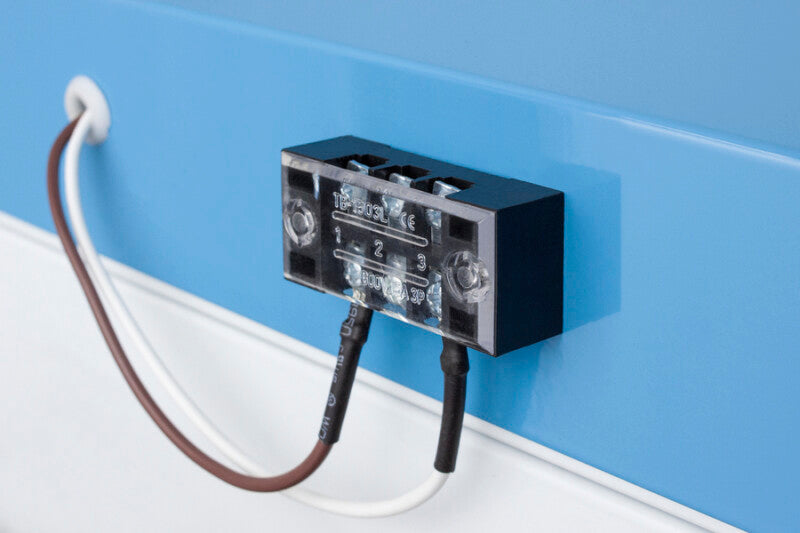

  • Remote alarm contacts
    Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)
  • Automatic defrost with adjustable cycle defrost
    Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup

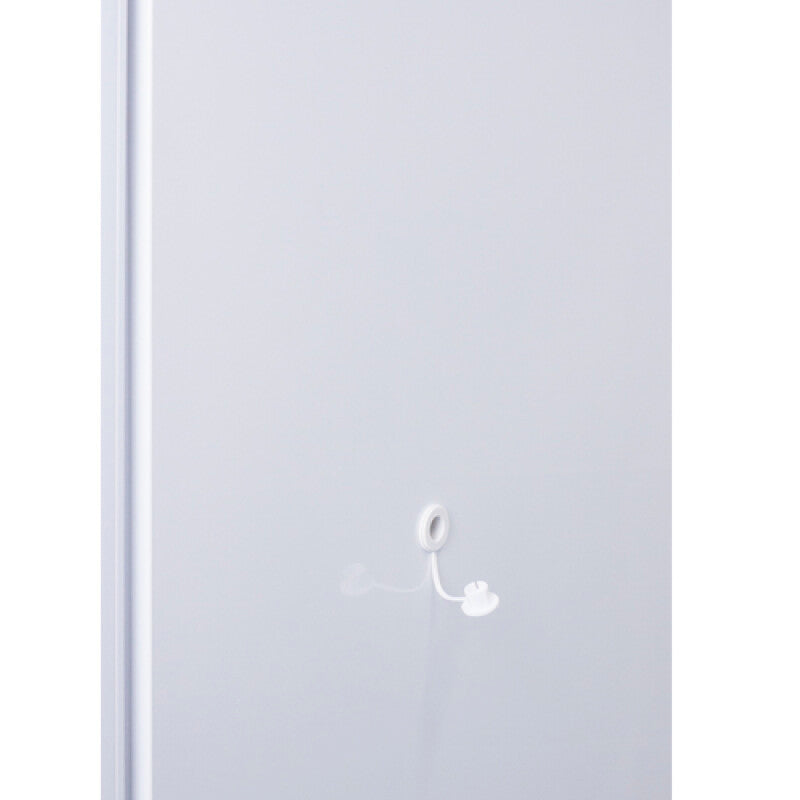

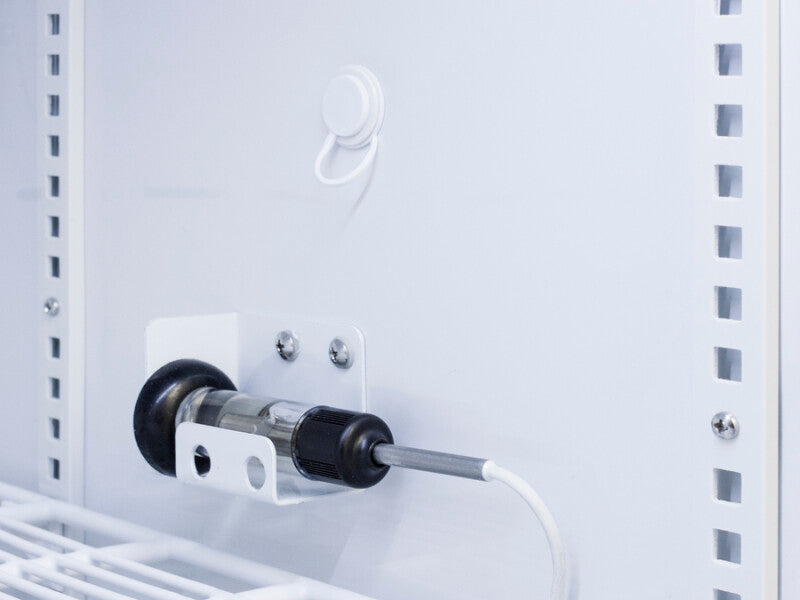

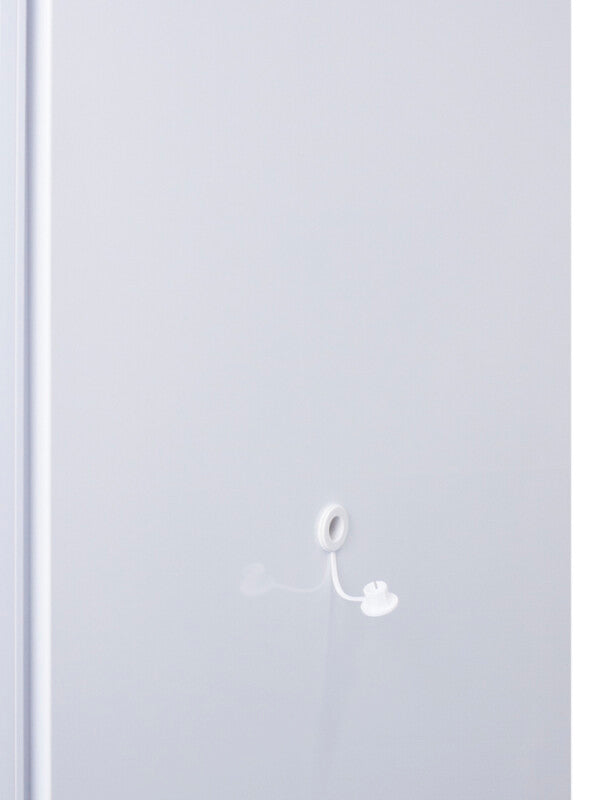

  • Access port
    Includes a pre-installed 1/2" probe hole in the right interior wall to allow easier connection to user-provided monitoring equipment
  • Open door alarm
    Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)
  • Audible power failure alarm
    Battery-powered alarm sounds if the power connection is interrupted
  • Sensor failure alarm
    Audible and visual alarm warns if the sensor is disrupted
  • Password protection
    Control panel requires password entry to adjust the parameters beyond the set point
  • Microprocessor control panel
    Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
  • Resettable min/max display
    Control panel provides a readout of the low and high temperatures in 15 minute increments
  • Factory-installed lock
    Keyed lock conveniently located towards the top of the door for added security (2 keys included)

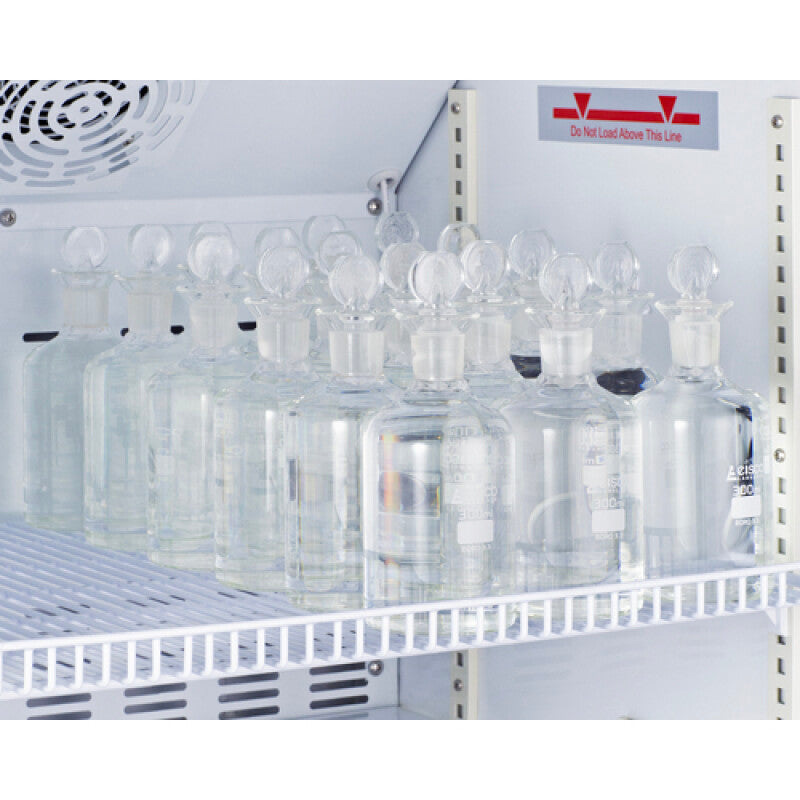

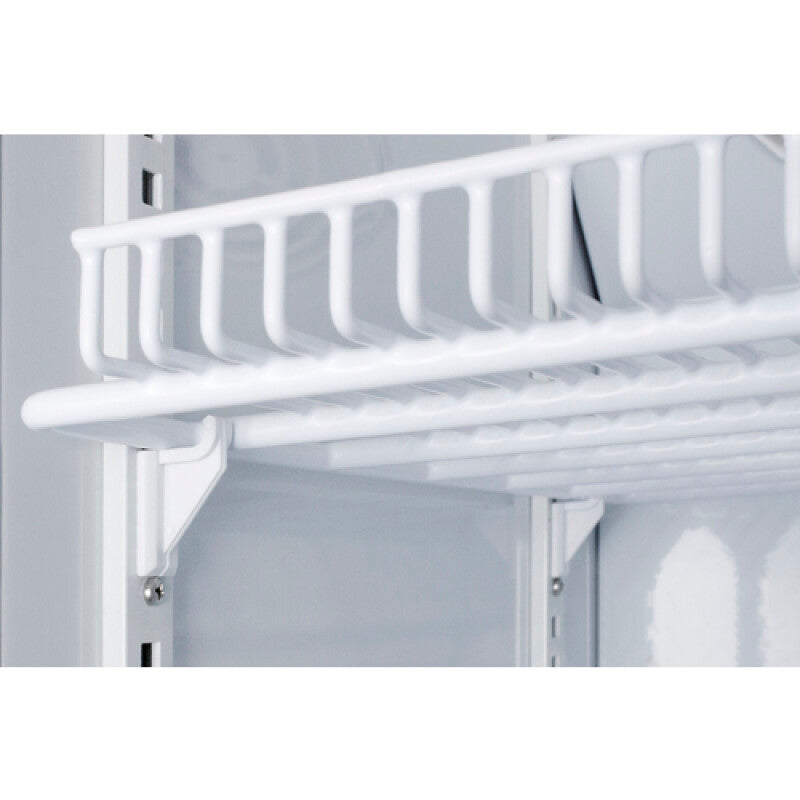

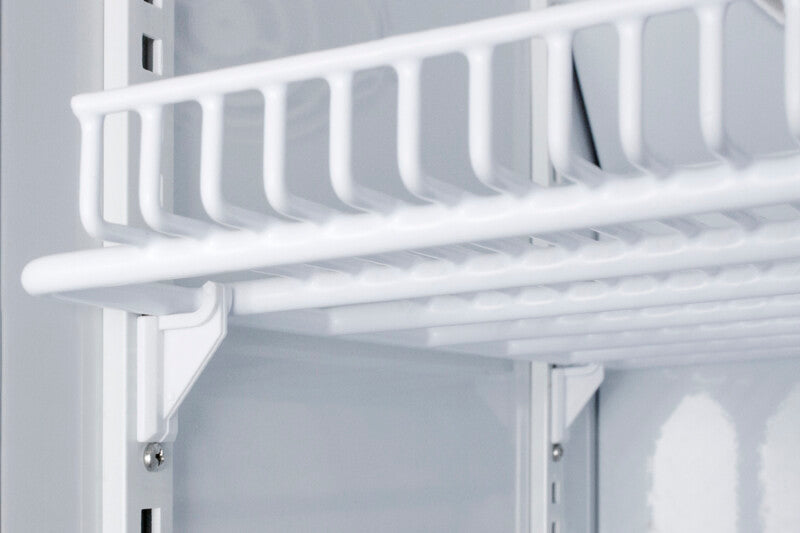

  • Adjustable plastic-coated wire shelves for improved circulation
    Shelves can be positioned with a front lip for small storage items or reversed to a flat position to better hold larger items, with multiple shelf positions spaced at 1/2" to accommodate virtually any size
  • Hospital grade cord with 'green dot' plug
    Secure three-pronged cord for added unit safety
  • Durable interior
    Walls are constructed from white powder coated metal for added strength and improved temperature retention
  • Interior light
    Energy efficient LED lighting with internal on/off switch
  • Magnetic door gasket
    Quality door gaskets ensure a tight seal for energy savings and improved performance

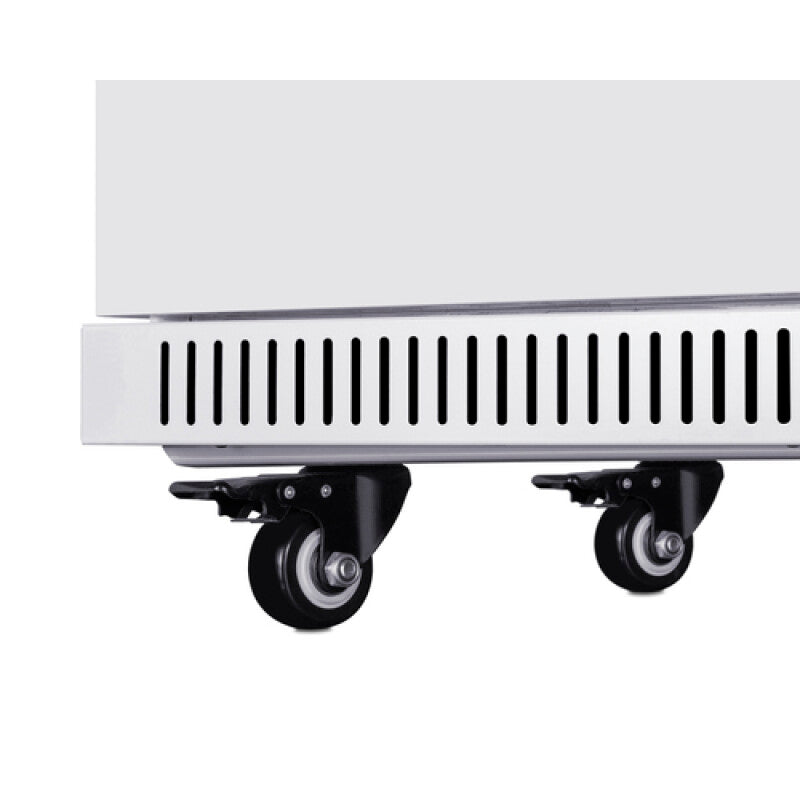

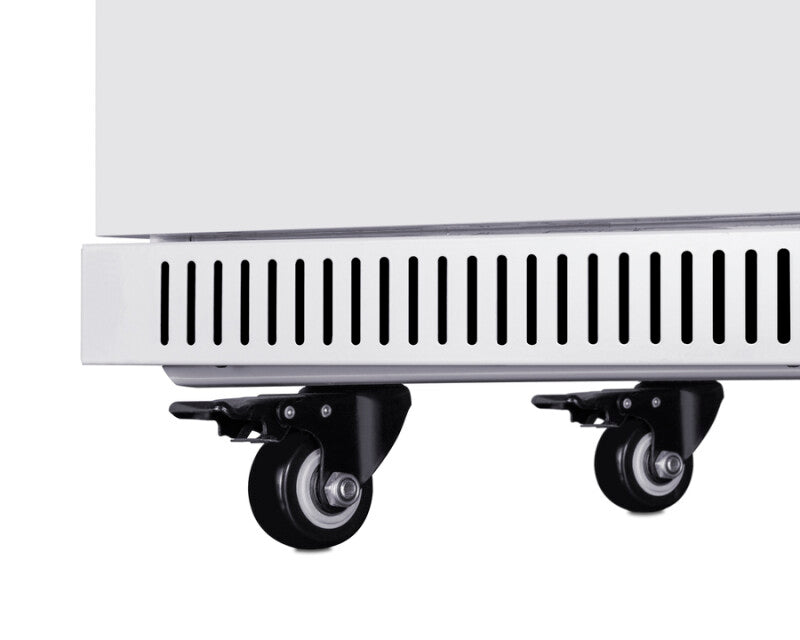

  • Locking casters
    Four pre-installed 3" wheels with brakes ensure smooth mobility, making it easier to clean around and underneath the unit as needed
  • Extended warranty
    2 years parts and labor/5 years compressor
  • Eco-Friendly
    Using environmentally friendly hydrocarbons refrigerants for a greener footprint
  • Usage stickers
    Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS"
  • Additional choices
    Solid and glass door choices available from 1 to 15 cu.ft. Browse the Pharma-Vac series for more information
  • Versatile design
    Compatible with Pyxis®, Omnicell®, and AcuDose RX®
  • 100% CFC free
    Environmentally friendly design without ozone-damaging chemicals
  • CARB Compliant
    Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
