Product Details for SHARP SHC3662FS

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Sones

Normal 1.0
High 12.0

Cfm

Normal 110
High 0.25 in.w.g. 580
High 0.1 in.w.g. 600

Design

Size 36"
Finish Stainless Steel
Controls Capacitive Touch Control

Features

Speed Levels 4 Levels
Fan Speeds (CFM) 110 / 350 / 470 / 600
Boost Mode Yes, 10 Minutes
Sones 1.0 - 12.0
Delay Off Yes, 15 Minutes
Lighting 2 LED Lights450 lux, 3200K
Lighting Levels HI / LOW / OFF
Grease Filters 3 Dishwasher Safe Aluminum Filters
Duct Size 6" Round
Ductless Option Yes, Requires Non-Duct Kit
CFM Adjustable Platform (CAP) Yes

Specifications

Agency Certification ETL
HVI Certification Yes
Accommodates Ceiling Height 8'-9' (9'-10' with Extension Flue)
AC Power 3.7A, 120V, 60Hz

Optional accessories

Product Name Non-Ducted Kit
Model SKCH62DLK
UPC 074000621398
Product Name Charcoal Filters
Model SKCH62CFL
UPC 074000621404
Product Name Extension Flue
Model SKCH62EXF
UPC 074000621411

Warranty/upc

Parts 1 year
Labor 1 year
UPC 074000621374

Dimensions & weight

Width 35.25 in.
Height 34.5 in.
Length 19.69 in.
Shipping Dimensions 40-5/16" x 24-27/32" x 13-15/16"
Product Weight / Shipping Weight 25.5 lbs. / 34.5 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 40.31 in.
Shipping Height 24.84 in.
Shipping Length 13.94 in.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 13.86 ft³
Dimensional Weight 172.25 lbs.
Total of Cubes 13.86 ft³
Total of Dimensional Weight 172.25 lbs.

Product details

Duct Orientation Round Vertical
Size 6 in.
Damper Included

Dimensions & weight (in./lbs.) (w x h x d)

Product Dimensions 35-1/4" x 25-3/8" x 19-11/16"
Shipping Dimensions 40-5/16" x 24-27/32" x 13-15/16"
Product Weight / Shipping Weight 25.5 lbs. / 34.5 lbs.

Description

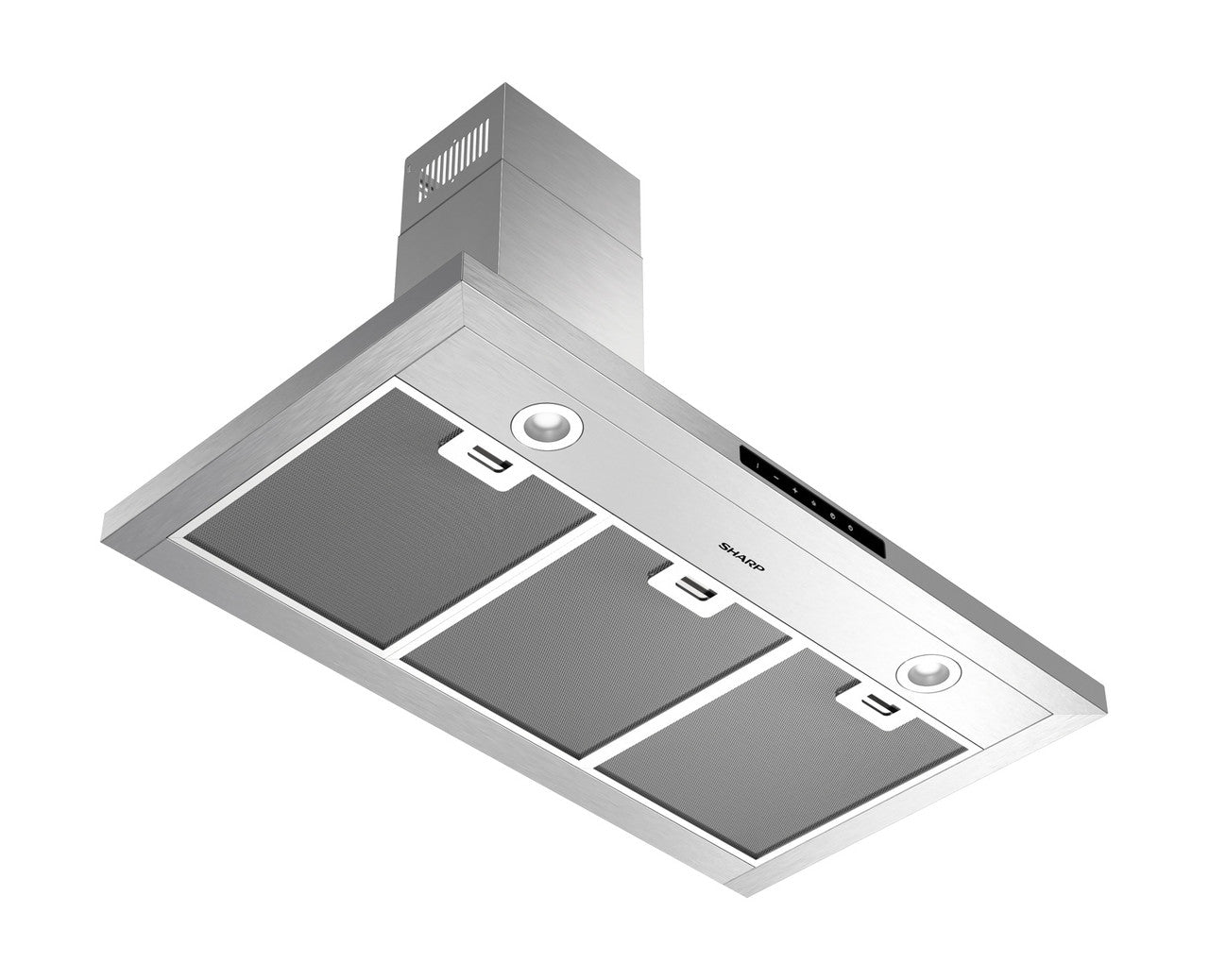

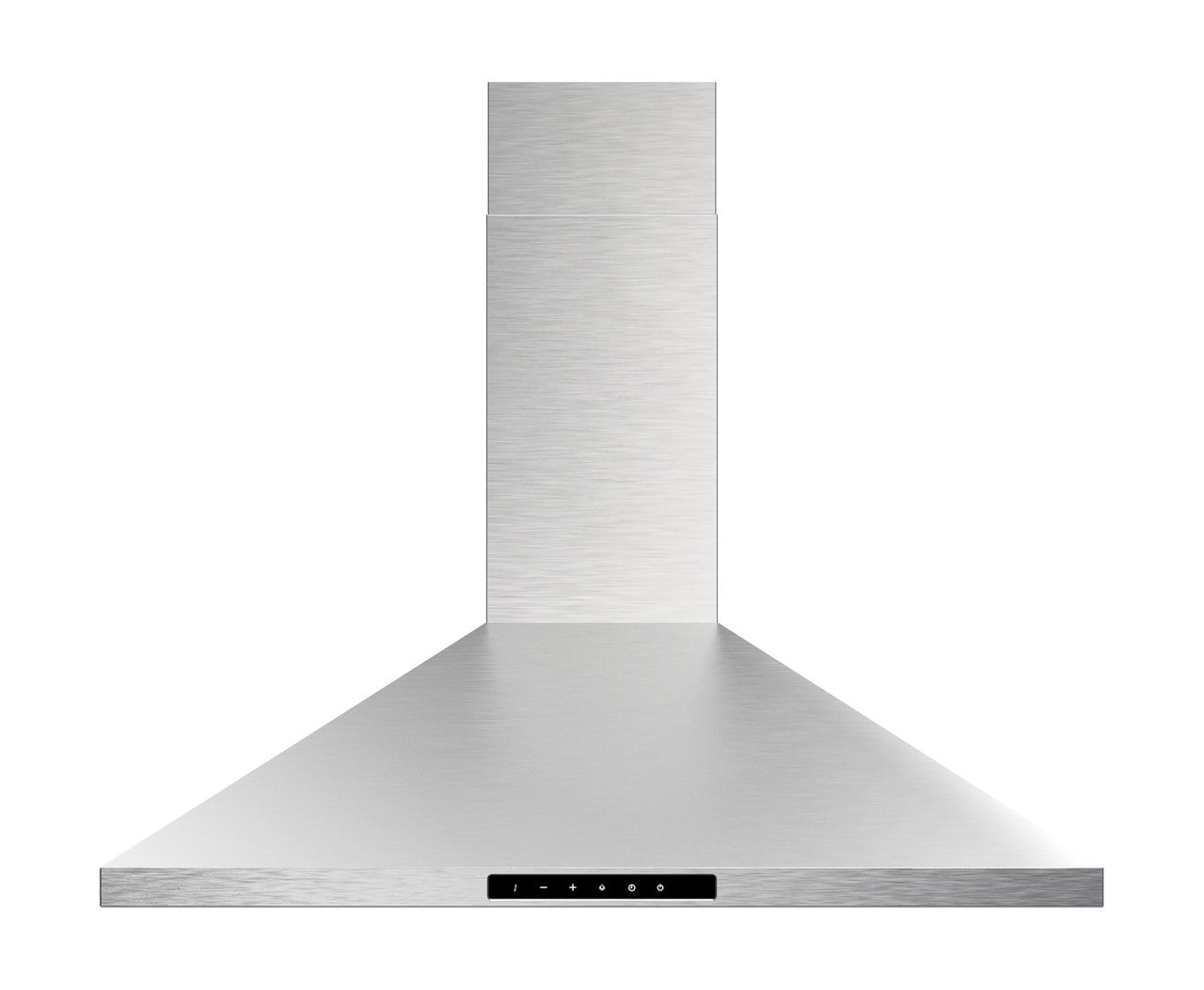

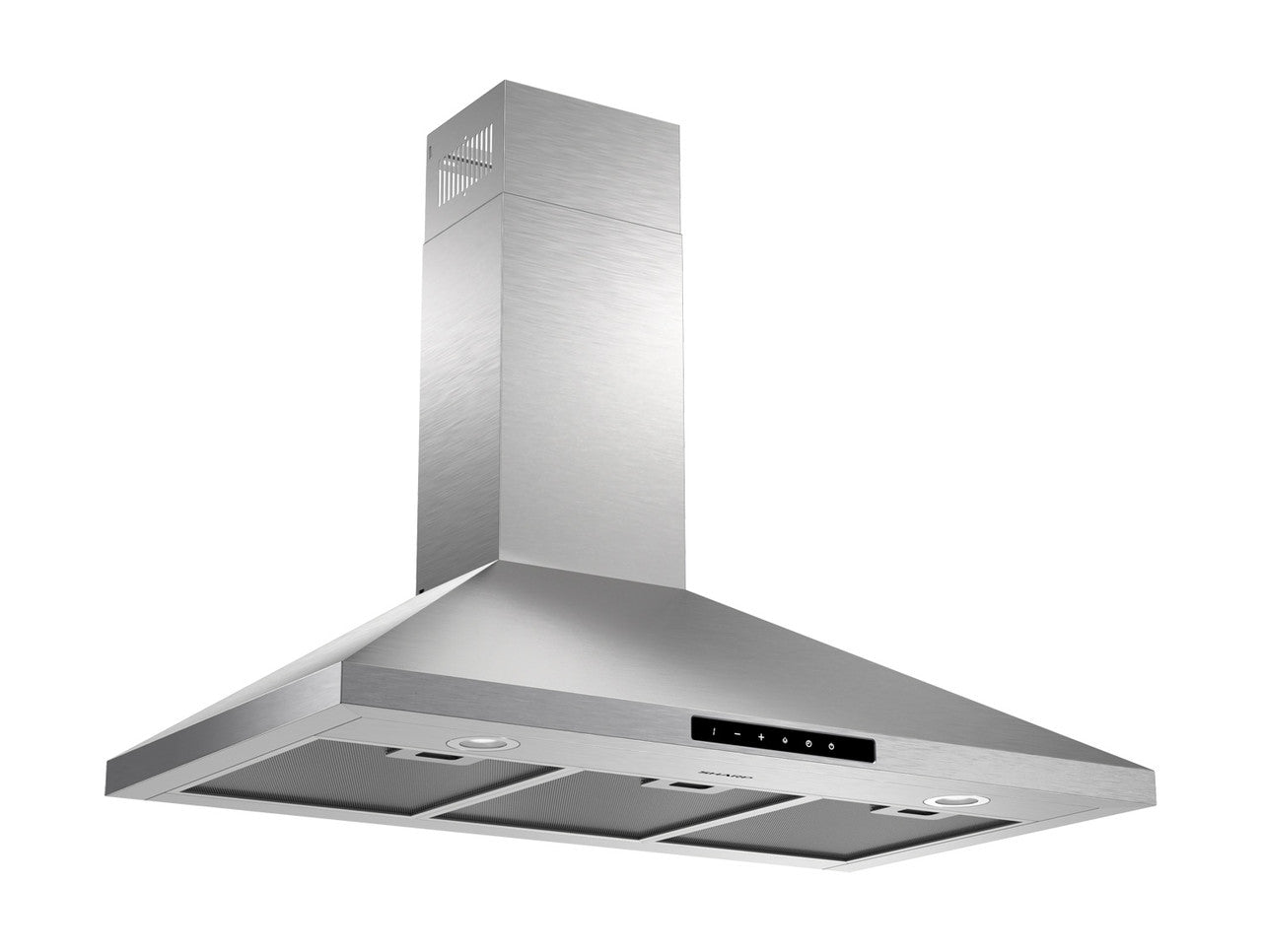

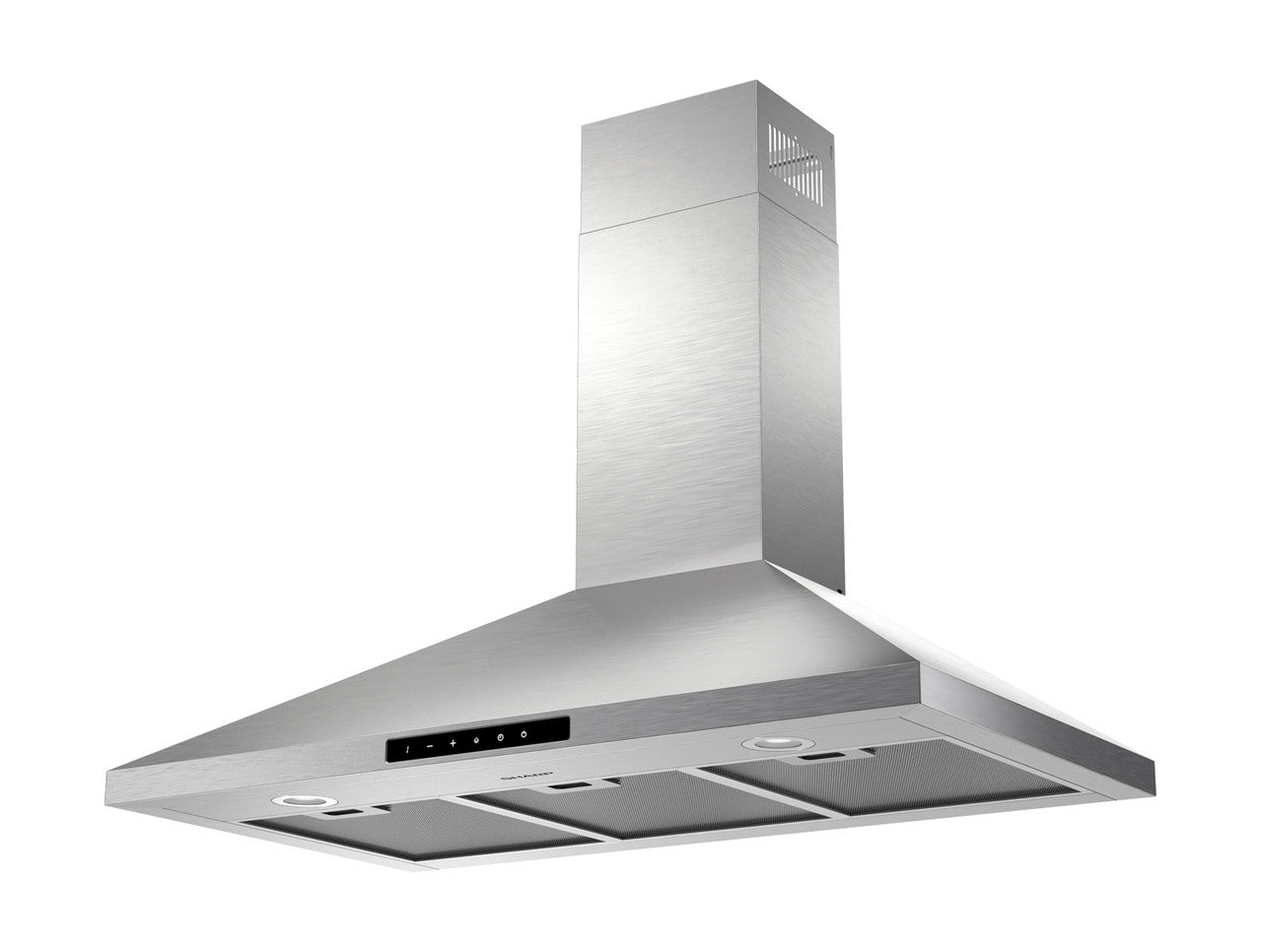

Our large, 36-inch Wall Mount Chimney Range Hood System is engineered to help reduce unwanted cooking odors and smoke. With push-button controls, plus dishwasher-safe filters, the SHC3662FS hood range from Sharp will become your new favorite kitchen appliance.The SHC3662FS range hood features a stainless-steel finish to complement any kitchen, plus discreet branding, and pairs beautifully with other stainless-steel appliances. And the bright white LED task lighting adds an elegant finishing touch to your modern kitchen.The Sharp 36-inch Wall Mount Chimney Range Hood (SHC3662FS) features easy-to-reach, easy-to-replace filters and a 16-inch chimney. For kitchens with high ceilings up to 10-feet, the optional Range Hood Extension Flue (SKCH62EXF) can be purchased separately. With decades of experience designing innovative cooking appliances, it's easy to see why cooks around the world trust Sharp.Browse our full range of Sharp hood ranges to find the right ventilation system for your kitchen.


Product Features

  • 4-Speed Stainless Steel Hood
  • 600CFM for Fast Ventilation
  • CFM Adjustable Platform
  • Premium LED Task Lighting
  • 15-Minute Delay Off Timer
  • Option to Convert to Ductless Venting
  • Dishwasher-Safe Mesh Grease Filters
