Product Details for SHARP SDH3042DB

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Design

Size 30" Wide
Number of Cooking Zones 4
Color Black

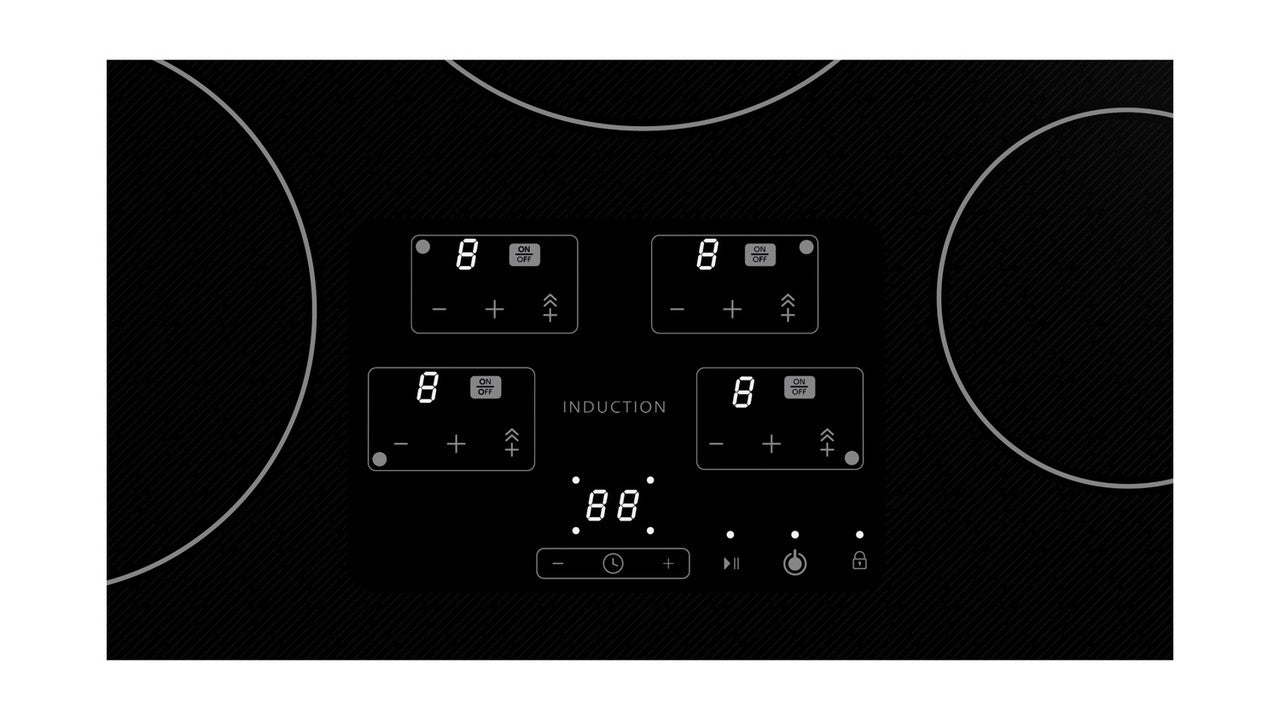

Controls

Control Location Front Center
Control Type Glass Touch
Display White LED

Features

Power Adjustment Levels 1 - 9
Power Boost Mode "P" All Zones
Keep Warm Mode "L" All Zones
Simmer Enhancer Enabled Zones Front Left / Rear Right (at levels 1-4)
1-99 Minute Timer / Zone Yes, All Zones
Automatic Pan Detection Yes, All Zones
Pan Size Detection Yes, All Zones
Residual Heat Indicator "H" Yes, All Zones
Control Lock Yes
Auto Power Shut Down Yes, 120 minutes
Ventilation Spacers Yes, 4

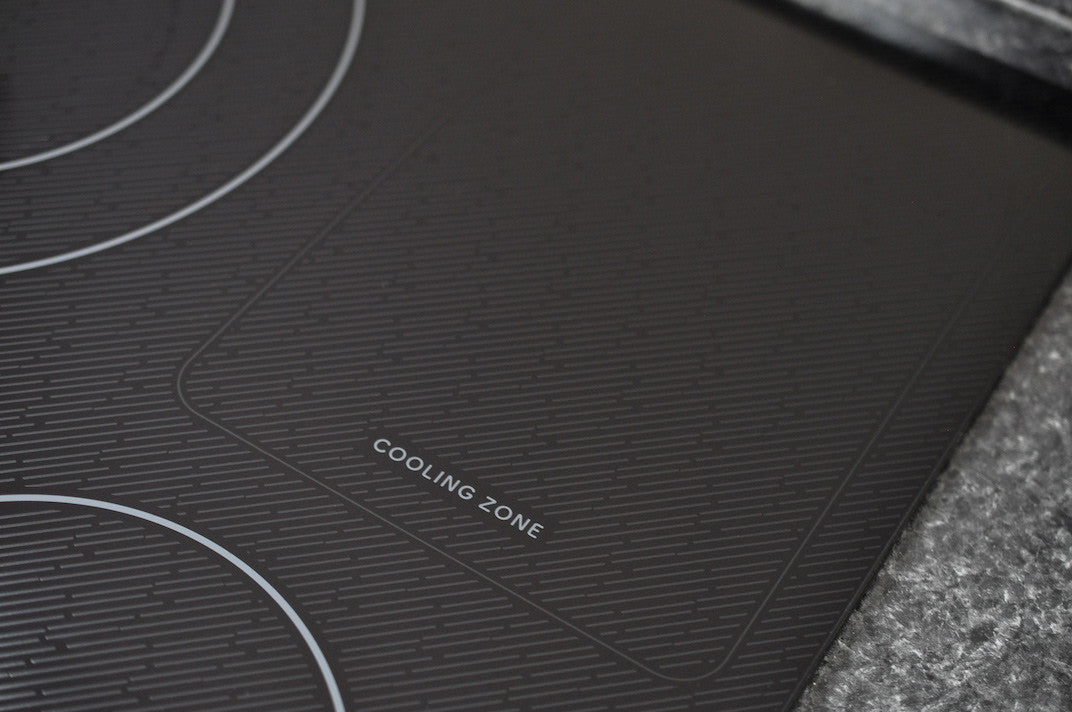

Cooling Zone Yes

Zone one

Location Left Front
Size 9.2"
Element Induction
Element Performance / Boost 2200W / 3200W

Zone two

Location Left Rear
Size 7.2"
Element Induction
Element Performance / Boost 1800W / 2600W

Zone three

Location Right Front
Size 6.2"
Element Induction
Element Performance / Boost 1800W / 2000W

Zone four

Location Right Rear
Size 10.2"
Element Performance / Boost 2400W / 3700W
Element Induction

Technical details

Total Wattage 7400W
Voltage 240v, 60Hz
Agency Certifications ETL, CETL, FCC, CSA
Amps 40A
Approved for Combination Installation with Sharp's Single Wall Oven and Microwave Drawer™ Yes

Warranty/upc

Parts and Labor 1 Year Parts, 1 Year Labor
UPC 074000620674

Other

Cutout Dimensions (W x D) Min.: 28-3/4" x 19-21/32" Max.: 29-5/16" x 20-1/16"
Product Dimensions (W x H x D) 30.0" x 2-5/32" x 21.0"
Shipping Dimensions (W x H x D) 35-15/64" x 8-15/32" 26-31/32"

Dimensions & weight

Height 33.5 in.
Cutout Dimensions (W x D) Min.: 28-3/4" x 19-21/32" Max.: 29-5/16" x 20-1/16"
Product Dimensions (W x H x D) 30.0" x 2-5/32" x 21.0"
Shipping Dimensions (W x H x D) 35-15/64" x 8-15/32" 26-31/32"
Product Weight / Shipping Weight 29.9 lbs. / 33.5 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Height 38.5 in.
Source Calculation

Description

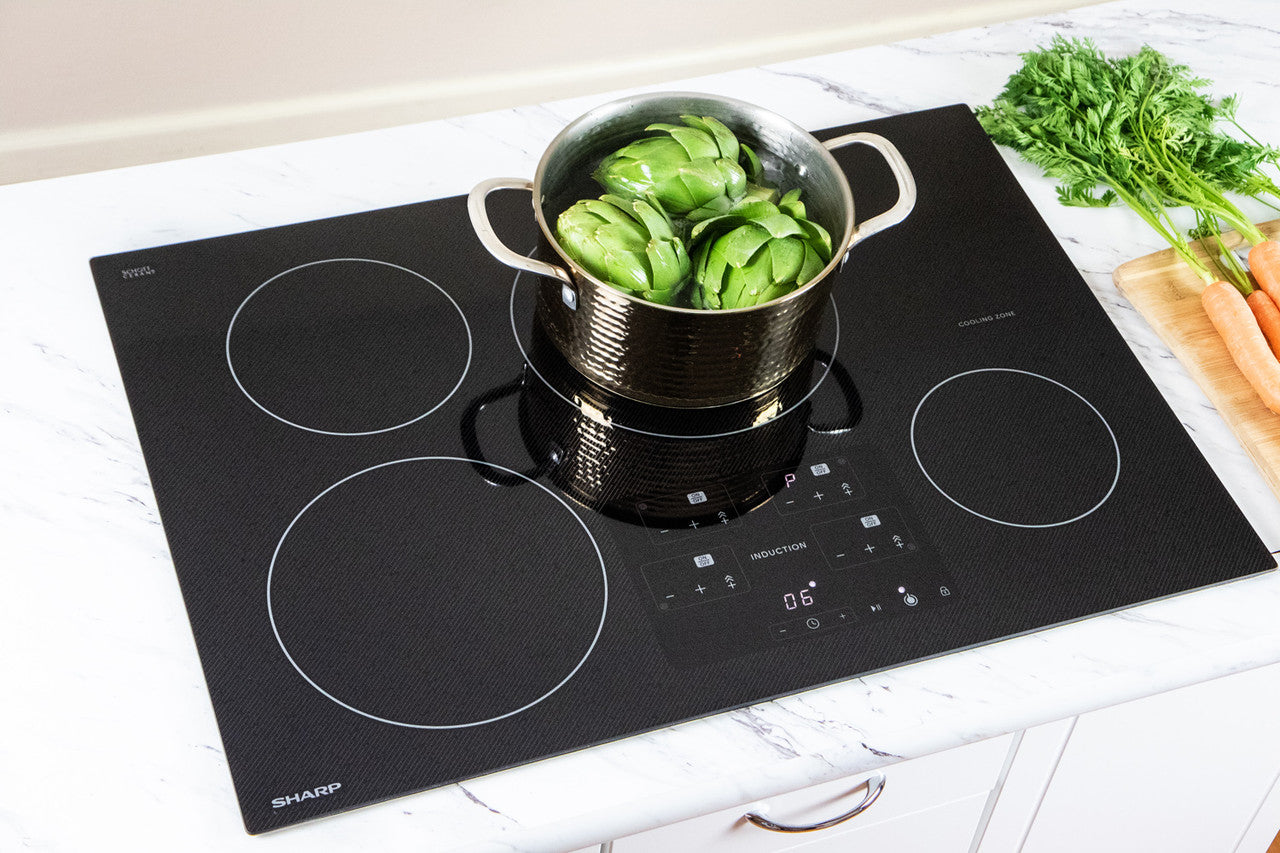

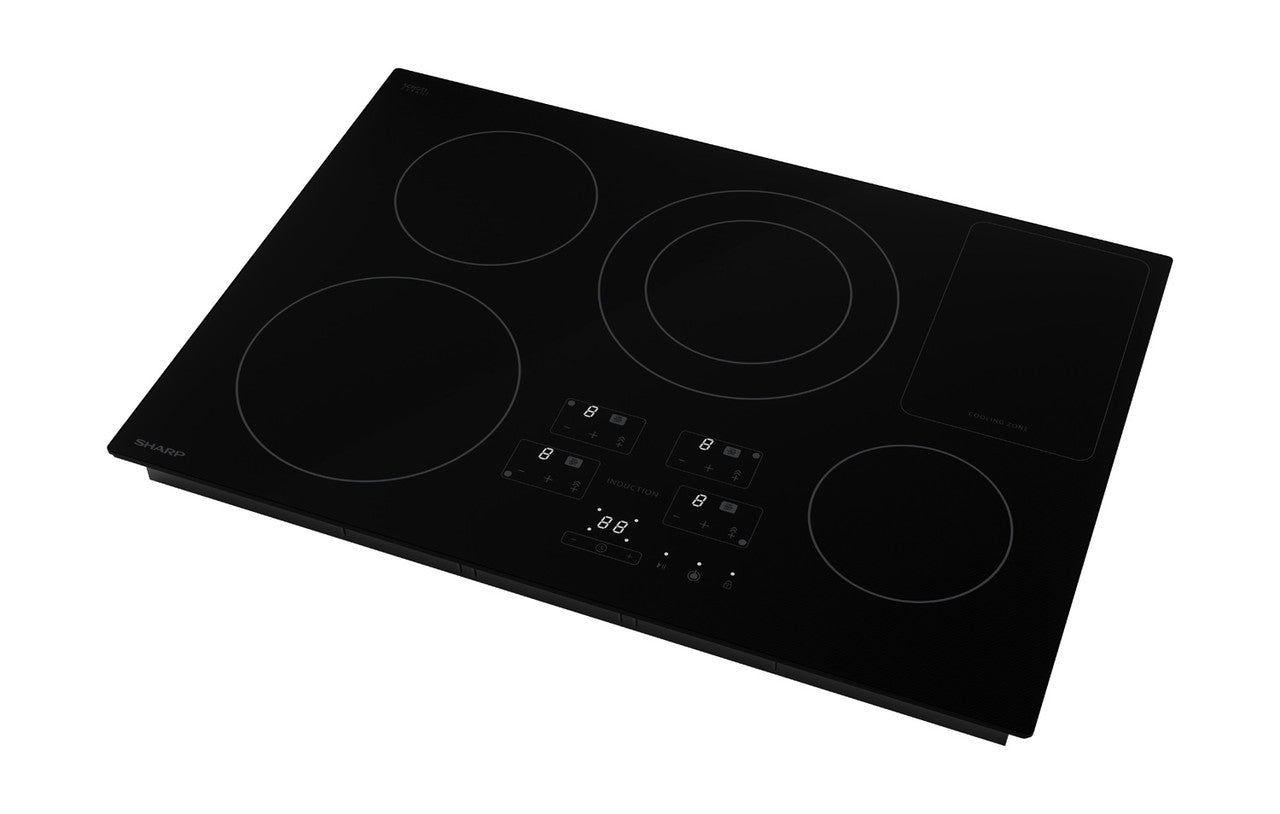

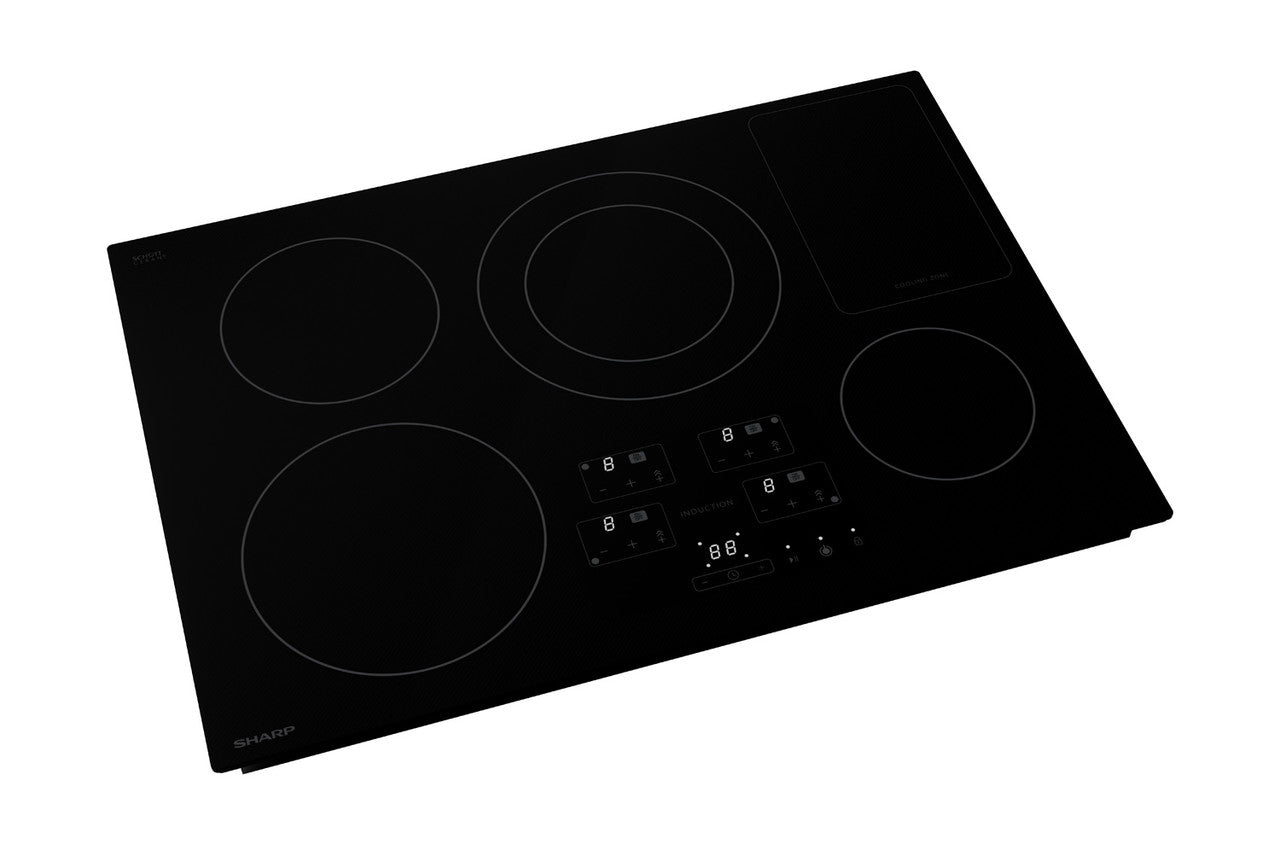

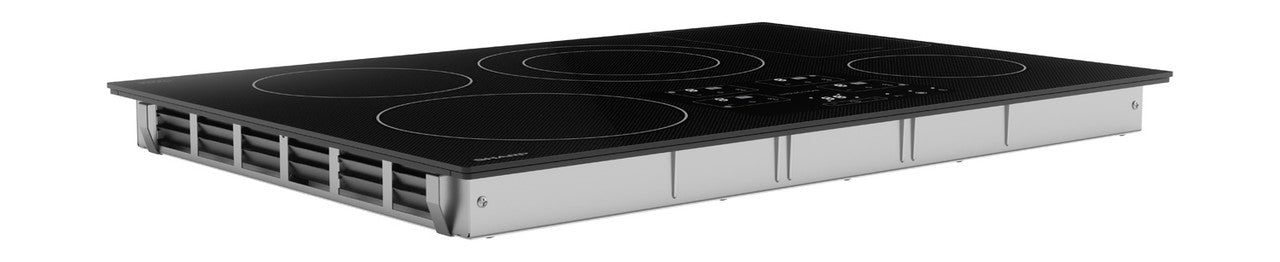

The 30-inch Sharp(R) SDH3042DB Cooktop is a powerful, beautiful addition to your dream kitchen. The black mirror finish of the premium Schott(R) glass surface is a perfect match and can be combined with our Easy Wave Open Microwave Drawer(TM) and our European Convection Built-In Single Wall Oven.

The four cooking zones give you more flexibility to orchestrate even your most elaborate entertaining. The SDH3042DB features a variable-sized zone and a convenient cooling zone. More precise than gas, more efficient than electric, the Sharp Cooktop is faster than either. There is a kitchen timer, and even a Power Boost for those times when you need that pasta water to boil. The Simmer Enhancer option provides low, consistent cooking performance for your most delicate soups and sauces. Heat is generated directly into the cookware itself, so there is less wasted energy to heat your kitchen. And without an open flame or radiant coil, spills and splatters are less likely to burn, and a breeze to clean up.

The 30-inch SDH3042DB Cooktop has advanced safety features. All of the cooktop controls can be locked-down. Cookware must be present for a cooking zone to turn on, so you won't accidentally turn it on, or leave it on after you remove the pan. Plus all cooking zones countdown and turn themselves off after 120 minutes so kitchen mishaps are less likely

Powerful and efficient, fast and flexible, the beautiful Sharp SDH3042DB Cooktop with black mirror finish is certainly Simply Better Living.

Looking for an cooktop with more cooking area? Check out Sharp's 36" Width Cooktop .



Product Features

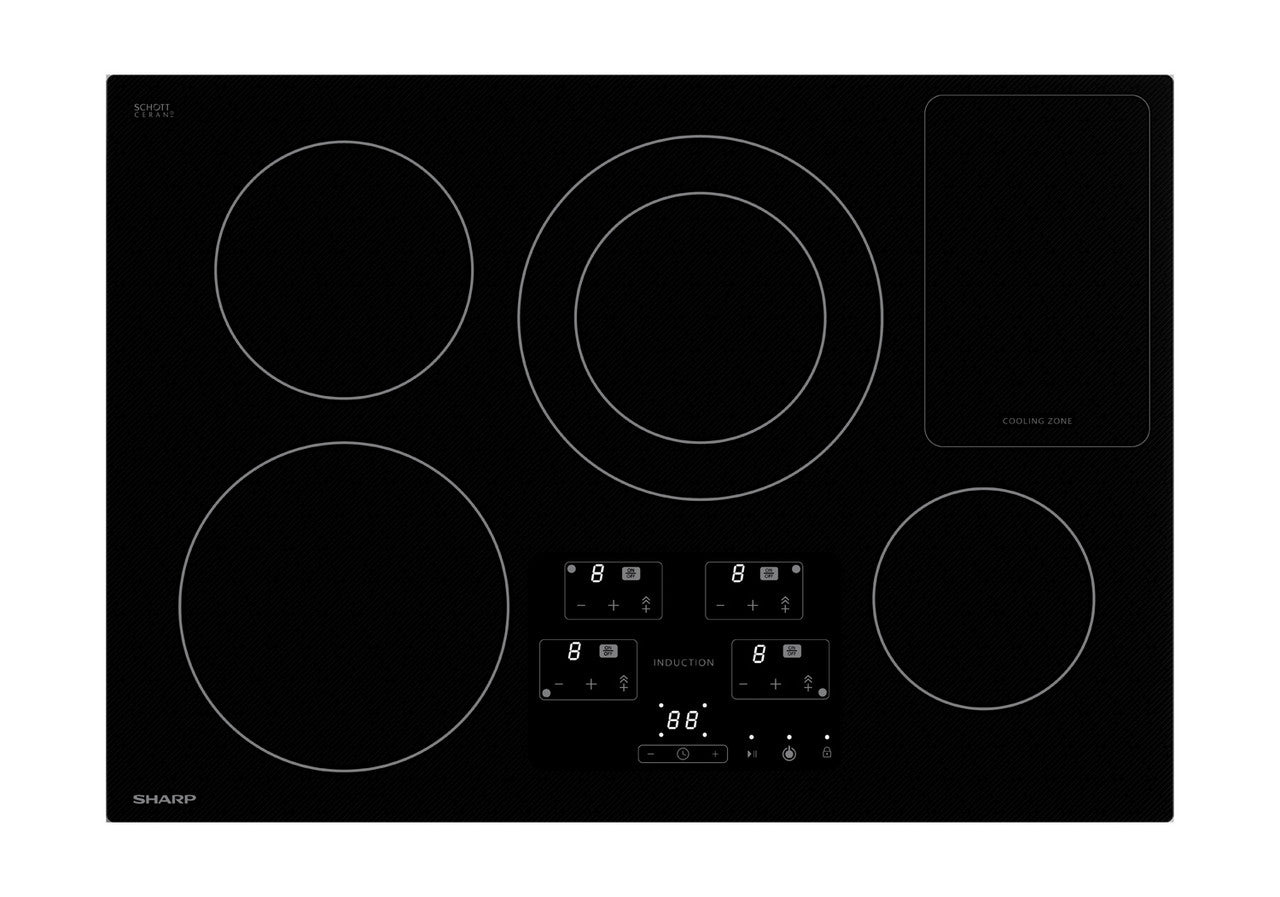

  • Four Induction Cooking Zones Including a Variable Sized Zone and Convenient Cooling Zone
  • Power Boost Increases Power up-to 50%
  • Enhanced, White LED Display
  • Simmer Enhancer for Extraordinarily and Consistent Cooking Performance
  • Residual Heat Indicator for Each Cooking Zone
  • Can be Installed Over a Sharp Built-In Wall Oven or Microwave Drawer Oven
  • Contemporary European Black Mirror Finish Made with Premium SCHOTT® Glass
