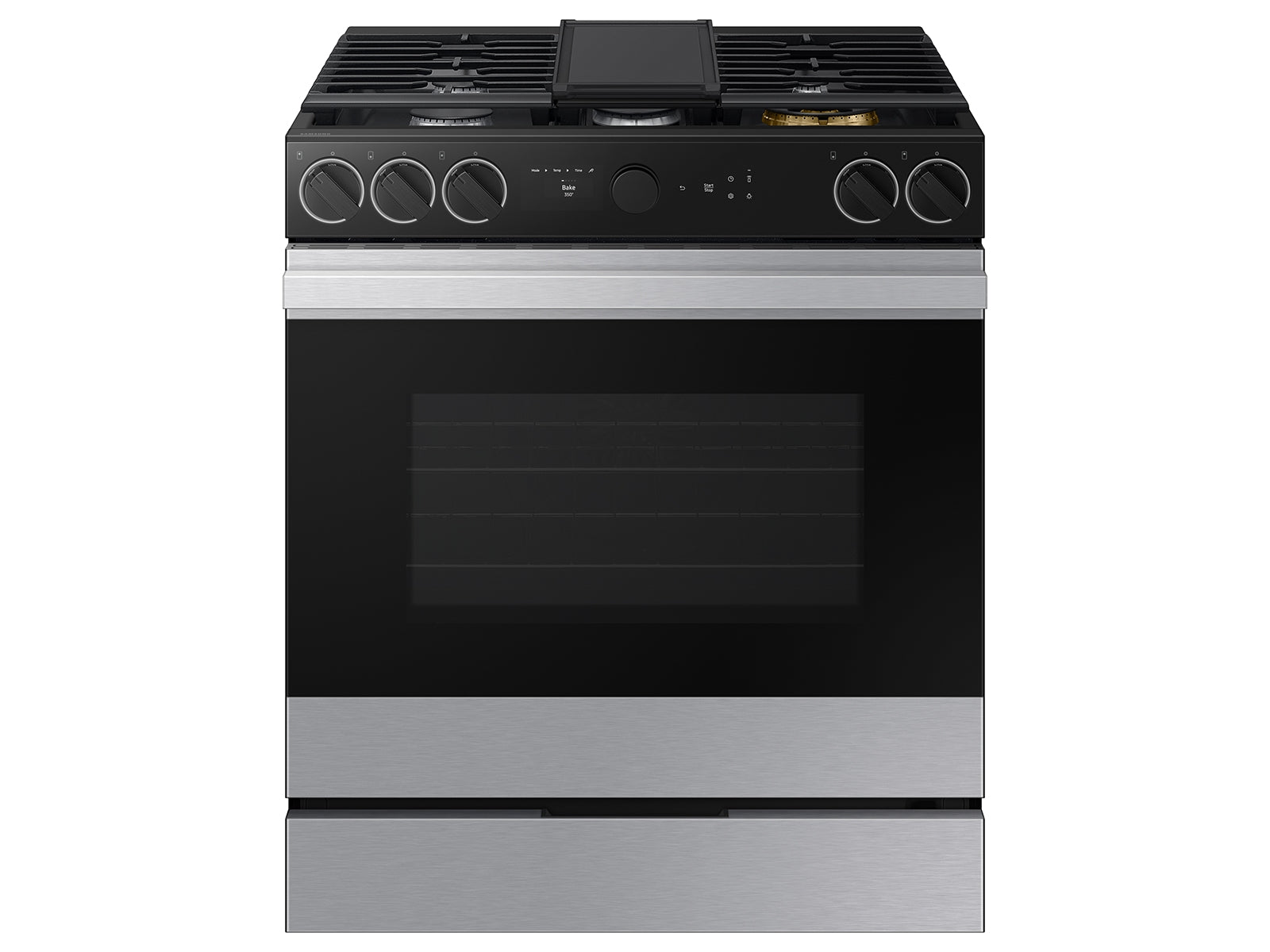

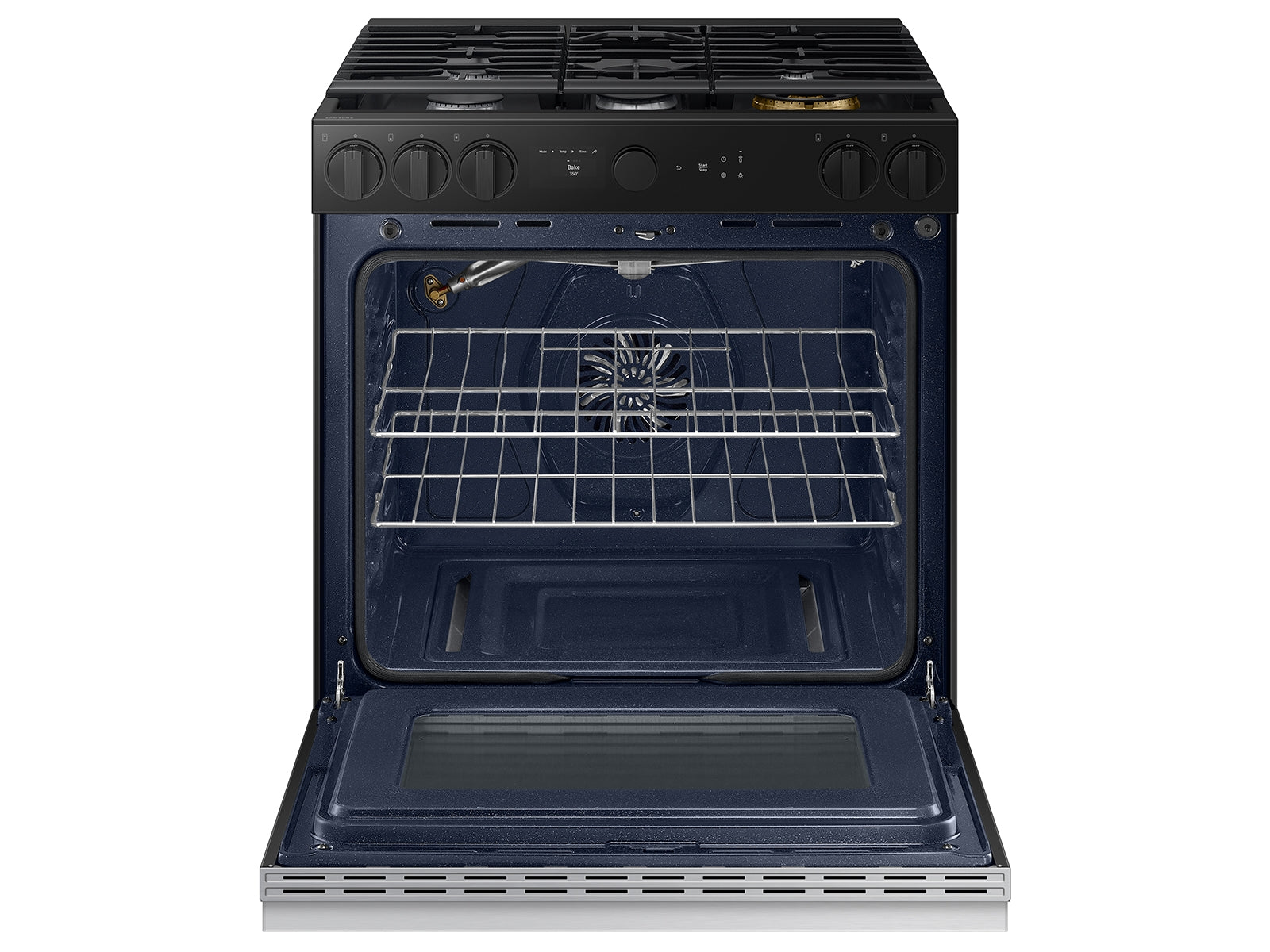

Product Details for Samsung NSG6DG8700SR

Technical Details

Key features

Wi-Fi Connectivity Yes
Self Clean Yes
Large Oven Capacity 6.0 cu. ft.
Cooking System Convection+
Control Type Touch + Precision Knobs
ADA Compliant Yes
SmartThings Yes
Illuminated Precision Knobs Yes
Steam Clean No

Design

Color Stainless Steel
Configuration Slide-In
Fuel Type Gas
Controls for Oven 2.25" LCD Display + Dial
Controls for Cooktop Illuminated Precision Knobs
Display Color White
BESPOKE Yes

Weights & dimensions

Oven Dimensions 24 13/16" x 21 5/8" x 19 5/8"
Product Weight 207.0 lbs

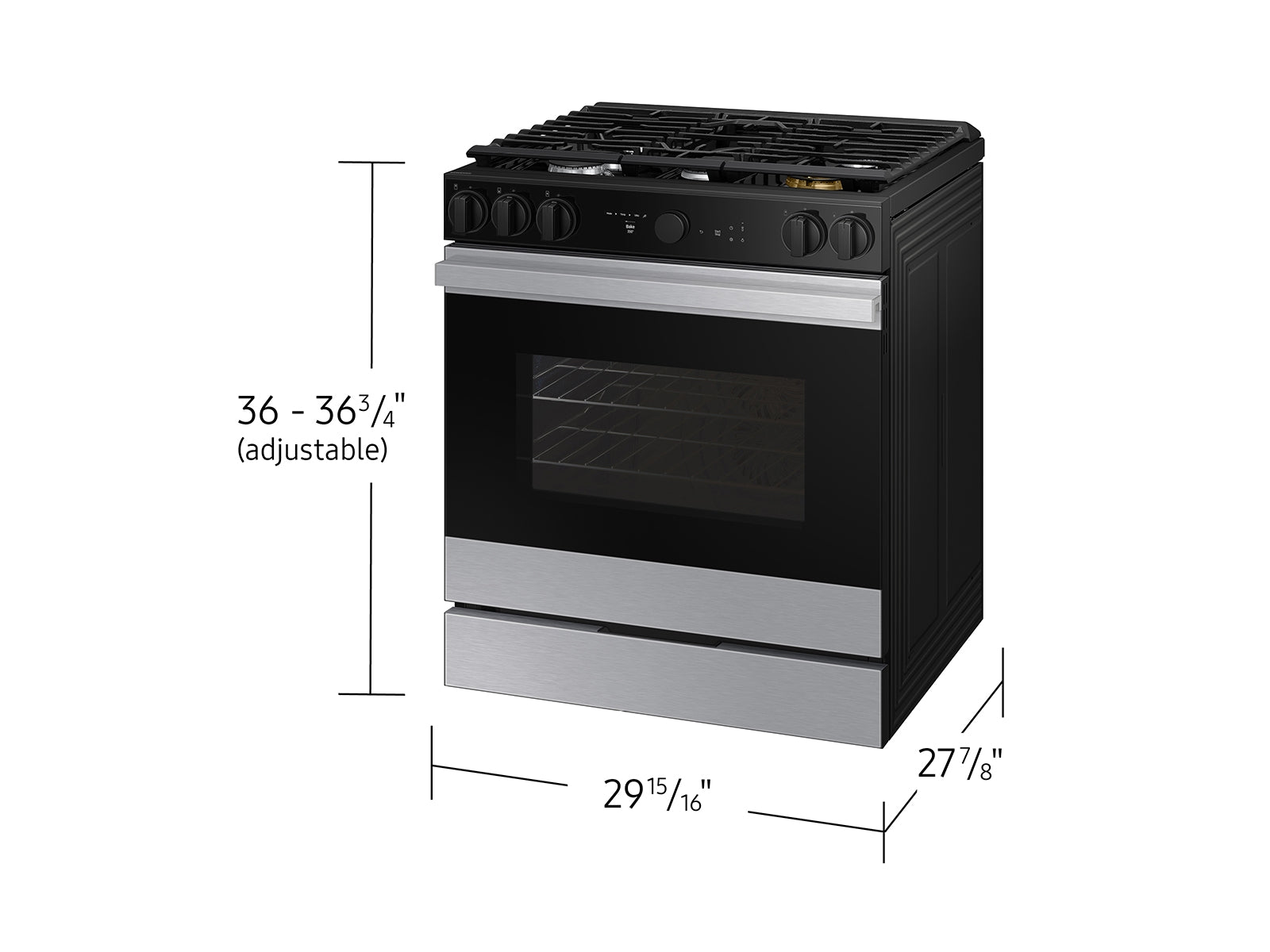

Product Dimensions (W x H x D) 29 15/16" W x 36" - 36 3/4" (Adj.) H x 26 7/16" D

Capacity

Oven Capacity 6.0 cu. ft.

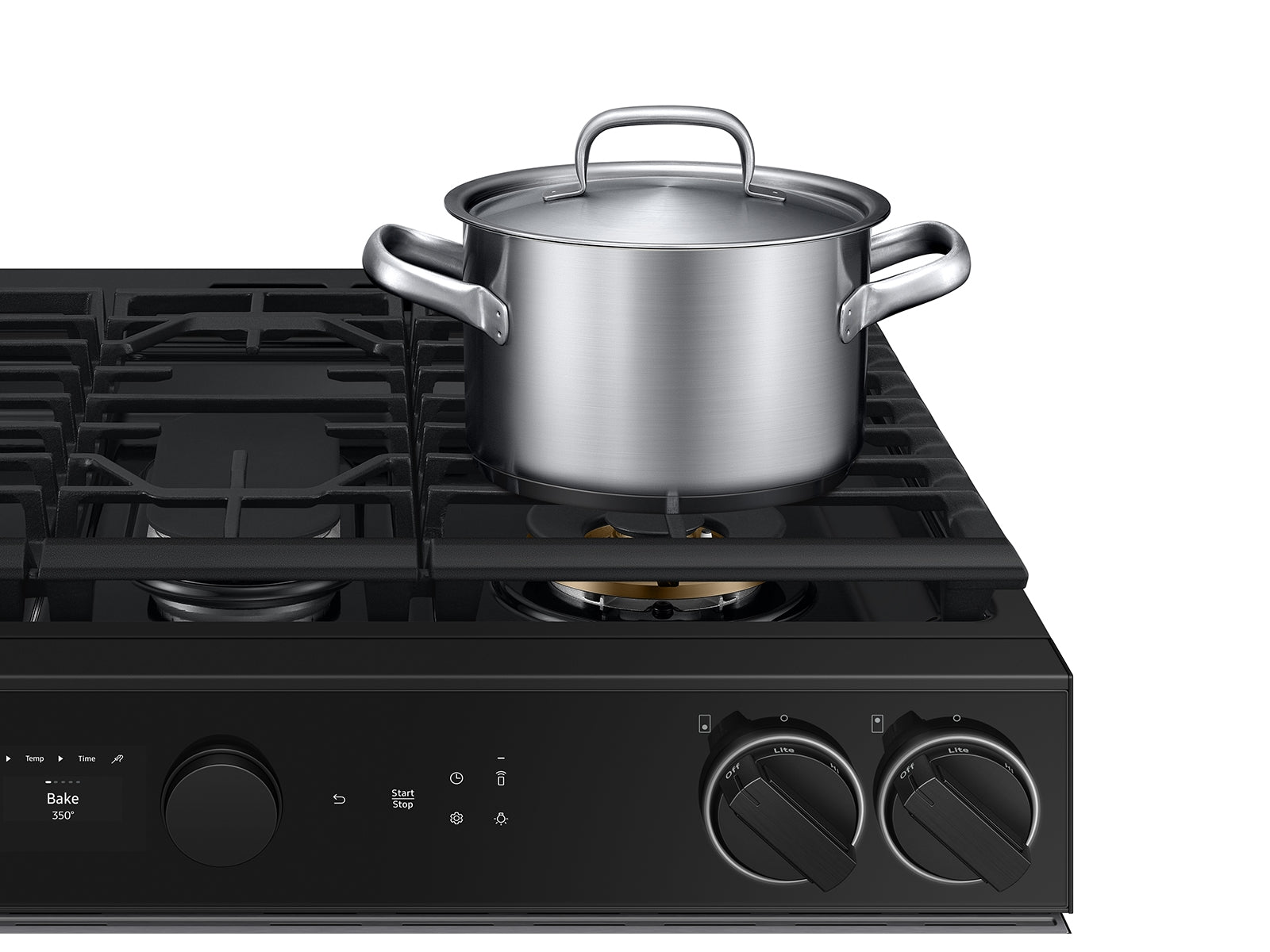

Cooktop

Total Number of Burners 5
Burner - Left Front 16K BTU
Burner - Left Rear 9.5K BTU
Burner - Right Front 23K BTU Dual Ring Brass
Burner - Right Rear 5K BTU
Burner - Center 10K BTU
Cooktop Type Gas

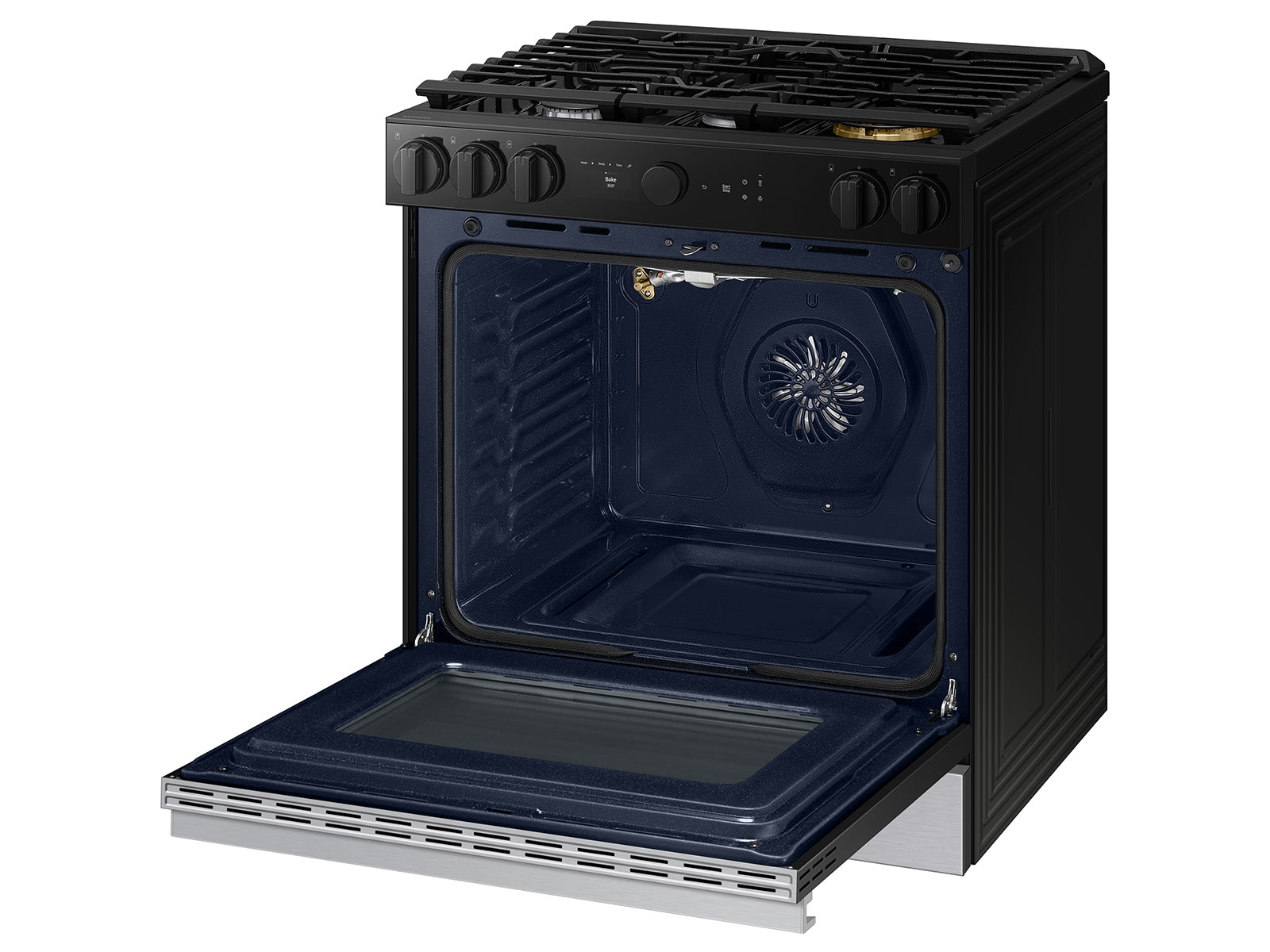

Oven

Convection Convection+
Convection Bake Yes
Convection Roast Yes
Bake Yes
Variable Broil Yes
Proofing Yes
Total Number of Racks 3

Included accessories

Temperature Probe Yes
Wok Grate Yes

Standard features

Drawer Type Storage
Kitchen Timer Yes
Child Safety Lock Yes

Other

Oven Dimensions 24 13/16" x 21 5/8" x 19 5/8"

Dimensions & weight

Width 29.94 in.
Height 45 in.
Length 26.44 in.
Weight 207 lbs.
Oven Dimensions 24 13/16" x 21 5/8" x 19 5/8"

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 34.94 in.
Shipping Height 50 in.
Shipping Length 31.44 in.
Shipping Weight 247 lbs.
Total of Shipping Weight 247 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 20.61 ft³
Dimensional Weight 256.23 lbs.
Total of Cubes 20.61 ft³
Total of Dimensional Weight 256.23 lbs.

Accessories

Number of Rack Positions 7
Filler Kit (For Slide In Range) Yes
Anti-Tip Bracket Yes
Air Fry Tray Yes
Griddle Reversible Cast Iron Griddle
LP Conversion Kit Yes

Weights/dimensions

Height (decimal) 36
Width (decimal) 29.9375
Depth (decimal) 26.4375

Features

Sabbath Mode Yes
Auto Oven Light Yes
Delay Start Yes
Interior Lights (qty) Incandescent 40W (1)
Hidden Bake Element Yes
Keep Warm Yes
Dehydrate Yes
Power/Ratings 120V/60Hz/20A
Powerful, Flexible Cooktop 23K BTU Double Ring Brass Power BurnerEdge-to-Edge Grates
Oven Cleaning Type Self Clean
Air Fry Yes
Voice-Enabled Yes
Self Clean Yes
Storage Drawer Yes

Drawer

1 Year Parts and Labor Yes
Cavity Type Single

Description

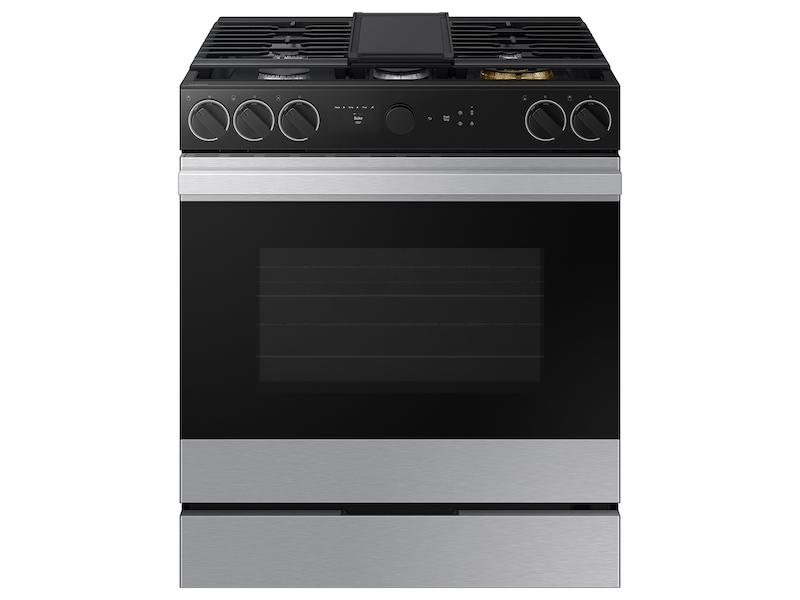

Discover the latest features and innovations available in the Bespoke 6.0 cu. ft. Smart Slide-In Gas Range with Smart Oven Camera & Illuminated Precision Knobs in Stainless Steel.

Key Features

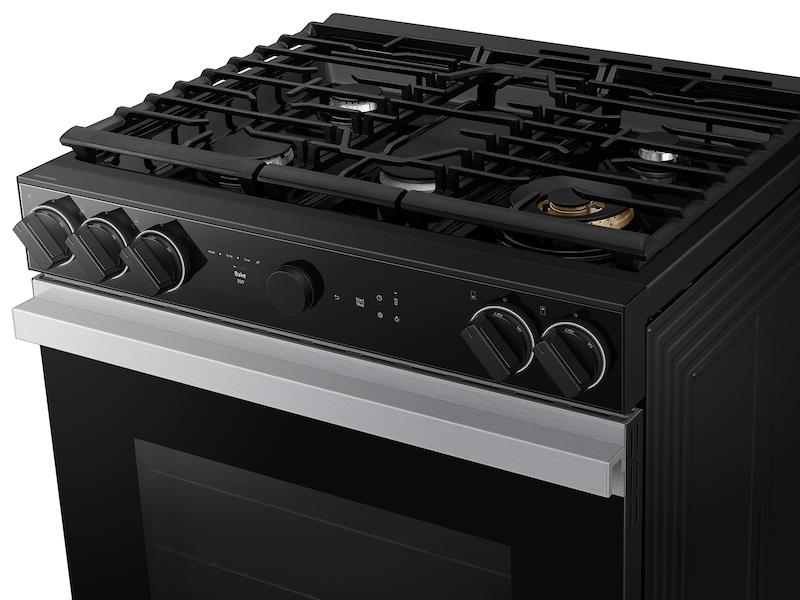

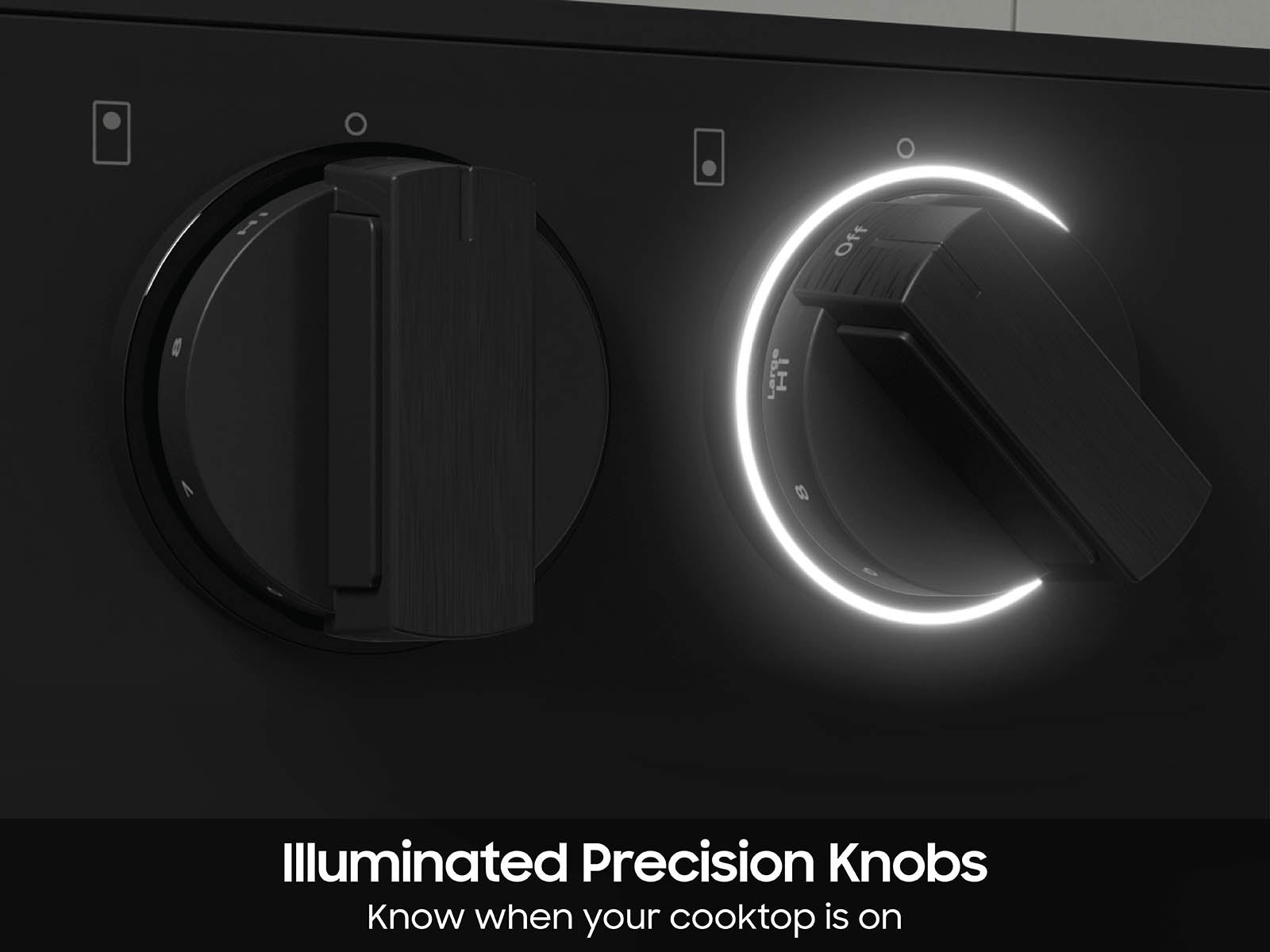

Know when your cooktop is on

This range's knobs will light up when in use to let you know that your cooktop is on. Also, the knobs stay locked when cooktop is not in use with integrated buttons that must be pinched in before the knobs can turned.ⓘ

Ready2Fit™ Guarantee

If your Samsung Slide-In Range doesn't fit your 30" Freestanding Range cutout, enjoy $100* on us to cover any countertop modification costs. Valid Purchase Dates: 1/1/25 - 12/31/25

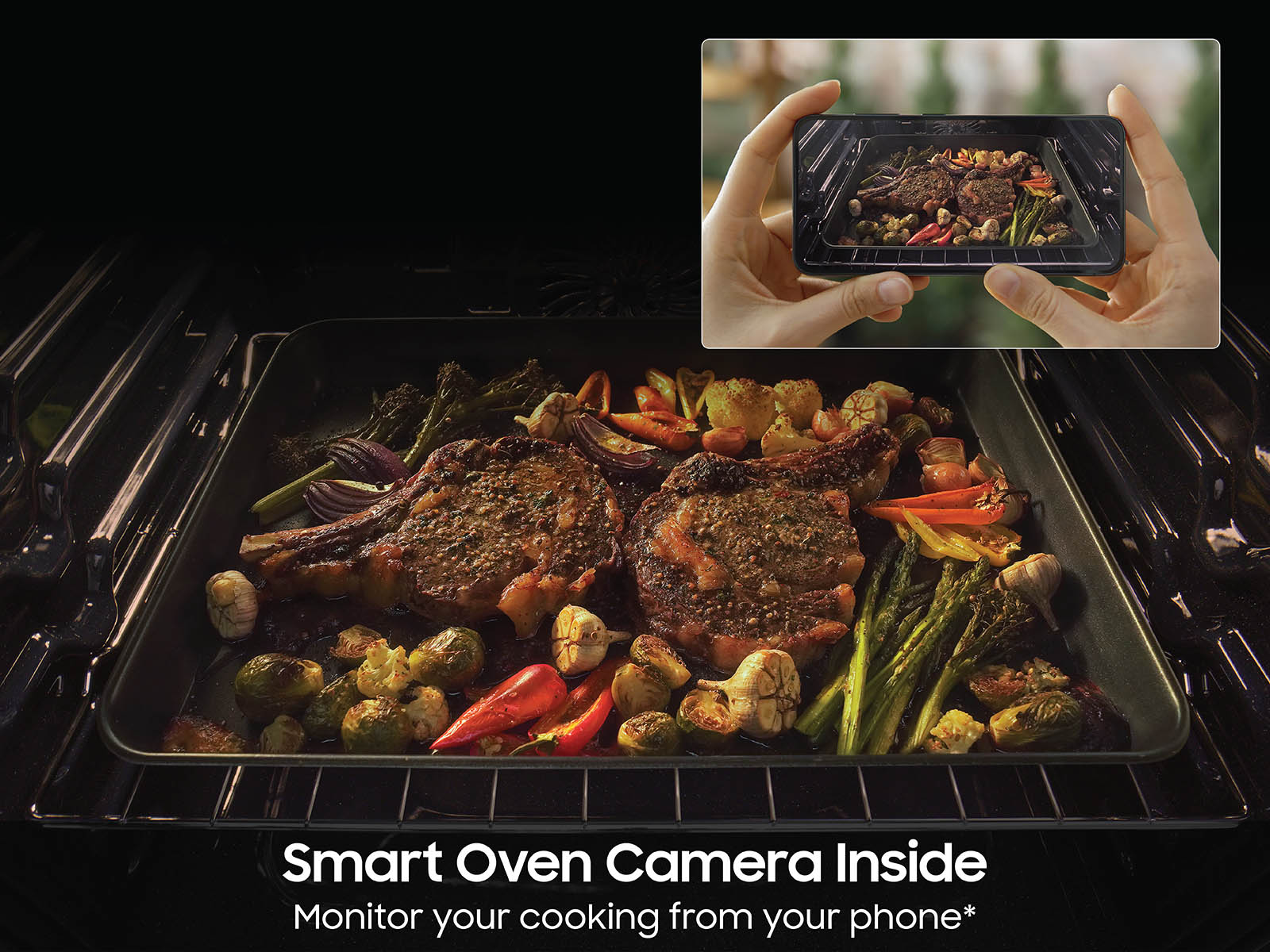

See what's cooking, right from your smartphone

Monitor your cooking with Smart Oven Camera inside. It live streams video to your smartphone so you can easily check on meals as they cook anytime, anywhere.¹ Take snapshots and make and share time-lapse videos to your social media to show off your culinary skills.

Samsung White Glass Slide-In Electric Range with Air Sous Vide

Lock in flavor and moisture and avoid overcooking with Air Sous Vide. Precise, controlled heat and airflow within the oven give you gourmet cooking results at home.² Perfect for fish, poultry, and vegetables.²Requires a sous vide cooking bag, which is not included with the oven.

Samsung White Glass Slide-In Electric Range with Air Fry

Enjoy healthier³ fried foods without relying on other small appliances with Air Fry built right into your oven. Air Fry tray included.³As compared to deep frying.

Samsung White Glass Slide-In Electric Range with Convection Vegetable

Quickly cook vegetables to crispy perfection without pre-heating.

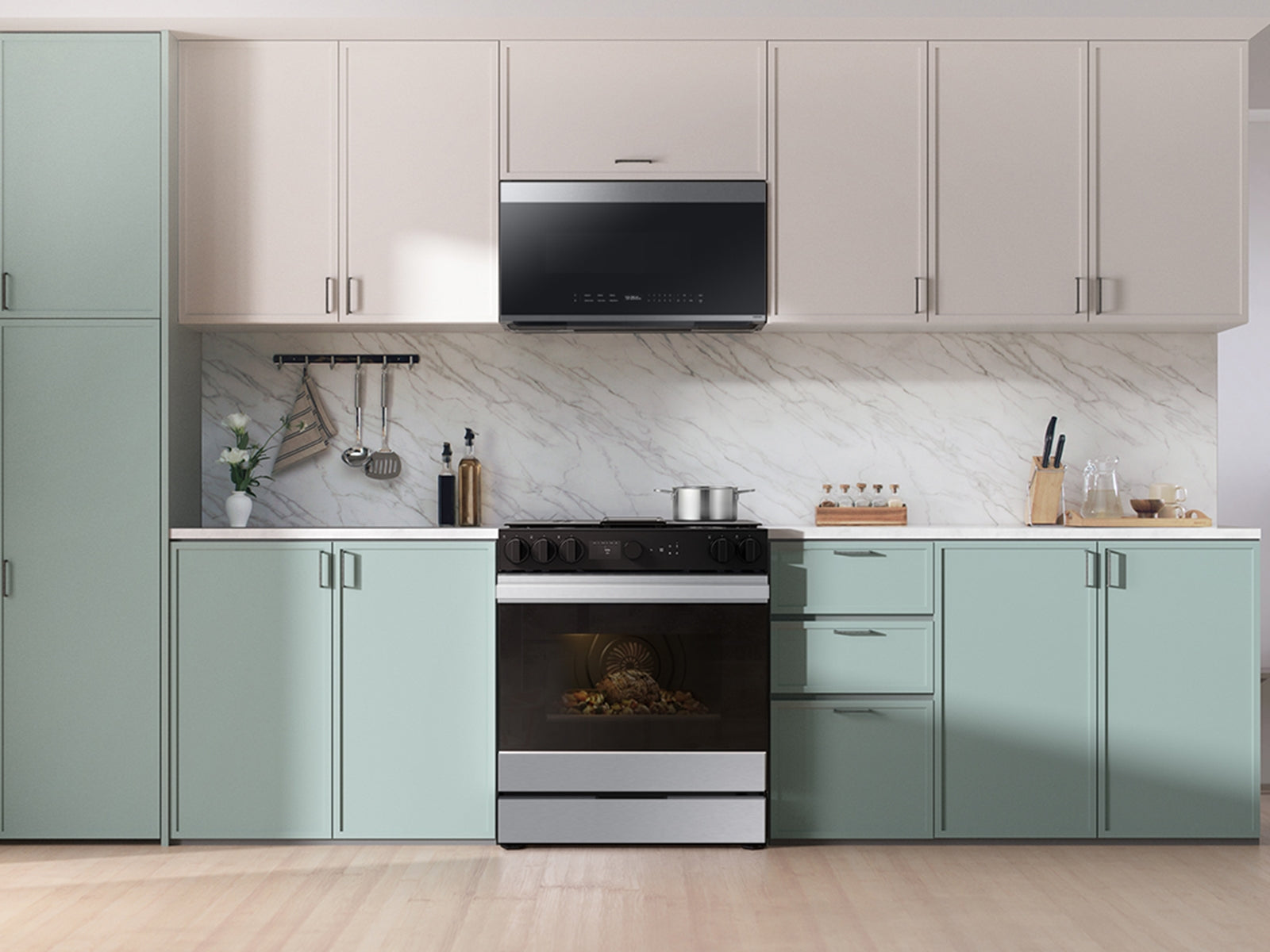

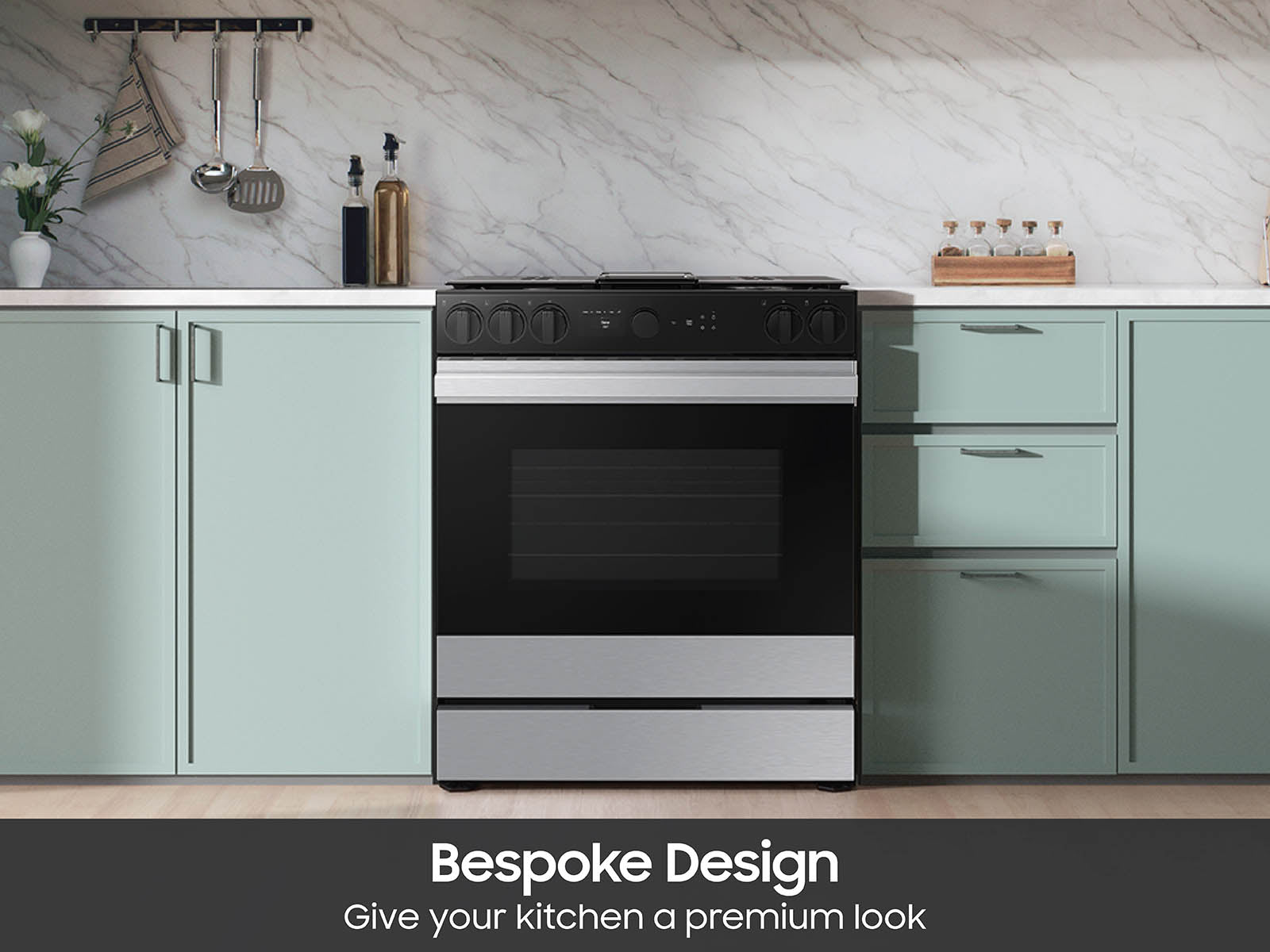

Seamless, stylish design

Give your kitchen a premium look with a stylish and contemporary Bespoke design that will enhance the look of your kitchen or add an elegant color accent. The range's recessed handle design seamlessly blends into your kitchen for a minimalist look.

Easily control your cooking

Control your range with an intuitive 2.25'' LCD display that lets you easily adjust settings for a simpler, smarter way to cook.

Unbelievably fast

With Samsung's 3600 W Express Boil,™ no burner is more powerful.⁶ Rapidly go from high heat for boiling water and searing meat, to a true simmer with the 3600 W Express Boil™. Ideal for melting chocolate or making sauces.

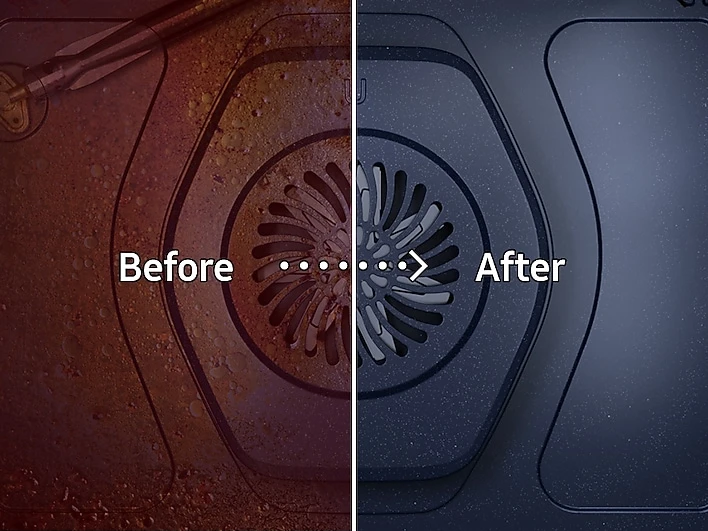

Does the hard work for you

Get help from your oven with Self Clean. The self cleaning system deeply cleans your oven with high heat that breaks down grease and food residue. Use Steam Clean for a lighter cleaning job that's done in 20 minutes

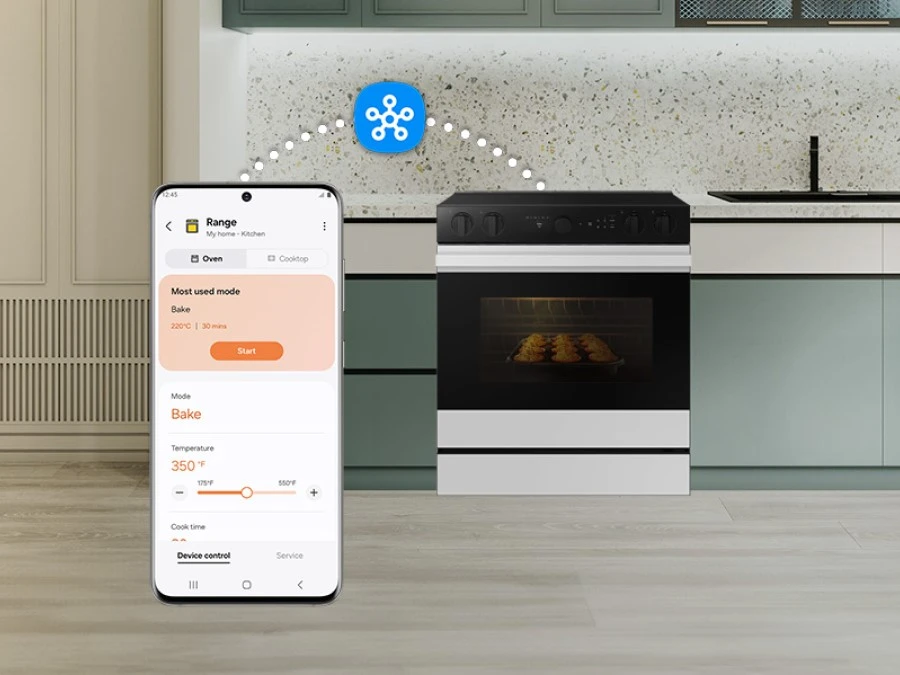

Preheat and plan meals on the go

Search recipes, plan meals and pre-heat your oven from your phone with the SmartThings App or your favorite voice assistant.⁷ SmartThings Food learns your preferences to recommend personalized recipes⁸ and create weekly meal plans.SmartThings Energy lets you monitor and manage your range's power usage.⁷Available on Android and iOS devices. A Wi-Fi connection and a Samsung account are required. ⁸Available in certain languages, including English, French, German, Italian and Spanish.

No recipes needed

Download settings for cooking modes⁹ like "Pizza", "Spare Rib" or "Brownie" directly to your oven with the SmartThings App.¹⁰ Choose the mode you want and the optimal cooking time and temperature will be sent to your oven automatically.¹¹⁹This feature is only compatible with ovens. ¹⁰Available on Android and iOS devices. A Wi-Fi connection and a Samsung account are required. ¹¹How thoroughly each dish is cooked may vary depending on the type and weight of ingredients.

Ranked #1 in Overall Customer Satisfaction & Service Experience††

Samsung leads in appliances with top scores for Overall Customer Satisfaction, Features and Performance, and was additionally recognized with top rankings for Service Experience — excelling in the key areas of Ease, Assistance, Timeliness, and Repair.

#1 in Customer Satisfaction

Samsung was ranked #1 in Customer Satisfaction with Ranges in the J.D. Power Appliance Satisfaction Study, 4 years in a row.Ψ
