Product Details for Samsung DW80B7070US
Technical Details
Key features
| 3rd Rack | Yes |
| Express 60 | Yes |
| Adjustable Rack | Yes |
| Wi-Fi Connectivity | Yes |
Standard features
| Cancel & Drain Button | Yes |
| Start & Pause Button | Yes |
| Rack Coating Material | Nylon |
| Ventilation Drying System (Fan Assisted) | Yes |
| Digital Leak Sensor | Yes |
| Wash Arm | Upper/Mid/Low |
| Self-Cleaning Filter System | Yes |
| Kickplate Color | Black |
| Whisper Quiet | Yes |
| Optimal Cycle Detection | Yes |
| Silence Rating | 42 dBA |
| Control Type | Top Control |
| Handle Type | Pocket Handle |
Wash system
| Number of Programs | 7 |
| Normal Cycle | Yes |
| Heavy Cycle | Yes |
| Express 60 | Yes |
Wash options
| Half Load | Yes |
| Sanitize (Anti-bacterial-NSF) | Yes |
| Smart Control (Wi-Fi) | Yes |
Design
| Exterior Color | FINGERPRINT RESISTANT STAINLESS STEEL |
| Handle Type | Recessed |
| Place Setting | 15 |
| Display Color | White |
| Control Type | Hidden Touch |
| Display Position | Front |
| Front Cycle Progress Indicator | Yes |
| Rinse Refill Indicator | Yes |
| General Feature | Rotary |
Racks/interior
| Upper Rack Adjustable Height | One-touch |
| Upper Rack Basket Handle | Plastic |
| Upper Rack Adjustable Tines | 1 |
| Upper Rack Cup Shelf | Foldable (Plastic) |
| Upper Rack Soft Rail (Glide Rail) | Yes |
| Lower Rack Basket Handle | Yes |
| Lower Rack Maximum Vertical Loading Dimension | 13 1/2" |
| Lower Rack Adjustable Tines | Yes |
| Lower Rack Removable Tines | Yes |
| Lower Rack Fold Down Tines | Yes |
| Lower Rack 2 Piece Silverware Basket | Yes |
Cutlery basket
| Cutlery Tray (3rd Rack) | Yes |
| Cutlery Basket | Yes |
Power/ratings
| Electrical (Voltz/Hertz/Amps) | 120/60/15 |
| Heater Watts | 1100 |
| Circulation Motor Watts | 60~100 |
| Drain Pump Watts | 35 |
| Drain Pump | Yes |
Energy & performance
| Energy Usage (kWh/year) | 239 |
| Water Consumption (gallons/cycle) | 3.2 |
Cut-out dimensions
| Width - Min | 24" |
| Height - Min | 34.1" |
| Height - Max | 35.3" |
| Depth - Min | 24" |
Dimensions & weight
| Width | 24.8 in. |
| Height | 33.9 in. |
| Length | 23 in. |
| Weight | 91.5 lbs. |
| Product Height w/ Legs Extended | 35" |
| Shipping Weight | 98 lbs. |
| Shipping Dimensions | 29.5" D x 35" H x 26" W |
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Shipping Width | 29.5 in. |
| Shipping Height | 35 in. |
| Shipping Length | 26 in. |
| Shipping Weight | 98 lbs. |
| Total of Shipping Weight | 98 lbs. |
| Source | Manufacturer |
Cubic feet measurement & dimensional weight
| Cubic Feet Measurement | 11.19 ft³ |
| Dimensional Weight | 139.11 lbs. |
| Total of Cubes | 11.19 ft³ |
| Total of Dimensional Weight | 139.11 lbs. |
Weights & dimensions
| Product Weight | 91.5 lbs. |
| Width | 23 7/8" |
| Product Dimensions | 24.8" D x 33.9" H x 23 7/8" W |
| Depth | 23 7/8" |
| Product Height w/ Legs Extended | 35" |
| Shipping Weight | 98 lbs. |
| Shipping Dimensions | 29.5" D x 35" H x 26" W |
| Height | 33 7/8" |
| Height (decimal) | 33.875 - 35 |
| Width (decimal) | 23.875 |
| Depth (decimal) | 25 |
Performance
| Dry System | Smart Dry |
Programs
| Auto | Yes |
| Delicate | Yes |
Option
| Hi-Temp Wash | Yes |
| Delay Start | Yes (1-24H) |
| Control Lock | Yes |
General information
| Tub Material | STSS |
| Heater Position | Hidden |
Description
Product Features
- The display shows how long a cycle takes to complete. As the cycle progresses, the estimated hours and minutes left will update.
- A convenient 3rd rack provides extra space to load small mugs, utensils and silverware. Frees up to 30% more space for other items to help you load all you need.³
- Fit items in various shapes and sizes⁴ by adjusting the height of the middle rack with one touch. The lower rack can be reconfigured to fit large cookware and the cutlery basket can be moved around easily to free up space on the bottom.
- The Smart Dry with AutoRelease™ Door system circulates warm air to deliver 2.5x better drying performance* without damaging plastic ware. It intelligently senses and adjusts drying temperature and time to avoid wasting energy.
- Clean the dirtiest dishes quickly and most efficiently without pre-rinsing using the StormWash+™ system. With dual wash arms and a rotating spray jet it delivers more intense cleaning performance* and cleans at every angle to cover 1.5x more space.*
- So quiet you don’t even know it’s on with Whisper Quiet 42dBA operation.
- If your new 24" Samsung Dishwasher doesn't fit the cutout or countertop that houses your existing dishwasher of the same width, enjoy up to $50* on us to cover any modification costs. Valid Purchase Dates: 1/1/26 – 12/31/26 * See additional terms and conditions.
- The SmartThings app lets you remotely start, stop, or delay dish cycles right from your phone.¹
- SmartThings Energy lets you monitor and manage your dishwasher's power usage.§ Reduce your energy use by up to 30%† with AI Energy mode,≠ all from your phone.
- Ordering detergent pods for your smart dishwasher is easier than ever before. After initial set up, use Smart Reorder in the SmartThings App to keep track of how many pods you use and re-order new pods when you’re running low with Amazon Dash Replenishment.²
- Removes the time-consuming task of washing dishes prior to loading them in the dishwasher. Simply push Pre Blast at the beginning of any cycle, pre-rinsing begins.
- Fingerprint resistant for an everyday, beautiful finish.**
- Save time and enjoy more free space with features like Smart Reorder and Pre Blast Cycle.
Manuals & Guides
Key Features
Time Display
The display shows how long a cycle takes to complete. As the cycle progresses, the estimated hours and minutes left will update.

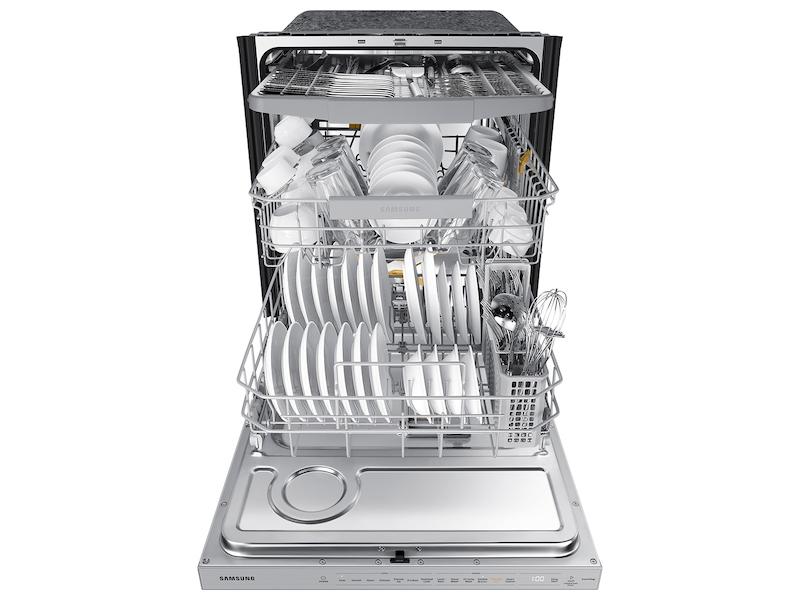

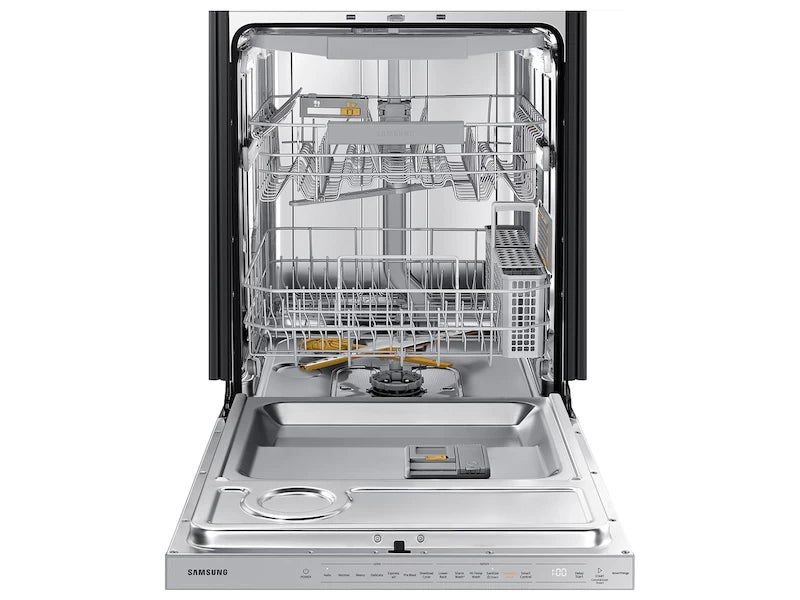

Fit More Dishes
A convenient 3rd rack provides extra space to load small mugs, utensils and silverware. Frees up to 30% more space for other items to help you load all you need.³

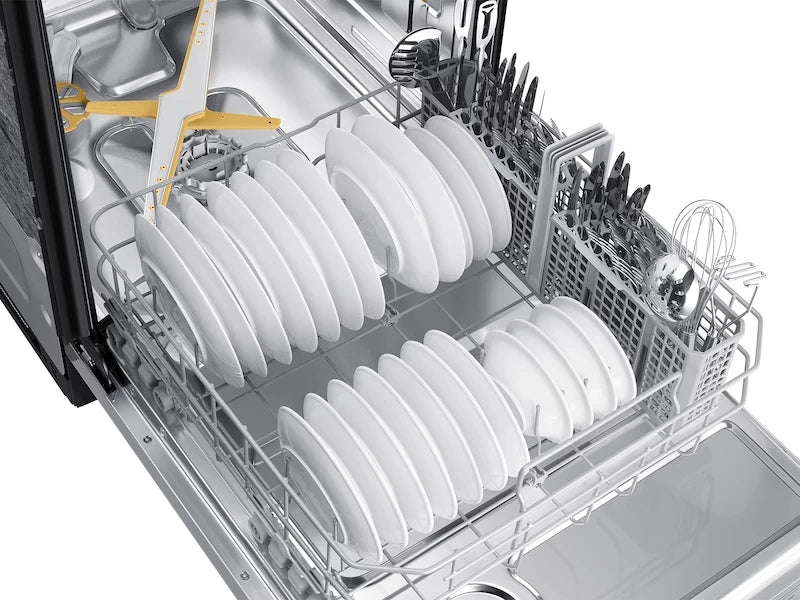

Flexible Space To Fit Your Needs
Fit items in various shapes and sizes⁴ by adjusting the height of the middle rack with one touch. The lower rack can be reconfigured to fit large cookware and the cutlery basket can be moved around easily to free up space on the bottom.

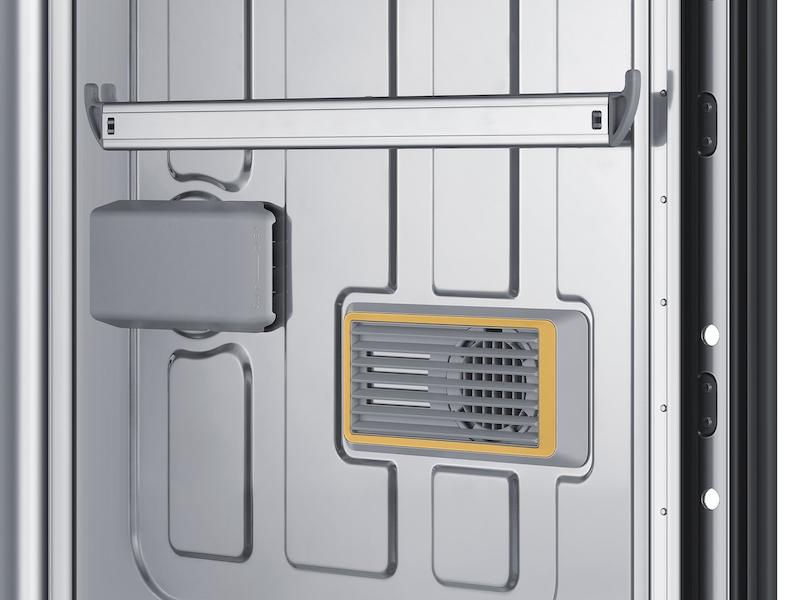

The Smart Way To Dry Is Smart Dry
The Smart Dry with AutoRelease™ Door system circulates warm air to deliver 2.5x better drying performance* without damaging plastic ware. It intelligently senses and adjusts drying temperature and time to avoid wasting energy.

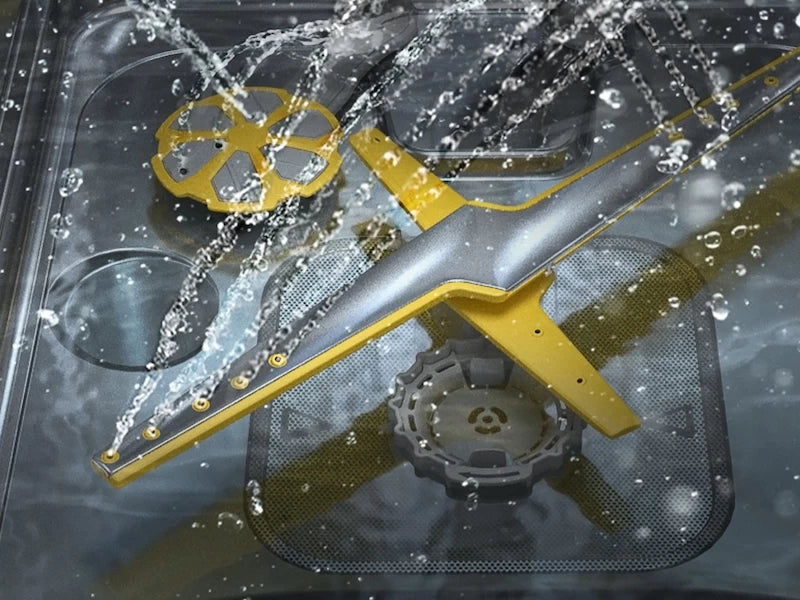

High Pressure Washing Power, Efficient Cleaning
Clean the dirtiest dishes quickly and most efficiently without pre-rinsing using the StormWash+™ system. With dual wash arms and a rotating spray jet it delivers more intense cleaning performance* and cleans at every angle to cover 1.5x more space.*
Enjoy a Quiet Home
So quiet you don’t even know it’s on with Whisper Quiet 42dBA operation.
Ready2Fit™ Guarantee
If your new 24" Samsung Dishwasher doesn't fit the cutout or countertop that houses your existing dishwasher of the same width, enjoy up to $50* on us to cover any modification costs. Valid Purchase Dates: 1/1/26 – 12/31/26 * See additional terms and conditions.
Remotely schedule your cycle
The SmartThings app lets you remotely start, stop, or delay dish cycles right from your phone.¹
Get smart energy≠ savings of up to 30%†
SmartThings Energy lets you monitor and manage your dishwasher's power usage.§ Reduce your energy use by up to 30%† with AI Energy mode,≠ all from your phone.
Smart Reorder
Ordering detergent pods for your smart dishwasher is easier than ever before. After initial set up, use Smart Reorder in the SmartThings App to keep track of how many pods you use and re-order new pods when you’re running low with Amazon Dash Replenishment.²
Pre Blast Cycle
Removes the time-consuming task of washing dishes prior to loading them in the dishwasher. Simply push Pre Blast at the beginning of any cycle, pre-rinsing begins.
Fingerprint Resistant Finish
Fingerprint resistant for an everyday, beautiful finish.**
