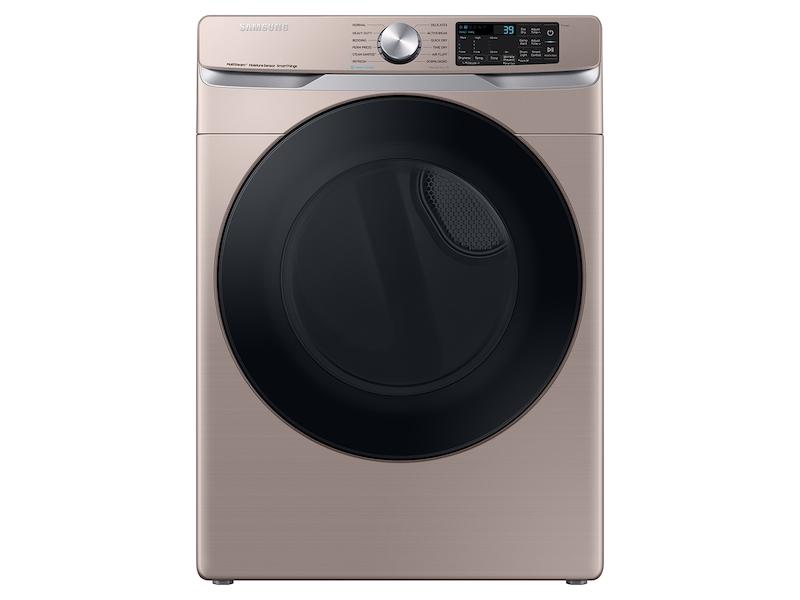

Product Details for Samsung DVG45B6300C
Technical Details
Key features
| Total Capacity (cu. ft.) | 7.5 cu. ft. |

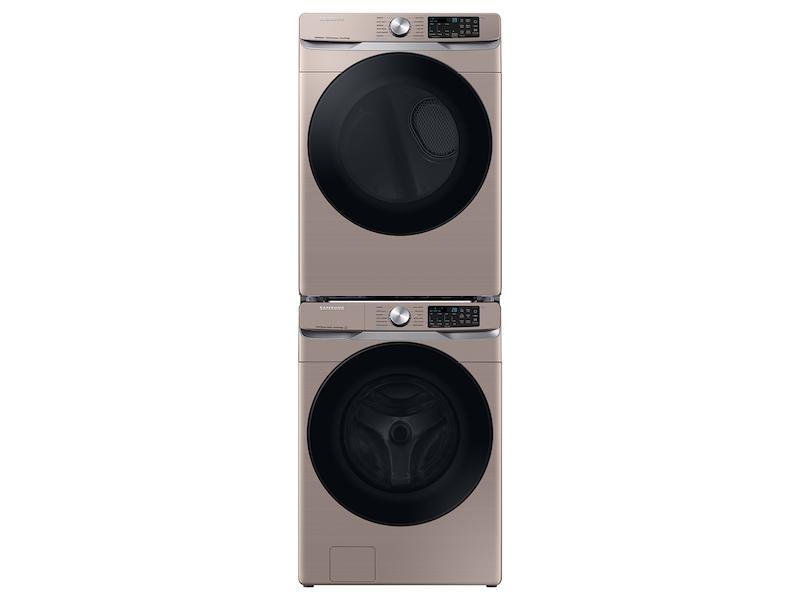

| Stackable | Yes |
| Smart Care | Yes |
| Reversible Door | Yes |

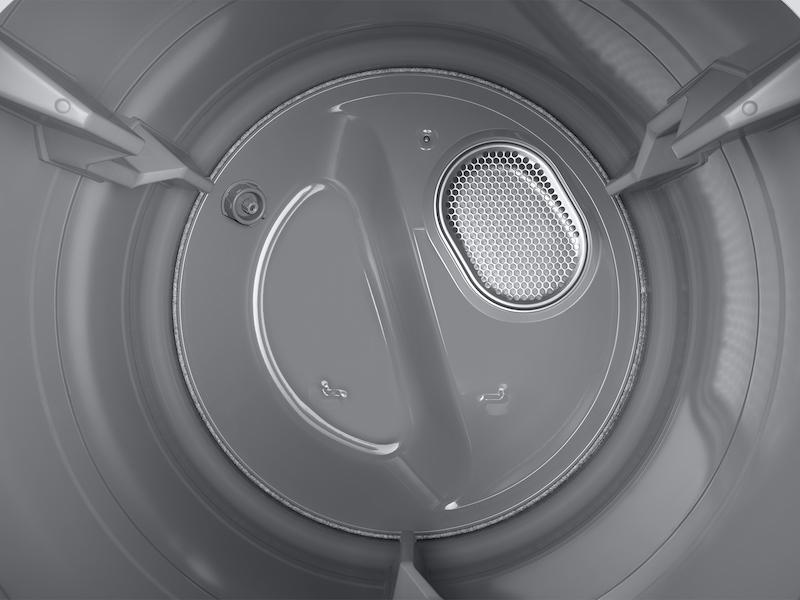

| Drum Material | Powder Coat (Gray) |
| KBB Readers Choice Award | Yes |
Standard features
| Vent Blockage Test | Yes |
| Heater | Single |
| Number of Dryer Options | 10 |
| Number of Preset Drying Cycles | 12 |
| Venting System | 3 Way Venting |
| Interior Light | Yes |
| End of Cycle Signal | Yes |
| Lint Filter Indicator | Yes |
| Power Source | Gas |
| Remaining Time Display | Yes |
| Door Safety | Yes |
| Door Handle | Inner |
| Temperature Levels | 5 |
| Wi-Fi Connectivity | Yes |
| Voice Compatible | Bixby, Amazon Alexa, Google Assistant |
| ADA Compliant | Yes |
| Mixed Load Bell (Damp Alert) | Yes |
Drying cycles
| Downloaded | Yes |
Steam drying cycles
| Steam Refresh | Yes |
| Wrinkle Away | Yes |
| Steam Sanitize+ | Yes |
Sensor drying cycles
| Eco Normal | Yes |
| Wool | Yes |
| Shirts | Yes |
| Normal | Yes |
| Heavy Duty | Yes |
| Towels | Yes |
| Permanent Press | Yes |
| Denim | Yes |
| Bedding | Yes |
| Delicates | Yes |
| Sanitize | Yes |
| Activewear | Yes |
| Jeans | Yes |
| Damp Dry | Yes |
| Low Temp | Yes |
| Perm Press (permanent press) | Yes |
Manual drying cycles
| Time Dry | Yes |
| Air Fluff | Yes |
| Quick Dry | Yes |
| Rack Dry | Yes |
Drying technology
| Sensor Drying | Yes |
| Steam Drying Technology | Yes |
Drying options
| Wrinkle Prevent | Yes |
| Adust Time (Up) | Yes |
| Adjust Time (Down) | Yes |
| Eco Dry | Yes |
| Sound On / Off | Yes |
| Smart Control | Yes |
| Smart Care | Yes |
| Child Lock | Yes |
| Damp Alert | Yes |
| Alarm Off | Yes |
| Interior Light | Yes |
Dry levels
| More Dry | Yes |
| Normal - More Dry | Yes |
| Normal Dry | Yes |
| Normal - Less Dry | Yes |
| Less Dry | Yes |
Temperature levels
| High | Yes |
| Medium High | Yes |
| Medium | Yes |
| Medium Low | Yes |
| Low | Yes |
Power
| Voltage / Frequency | 120V / 60Hz |
| Ampere | 15 Amps |
Electrical ratings
| Cycle Time (AHAM 8lbs) | 39 min |
| DOE Energy Factor (lb/kWh) | 3.3(lb/kWh) |
| Heating Element | 20,000 BTU/Hr |
Type
| Dryer Type | Gas |
Energy usage
| Liter/Cycle | 270 liter |
| Energy Guide Label | 270 liter |
Design
| Color | Champagne |
| Display Color (LED) | Ice Blue |
| Display Type | 18:88 LED |

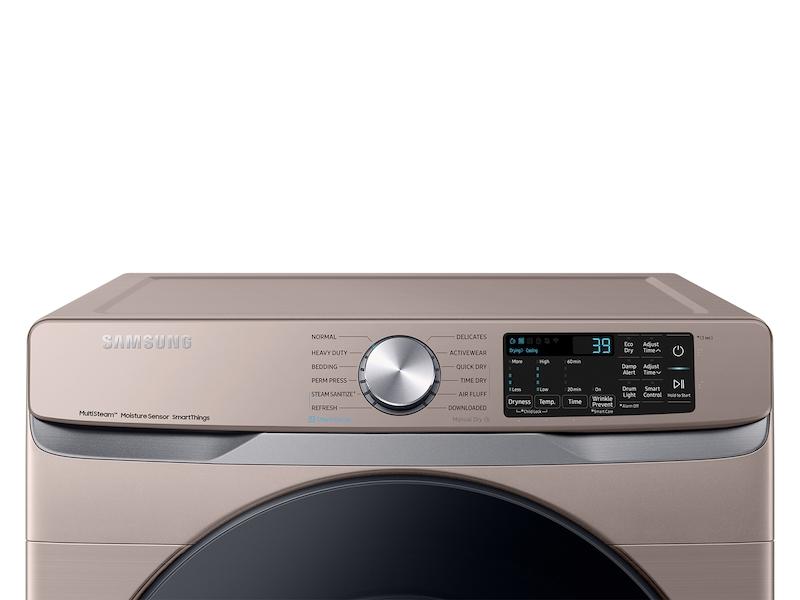

| Jog Dial | Yes |
Warranty
| One (1) Year Parts and Labor | Yes |
Accessories
| Stacking Kit | SKK-8K |

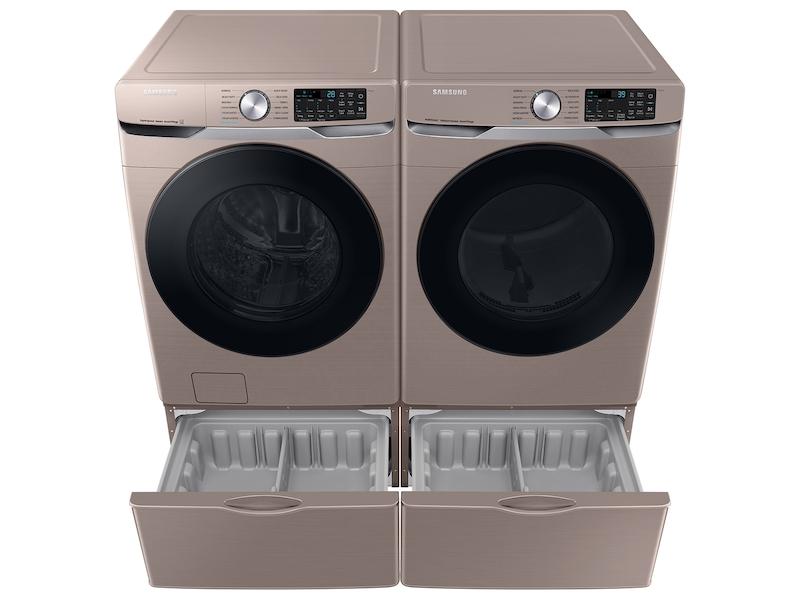

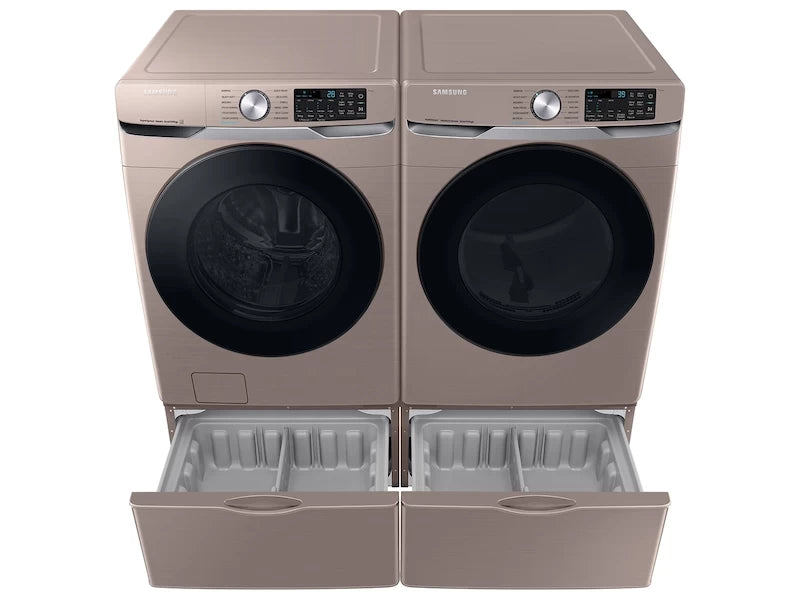

| Pedestal | WE402NC/A3 |
| Riser | WE272NC/A3 |
| Vent Kit | DV-2A/XAA |
| LP Kit | LPKIT-4/XAA |
Matching washer

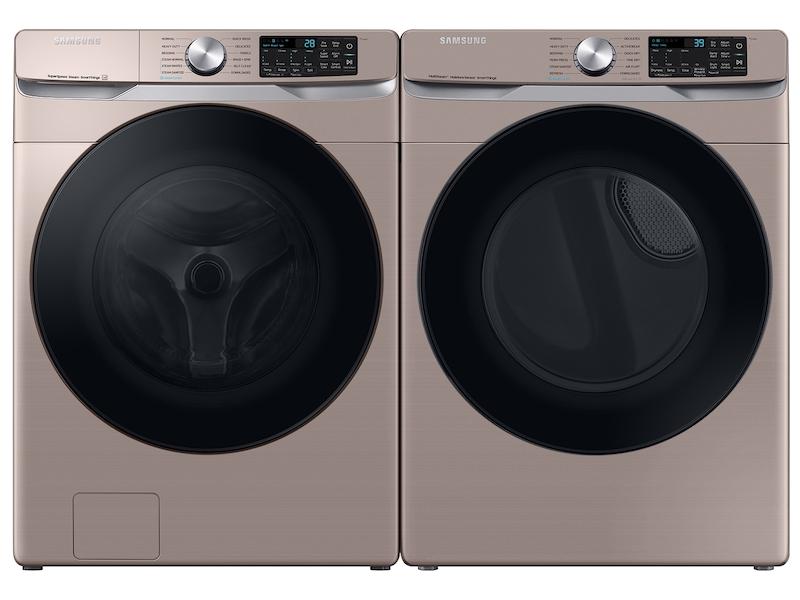

| Matching Washer | WF45B6300AC/US |

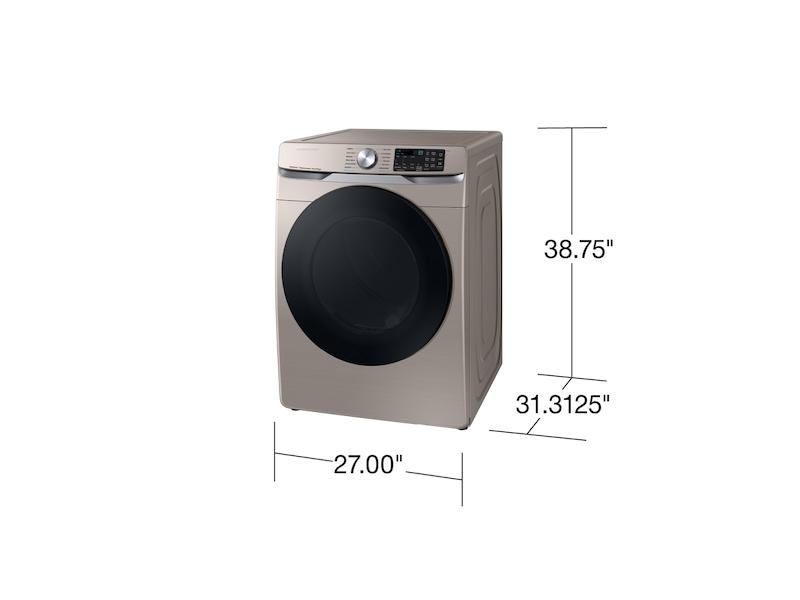

Dimensions & weight
| Width | 27 in. |
| Height | 38.7 in. |
| Length | 31.3 in. |
| Weight | 119 lbs. |
| Shipping Weight | 125.7 lbs. |
| Shipping Weight (lbs.) | 125.7 lbs. |
| Shipping Dimensions | 29.4" W x 42.5" H x 33.5" D |
| Shipping Dimensions (W x H x D) | 29.4" W x 42.5" H x 33.5" D |
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Shipping Width | 29.4 in. |
| Shipping Height | 42.5 in. |
| Shipping Length | 33.5 in. |
| Shipping Weight | 125.7 lbs. |
| Total of Shipping Weight | 125.7 lbs. |
| Source | Manufacturer |
Cubic feet measurement & dimensional weight
| Cubic Feet Measurement | 18.93 ft³ |
| Dimensional Weight | 235.29 lbs. |
| Total of Cubes | 18.93 ft³ |
| Total of Dimensional Weight | 235.29 lbs. |
Description

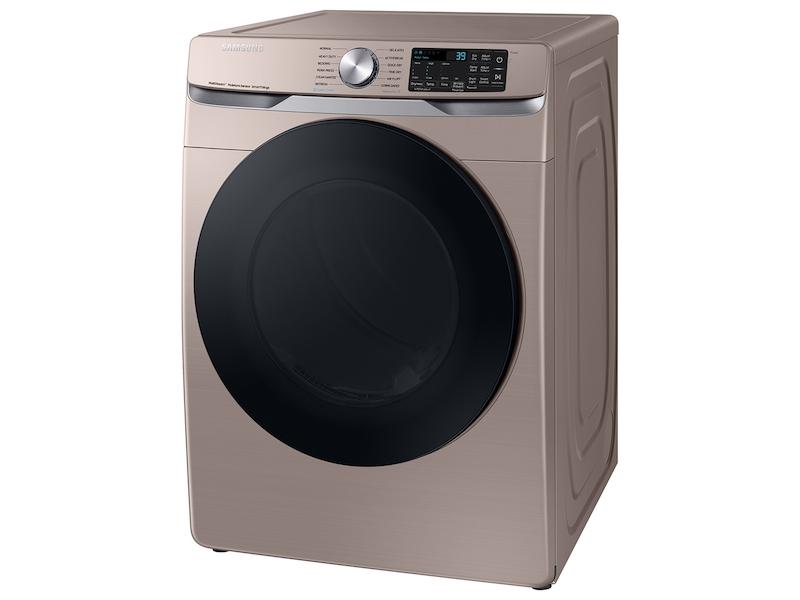

The brand Samsung DVG45B6300C combines large‑capacity drying with smart-home convenience in a stylish champagne finish. With a generous 7.5 cu. ft. capacity, it handles hefty loads with ease. The innovative Steam Sanitize+ cycle removes 99.9 % of germs and bacteria, over 95 % of pollen, and dust mites, while Multi‑Steam technology smooths wrinkles and odors. Sensor Dry automatically adjusts time and temperature for optimal results and energy savings. Equipped with Wi‑Fi connectivity and integration with SmartThings, Bixby, Alexa, and Google Assistant, you can remotely start cycles, schedule dry times, and receive end-of-cycle alerts. Designed for versatility, it features a reversible door, 3-way venting (rear, bottom, left), and is stackable/ADA compliant with optional riser. With 21 drying cycles, 10 drying options, 5 temperature settings, and a lint filter indicator, it delivers tailored performance for every laundry need.
Product Features
- Wi-Fi Connectivity
- Steam Sanitize+
- Sensor Dry

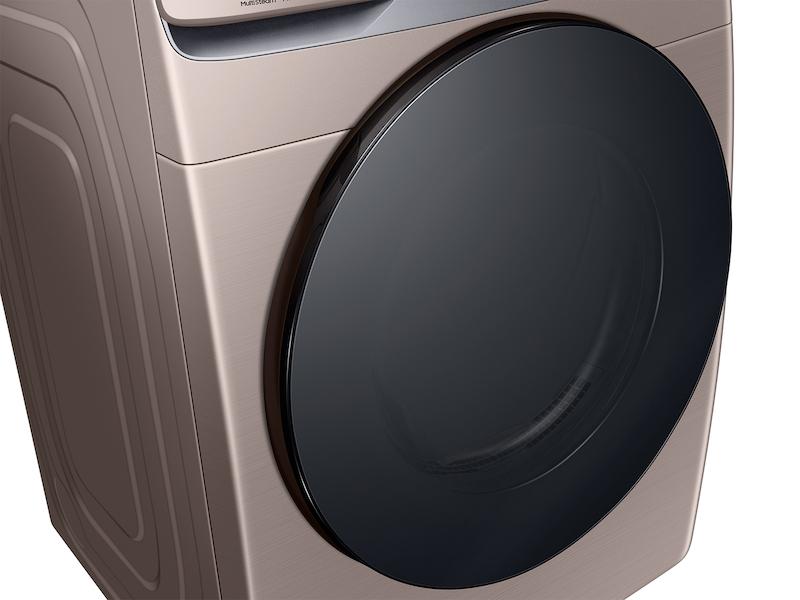

- Scratch-Resistant Tempered Glass Door
- Interior Light

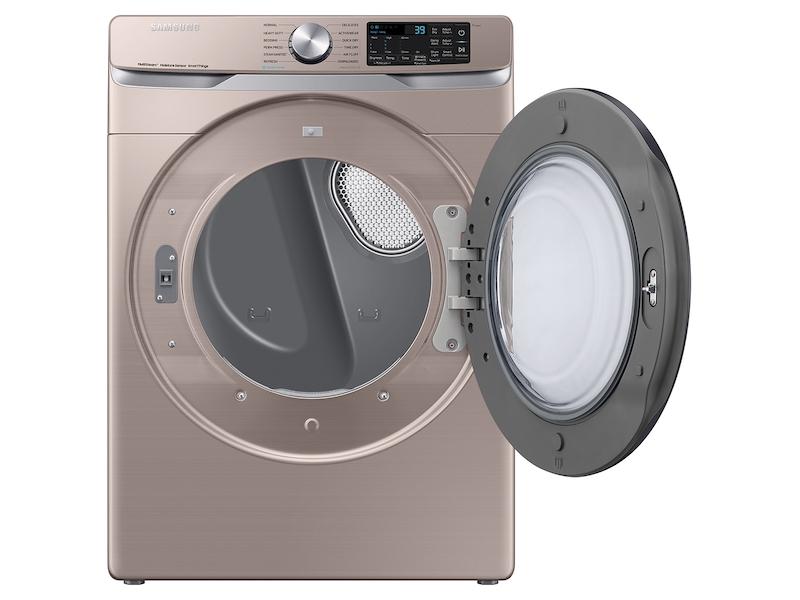

- Reversible Doors
-
Beautifully designed, feature rich,
incredible value
Samsung’s new 7.5 cu. ft. dryer allows you to remotely start or stop your cycle, schedule laundry on your time, receive end of cycle alerts, and more, right from your smartphone.* Steam Sanitize+ eliminates 99.9% of germs and bacteria,** while Multi-Steam technology relaxes and smooths away wrinkles from everyday wear. -
Thoughtful and elegant design details
Designed to enhance your laundry space without disrupting your lifestyle. -
Large 7.5 cu. ft Capacity
Fewer loads, less time in the laundry room, and more time doing the things you love.
