| Parts | 2 Year |
| Labor | 2 Year |
| Overall Depth | 21.5 in |
| Overall Height | 11.1 in |
| Overall Width | 36 in |
| Cabinet Width | 36 in |
| Approximate Shipping Weight | 98 |
| Net Weight | 58 |
| Fan Speed Control | 3 Speed + Boost |
| WiFi Connect | Built-In |
| Max CFM | 610 |
| Required Duct Size | 8-in. Round |
| Ducting | Vertical and Recirculating |
| Light Controls | On/Off/Night |
| Filter Cleaning Reminders | Yes (through app) |
| Time Delay Shut-Off | Yes |
| Exhaust Options | Vented to Outside or Recirculating |
| Automatic Light/Fan Activation | Yes (Chef Connect) |
| Product Type | Designer Hood |
| Vertical Exhaust Blower Rating (CFM) | 610-CFM |
| Variable Speed Fan | Yes |
| Control Type | Rim Lit Metal Touch |
| Lighting Levels | 4 |
| Removable Filter | Yes |
| Control Location | Hidden Controls |
| Blower Levels | 4 Including Boost |
| Recirculating Capable | Yes |
| CFM/ Sones Rating | 610/9.0 |
| Blower Type | Internal |
| 8 Round Duct | Yes |
| Collection | Statement,Minimalist |
| Connected Capabilities | Amazon Alexa,Google Home |
| Cooktop Lighting | LED Bar,LED |
| Exhaust Options | Vented to Outside,Recirculating |
| Blower / Light Switch Color | Backlit |
| Exterior Design | Chimney - Wall-Mount |
| Design Style | Chimney |
| Color Appearance | Stainless Steel |
| Design Style | Chimney,Statement Collection,Minimalist Collection |
| Labor Warranty | Limited 2-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 2-year entire appliance |
| Width | 36 in. |
| Height | 11.1 in. |
| Length | 21.5 in. |
| Weight | 58 lbs. |
| Number of Boxes | 1 |
| Shipping Width | 41 in. |
| Shipping Height | 16.1 in. |
| Shipping Length | 26.5 in. |
| Shipping Weight | 98 lbs. |
| Total of Shipping Weight | 98 lbs. |
| Source | Calculation |
| Cubic Feet Measurement | 4.97 ft³ |
| Dimensional Weight | 61.81 lbs. |
| Total of Cubes | 4.97 ft³ |
| Total of Dimensional Weight | 61.81 lbs. |
| Hertz | 60 |
| Venting Type | Convertible |
| Optional Accessories | ZX12DC1SRSS - 12' High Ceiling Duct Cover Kit,ZX14DC1SRSS - 14' High Ceiling Duct Cover Kit,ZX8DC1SRSS - 8' High Ceiling Duct Cover Kit,UXCN36W- Recirculation Kit,UXCF91 - Charcoal Filter,JXH |
Experience a sleek and modern approach to kitchen ventilation with discreet perimeter venting. This design not only enhances airflow efficiency but also maintains a clean, streamlined look.
Easily track air quality changes with an intuitive light system that provides a clear, real-time visuals, ensuring peace of mind for cooking and entertaining.
Crafted from high-quality stainless steel, this ventilation hood adds a luxurious and professional-grade aesthetic, perfectly complementing modern and designer kitchens.

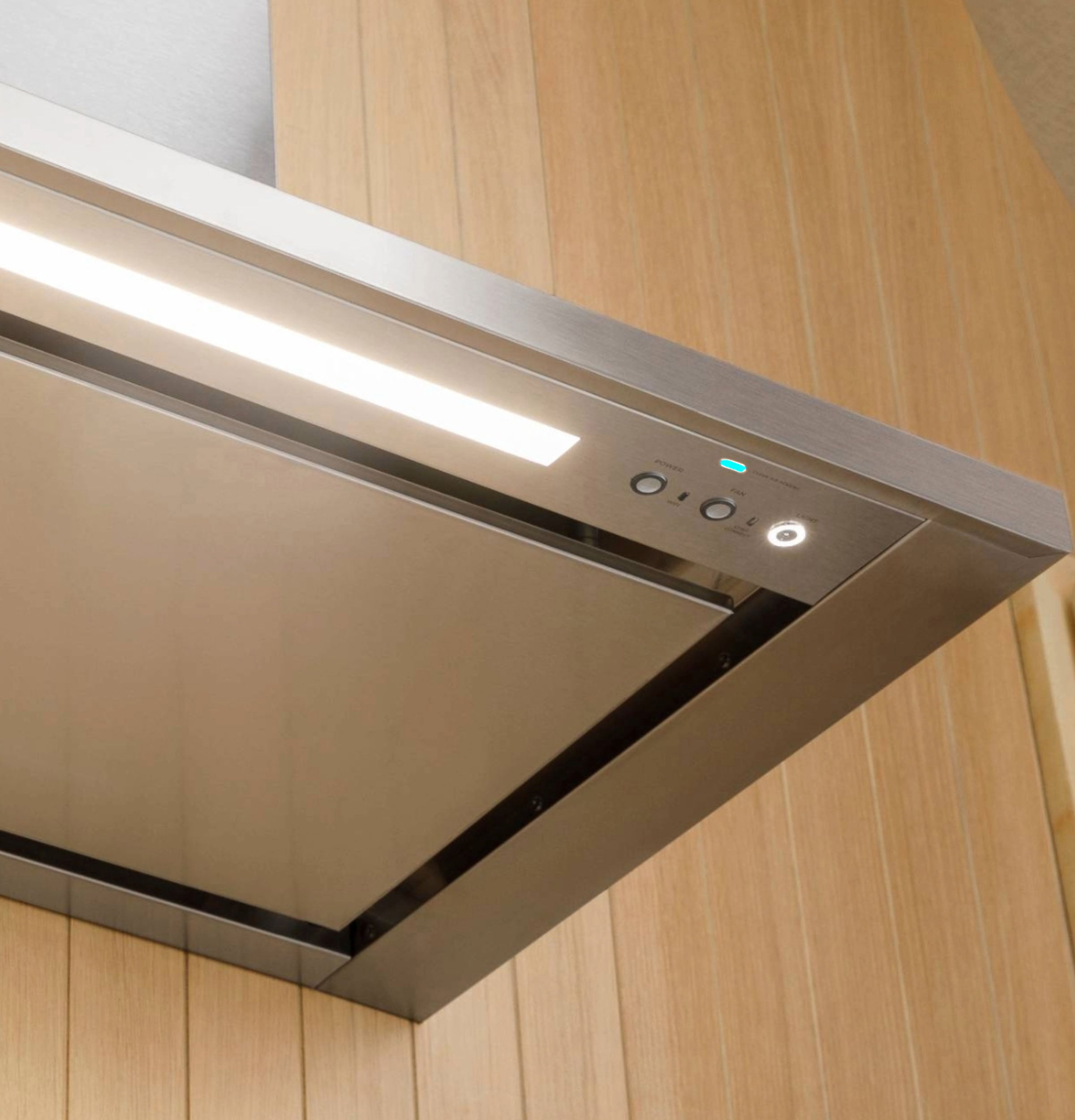

Bright, efficient LED lights illuminate the cooking area, providing a perfectly lit workspace that enhances the visual appeal of the kitchen.

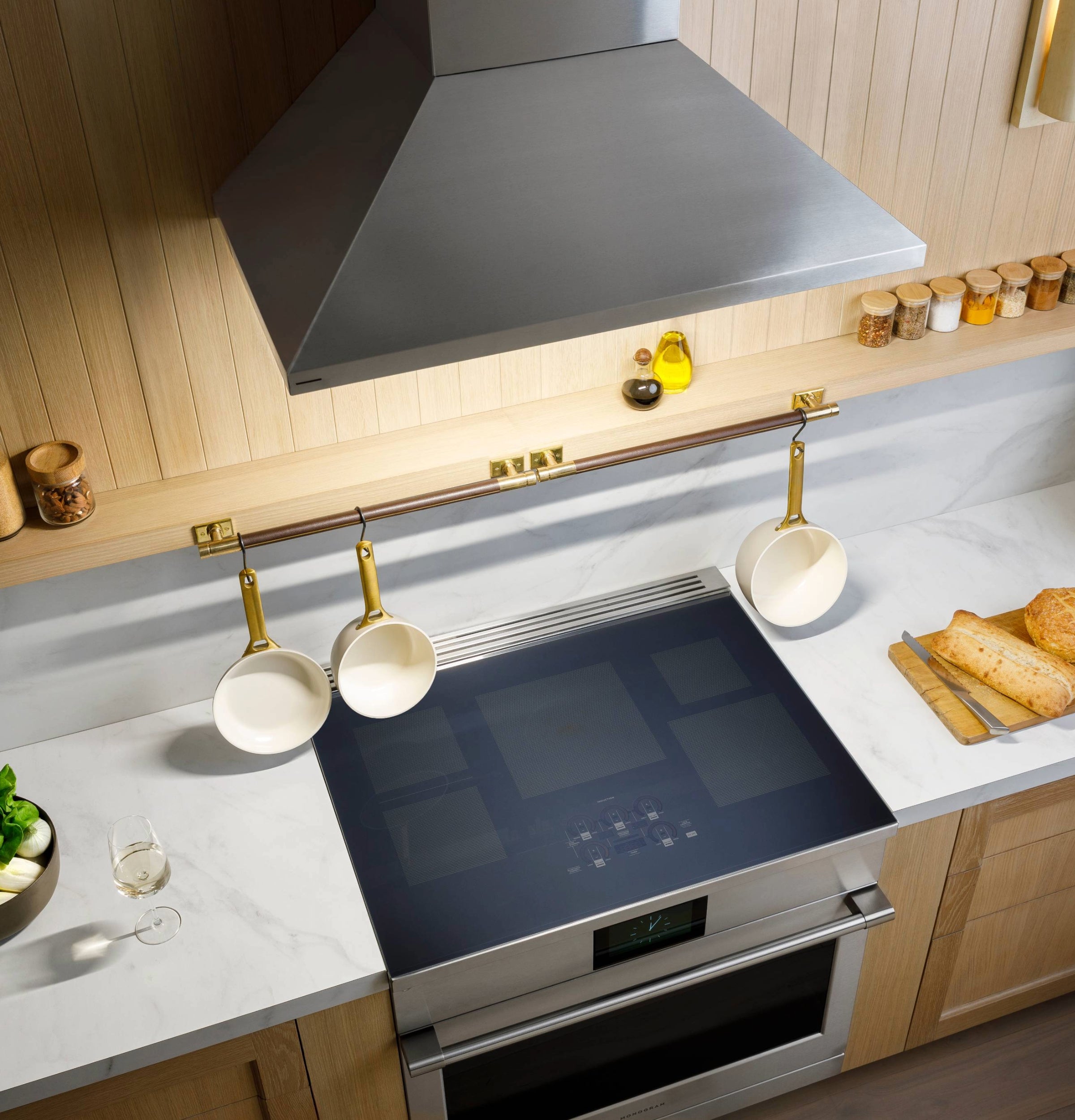

Synchronize the hood with the cooktop. This feature automatically activates ventilation and lighting when cooking begins, ensuring seamless operation and a flawless culinary experience.
Personalize the hood with customizable duct cover accessories, available in various lengths (8-14 feet). This feature ensures a perfect fit for any kitchen layout, enhancing both functionality and design.
