Product Details for Monogram ZISB480DNII
Technical Details
Capacity
| Fresh Food Capacity | 17.18 |
| Total Capacity (cubic feet) | 28.6 |
| Freezer Capacity | 11.44 |
Appearance
| Panel Capability | 0.75 |
| Adjustable Rollers | 4 |
| Dispenser Color | Stainless Steel |
| Master Light Control Switch | Yes |
| Door Stops | 90 |
| Design Style | Custom Panel |
| Easy Access Hinged Grille | Yes |
| Door Panels Required | Yes |
| Color Appearance | Custom Panels Required |
| Handle | Custom Handle Compatible Order ZKLN for Full-Length Visor Handle Kit |
| Hidden Door Hinge(s) | Yes |
Power / ratings
| Energy Consumption (kWh/year) | 884 |
| Electrical Requirements | 115 |
| Hertz | 60 |
Warranty
| Warranty Notes | Extended 12-Year Sealed System Parts Only Limited 5-Year Sealed System See written warranty for full Details |
| Labor Warranty | Limited 2-year entire appliance |
| Parts Warranty | Limited 2-year entire appliance |
Weights & dimensions
| Overall Depth | 25.38 |
| Height to Top of Hinge | 84.0 |
| Net Weight | 738 |
| Overall Width | 48.0 |
| Approximate Shipping Weight | 775 |
| Overall Height | 84.0 |
Features
| Temperature Management Features | Independent Temperature Controls Multi-Shelf Air Management Tower |
| Deli Drawer | Adjustable Sealed w/ Full Extension Slides |
| Control Type | Upfront Electronic Digital Temperature Display |
| Dispenser Features | Child Lock Disappearing Electronic Glass Touch with Proximity Sensor Dispenser Light Door Alarm Extra-Tall w/ Cubes, Crushed Ice & Chilled Water Water Filter Indicator Light |
| Custom Panel Ready | 1 |
| Icemaker | Factory-Installed |
| Freezer Cabinet Shelves | 4 |
| WiFi Connect | Built-In |
| Sabbath Mode | Optional |
| Filter Location | Upper right corner |
| Clear Lexan Bins, Drawers and Pans | Yes |
| Interior Lighting | LED Light Towers, Top LED and Pan LED Lighting |
| Short Description | 48.0 |
| Connected Capabilities | Amazon Alexa Google Home IFTTT |
| Freezer Door Bins | 3 |
| Defrost Type | Auto |
| Fresh Food Door Features | Adjustable Gallon Storage |
| Leveling System | 4 |
| Fresh Food Cabinet Shelves | 3 |
| Fresh Food Door Bins | 1 |
| Freezer Utility Baskets | 2 |
| Exterior Style | Built-In |
| Produce Drawer | High-Humidity Sealed w/ Full Extension Slides |
| Climate Control Drawer | Express Chill, Express Thaw, Select Temp |
| Fresh Food Features | Dairy Compartment - Sealed |
| Refrigerant Type | R600a |
| Dispenser | External Dispenser |
| Fresh Food Cabinet Shelf Features | Adjustable |
| Water Filtration | GE Water Filtration 1 Year MWFP |
| Product Type | Built-In Refrigerator Side-by-Side Refrigerator |
| OU Certified | OU/CRC Enhanced Shabbos Mode, when used with Shabbos Keeper, sold separately |
Features
- Flush inset installation
Allows the refrigerator to be installed flush with adjacent cabinetry - Advanced temperature management system with multi-shelf air tower
Provides even distribution of air throughout the refrigerator - Climate-control drawer
Allows you to express-chill beverages, express-thaw meats and select specific temperatures for perishable foods - LED lighting
Light columns in the freezer and fresh food compartments extend the full length of the interior and LED lighting located inside the vegetable and climate-control drawers illuminate contents without compromising space - WiFi powered by SmartHQ(TM)
- Deli drawer on full-extension slides
Keeps meats, cheeses and other everyday foods within easy reach - Color-matched dispenser with Proximity Sensor
- GE(R) water filter
- Sealed vegetable drawer
- Adjustable glass shelves
- Gallon-size door bin
- Adjustable door bins
- Dairy bin with center divider
- Filter-change indicator light
- Sabbath mode
Description

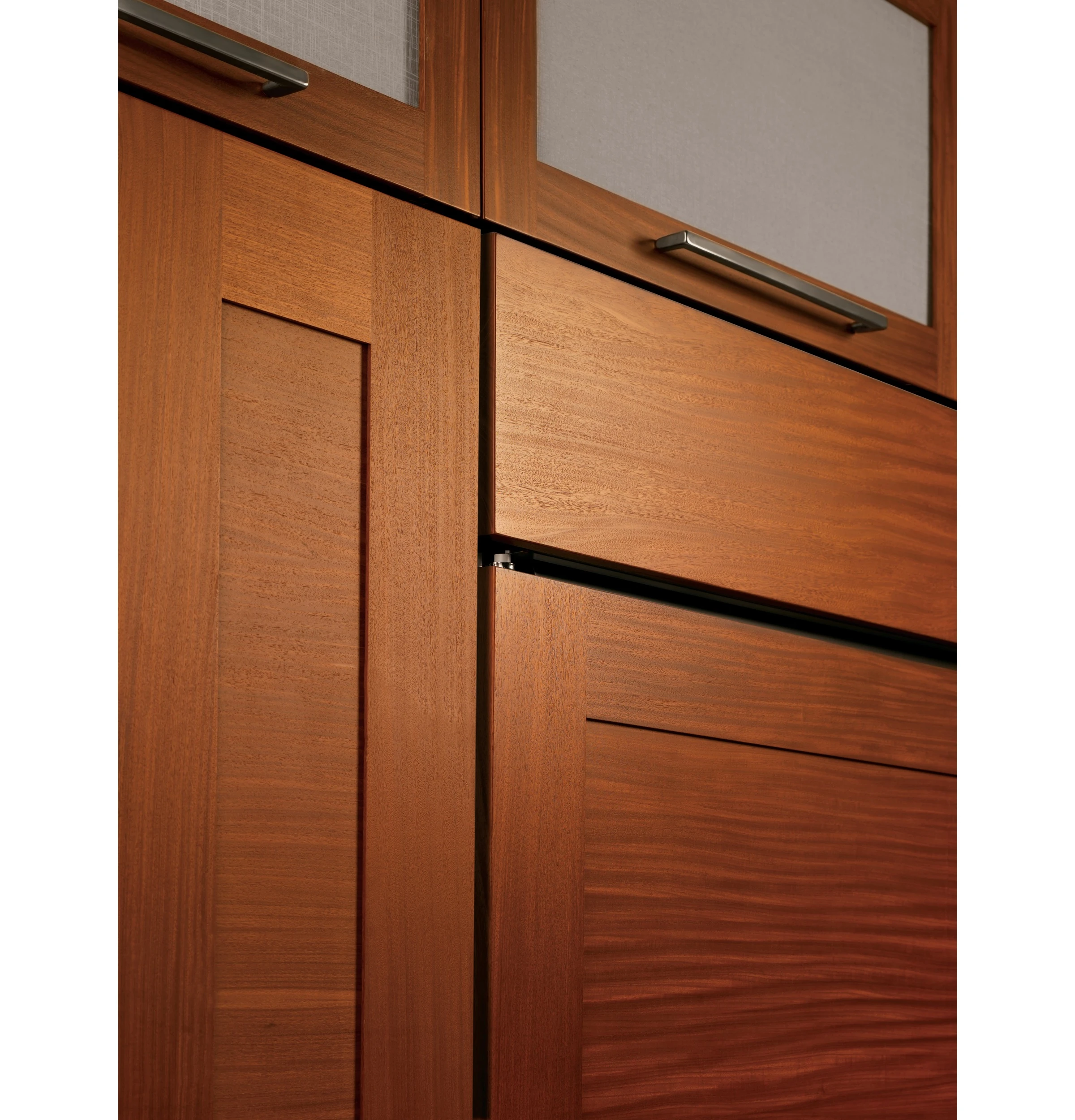

Allows the refrigerator to be installed flush with adjacent cabinetry
Advanced temperature management system with multi-shelf air tower
Provides even distribution of air throughout the refrigerator

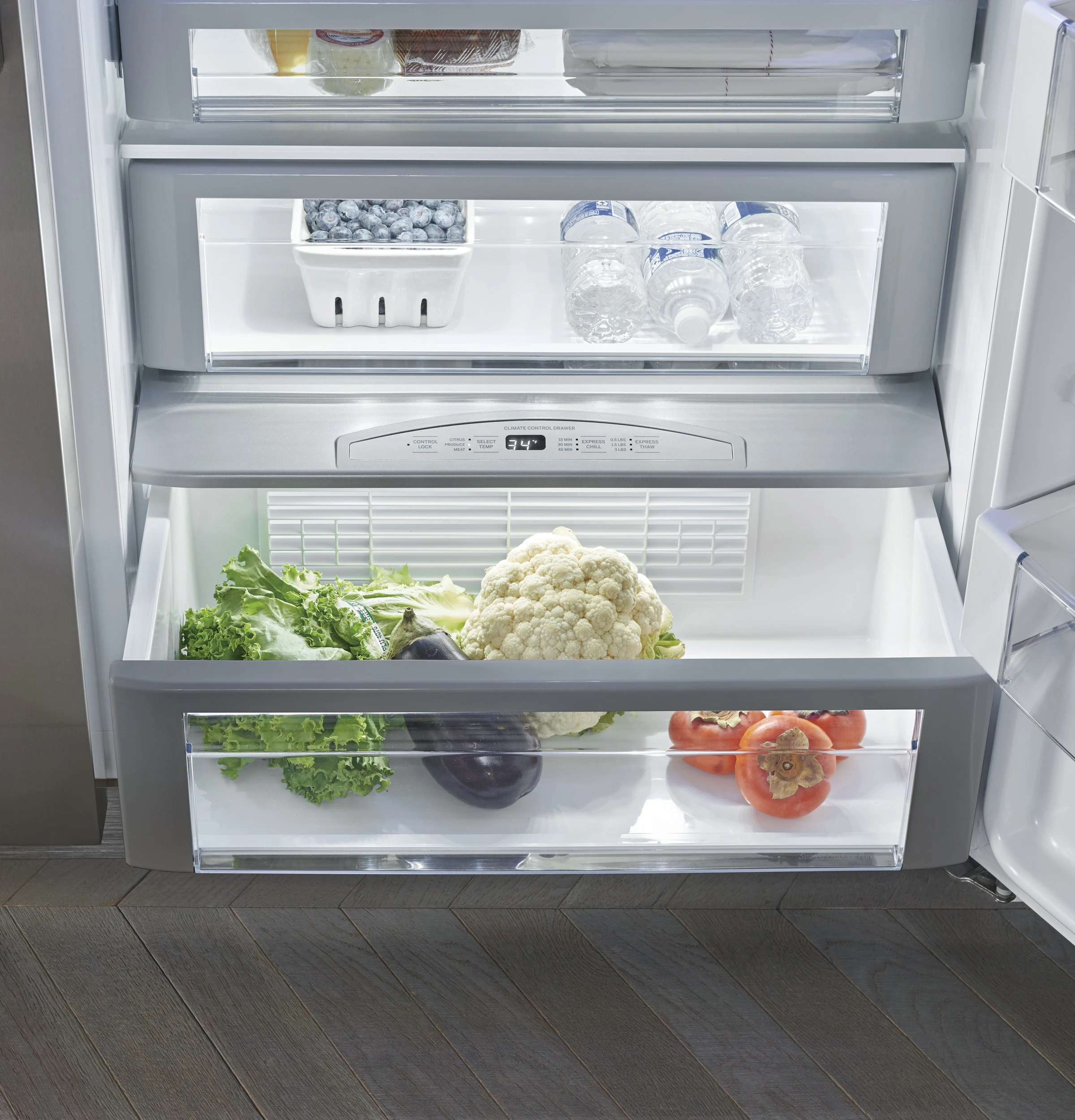

Climate-control drawer
Allows you to express-chill beverages, express-thaw meats and select specific temperatures for perishable foods
WiFi powered by SmartHQ(TM)
Enjoy the convenience and freedom of wirelessly controlling functions from your smartphone
LED lighting
Light columns in the freezer and fresh food compartments extend the full length of the interior and LED lighting located inside the vegetable and climate-control drawers illuminate contents without compromising space
Color-matched dispenser with Proximity Sensor
Designed to accommodate glassware of all sizes, from pitchers to tumblers; control graphics light up as you approach and automatically switch off when you walk away
GE(R) water filter
Has been moved from the fresh food compartment to the overhead cabinet, where it is discreetly out of sight

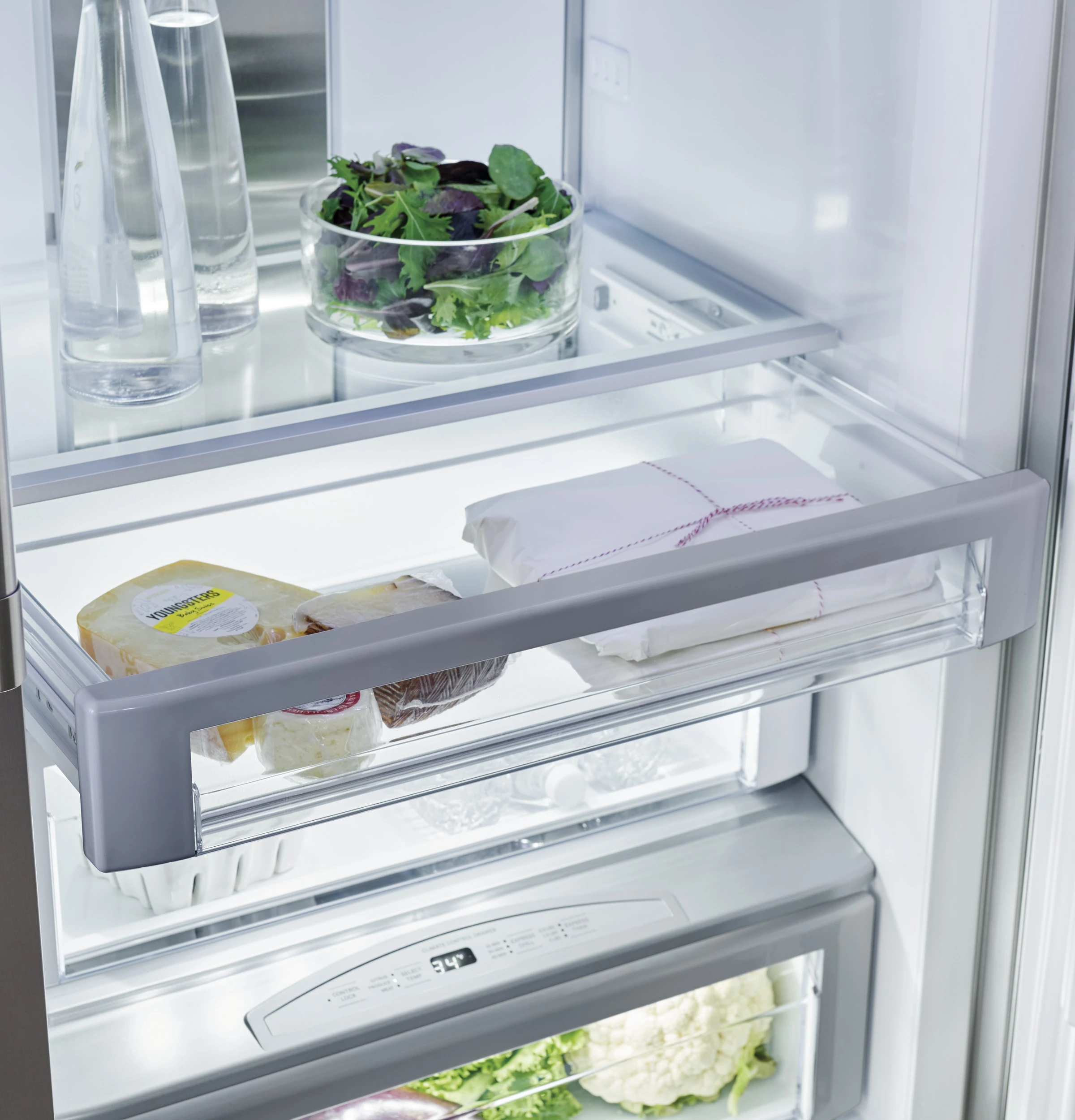

Deli drawer on full-extension slides
Keeps meats, cheeses and other everyday foods within easy reach
Sealed vegetable drawer
Helps preserve the freshness of foods
Adjustable glass shelves
Easily accommodate party trays and platters
Gallon-size door bin
Holds milk containers, two-liter bottles and pitchers
Adjustable door bins
Can be moved to one of two positions in seven locations
Dairy bin with center divider
Has a unique magnetic seal that locks in freshness
Filter-change indicator light
Located on the upfront control panel, provides a visual reminder when it's time to replace the filter for the water dispenser
Sabbath mode
Designed to disable functions in accordance with Sabbath-observing practice
Manuals & Guides
Key Features
Flush inset installation
Allows the refrigerator to be installed flush with adjacent cabinetry
Advanced temperature management system with multi-shelf air tower
Provides even distribution of air throughout the refrigerator
Climate-control drawer
Allows you to express-chill beverages, express-thaw meats and select specific temperatures for perishable foods
LED lighting
Light columns in the freezer and fresh food compartments extend the full length of the interior and LED lighting located inside the vegetable and climate-control drawers illuminate contents without compromising space
Deli drawer on full-extension slides
Keeps meats, cheeses and other everyday foods within easy reach
