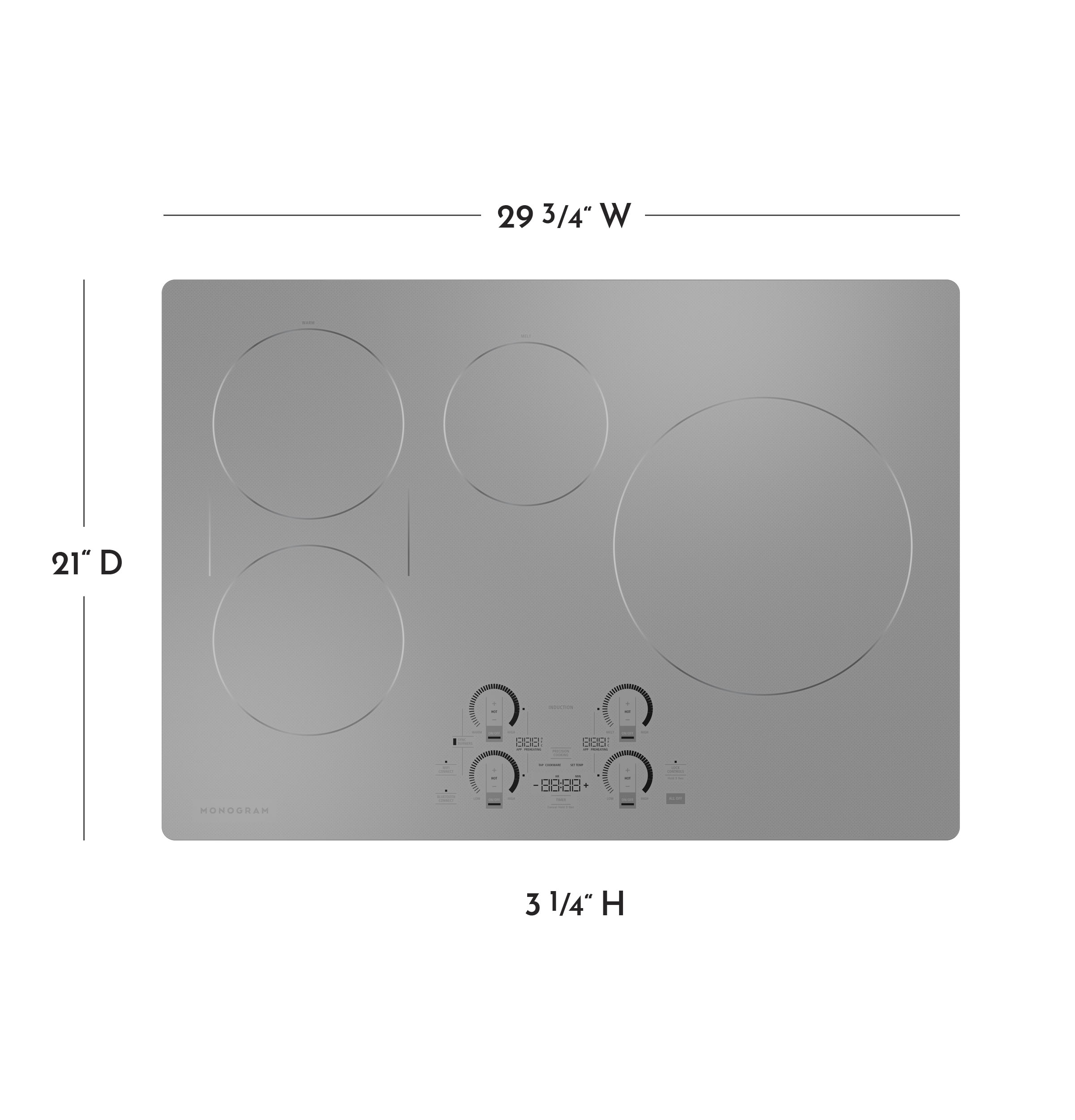

| Overall Height | 4.625 in |
| Overall Width | 29.75 in |
| Overall Depth | 20.875 in |
| Cooktop Size | 30 in |
| Cabinet Width | 30 in |
| Cutout Width (in) | 28.5 |
| Cutout Depth (in) | 19.625 |
| Approximate Shipping Weight | 46 |
| Net Weight | 40 |
| WiFi Connect | Built-In |
| Filler trim kit | JXTR32B |
| Cooktop Burner Type | 4 Induction Elements |
| Fuel Type | Electric |
| Style | Smoothtop |
| Control Location | Front Center |
| Cooking Technology | Induction |
| Cooktop Surface | Silver Glass Ceramic |
| Timer | Kitchen timer |

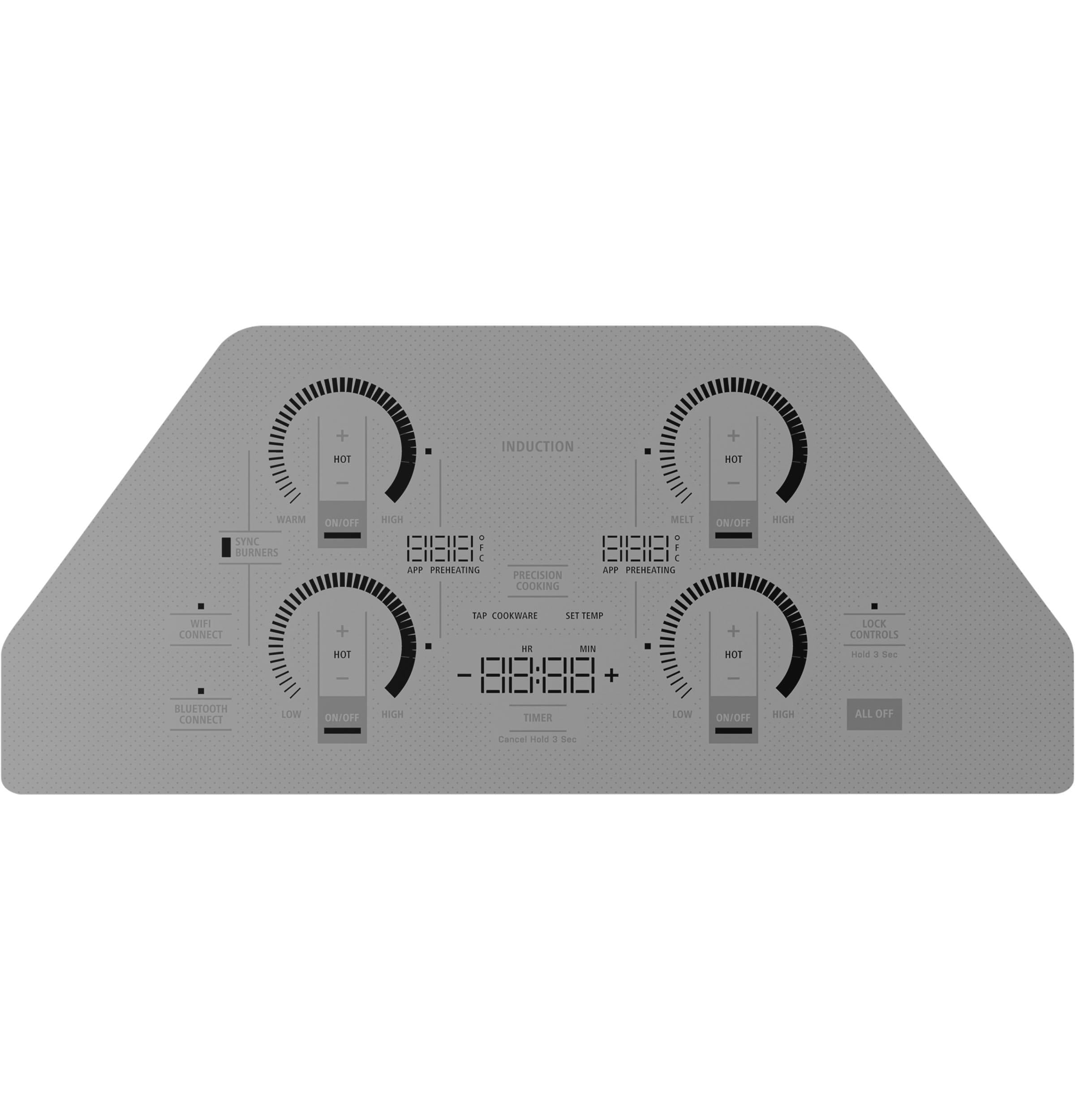

| Control Type | Electronic Touch Slider |
| Product Type | Cooktop |
| Power Level Indicator | 19 Levels |
| Cooktop Type | 4 Induction Elements |
| Collection | Statement,Minimalist,EcoBalance |
| Connected Capabilities | Amazon Alexa,Google Home |

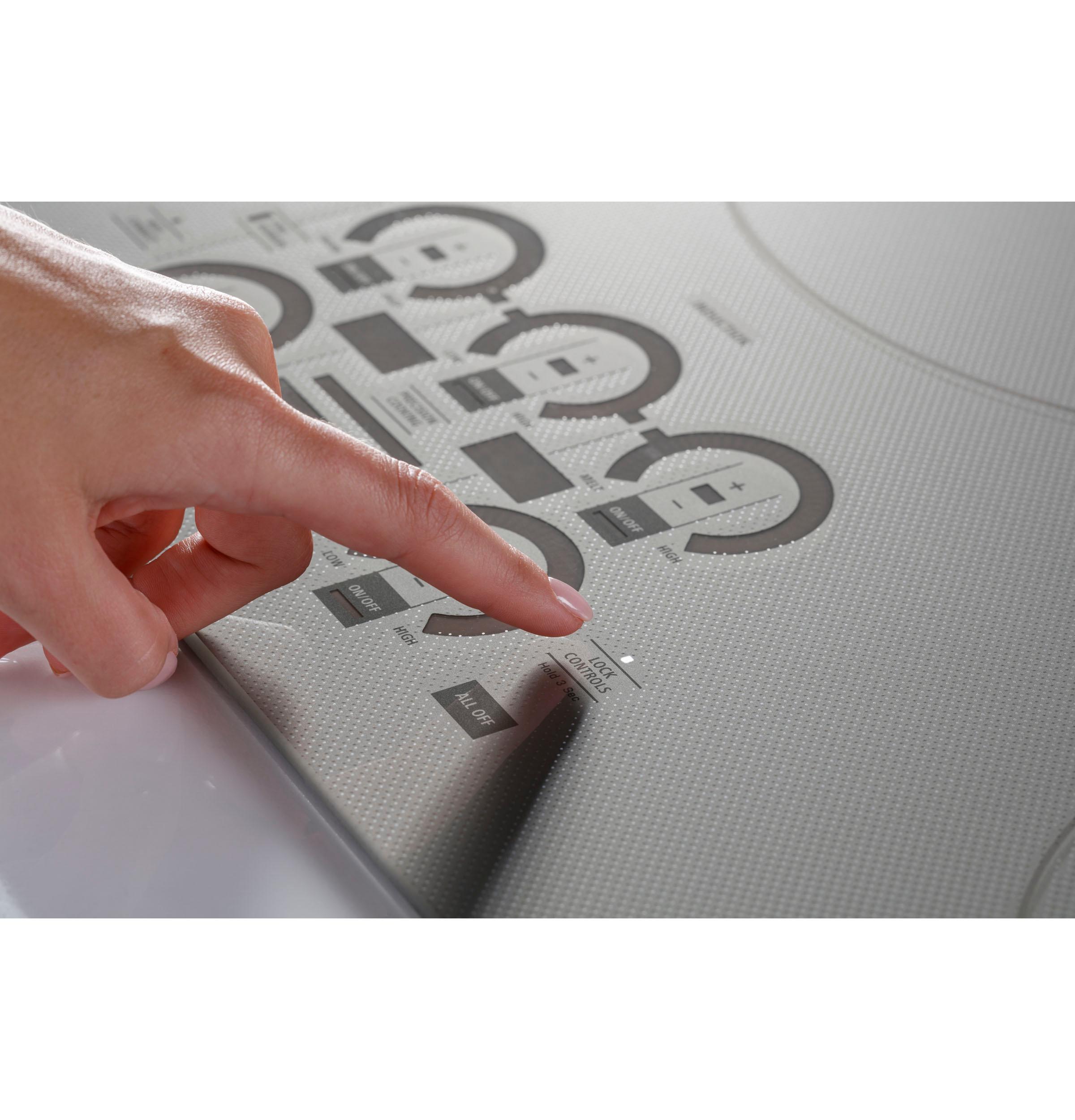

| Cooktop Control Features | Electronic Touch Slider,Control Lock Capability,Sync-Burners,Pan Presence Sensor,Pan Size Sensor,Melt Setting,Custom Settings,Bridge Control |
| Element - Left Front | 7 2500W |
| Element - Left Rear | 7 2500W |
| Element - Right Front | 11 3700W |
| Element - Right Rear | 6 1800W |

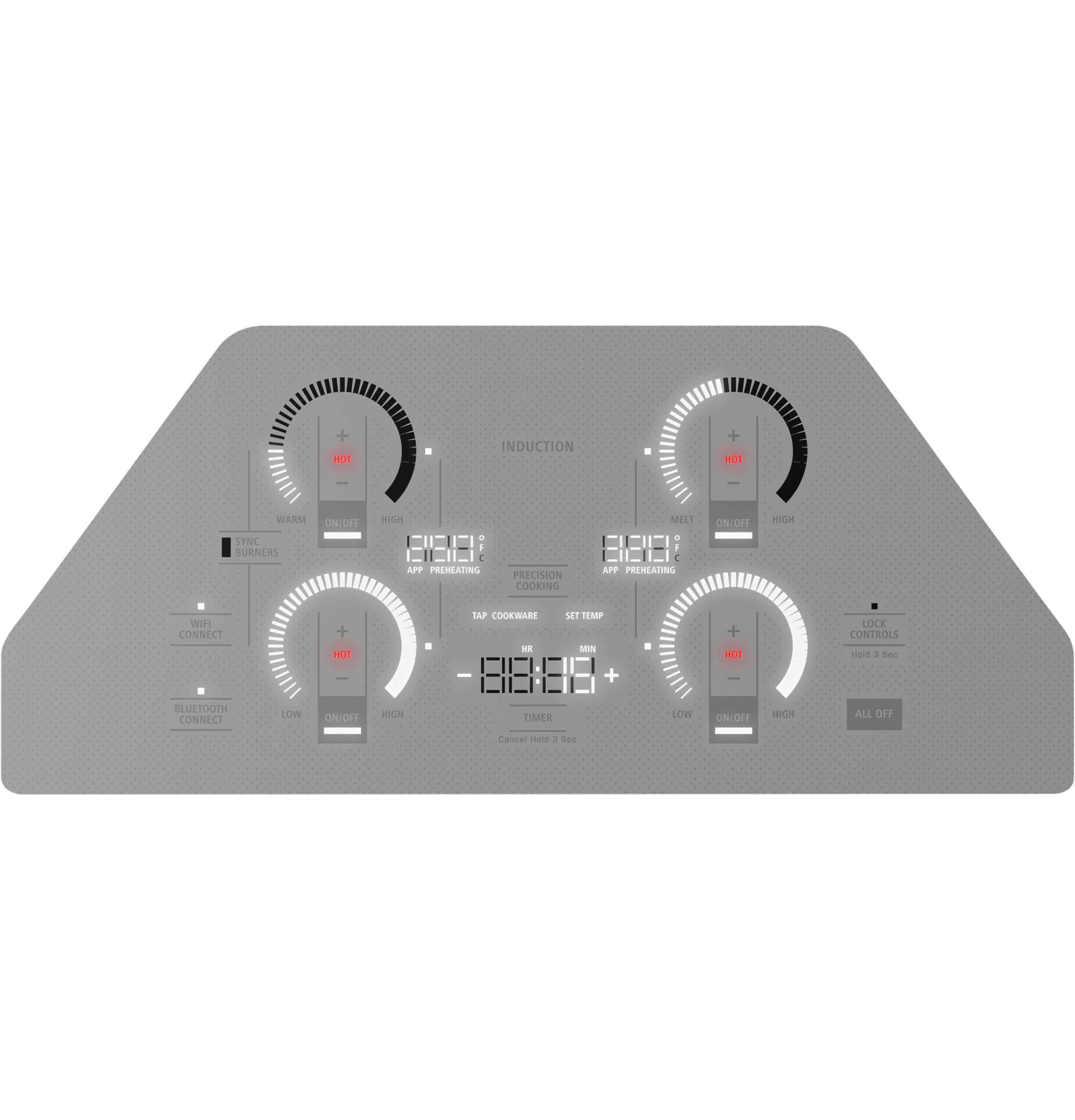

| Indicator Lights | 4 Hot Surface,Surface Element ON |
| Short Description | 30 Induction Cooktop |
| WiFi Enabled Features | Interfaces with SmartHQ App,Chef Connect with Hoods/OTRs,Works with Precision Cooking Probe,Works with HestanCue Pans |
| Recommended Circuit Breaker (Amps) at 240V | 40 |
| Max. Connected Load (kW) at 240V | 7.7 |
| Max. Current Draw (Amps) at 240V | 32.1 |
| Max. Connected Load (kW) at 208V | 6.9 |
| Recommended Circuit Breaker (Amps) at 208V | 40 |
| Max. Current Draw (Amps) at 208V | 33.2 |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Color Appearance | Silver |
| Frameless | Yes |
| Installation | Flush-mount capable,Above Wall Ovens (except SDWO),Above Warming Drawer,Above 120V Advantium,With Telescopic Downdraft |
| Optional Accessories | JXPROBE1 - Precision cooking probe |
| Cooktop Cleaning | Included |
| Optional Flush Mount Kit | JXFLUSH1 |
| Cooktop Size | 30 in |
| Width | 29.75 in. |
| Height | 4.63 in. |
| Length | 20.88 in. |
| Weight | 40 lbs. |
| Number of Boxes | 1 |
| Shipping Width | 34.75 in. |
| Shipping Height | 9.63 in. |
| Shipping Length | 25.88 in. |
| Shipping Weight | 80 lbs. |
| Total of Shipping Weight | 80 lbs. |
| Source | Calculation |
| Cubic Feet Measurement | 1.66 ft³ |
| Dimensional Weight | 20.66 lbs. |
| Total of Cubes | 1.66 ft³ |
| Total of Dimensional Weight | 20.66 lbs. |
