SKU: ZDT985SINII | UPC: 8469184834

Monogram ZDT985SINII 24" Panel-Ready Fully Integrated Dishwasher Custom Panel and Handle Required

Name: Monogram ZDT985SINII 24" Panel-Ready Fully Integrated Dishwasher Custom Panel and Handle Required
Brand: Monogram
SKU: ZDT985SINII
Availability: OutOfStock

Quick Specification More details

Width:
23.75"
Depth:
24"
Height:
34"
Type:
Built-In Dishwashers

About this product

Custom panel model
Advanced wash system
Steam + Sanitization
Hard food disposer

SKU: ZDT985SINII | UPC: 8469184834

Monogram ZDT985SINII 24" Panel-Ready Fully Integrated Dishwasher Custom Panel and Handle Required

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
23.75"
Depth:
24"
Height:
34"
Type:
Built-In Dishwashers

About this product

Custom panel model
Advanced wash system
Steam + Sanitization
Hard food disposer

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Videos
Rebates
Reviews

Contact us for Pricing

Product Details for Monogram ZDT985SINII

Technical Details

Warranty

Parts	2 Year
Labor	2 Year

Filter

App Filter - Cabinet Width	Dish Traditional 24 in.
App Filter - WiFi Connect	Built-In

Weights & dimensions

Overall Depth	24 in
Net Weight	126 lb
Overall Width	23.75 in
Overall Height	34 in
Height w/ Legs Retracted - Minimum Height	33.375 in
Cabinet Width	24 in
Approximate Shipping Weight	139 lb
Height w/Legs Extended - Maximum Height	34.625 in
Depth with Door Open	25.5 in
Cutout Height (in)	33.5
Cutout Width (in)	24
Cutout Depth (in)	24

Features

Wash System	900 Series
Sensor	Clean Sensor
Tub Type	Tall Tub
Leveling System	Front Adjustable Leveling Legs
OU Certified	No
Number of Place Settings	16
Custom Panel Ready	Integrated Panels
Latch	Pull with Handle
Number of Options	11
Style	Built-In Top Control
Water Filtration System	100% Filtration with Hard Food Disposer and Removable Filter
Cutlery Tray	Full 3rd rack (above upper rack) on full extension slides
Collection	EcoBalance
Floor Protection	Floor Protect with Alert
Short Description	Fully Integrated Dishwasher
Rack Color	Silver
Dispenser	Rinse Aid with Indicator and Adjustment

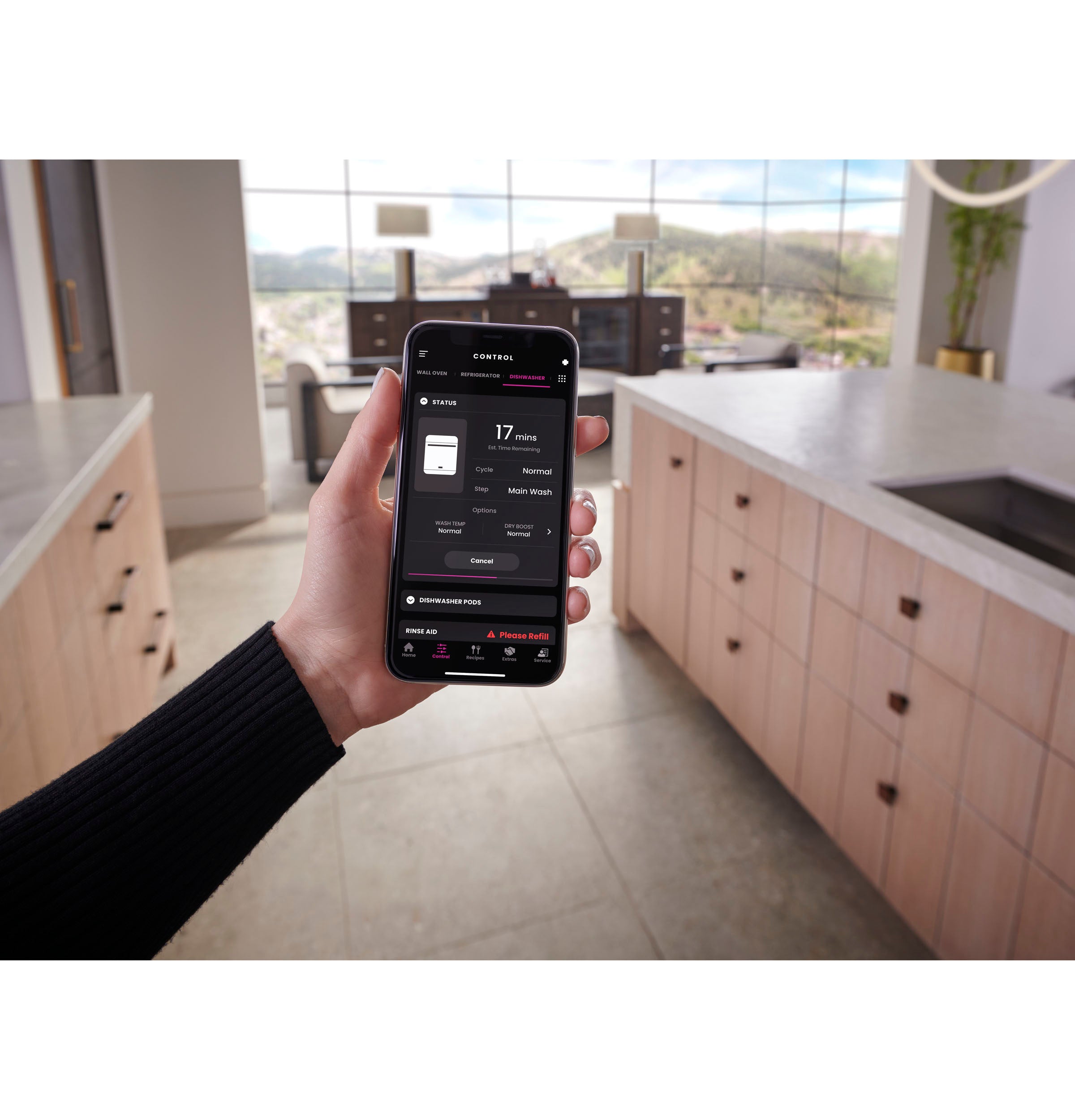

WiFi Connect	Built-In
EcoBalance Compatible	Yes
Control Type	Top Controls
Dishwasher Drying Features	Fan Dry On/Off plus Max Dry
Racking System	Full 3rd rack
Interior Lighting	LED
Exterior Style	Custom Panel
Product Type	Built-In
Number of Cycles	7
Tub and Door Liner	Stainless Steel
Sabbath Mode	Yes
Showroom Power Mode	Yes
Lower Rack	Ball-Tip Tines
Dishwasher Options	Child Lock
Rack Features	2 Utility Shelves with 2 Stem Safe - Upper
Dishwasher Cycles	Auto Wash
Wash Arms	90+ Spray Jet Wash System
Wash System Features	Automatic Temperature Control
Connected Capabilities	Amazon Dash Replenishment
Upper Rack	1/2 fixed tines, 1/2 fold down tines

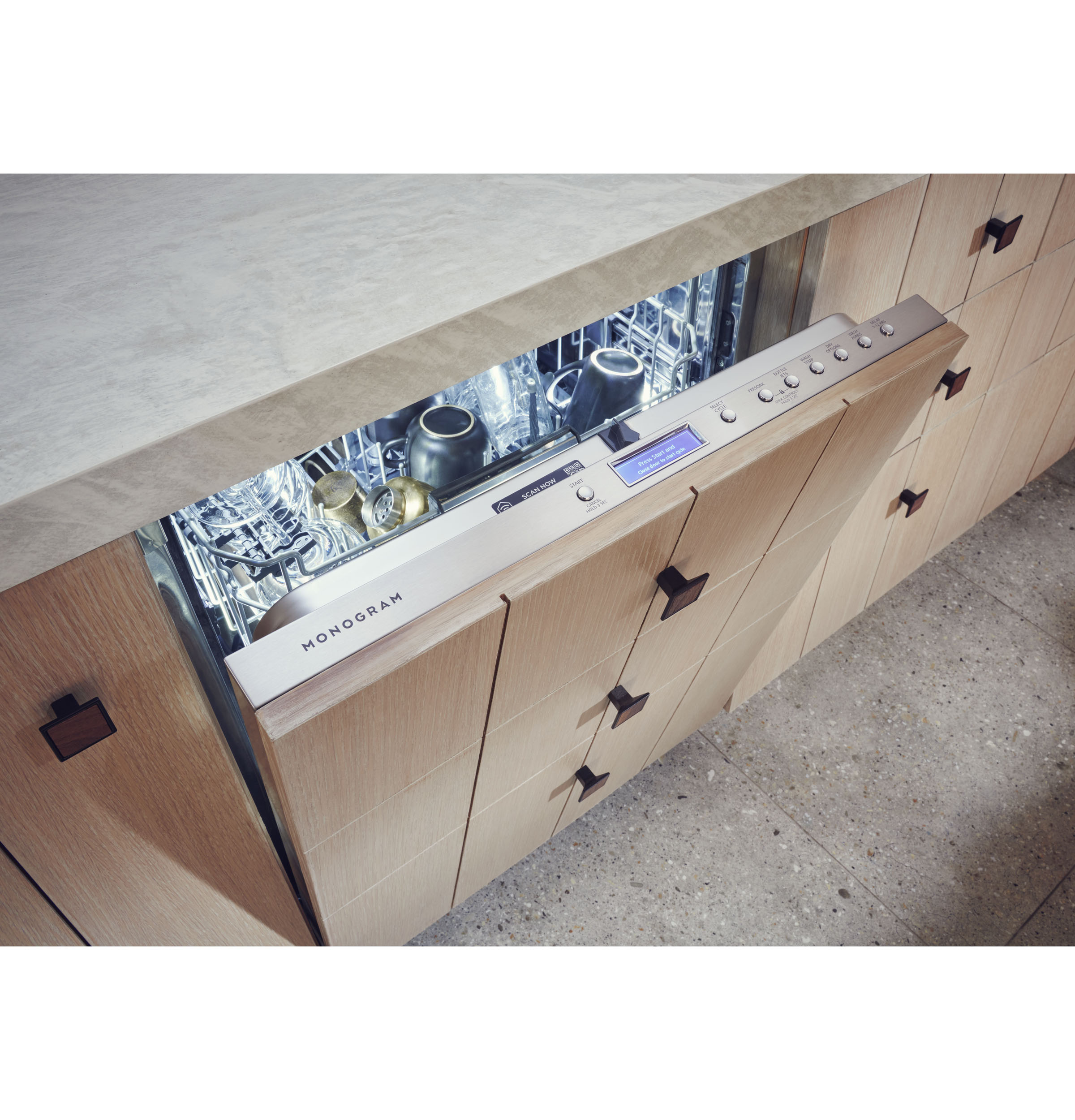

Dishwasher Control Features	Hi-Resolution Gray Scale LCD Control Display

Appearance

Door Panel Color	3/4" Custom Panel Required
Handle	Custom Handle Required
Panel Capability	Integrated
Installation	True Flush
Door Style	Long Door with Top Controls
Door Appearance	Fully integrated door for custom panels
Color Appearance	Custom Panel and Handle Required
Design Style	Custom Panel

Power / ratings

Power Connection	Optional cord kit (GPFCORD - WX09X70910, WX09X70911)
Electrical Requirements	120 V; 60 Hz; 10.2 A
Calrod Heater Watts	1200
Hertz	60
Watts	1296
Energy Consumption (kWh/year)	240

Economical / quiet

Door Insulation	Mastic
Quiet Package	39 dBA
Outer Wrap	Full-wrap Blanket
Motor Type	Variable Speed
Quiet Features	39 dBA based on results from base model ZDT985SSNSS

Dimensions & weight

Width	23.75 in.
Height	34 in.
Length	24 in.
Weight	126 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	28.75 in.
Shipping Height	39 in.
Shipping Length	29 in.
Shipping Weight	166 lbs.
Total of Shipping Weight	166 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	11.22 ft³
Dimensional Weight	139.42 lbs.
Total of Cubes	11.22 ft³
Total of Dimensional Weight	139.42 lbs.

Warranty

Labor Warranty	Limited 2-year entire appliance
Warranty Notes	Ltd Lifetime SS tub and inner door
Parts Warranty	Limited 2-year entire appliance

Description

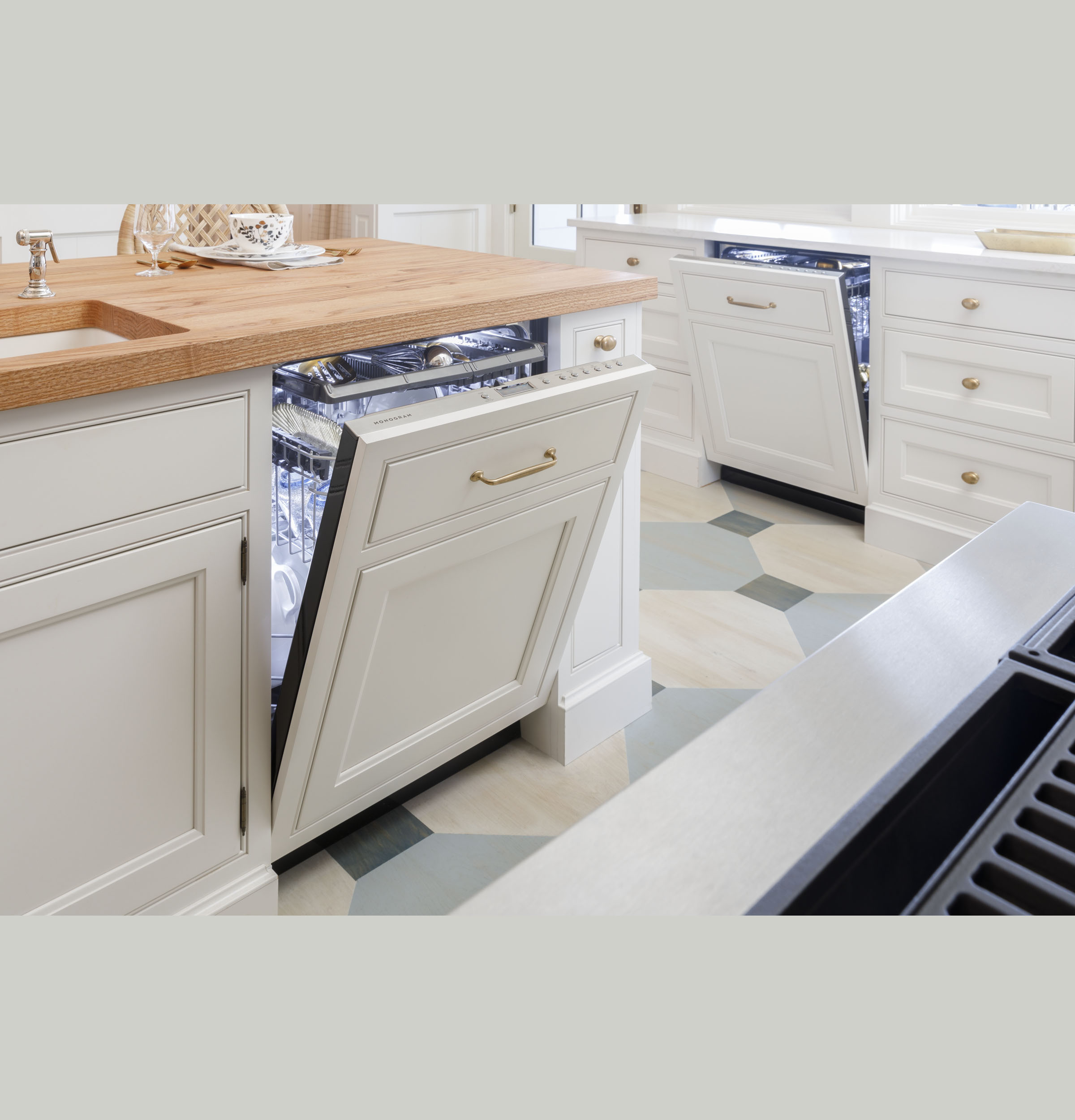

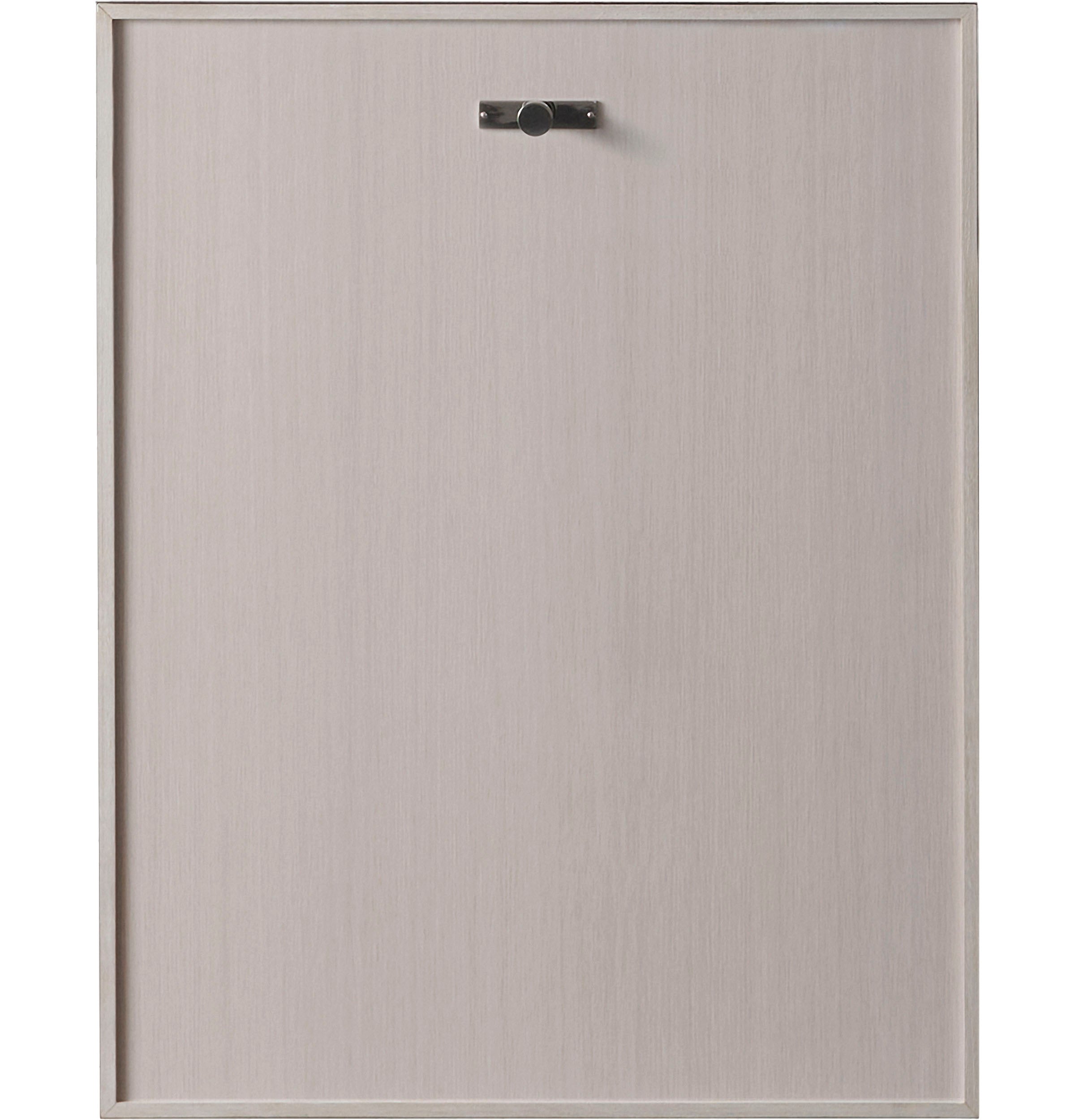

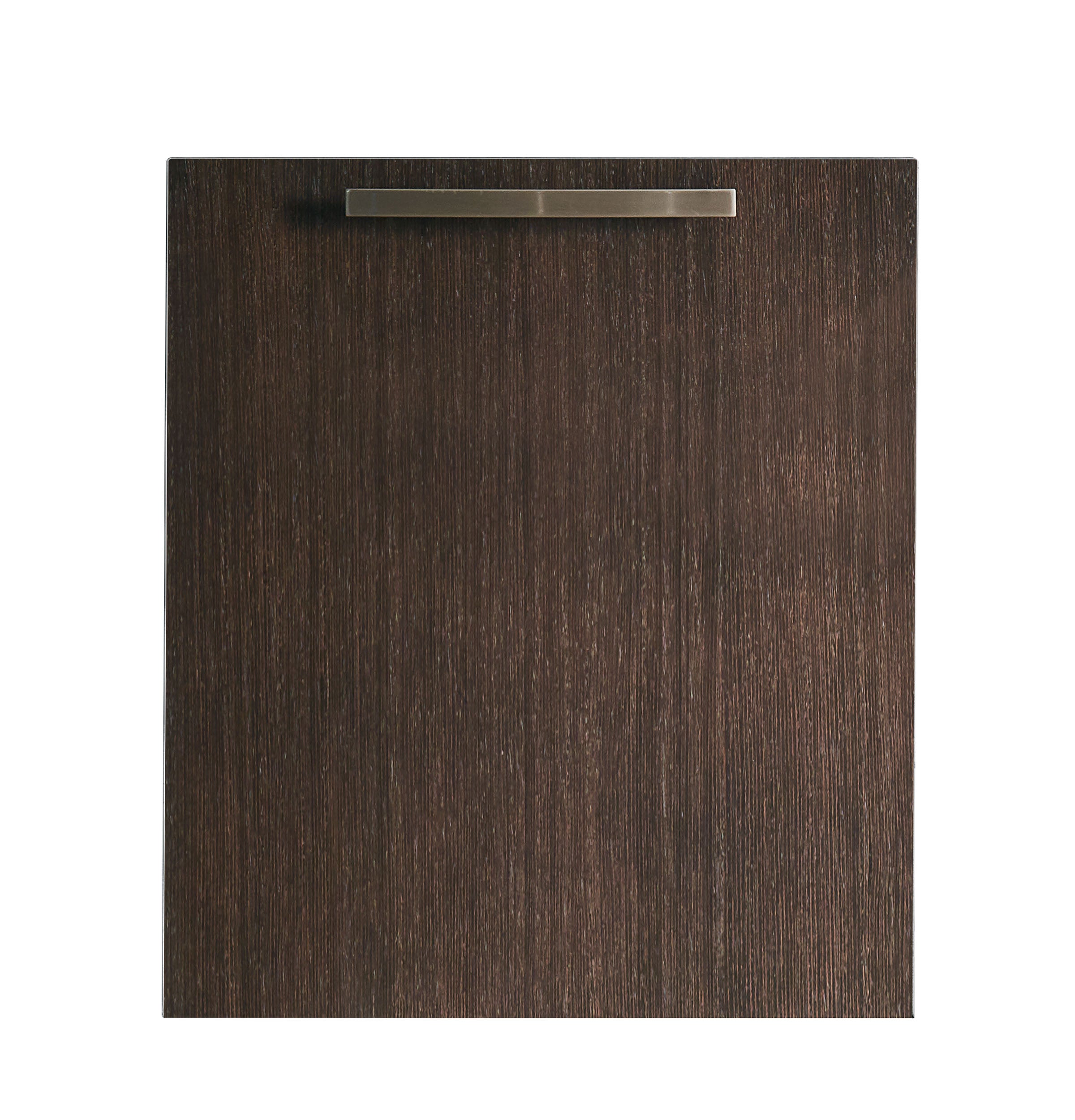

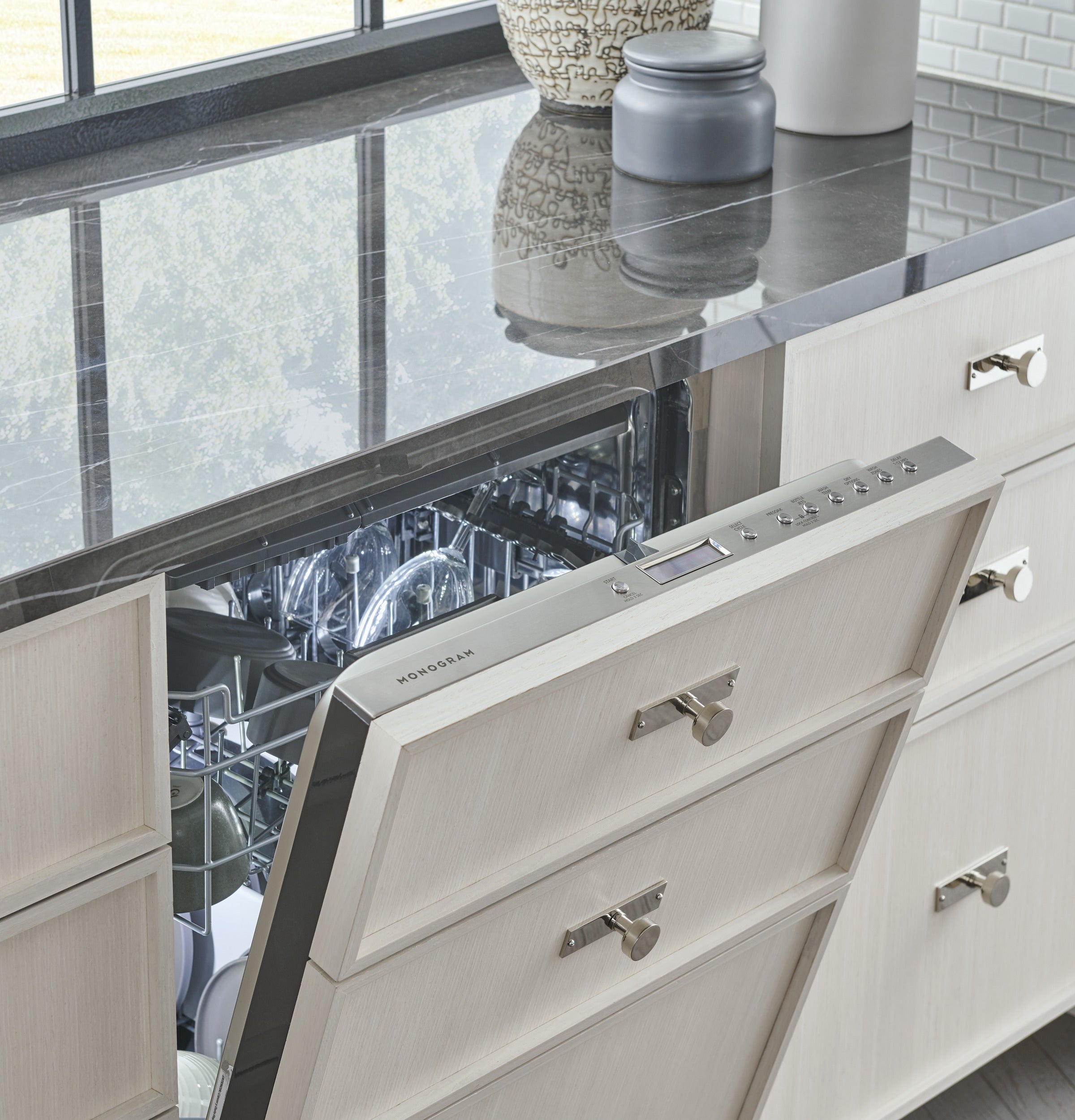

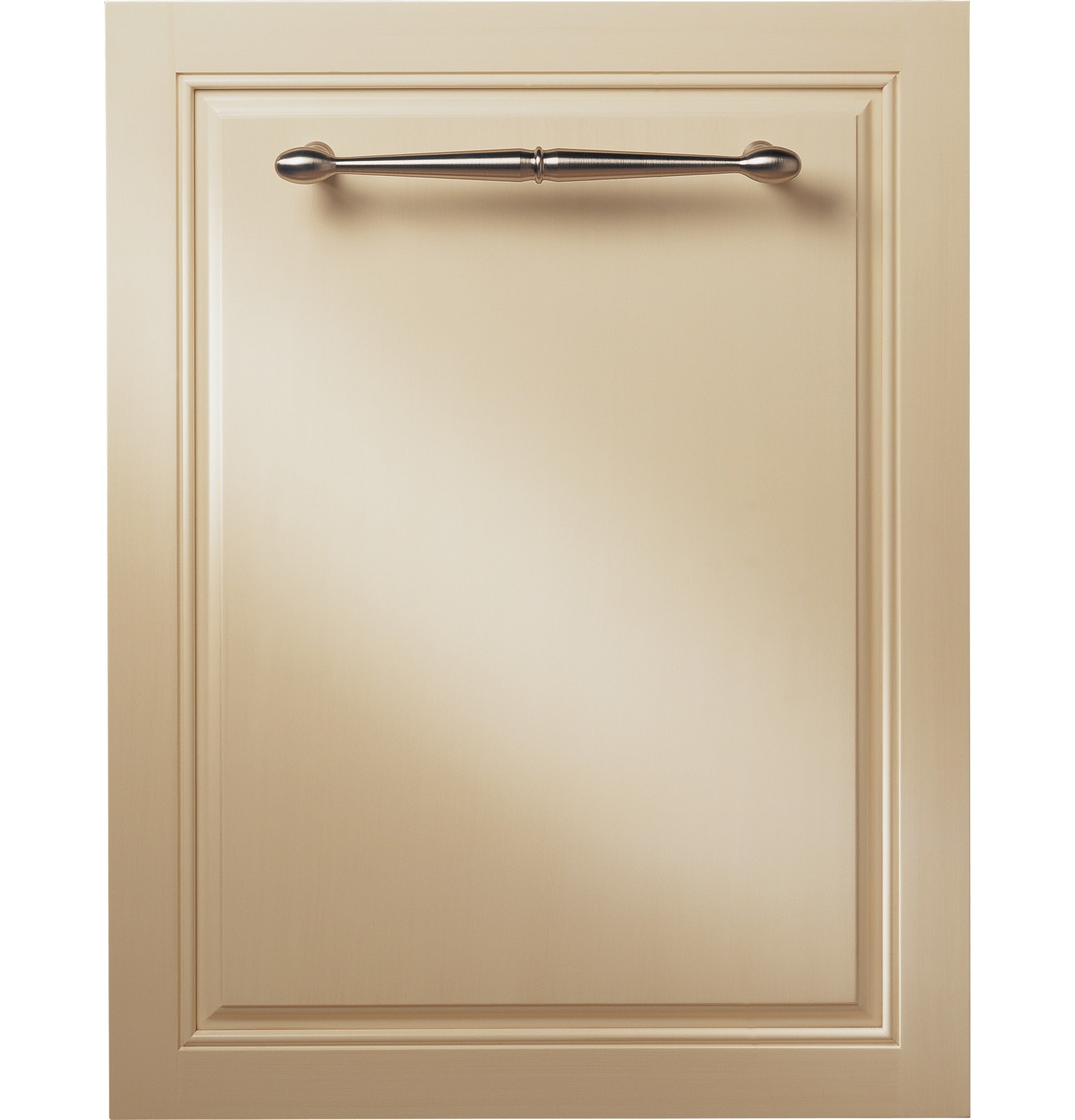

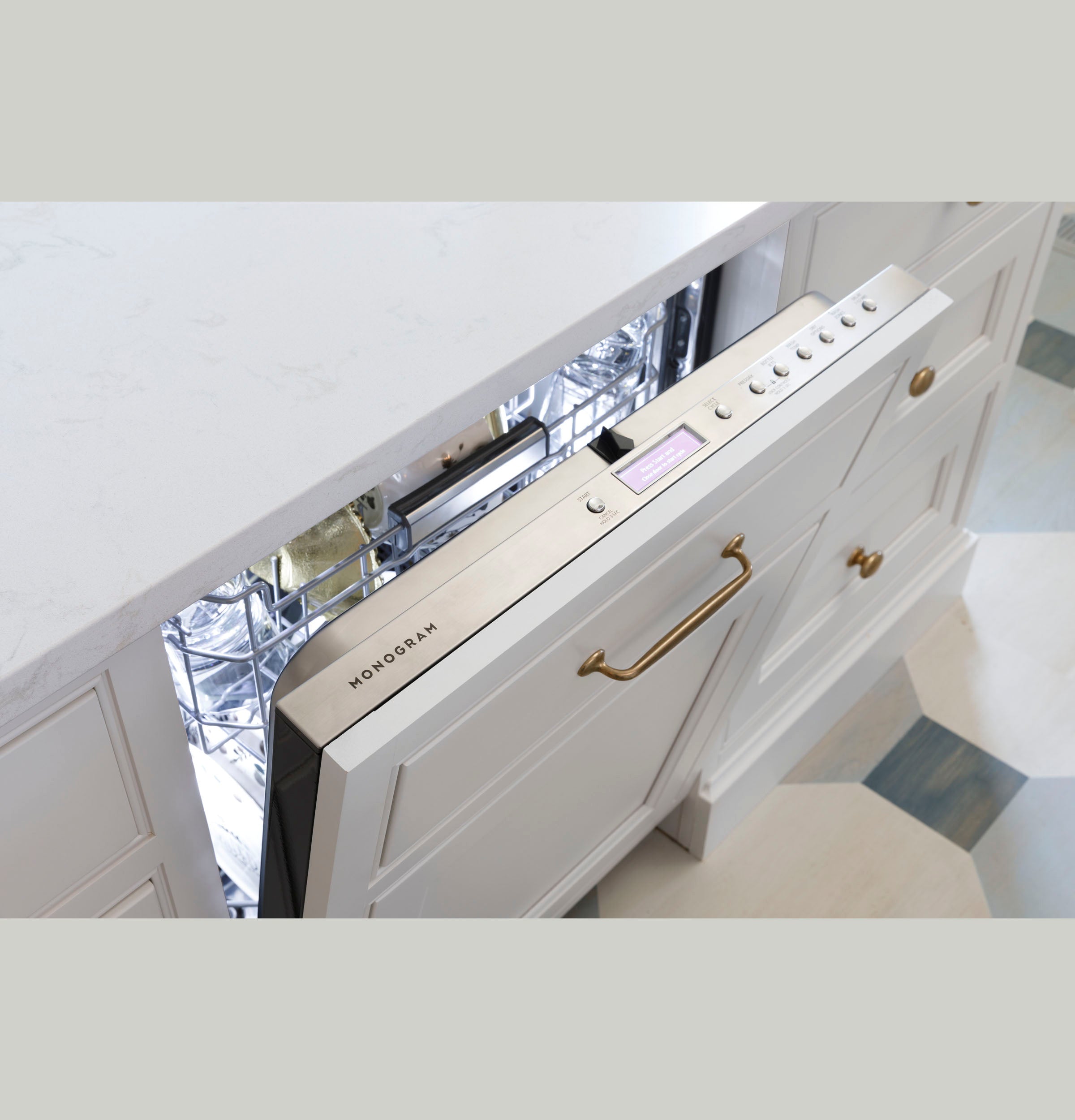

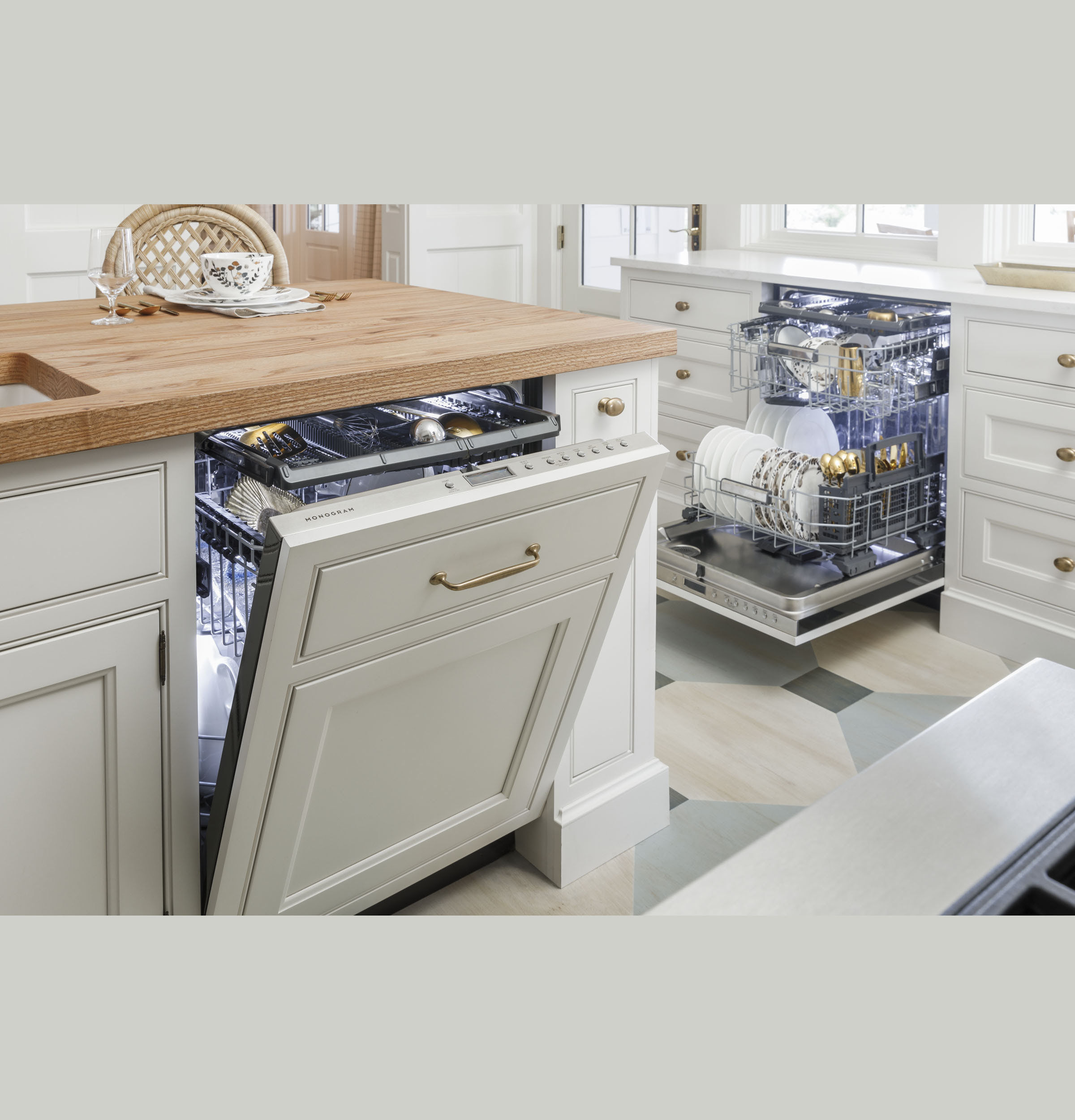

Custom panel model
Create your own kitchen masterpiece. Add a cabinet-compatible panel and custom handle for a luxurious look and freel that reflects your style

Advanced wash system
Designed to achieve the ultimate clean, this advanced wash system with over 90 powerful jets delivers complete washing coverage to every corner of the dishwasher

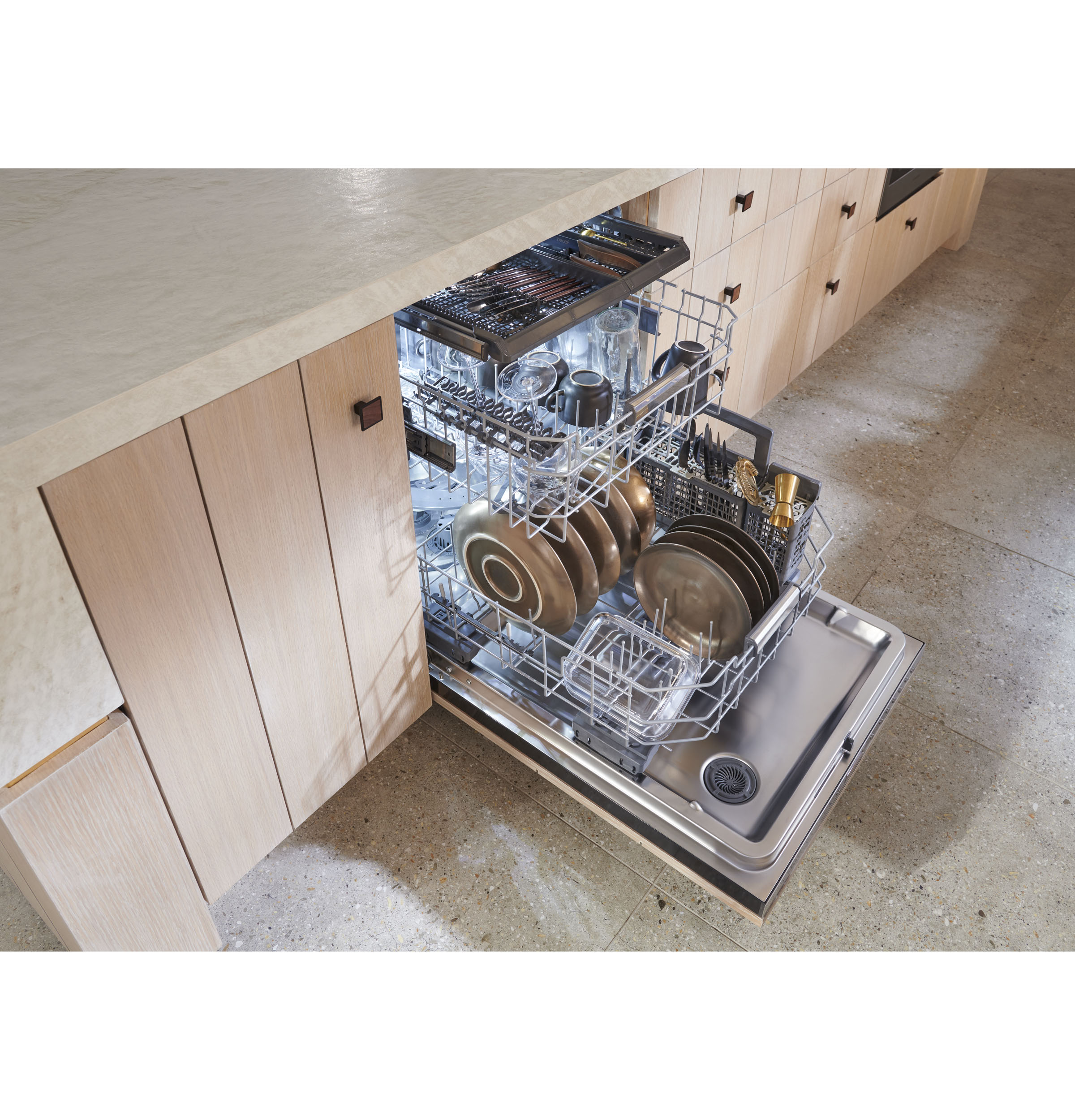

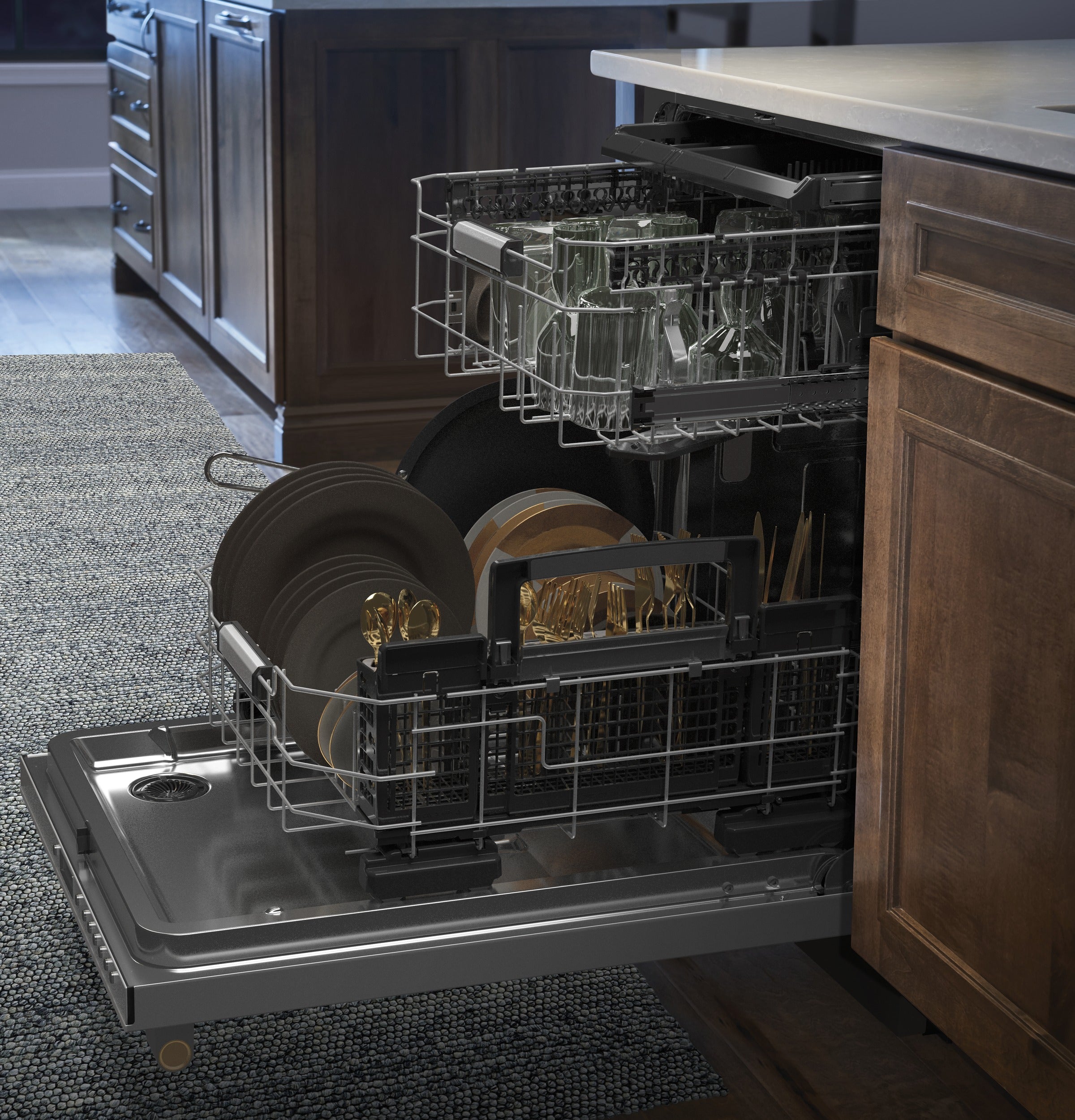

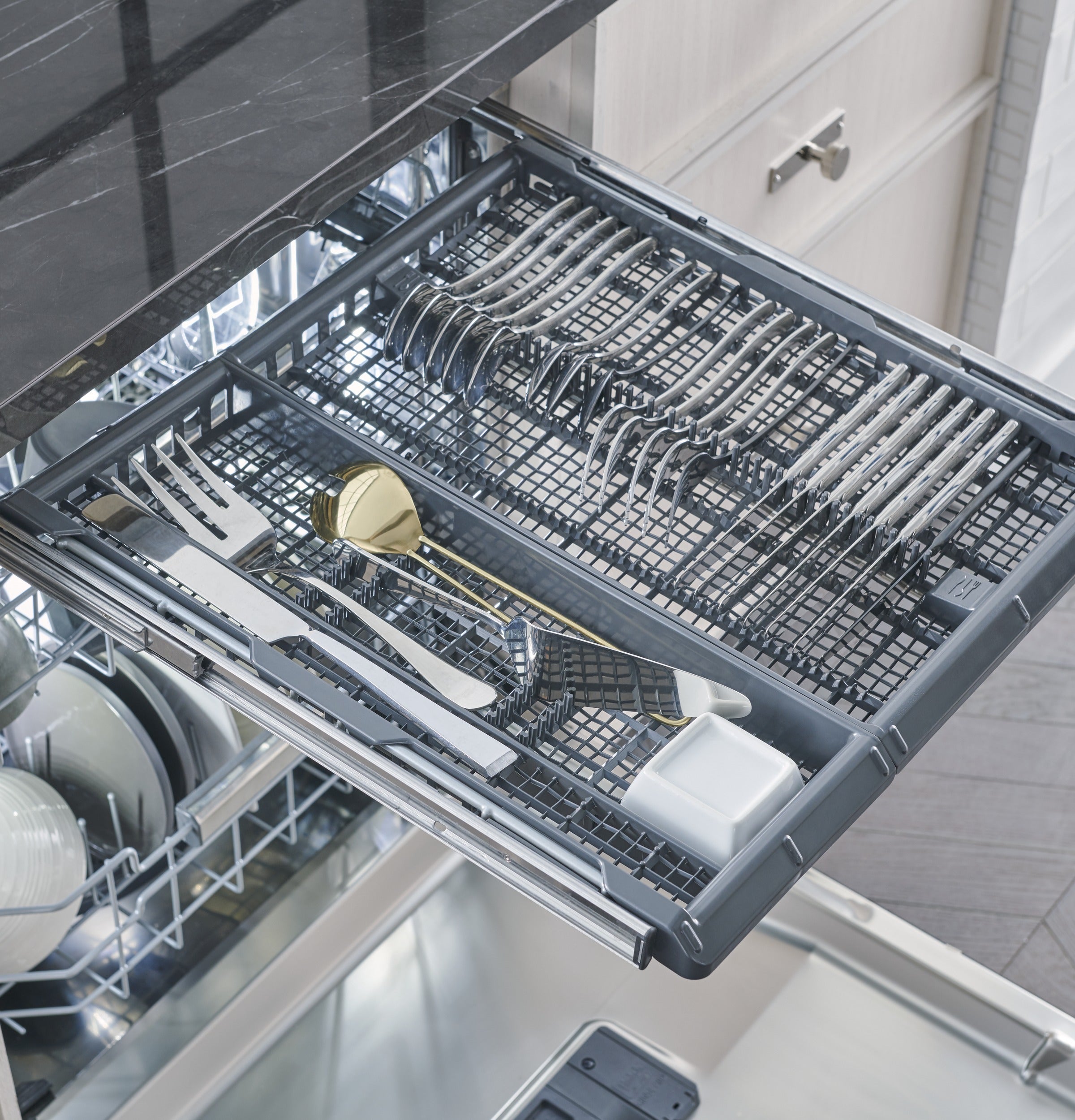

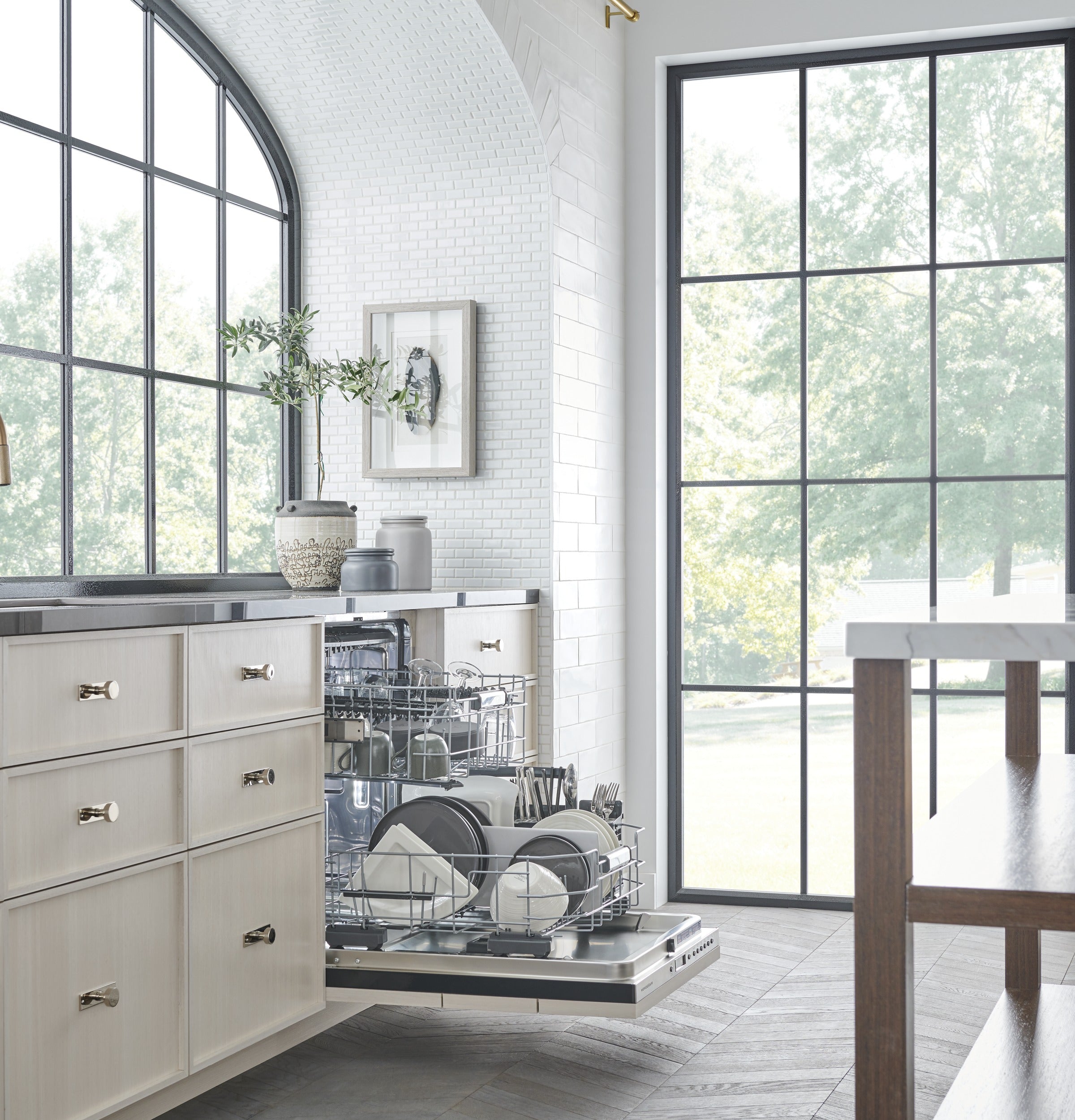

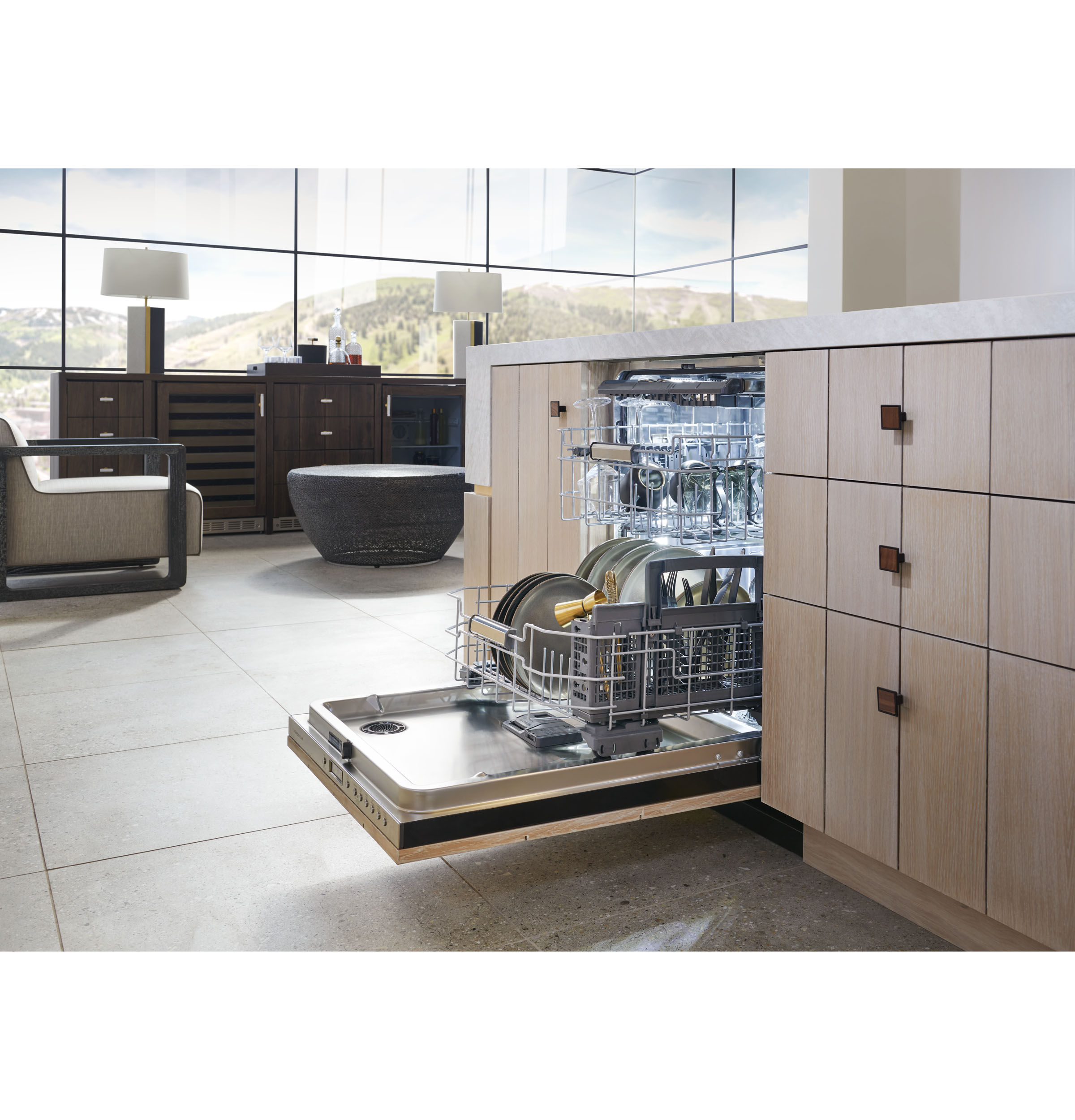

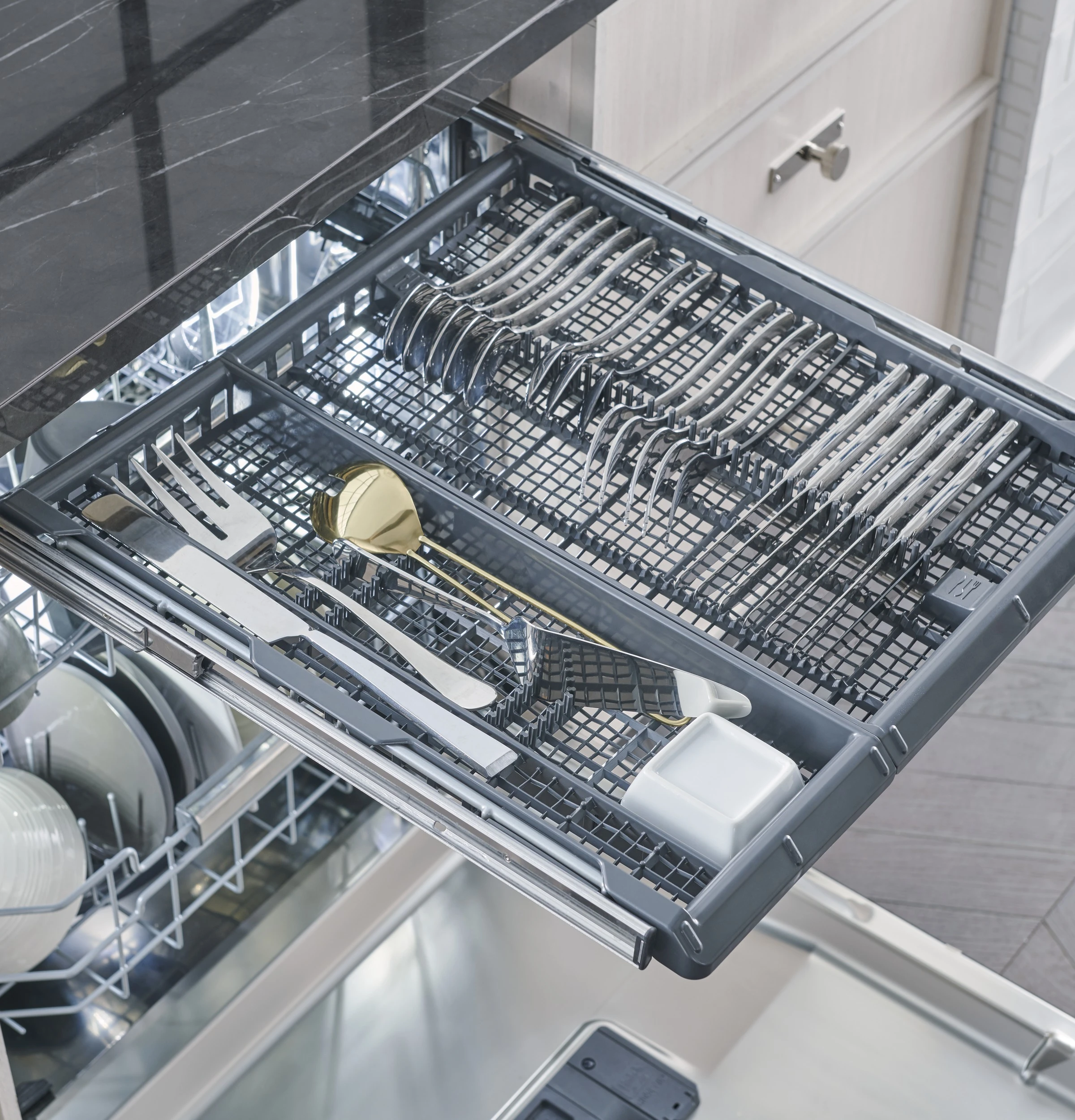

Full-extension, adjustable third rack with premium slides
Convenient and adjustable, this expansive third rack easily accommodates an entire flatware collection, plus carving knives, soup ladles and other cooking/serving tools for the ultimate clean

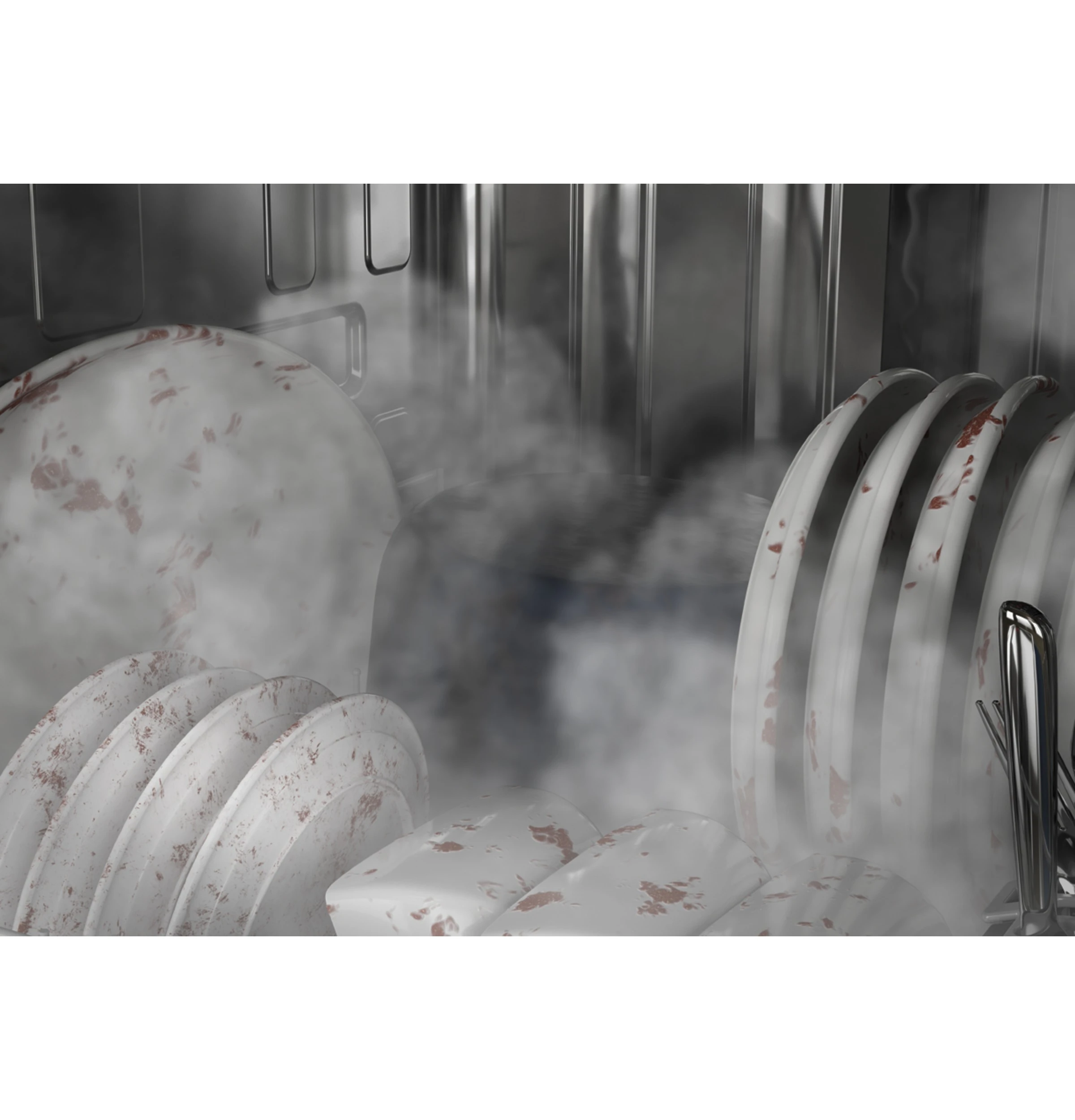

Steam + Sanitization
Eliminate the need to pre-wash dishes at the end of every meal, thanks to a Steam + Sani feature that easily loosens lingering traces of food with an added bonus of complete sanitization

39 dBA quiet operation
Is made possible by advancing sound-absorbing materials and a smooth-running motor

Hard food disposer
Designed to maintain a kitchen's cleanliness and efficiency, the hard food disposer with stainless steel blades grinds food into tiny particles that wash away with ease

Max Dry system
This precise and efficient drying system delivers beautifully dry dishes every time and is perfect for hard-to-dry items like your favorite champagne flutes

Bottle jets
Hard-to-reach areas inside tall items get completely clean with four dedicated jets integrated into the upper rack that shower water deep inside for the ultimate clean

LED lighting
Illuminates the entire interior, leaving no question as to whether or not dishes have been cleaned

Deep clean silverware jets
Powerful jets blast away stuck-on food for silverware that's always spotless

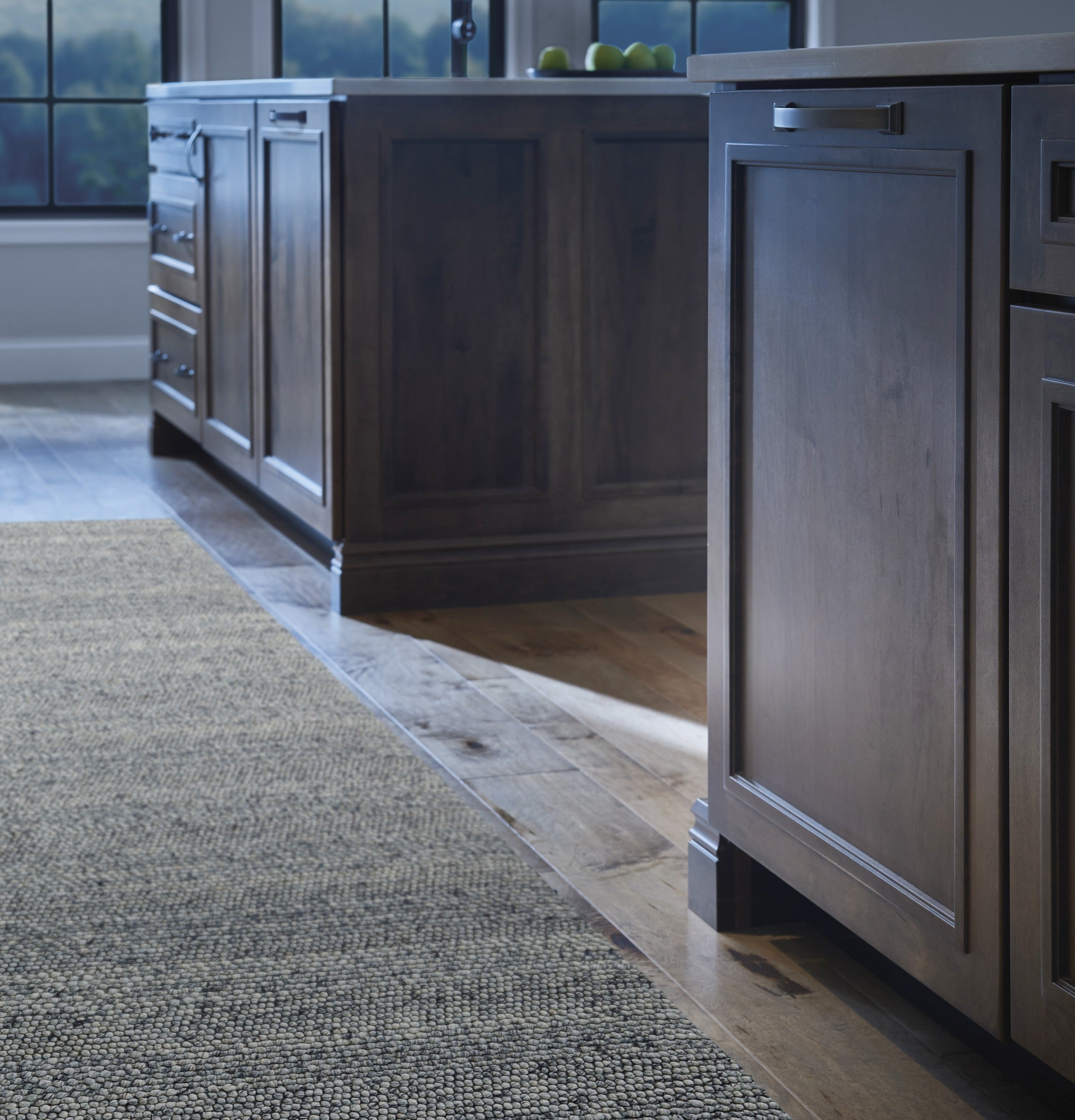

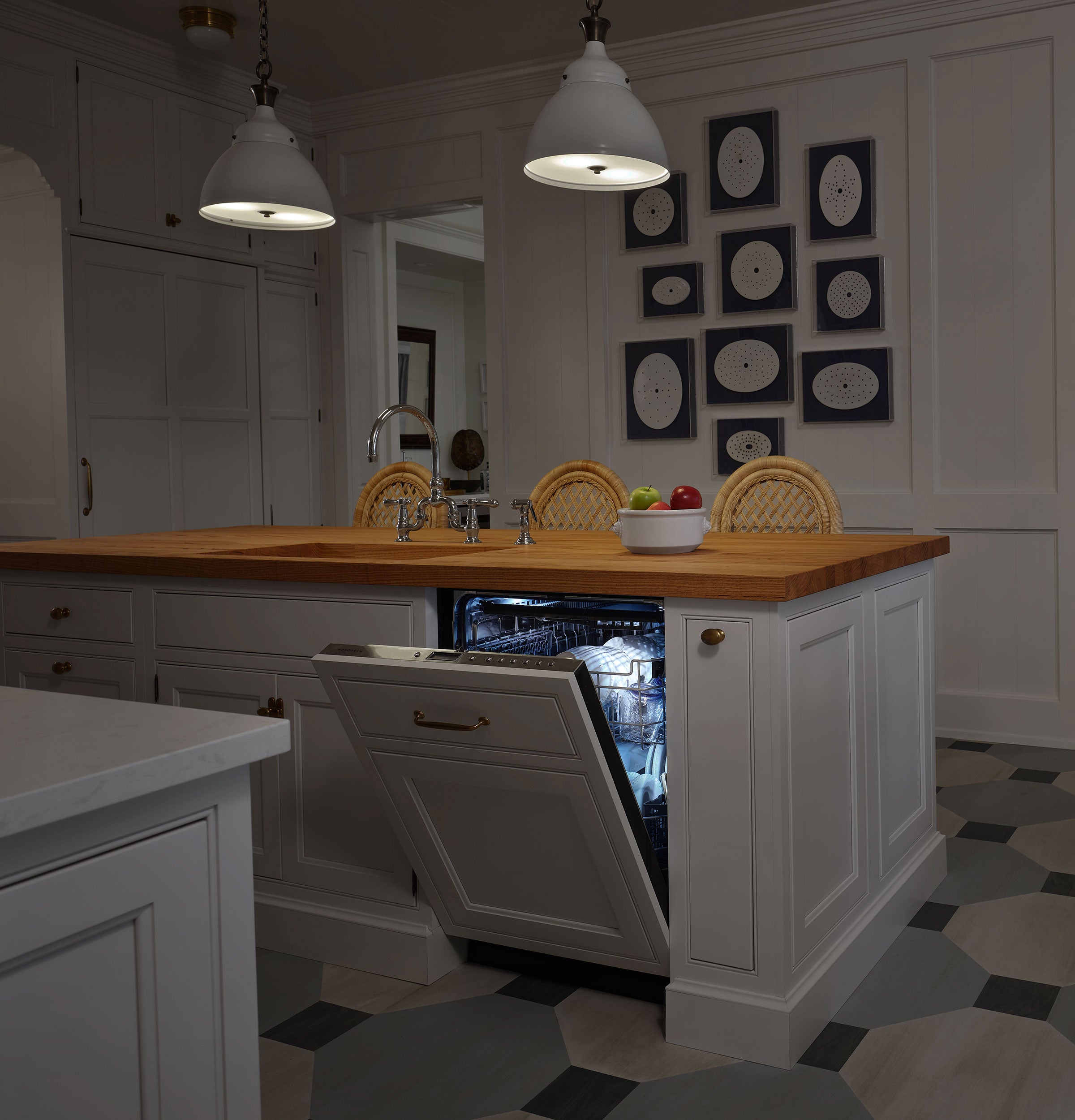

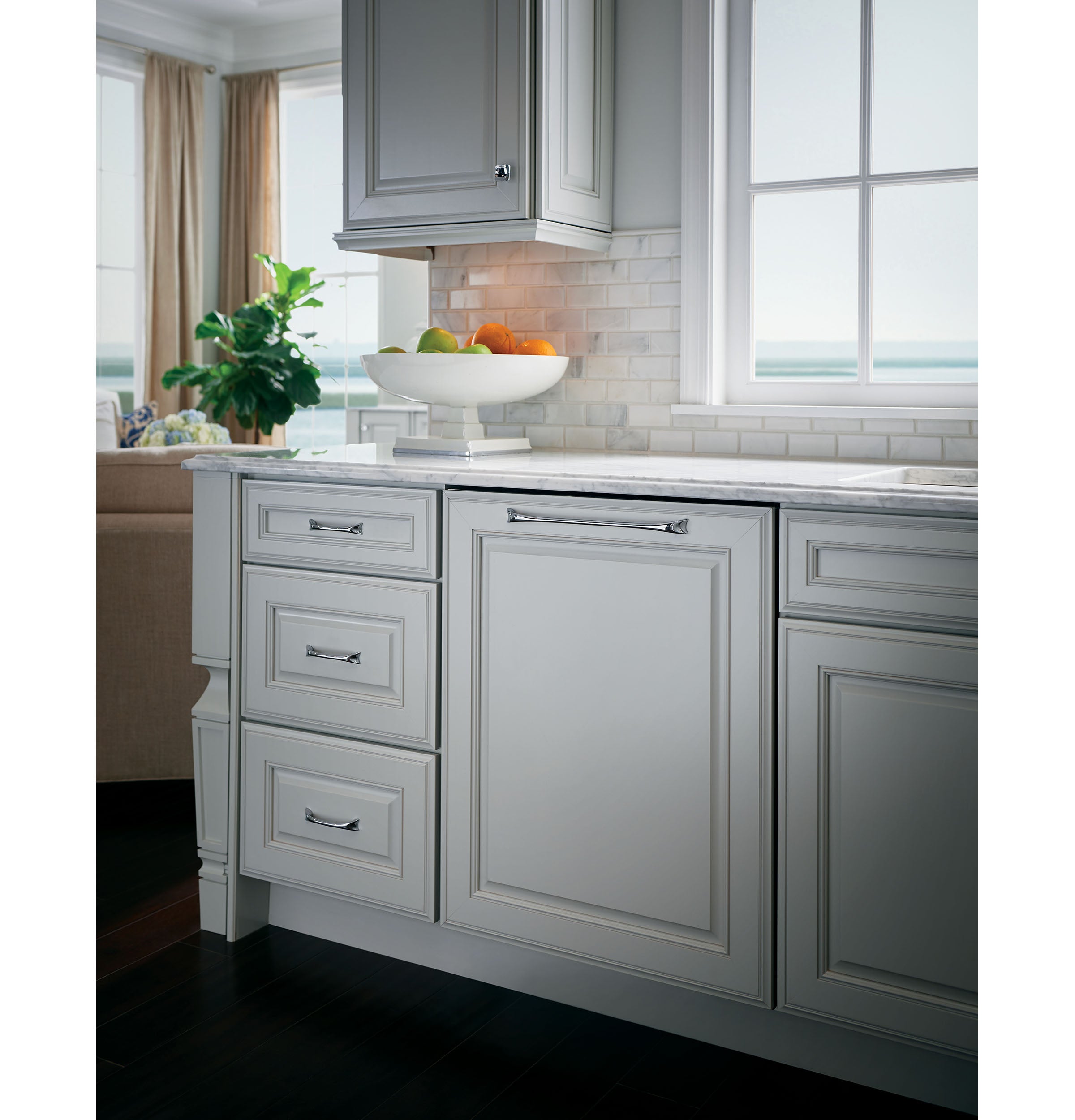

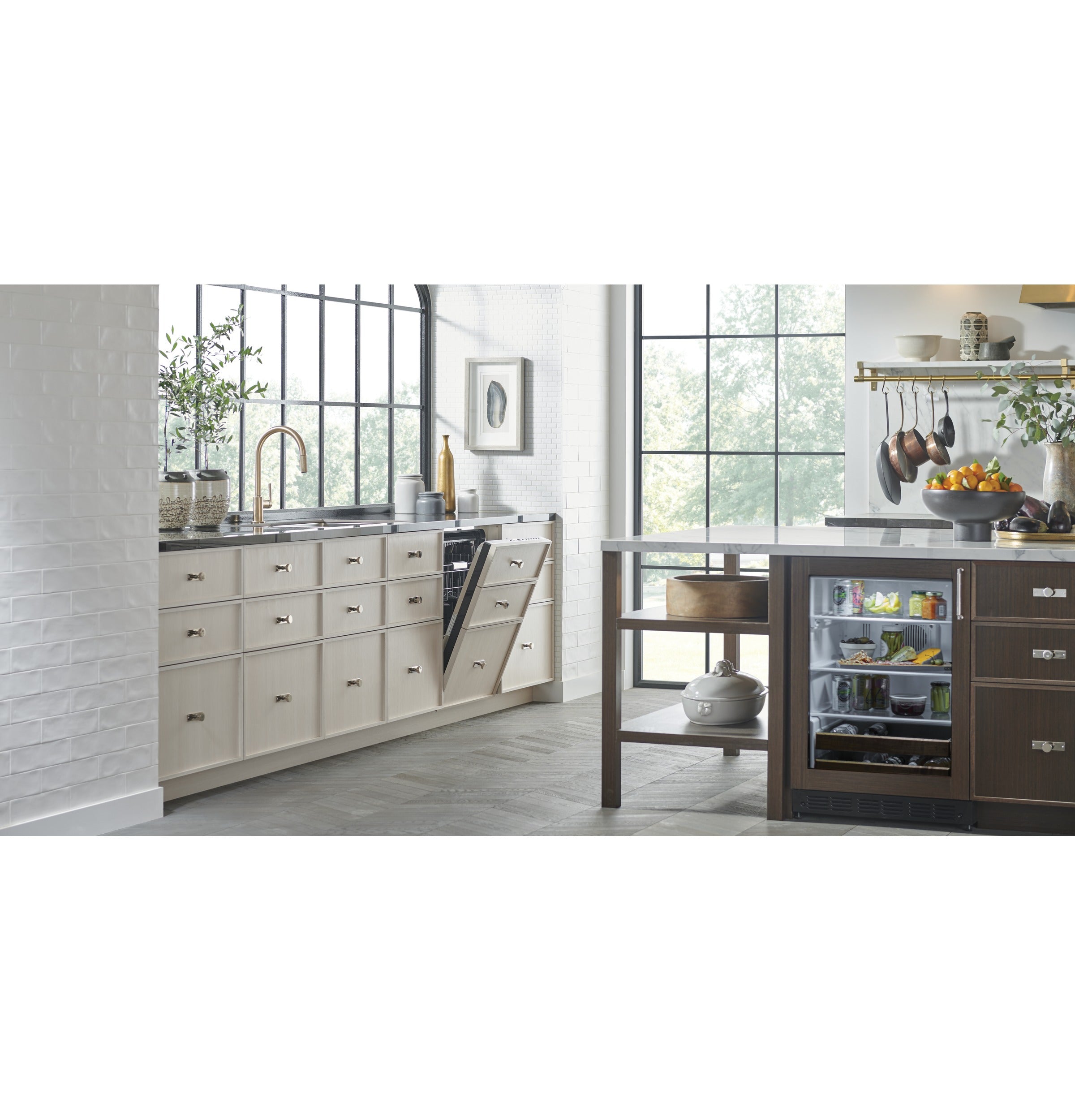

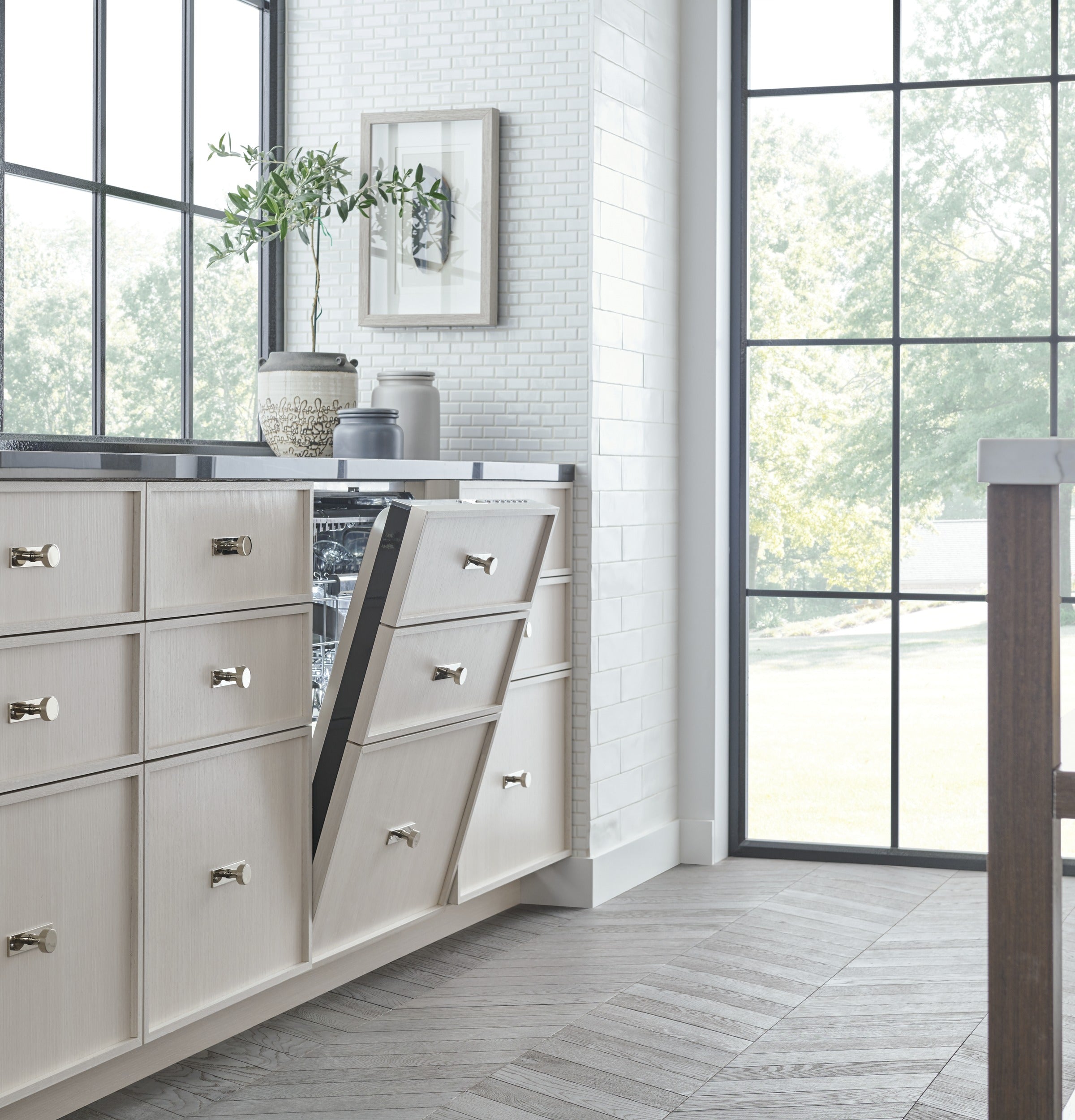

Cabinet depth installation
Customize this appearance with a panel to match the d(eback)cor of your kitchen - true flush capable, even with inset cabinets

Product Features

Advanced wash system
Designed to achieve the ultimate clean, this advanced wash system with over 90 powerful jets delivers complete washing coverage to every corner of the dishwasher
Hard food disposer
Designed to maintain a kitchen’s cleanliness and efficiency, the hard food disposer with stainless steel blades grinds food into tiny particles that wash away with ease
Max Dry system
This precise and efficient drying system delivers beautifully dry dishes every time and is perfect for hard-to-dry items like your favorite champagne flutes
Bottle jets
Hard-to-reach areas inside tall items get completely clean with four dedicated jets integrated into the upper rack that shower water deep inside for the ultimate clean
Deep clean silverware jets
Powerful jets blast away stuck-on food for silverware that’s always spotless
Cabinet depth installation
Customize this appearance with a panel to match the décor of your kitchen - true flush capable, even with inset cabinets
Handles Sold Separately
Quietest Dishwasher @ 37dBA w/Quiet Cycle
HydroSave Cycle
Front Adjust Spring System
T-30 Leveling Leg
Factory Installed Power Cord
Improved, Factory Installed Tub Trim
Attached Insulation Blanket
Extended Drain Hose Loop

Manuals & Guides

Key Features

Custom panel model

Create your own kitchen masterpiece. Add a cabinet-compatible panel and custom handle for a luxurious look and freel that reflects your style

Steam + Sanitization

Eliminate the need to pre-wash dishes at the end of every meal, thanks to a Steam + Sani feature that easily loosens lingering traces of food with an added bonus of complete sanitization

LED lighting

Illuminates the entire interior, leaving no question as to whether or not dishes have been cleaned

Full-extension, adjustable third rack with premium slides

Convenient and adjustable, this expansive third rack easily accommodates an entire flatware collection, plus carving knives, soup ladles and other cooking/serving tools for the ultimate clean
