SKU: UUC130WCDA | UPC: 084691854838

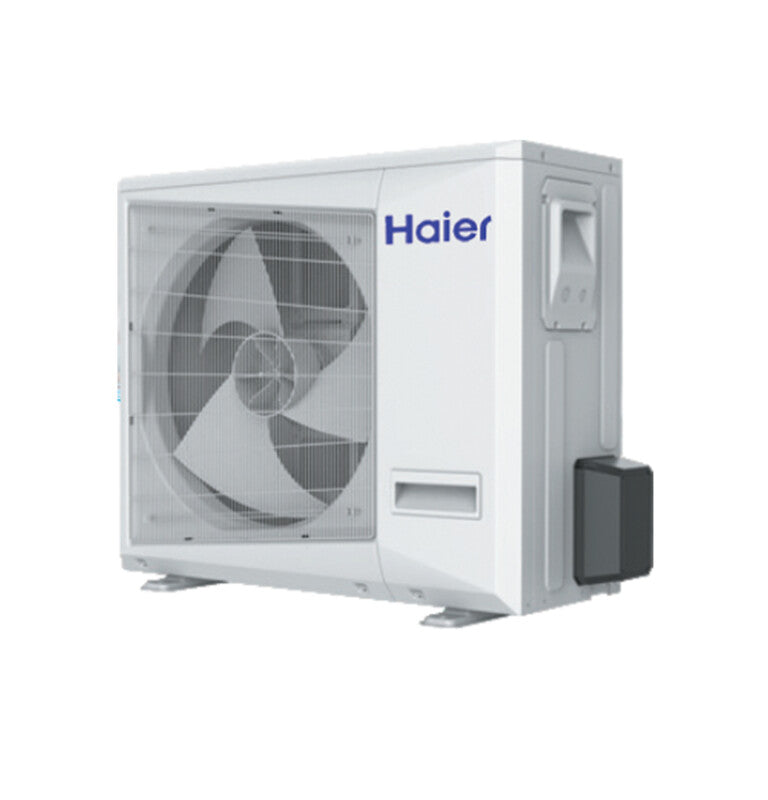

Haier UUC130WCDA 208-230V 30,000 BTU Side Discharge Air Conditioner Condensing Unit White

208-230V 30,000 BTU Side Discharge Air Conditioner Condensing Unit

Quick Specification More details

  • Width:
    40"
  • Depth:
    17.5"
  • Height:
    32"
  • Type:
    Other

About this product

  • Compact Size
  • Light Weight
  • Quiet Operation
  • 24V System
Summer Sale
Clearance

SKU: UUC130WCDA | UPC: 084691854838

Haier UUC130WCDA 208-230V 30,000 BTU Side Discharge Air Conditioner Condensing Unit White

Active Rebates

KT Appliance

We’ll confirm fit, specs & delivery before you order.

  •  Chat  • Email  • Call Us

Quick Specification More details

  • Width:
    40"
  • Depth:
    17.5"
  • Height:
    32"
  • Type:
    Other

About this product

  • Compact Size
  • Light Weight
  • Quiet Operation
  • 24V System
  • Product Details
  • Manuals & Guides
  • From The Manufacturer
  • Reviews
Contact us for Pricing

Product Details for Haier UUC130WCDA

Technical Details

Weights & dimensions
Overall Depth 17.5 in
Overall Width 40 in
Overall Height 32 in
Net Weight 141.1 lb
Suction O.D. Refrigerant Line 3/4"
Liquid O.D. Refrigerant Line 3/8"
Factory Charge (pounds) 7.3000001907349 lb
Approximate Shipping Weight 187.4 lb

Features
Style Side-Discharge
Refrigerant Type R410A
Maximum Line Length (Ft/M) 82/25
Series Side-Discharge
Maximum Height (Ft/m) 33/10
Temperature Range - Cooling Mode 50-115 F (10-46 C)
Unit Type Indoor
SEER 14.5
Compressor Type Rotary
Maximum Fuse Size A 20
EER 12
Fan Speed RPM 880
Outdoor Noise Level 58 dBA
Outdoor Airflow CFM 2324
CFM with Rated Coils 1050
Aspen Model C(A,C,E)36B44+TDR
Product Type Single Zone

Power / ratings
Cooling Rated Capacity BTU/Hr 30,000
Minimum Circuit Amp 14
Hertz 60
Electrical Requirements 208/230V

Appearance
Color Appearance White

Capacity
Cooling BTUH (MAX) 30000 Btu

Other
Suction O.D. Refrigerant Line 3/4"
Liquid O.D. Refrigerant Line 3/8"
Factory Charge (pounds) 7.3000001907349 lb

Dimensions & weight
Width 40 in.
Height 32 in.
Length 17.5 in.
Weight 141.1 lbs.

Number of boxes, shipping dimensions, & shipping weight
Number of Boxes 1
Shipping Width 45 in.
Shipping Height 37 in.
Shipping Length 22.5 in.
Shipping Weight 181.1 lbs.
Total of Shipping Weight 181.1 lbs.
Source Calculation

Cubic feet measurement & dimensional weight
Cubic Feet Measurement 12.96 ft³
Dimensional Weight 161.15 lbs.
Total of Cubes 12.96 ft³
Total of Dimensional Weight 161.15 lbs.

Warranty
Warranty Notes See written warranty for full details
Parts Warranty 5-Year limited parts warranty
Labor Warranty No Warranty

Description

Compact Size
Side-discharge configuration is perfect for installation in limited space

Light Weight
Easier contractor equipment transportation and installation

Quiet Operation
Sound-dampening features produce operation at noise levels as low as 52dB

24V System
Compatible with many 24VAC thermostat

AHRI Matching Indoor Coil
Independent 3rd party coil match available

See specification book for full heating, cooling, and system details



Product Features

  • Compact Size
    Side-discharge configuration is perfect for installation in limited space
  • Light Weight
    Easier contractor equipment transportation and installation
  • Quiet Operation
    Sound-dampening features produce operation at noise levels as low as 52dB
  • 24V System
    Compatible with many 24VAC thermostat
  • AHRI Matching Indoor Coil
    Independent 3rd party coil match available
  • See specification book for full heating, cooling, and system details
