SKU: UUC118WCDA | UPC: 084691854807

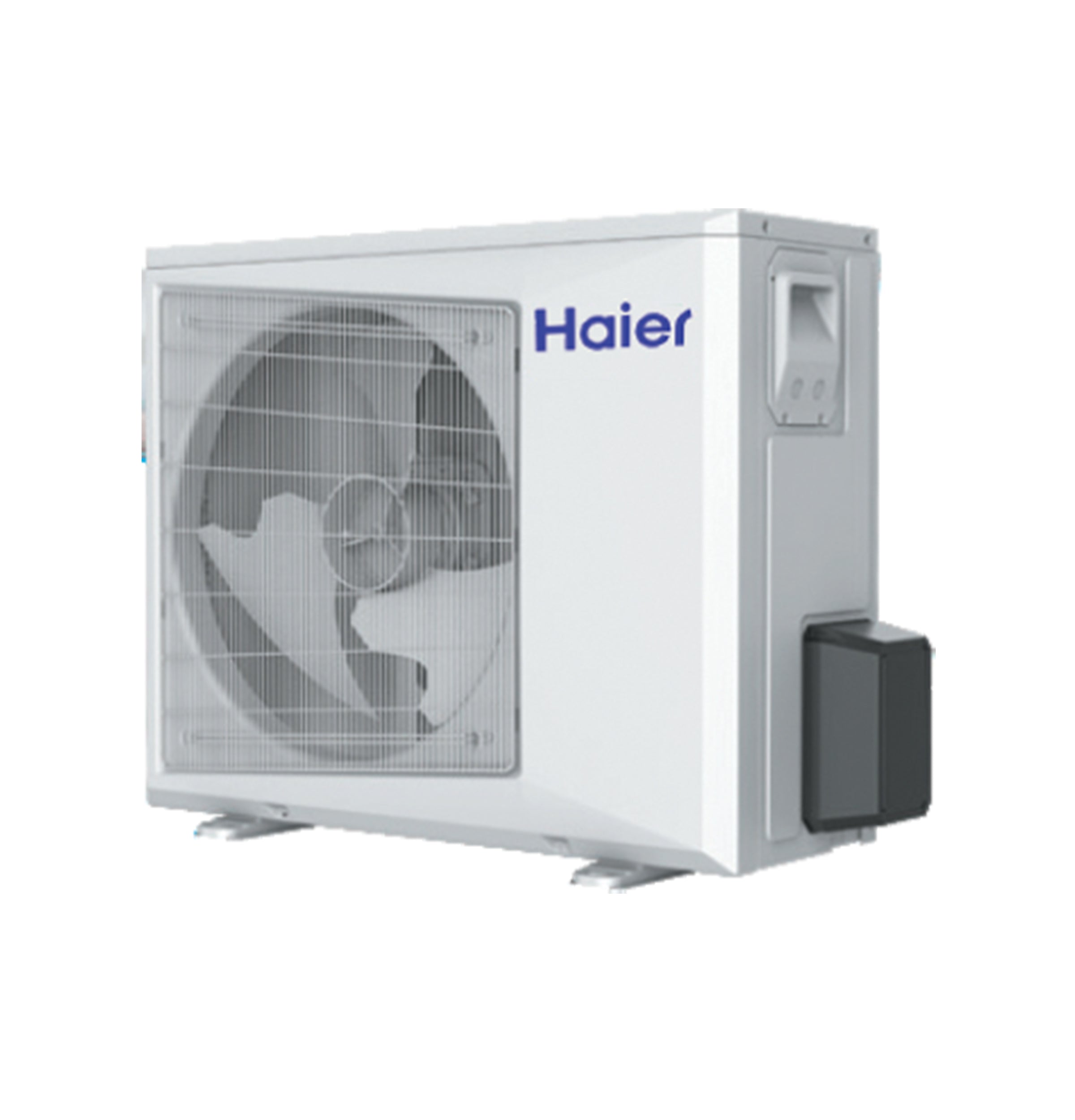

Haier UUC118WCDA 208-230V 18,000 BTU Side Discharge Air Conditioner Condensing Unit White

208-230V 18,000 BTU Side Discharge Air Conditioner Condensing Unit

Quick Specification More details

  • Width:
    36"
  • Depth:
    15"
  • Height:
    27.625"
  • Type:
    Other

About this product

  • Compact Size
  • Light Weight
  • Quiet Operation
  • 24V System
Summer Sale
Clearance

SKU: UUC118WCDA | UPC: 084691854807

Haier UUC118WCDA 208-230V 18,000 BTU Side Discharge Air Conditioner Condensing Unit White

Active Rebates

KT Appliance

We’ll confirm fit, specs & delivery before you order.

  •  Chat  • Email  • Call Us

Quick Specification More details

  • Width:
    36"
  • Depth:
    15"
  • Height:
    27.625"
  • Type:
    Other

About this product

  • Compact Size
  • Light Weight
  • Quiet Operation
  • 24V System
  • Product Details
  • Manuals & Guides
  • From The Manufacturer
  • Reviews
Contact us for Pricing

Product Details for Haier UUC118WCDA

Technical Details

Weights & dimensions
Overall Depth 15 in
Overall Width 36 in
Overall Height 27.625 in
Net Weight 105.8 lb
Suction O.D. Refrigerant Line 1/2"
Liquid O.D. Refrigerant Line 1/4"
Factory Charge (pounds) 4.6999998092651 lb
Approximate Shipping Weight 105.8 lb

Features
Style Side-Discharge
Refrigerant Type R410A
Maximum Line Length (Ft/M) 82/25
Series Side-Discharge
Maximum Height (Ft/m) 33/10
Temperature Range - Cooling Mode 50-115 F (10-46 C)
Unit Type Indoor
SEER 14.5
Compressor Type Rotary
Maximum Fuse Size A 15
EER 12
Fan Speed RPM 890
Outdoor Noise Level 55 dBA
Outdoor Airflow CFM 2012
CFM with Rated Coils 620
Aspen Model C(A,C,E)24B44+TDR
Product Type Single Zone

Power / ratings
Cooling Rated Capacity BTU/Hr 17,500
Minimum Circuit Amp 10
Hertz 60
Electrical Requirements 208/230V

Appearance
Color Appearance White

Capacity
Cooling BTUH (MAX) 17500 Btu

Other
Suction O.D. Refrigerant Line 1/2"
Liquid O.D. Refrigerant Line 1/4"
Factory Charge (pounds) 4.6999998092651 lb

Dimensions & weight
Width 36 in.
Height 27.63 in.
Length 15 in.
Weight 105.8 lbs.

Number of boxes, shipping dimensions, & shipping weight
Number of Boxes 1
Shipping Width 41 in.
Shipping Height 32.63 in.
Shipping Length 20 in.
Shipping Weight 145.8 lbs.
Total of Shipping Weight 145.8 lbs.
Source Calculation

Cubic feet measurement & dimensional weight
Cubic Feet Measurement 8.63 ft³
Dimensional Weight 107.32 lbs.
Total of Cubes 8.63 ft³
Total of Dimensional Weight 107.32 lbs.

Warranty
Warranty Notes See written warranty for full details
Parts Warranty 5-Year limited parts warranty
Labor Warranty No Warranty

Description

Compact Size
Side-discharge configuration is perfect for installation in limited space

Light Weight
Easier contractor equipment transportation and installation

Quiet Operation
Sound-dampening features produce operation at noise levels as low as 52dB

24V System
Compatible with many 24VAC thermostat

AHRI Matching Indoor Coil
Independent 3rd party coil match available

See specification book for full heating, cooling, and system details



Product Features

  • Compact Size
    Side-discharge configuration is perfect for installation in limited space
  • Light Weight
    Easier contractor equipment transportation and installation
  • Quiet Operation
    Sound-dampening features produce operation at noise levels as low as 52dB
  • 24V System
    Compatible with many 24VAC thermostat
  • AHRI Matching Indoor Coil
    Independent 3rd party coil match available
  • See specification book for full heating, cooling, and system details
