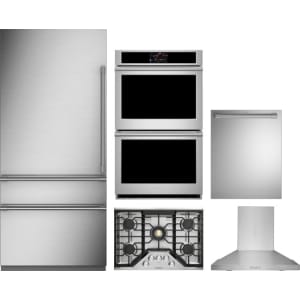

Monogram 5-Piece Package ZIC363NBVLH 36 Panel-Ready Built-In Bottom Freezer Smart Refrigerator and ZGU30RSLSS 30 Cooktop and ZTD90DPSNSS 30 Double Convection Electric Wall Oven and ZDT925SPNSS 24 Integrated Dishwasher and ZVW8301SWSS 30 Hood

Name: Monogram 5-Piece Package ZIC363NBVLH 36 Panel-Ready Built-In Bottom Freezer Smart Refrigerator and ZGU30RSLSS 30 Cooktop and ZTD90DPSNSS 30 Double Convection Electric Wall Oven and ZDT925SPNSS 24 Integrated Dishwasher and ZVW8301SWSS 30 Hood
Brand: MONOGRAM
SKU: Monogram-ZIC363NBVLH-ZGU30RSLSS-ZTD90DPSNSS-ZDT925SPNSS-ZVW8301SWSS
Price: 23400.00 USD
Availability: OutOfStock

Monogram 5-Piece Package ZIC363NBVLH 36 Panel-Ready Built-In Bottom Freezer Smart Refrigerator and ZGU30RSLSS 30 Cooktop and ZTD90DPSNSS 30 Double Convection Electric Wall Oven and ZDT925SPNSS 24 Integrated Dishwasher and ZVW8301SWSS 30 Hood

36" Panel-Ready Integrated Bottom-Freezer Refrigerator- Left Hinge

24" Statement Fully Integrated Dishwasher

Monogram 5-Piece Package ZIC363NBVLH 36 Panel-Ready Built-In Bottom Freezer Smart Refrigerator and ZGU30RSLSS 30 Cooktop and ZTD90DPSNSS 30 Double Convection Electric Wall Oven and ZDT925SPNSS 24 Integrated Dishwasher and ZVW8301SWSS 30 Hood

$23,400.00 ~~$38,240.99~~ Save $14,840.99 / 38% OFF

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Additional Services Available:

Monogram ZIC363NBVLH 36" Panel-Ready Integrated Bottom-Freezer Refrigerator- Left Hinge Panel Ready

Add Installation Services

Extended Protection

1-Year Extended Protection
$159.99
2-Year Extended Protection
$274.99
3-Year Extended Protection
$459.99
5-Year Extended Protection
$759.99
Manufacturer Warranty Only

Refrigerator Pro Installation — Existing Water Line only (No Mods; No Copper lines)
$350.00
Old Appliance Pro Removal (Unit Must be Disconnected by Owner if Installation was Not Added)
$249.99

Monogram ZGU30RSLSS 30" Deep-Recessed Gas Cooktop Stainless Steel

Add Installation Services

Extended Protection

1-Year Extended Protection
$57.99
2-Year Extended Protection
$91.99
3-Year Extended Protection
$151.99
5-Year Extended Protection
$239.95
Manufacturer Warranty Only

Cooktop Install Kit
$40.00
Standard Cooktop Install - Direct Replacement, No Modifications
$180.00
Old Appliance Removal (Unit Must be Disconnected by Owner if Installation was Not Added)
$49.99

Monogram ZTD90DPSNSS 30" Statement Double Wall Oven Stainless Steel

Add Installation Services

Extended Protection

1-Year Extended Protection
$123.99
2-Year Extended Protection
$215.99
3-Year Extended Protection
$334.99
5-Year Extended Protection
$489.99
Manufacturer Warranty Only

Wall oven double electric install
$290.00
Old Appliance Removal (Unit Must be Disconnected by Owner if Installation was Not Added)
$49.99
Wall oven electric cord
$40.00

Monogram ZDT925SPNSS 24" Statement Fully Integrated Dishwasher Stainless Steel

Add Installation Services

Extended Protection

1-Year Extended Protection
$30.99
2-Year Extended Protection
$51.99
3-Year Extended Protection
$75.99
5-Year Extended Protection
$139.99
Manufacturer Warranty Only

Dishwasher Install — Hardwire; Existing Non-Copper Line Only (No Panel Installation)
$220.00
Dishwasher Installation Kit - Complete with Cord
$29.95
Old Appliance Removal (Unit Must be Disconnected by Owner if Installation was Not Added)
$49.99

Monogram ZVW8301SWSS 30" Wall-Mounted Vent Hood Stainless Steel

Add Installation Services

Extended Protection

1-Year Extended Protection
$49.99
2-Year Extended Protection
$83.99
3-Year Extended Protection
$131.99
5-Year Extended Protection
$195.99
Manufacturer Warranty Only

Range Hood install
$180.00
Old Appliance Removal (Unit Must be Disconnected by Owner if Installation was Not Added)
$49.99

What's included: 5 items

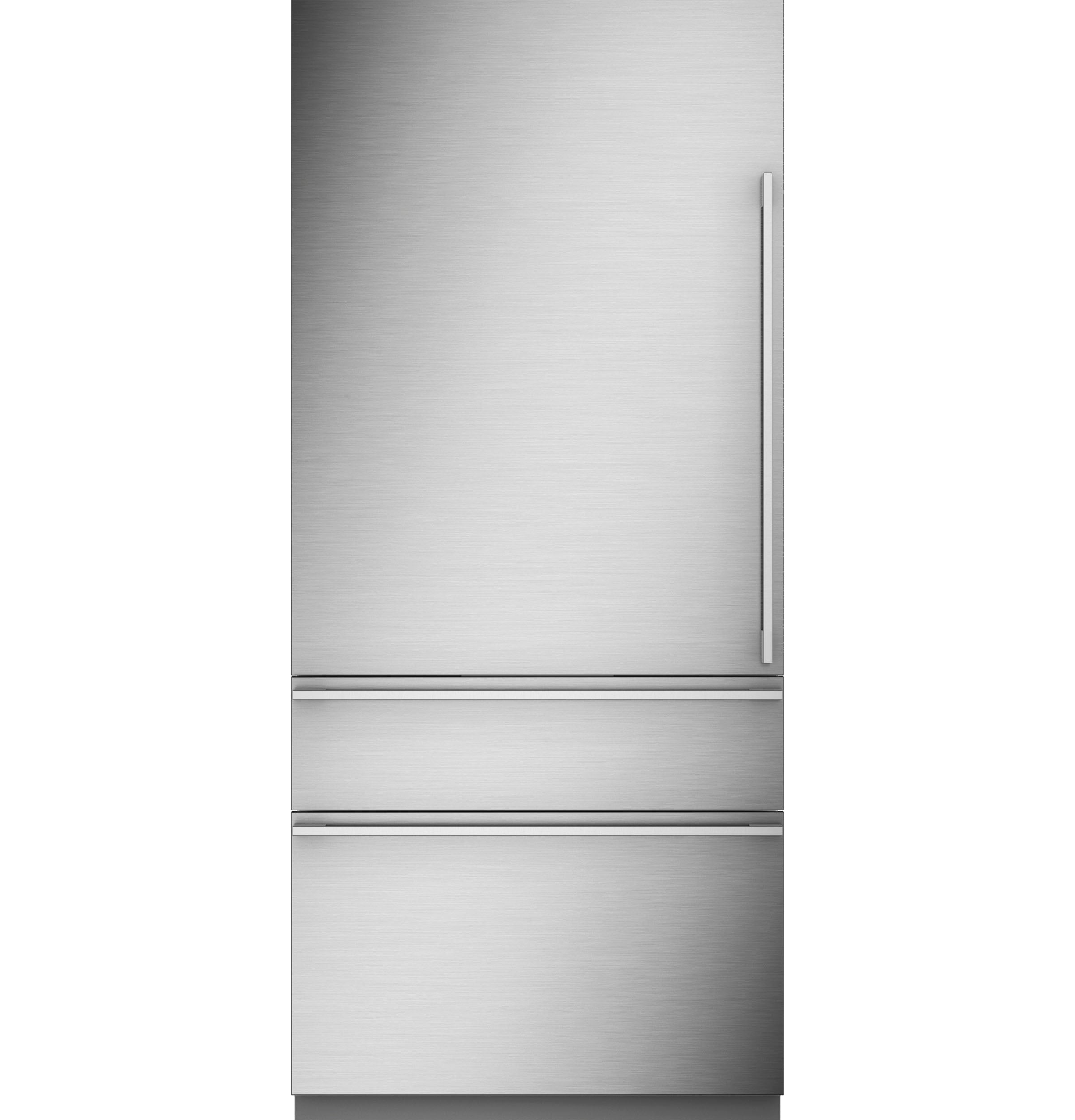

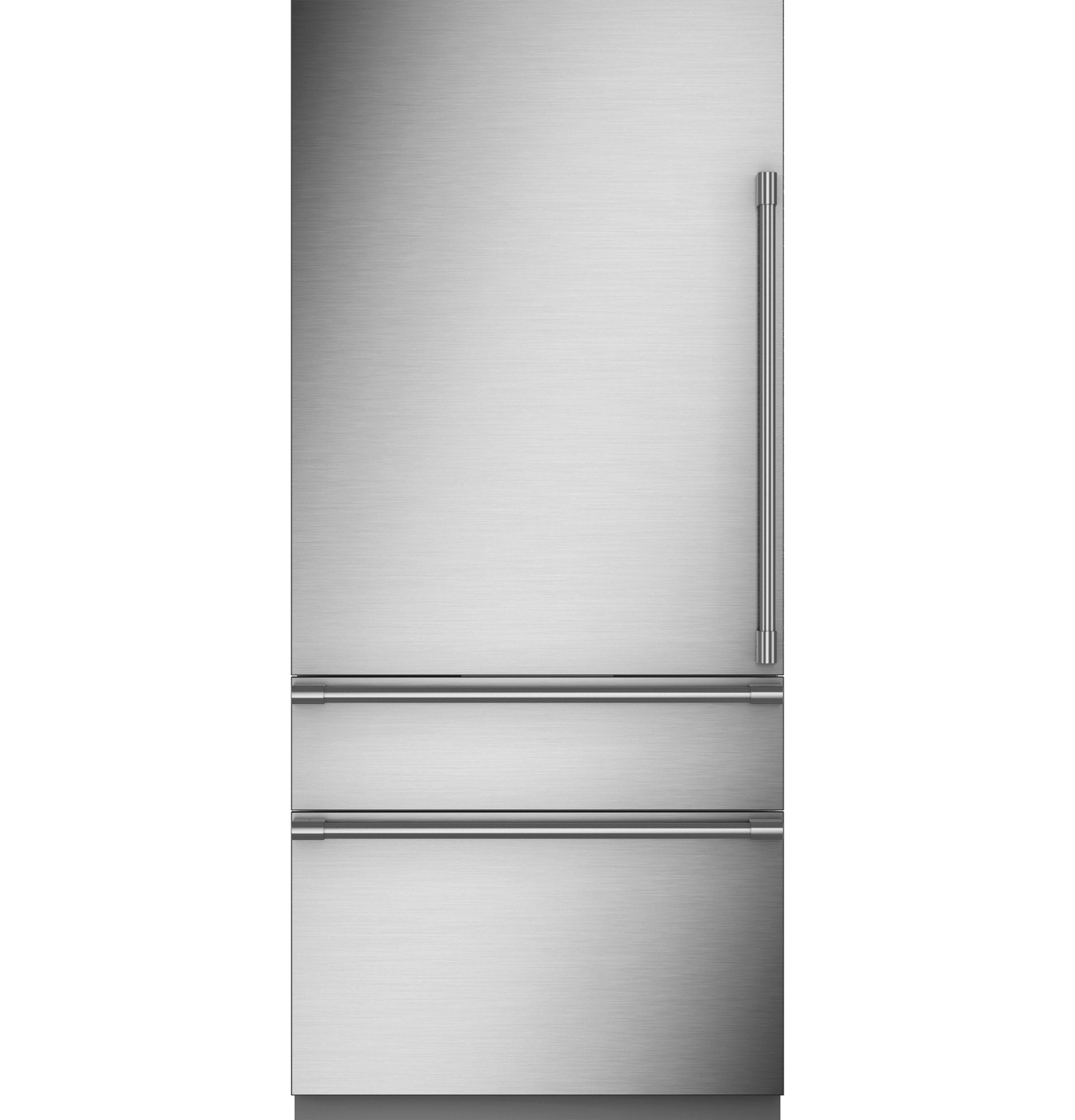

Monogram ZIC363NBVLH 36" Panel-Ready Integrated Bottom-Freezer Refrigerator- Left Hinge Panel Ready
- SKU SKU: ZIC363NBVLH UPC: 84691916161
- Type Bottom Freezer Refrigerators
Monogram ZGU30RSLSS 30" Deep-Recessed Gas Cooktop Stainless Steel
- SKU SKU: ZGU30RSLSS UPC: 84691822523
- Type Gas Cooktops

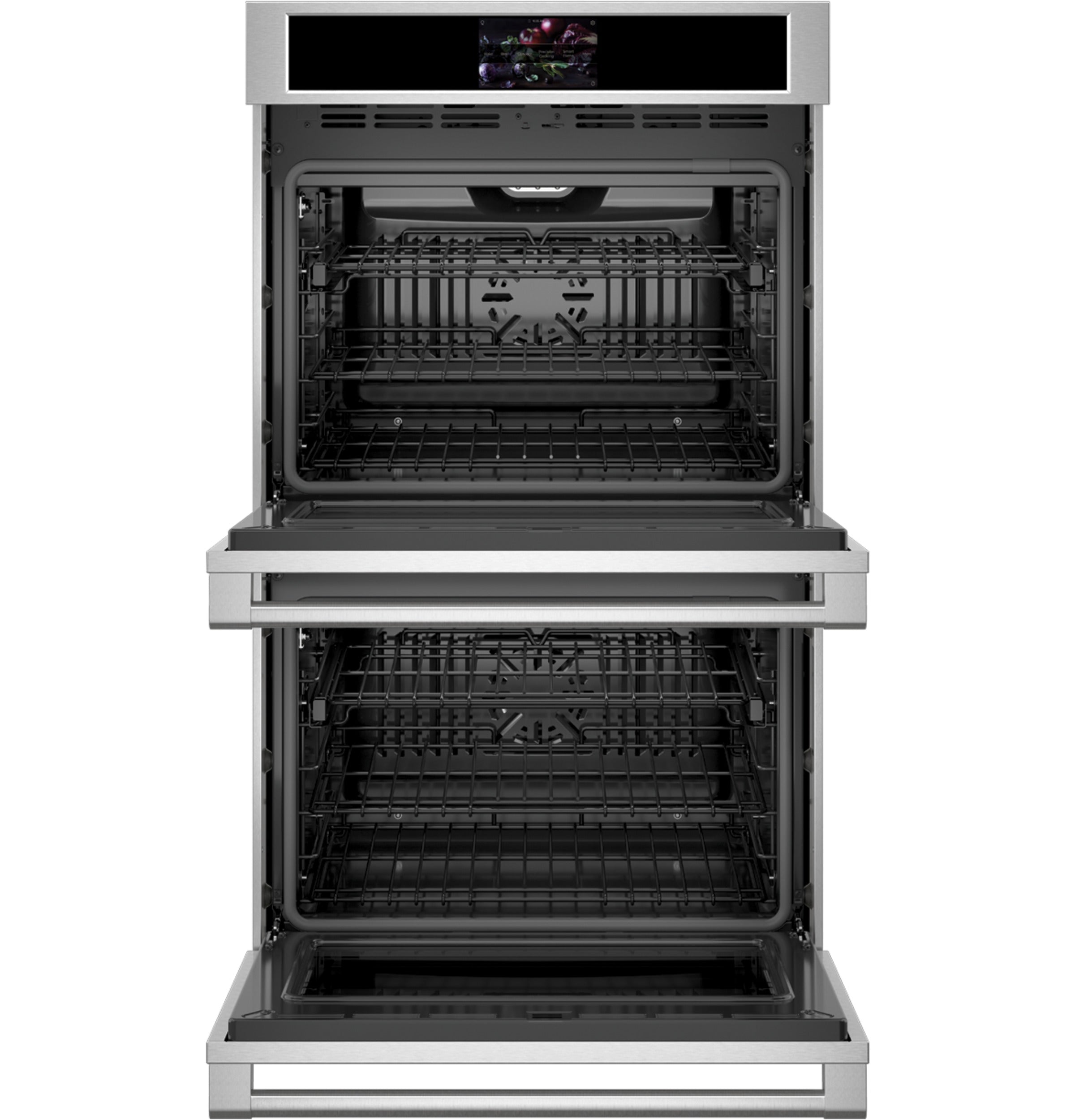

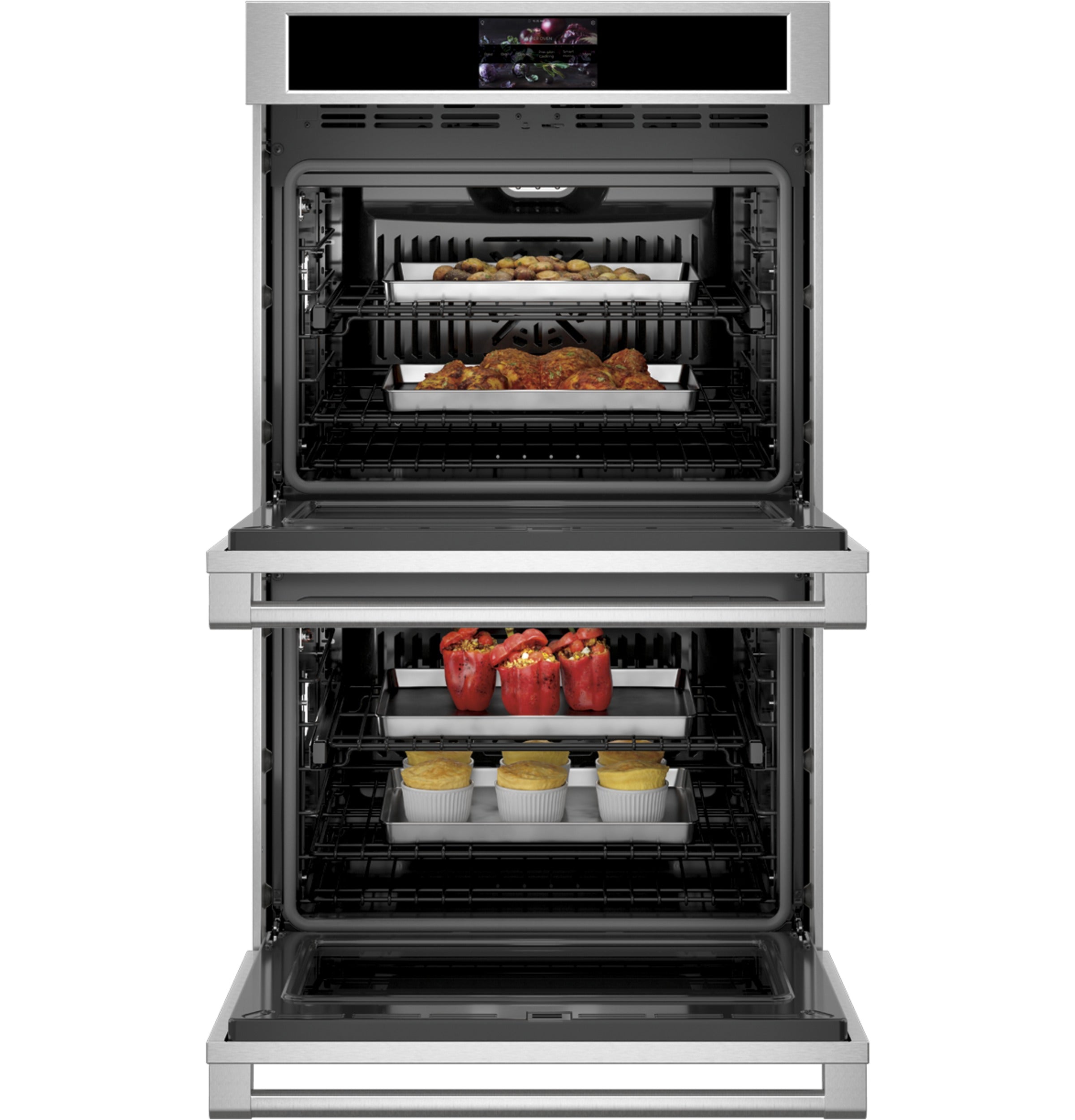

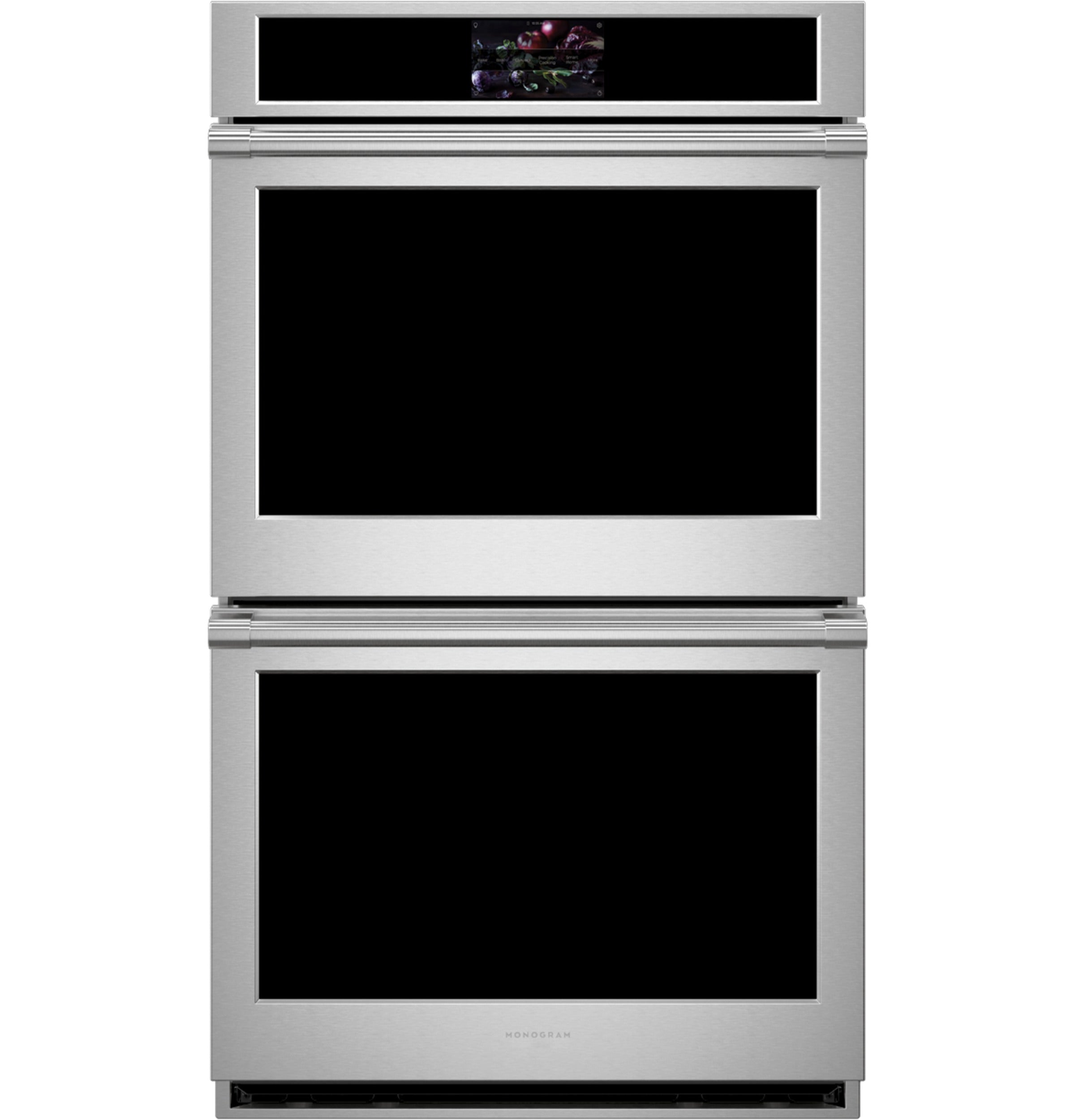

Monogram ZTD90DPSNSS 30" Statement Double Wall Oven Stainless Steel
- SKU SKU: ZTD90DPSNSS UPC: 84691840596
- Type Double Wall Ovens
Monogram ZDT925SPNSS 24" Statement Fully Integrated Dishwasher Stainless Steel
- SKU SKU: ZDT925SPNSS UPC: 84691848363
- Type Built-In Dishwashers

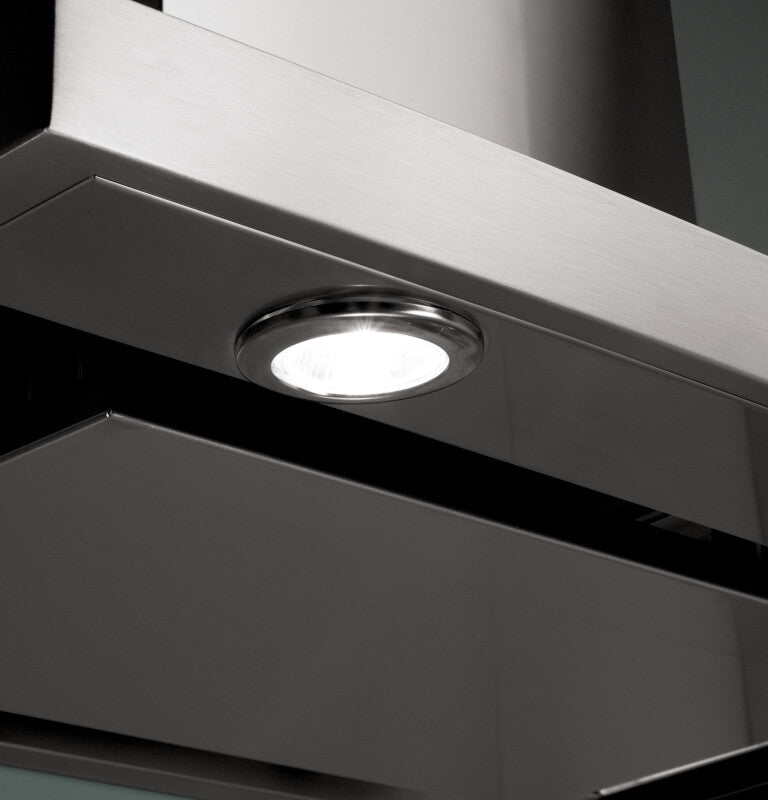

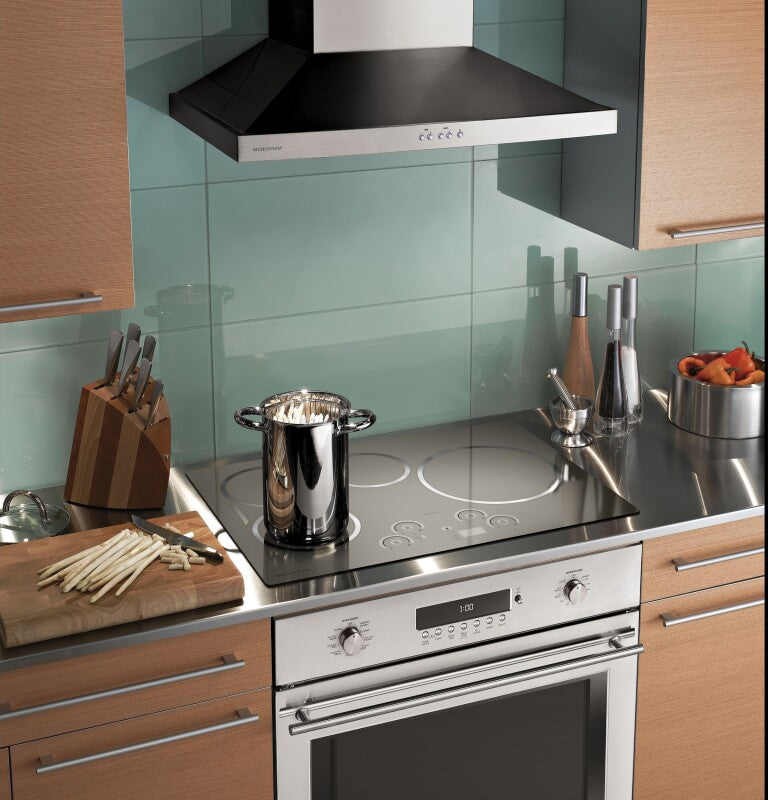

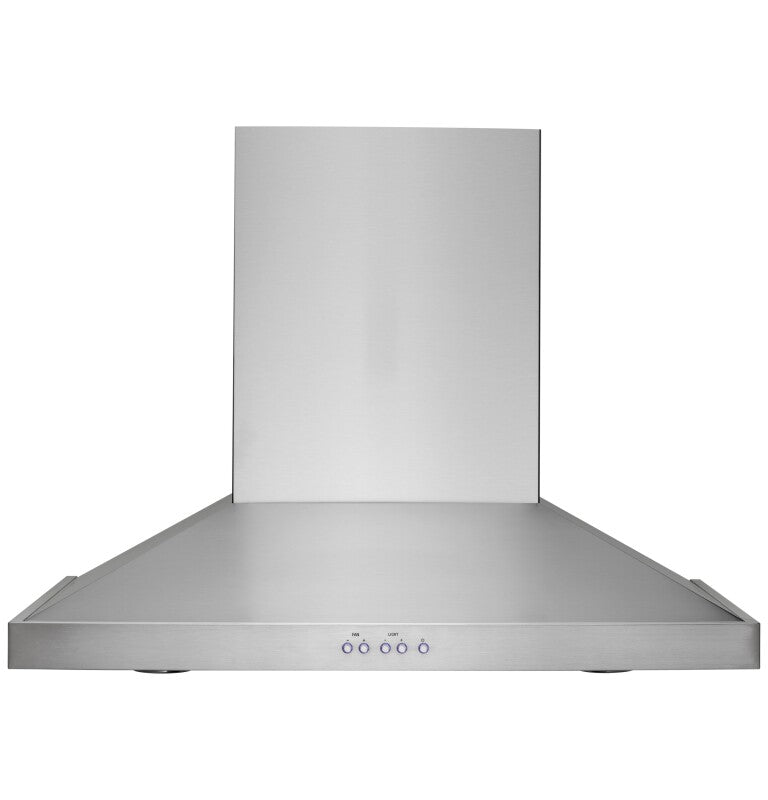

Monogram ZVW8301SWSS 30" Wall-Mounted Vent Hood Stainless Steel
- SKU SKU: ZVW8301SWSS UPC: 84691258612
- Type Ducted Mount Hoods

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Rebates
Reviews

$23,400.00 ~~$38,240.99~~ Save $14,840.99 / 38% OFF

Product Details for MONOGRAM ZIC363NBVLH

Technical Details

Warranty

Parts	2 Year
Labor	2 Year

Appearance

Panel Capability	SS Door Panel Kit ZK3SN369VLH, ZK3SN364VRH
Adjustable Rollers	2
Door Style	Solid Door
Door Stops	90 Degree and 115 Degree
Design Style	Custom Panel & Handles
Handle Purchased Separately	Requires Statement Handle Kit (ZKSB3H3PVSS) or Minimalist Handle Kit (ZKSB3H3CVSS)
Door Swing	Hinges on Left
Installation	Fully Integrated Installation
Coil-Free Back	Yes
Hidden Door Hinge(s)	Yes
Panel Capability	SS Door Panel Kit ZK3SN369WLH
Color Appearance	Panel Ready

Capacity

Fresh Food Capacity	13.71 cu ft
Total Capacity (cubic feet)	20.1 cu ft
Convertible Drawer Capacity	2.91 cu ft
Freezer Capacity	3.45 cu ft

Accessories

Handle Stud Kit	ZKPN
SxS Install Heater/Unification Kit	ZKMV
Side by Side Install Toe-Kick Kit	54 ZKK54P,60 ZKK60P,66 ZKK66R,72 ZKK72R
Trim Kit	36 Trim Kit for 24 deep cabinets ZKW36V,72 Trim Kit for 24 deep cabinets ZKW72V

Features

Custom Panel Ready	Integrated Panels
Icemaker	Factory-Installed
WiFi Connect	Built-In
Filter Change Indicator	Display water filter status @ 90% usage
Sabbath Mode	Yes
Door Alarm	Yes
Interior Lighting	LED
Defrost Type	Automatic Defrost
Leveling System	4 Point (2 adjustable back rollers, 2 adjustable front legs)
Fresh Food Cabinet Shelves	2 Total - Glass with Trim
Fresh Food Door Bins	3 Full-Width
Configuration	Full Door and Double Drawer
Refrigerant Type	R600a
Dispenser	Non-Dispenser
Water Filtration	GE Water Filtration (XWFE Filter)
OU Certified	OU/CRC Enhanced Shabbos Mode, when used with Shabbos Keeper, sold separately
Bottom Drawer	Yes, Freezer w/IM,Plastic Interior,One Adjustable Divider
Collection	Statement,Minimalist
Connected Capabilities	Amazon Alexa,Google Home
Control Type	Integrated,Upfront Capacitance Touch Controls
Exterior Style	Built-In,Standard Depth
Freezer Features	Freezer Drawer with Full Extension Slides,Soft-Close
Fresh Food Cabinet Drawers	2 Half-Width Adjustable Humidity Drawers,Full-Extension Soft-Close Slides
Fresh Food Door Features	3 Adjustable Bins,Full-Width
Fresh Food Features	Display Temp Setpoint,Door Alarm,Filter-Change Indicator,Interior Lighting - Ramp Up LED 4,Sabbath Mode Status
Middle Drawer	Yes, Convertible; Plastic Interior,6 Settings (Hard Freeze [sync w/freezer], Soft Freeze/Gelato, Meats, Cold Beverages, FF/Snack, Produce
Product Type	Bottom Freezer Refrigerator,Built-In Refrigerator
Temperature Management Features	Multi-Shelf Air Management Tower,Independent Temperature Controls,Dual Evaporator

Weights & dimensions

Overall Depth	24.75 in
Height to Top of Hinge	83.5 in
Overall Width	35.75 in
Overall Height	83.875 in
Approximate Shipping Weight	621
Net Weight	500

Power / ratings

Electrical Requirements	115V; 60Hz; 20A
Hertz	60
Energy Consumption (kWh/year)	654

Economical / quiet

Quiet Package

36 dBA

Warranty

Parts Warranty	Limited 2-year entire appliance
Labor Warranty	Limited 2-year entire appliance
Warranty Notes	Limited 5-Year Sealed System,Extended 12-Year Sealed System Parts Only,See written warranty for full Details

Dimensions & weight

Width	35.75 in.
Height	83.5 in.
Length	24.75 in.
Weight	500 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	40.75 in.
Shipping Height	88.5 in.
Shipping Length	29.75 in.
Shipping Weight	540 lbs.
Total of Shipping Weight	540 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	42.76 ft³
Dimensional Weight	531.52 lbs.
Total of Cubes	42.76 ft³
Total of Dimensional Weight	531.52 lbs.

Description

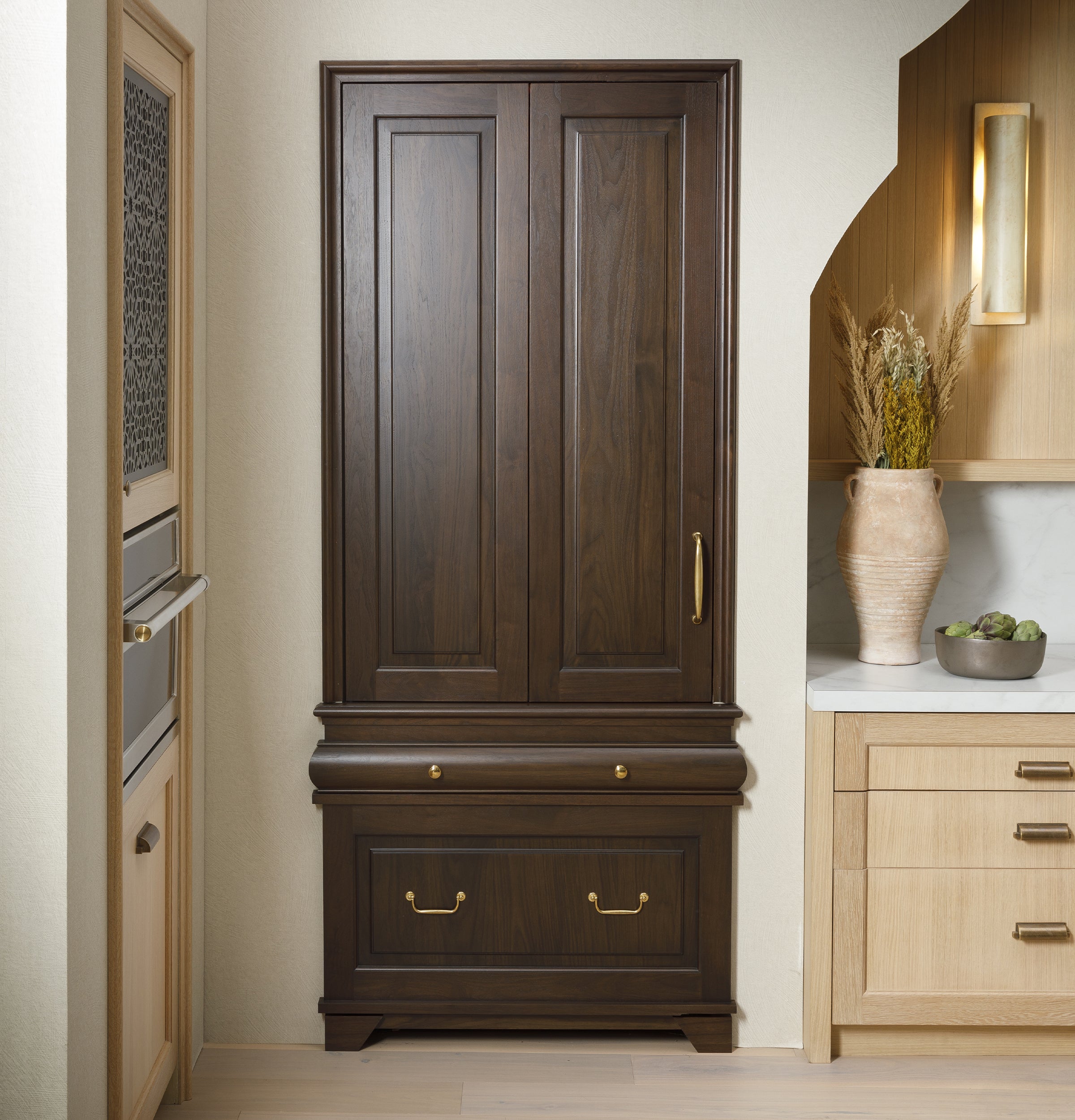

Bottom Freezer with Flush Inset Installation
Sleek design allows the refrigerator to be installed flush with adjacent cabinetry

6-Temperature Setting Convertible Drawer
The convertible middle drawer with 6 temperature settings allows you to choose temperatures best suited for storing cold drinks, meat, snacks, ice cream, produce or frozen items

WiFi Connected Refrigerator
The WiFi refrigerator allows you to wirelessly control refrigerator settings from your smartphone, using an available app

2 Humidity-Controlled Vegetable Drawers
Enjoy additional storage flexibility with pre-programmed settings that help to preserve food freshness

Refrigerator Shelves
Edge-to-edge glass shelves provide convenient storage and a clean appearance

Factory Installed Ice Maker
Create all the ice you want, anytime you like, with this refrigerator with ice maker

Statement and Minimalist Collection Refrigerator Handles (sold separately)
Designed to enhance choice and customization with Statement and Minimalist Collection handle options. HANDLES AND STAINLESS PANELS SOLD SEPARATELY.

Product Features

2 Humidity-Controlled Vegetable Drawers
Enjoy additional storage flexibility with pre-programmed settings that help to preserve food freshness
Refrigerator Shelves
Edge-to-edge glass shelves provide convenient storage and a clean appearance
Factory Installed Ice Maker
Create all the ice you want, anytime you like, with this refrigerator with ice maker

Manuals & Guides

Key Features

Bottom Freezer with Flush Inset Installation

Sleek design allows the refrigerator to be installed flush with adjacent cabinetry

6-Temperature Setting Convertible Drawer

The convertible middle drawer with 6 temperature settings allows you to choose temperatures best suited for storing cold drinks, meat, snacks, ice cream, produce or frozen items

WiFi Connected Refrigerator

The WiFi refrigerator allows you to wirelessly control refrigerator settings from your smartphone, using an available app

Statement and Minimalist Collection Refrigerator Handles (sold separately)

Designed to enhance choice and customization with Statement and Minimalist Collection handle options. HANDLES AND STAINLESS PANELS SOLD SEPARATELY.

Rebates

Reviews

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Rebates
Reviews

$23,400.00 ~~$38,240.99~~ Save $14,840.99 / 38% OFF

Product Details for MONOGRAM ZGU30RSLSS

Technical Details

Warranty

Parts	2 Year
Labor	2 Year

Weights & dimensions

Overall Height	3.25 in
Overall Width	30 in
Overall Depth	21 in
Cabinet Width	30 in
Cutout Width (in)	28.5
Cutout Depth (in)	19.625
Approximate Shipping Weight	50
Net Weight	44

Features

Cooktop Burner Type	5 Sealed
Valves (Degree of Turn)	270
Burner - Right Rear	10,000 BTU Dual
Burner - Right Front	12,000 BTU Dual
Control Location	Front Center
Ignition System	Direct Electronic Ignition
Burner - Center	20,000 BTU Tri-ring (Brass Cap)
Cooktop Surface	Stainless Steel
Burner - Left Rear	10,000 BTU Dual
Extra Low Simmer	5
Burner Indicator Light	Yes - in Knob
Automatic Re-Ignition	Yes
Cooktop Burner Grate Material	Cast-Iron; Porcelainized
Collection	Statement
Cooktop Burner Grate Features	Continuous Grates
Griddle	JXGRIDL230 (Included)
140 Deg. Simmer Burner	5
Configuration	5 Sealed Cooktop Burners
Burner - Left Front	10,000 BTU Dual
Product Type	Cooktop
Dual Flame Stacked Burners	5
Fuel Type	All-Gas (Natural Gas)
Cooking Technology	Natural Gas
Cooktop Type	5 Burners,Continuous Grates

Warranty

Parts Warranty	Limited 2-year entire appliance
Warranty Notes	See written warranty for full details
Labor Warranty	Limited 2-year entire appliance

Appearance

Color Appearance	Stainless Steel
Control Knobs	Precision Knobs with Embedded Sapphire Glass
Installation	Over Single Wall Oven (except Single-Double),Over Warming Drawer,Over Advantium Built-In 120V

Accessories

Conversion Kit	Included - Nat. Gas to LP
Cooktop Cleaning	Included

Power / ratings

Electrical Requirements	120V; 60Hz; 5.0A
Hertz	60

Dimensions & weight

Width	30 in.
Height	3.25 in.
Length	21 in.
Weight	44 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	35 in.
Shipping Height	8.25 in.
Shipping Length	26 in.
Shipping Weight	84 lbs.
Total of Shipping Weight	84 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	1.18 ft³
Dimensional Weight	14.73 lbs.
Total of Cubes	1.18 ft³
Total of Dimensional Weight	14.73 lbs.

Description

Looking for a powerful and high-performance gas cooktop? Look no further than the Monogram 30" Deep-Recessed Gas Cooktop, designed for the most discerning of home chefs. This natural gas-powered cooktop features precision knobs that offer quick and easy control over the powerful cooking capabilities. The Monogram 30" Deep-Recessed Gas Cooktop is not only sleek and stylish on the outside but also impressive on the inside. Its interior boasts dual-flame stacked burners that deliver an impressive total of 20000 BTUs of heat output. This allows for high-output cooking, which is ideal for those who are busy and short on meal prep time, or those who love to entertain guests. Additionally, the tri-ring burner included in this gas cooktop is perfect for simmering delicate sauces and soups, ensuring that your culinary creations are cooked to perfection. The continuous grates make it easy to slide heavy pots and pans from one burner to another, allowing for effortless movement during meal prep. One of the standout features of the Monogram 30" Deep-Recessed Gas Cooktop is its heavy-duty, cast-iron griddle. This is perfect for cooking up delicious pancakes, French toast, and other breakfast treats, as well as burgers, steaks, and more. You'll love how this griddle heats evenly and retains heat well, so you can achieve perfect cooking results every time. Electronic ignition ensures that the Monogram 30" Deep-Recessed Gas Cooktop ignites quickly and easily, while California Prop 65 compliance ensures that this cooktop is safe to use and will not expose you or your family to harmful chemicals. When you choose the Monogram 30" Deep-Recessed Gas Cooktop, you can expect an exceptional cooking experience every time. Whether you're a seasoned home chef or just starting out, this gas cooktop offers the performance, convenience, and safety features you need to take your cooking to the next level. Don't wait to get yours today!

Manuals & Guides

Key Features

Precision knobs

With embedded sapphire glass illuminate each knob making it easy to view and select heat settings

Dual-flame stacked burners

Provide complete 140F simmer-to-rapid-boil flexibility on all burners; the burners are sealed to the cooktop for easy cleaning

High-output cooking

Delivered by a 20,000 BTU tri-ring burner, total of 62,000 BTUs

Tri-ring burner

Versatile burner creates 20,000 BTUs of intense heat, perfect for searing, frying and sautéing

Continuous grates

Designed for even cooking and simple movement of cookware across the surface

Electronic ignition

Ensures a continuous flame and reignites automatically if accidentally extinguished

Heavy-duty, cast-iron griddle

Designed to fit the Monogram gas cooktop

Rebates

Reviews

Product Details
Manuals & Guides
From The Manufacturer
Videos
Rebates
Reviews

$23,400.00 ~~$38,240.99~~ Save $14,840.99 / 38% OFF

Product Details for MONOGRAM ZTD90DPSNSS

Technical Details

Warranty

Parts	2 Year
Labor	2 Year

Weights & dimensions

Overall Depth	26.625 in
Overall Width	29.75 in
Overall Height	51.1875 in
Cabinet Width	30 in
Oven Interior Dimensions (upper)	25 x 17-3/8 x 20 1/4
Cutout Dimensions (w x h x d) (in.)	28-1/2 x 51-13/16 x 23-1/2
Oven Interior Dimensions (lower)	25 x 17-3/8 x 20 1/4
Cutout Height (in)	51.8125
Cutout Width (in)	28.5
Cutout Depth (in)	23.5
Approximate Shipping Weight	330
Net Weight	304

Appearance

Design Style	Statement Collection
Frameless Oven Door(s)	Stainless Steel
Handle Color	Stainless Steel
Color Appearance	Stainless Steel
Handle	Statement Collection
Installation	Flush Appearance,Side-by-Side,Over Warming Drawer
Oven Door Features	Drop-Down,Soft-Close Hinges,Oven Window

Features

WiFi Connect	Built-In
Fuel Type	Electric
Product Type	Double Oven
Cooking Technology	Convection
Cleaning Time	Variable with Delay Clean Option
Configuration	Double Oven
Oven Rack Positions (Single or Upper/Lower)	6 / 6
Collection	Statement
Self-Clean Oven Door Lock	Automatic
Oven Cleaning Type	Self-Clean with Steam Clean Option
Connected Capabilities	Amazon Alexa,The Google Assistant,IFTTT,Fresco,Innit,Sonos,Google Home
Control Type	7 Full-Color Touch LCD Screen
Cooking System	True European Convection with Direct Air (Both Ovens),Variable Speed, Reverse Air Convection (Both Ovens)
Oven Control Features	12-Hour Shut-Off Capability,Audible Preheat Signal,Auto Recipe Conversion,C° or F° Programmable,Sabbath Mode,Control Lock Capability,Cook Time,Delay Time,Electronic Clock & Kitchen Timer,Mis-
Oven Cooking Modes	Convection Bake,Convection Bake Multi-Rack,Convection Broil Hi/Lo,Convection Roast,No-Preheat Air Frying,Precision Cooking Modes,Thermal Bake,Thermal Broil Hi/Lo,Keep Warm,Proof,Dehydrate
Oven Features	10-Pass Bake Element,10-Pass Dual Broil Element,Closed Door Broiling
Oven Interior	2 Halogen Interior Oven Lights (Both Ovens),Black Gloss Finish,Hidden Bake
Oven Rack Features	1 Self-Clean Heavy-Duty, Full Extension Oven Rack (Both Ovens),2 Self-Clean Heavy-Duty Oven Racks (Both Ovens),Ladder-Rack Positions (Both Ovens)
Short Description	30 Statement Double Wall Oven

Power / ratings

Bake Wattage	2850W
Convection Wattage	2400W
Electrical Requirements	240V/208V; 60Hz; 40A
KW Rating at 240V	9
Amp Rating at 208V	40
Broiler Wattage	4300W; Dual Element
Amp Rating at 240V	40
KW Rating at 208V	6.8
Hertz	60

Warranty

Labor Warranty	Limited 2-year entire appliance
Warranty Notes	See written warranty for full details
Parts Warranty	Limited 2-year entire appliance

Accessories

Optional Accessories

ZX30VT2 Flush Vent Trim Accessory

Capacity

Capacity (Cu. Ft.)	5.0 Upper / 5.0 Lower
Total Capacity (cubic feet)	10.00 cu ft

Other

Oven Interior Dimensions (upper)	25 x 17-3/8 x 20 1/4
Cutout Dimensions (w x h x d) (in.)	28-1/2 x 51-13/16 x 23-1/2

Dimensions & weight

Width	29.75 in.
Height	51.19 in.
Length	26.63 in.
Weight	304 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	34.75 in.
Shipping Height	56.19 in.
Shipping Length	31.63 in.
Shipping Weight	344 lbs.
Total of Shipping Weight	344 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	23.46 ft³
Dimensional Weight	291.69 lbs.
Total of Cubes	23.46 ft³
Total of Dimensional Weight	291.69 lbs.

Description

The Monogram Statement Collection
Edge-to-edge handles, polished stainless steel, and hand-finished edges convey a sense of solidity and beauty

LCD controls
Adjust oven settings with little effort with a Brilliant 7" LCD display that allows you to customize backgrounds and receive weather updates

WiFi powered by SmartHQ(TM)
Perfectly in sync with a busy lifestyle, Alexa or Google Home can be used to control an array of oven functions from both inside and outside the home

Precision cooking modes
Master new recipes and perfectly execute favorite dishes using this ultra-smart system that automatically tracks cooking progress, modifies temperatures and adjusts cook times

No-Preheat Air Fry
A must-have for health-conscious cooks, the No-Preheat Air Fry mode crisps food to crunchy perfection, without using oils or butter

Scan to cook
Innovative and time saving, scan-to-cook technology ensures that packaged foods are always prepared correctly. A simple scan of the barcode with a smartphone delivers consistently, delicious results

True European Convection with Direct Air
Channels heated air from the top of the oven and circulates it around food on all sides for perfectly uniform baking and roasting

10.0 cubic foot oven capacity (5.0 each oven)
Easily accommodates even the largest meals

Exclusive self-clean, (2 full-extension, 4 regular) oven racks
Glide in and out smoothly on stainless steel ball bearings, and are designed to be left in the oven during the self-clean cycle

Soft-Close Door
An expertly engineered hinge ensures that the oven door closes quietly and smoothly, every time

Ten-pass bake element
Covers more surface area for more even baking results

Theatre-style halogen oven lighting
Located in three positions in the oven, modern halogen lighting enhances visibility for a clear view of the cooking's progress, regardless of rack position

Self-clean with Steam Clean option
Gives you flexible options for thorough oven cleaning

Product Features

No-Preheat Air Fry
True European Convection with Direct Air
10.0 cubic foot oven capacity (5.0 each oven)
Exclusive self-clean, (2 full-extension, 4 regular) oven racks
Soft-Close Door
Ten-pass bake element
Theatre-style halogen oven lighting
Self-clean with Steam Clean option
The Monogram Statement Collection
LCD controls
Precision cooking modes
WiFi powered by SmartHQ
WiFi powered by SmartHQ™
Personalization, Intelligent, Intuitive features
Enhanced speakers
OU Shabbos keeper capable
Slow Roast
Prime Rib Mode

Manuals & Guides

Videos

Rebates

Reviews

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Videos
Rebates
Reviews

$23,400.00 ~~$38,240.99~~ Save $14,840.99 / 38% OFF

Product Details for MONOGRAM ZDT925SPNSS

Technical Details

Warranty

Parts	2 Year
Labor	2 Year

Weights & dimensions

Overall Depth	24 in
Overall Width	23.75 in
Overall Height	34 in
Height w/ Legs Retracted - Minimum Height	33.375 in
Cabinet Width	24 in
Depth Without Handle	24 in
Overall Depth with Handle	26.6875 in
Height w/Legs Extended - Maximum Height	34.625 in
Depth with Door Open	25.5 in
Cutout Height (in)	33.5
Cutout Width (in)	24
Cutout Depth (in)	24
Approximate Shipping Weight	139
Net Weight	126

Features

Wash System	900 Series
Sensor	Clean Sensor
Tub Type	Tall Tub
Leveling System	Front Adjustable Leveling Legs
OU Certified	No
Number of Place Settings	16
Latch	Pull with Handle
Number of Options	11
Style	Built-In Top Control
Water Filtration System	100% Filtration with Hard Food Disposer and Removable Filter
Cutlery Tray	Full 3rd rack (above upper rack)
Floor Protection	Floor Protect with Alert
Short Description	Fully Integrated Dishwasher with Statement Handle
Rack Color	Silver
WiFi Connect	Built-In
EcoBalance Compatible	Yes
Racking System	Full 3rd rack
Interior Lighting	LED
Exterior Style	Stainless Steel
Product Type	Built-In
Number of Cycles	7
Tub and Door Liner	Stainless Steel
Sabbath Mode	Yes
Showroom Power Mode	Yes
Collection	Statement,EcoBalance
Connected Capabilities	Amazon Alexa,The Google Assistant,IFTTT,Amazon Dash Replenishment,Sonos,Google Home
Control Type	Top Controls,Electronic Tactile Buttons
Dishwasher Control Features	Hi-Resolution Gray Scale LCD Control Display with Cycle Status Bar on door,Last Cycle Memory,Audible End-of-Cycle Signal
Dishwasher Cycles	Auto Wash,30 Min Wash,Intense,Delicate,Normal,Eco Wash,Rinse
Dishwasher Drying Features	Fan Dry On/Off plus Max Dry,2 Fans/Extra Heater
Dishwasher Options	Delay Start 1-12 Hr.,Pre Soak,Child Lock,Wash TempBoost,Sani (Certified to NSF Standard 184),Heated Dry,Wash Zone Upper Only,Wash Zone Lower Only,Start/Reset,Bottle Wash
Dispenser	Rinse Aid with Indicator and Adjustment,Electronic Low Rinse Aid Sensor
Lower Rack	Ball-Tip Tines,Multi-Position Fold Down Tines,1 Rack handle
Rack Features	2 Utility Shelves with 2 Stem Safe - Upper,Ball-Tipped Tines,2 Fold-Down Tines - Lower,Adjustable Upper Rack,3 Piece Silverware Basket with Soft Touch Handle
Upper Rack	Premium Height Adjustable,Ball-Tip Tines,2 Stem Safe Shelves,1/2 fixed tines, 1/2 fold down tines,1 Rack handle
Wash Arms	3 Pressurized Wash Arms,Lower - Reversing Blade,Middle - Blade,Bottle Wash Jets,Silverware Wash Jets,90+ Spray Jet Wash System,Jets - Variable Pressure
Wash System Features	Variable Speed Dual Pumps and Motors,Automatic Temperature Control,Hard Food Disposer with removable filter,Dedicated Silverware Jets,Middle Wash Arm,Reversing Blade Lower Wash Arm,Deep Clean

Appearance

Handle	Statement Collection
Installation	True Flush
Handle Color	Stainless Steel
Door Style	Long Door with Top Controls
Door Appearance	Fully integrated door
Color Appearance	Stainless Steel
Design Style	Statement Collection

Power / ratings

Power Connection	Optional cord kit (GPFCORD - WX09X70910, WX09X70911)
Electrical Requirements	120V; 60Hz; 10.2A
Calrod Heater Watts	1200
Hertz	60
Watts	1296
Energy Consumption (kWh/year)	240

Economical / quiet

Quiet Package	42 dBA
Motor Type	Variable Speed
Door Insulation	Insulation,Mastic
Outer Wrap	Full-wrap Blanket,Bitumen
Quiet Features	Quiet Water Valve,Sealed Toe Kick,Tub Collar Trim

Dimensions & weight

Width	23.75 in.
Height	34 in.
Length	24 in.
Weight	126 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	28.75 in.
Shipping Height	39 in.
Shipping Length	29 in.
Shipping Weight	166 lbs.
Total of Shipping Weight	166 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	11.22 ft³
Dimensional Weight	139.42 lbs.
Total of Cubes	11.22 ft³
Total of Dimensional Weight	139.42 lbs.

Warranty

Labor Warranty	Limited 2-year entire appliance
Parts Warranty	Limited 2-year entire appliance
Warranty Notes	Limited 5-year rack and electronic control,Ltd Lifetime SS tub and inner door

Description

The Monogram Fully Integrated Dishwasher is the perfect addition to your kitchen. With its advanced features and stylish appearance, this dishwasher is sure to make your life easier and your dishes cleaner than ever before. With a noise level of only 42 dBA, the Monogram Fully Integrated Dishwasher is one of the quietest models on the market. Its LED status indicator on the door allows for easy monitoring of the wash cycle's progress, and its flush installation capability makes it a seamless addition to any kitchen. The Monogram Dishwasher also features a third rack, perfect for accommodating larger items or extra dishes. With its hard food disposer and bottle jets, this dishwasher ensures that even the dirtiest of dishes will come out sparkling clean. Its LED lighting illuminates the interior, making it easy to load and unload. With its advanced wash system, this dishwasher guarantees that your dishes will not only come out clean, but also free from harmful bacteria. The steam and sanitization capabilities work together to remove even the toughest grime and stains, leaving your dishes sparkling and hygienic. The Max Dry system ensures that your dishes come out perfectly dry and ready to use, eliminating the need to manually dry your dishes with a towel. This system uses a combination of high heat and a powerful fan to dry your dishes quickly and effectively. It also includes deep clean silverware jets, which are specially designed to clean utensils that have stubborn or hard-to-reach stains. These jets shoot high-pressure water in all directions, ensuring that every surface of your silverware is thoroughly cleaned. This feature eliminates the need for manual scrubbing or hand-washing, saving you time and effort. This Monogram dishwasher is a must-have for any household looking for a reliable and efficient dishwasher. Its advanced features, including steam and sanitization, make it stand out from the competition. Invest in the Monogram Fully Integrated Dishwasher today and enjoy cleaner, safer, and easier dishwashing tomorrow.

Product Features

Advanced wash system
Designed to achieve the ultimate clean, this advanced wash system with over 90 powerful jets delivers complete washing coverage to every corner of the dishwasher
Third rack
Convenient and adjustable, this expansive third rack easily accommodates an entire flatware collection, plus carving knives, soup ladles and other cooking/serving tools for the ultimate clean
Hard food disposer
Designed to maintain a kitchen’s cleanliness and efficiency, the hard food disposer with stainless steel blades grinds food into tiny particles that wash away with ease
Max Dry system
This precise and efficient drying system delivers beautifully dry dishes every time and is perfect for hard-to-dry items like your favorite champagne flutes
Bottle jets
Hard-to-reach areas inside tall items get completely clean with four dedicated jets integrated into the upper rack that shower water deep inside for the ultimate clean
LED lighting
Illuminates the entire interior, leaving no question as to whether or not dishes have been cleaned
Deep clean silverware jets
Powerful jets blast away stuck-on food for silverware that’s always spotless
Flush installation capability
Enables the dishwasher to be installed flush, even with inset cabinetry, without any additional parts
Handles Sold Separately
T-30 Leveling Leg
Factory Installed Power Cord
Improved, Factory Installed Tub Trim
Attached Insulation Blanket
Extended Drain Hose Loop

Manuals & Guides

Key Features

42 dBA with LED status indicator on door

A dishwasher this quiet has a status indicator to tell you if the dishwasher is Washing, Drying or Clean

Steam + Sanitization

Eliminate the need to pre-wash dishes at the end of every meal, thanks to a Steam + Sani feature that easily loosens lingering traces of food with an added bonus of complete sanitization

The Monogram Statement Collection

Polished stainless steel, and hand-finished edges convey a sense of solidity and beauty

Videos

Rebates

Reviews

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Rebates
Reviews

$23,400.00 ~~$38,240.99~~ Save $14,840.99 / 38% OFF

Product Details for MONOGRAM ZVW8301SWSS

Technical Details

Warranty

Parts	2 Year
Labor	2 Year

Weights & dimensions

Overall Depth	18.875 in
Overall Height	5.875 in
Overall Width	29.875 in
Cabinet Width	30 in
Approximate Shipping Weight	75
Net Weight	60

Features

Fan Speed Control	4-Speed
Max CFM	400
Damper in Transition	Yes
Ducting	Vertical Only
Light Controls	Off/High/Night
Filter Cleaning	Dishwasher Safe
CFM/ Sones Rating	400/ 8.5 (High Speed)
Product Type	Designer Hood
Vertical Exhaust Blower Rating (CFM)	400
Welded / Finished Seams	Yes
Lighting Levels	4
Removable Filter	Yes
Recirculating Capable	Yes
Removable Grease Filter(s)	Yes
Blower Levels	4
8 Round Duct	Yes
Collection	Statement,Minimalist
Control Type	Electronic,Pushbutton
Cooktop Lighting	2,Halogen
Exhaust Options	Vented to Outside,Recirculating
Short Description	30 Wall-Mounted Vent Hood

Appearance

Exterior Design	Chimney - Wall-Mount
Design Style	Chimney
Color Appearance	Stainless Steel
Design Style	Chimney,Statement Collection,Minimalist Collection

Power / ratings

Amp Rating at 120V	12.0
Hertz	60

Warranty

Labor Warranty	Limited 2-year entire appliance
Warranty Notes	See written warranty for full details
Parts Warranty	Limited 2-year entire appliance

Dimensions & weight

Width	29.88 in.
Height	5.88 in.
Length	18.88 in.
Weight	60 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	34.88 in.
Shipping Height	10.88 in.
Shipping Length	23.88 in.
Shipping Weight	100 lbs.
Total of Shipping Weight	100 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	1.92 ft³
Dimensional Weight	23.83 lbs.
Total of Cubes	1.92 ft³
Total of Dimensional Weight	23.83 lbs.

Economical / quiet

Venting Type

Convertible

Accessories

Optional 12' Ceiling Extension	ZX83012
8-10 Ceiling Duct Cover	Included

Description

Stainless steel design
Creates a striking architectural impression with bold angles and smoothly finished edges

Powerful ventilation
Offers three speeds plus a 400 CFM boost to capture cooking fumes produced by 30" cooktops

Perimeter filter system
Draws fumes and vapors around a stainless steel center panel, which completely and stylishly conceals filters

Halogen lighting
Provides four levels of clean, brilliant illumination to suit the cooking task or occasion

Recirculating-ready design
Includes reversible duct covers for non-vented installations, eliminating the need for an optional kit

Product Features

Stainless steel design
Creates a striking architectural impression with bold angles and smoothly finished edges
Recirculating-ready design
Includes reversible duct covers for non-vented installations, eliminating the need for an optional kit
