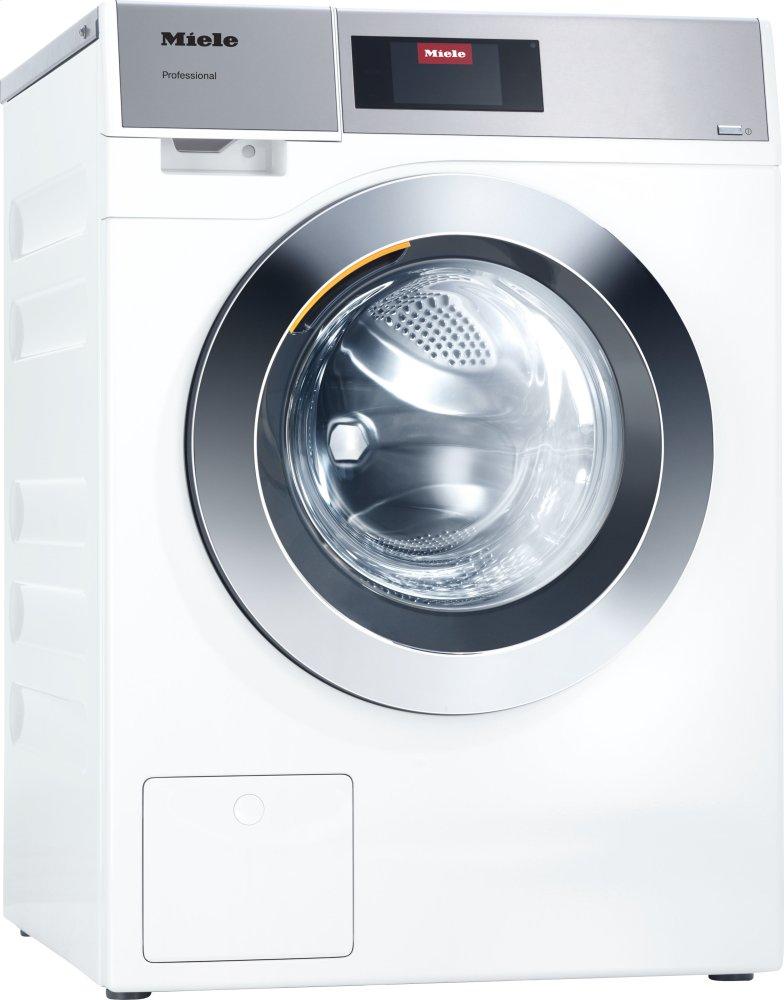

Product Details for MIELE PWM908ELDPLW

Technical Details

Construction type and design

Design Front-loader, stackable
Product line Performance Plus
Front Lotus White
Control panel color Stainless Steel
Load in lbs 20
Drum volume in cubic feet (l) 2.58
Door opening [ ] in in.(mm) 11 13/16 (300)
Door opening angle in degrees 167.0
Door hinging right
Maintenance-free synchronous motor Yes
Honeycomb drum with perforated rear wall made of stainless steel Yes

Application

Suitable for hotels and restaurants Yes
Suitable for senior living facilities Yes
Suitable for launderettes Yes
Suitable for residential homes and apartments Yes
Suitable for dry cleaners Yes
Suitable for commercial laundries Yes
Suitable for small businesses Yes
Suitable for universities, nurseries, and schools Yes
Suitable for hospitals Yes
Suitable for camp sites Yes
Suitable for sports clubs Yes
Suitable for beauty salons, spas, and fitness centers Yes
Suitable for doctors' and dentists' practices Yes
Suitable for the petrochemical industry Yes
Suitable for the food-processing industry Yes
Suitable for amusement parks and holiday complexes Yes
Suitable for public/community care facilities Yes

Performance data

Specific water consumption for cold water connection in l/kg 6.10
Specific energy consumption for cold water connection in kWh/lb 0.120
Specific water consumption for hot water connection in l/kg 5.80
Specific energy consumption for hot water connection in kWh/lb 0.060
Energy consumption for cold water connection in kWh 1.10
Tested virucidal efficacy Yes
Certified hygiene Yes
Water consumption for cold water connection in l 55
Program duration in minutes with cold water connection 59
Water consumption for hot water connection in l 52
Energy consumption for hot water connection in kW 0.57
Program duration in minutes with hot water connection 49
Residual moisture with cold rinse in % 48
Residual moisture with hot rinse in % 45
Spin speed in rpm 1600
g factor 704
Tested operating hours 30000

Control

Control system M Touch Flex
Programmability programmable
Max. delay start in h 96
Countdown indicator Yes
Program sequence indicator Yes
Language can be selected easily at any time Yes

Dispensing

Detergent dispenser drawer 3
CapDosing Yes
Flexible dispensing adapter (option) Yes
Maximum number of connections for liquid dispenser pumps [number] 6
Empty sensor Yes

Standard electrical connection

Type of heating Electric
Electrical connection 2
Heater rating in kW 3.800
Total connected load in kW 4
Fuse rating in A 30
NEMA plug: Twist Lock L6-30 Yes

Water connection/drainage

Cold water [number] 0.5
Hot water [number] 0.5
Drain pump DN 22

Dimensions and weight

External dimensions, net height in inches 33 1/2 (850)
External dimensions, net width in inches 23 1/2 (596)
External dimensions, net depth in inches 28 1/8 (714)
External dimensions, gross height in inches 37 1/16 (940)
External dimensions, gross width in inches 26
External dimensions, gross depth in inches 30 1/4 (768)
Net weight in lbs.(kg) 230
Gross weight in lbs. 239
Maximum floor load in N 2820

Emission values

Heat dissipation into the room in MJ/h 1
Emissions - sound pressure at workplace 70

Features

3-dimensional imbalance monitoring Yes
Commercial shock absorber Yes
Hard-wearing stainless-steel flange Yes
Disinfection rinse Yes
EcoSpeed Yes
SoftSteam Yes
Efficient rib technology Yes
Temperature monitoring Yes
Special heater element Yes
Automatic load control Yes
Volumetric flow meter Yes
LED drum lighting, class 1 Yes
Communication slot Yes
Add laundry Yes
Appliance-independent accessories Yes

Connection options

Payment system (optional) Yes
Optical interface for service access Yes
LAN/WiFi module (optional) Yes
WiFi Conn@ct Yes

Standards, test certificates, and symbols

CE Yes
Splash protection IPX4 Yes
WEEE Yes

Features

  • Drum volume 2.58 (73) ft (l), load size 20 (9.0) lb (kg)
  • Delay start up to 96 hours
    The program start time can be pre-set up to 96 hours in advance for particularly efficient planning.
  • Countdown indicator
    After the program has started, the display shows the cycle time remaining.
  • Drum lighting
    No laundry item is overlooked when unloading thanks to the perfectly lit honeycomb drum.
  • 22% less water consumption and 28% less energy consumption
  • Tested for intensive use - unique Miele quality
  • Programmable washing machine controls
    According to requirements: Programmable controls enable perfect adaptation to suit individual needs.
  • Stackable
    The washer-dryer stack or dryer-only stack delivers top performance on a small footprint.
  • Top convenience with full-touch color display - M Touch Flex
  • M Touch Flex controls
    Use all washing programs and machine functions conveniently with a tap on the clear text touch display.
  • Thorough cleaning with professional washing programs
  • Language can be selected easily at any time
    Simple and fast: users can easily switch to a different language at any time during operation.
  • Manufactured with great care by Miele & Cie. KG
  • Add laundry
    Did you forget an item of laundry? Don't worry - simply open the door and add the laundry. *
  • View manufacturer details: Miele & Cie. KG
  • SoftSteam
    The "SoftSteam" reduces the need for ironing.
  • High temperature consistency
    For reliable cleaning results and maximum filtration, the temperature of washing water is monitored constantly.
  • Safety information
  • Proven hygiene
    The combination of disinfection programs and high safety standards has been verified by an independent jury.
  • Large capacity
    Miele Professional washing machines have a large capacity drum and so can accommodate large loads of laundry.
  • Disinfection rinse
    A final rinse with a special high temperature/holding time provides additional reassurance with regard to hygiene.
  • Precise automatic load recognition
    Water and energy consumption are automatically adjusted for the load size.
  • Powerful heater elements
    The washing machines are equipped with powerful heater elements for heating water quickly.
  • EasyDos
    Dispensing of liquid detergent can be set individually to suit requirements.
  • Excellent durability
    The professional technology ensures excellent reliability and durability for daily work routine,
  • Commercial shock absorber
    Incredibly smooth running even at high spin speeds with professional shock absorbers tested to last 30,000 hours.
  • Precisely controlled water consumption
    The flow meter monitors the volume of water intake precisely for maximum efficiency.
  • Honeycomb drum with perforated rear wall
    Quicker wetting means perfect washing results in record time.
  • Low consumption values
    Economical and efficient: Laundry machines from Miele Professional boast exceptionally low consumption values.
  • EcoSpeed - patented wash rhythm *
    Intensive cleaning with reduced water consumption due to optimized changes in speed.
  • Efficient hot water connection
    Connection to a hot water supply enables excellent savings in time and energy with minimal effort.
  • Efficient rib technology
    Fast, optimum soakingis achieved thanks to the specially shaped scoop ribs.
  • High machine capacity through process optimization
    First-class economy thanks to short cycle times for a high usage frequency.
  • 3-dimensional imbalance monitoring
    Reliable moisture removal from wash items thanks to professional 3D sensor technology.
  • Connection of payment system
    Optimum use in self-service areas is possible thanks to the connection for payment systems.
  • Connected for the future using LAN/WiFi
    Fully informed with a high-performance network connection.
  • Sophisticated synchronous motor
    For maximum service life: The powerful, quiet and maintenance-free synchronous motor.
  • WiFi Conn@ct
    Simple networking via WiFiConn@ct: Connect via smartphone/tablet and app * and retrieve status updates.
  • Stainless steel flange *
    Long service life due to high resistance to aggressive cleaning agents.
  • Short program cycles
    Premium commercial technology allows you to benefit from the shortest program cycles.
  • Excellent spin performance
    Very low residual moisture on account of high g-factor.



Description

PWM 908 [EL DP-1] Lotus white, powder-coated - Professional washing machine, Little Giants, electric heating, drain pump and short program cycle times and programs specific to the target group.

Key Features

Delay start up to 96 hours

The program start time can be pre-set up to 96 hours in advance for particularly efficient planning.

Drum lighting

No laundry item is overlooked when unloading thanks to the perfectly lit honeycomb drum.

Countdown indicator

After the program has started, the display shows the cycle time remaining.

Programmable washing machine controls

According to requirements: Programmable controls enable perfect adaptation to suit individual needs.

Stackable

The washer-dryer stack or dryer-only stack delivers top performance on a small footprint.

M Touch Flex controls

Use all washing programs and machine functions conveniently with a tap on the clear text touch display.

Language can be selected easily at any time

Simple and fast: users can easily switch to a different language at any time during operation.

SoftSteam

The "SoftSteam" reduces the need for ironing.

Add laundry

Did you forget an item of laundry? Don't worry - simply open the door and add the laundry. *

High temperature consistency

For reliable cleaning results and maximum filtration, the temperature of washing water is monitored constantly.

Proven hygiene

The combination of disinfection programs and high safety standards has been verified by an independent jury.

Drum volume 2.58 (73) ft (l), load size 20 (9.0) lb (kg)

Large capacity

Miele Professional washing machines have a large capacity drum and so can accommodate large loads of laundry.

Precise automatic load recognition

Water and energy consumption are automatically adjusted for the load size.

Disinfection rinse

A final rinse with a special high temperature/holding time provides additional reassurance with regard to hygiene.

EasyDos

Dispensing of liquid detergent can be set individually to suit requirements.

Powerful heater elements

The washing machines are equipped with powerful heater elements for heating water quickly.

Excellent durability

The professional technology ensures excellent reliability and durability for daily work routine,

Commercial shock absorber

Incredibly smooth running even at high spin speeds with professional shock absorbers tested to last 30,000 hours.

Precisely controlled water consumption

The flow meter monitors the volume of water intake precisely for maximum efficiency.

Low consumption values

Economical and efficient: Laundry machines from Miele Professional boast exceptionally low consumption values.

Honeycomb drum with perforated rear wall

Quicker wetting means perfect washing results in record time.

EcoSpeed - patented wash rhythm *

Intensive cleaning with reduced water consumption due to optimized changes in speed.

Efficient rib technology

Fast, optimum soakingis achieved thanks to the specially shaped scoop ribs.

3-dimensional imbalance monitoring

Reliable moisture removal from wash items thanks to professional 3D sensor technology.

Connection of payment system

Optimum use in self-service areas is possible thanks to the connection for payment systems.

Connected for the future using LAN/WiFi

Fully informed with a high-performance network connection.

Sophisticated synchronous motor

For maximum service life: The powerful, quiet and maintenance-free synchronous motor.

WiFi Conn@ct

Simple networking via WiFiConn@ct: Connect via smartphone/tablet and app * and retrieve status updates.

Stainless steel flange *

Long service life due to high resistance to aggressive cleaning agents.

Short program cycles

Premium commercial technology allows you to benefit from the shortest program cycles.

Excellent spin performance

Very low residual moisture on account of high g-factor.

High machine capacity through process optimization

First-class economy thanks to short cycle times for a high usage frequency.
