SKU: PUR98WSS | UPC: 8017709332716

Miele PUR98WSS 36" Wall Hood (Stainless Steel) Clean Touch Steel

Quick Specification More details

Width:
35.35"
Depth:
19.69"
Type:
Wall & Chimney Hoods

About this product

Safety turn off
Stainless-steel grease filters (10-layer)
Miele CleanCover

SKU: PUR98WSS | UPC: 8017709332716

Miele PUR98WSS 36" Wall Hood (Stainless Steel) Clean Touch Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
35.35"
Depth:
19.69"
Type:
Wall & Chimney Hoods

About this product

Safety turn off
Stainless-steel grease filters (10-layer)
Miele CleanCover

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Rebates
Reviews

Product Details for Miele PUR98WSS

Technical Details

General information

Model number	PUR 98 W
Manufacturer material number	10743150
EAN number	4002515941256
Marketing class	Silver

Design

Wall ventilation hood	TRUE
Color	Stainless steel

Operating modes

Recirculated mode	Can be retrofitted
Recirculation conversion kit (order separately)	DUW 20
OdorFree charcoal filter (order separately)	DKF 12-P

User convenience

Electronic controls	TRUE
Operation	Light-touch switches with LEDs
Power levels (number excl. Intensive)	3
Booster levels	1
CleanCover	TRUE

Cleaning convenience

Easy-to-clean canopy interior – CleanCover

TRUE

Filter system

Number of dishwasher-safe stainless steel grease filters (10-ply)

Lighting

Number x W	3 x 3 W
Light intensity in Lx	450 lx
Color temperature in K	3000 Kelvin

Blower

Dual-action blower

TRUE

Exhaust air

Air throughput in CFM in Booster	510
Air throughput with Booster level 1 (m³/h) according to EN 61591	512.06 (870)

Safety

Safety shut-off

TRUE

Technical data

Overall min. height for vented and external in in. (mm)	27 (685)
Overall max. height for vented and external in in. (mm)	39 5/8 (1005)
Overall min. height for recirculation in in. (mm)	32 1/8 (815)
Overall max. height for recirculation in in. (mm)	44 3/4 (1135)
Canopy width in in. (mm)	35 3/8 (898)
Canopy height in in. (mm)	2 1/2 (62)
Depth of hood canopy in in. (mm)	19 3/4 (500)
Minimum height above electric cooktops in mm	24 1/8 (610)
Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm	26 (660)
Net weight in lbs. (kg)	56 (25.0)
Length of electrical wire in ft. (m)	4 (1.5)
Standard plug fitted	TRUE
Plug type	NEMA plug: 5–15
Total connected load in kW	0.359
Voltage in V	120
Fuse rating in A	15
Frequency in Hz	60
Number of phases	1

Installation note

Vent connection at top	TRUE
Diameter of vent connection in in. (mm)	6 (150)
Telescopic chimney	TRUE

Standard accessories

Non-return flap

TRUE

Dimensions & weight

Width	35.35 in.
Length	19.69 in.
Weight	121.51 lbs.
Gross Weight	66.14 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	40.16 in.
Shipping Height	26.18 in.
Shipping Length	25.59 in.
Shipping Weight	161.51 lbs.
Source	Manufacturer
Total of Shipping Weight	161.51 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement

15.57 ft³

Description

What's included

Non-return flap

Manuals & Guides

Key Features

Safety turn off

The ventilation hood will switch off automatically after 10 hours. This ensures maximum safety even in case of operating errors.

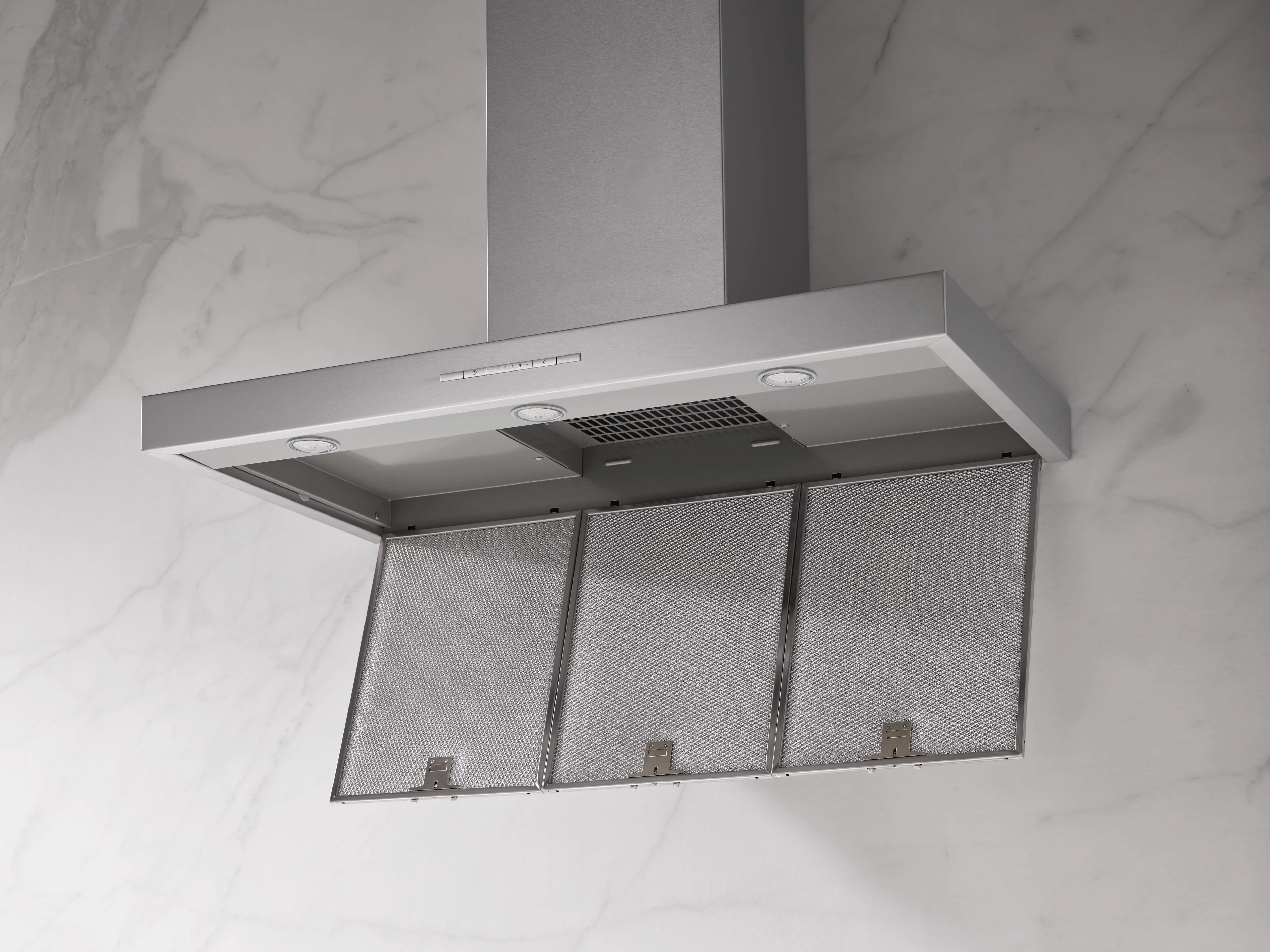

Stainless-steel grease filters (10-layer)

Miele Ventilation Hoods are equipped with a 10-ply stainless-steel grease filter and guarantee a high-level of grease removal. During removal, the integrated fall protection ensures safe handling and protects your cooktop against damage. The top layer and the filter frame are made of high-quality stainless steel, meaning that there is no visible discoloration as a result of dishwasher cleaning and it retains its sleek appearance for a long time.

Miele CleanCover

Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. The CleanCover is also particularly easy to clean. Miele care and attention down to the very last detail for greater safety and convenience.
