Product Details for Miele PFD401U240V

Technical Details

Construction type and design

Model	Built-under dishwasher
Range	MasterLine
Model	Speedplus
Wash system	Fresh water front loader
Number of levels	2
Front	Stainless steel
Lid	Without lid
Side walls	Galvanised

Performance data

Shortest program duration in min.	6
Maximum final rinse temperature in °F (°C)	158 (70)
Cleaning performance, plates/h	380
Cleaning performance, baskets/h	20
Service life in wash cycles	28000
Tested virucidal efficacy	TRUE
Certified hygiene	TRUE
Possible to wash plastic baskets on two levels	TRUE

Control

Control system	M Touch Flex
Max. delay start in h	24
Dishwashing programs [number]	11
Countdown indicator	TRUE
Program sequence indicator	TRUE
Choice of display language	TRUE
Language-neutral operation	TRUE

Standard electrical connection

Electrical connection	2 AC 240V 60HZ
Heater rating in kW	5.400
Total connected load in kW	5.800
Fuse rating in A	30
Length of power cord in ft (m)	6 (1.90)
NEMA plug: Twist Lock L6-30	TRUE

Possible voltage variant 1

Electrical connection	3 AC 240V 60HZ
Heater rating in kW	5.400
Total connected load in kW	5.800
Fuse rating in A	20

Water connection/drainage

Cold water [number]	1
Hot water [number]	1
Required flow pressure in bar	0.40-10
Drain hose [DN]	22
Maximum delivery head for drain pump in inches (cm)	39 3/8 (100)
Maximum water hardness in gpg (mmol/l)	62.595 (10.70)
Water protection system	Waterproof system
Water consumption per wash cycle in gal (l)	2.1 (8.00) gll (l)
Length of water inlet hose in inches (cm)	67 (170)
Length of water drain hose in inches (cm)	59 1/8 (150)
Integrated water softener	TRUE

Dimensions and weight

External dimensions, net height in inches	32 5/16 (820)
Maximum height adjustment in inches (mm)	60
External dimensions, net width in inches	23 9/16 (598)
External dimensions, net depth in inches	22 7/8 (580)
External dimensions, gross height in inches	36 1/4 (920)
External dimensions, gross width in inches	26 7/16 (670)
External dimensions, gross depth in inches	29 3/16 (740)
Usable space in wash cabinet, width in inches (mm)	22 1/16 (559)
Usable space in wash cabinet, height in inches (mm)	21 1/8 (536)
Usable space in wash cabinet, depth of upper basket in inches (mm)	18 11/16 (474)
Usable space in wash cabinet, depth of lower basket in inches (mm)	20 3/8 (516)
In-feed height above floor in inches (mm)	8 9/16 (216)
Required niche width in mm	23 5/8 (600)
Net weight [kg]	144 (65)
Gross weight in lbs.	166 (75)
Maximum floor load in N/m²	1200

Emission values

Emission sound pressure level in workplace (LpA)	47 dB(A) re 20 µPa
Sound power (LwA) in dB(A) re 1 pW	59
Heat dissipation into the room in MJ/h	1.44

Features

Drying	None
Adjustable temperature holding time	TRUE
Adjustable final rinse temperature	TRUE
Wi-Fi	TRUE
1 Combi dispenser/door for powder and liquid media	TRUE
In-door salt container	TRUE
Safe mode	TRUE
Perfect GlassCare	TRUE
Highly effective filter system with filter monitoring	TRUE
Wash cabinet made from high-quality stainless steel	TRUE
Optical interface	TRUE
A wide range of accessories (optional)	TRUE

Application

Suitable for small restaurants/bars	TRUE
Suitable for hospitality industry	TRUE
Suitable for Bed & Breakfast	TRUE
Suitable for canteens	TRUE
Suitable for offices	TRUE
Suitable for small businesses	TRUE
Suitable for fast food restaurants	TRUE
Suitable for sports clubs	TRUE

Programs

Normal Plus	TRUE
Rapid	TRUE
Normal	TRUE
SaniWash	TRUE
Cold/Pre-wash	TRUE
Glasses	TRUE
Beer glasses	TRUE
Cutlery	TRUE
Plastic	TRUE
Intensive	TRUE
Reactivation	TRUE
Drainage by pump	TRUE

Baskets

2 x E 816 inserts for plates	TRUE
1 x APFD 215 upper basket	TRUE
1 x APFD 220 lower basket for inserts	TRUE
2 x APFD 420 insert for cutlery	TRUE
Height-adjustable upper basket	TRUE
Combinable with APFD 210 bottle basket	TRUE

Connection options

External dispenser module for liquid cleaning agent

TRUE

Standards, test certificates, and symbols

Complies with Machinery Directive 2006/42/EC	TRUE
Splash protection IPX1	TRUE
EMC radio suppressed	TRUE
DIN 10512	TRUE
DIN EN 17735	TRUE
ETL	TRUE
ADA compliant	TRUE

Description

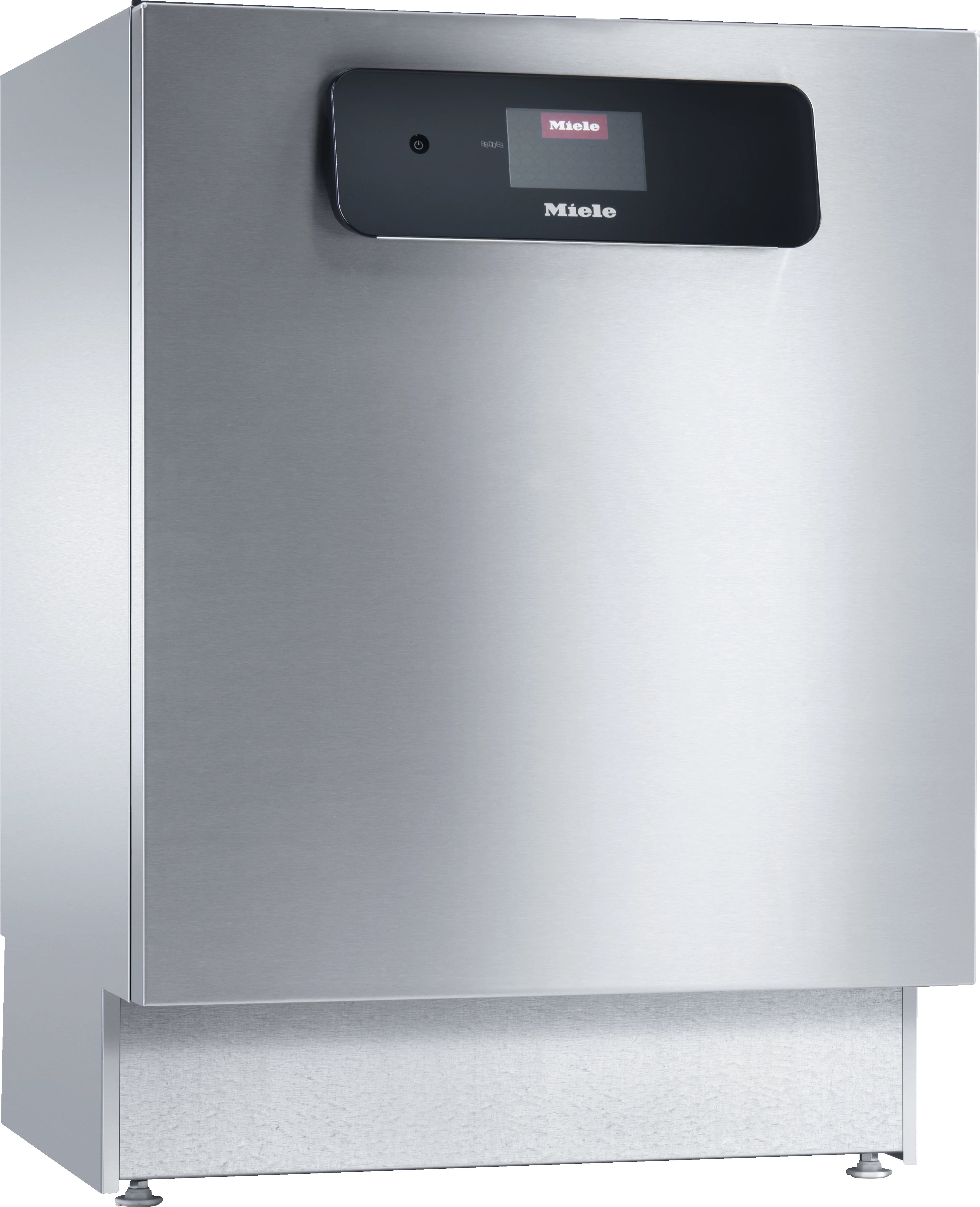

PFD 401 U [240V] - Built-under fresh water dishwasher ADA compliant, with baskets for hotels, restaurants and catering companies.

Manuals & Guides

Key Features

Delay start and time left display

With delay start you can determine up to 24 hours in advance when the selected program should start. After the program has started, the display will indicate the current time remaining for the cycle.

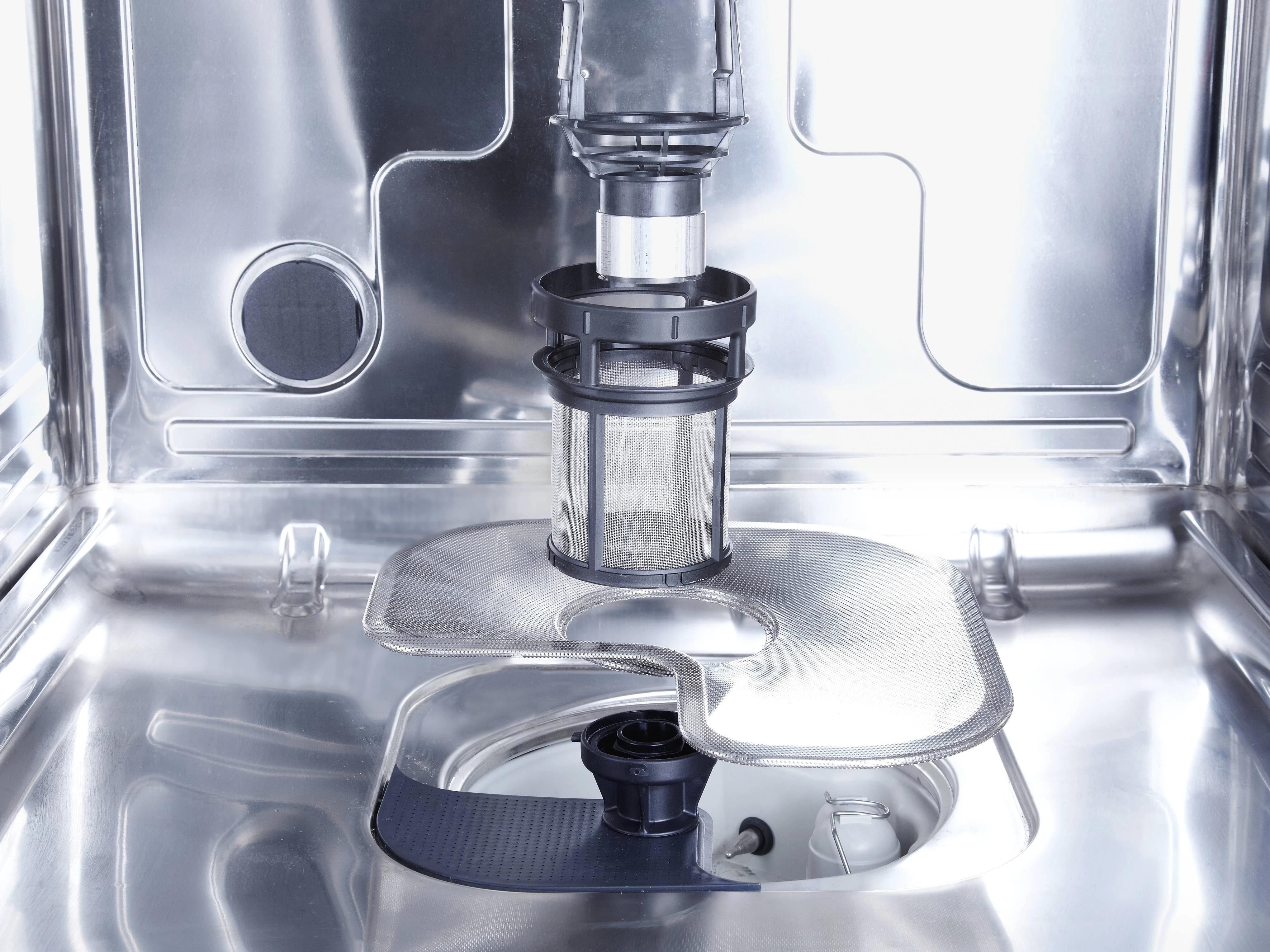

Highly effective filter system

In Miele Professional Dishwashers, the extremely effective filter system plays an important role. The permanent filtering of the wash water results in optimum cleaning results whilst protecting the machine from damage to the greatest degree possible. The dishwasher detects whether micro-fine filter is inserted correctly to ensure that the system is used safely.

Quality you can rely on

Durability: Miele Professional dishwashers are tested for a long service life.

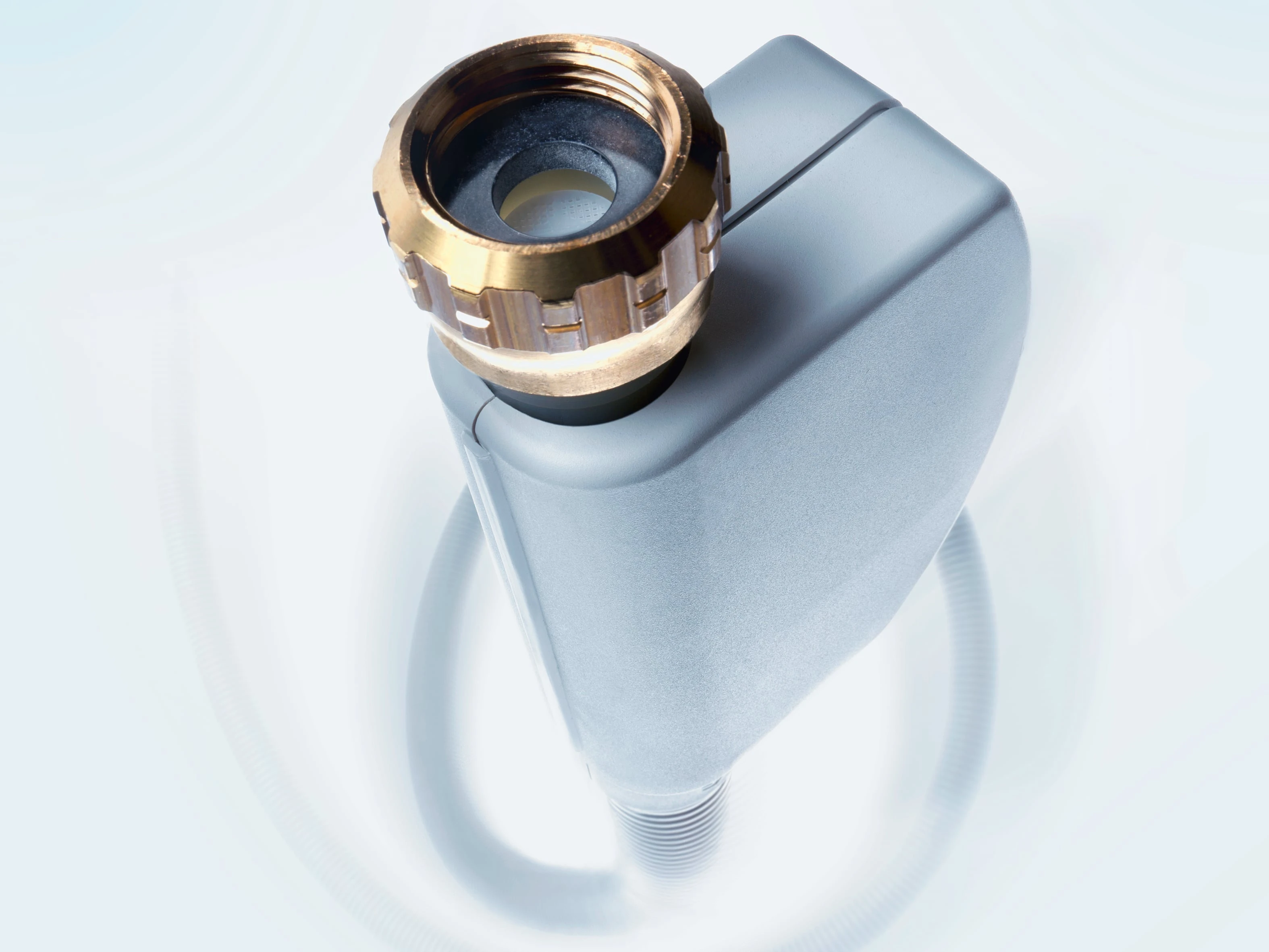

Reliable water protection

Every Miele dishwasher is equipped with a Waterproof system designed to protect your home from water damage. This intelligent technology ensures maximum protection against leaks or overflows. With Miele’s commitment to quality and innovation, you can enjoy peace of mind knowing your dishwasher is built to prevent water-related mishaps—day after day.

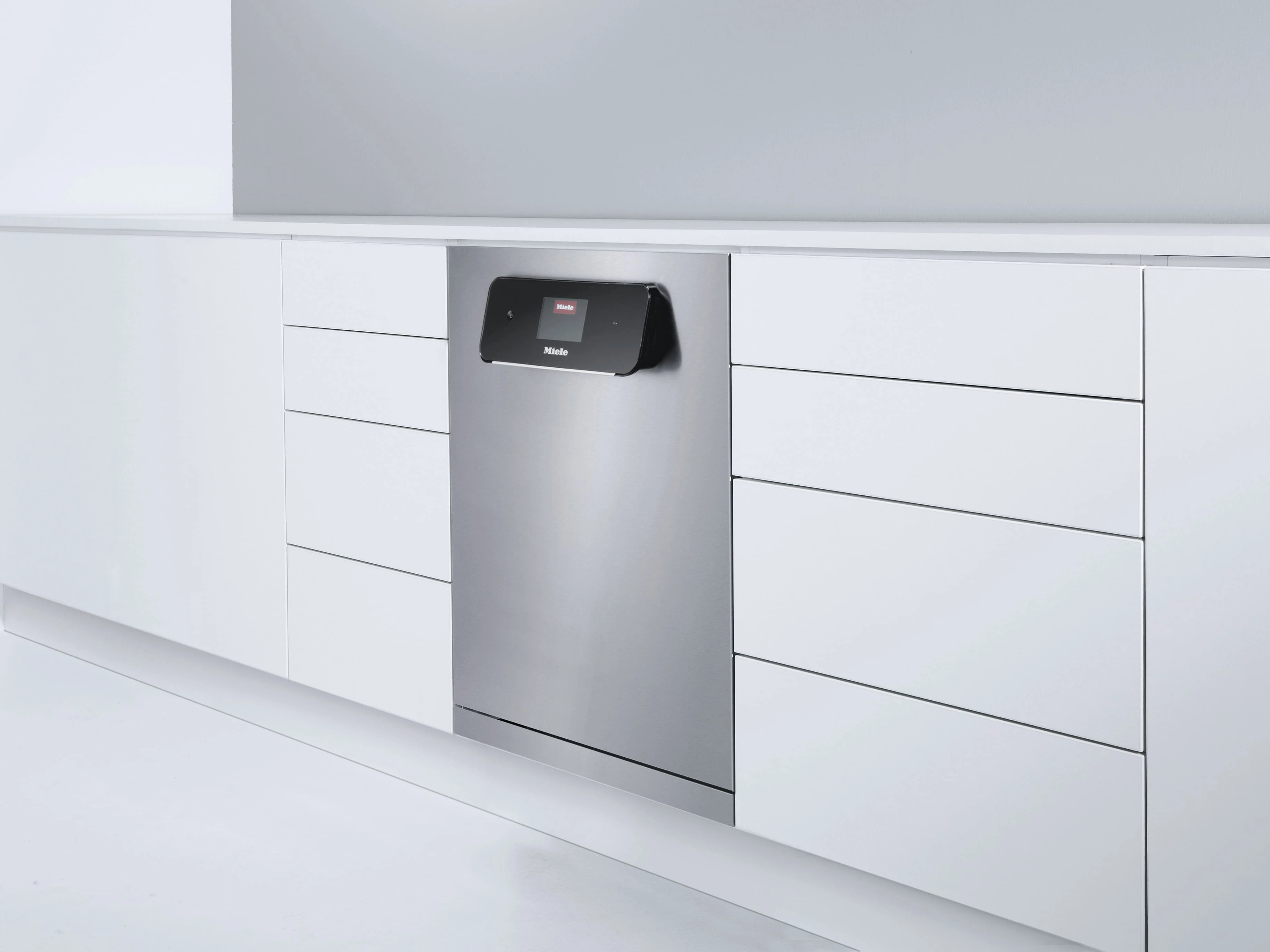

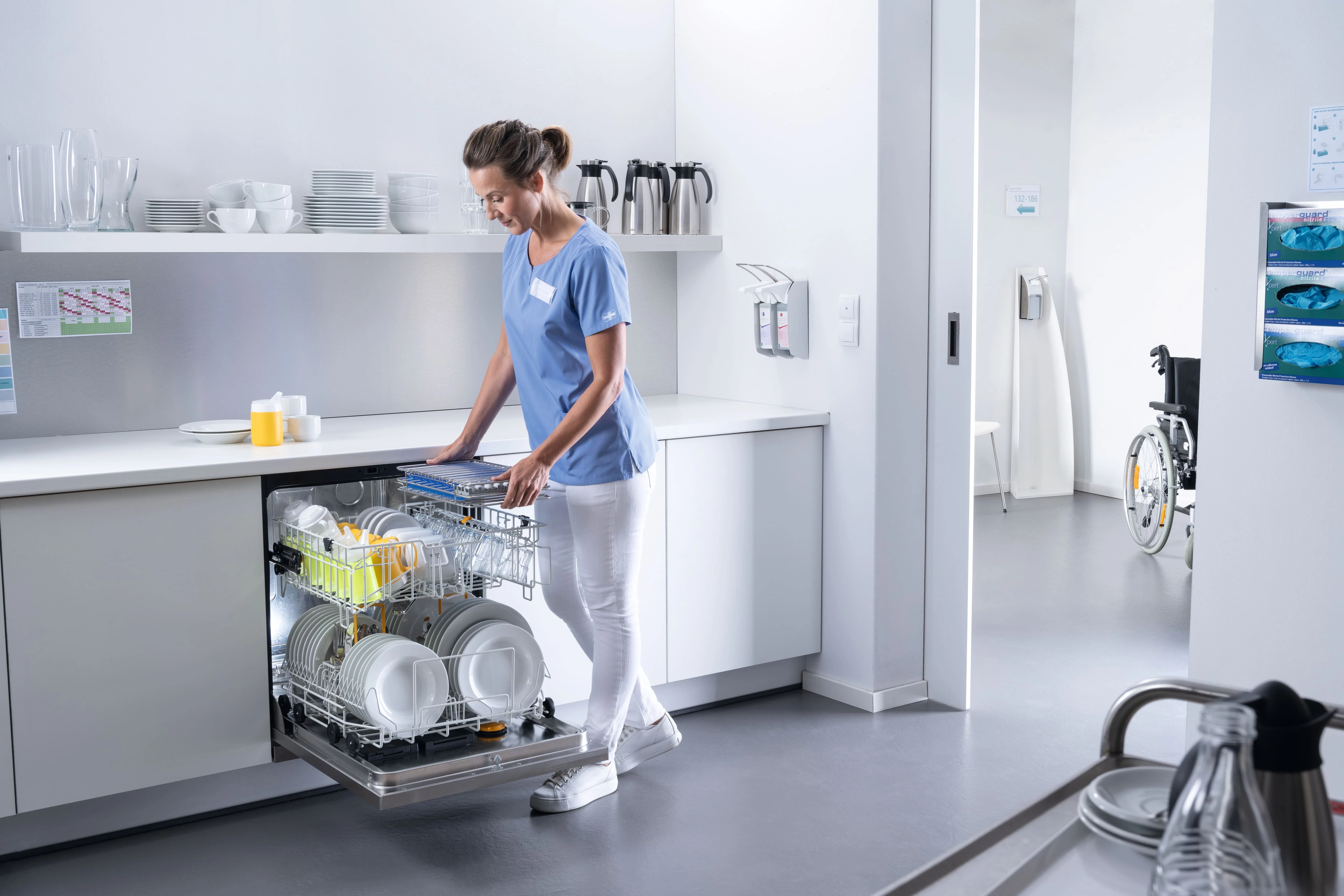

Perfect integration under countertops

The dishwasher can be easily installed under the countertop in the kitchen. The height of the dishwasher is adjustable, the unit requires a 24" wide niche, and will look perfectly integrated into your kitchen!

Very short cycle times

Are very short cycle times and sparkling results important to you? If so, then Miele Professional dishwashers are the perfect choice for you: Hot waters and 3-phase current, intelligent dishwashing technology and a powerful heat-pump ensure optimum program durations and cleaning results. Take advantage of innovative features that make your dishware sparkle day after day in the shortest amount of time.

Adjustable program parameters

For perfect dishwashing results and hygiene performance, the various program parameters, e.g., temperature, holding time, or water intake can be precisely adjusted to suit requirements. In addition, the program names can be personalized (models with the M Touch Flex controls).

Perfect GlassCare

Soft water is good for cleaning but has an aggressive effect on glass. This is why Miele Professional dishwashers use Perfect GlassCare in the glasses program. This technology adjusts the water hardness precisely, so that all glasses are thoroughly yet gently cleaned.

Integrated water softener

The built-in softener always delivers water with the optimum degree of hardness. The use of soft water allows detergent to be used sparingly and prolongs the life of the appliance. The degree of water hardness is adjusted manually to suit the on-site water quality.

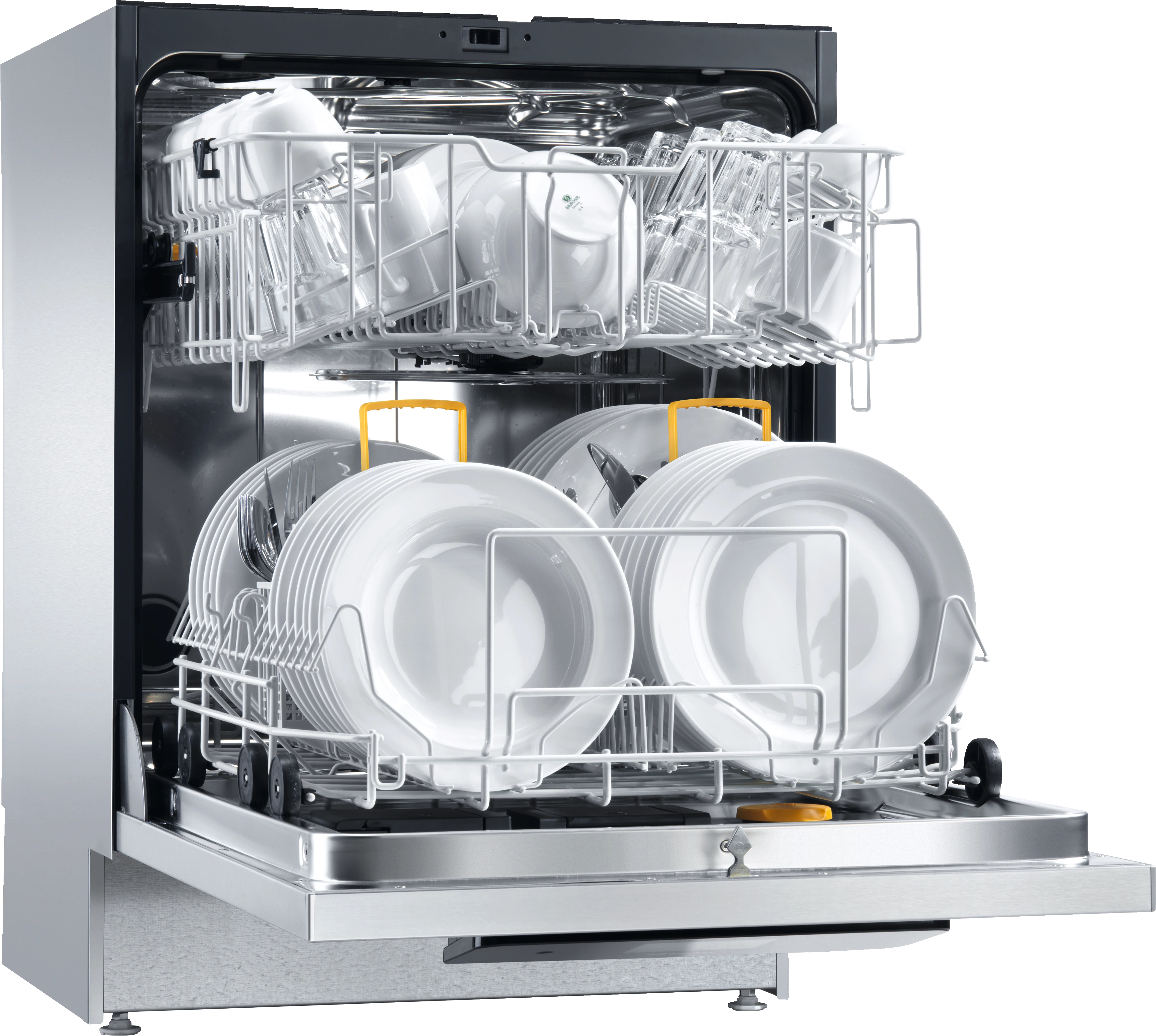

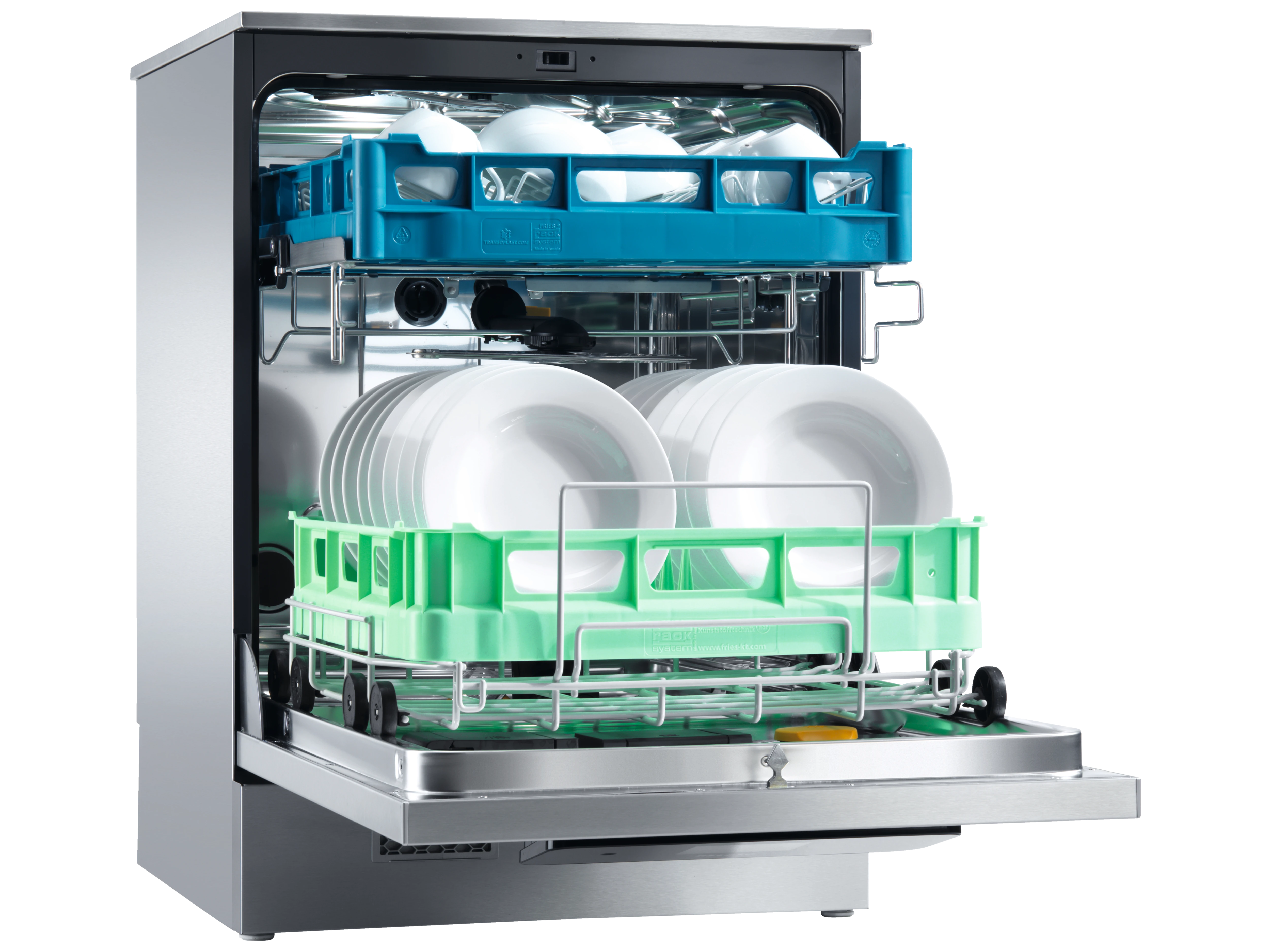

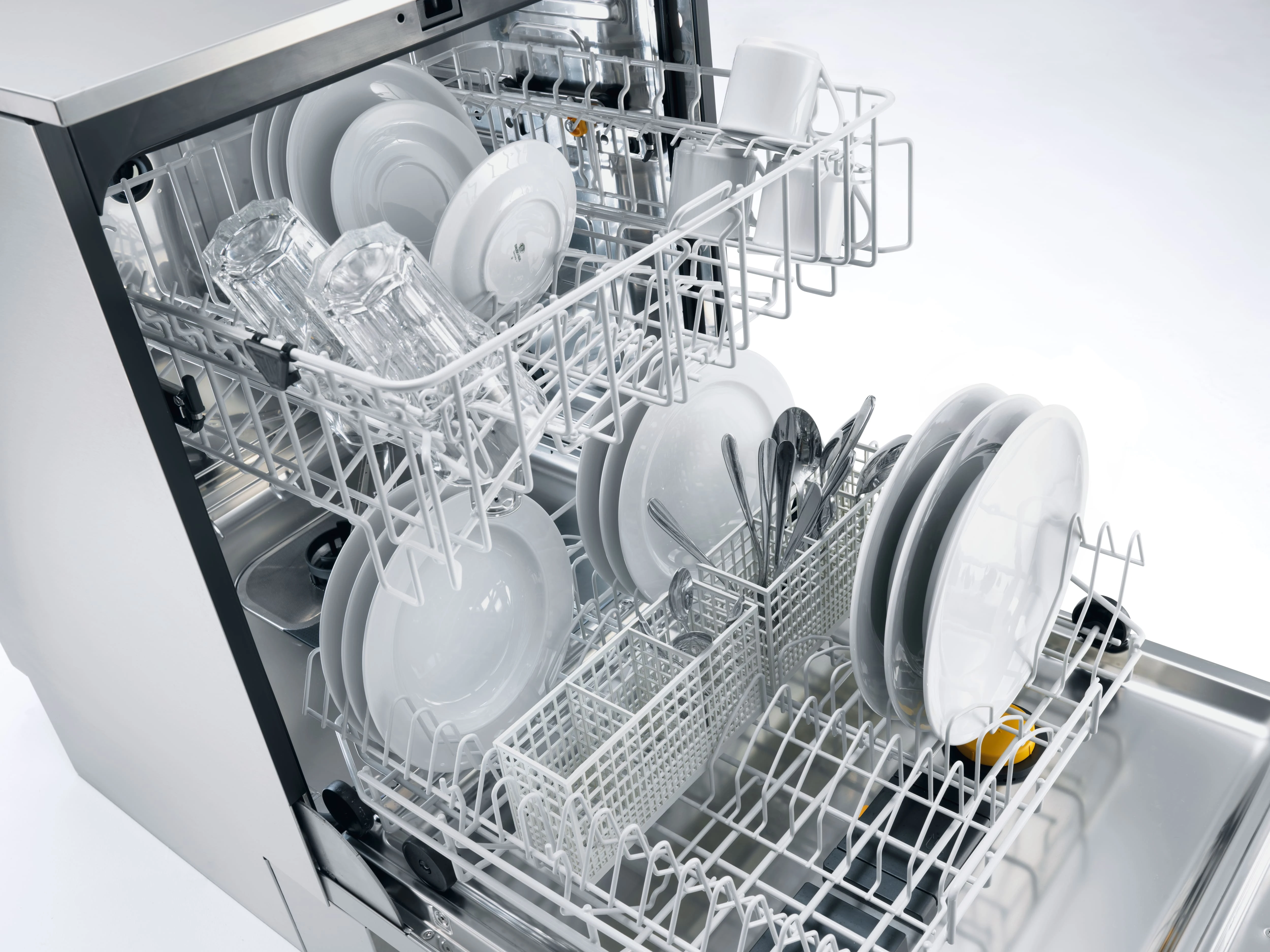

Powerful cleaning performance on two levels

High capacity: The most diverse items can be arranged safely on two wash levels.

Efficient hot water connection

Connection to a hot water supply shortens the program run times, reducing energy consumption.

Low consumption values

Save money and be environmentally friendly: Miele Professional dishwashers offer impressive low consumption values and are known for maximum efficiency. This standard is applied right from the product development stage: Perfect dishwashing results should be achieved by using recyclable materials and no more water, energy and detergent than absolutely necessary.

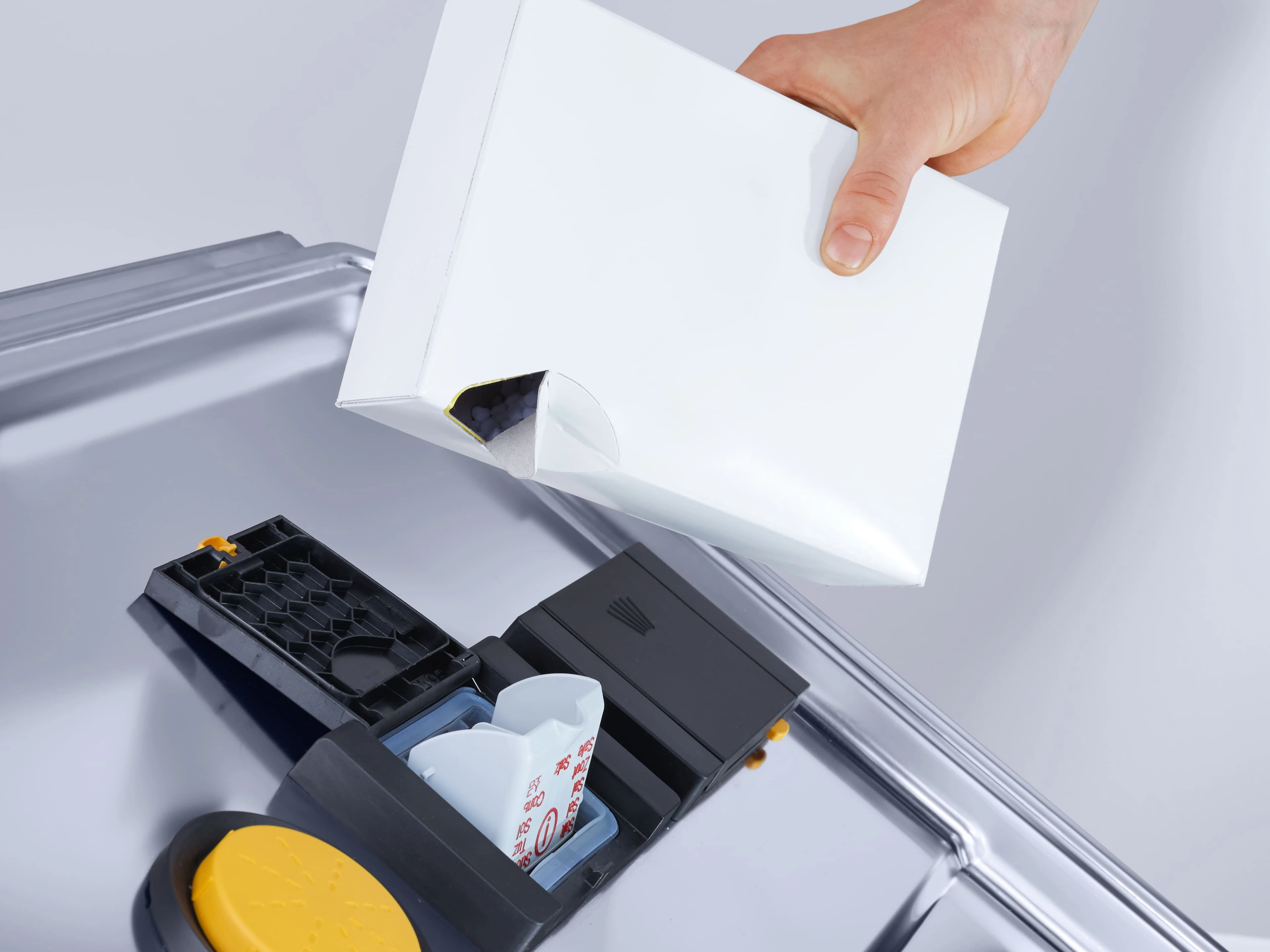

Door salt container

The integrated salt container allows ergonomic refilling with the door half open. The salt can therefore be refilled without having to stoop into the wash cabinet or remove the lower basket.

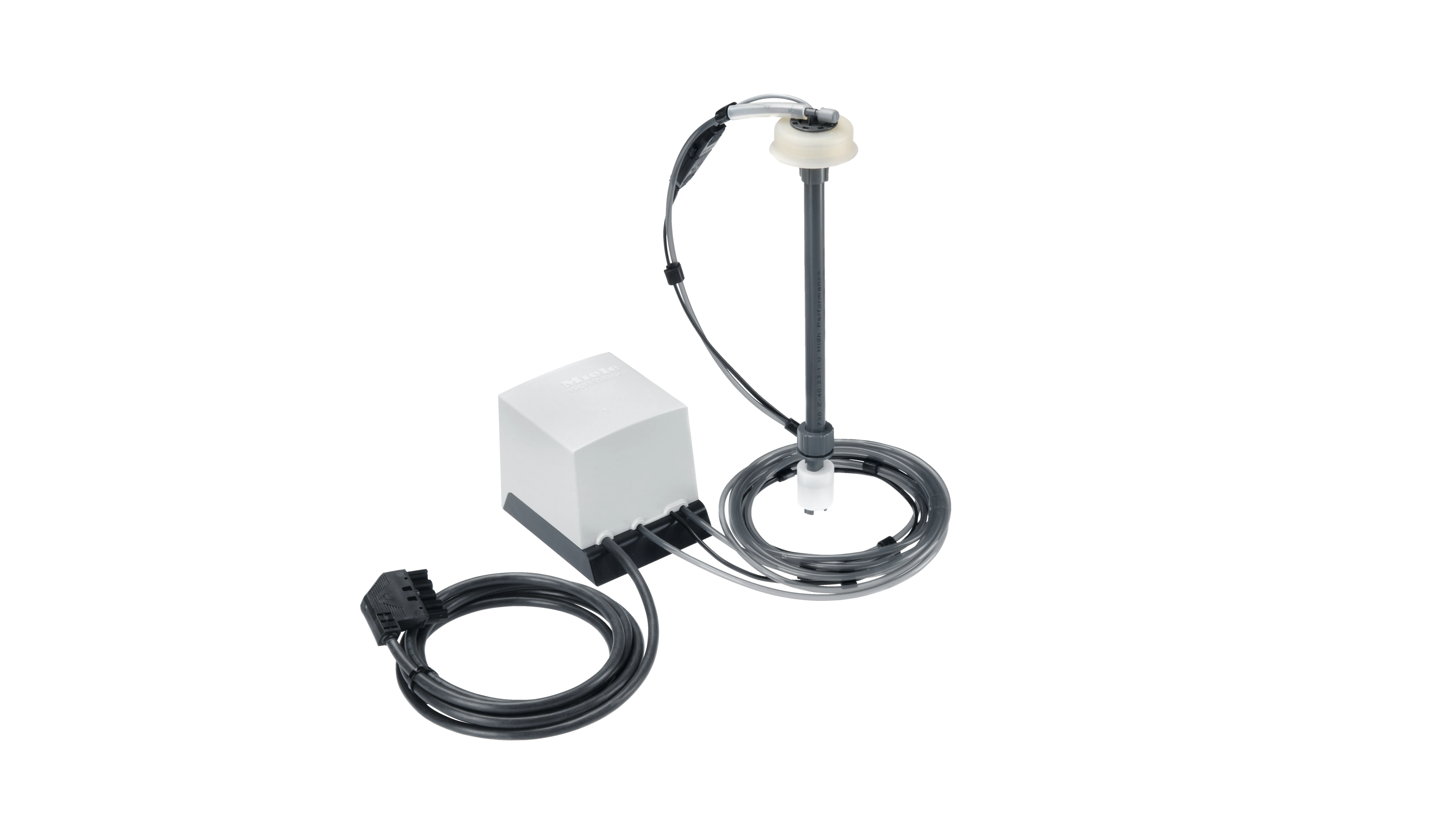

Connection for detergent dispenser module

An optional liquid dispensing module can be connected for convenient and economical use of liquid cleaning agent. Precise dispensing ensures perfect cleaning results. In addition, automatic liquid dispensing makes handling easier.

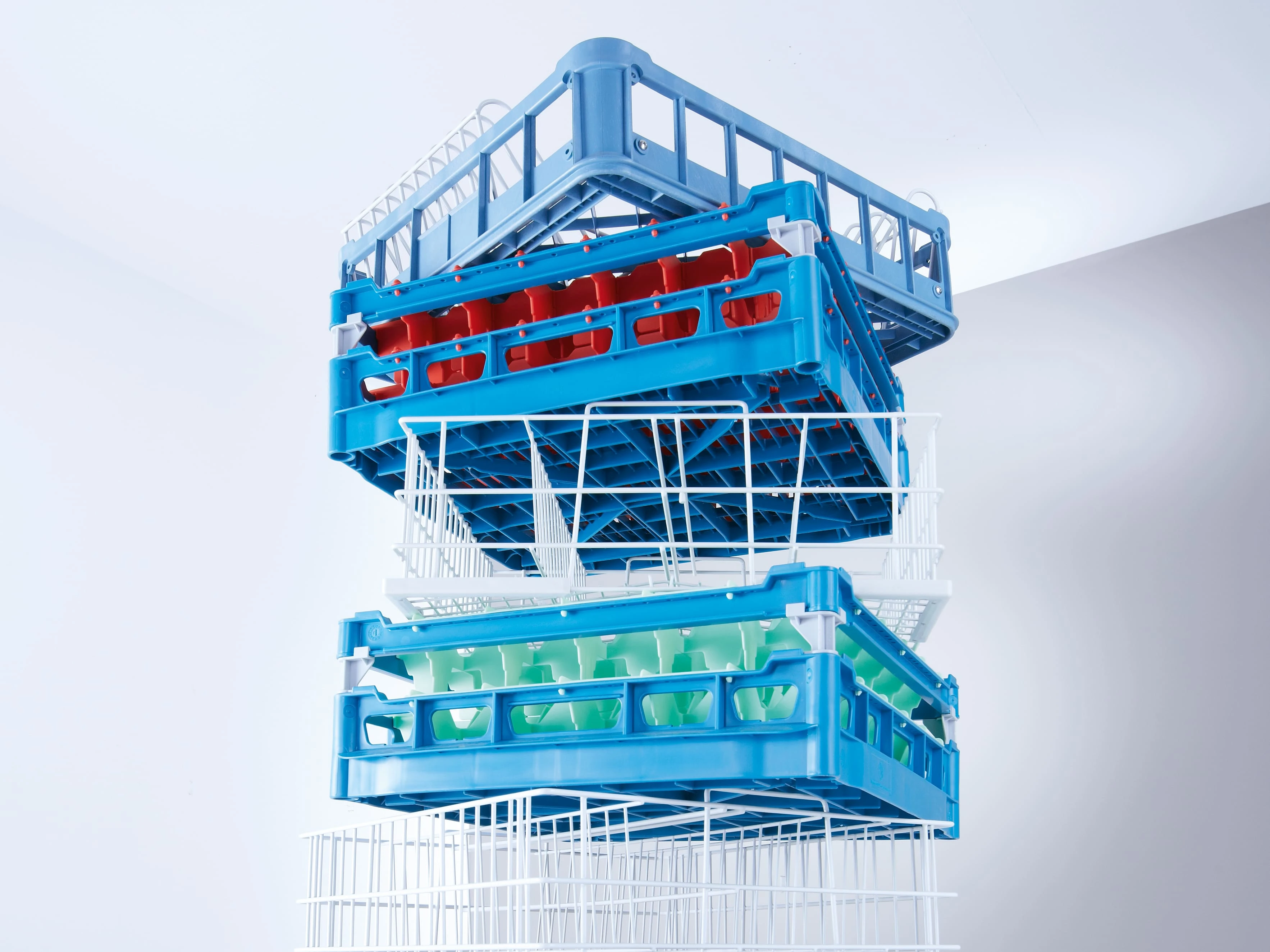

Plastic baskets on two levels

500 x 500 mm plastic baskets can be used on two levels in Miele Professional dishwashers. An optional stainless steel carrier must be used in the upper basket. The basket supplied as standard is used as the carrier on the lower level. The three spray arms allow perfect cleaning results to be achieved on both washing levels.

Hygienic cleanliness down to the very last detail

The optional APFD 401 and APFD 402 inserts are used to securely position medication cups and their lids for cleaning so that they stay in place and do not collect water. The stainless steel insert can be attached to the cup racks in the APFD 215 upper basket.

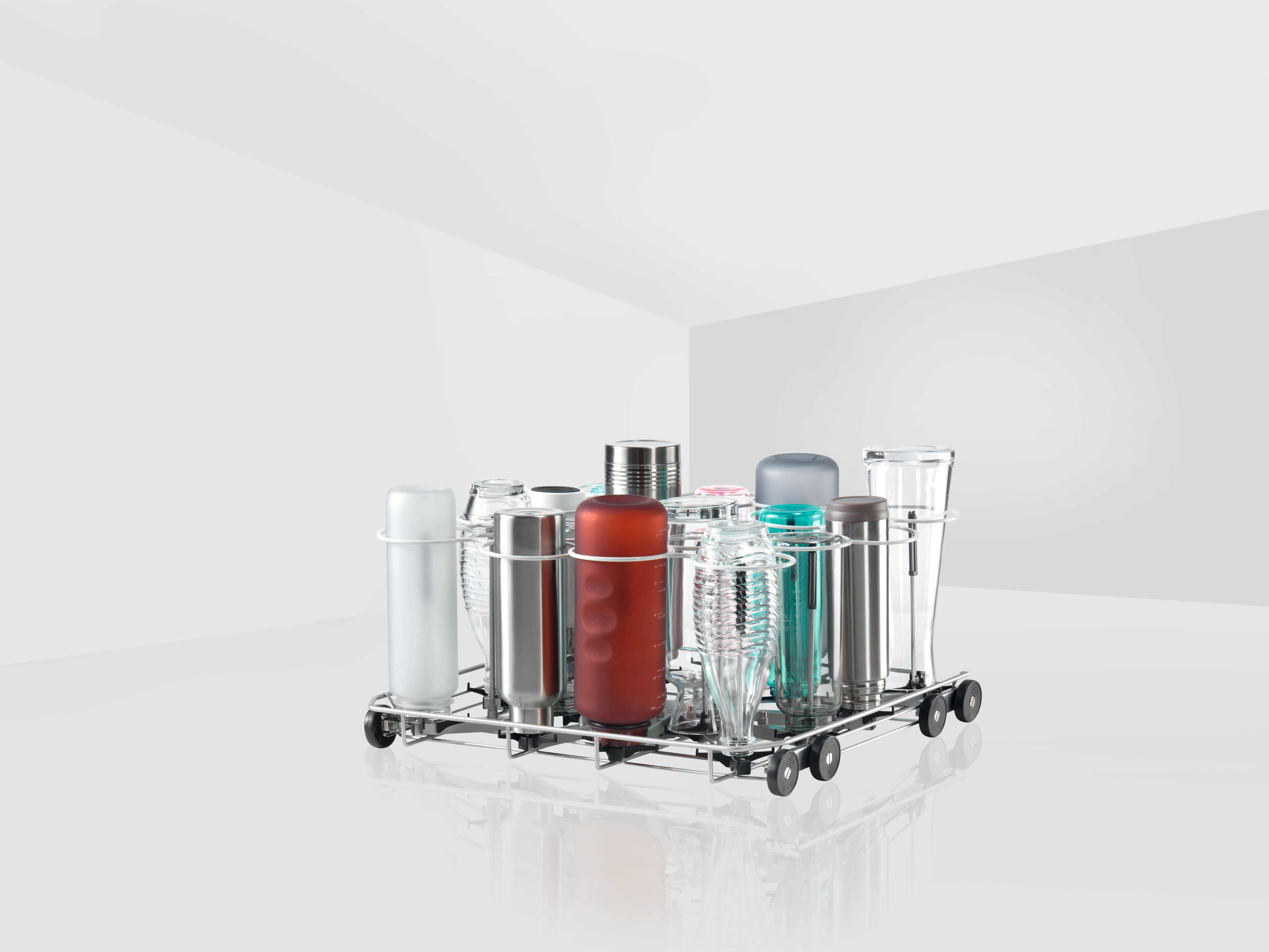

Practical bottle basket

The APFD 210 lower basket can be used to reliably clean the insides of up to 16 bottles or other hollow items such as insulated flasks or vases. Each bottle can be safely positioned on one individual injector nozzle.

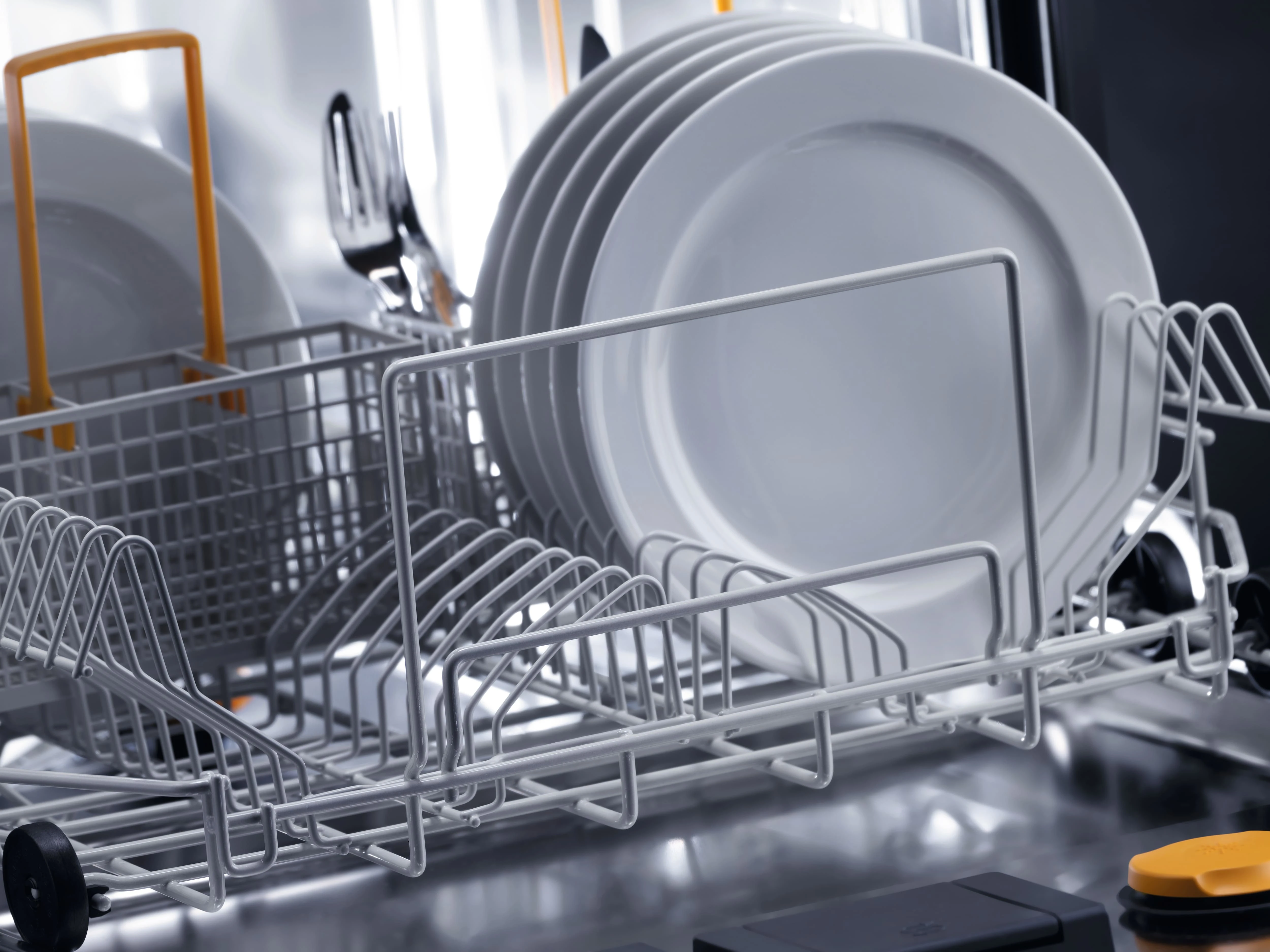

Professional baskets

The flexible Professional baskets feature impressive quality of material and workmanship as well as functional design. Open, plastic-coated wire baskets ensure superb cleaning results and very quick drying of wash items. The ergonomic handle elements enable convenient handling.

Proven hygiene

In the “Rapid” program, the Miele MasterLine dishwashers meet the hygiene requirements for type testing based on DIN 17735, which corresponds to a bacteria reduction of at least 5 log. This fulfills the criteria according to which InFluenc_H – the Institute for Integrative Hygiene and Virology awards its “TESTED HYGIENE QUALITY” seal.

Fresh water system

Fresh water dishwashers change the water after each cycle. A thorough final rinse is then carried out using a temperature that has been adjusted to the washed items. This process ensures perfect dishwashing results and a very high standard of hygiene that clearly exceeds the requirements for commercial dishwashers.

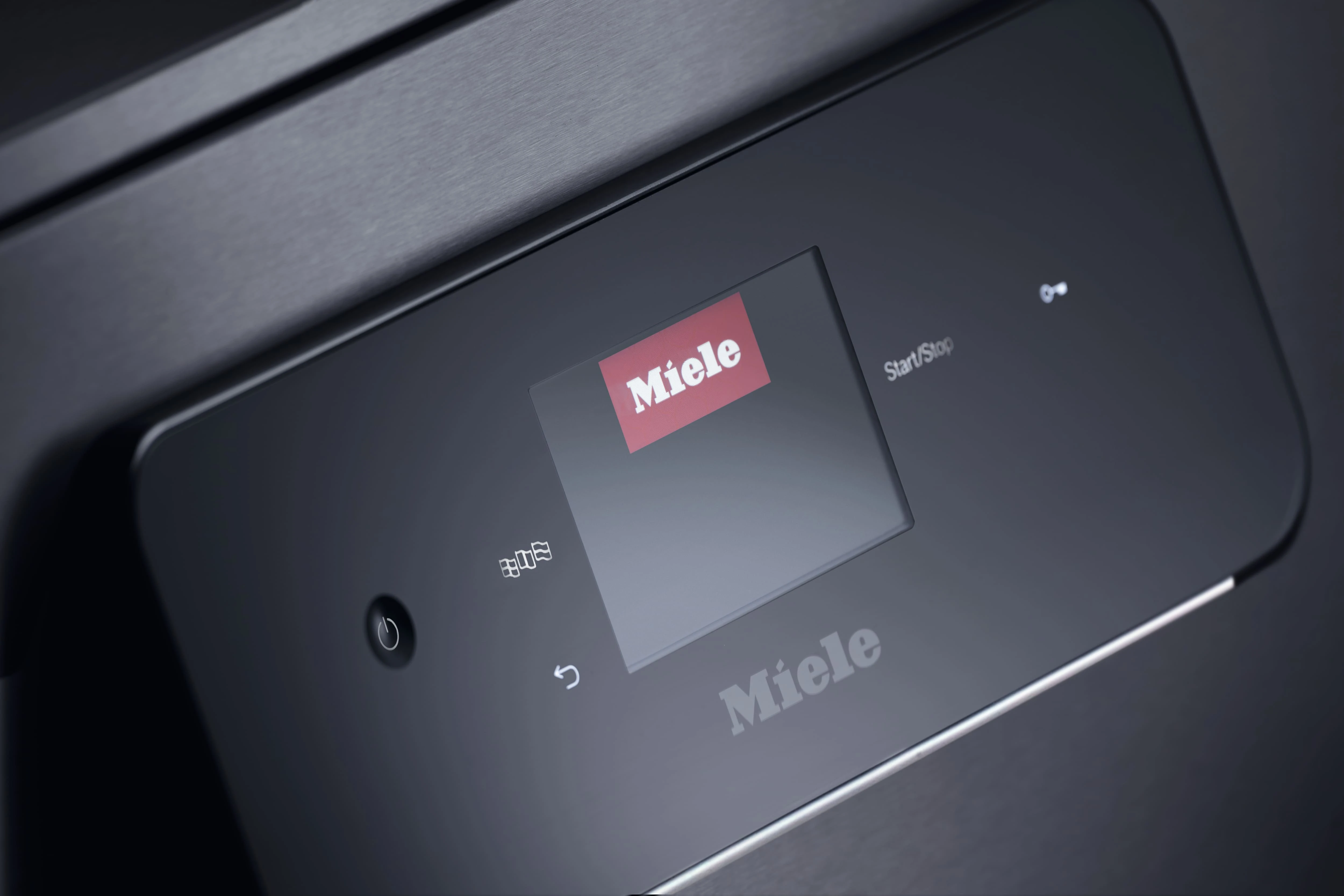

M Touch Flex controls

The full-touch controls with touch color display sets a new benchmark for quick, intuitive machine operation. It also comes with a range of configuration options, adapting the dishwasher to personal requirements – simply at the touch of a fingertip or with a swipe. All information is displayed in the local language, with 32 languages to choose from.

Choice of display languages

Your appliance can display information and tips in several languages to ensure that you understand everything. Simply select your language from the language menu. A flag directs you. This enables you to find your way around the interface – even if a language has been selected which you do not understand.

Extensive range of accessories

Always perfect ergonomics and efficiency - with practical accessories, from special baskets to dispenser pumps.

Future-proof networking via WiFi

The machines are equipped for efficient data exchange (factory default) so they can easily be integrated into existing networks.

Conforms to Machinery Directive

The European Machinery Directive (2006/42/EC) defines far-reaching safety regulations for commercial machines. The legislation is designed to protect machine operatives in their daily work. All Miele Professional machines are fully compliant with the requirements of this important directive.
