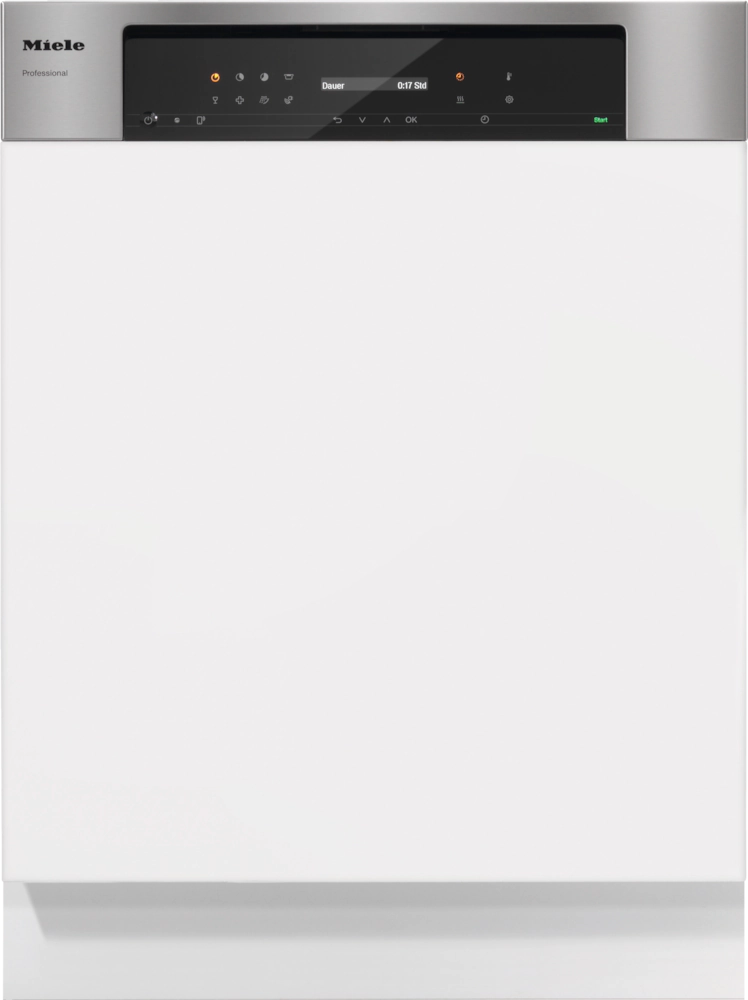

Miele PFD102I120V208240V Integrated dishwasher, ADA compliant, Without front
Sale price
Contact us for Pricing
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Sale price
Contact us for Pricing
Product Details for Miele PFD102I120V208240V
Technical Details
Construction type and design
| Model | Integrated dishwasher |
| Range | ProfiLine |
| Wash system | Fresh water front loader |
| Number of levels | 2 |
| Control panel color | Clean Touch Steel |
| Minimum front panel weight in lbs | 4 |
| Maximum front panel weight in lbs | 11 |
| Front | Without front |
| Side walls | Galvanised |
Application
| Suitable for retirement and care homes | Yes |
| Suitable for Bed & Breakfast | Yes |
| Suitable for child care facilities | Yes |
| Suitable for universities and schools | Yes |
| Suitable for offices | Yes |
| Suitable for domestic use | Yes |
| Suitable for small businesses | Yes |
| Suitable for sports clubs | Yes |
Performance data
| Tested virucidal efficacy | Yes |
| Certified hygiene | Yes |
| Circulation pump, Qmax in gal/min (l/min) | 19.8 (75) |
| Shortest program duration in min. | 24 |
| Maximum final rinse temperature in °F (°C) | 180 (82) |
| Cleaning performance, place settings/cycle | 13 |
| Service life in wash cycles | 12500 |
Miele move
| Network-enabled with Miele MOVE | Yes |

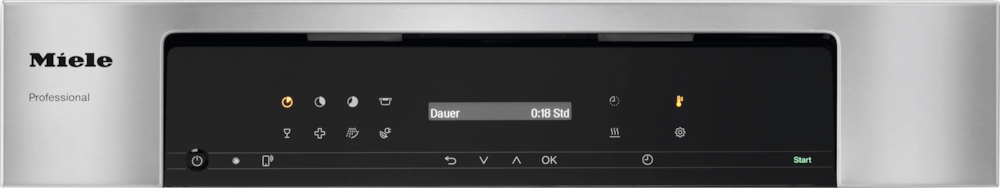

Control
| Control system | Electronic controls |
| Program selection | Program selectors |
| Max. delay start in h | 24 |
| Countdown indicator | Yes |
| Programs [quantity] | 8 |
| Program sequence indicator | Yes |
| Choice of display language | Yes |
| Check filter indicator | Yes |
Standard electrical connection
| Electrical connection | 2N AC 120/208-240V, 60HZ |
| Heater rating in kW | 3.50-3.80 |
| Total connected load in kW | 3.70-4 |
| Fuse rating in A | 30 |
| Length of power cord in ft (m) | 5 (1.70) |
| NEMA plug: 14-30 | Yes |
Possible voltage variant 1
| Electrical connection | AC 120V 60HZ |
| Heater rating in kW | 1.30 |
| Total connected load in kW | 1.40 |
| Fuse rating in A | 15 |
Water connection/drainage
| Cold or hot water [number] | 1 |
| Required flow pressure in bar | 1-10 |
| Drain hose [DN] | 22 |
| Maximum delivery head for drain pump in inches (cm) | 39 3/8 (100) |
| Integrated water softener | Yes |
| Maximum water hardness in gpg (mmol/l) | 6.5 (6.50) |
| Water protection system | Waterproof system |
| Length of water inlet hose in inches (cm) | 59 1/8 (150) |
| Length of water drain hose in inches (cm) | 59 1/8 (150) |
Emission values
| Emission sound pressure level in workplace (LpA) | 35 dB(A) re 20 µPa |
| Sound power (LwA) in dB(A) re 1 pW | 48 |
Programs
| Universal | Yes |
| Short | Yes |
| SaniWash | Yes |
| Glasses | Yes |
| Plastic | Yes |
| EnergySave/Economy | Yes |
| Intensive | Yes |
| Cold/Pre-wash | Yes |
Baskets
| ExtraComfort P baskets | Yes |
| Flexible FlexLine basket design | Yes |
| FlexCare glass holder [number] | 2 |
| FlexCare cup rack [number] | 1 |
| Height-adjustable upper basket | Yes |
| Cutlery basket | Yes |
Features
| Commercial-grade electrical connection | Yes |
| Drying | AutoOpen assisted drying Additional drying Active condensation drying |
| 1 Combi dispenser/door for powder and liquid media | Yes |
| Wash cabinet made from high-quality stainless steel | Yes |
| LED Lighting | Yes |
| EcoFeedback | Yes |
| Brilliant GlassCare | Yes |
| Child lock | Yes |
| Adjustable final rinse temperature | Yes |
| Optical interface | Yes |
| SmartStart | Yes |
| FlexiTimer with EcoStart | Yes |
| WiFi module | Yes |
Standards, test certificates, and symbols
| CE | Yes |
| Complies with Machinery Directive 2006/42/EC | Yes |
| VDE | Yes |
| EMC radio suppressed | Yes |
| DIN EN 17735 | Yes |
| EN 1717 | Yes |
| UL | Yes |
Other
| Maximum floor load in N/m² | 1000 |
Dimensions & weight
| Height | 37.81 in. |
| Weight | 109 lbs. |
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Shipping Height | 42.81 in. |
| Shipping Weight | 114 lbs. |
| Total of Shipping Weight | 114 lbs. |
| Source | Calculation |
Description
PFD 102 i [120V/208-240V] Without front - Integrated dishwasher, ADA compliant, for large loads of dishware in households, offices and utility areas.
Manuals & Guides
Key Features
An eye on the time
For maximum flexibility, a delay start time of up to 24 hours can be selected.

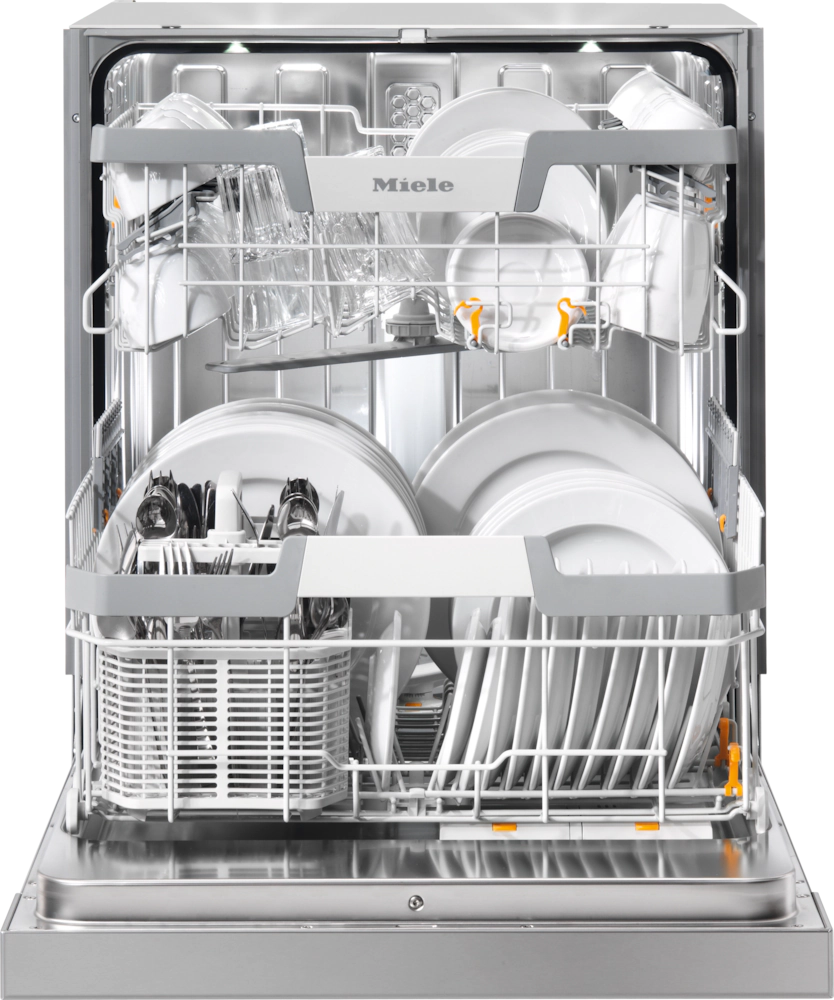

Brilliant visibility

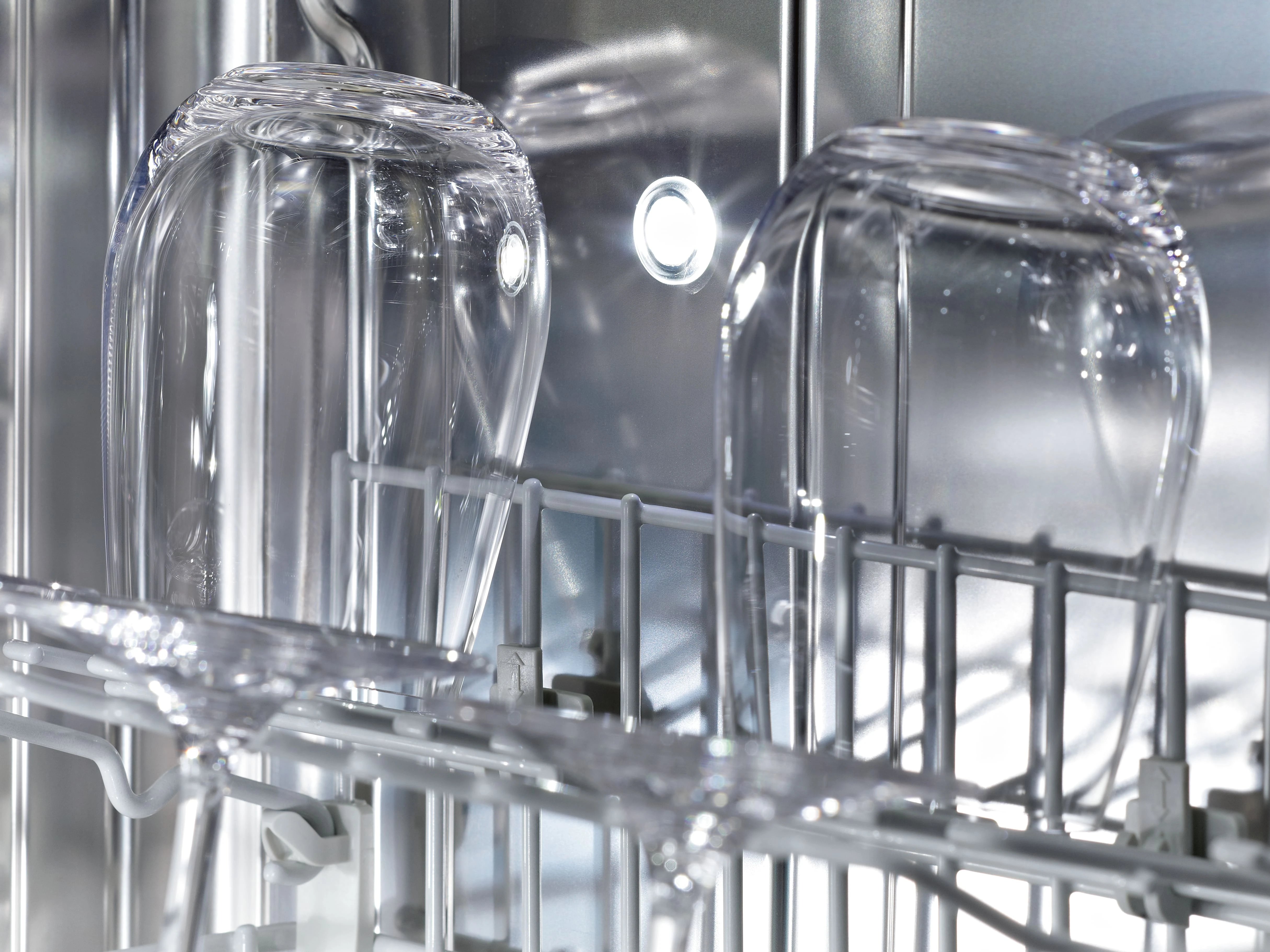

Brilliant visibility: Four LEDs illuminate the entire interior cabinet for easy loading and unloading.
Your dishwasher “speaks" multiple languages
Multi-talented: set various languages on the display so that you fully understand every piece of information.
Maximum hygiene assurance
Constantly high cleaning performance and filtration thanks to repeated water changes.
Effective against bacteria – scientifically proven
Our dishwashers in the PFD 10x series remove 99.999%* of most bacteria.
Effective against viruses – scientifically proven
Our dishwashers in the PFD 10x series remove more than 99.9%* of all viruses (including coronaviruses).

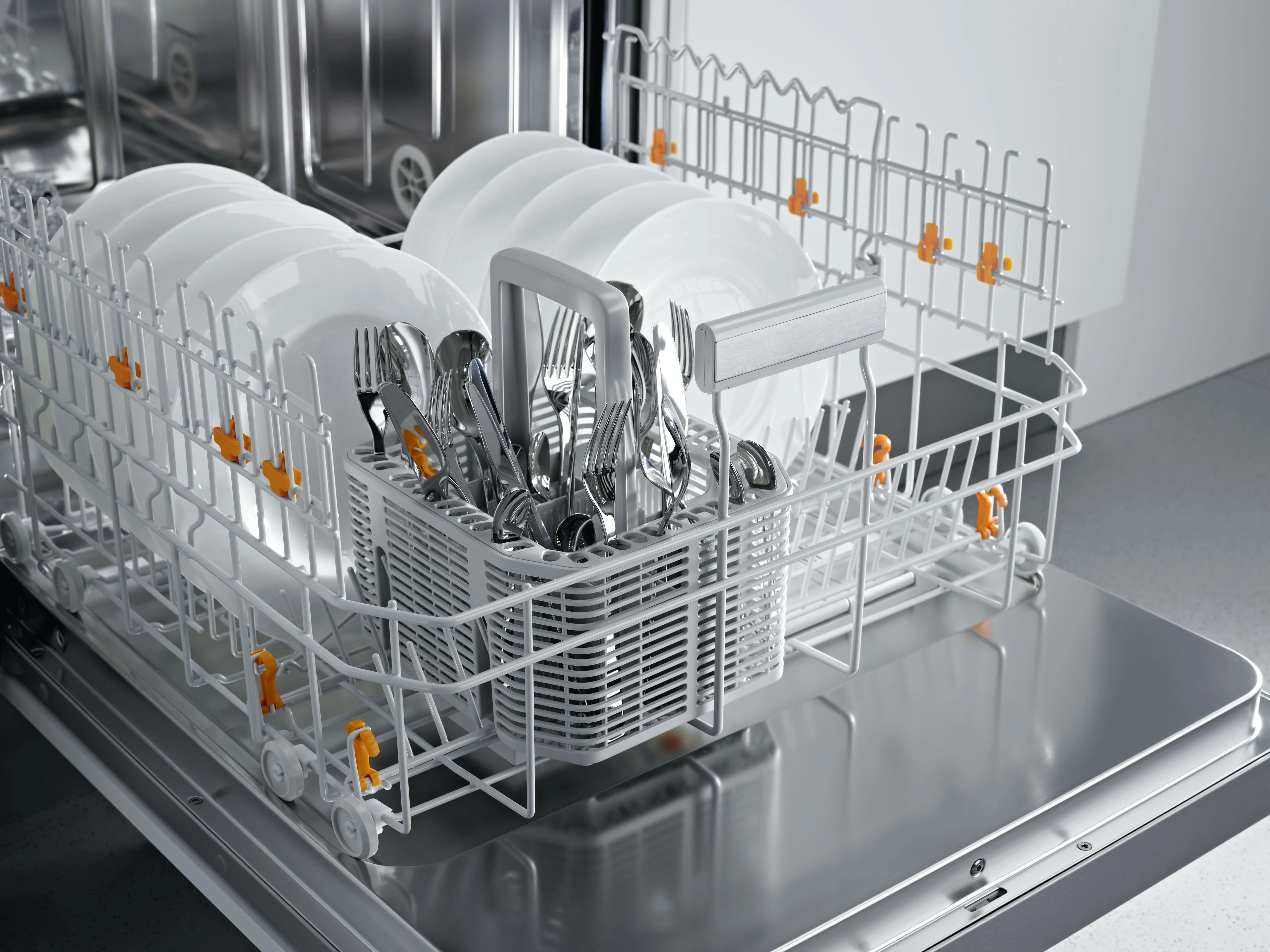

Highly versatile
Very flexible: The cutlery basket fits in any position over the front spikes in the lower basket.
Versatile

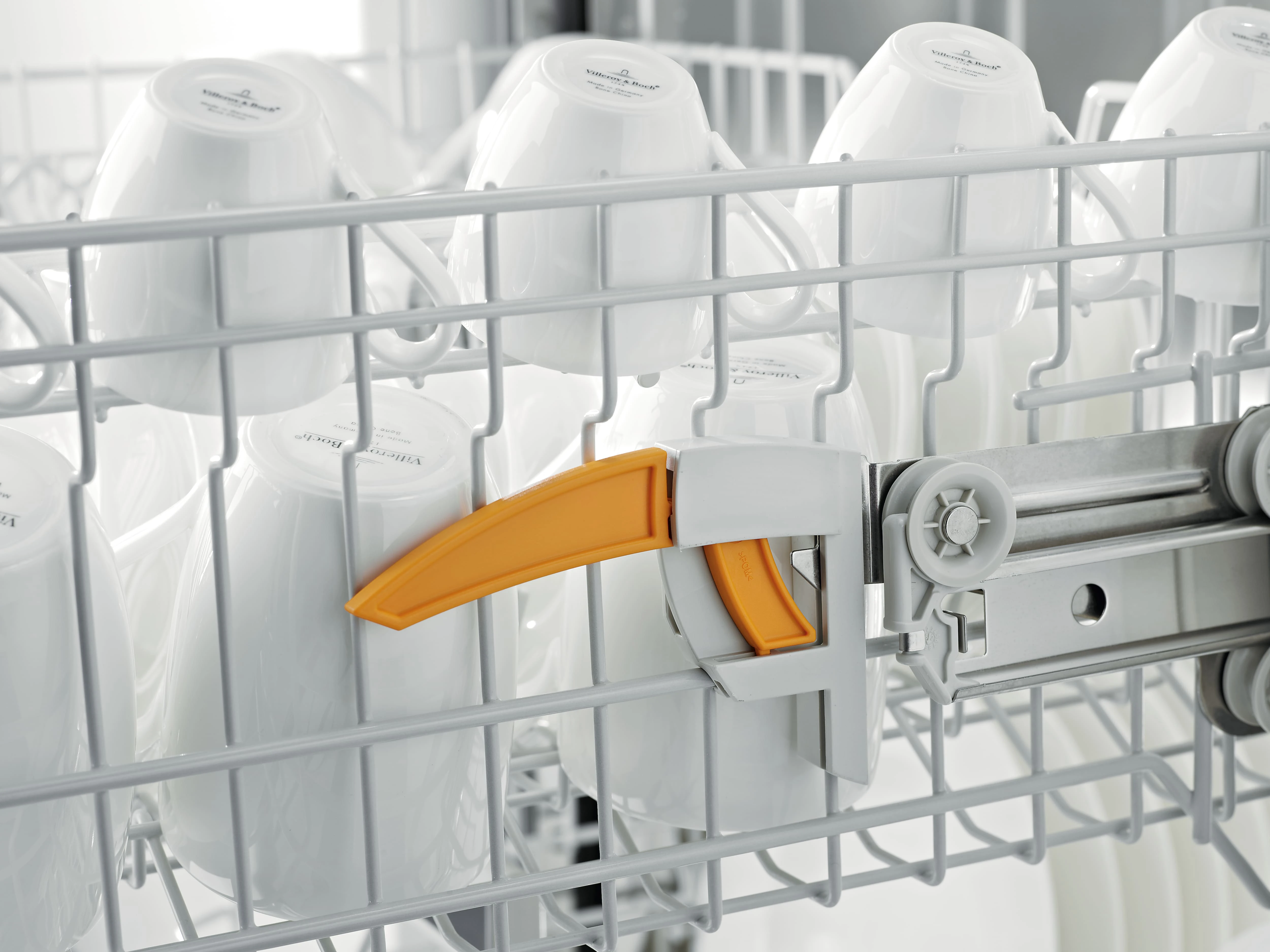

The height of the upper basket can be adjusted to suit the items being cleaned.

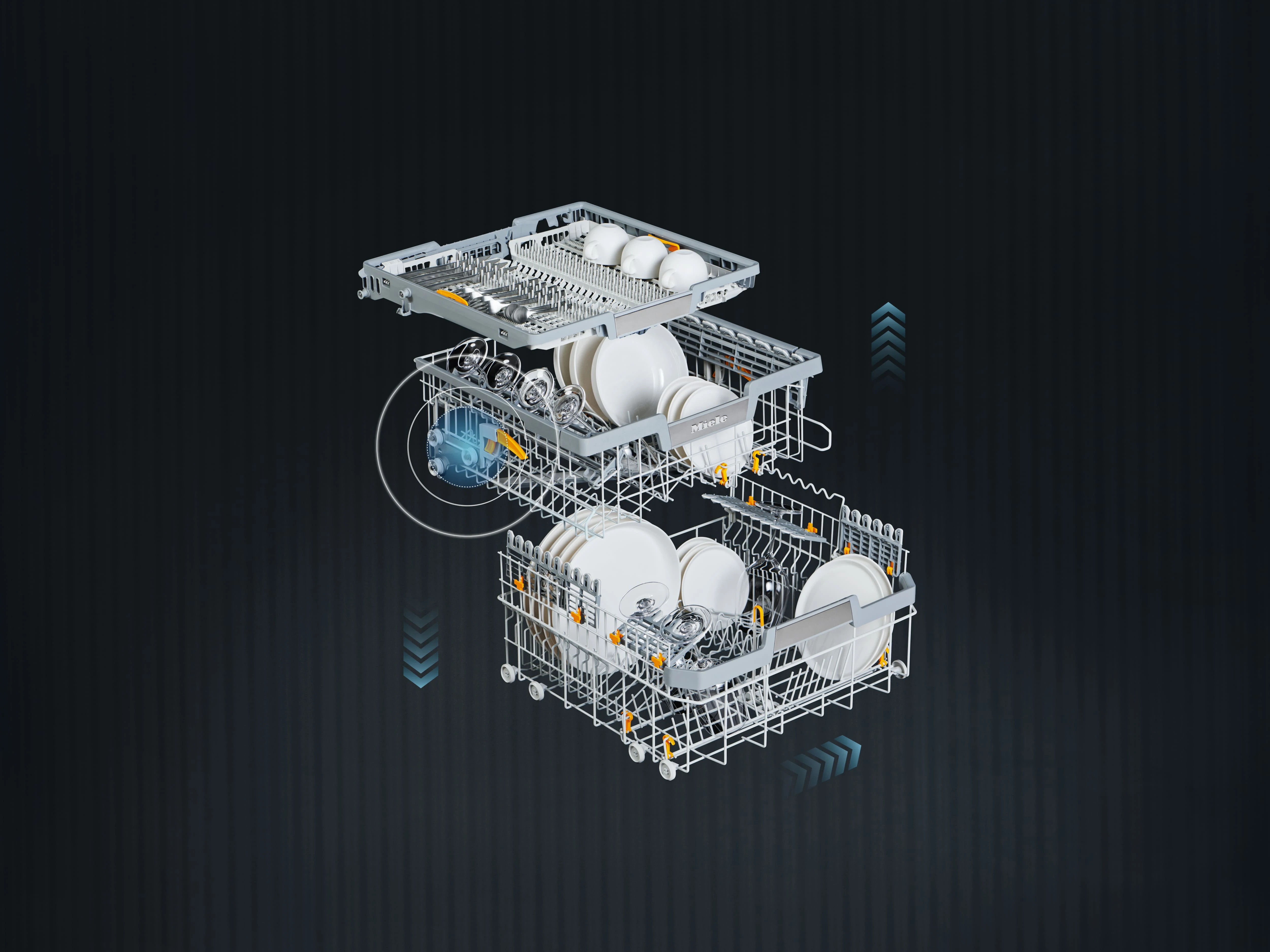

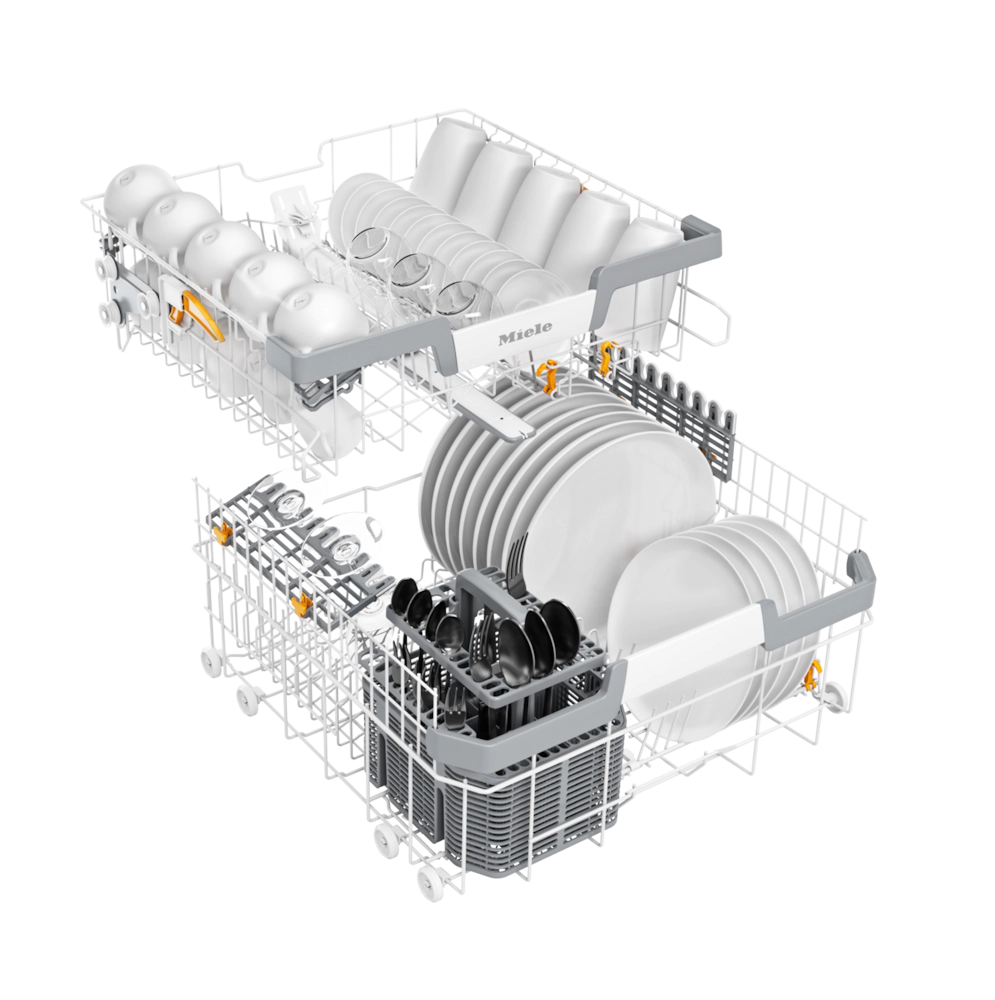

Intelligent basket design for all types of dishware
Flexibility creates convenience: easy adjustment and flexible loading for the best cleaning results.
Economical
Economical and efficient: Miele Professional dishwashers stand out with low consumption values.
Ensures the optimum water hardness level
The built-in softener ensures the optimum hardness level of the water for perfect dishwashing results.
Consumption always visible
Economical: when a program is selected, estimated water consumption values are displayed.
Protects your wallet and the environment
Clever: with EcoStart, the dishwasher automatically selects the cheapest electricity price every time.

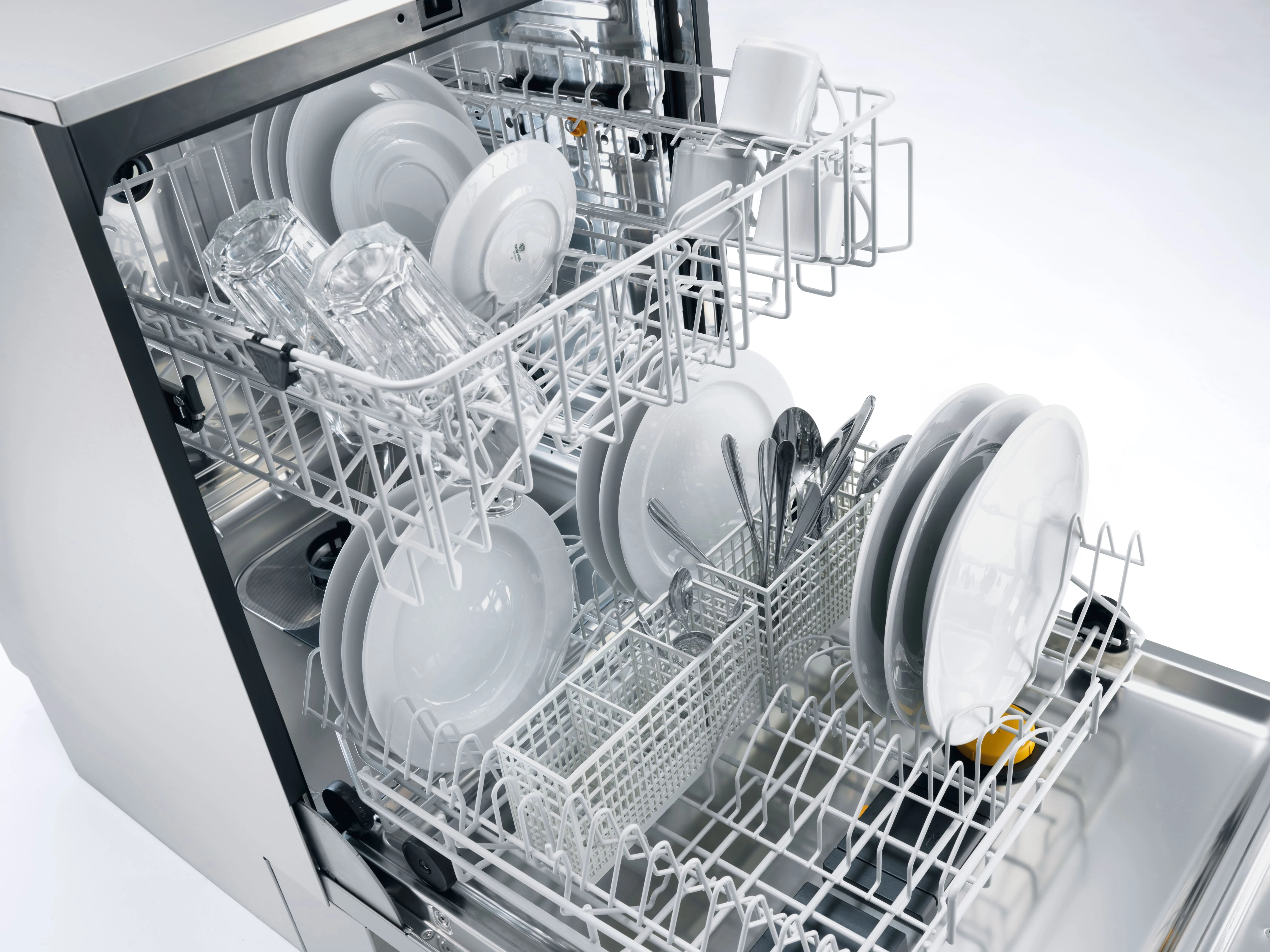

Large wash cabinet
High capacity: The most diverse items can be arranged safely on two wash levels.
Save money intelligently
Practical: this function sets the appliance to work automatically when electricity is at its cheapest.

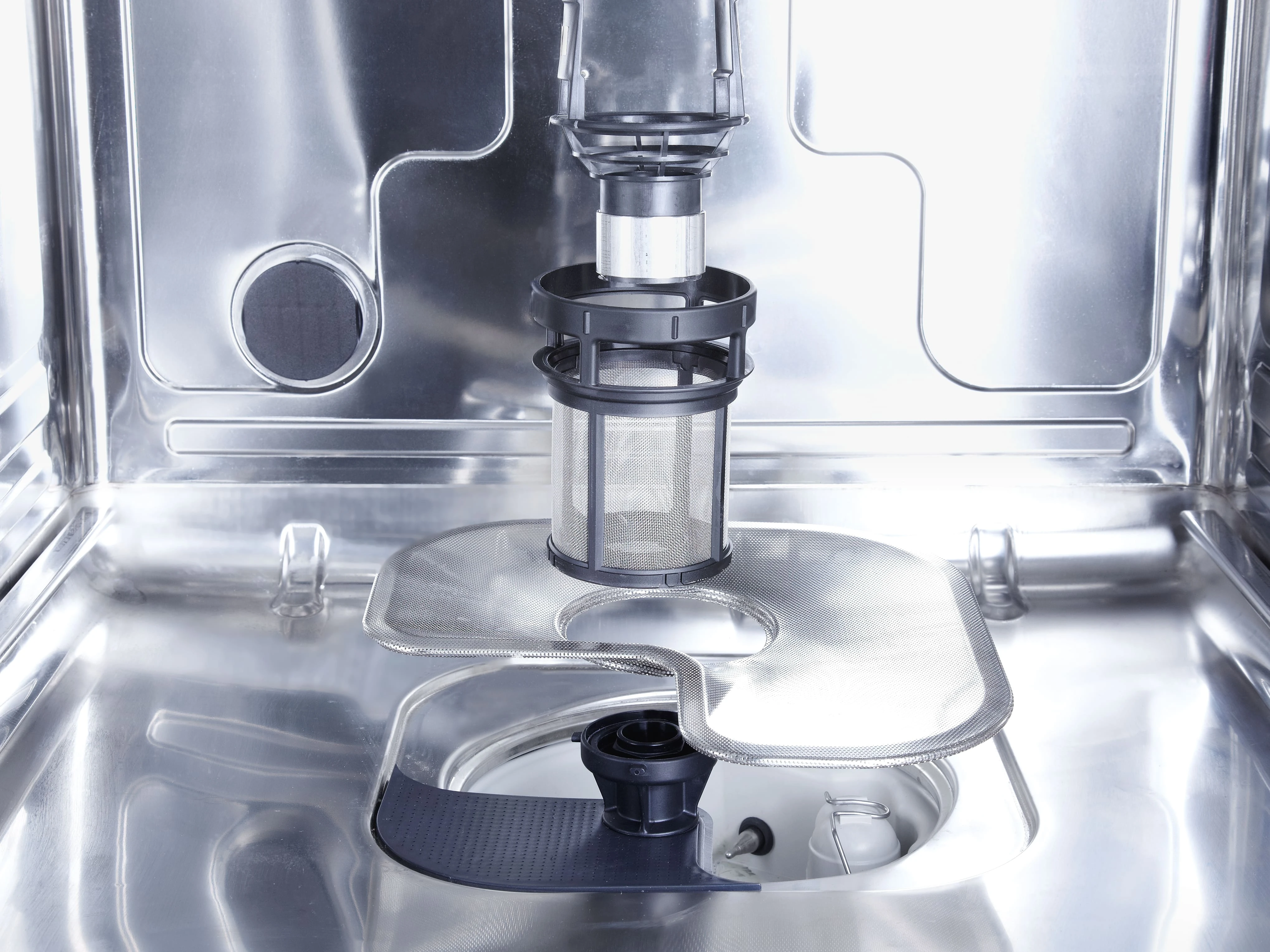

Professional and effective
Outstanding dishwashing results and reliability are largely due to the highly effective filter system.
Full-size power

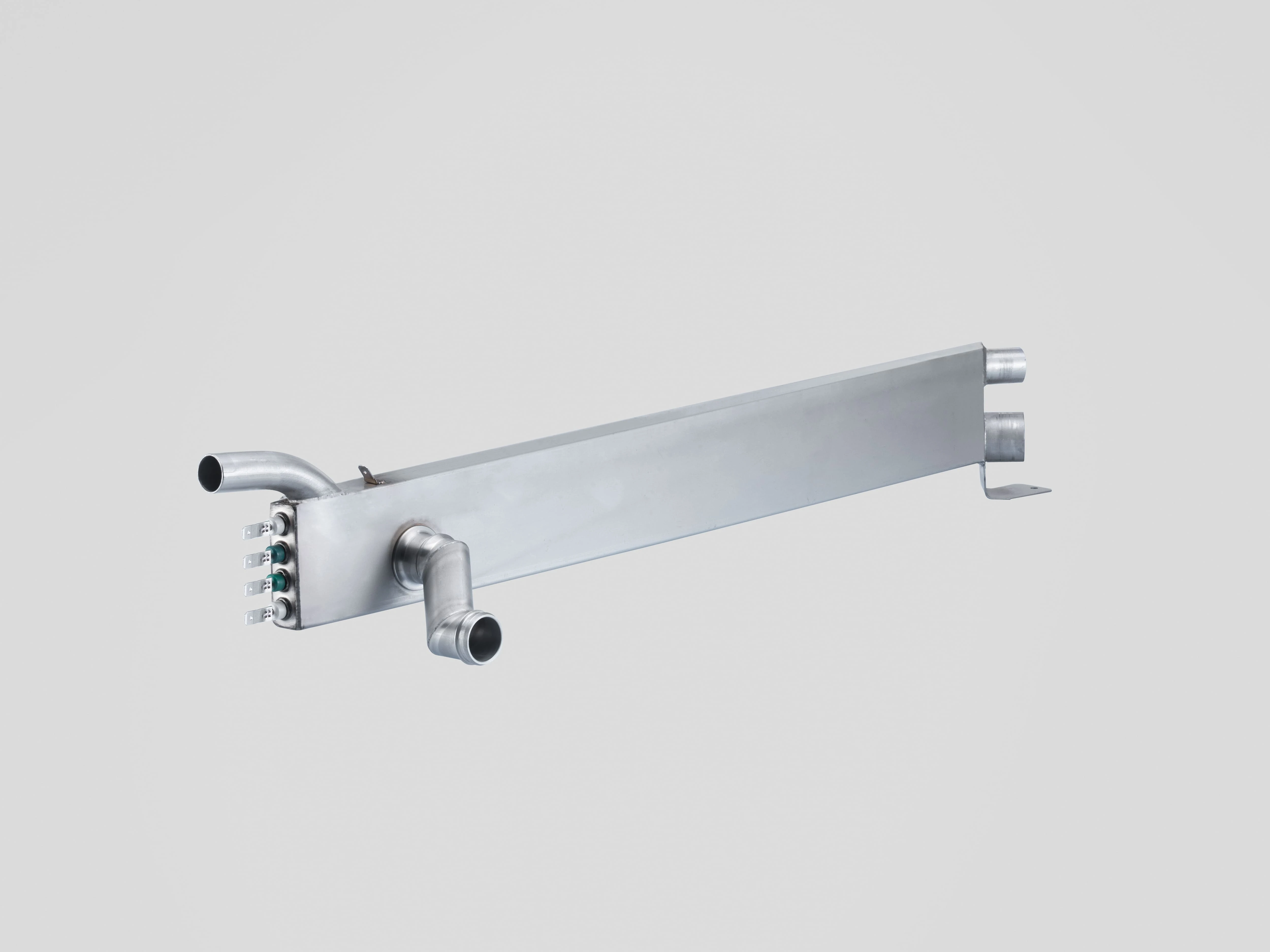

A stainless steel through-flow water heater with 2 x 3 kW capacity ensures high heating performance.

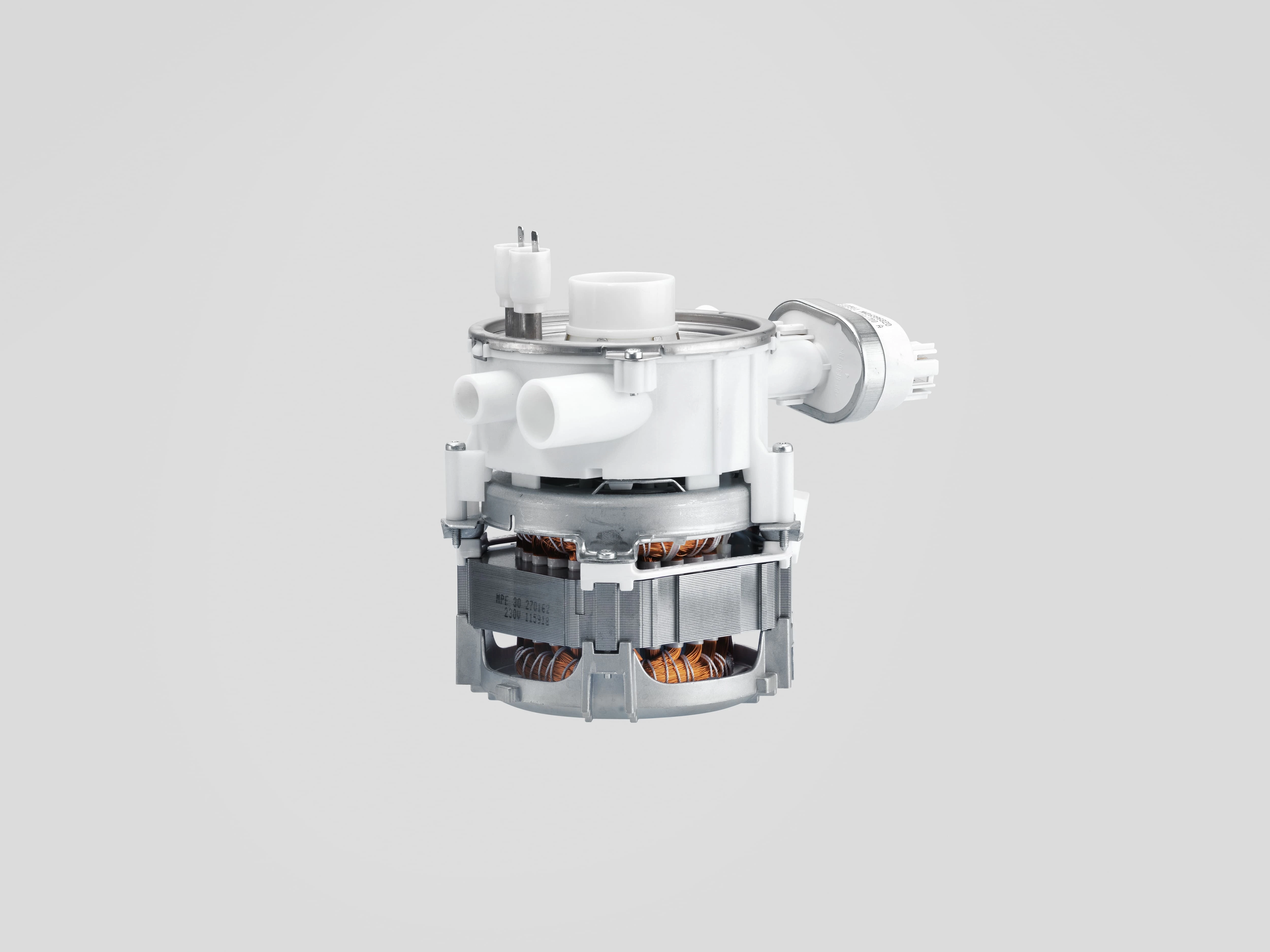

A strong combination
For maximum cleaning performance, every dishwasher is equipped with a powerful heater pump.

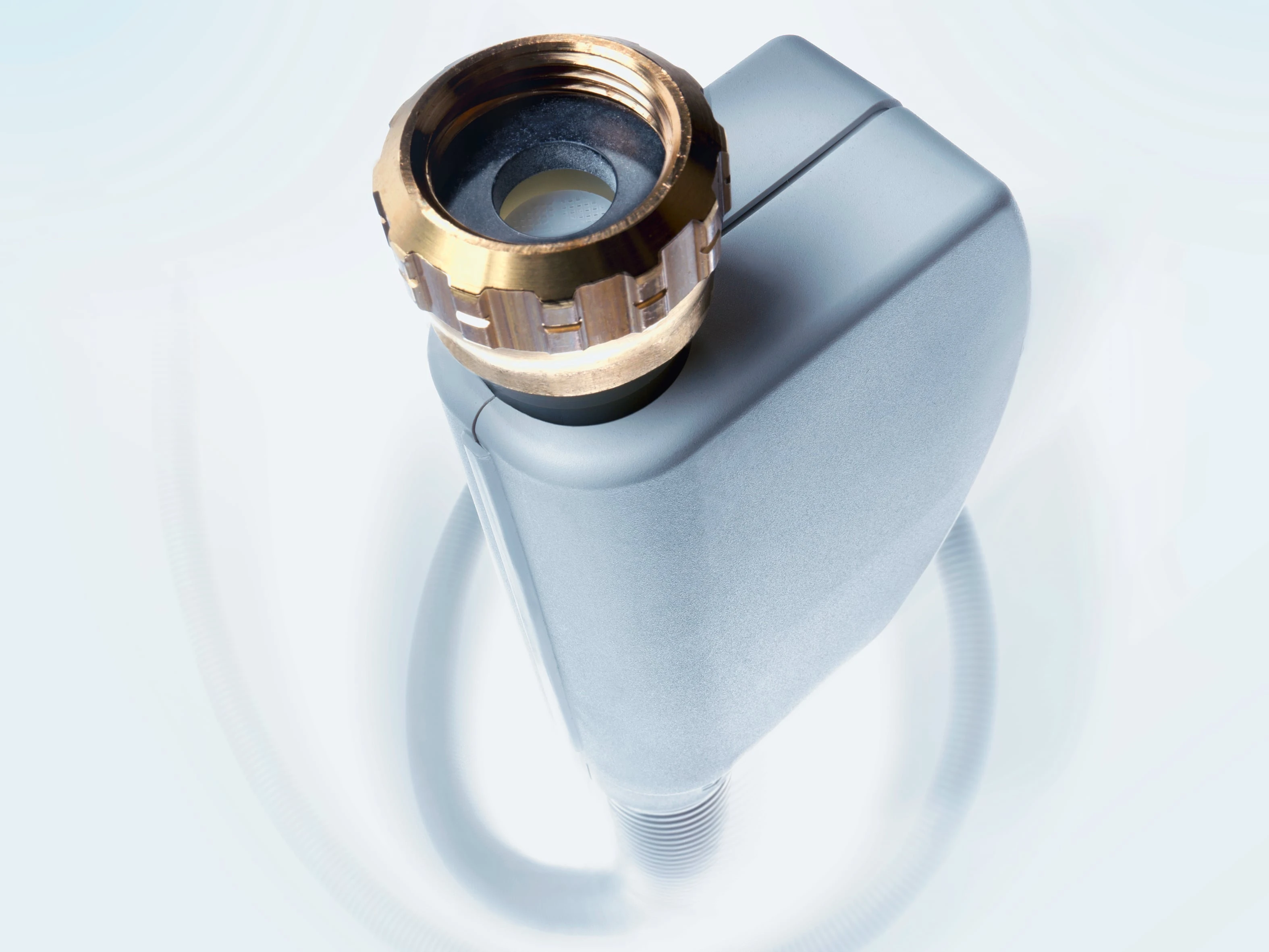

Water protection guarantee
Maximum safety: Miele will bear the cost for prop. dam. resulting fr. a defect in the water prot. s. for 20 years.
Long service life
Durability: Miele Professional dishwashers are tested for a long service life.
Enhanced performance for large amounts of dishware

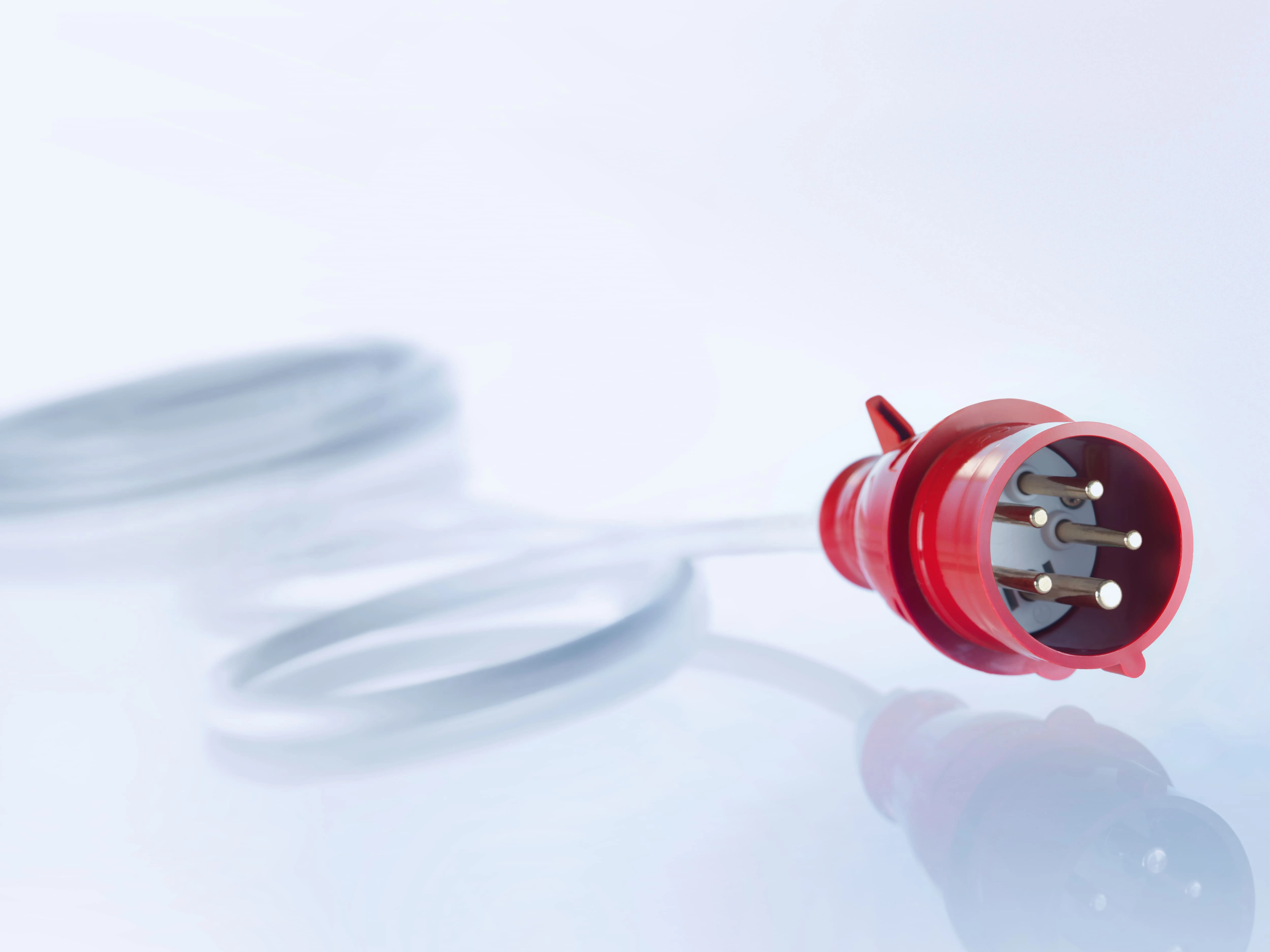

Even large amounts of dishware can be cleaned quickly thanks to the high-performance electrical connection.

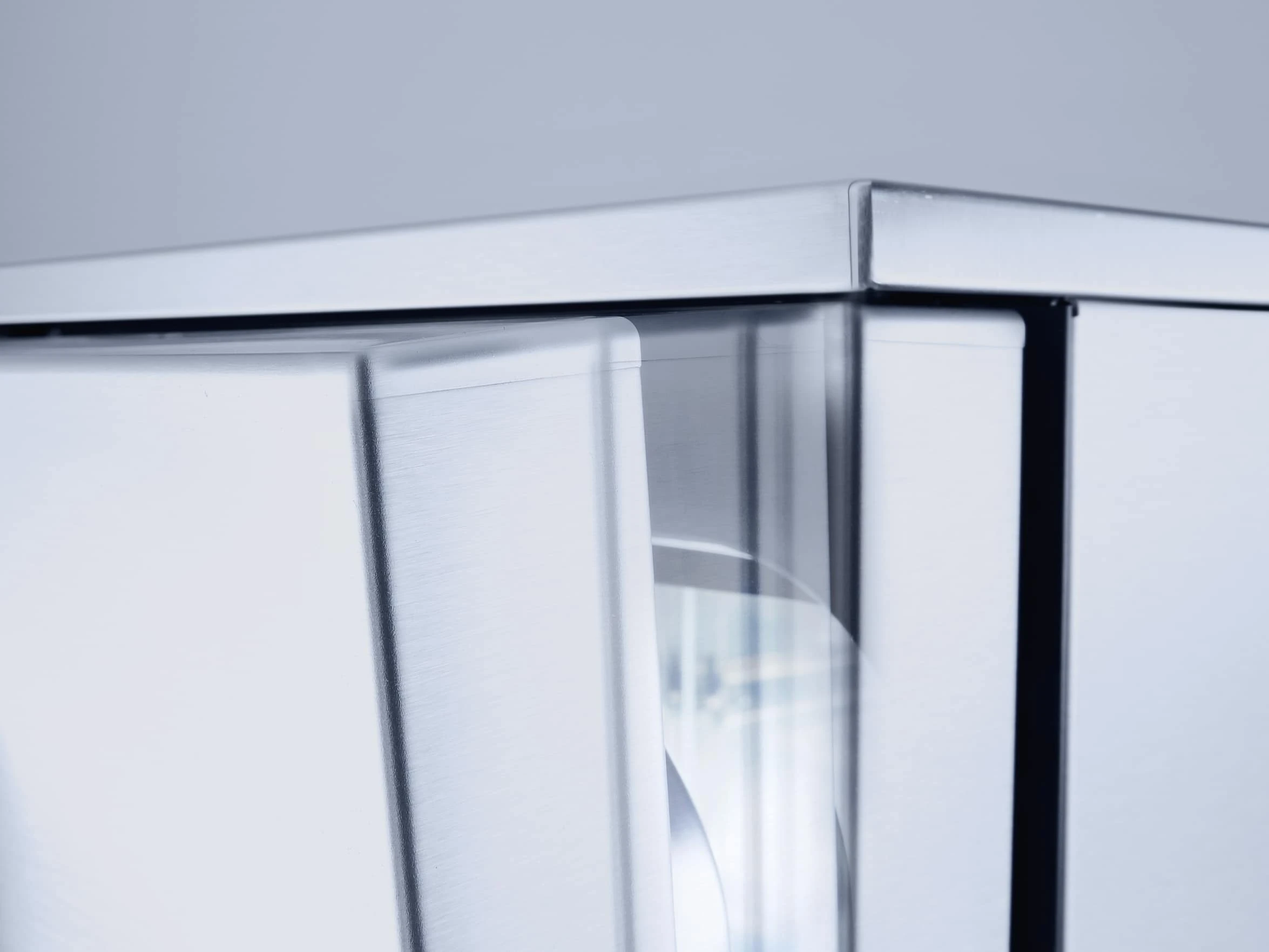

For dry dishware in next to no time
Completely dry: The dishwasher door opens automatically at the end of the program.
Gentle cleaning for delicate glassware
Gentle and delicate: Brilliant GlassCare cleans your glassware with care.
Machine data can be accessed at all times
All terminal devices can access machine data at all times thanks to networking with Miele MOVE.

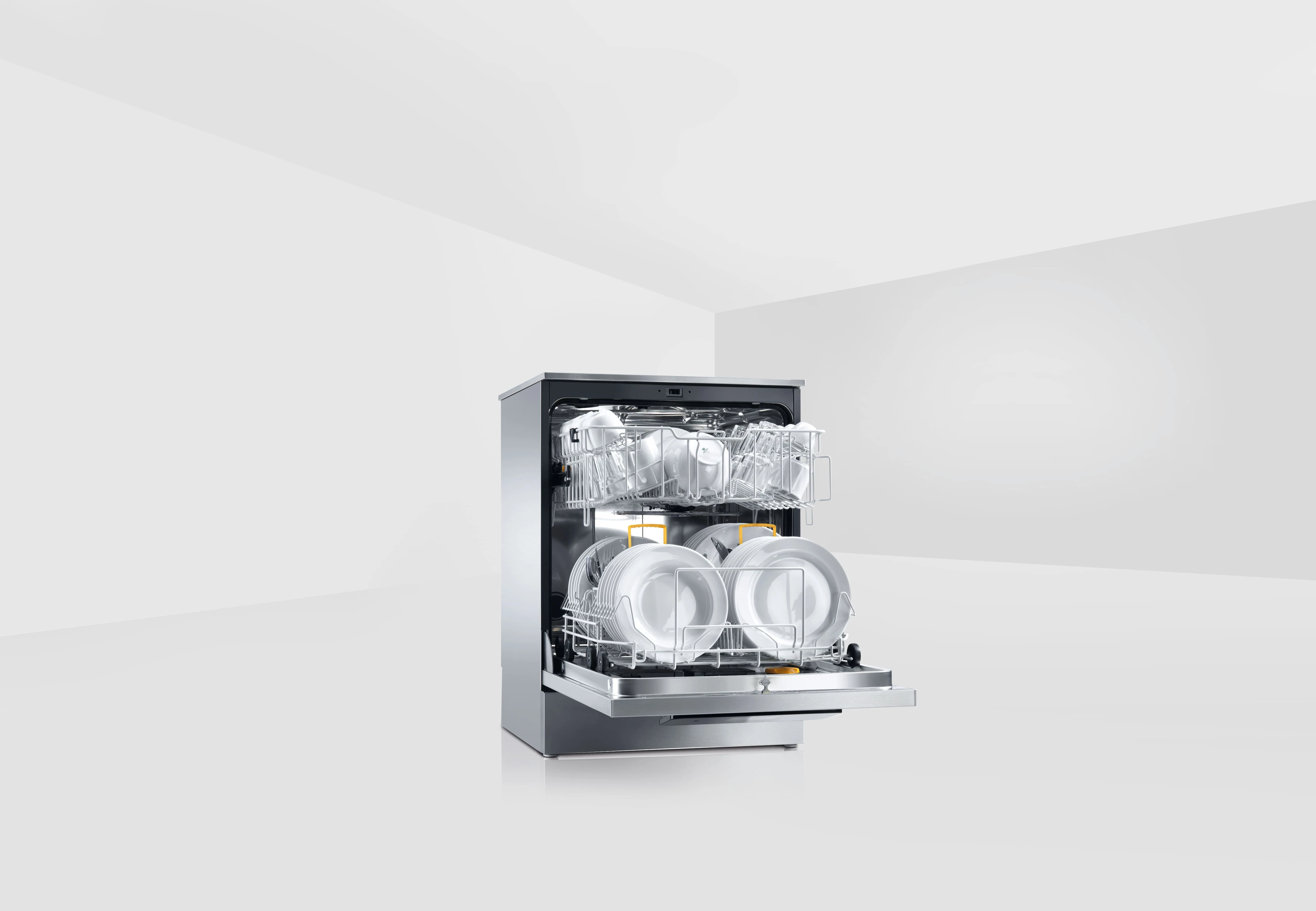

Dishwashing professionals for daily large loads of dishes
These dishwashers are ideally suited for all areas which deal with large amounts of dishware.
Convenience & efficiency in demanding applications
Fully informed with a high-performance network connection.
