SKU: PFD102I120V | UPC: 4002516366867

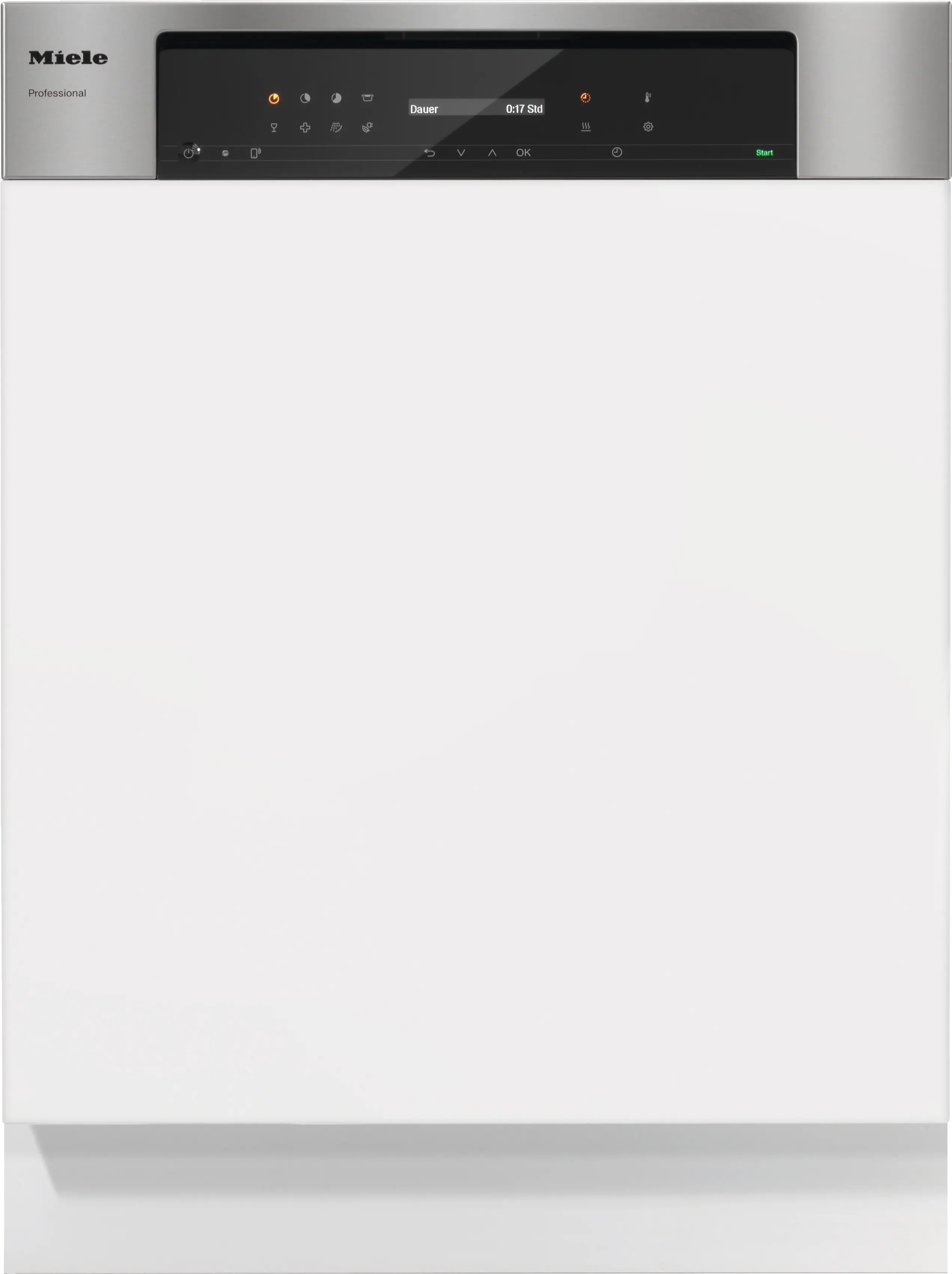

Miele PFD102I120V 24" Pro Semi-Integrated Dishwasher (Stainless Steel) Without front

Quick Specification More details

Width:
31 3/4 (805)
Height:
37.81"
Type:
Built-In Dishwashers

About this product

Delay start and time left display
BrilliantLight
Choice of display languages
Proven hygiene

SKU: PFD102I120V | UPC: 4002516366867

Miele PFD102I120V 24" Pro Semi-Integrated Dishwasher (Stainless Steel) Without front

$5,245.00 ~~$7,414.97~~ Save $2,169.97 / 29% OFF

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
31 3/4 (805)
Height:
37.81"
Type:
Built-In Dishwashers

About this product

Delay start and time left display
BrilliantLight
Choice of display languages
Proven hygiene

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Rebates
Reviews

$5,245.00 ~~$7,414.97~~ Save $2,169.97 / 29% OFF

Product Details for Miele PFD102I120V

Technical Details

Construction type and design

Wash system	Fresh water front loader
Model	Integrated dishwasher
Range	ProfiLine
Number of levels	2
Front	Without front
Side walls	Galvanised
Control panel color	Clean Touch Steel
Minimum front panel weight in lbs (kg)	8 (4) lb (kg)
Maximum front panel weight in lbs (kg)	24 (11) lb (kg)

Performance data

Shortest program duration in min.	52
Maximum final rinse temperature in °F (°C)	180 (82)
Cleaning performance, place settings/cycle	13
Service life in wash cycles	12500
Tested virucidal efficacy	TRUE
Certified hygiene	TRUE

Control

Control system	Electronic controls
Program selection	Program selectors
Max. delay start in h	24
Dishwashing programs [number]	8
Countdown indicator	TRUE
Program sequence indicator	TRUE
Choice of display language	TRUE
Check filter indicator	TRUE

Standard electrical connection

Electrical connection	AC 120V 60HZ
Fuse rating in A	15
Length of power cord in ft (m)	5 (1.70)
Heater rating in kW	1.300
Total connected load in kW	1.400
NEMA plug: 5-15	TRUE

Possible voltage variant 1

Electrical connection	2N AC 120/208-240V, 60HZ
Fuse rating in A	30
Heater rating in kW	3.500-3.800
Total connected load in kW	3.700-4

Water connection/drainage

Cold or hot water [number]	1
Required flow pressure in bar	1-10
Drain hose [DN]	22
Maximum delivery head for drain pump in inches (cm)	39 3/8 (100)
Water protection system	Waterproof system
Length of water inlet hose in inches (cm)	59 1/8 (150)
Length of water drain hose in inches (cm)	59 1/8 (150)
Maximum water hardness in gpg (mmol/l)	38.025 (6.50)
Integrated water softener	TRUE

Dimensions and weight

External dimensions, net height in inches	31 3/4 (805)
External dimensions, net width in inches	23 9/16 (598)
External dimensions, net depth in inches	22 1/2 (570)
External dimensions, gross width in inches	26 7/16 (670)
Usable space in wash cabinet, width in inches (mm)	21 5/16 (540)
Usable space in wash cabinet, height in inches (mm)	20 1/8 (510)
Usable space in wash cabinet, depth of upper basket in inches (mm)	17 3/4 (450)
Usable space in wash cabinet, depth of lower basket in inches (mm)	17 3/4 (450)
In-feed height above floor in inches (mm)	8 5/16 (210)
Maximum floor load in N/m²	1000
External dimensions, gross height in inches	38 1/4 (970)
External dimensions, gross depth in inches	27 3/16 (690)
Required niche width in mm	23 5/8 (600)
Net weight [kg]	102 (46)
Gross weight in lbs.	122 (55)

Emission values

Emission sound pressure level in workplace (LpA)	35 dB(A) re 20 µPa
Sound power (LwA) in dB(A) re 1 pW	48

Baskets

FlexCare glass holder [number]	2
FlexCare cup rack [number]	1
ExtraComfort P baskets	TRUE
Flexible FlexLine basket design	TRUE
Cutlery basket	TRUE
Height-adjustable upper basket	TRUE
Combinable with APFD 210 bottle basket	TRUE

Warranty

Parts	2 Year
Labor	2 Year

Other

Maximum floor load in N/m²

1000

Dimensions & weight

Height	37.81 in.
Weight	109 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Height	42.81 in.
Shipping Weight	114 lbs.
Total of Shipping Weight	114 lbs.
Source	Calculation

Features

Drying	AutoOpen assisted drying
Commercial-grade electrical connection	TRUE
Drying	Additional drying
Drying	Active condensation drying
Adjustable final rinse temperature	TRUE
Wi-Fi	TRUE
1 Combi dispenser/door for powder and liquid media	TRUE
LED Lighting	TRUE
EcoFeedback	TRUE
Child lock	TRUE
Brilliant GlassCare	TRUE
Wash cabinet made from high-quality stainless steel	TRUE
Optical interface	TRUE
SmartStart	TRUE
FlexiTimer with EcoStart	TRUE

Application

Suitable for retirement and care homes	TRUE
Suitable for hospitals	TRUE
Suitable for Bed & Breakfast	TRUE
Suitable for child care facilities	TRUE
Suitable for universities and schools	TRUE
Suitable for offices	TRUE
Suitable for domestic use	TRUE
Suitable for small businesses	TRUE
Suitable for sports clubs	TRUE

Miele move

Network-enabled with Miele MOVE

TRUE

Programs

Normal Plus	TRUE
Normal	TRUE
SaniWash	TRUE
Cold/Pre-wash	TRUE
Glasses	TRUE
Plastic	TRUE
EnergySave/Economy	TRUE
Intensive	TRUE

Standards, test certificates, and symbols

CE	TRUE
Complies with Machinery Directive 2006/42/EC	TRUE
VDE	TRUE
EMC radio suppressed	TRUE
DIN EN 17735	TRUE
EN 1717	TRUE
UL	TRUE

Description

The brand Miele PFD102I120V delivers superior functionality and flexibility in a 24-inch built-in dishwasher suitable for both residential and light commercial environments. Designed to handle frequent loads with short cycle times and durable engineering, it includes a stainless steel interior for lasting hygiene and resilience. The AutoOpen drying function enhances drying performance by automatically opening the door at the end of the cycle. With adjustable upper and lower baskets, this model adapts easily to different load types. Its custom panel-ready design allows for seamless integration into your cabinetry. Offering 120V electrical compatibility and quiet operation, the PFD102I120V is ideal for upscale homes, offices, or small hospitality settings that demand reliability, cleanliness, and subtle elegance.

Manuals & Guides

Key Features

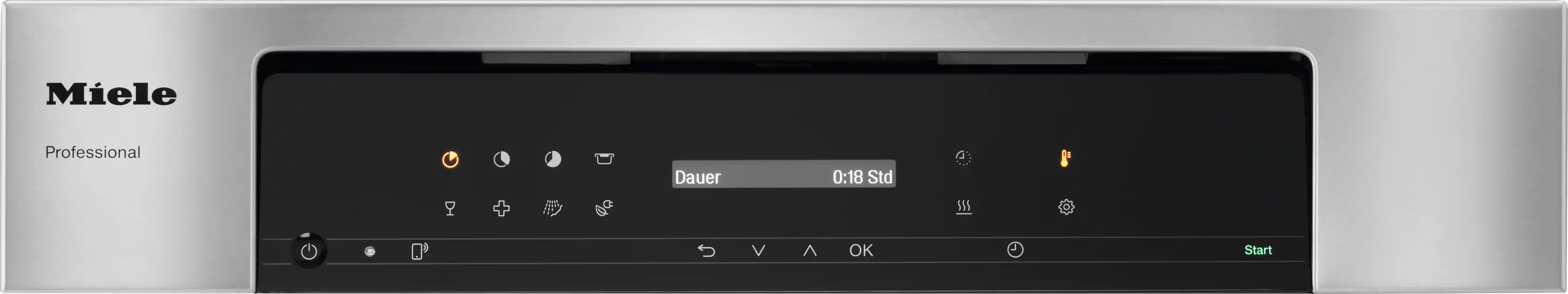

Delay start and time left display

With delay start you can determine up to 24 hours in advance when the selected program should start. After the program has started, the display will indicate the current time remaining for the cycle.

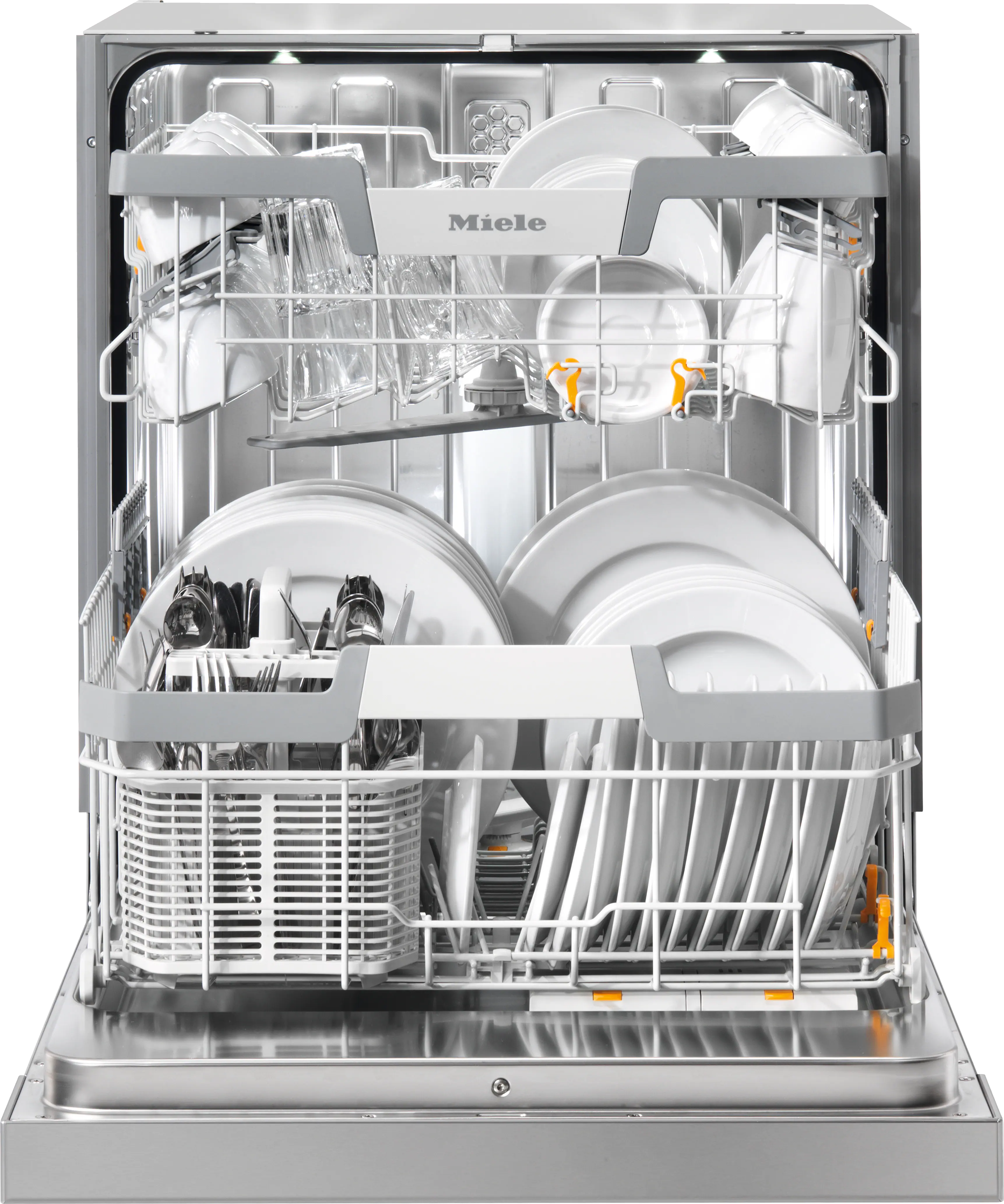

BrilliantLight

When the dishwasher is opened, the patented door control automatically lights up 4 high-performance LEDs. The interior cabinet is illuminated and loading and unloading of the baskets is noticeably easier.

Choice of display languages

Your appliance can display information and tips in several languages to ensure that you understand everything. Simply select your language from the language menu. A flag directs you. This enables you to find your way around the interface – even if a language has been selected which you do not understand.

Proven hygiene

According to the InFluenc_H – Institute for Integrative Hygiene and Virology, cleaning with PFD 10x dishwashers using Miele’s ProCare Shine 11 OB and 12 GC cleaning agents removes enveloped and non-enveloped viruses (e.g., coronavirus, influenza, or noroviruses) in the Pots&Pans and SaniWash programs, as well as enveloped viruses (but not the hepatitis B virus) in the QuickIntenseWash and Universal programs, even if wash items are difficult to reprocess.

Fresh water system

Fresh water dishwashers change the water after each cycle. A thorough final rinse is then carried out using a temperature that has been adjusted to the washed items. This process ensures perfect dishwashing results and a very high standard of hygiene that clearly exceeds the requirements for commercial dishwashers.

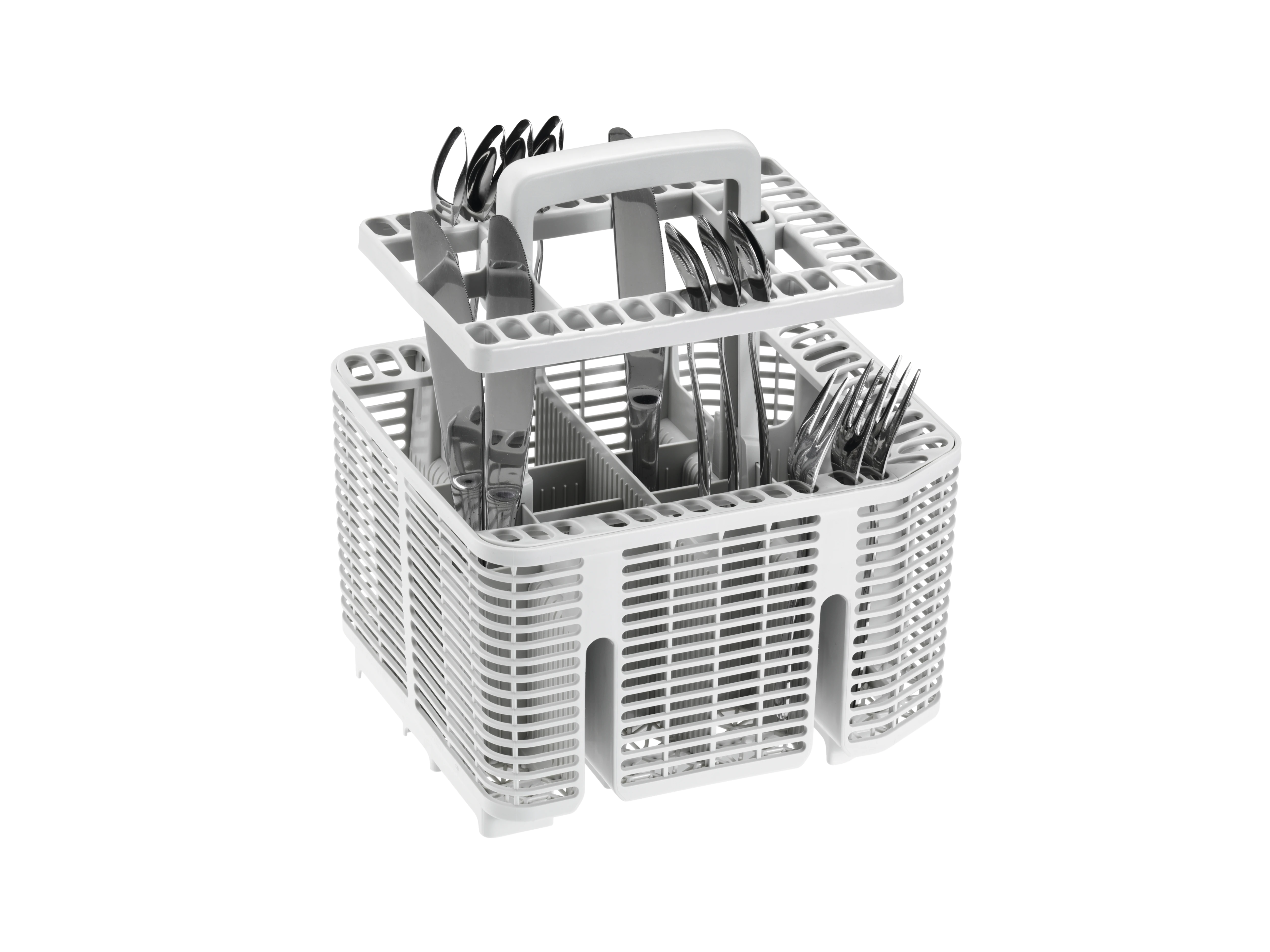

Cutlery basket

Very flexible: The cutlery basket fits in any position over the front spikes in the lower basket.

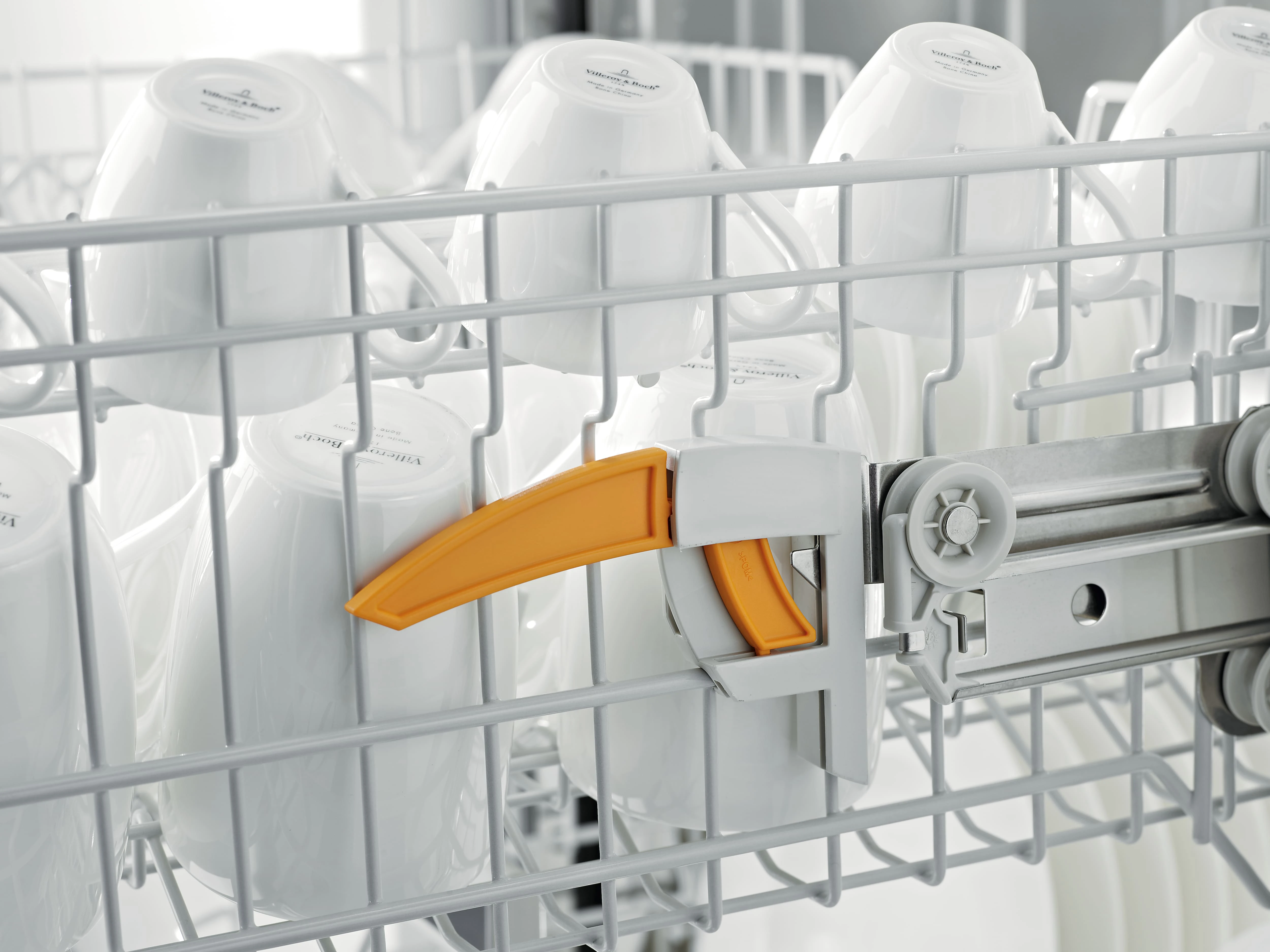

Height-adjustable upper basket

The height of the upper basket in all Miele dishwashers can be adjusted to suit the items to be cleaned and can even be set at an angle. In this way, optimum use can always be made of the wash cabinet.

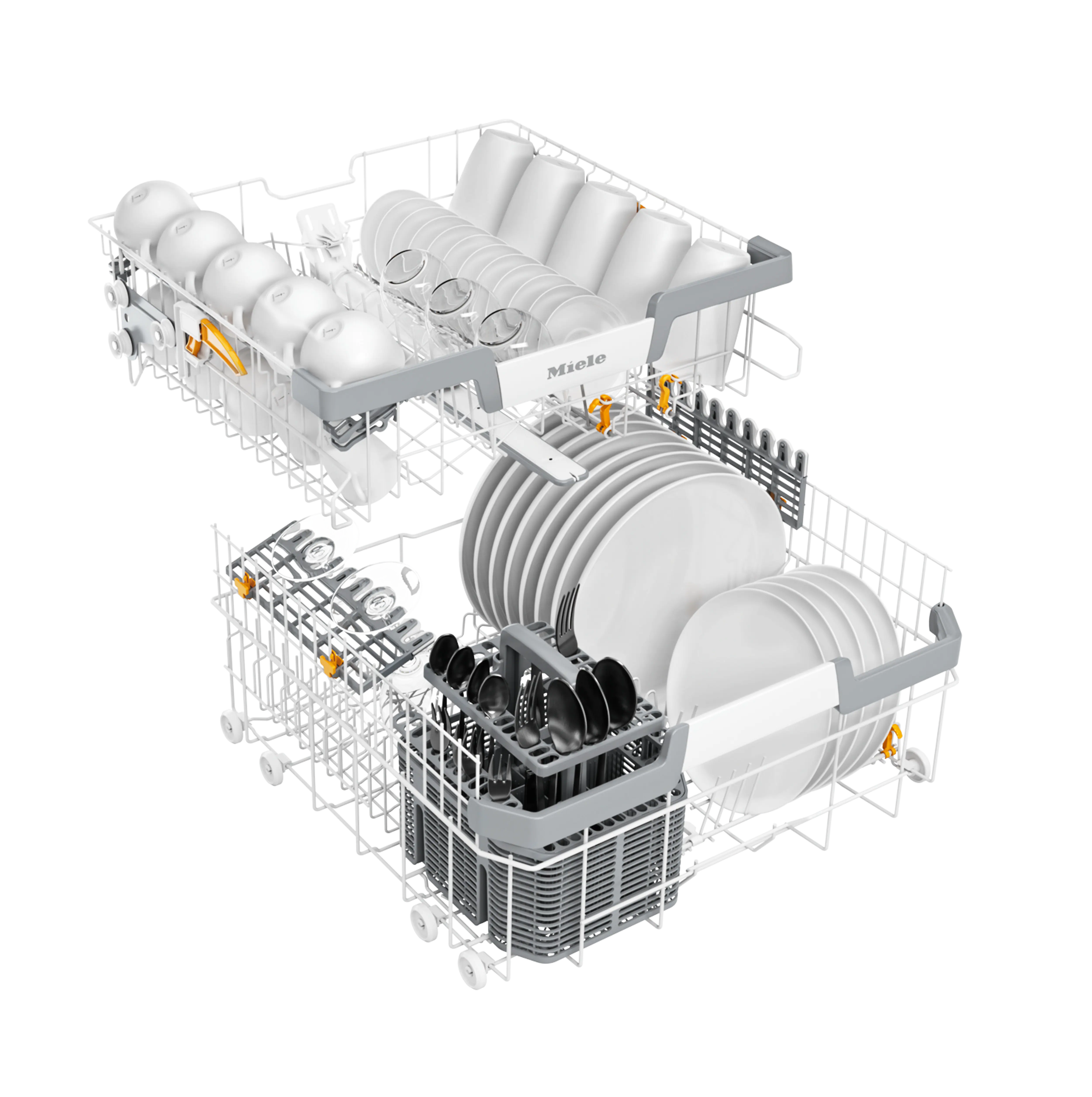

FlexLine Baskets

Thanks to the incredible range of options, it is always possible accommodate a wide array of dishware and utensils. The baskets can be pulled out safely from any angle thanks to the striking, elegant handle. Cups sit securely on the dimpled surface of the FlexCare Cup Rack. Bowls fit perfectly into the split hinged row of spikes. And your precious wine glasses? The silicone buffers in the FlexCare Glass Holder take good care of them.

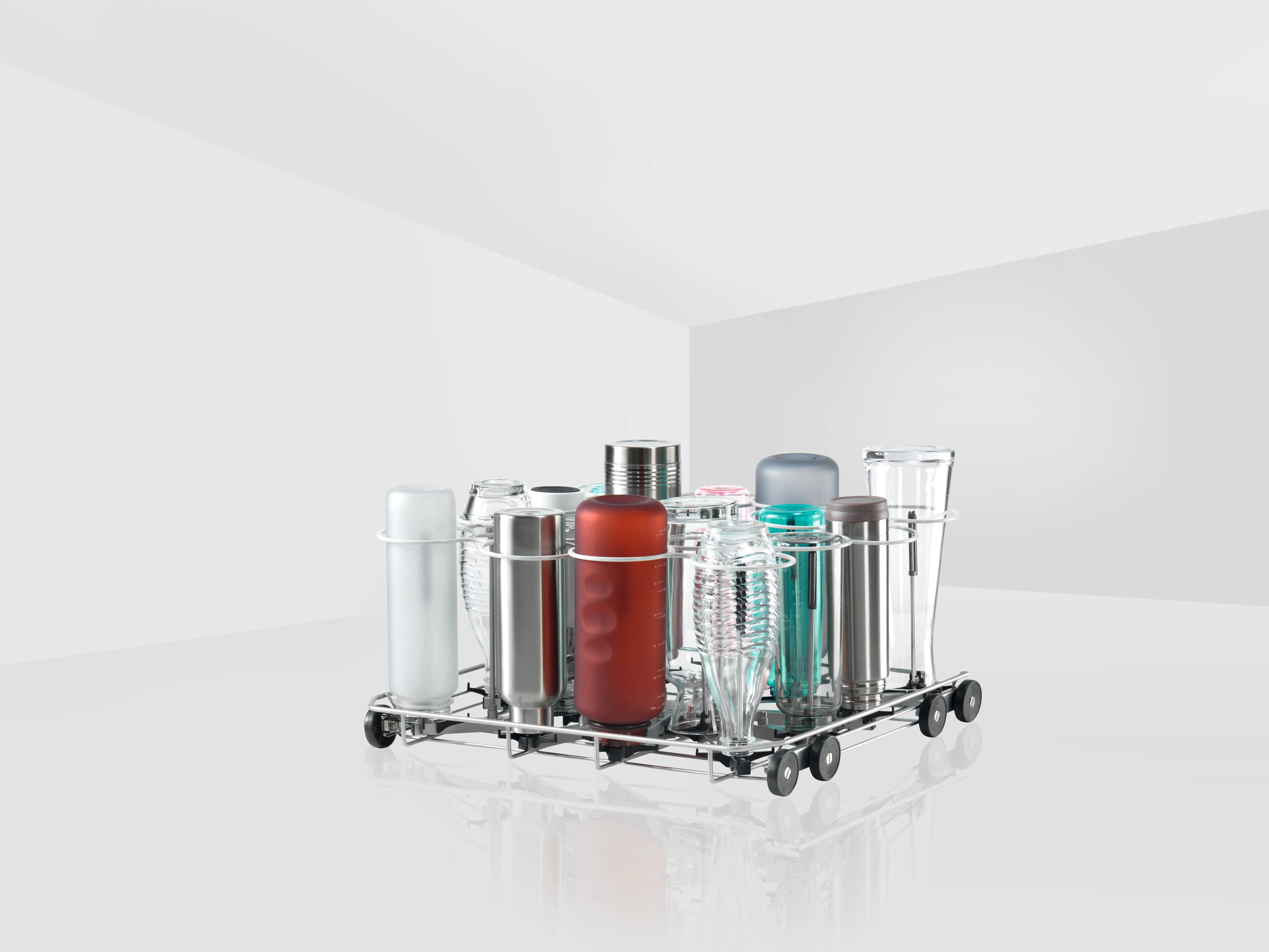

Practical bottle basket

The APFD 210 lower basket can be used to reliably clean the insides of up to 16 bottles or other hollow items such as insulated flasks or vases. Each bottle can be safely positioned on one individual injector nozzle.

Low consumption values

Save money and be environmentally friendly: Miele Professional dishwashers offer impressive low consumption values and are known for maximum efficiency. This standard is applied right from the product development stage: Perfect dishwashing results should be achieved by using recyclable materials and no more water, energy and detergent than absolutely necessary.

Integrated water softener

The built-in softener always delivers water with the optimum degree of hardness. The use of soft water allows detergent to be used sparingly and prolongs the life of the appliance. The degree of water hardness is adjusted manually to suit the on-site water quality.

Highly effective filter system

The extremely effective filter system in the dishwashers by Miele Professional serves valuable purposes. Permanent filtering of the wash fluid leads to optimum cleaning results with maximum damage protection of the appliance.

EcoFeedback

Do you want to protect the environment when washing your dishes? Our dishwashers make it easy for you: as soon as you select a program, the display tells you how much water it is likely to consume. EcoFeedback enables you to select the option which is best for the environment. You can view the actual consumption values in the display at the end of the program.

FlexiTimer with EcoStart

Clever: with EcoStart, the dishwasher automatically selects the cheapest electricity price every time.

SmartStart

In the context of the smart grids, electricity prices vary over the course of the day. SmartStart-enabled Miele Professional appliances can be started automatically at a time when the cheapest electricity price is available. SmartStart delivers immense benefits for Miele Professional dishwashers.

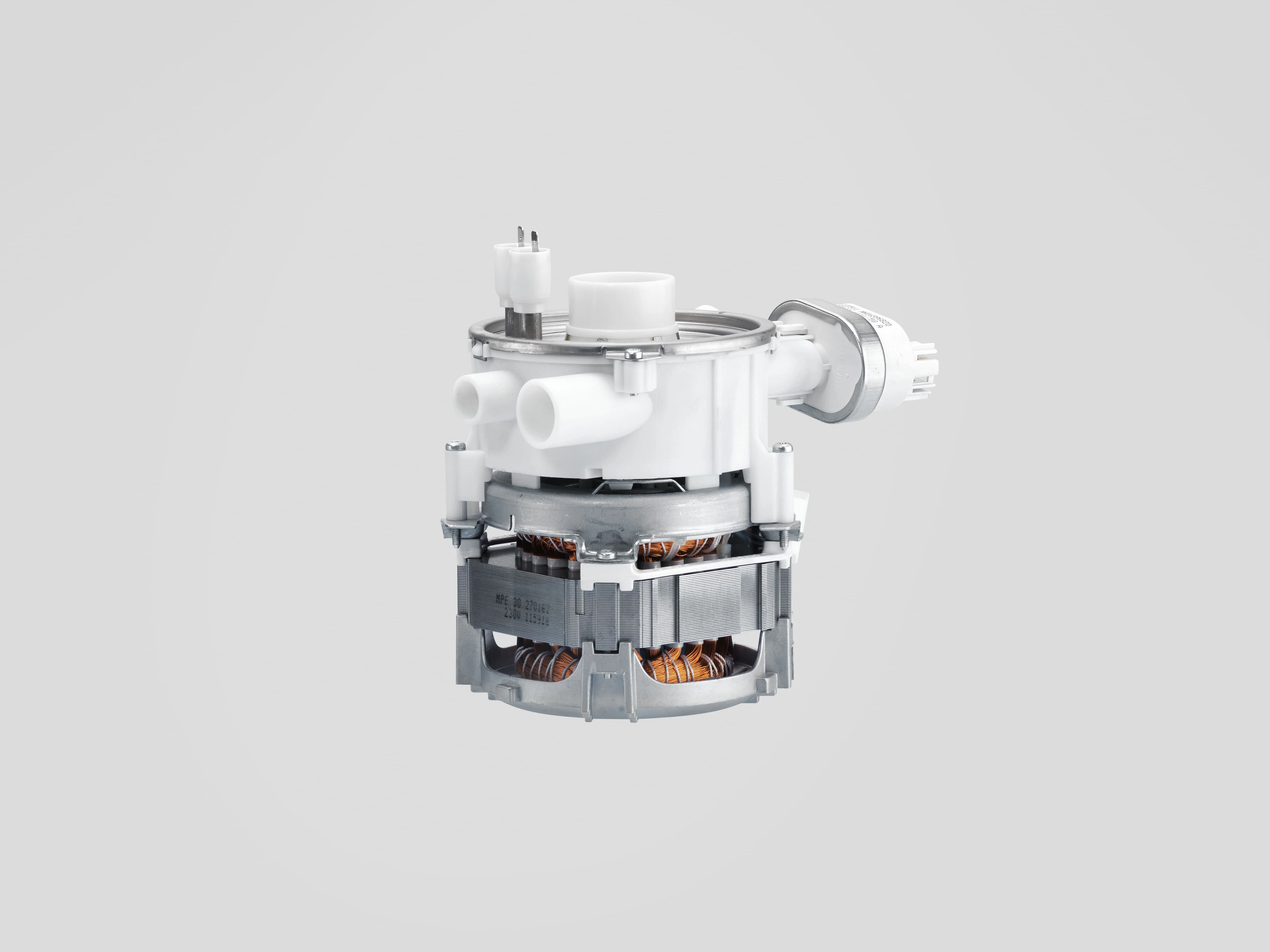

Powerful heater pump

Excellent cleaning performance: The heater pump combines a powerful circulation pump and integrated heater elements in one compact unit.

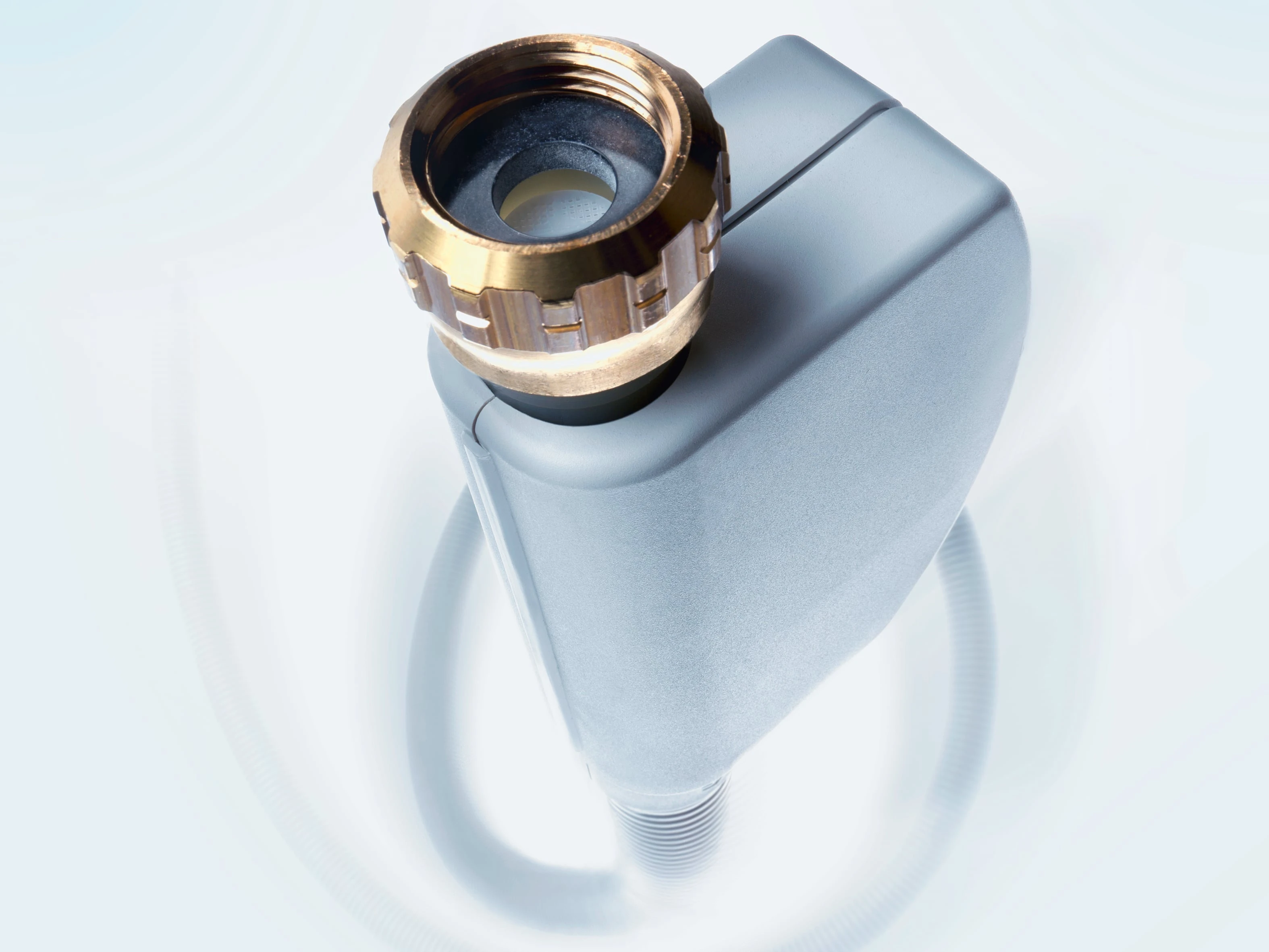

Reliable water protection

Every Miele dishwasher is equipped with a Waterproof system designed to protect your home from water damage. This intelligent technology ensures maximum protection against leaks or overflows. With Miele’s commitment to quality and innovation, you can enjoy peace of mind knowing your dishwasher is built to prevent water-related mishaps—day after day.

Quality you can rely on

Durability: Miele Professional dishwashers are tested for a long service life.

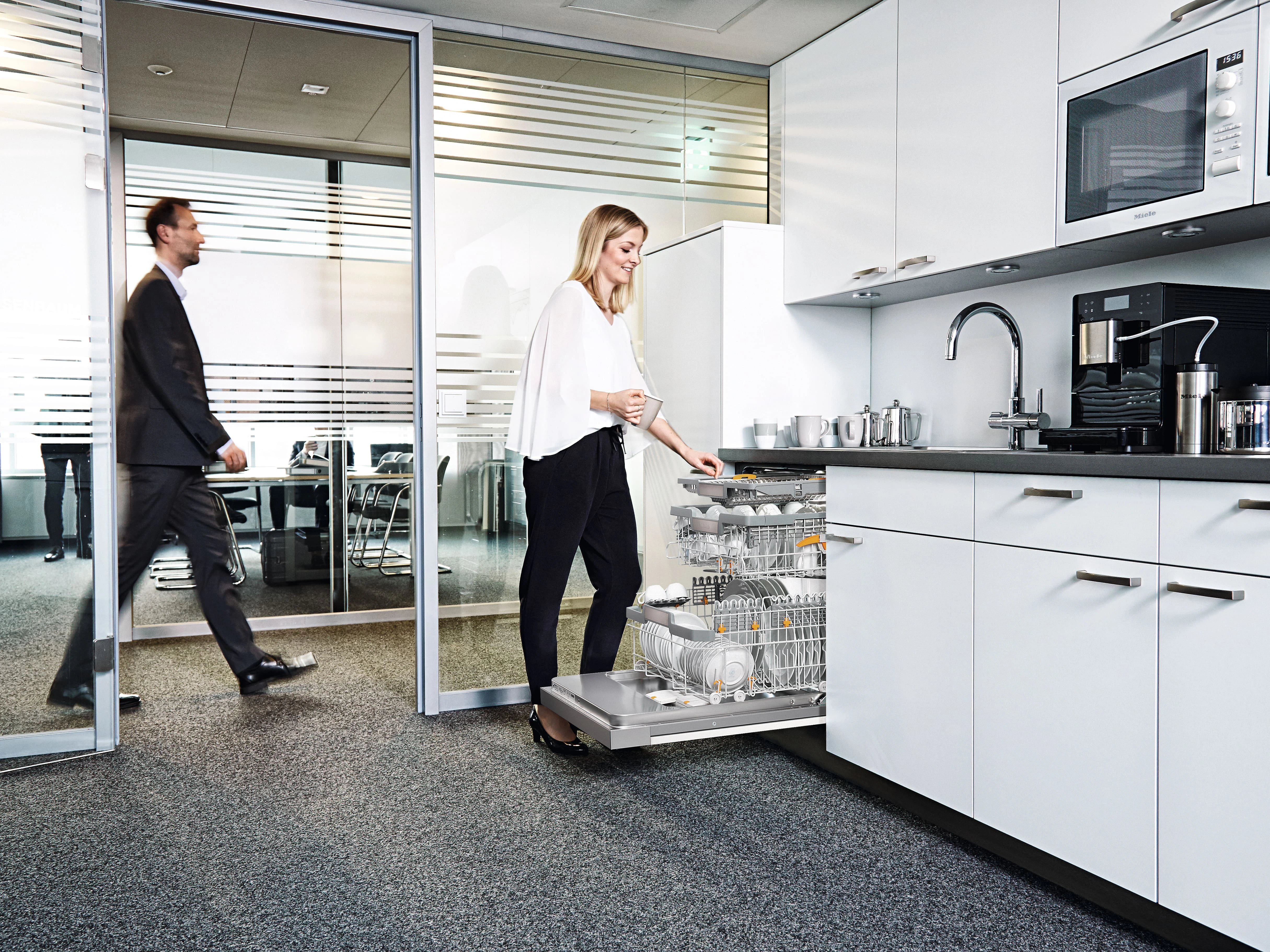

For businesses

The ProfiLine dishwashers are the perfect solution wherever large amounts of dishware need to be washed. Even large amounts of dishware that accumulate during breaks, meetings and events are washed quickly and thoroughly. However, they are also really impressive for private households with a large amount of dishware to deal with.

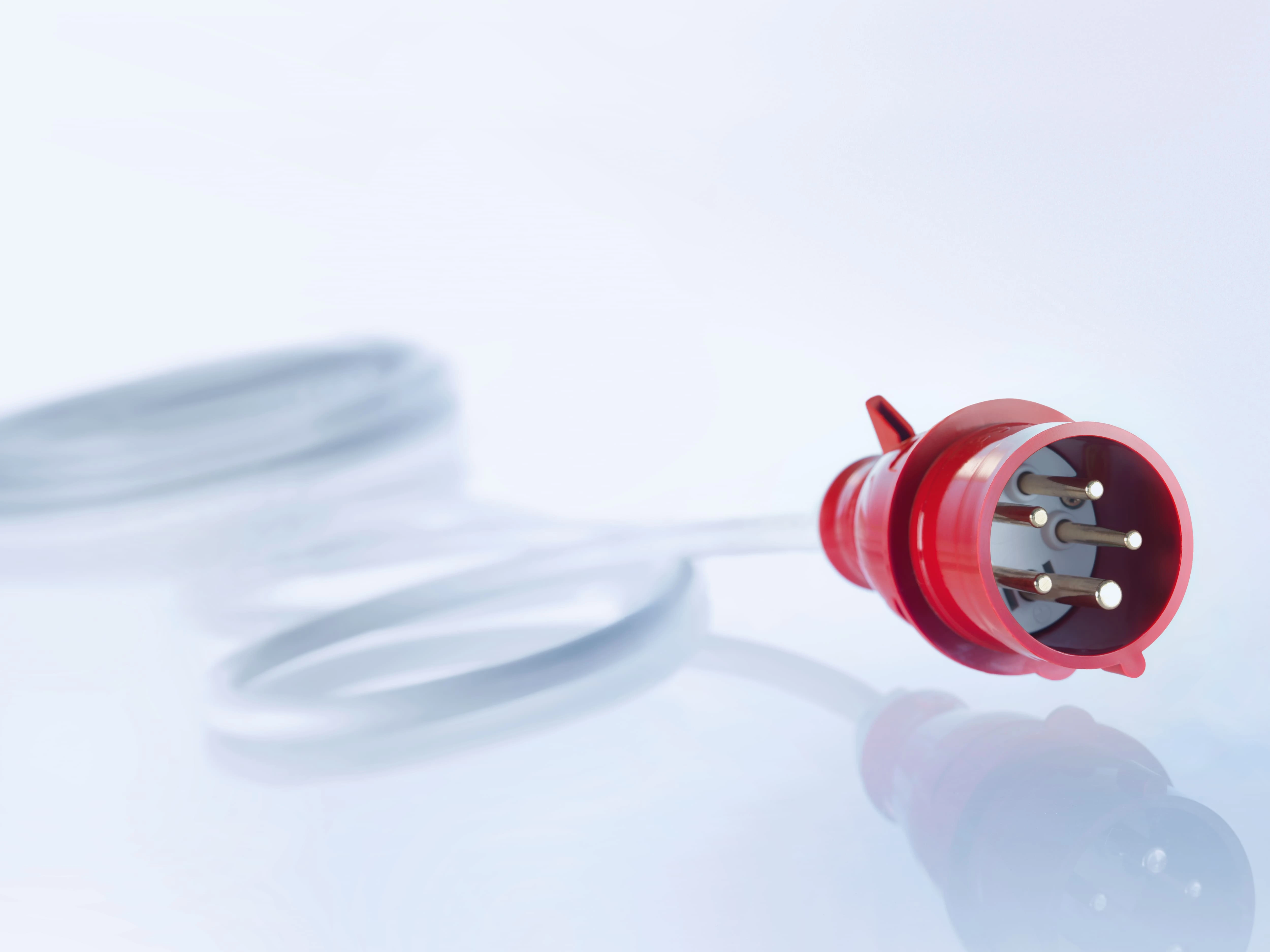

Commercial electrical connection

Short running times require a high power rating. For this reason, the dishwashers are factory-equipped with a 5-pole connection cable.

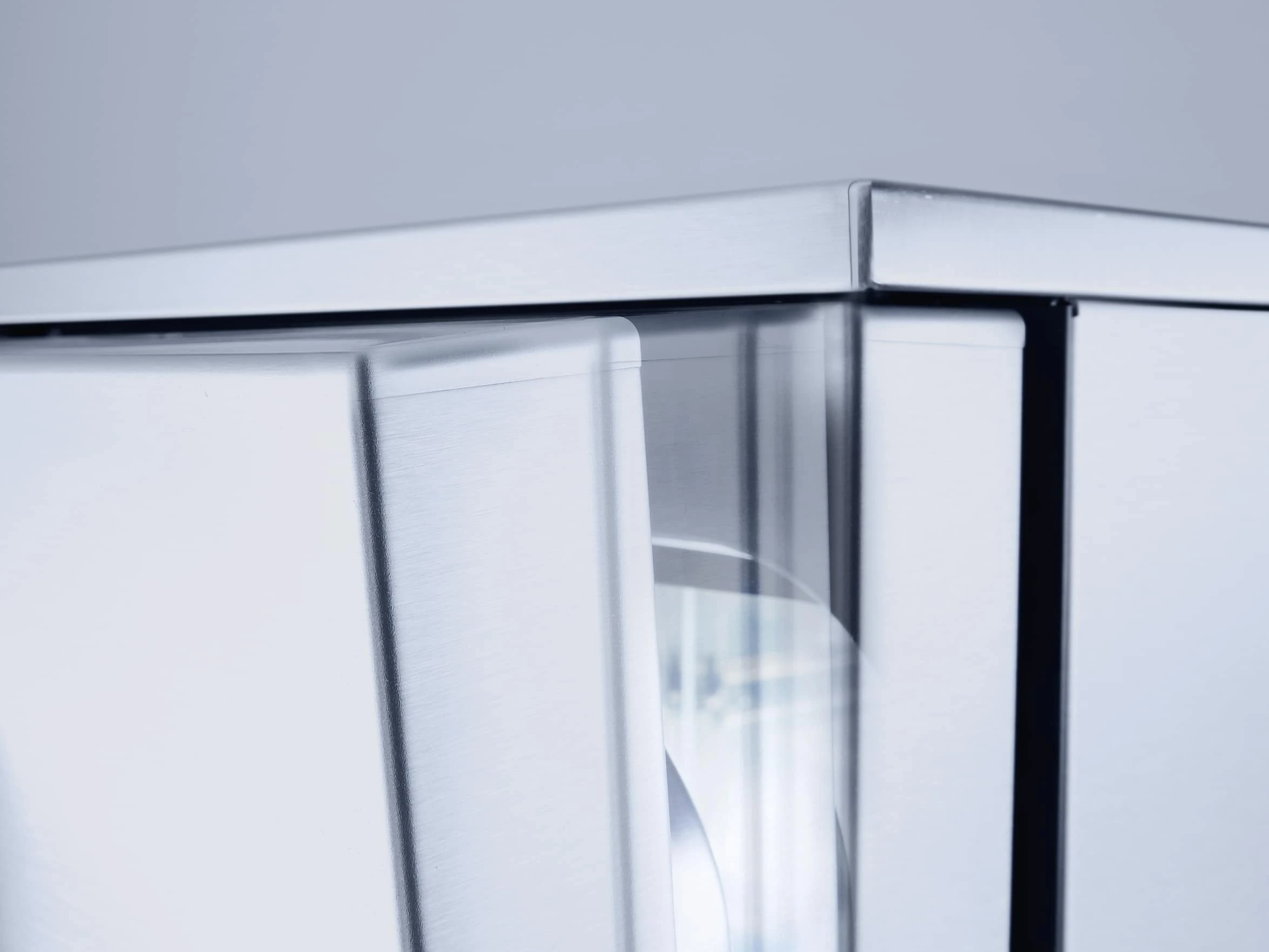

AutoOpen assisted drying

Even challenging items such as plastic dishware can start to dry before unloading. Thanks to the automatic door opening process at the end of the wash program, the drying process starts automatically without the need for manual input.

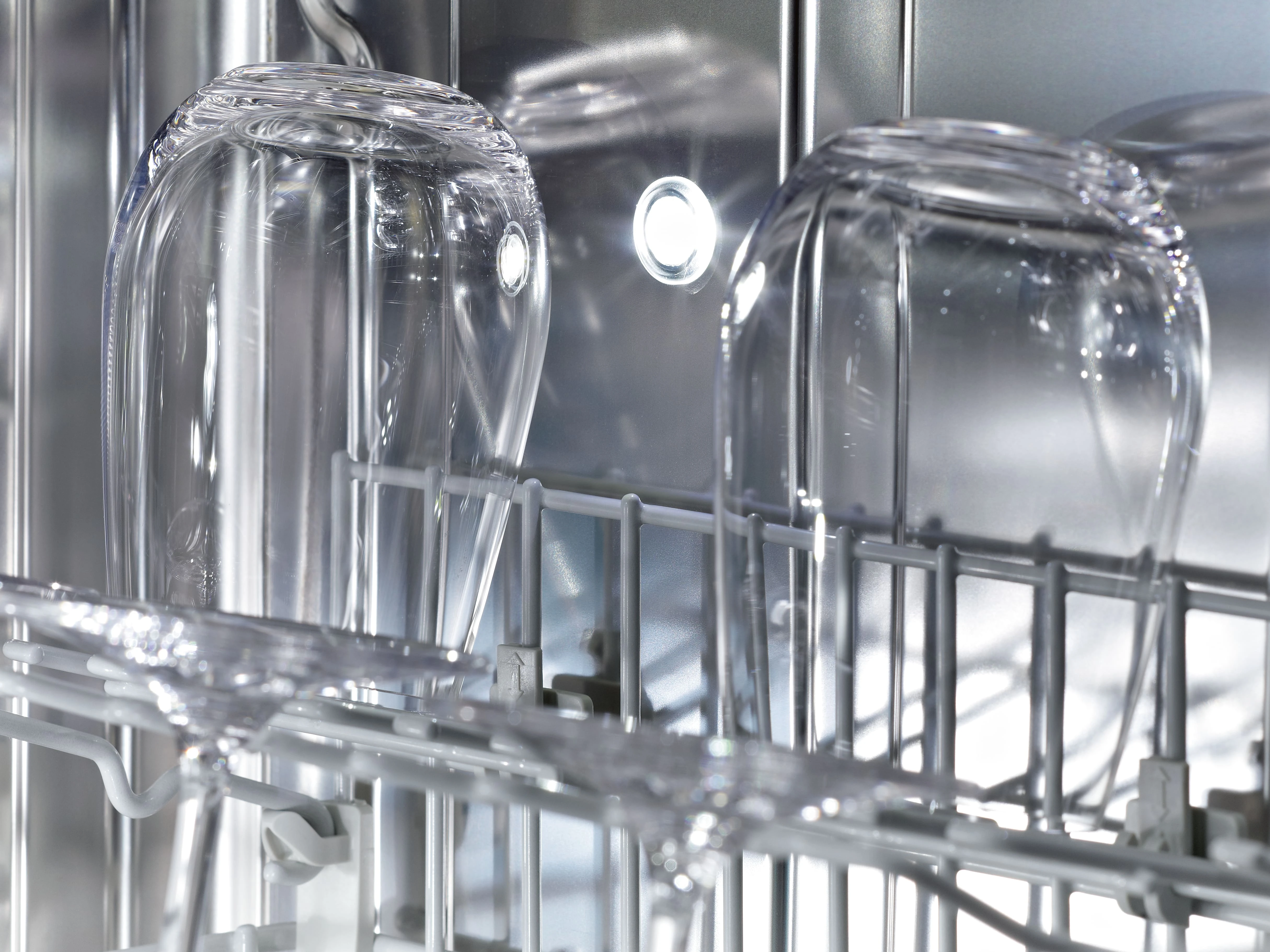

Brilliant GlassCare

Brilliant GlassCare washes glasses gently. The China & Crystal program cleans at 115°F (45°C). The FlexCare Glass Holder with soft silicone cushion holds wine glasses gently but securely. Patented AutoOpen drying opens the dishwasher door automatically at the end of a program cycle. Glasses are dry, they do not have to be polished manually – and our perfectly matched cleaning products with glass protection formula provide the best possible care.

Network-enabled with Miele MOVE

Whether you prefer to use a smartphone, tablet, laptop, or PC, with Miele MOVE you can keep track of your machines and your company from any location at any time. All data – current and historical – can be viewed and managed. Additionally, different users can configure MOVE to suit their needs. This ensures that everyone is provided with all the information they require.

Future-proof networking via WiFi

The machines are equipped for efficient data exchange (factory default) so they can easily be integrated into existing networks.

Conforms to Machinery Directive

The European Machinery Directive (2006/42/EC) defines far-reaching safety regulations for commercial machines. The legislation is designed to protect machine operatives in their daily work. All Miele Professional machines are fully compliant with the requirements of this important directive.
