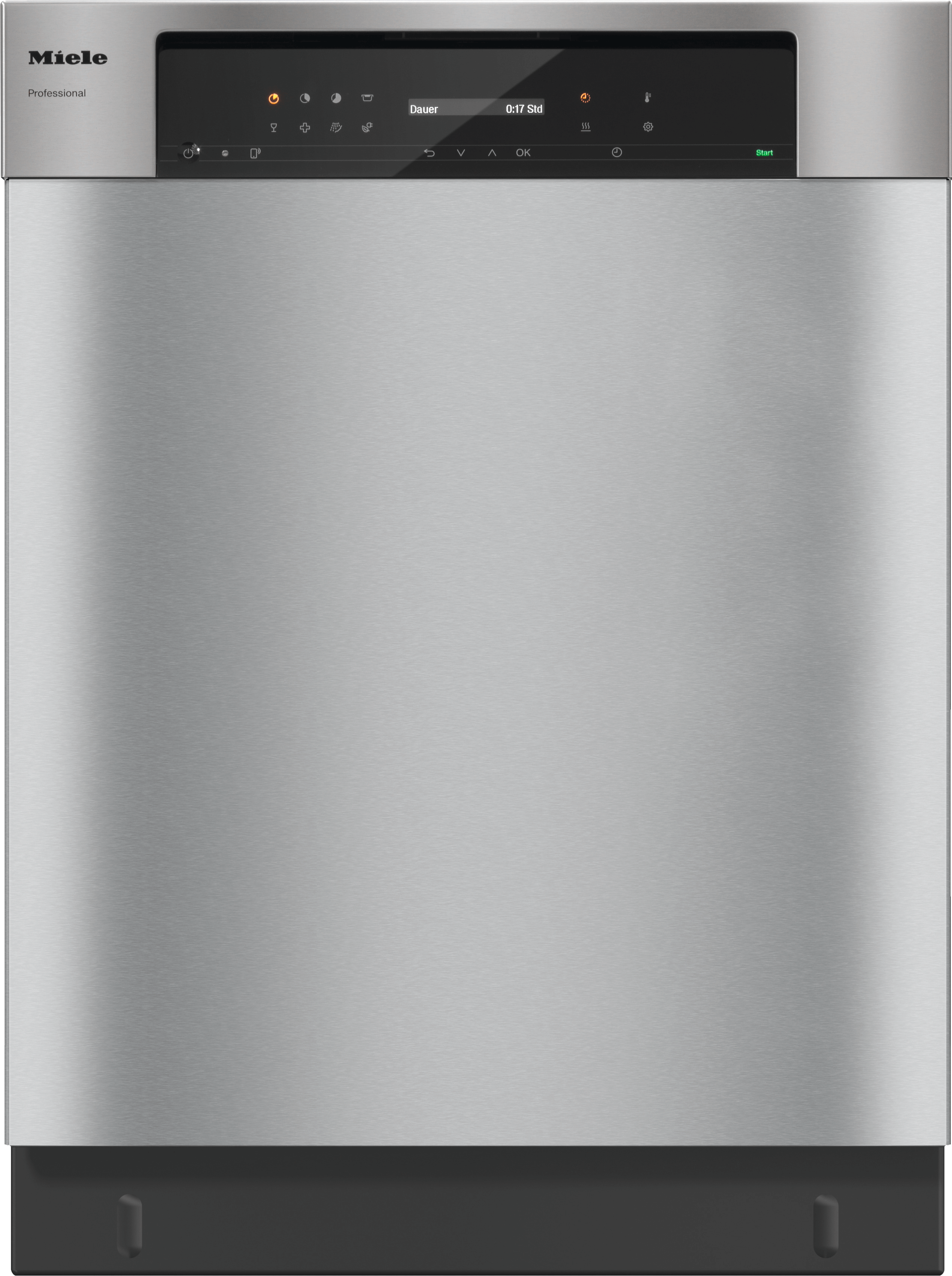

MIELE PFD101U PFD 101 U Stainless steel - Built-under dishwasher, ADA compliant, for large loads of dishware in households, offices and utility areas. in Stainless Steel
Sale price
$4,260.00
Regular price
$5,875.97
Save
$1,615.97
/ 27% OFF
Out of stock
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Sale price
$4,260.00
Regular price
$5,875.97
Save
$1,615.97
/ 27% OFF
Product Details for MIELE PFD101U
Technical Details
Cubic feet measurement & dimensional weight
| Cubic Feet Measurement | - |
| Dimensional Weight | - |
| Total of Cubes | - |
| Total of Dimensional Weight | - |
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Shipping Width | - |
| Shipping Height | 42.81 in. |
| Shipping Length | - |
| Shipping Weight | 118 lbs. |
| Total of Shipping Weight | 118 lbs. |
| Source | Calculation |
Dimensions & weight
| Width | - |
| Height | 37.81 in. |
| Length | - |
| Weight | 113 lbs. |
Construction type and design
| Model | Built-under dishwasher |
| Range | ProfiLine |
| Wash system | Fresh water front loader |
| Number of levels | 2 |
| Front | Stainless steel |
| Side walls | Galvanised |
| Control panel color | Clean Touch Steel |
Application
| Suitable for retirement and care homes | Yes |
| Suitable for hospitals | Yes |
| Suitable for Bed & Breakfast | Yes |
| Suitable for child care facilities | Yes |
| Suitable for universities and schools | Yes |
| Suitable for offices | Yes |
| Suitable for domestic use | Yes |
| Suitable for small businesses | Yes |
| Suitable for sports clubs | Yes |
Performance data
| Tested virucidal efficacy | Yes |
| Certified hygiene | Yes |
| Circulation pump, Qmax in gal/min (l/min) | 19.8 (75) |
| Shortest program duration in min. | 52 |
| Maximum final rinse temperature in (degree)F ((degree)C) | 180 |
| Cleaning performance, place settings/cycle | 13 |
| Service life in wash cycles | 12500 |
| Maximum final rinse temperature in °F (°C) | 180 (82) |

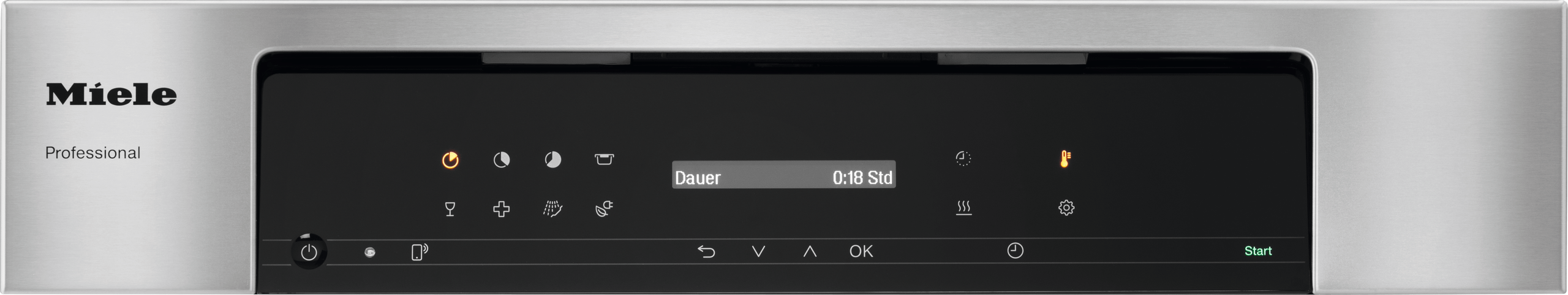

Control
| Control system | Electronic controls |
| Program selection | Program selectors |
| Max. delay start in h | 24 |
| Countdown indicator | Yes |
| Dishwashing programs [number] | 8 |
| Program sequence indicator | Yes |
| Choice of display language | Yes |
| Check filter indicator | Yes |
| Programs [quantity] | 8 |
Standard electrical connection
| Electrical connection | AC 120V 60HZ |
| Fuse rating in A | 15 |
| NEMA plug: 5-15 | Yes |
| Heater rating in kW | 1.30 |
| Total connected load in kW | 1.40 |
| Length of power cord in ft (m) | 5 (1.70) |
Possible voltage variant 1
| Fuse rating in A | 30 |
| Electrical connection | 2N AC 120/208-240V, 60HZ |
| Heater rating in kW | 3.50-3.80 |
| Total connected load in kW | 3.70-4 |
Water connection/drainage
| Cold or hot water [number] | 1 |
| Drain hose [DN] | 22 |
| Maximum delivery head for drain pump in inches (cm) | 39 3/8 (100) |
| Integrated water softener | Yes |
| Water protection system | Waterproof system |
| Length of water inlet hose in inches (cm) | 59 1/8 (150) |
| Length of water drain hose in inches (cm) | 59 1/8 (150) |
| Required flow pressure in bar | 1-10 |
| Maximum water hardness in gpg (mmol/l) | 6.5 (6.50) |
Dimensions and weight
| External dimensions, net height in inches | 31 3/4 (805) |
| External dimensions, net width in inches | 23 9/16 (598) |
| External dimensions, net depth in inches | 22 1/2 (570) |
| External dimensions, gross height in inches | 38 1/4 (970) |
| External dimensions, gross width in inches | 26 7/16 (670) |
| External dimensions, gross depth in inches | 27 3/16 (690) |
| Usable space in wash cabinet, width in inches (mm) | 21 5/16 (540) |
| Usable space in wash cabinet, height in inches (mm) | 20 1/8 (510) |
| Usable space in wash cabinet, depth of upper basket in inches (mm) | 17 3/4 (450) |
| Usable space in wash cabinet, depth of lower basket in inches (mm) | 17 3/4 (450) |
| In-feed height above floor in inches (mm) | 8 5/16 (210) |
| Required niche width in mm | 23 5/8 (600) |
| Net weight [kg] | 104 |
| Gross weight in lbs. | 122 |
| Maximum floor load in N/m | 1000 |
Emission values
| Sound power (LwA) in dB(A) re 1 pW | 48 |
| Emission sound pressure level in workplace (LpA) | 33 dB(A) re 20 µPa |
Programs
| Normal Plus | Yes |
| Normal | Yes |
| SaniWash | Yes |
| Cold/Pre-wash | Yes |
| Glasses | Yes |
| Plastic | Yes |
| EnergySave/Economy | Yes |
| Intensive | Yes |
| Universal | Yes |
| Short | Yes |

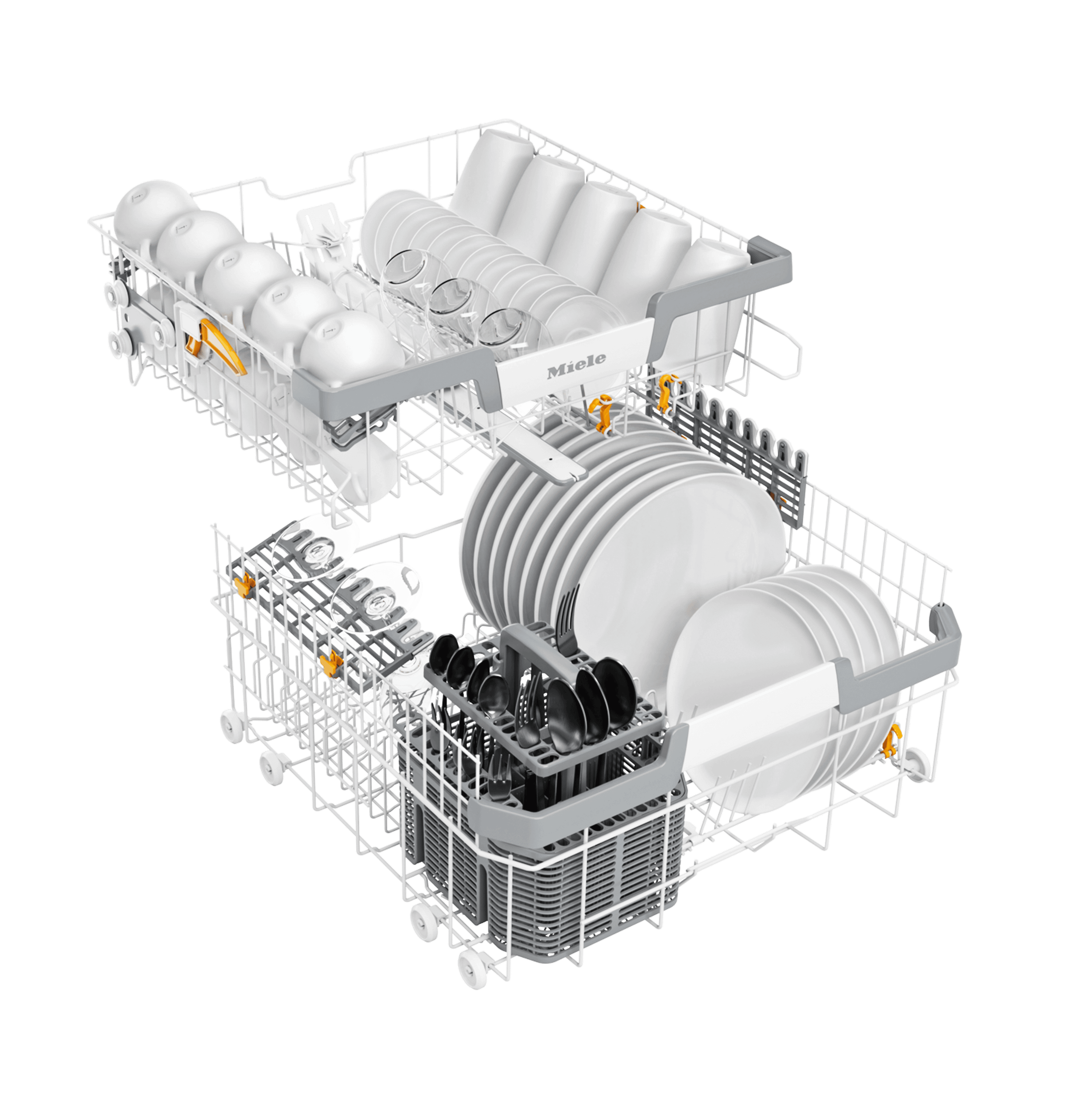

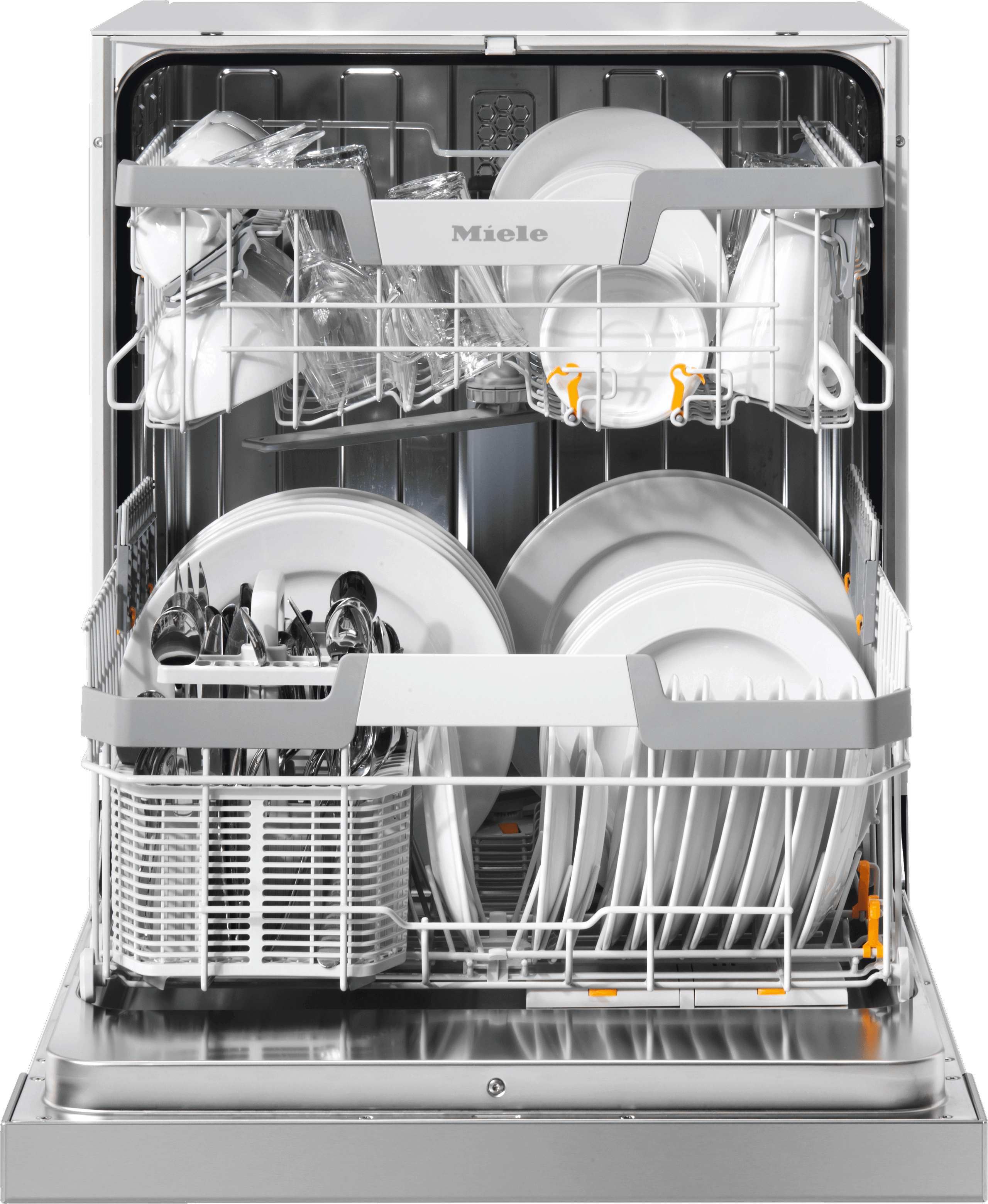

Baskets
| ExtraComfort P baskets | Yes |
| Flexible FlexLine basket design | Yes |
| FlexCare glass holder [number] | 2 |
| FlexCare cup rack [number] | 1 |
| Cutlery basket | Yes |
| Height-adjustable upper basket | Yes |
| Combinable with APFD 210 bottle basket | Yes |
Features
| Commercial-grade electrical connection | Yes |
| Adjustable final rinse temperature | Yes |
| Wi-Fi | Yes |
| 1 Combi dispenser/door for powder and liquid media | Yes |
| EcoFeedback | Yes |
| Child lock | Yes |
| Brilliant GlassCare | Yes |
| Wash cabinet made from high-quality stainless steel | Yes |
| Optical interface | Yes |
| SmartStart | Yes |
| FlexiTimer with EcoStart | Yes |
| Drying | AutoOpen assisted drying Additional drying Active condensation drying |
| WiFi module | Yes |
Standards, test certificates, and symbols
| CE | Yes |
| Complies with Machinery Directive 2006/42/EC | Yes |
| VDE | Yes |
| EMC radio suppressed | Yes |
| DIN EN 17735 | Yes |
| EN 1717 | Yes |
| UL | Yes |
Features
- Maximum hygiene assurance
Constantly high cleaning performance and filtration thanks to repeated water changes. - Delay start and time left display
For maximum flexibility, a delay start time of up to 24 hours can be selected. - Wash performance: 13 place settings in just 52 min
- Your dishwasher “speaks" multiple languages
Multi-talented: set various languages on the display so that you fully understand every piece of information. - Choice of display languages
Multi-talented: set various languages on the display so that you fully understand every piece of information. - 13% less energy consumption
- An eye on the time
For maximum flexibility, a delay start time of up to 24 hours can be selected. - Fresh water system
Constantly high cleaning performance and filtration thanks to repeated water changes. - Everything completely dry - AutoOpen assisted drying
- Effective against viruses – scientifically proven
Our dishwashers in the PFD 10x series remove more than 99.9%* of all viruses (including coronaviruses). - Intuitive to operate thanks to clear fascia panel design
- Effective against bacteria – scientifically proven
Our dishwashers in the PFD 10x series remove 99.999%* of most bacteria. - Flexible loading of wash items for the best cleaning results
- Proven hygiene
Our dishwashers in the PFD 10x series remove 99.999% * of most bacteria. - Manufactured with great care by Miele & Cie. KG
- Height-adjustable upper basket
The height of the upper basket can be adjusted to suit the items being cleaned. - Cutlery basket
Very flexible: The cutlery basket fits in any position over the front spikes in the lower basket. - Highly versatile
Very flexible: The cutlery basket fits in any position over the front spikes in the lower basket. - View manufacturer details: Miele & Cie. KG
- Safety information
- FlexLine Baskets
Flexibility creates convenience: easy adjustment and flexible loading for the best cleaning results. - Versatile
The height of the upper basket can be adjusted to suit the items being cleaned. - Economical
Economical and efficient: Miele Professional dishwashers stand out with low consumption values. - Practical bottle basket
Bottles can be reliably cleaned inside using the APFD 210 basket, which is available to purchase separately. - Low consumption values
Economical and efficient: Miele Professional dishwashers stand out with low consumption values. - Ensures the optimum water hardness level
The built-in softener ensures the optimum hardness level of the water for perfect dishwashing results. - Integrated water softener
The built-in softener ensures the optimum hardness level of the water for perfect dishwashing results. - Professional and effective
Outstanding dishwashing results and reliability are largely due to the highly effective filter system. - Highly effective filter system
Outstanding dishwashing results and reliability are largely due to the highly effective filter system. - EcoFeedback
Economical: when a program is selected, estimated water consumption values are displayed. - Consumption always visible
Economical: when a program is selected, estimated water consumption values are displayed. - SmartStart
Practical: this function sets the appliance to work automatically when electricity is at its cheapest. - Intelligent basket design for all types of dishware
Flexibility creates convenience: easy adjustment and flexible loading for the best cleaning results. - FlexiTimer with EcoStart
Clever: with EcoStart, the dishwasher automatically selects the cheapest electricity price every time. - Protects your wallet and the environment
Clever: with EcoStart, the dishwasher automatically selects the cheapest electricity price every time. - For businesses
These dishwashers are ideally suited for all areas which deal with large amounts of dishware. - Large wash cabinet
High capacity: The most diverse items can be arranged safely on two wash levels. - Commercial electrical connection
Even large amounts of dishware can be cleaned quickly thanks to the high-performance electrical connection. - Save money intelligently
Practical: this function sets the appliance to work automatically when electricity is at its cheapest. - Full-size power
A stainless steel through-flow water heater with 2 x 3 kW capacity ensures high heating performance. - AutoOpen assisted drying
Completely dry: The dishwasher door opens automatically at the end of the program. - Commercial throughflow heater
A stainless steel through-flow water heater with 2 x 3 kW capacity ensures high heating performance. - A strong combination
For maximum cleaning performance, every dishwasher is equipped with a powerful heater pump. - Perfect integration under countertops
Perfect appearance thanks to dishwashers that can be built-under. - Water protection guarantee
Maximum safety: Miele will bear the cost for prop. dam. resulting fr. a defect in the water prot. s. for 20 years. - Brilliant GlassCare
Gentle and delicate: Brilliant GlassCare cleans your glassware with care. - Long service life
Durability: Miele Professional dishwashers are tested for a long service life. - Conforms to Machinery Directive
Miele commercial machines comply with applicable safety regulations. - Dishwashing professionals for daily large loads of dishes
These dishwashers are ideally suited for all areas which deal with large amounts of dishware. - Powerful heater pump
For maximum cleaning performance, every dishwasher is equipped with a powerful heater pump. - Reliable water protection *
Peace of mind: Your dishwasher is built to prevent water-related mishaps. - Enhanced performance for large amounts of dishware
Even large amounts of dishware can be cleaned quickly thanks to the high-performance electrical connection. - Network-enabled with Miele MOVE
All terminal devices can access machine data at all times thanks to networking with Miele MOVE. - For dry dishware in next to no time
Completely dry: The dishwasher door opens automatically at the end of the program. - Quality you can rely on
Durability: Miele Professional dishwashers are tested for a long service life. - Gentle cleaning for delicate glassware
Gentle and delicate: Brilliant GlassCare cleans your glassware with care. - Future-proof networking via WiFi
Fully informed with a high-performance network connection. - Perfect Integration
Perfect appearance thanks to dishwashers that can be built-under. - Machine data can be accessed at all times
All terminal devices can access machine data at all times thanks to networking with Miele MOVE. - Convenience & efficiency in demanding applications
Fully informed with a high-performance network connection.
Description
PFD 101 U Stainless steel - Built-under dishwasher, ADA compliant, for large loads of dishware in households, offices and utility areas.
Manuals & Guides
Key Features
Delay start and time left display
For maximum flexibility, a delay start time of up to 24 hours can be selected.
Choice of display languages
Multi-talented: set various languages on the display so that you fully understand every piece of information.
Proven hygiene
Our dishwashers in the PFD 10x series remove 99.999% * of most bacteria.
Maximum hygiene assurance
Constantly high cleaning performance and filtration thanks to repeated water changes.
Cutlery basket
Very flexible: The cutlery basket fits in any position over the front spikes in the lower basket.
FlexLine Baskets
Flexibility creates convenience: easy adjustment and flexible loading for the best cleaning results.
Practical bottle basket
Bottles can be reliably cleaned inside using the APFD 210 basket, which is available to purchase separately.
Integrated water softener
The built-in softener ensures the optimum hardness level of the water for perfect dishwashing results.
Highly effective filter system
Outstanding dishwashing results and reliability are largely due to the highly effective filter system.
SmartStart
Practical: this function sets the appliance to work automatically when electricity is at its cheapest.
FlexiTimer with EcoStart
Clever: with EcoStart, the dishwasher automatically selects the cheapest electricity price every time.
For businesses
These dishwashers are ideally suited for all areas which deal with large amounts of dishware.
Commercial electrical connection
Even large amounts of dishware can be cleaned quickly thanks to the high-performance electrical connection.
AutoOpen assisted drying
Completely dry: The dishwasher door opens automatically at the end of the program.
Perfect integration under countertops
Perfect appearance thanks to dishwashers that can be built-under.
Brilliant GlassCare
Gentle and delicate: Brilliant GlassCare cleans your glassware with care.
Conforms to Machinery Directive
Miele commercial machines comply with applicable safety regulations.
Powerful heater pump
For maximum cleaning performance, every dishwasher is equipped with a powerful heater pump.
Reliable water protection *
Peace of mind: Your dishwasher is built to prevent water-related mishaps.
Quality you can rely on
Durability: Miele Professional dishwashers are tested for a long service life.
Future-proof networking via WiFi
Fully informed with a high-performance network connection.
Versatile
The height of the upper basket can be adjusted to suit the items being cleaned.
Economical
Economical and efficient: Miele Professional dishwashers stand out with low consumption values.
Wash performance: 13 place settings in just 52 min
Low consumption values
Economical and efficient: Miele Professional dishwashers stand out with low consumption values.
Videos
Rebates
Reviews
Compare with similar products
This item
Recommendations
Sale price
$314.27
Regular price
$491.97
Save
$177.70
/ 36% OFF
Sale price
$1,599.00
Regular price
$2,550.97
Save
$951.97
/ 37% OFF
Sale price
$1,654.18
Regular price
$1,842.97
Save
$188.79
/ 10% OFF
Sale price
$1,999.00
Regular price
$2,667.97
Save
$668.97
/ 25% OFF
Sale price
$274.74
Regular price
$352.97
Save
$78.23
/ 22% OFF
Sale price
$555.04
Regular price
$628.97
Save
$73.93
/ 11% OFF
Sale price
$471.73
Regular price
$523.97
Save
$52.24
/ 9% OFF
Sale price
$1,499.00
Regular price
$2,107.97
Save
$608.97
/ 28% OFF
