SKU: KWT6322UGOB | UPC: 8017709321543

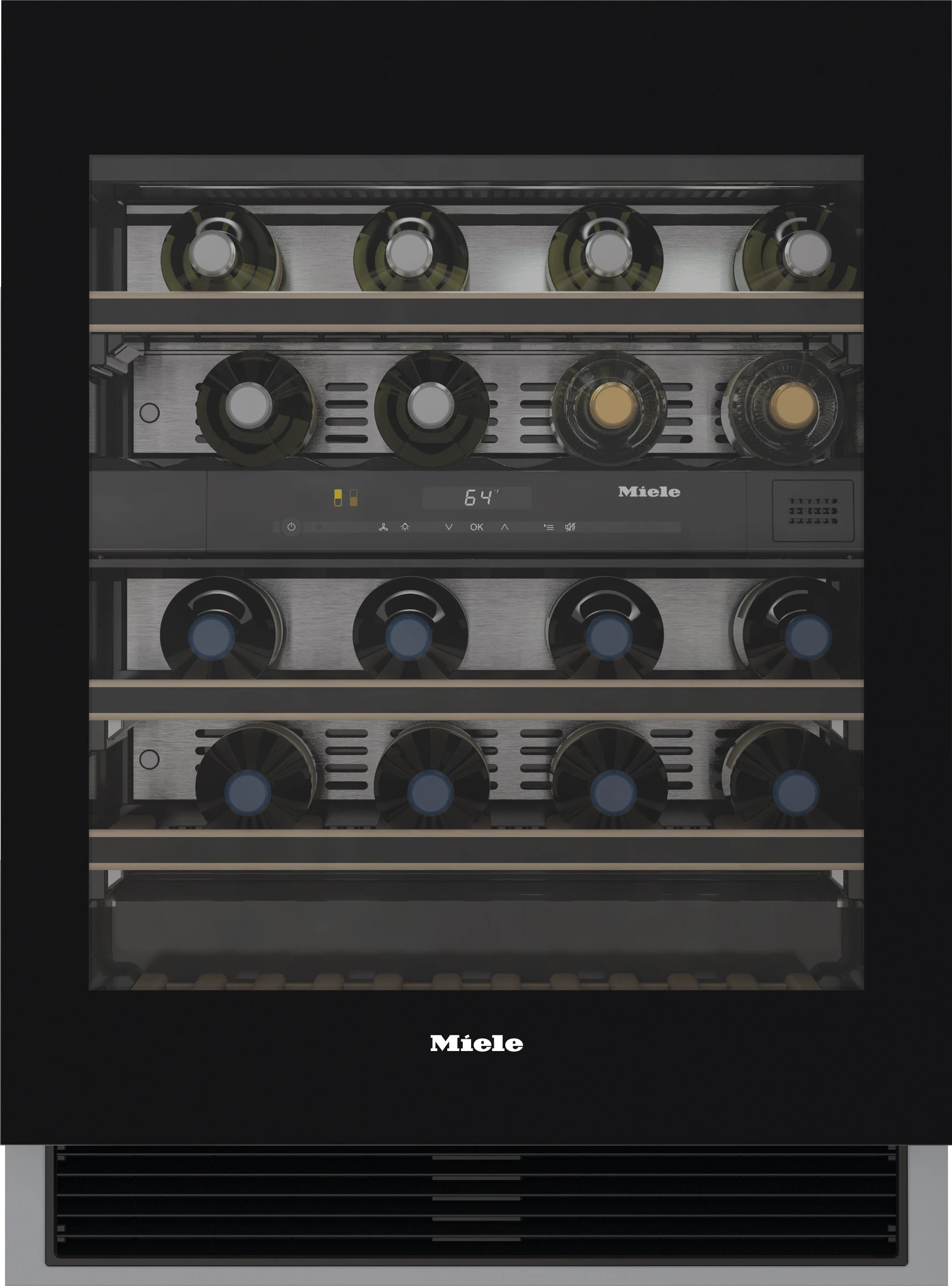

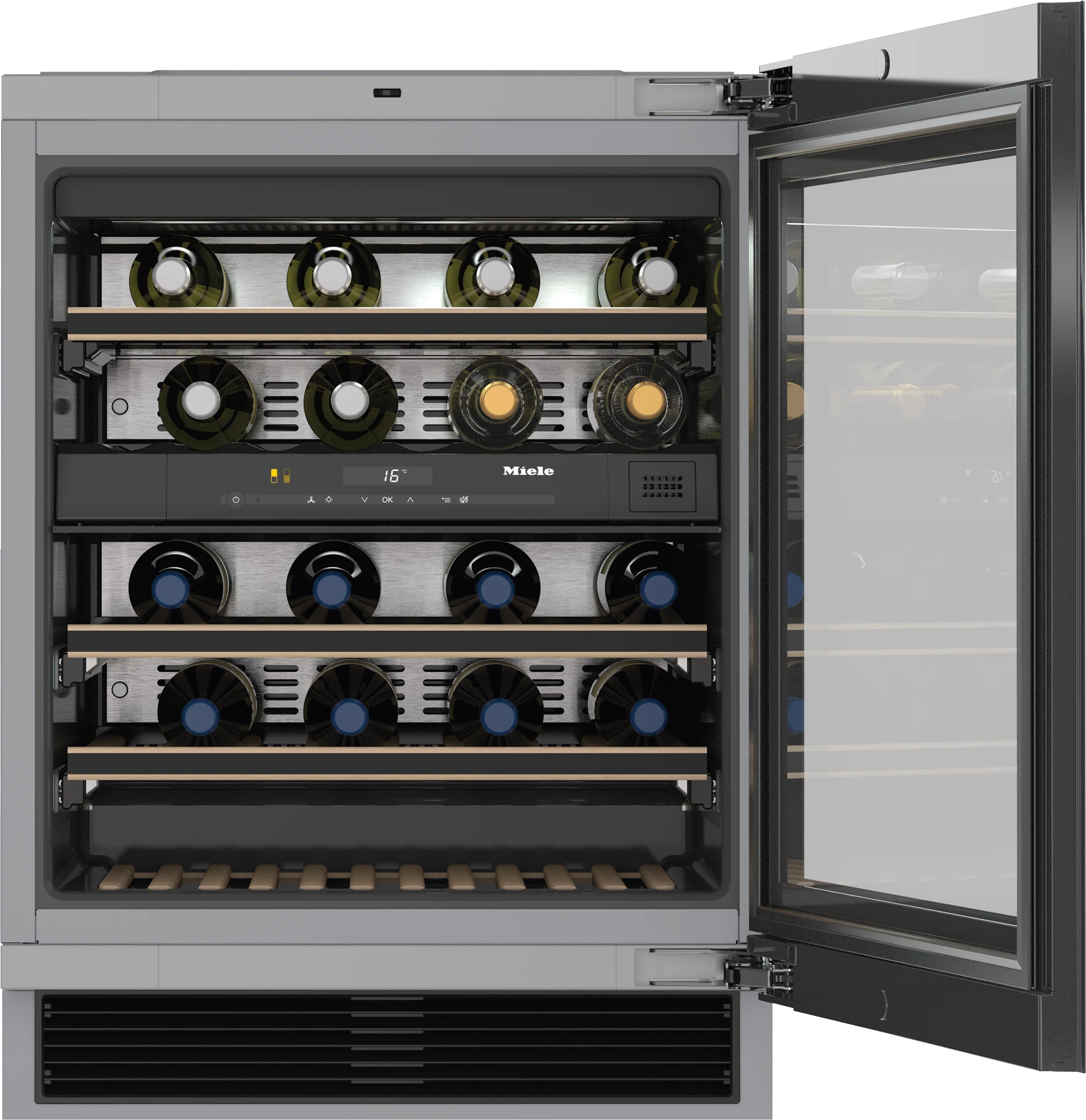

Miele KWT6322UGOB 24" Wine Under Counter Dual Zone All Glass Black Clean Touch Steel

Quick Specification More details

Width:
23.5"
Depth:
22.72"
Height:
32.28"
Type:
Wine Coolers

About this product

Temperature zones
UV protection
Soft Open/Soft Close
DynaCool

SKU: KWT6322UGOB | UPC: 8017709321543

Miele KWT6322UGOB 24" Wine Under Counter Dual Zone All Glass Black Clean Touch Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
23.5"
Depth:
22.72"
Height:
32.28"
Type:
Wine Coolers

About this product

Temperature zones
UV protection
Soft Open/Soft Close
DynaCool

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Rebates
Reviews

Product Details for Miele KWT6322UGOB

Technical Details

General information

Model number	KWT 6322 UG
Manufacturer material number	10028620
EAN number	4002515539699
Marketing class	Diamond

Appliance category

Wine storage unit

TRUE

Design

Built-in	TRUE
Built-in integrated	TRUE
Built-in built-under	TRUE
Door hinge side	right
Convertible hinging	TRUE
Can be installed side-by-side	TRUE
Front color	Obsidian Black glass
Wine compartment lighting	LED illumination

User convenience

DynaCool	TRUE
SoftClose door closing damper	TRUE
Total number of shelves	5
Number of shelves	4
Number of FlexiFrame Wire Racks	3
NoteBoard	TRUE
Low-vibration storage	TRUE

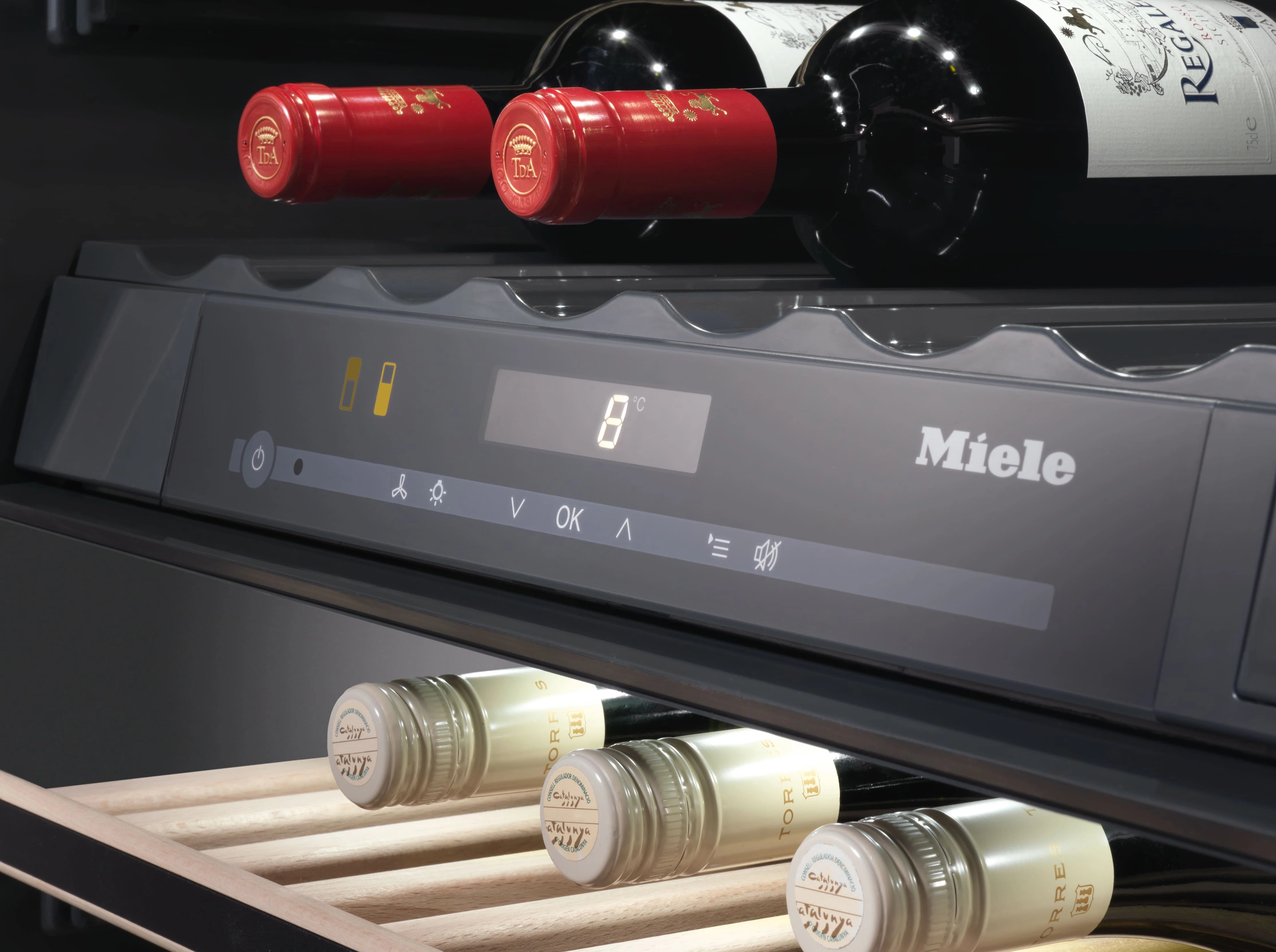

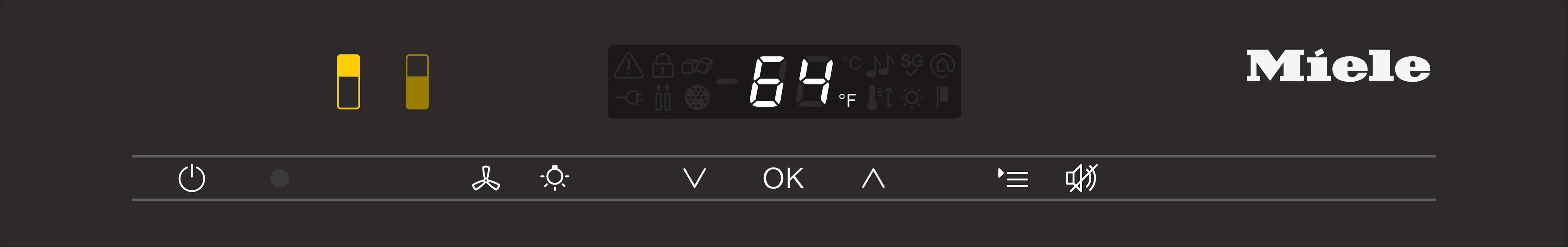

Control

Electronic temperature display and control	TouchControl
No. of temperature zones	2
Min. temperature setting range in °F (°C)	5
Max. temperature setting range in °F (°C)	20

Safety

Lock function	TRUE
Acoustic door alarm	TRUE
Acoustic temperature alarm	TRUE
Optical door alarm	TRUE

Technical data

Niche width in inches (mm), min.	23 5/8 (600)
Niche width in inches (mm), max.	23 5/8 (600)
Niche height in inches (mm), min.	32 3/8 (820)
Niche height in inches (mm), max.	34 3/8 (870)
Niche depth in in.(mm)	22 7/8 (580)
Appliance width in in.(mm)	23 5/8 (597)
Appliance height in in.(mm)	32 3/8 (820)
Appliance depth in in.(mm)	22 3/4 (577)
Weight in lbs.(kg)	109 (49.0)
Wine compartment in L	3.32 (94)
Total usable capacity in cu. ft. (l)	3.32 (94)
0.75 l Bordeaux bottle capacity (no. of bottles)	34 bottles
Storage time in case of fault in h	0
Current consumption in milliampere (mA)	2000
Voltage in V	115
Fuse rating in A	10
Number of phases	1
Frequency in Hz	60
Wire length in ft (m)	7 (2.4)

Standard accessories

Active AirClean filter

TRUE

Dimensions & weight

Width	23.5 in.
Height	32.28 in.
Length	22.72 in.
Weight	238.16 lbs.
Gross Weight	116.85 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	25.79 in.
Shipping Height	34.29 in.
Shipping Length	27.24 in.
Shipping Weight	278.15999999999997 lbs.
Source	Manufacturer
Total of Shipping Weight	278.16 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	13.95 ft³
Cubic Feet Measurement	9.97 ft³
Dimensional Weight	123.99 lbs.
Total of Cubes	9.97 ft³
Total of Dimensional Weight	123.99 lbs.

Description

What's included

Active AirClean filter

Manuals & Guides

Key Features

Temperature zones

Miele wine units feature up to three temperature zones with separate temperature controls. They can be used to store up to three different types of wine as well as champagne or sparkling wine at the same time – based on your preferences and under perfect storage conditions.

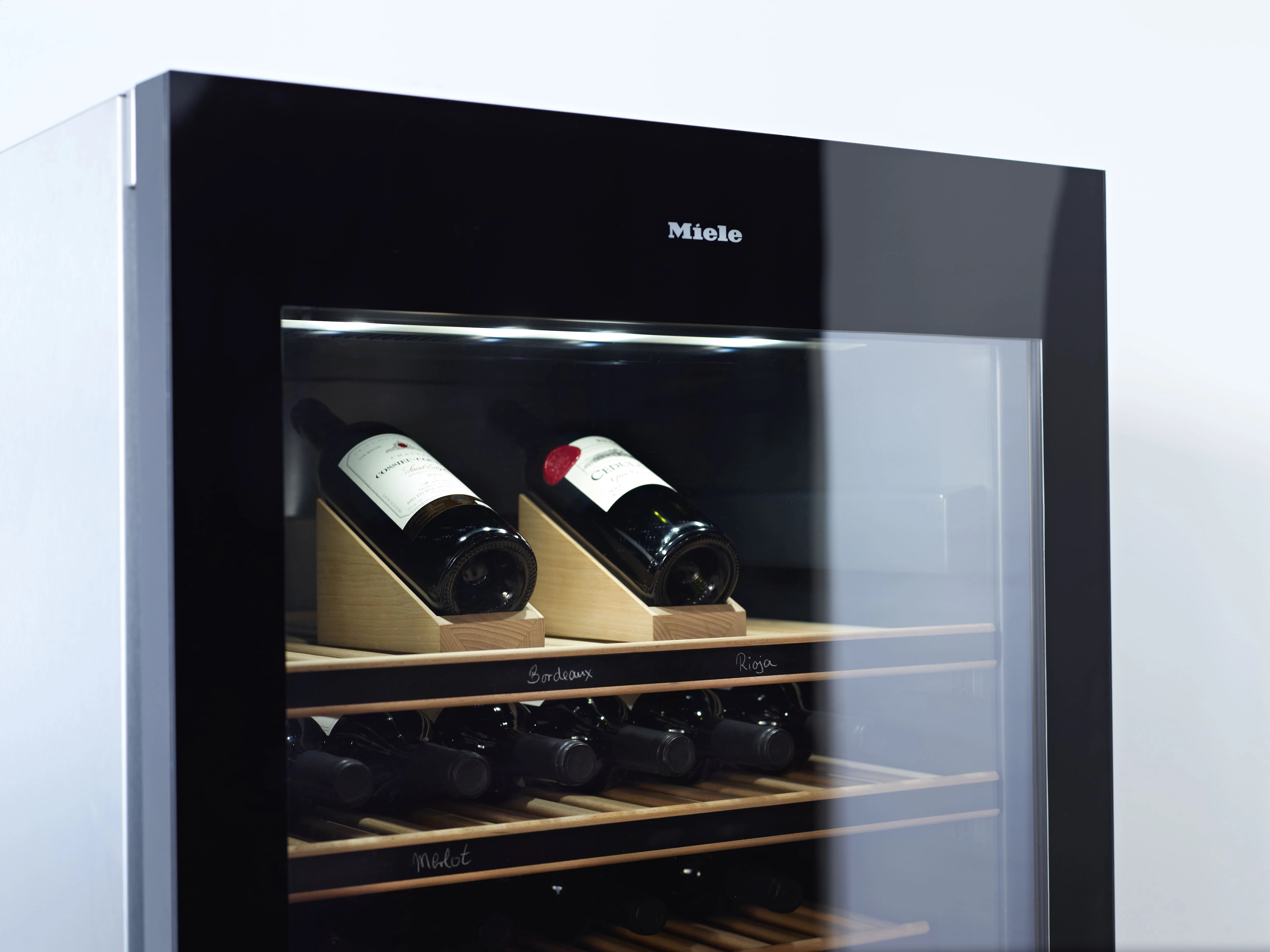

UV protection

UV rays can cause chemical reactions in wines. Miele glass doors are made of tinted safety glass with integrated UV filter. Your wine is stored with optimum protection from UV rays.

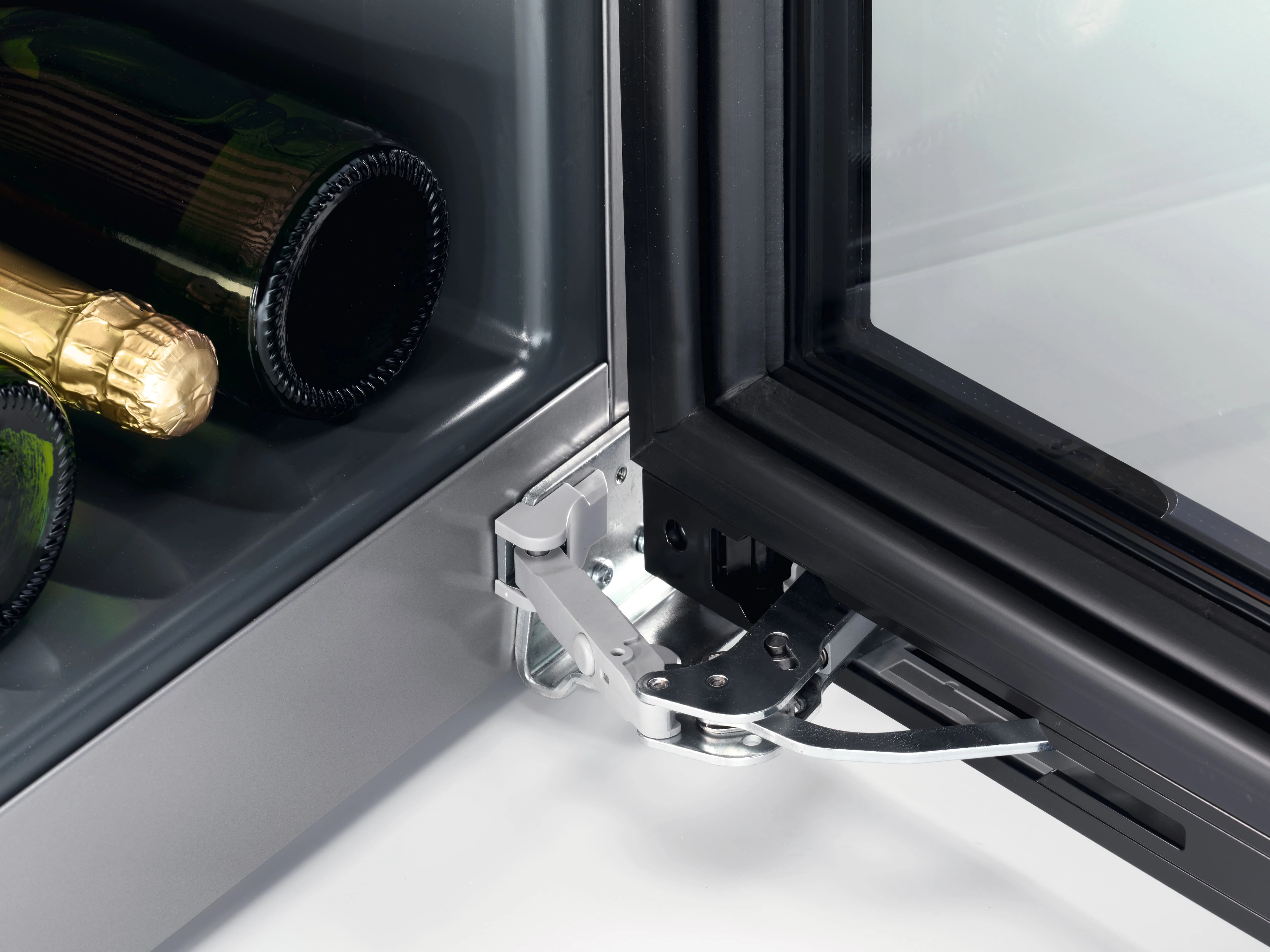

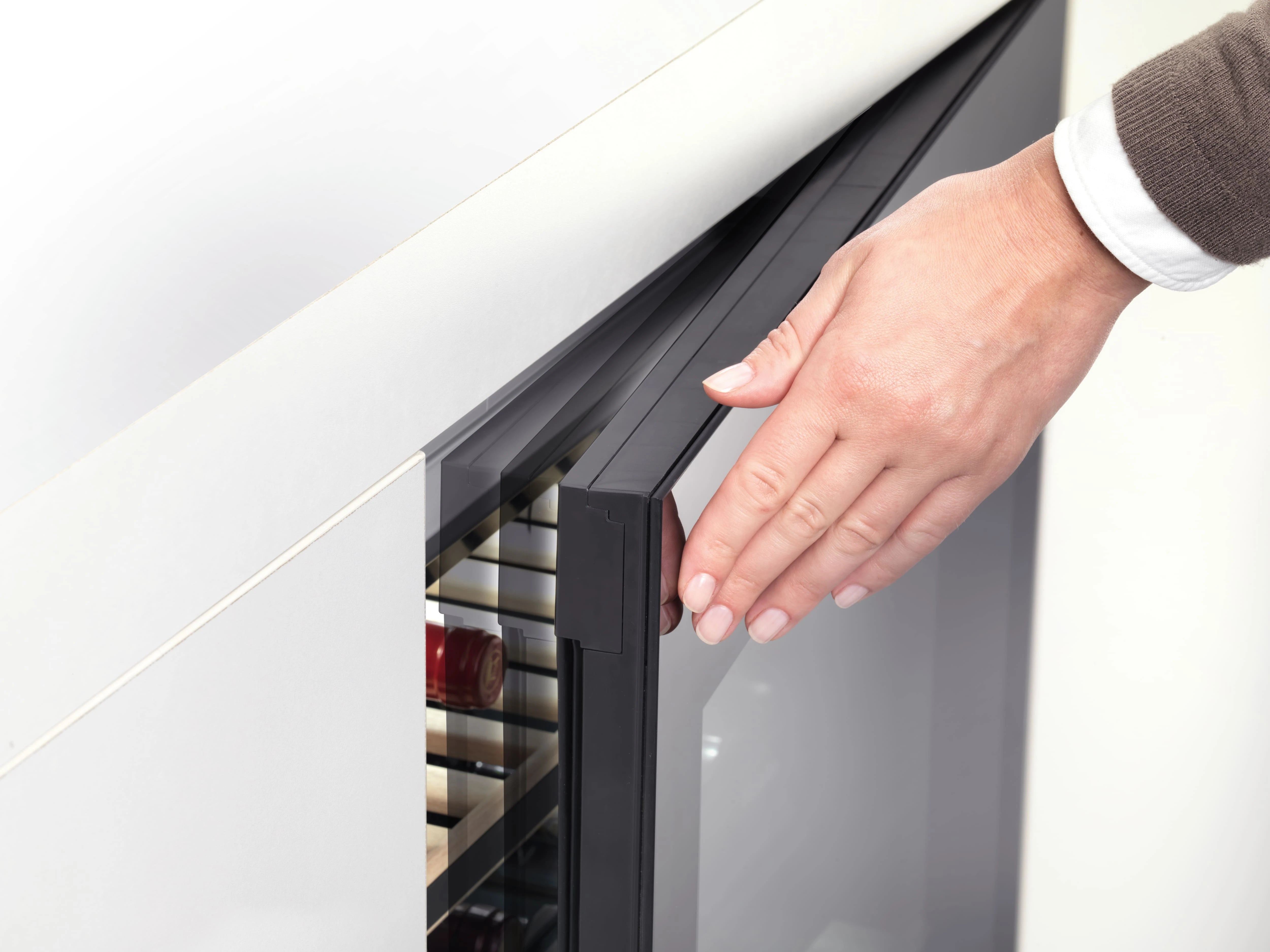

Soft Open/Soft Close

With SoftClose, the doors on your Miele wine units close silently, gently, and as if of their own accord. The integrated door-dampening feature prevents your wine bottles from being subjected to rough vibrations caused by closing the door too hard. Additionally, the SoftClose feature closes the door automatically if the angle of the open door is less than 30º. This allows your wine to be stored safely without disturbance.

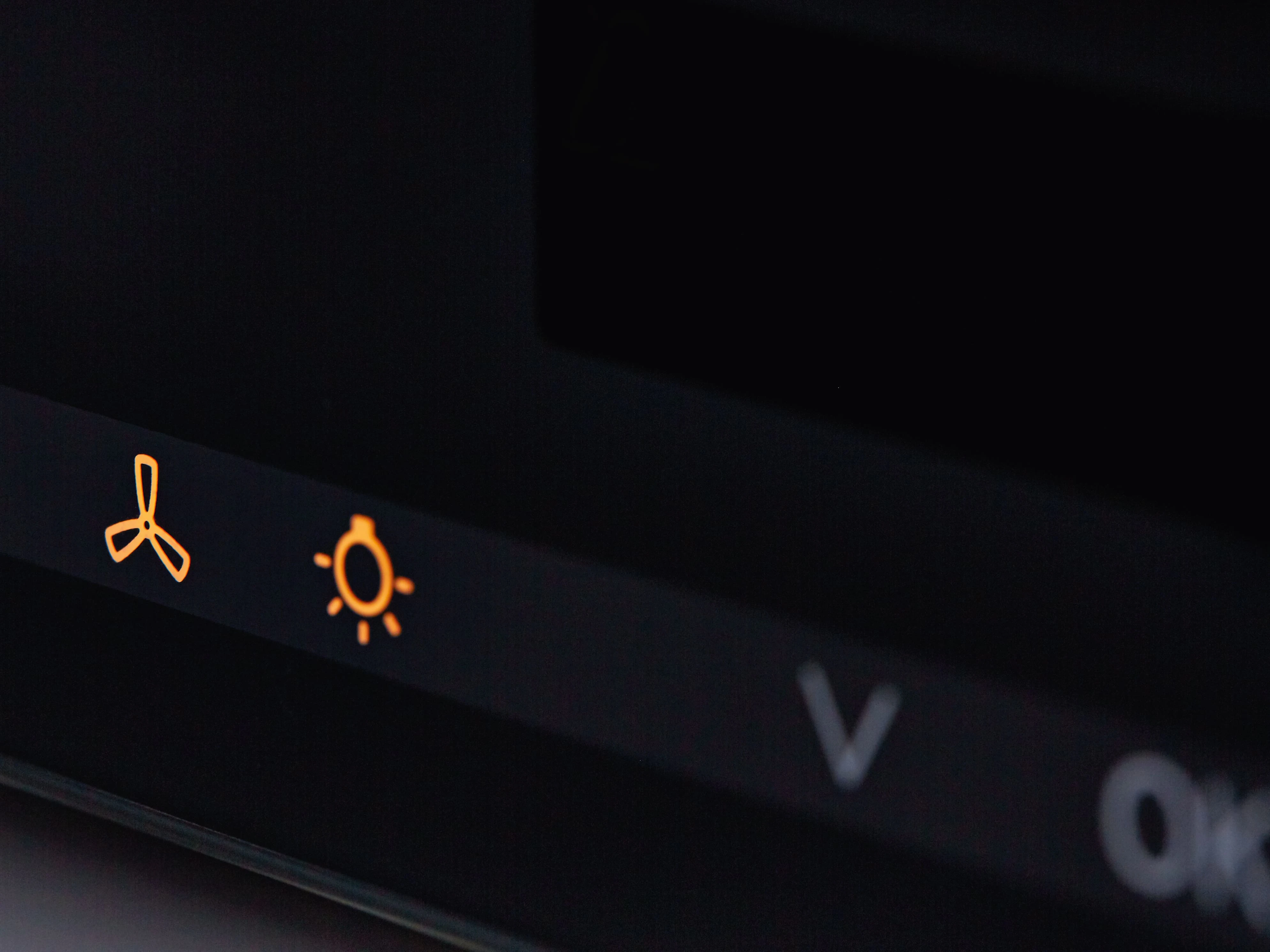

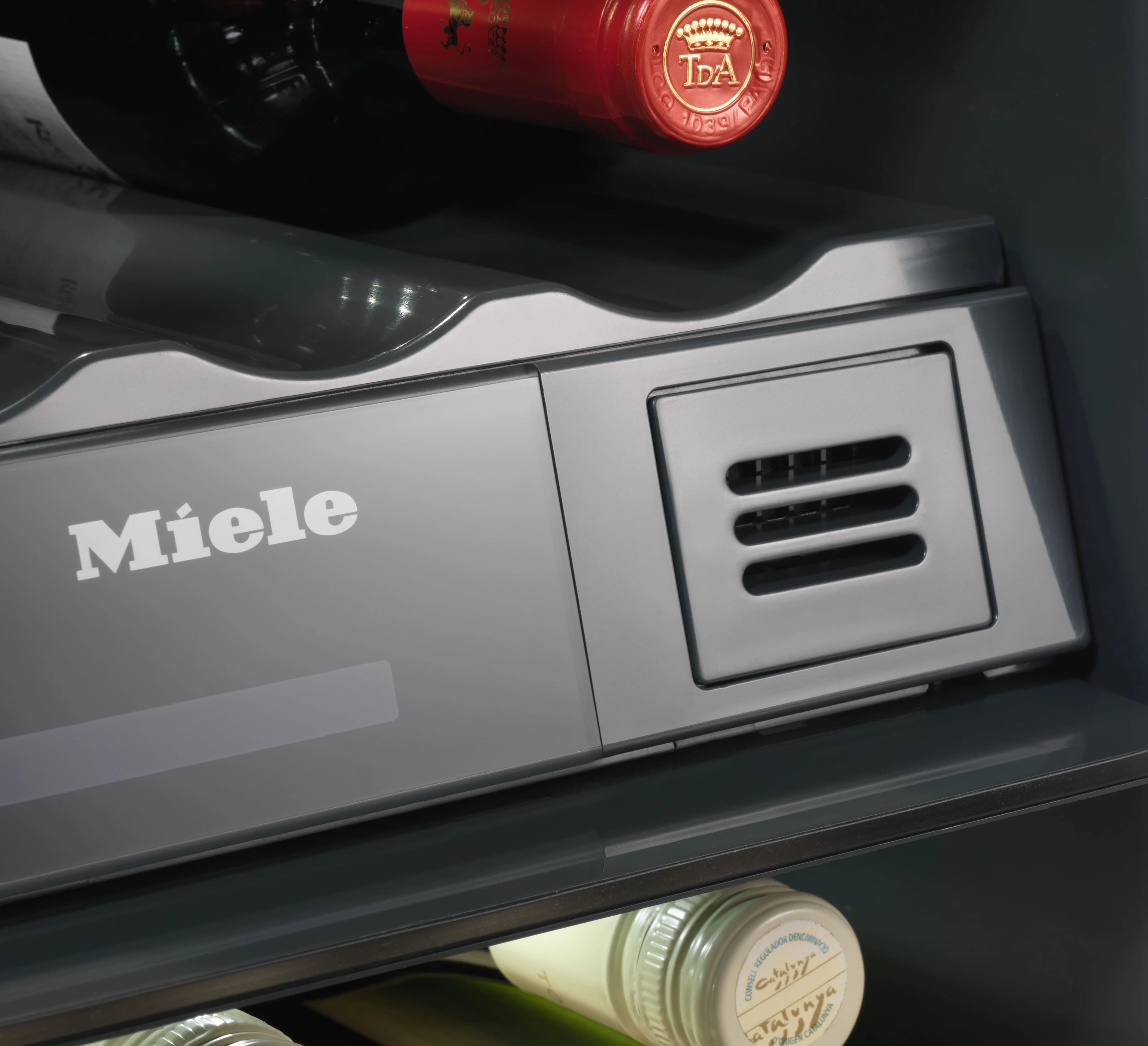

DynaCool

A fan circulates the cold air to ensure uniform temperature and humidity throughout the entire unit. This ensures constant and perfect storage conditions for your wine. Humidity levels of around 50% also prevent corks from drying out.

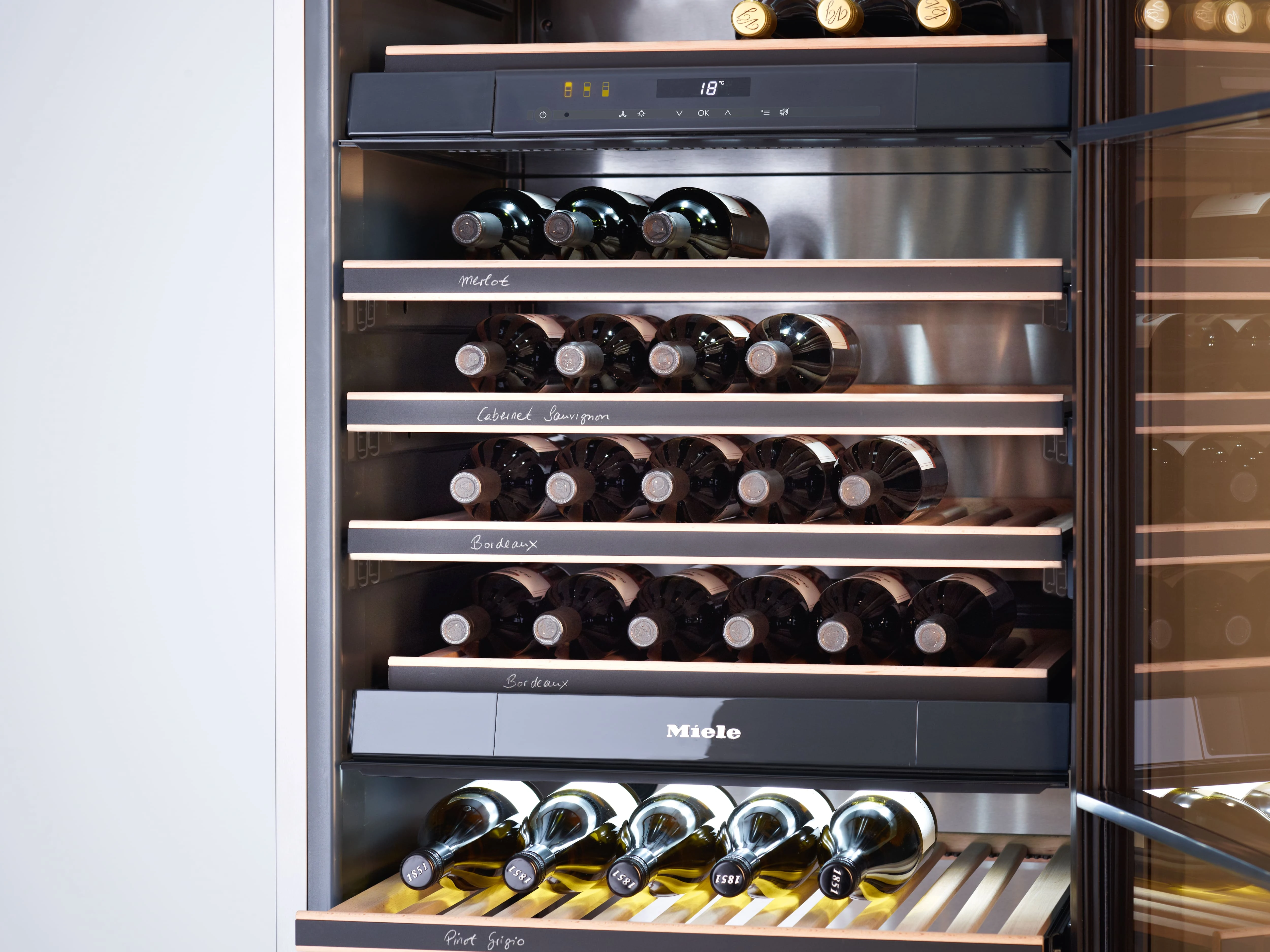

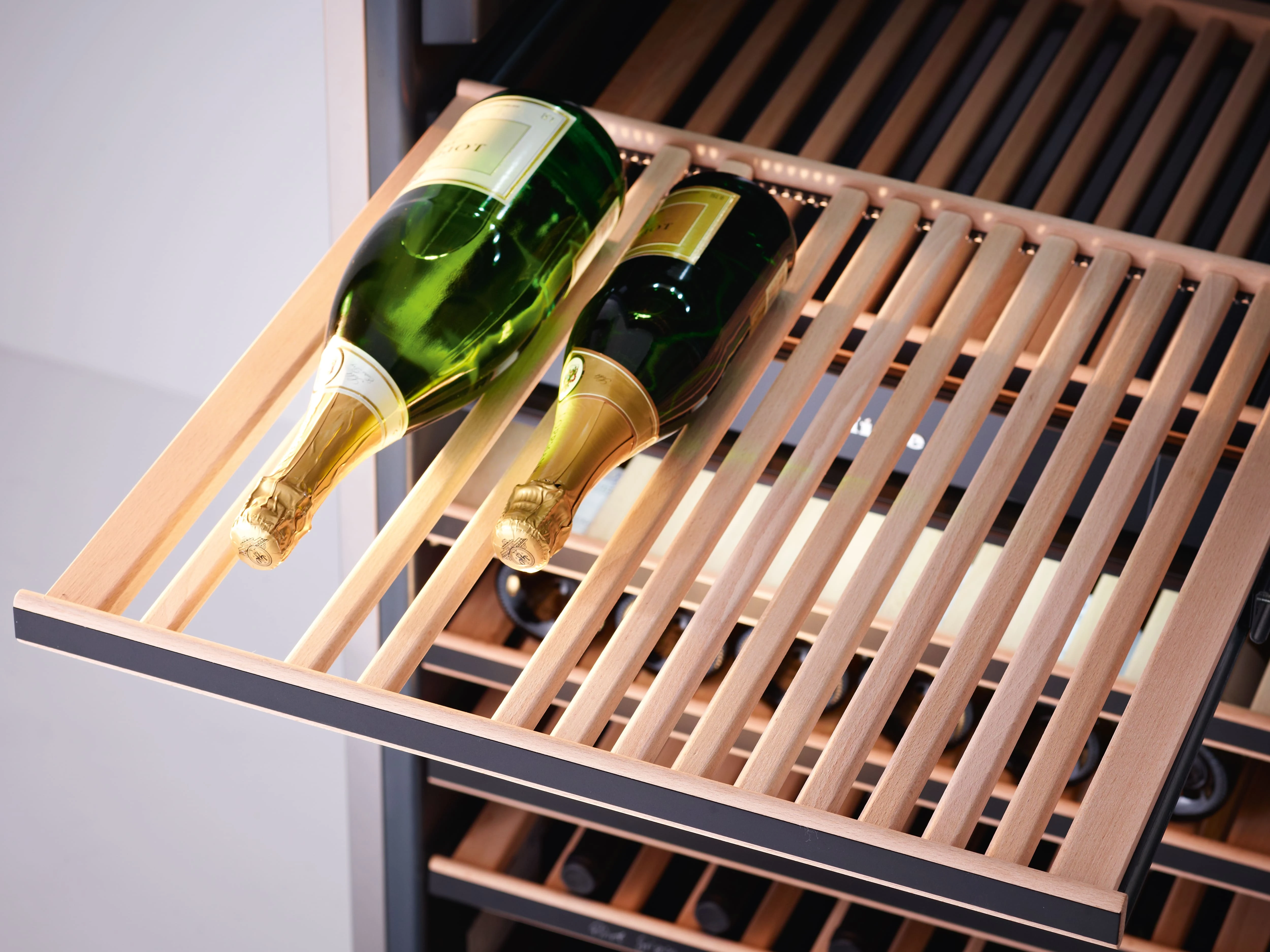

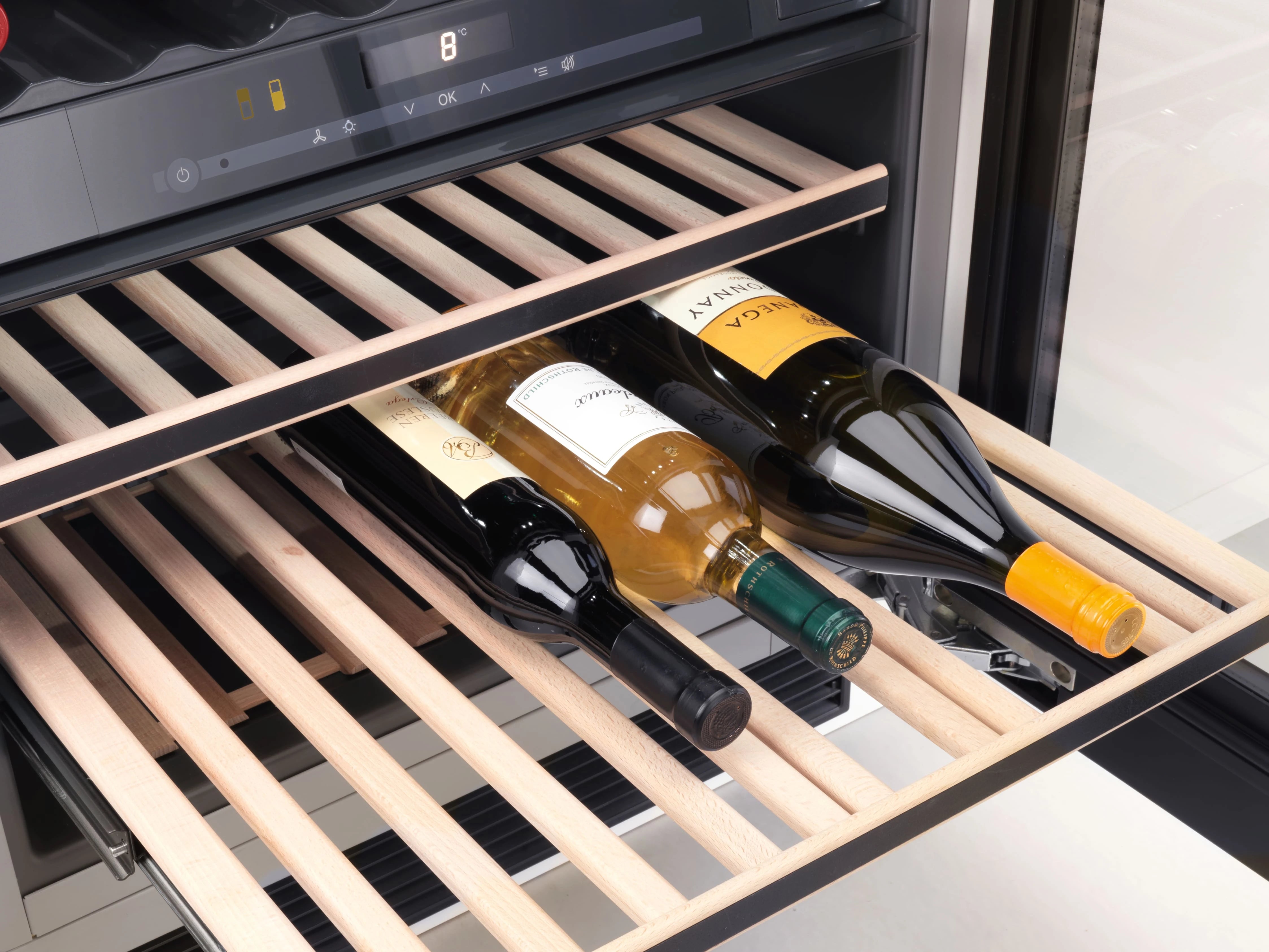

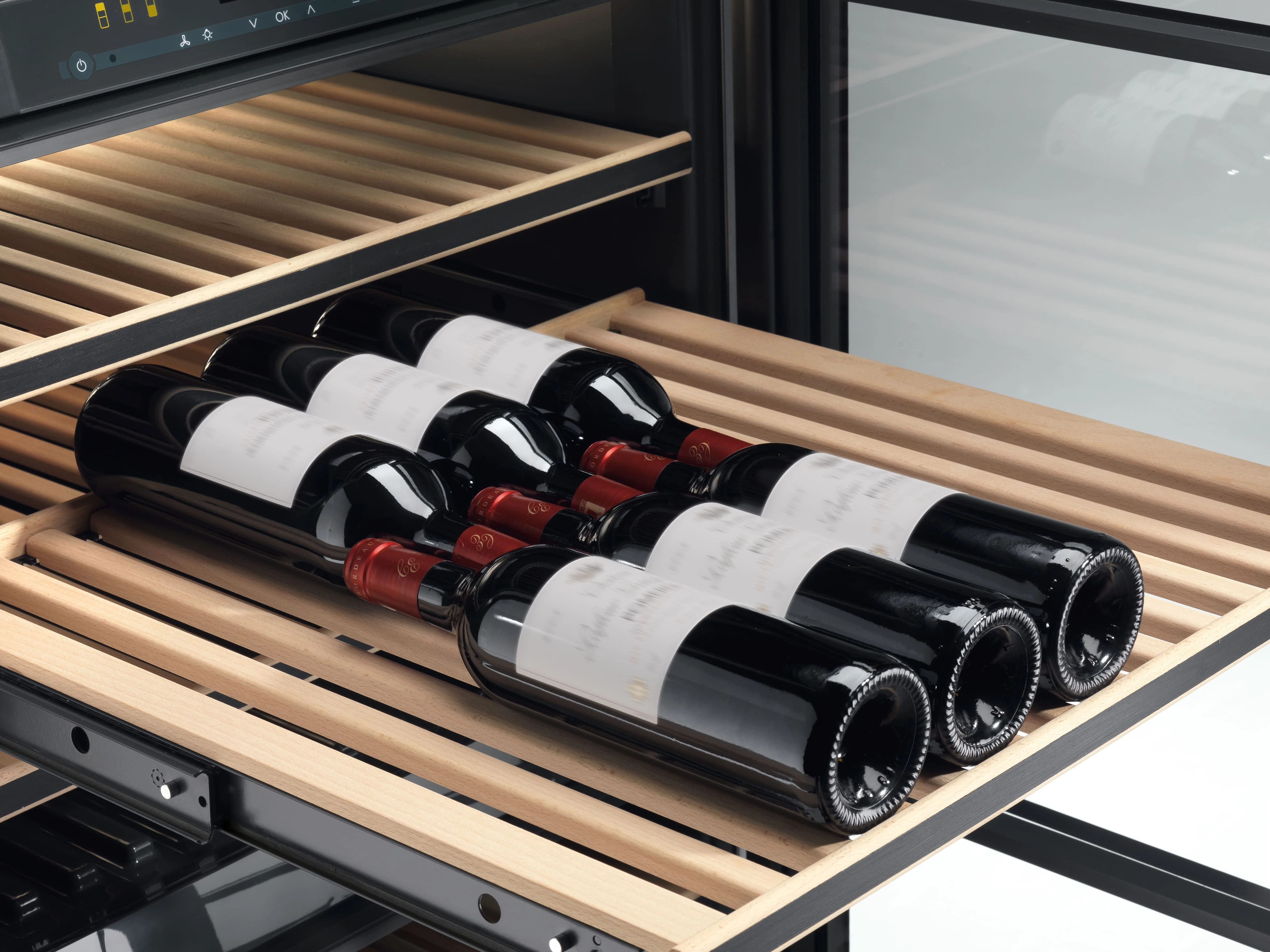

FlexiFrame with NoteBoard

The variable wooden shelves hold every size of bottle securely. The individual slats can be rearranged with ease to adjust to bottle sizes. Even magnum bottles can be stored ideally to save space.

Storage with low vibration

In order to store your wines in an extremely gentle manner, Miele wine units are equipped with specially optimized components: The compressor, which is optimized to run quietly, is also mechanically uncoupled from the housing. This allows your wine to be stored without vibrations.
