SKU: KM7745FL | UPC: 4002516611615

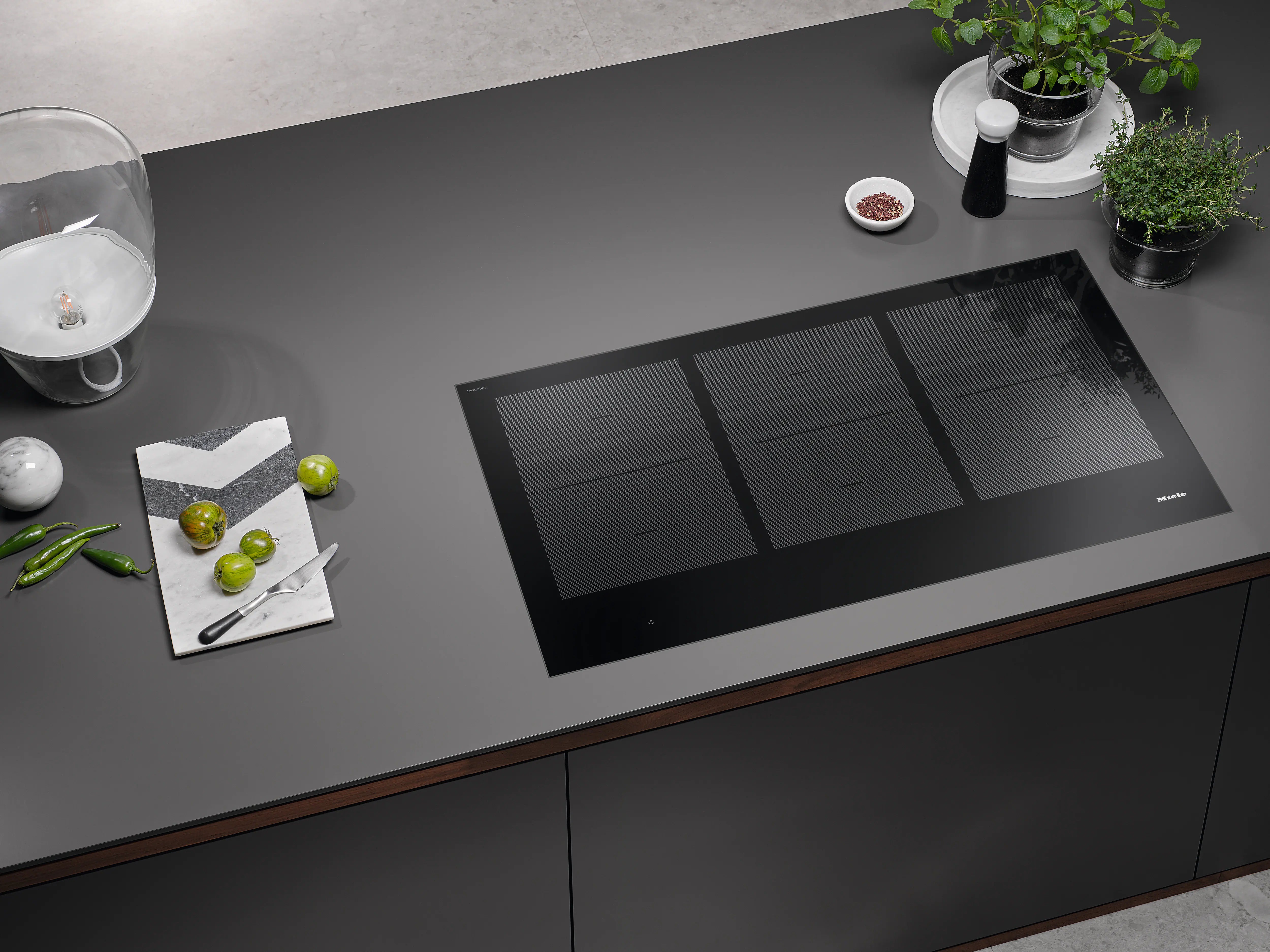

Miele KM7745FL 36-inch induction cooktop, operated with its own controls Clean Touch Steel

$3,999.00 ~~$5,751.97~~ Save $1,752.97 / 30% OFF

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
35.79"
Depth:
21.18"
Height:
3.03"
Type:
Induction Cooktops

About this product

SmartSelect
Safety functions
TwinBooster
PowerFlex

Product Details for Miele KM7745FL

Technical Details

Heating type

Fuel type

Induction

Design

Ceramic surface color	Black
Independent of oven	TRUE
Elegant glass ceramic surface	TRUE
Flush-mounted installation	TRUE
Proud installation	TRUE

Cooking zone details

No. of rings	6
Number of cooking areas	3
Maximum number of pans	6

Powerflex cooking zones

No.	6
Type	PowerFlex cooking zone
Size in mm	Ø 150 – 230
Max. rating in W	2100
Max. booster rating in W	3000
Max. TwinBooster rating in W	3700

1st cooking zone/cooking area

Position	Left
Type	PowerFlex bridge
Size in mm	230x390
Max. rating in W	3100
Max. booster rating in W	3400
Max. TwinBooster rating in W	3700

2nd cooking zone/cooking area

Position	Centered
Type	PowerFlex bridge
Size in mm	230x390
Max. rating in W	3400
Max. booster rating in W	4800
Max. TwinBooster rating in W	7400

3rd cooking zone/cooking area

Position	right
Type	PowerFlex bridge
Size in mm	230x390
Max. rating in W	3400
Max. booster rating in W	4800
Max. TwinBooster rating in W	7400

User convenience

Automatic function	Con@ctivity 3.0
Display color	Yellow
Networking with Miele@home	TRUE
Operation via touchpad sensors	SmartSelect
Pan/Pan-size sensors	TRUE
Permanent pan recognition	TRUE
Stop & Go function	TRUE
Wipe protection	TRUE
Recall function	TRUE
Minute minder	TRUE
AutoBoost	TRUE
Keep-warm function	TRUE
Individual setting options (e.g. acoustic signal tones)	TRUE

Technical data

Dimensions (H x W x D) in mm	3 1/8 (77) x 35 7/8 (909) x 21 1/4 (538)
Width in in. (mm)	35 7/8 (909)
Height in in. (mm)	3 1/8 (77)
Depth in in. (mm)	21 1/4 (538)
Cut-out dimensions (W x D) with surface-mounted installation in inches (mm)	34 1/2 in (876 mm) x 20 1/2 in (518 mm)
Cut-out dimensions (W x D) with flush-fit installation in inches (mm)	889/913 x 518/542
Built-in height with mains connection box in in. (mm)	4 1/8 (103)
Cutout dimensions width in in. (mm) with proud-mounted installation	34 1/2 in (876 mm)
Cutout dimensions depth in in. (mm) with proud-mounted installation	20 1/2 in (518 mm)
Internal cutout dimensions width in in. (mm) with flush installation	889
Internal cutout dimensions depth in in. (mm) with flush installation	518
External cutout dimensions width in in. (mm) with flush installation	913
External cutout dimensions depth in in. (mm) with flush installation	542
Weight in lbs. (kg)	61 (28)
Total connected load in kW	11.200
Voltage in V	208-240
Frequency in Hz	50-60
Power cord length in ft. (m)	3 (1.2)

General information

Model number	KM 7745 FL
Manufacturer material number	12074230
EAN number	4002516611615
Marketing class	Platinum

Cleaning convenience

Easy to clean ceramic glass

TRUE

Safety

Safety cut-out	TRUE
Lock function	TRUE
System lock	TRUE
Integrated cooling blower	TRUE
Overheating protection	TRUE
Residual heat indicator	TRUE

Standard accessories

Connection wire

TRUE

Dimensions & weight

Width	35.79 in.
Height	3.03 in.
Length	21.18 in.
Weight	133.66 lbs.
Gross Weight	68.34 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	46.77 in.
Shipping Height	5.83 in.
Shipping Length	30.24 in.
Shipping Weight	173.66 lbs.
Source	Manufacturer
Total of Shipping Weight	173.66 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	4.77 ft³
Cubic Feet Measurement	1.33 ft³
Dimensional Weight	16.52 lbs.
Total of Cubes	1.33 ft³
Total of Dimensional Weight	16.52 lbs.

Description

What's included

Connection wire

Manuals & Guides

Key Features

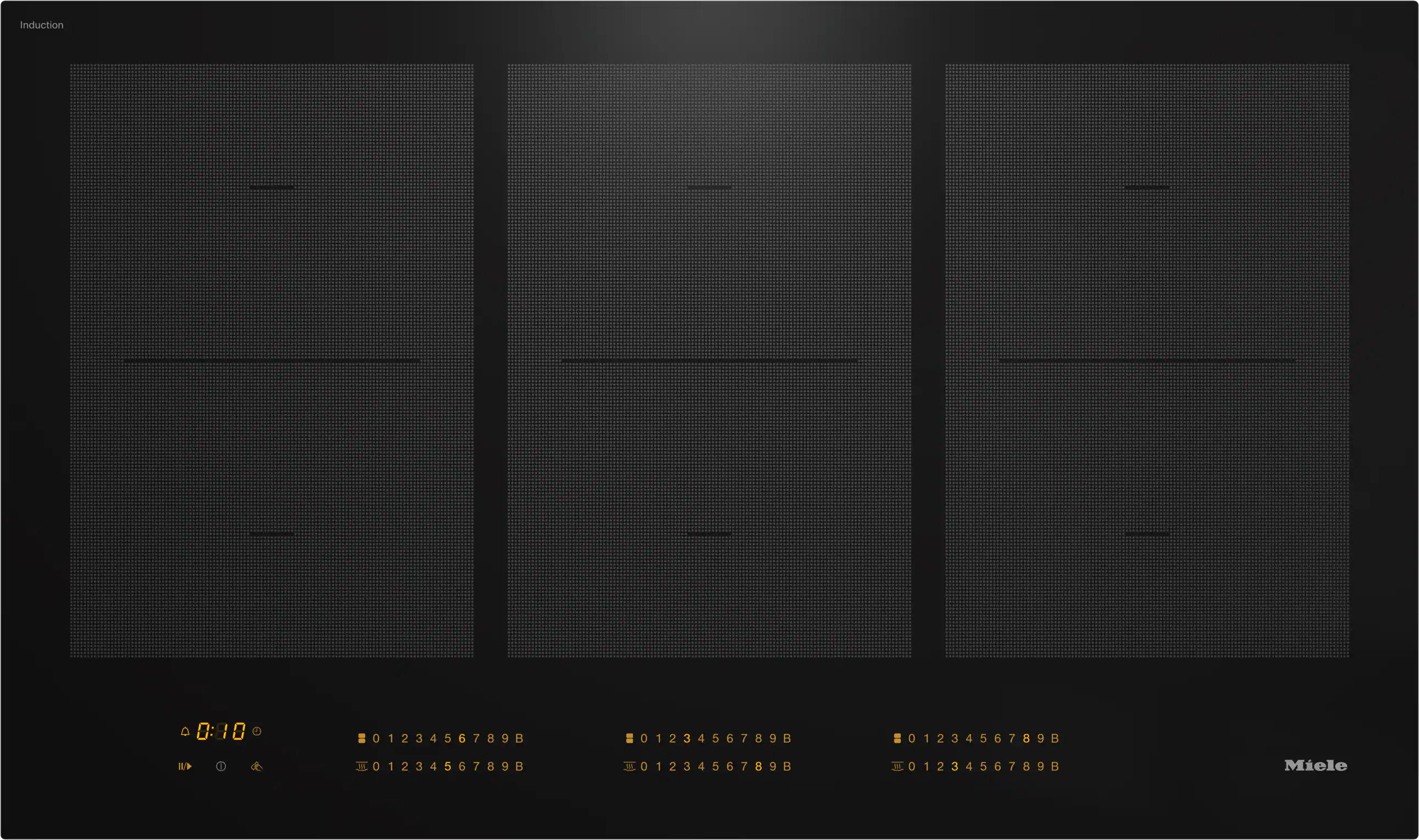

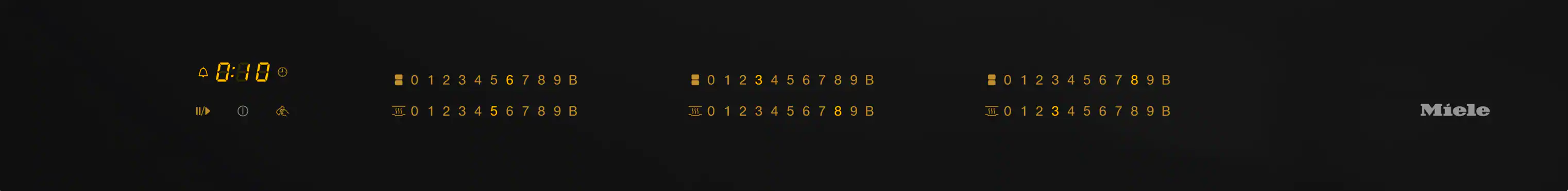

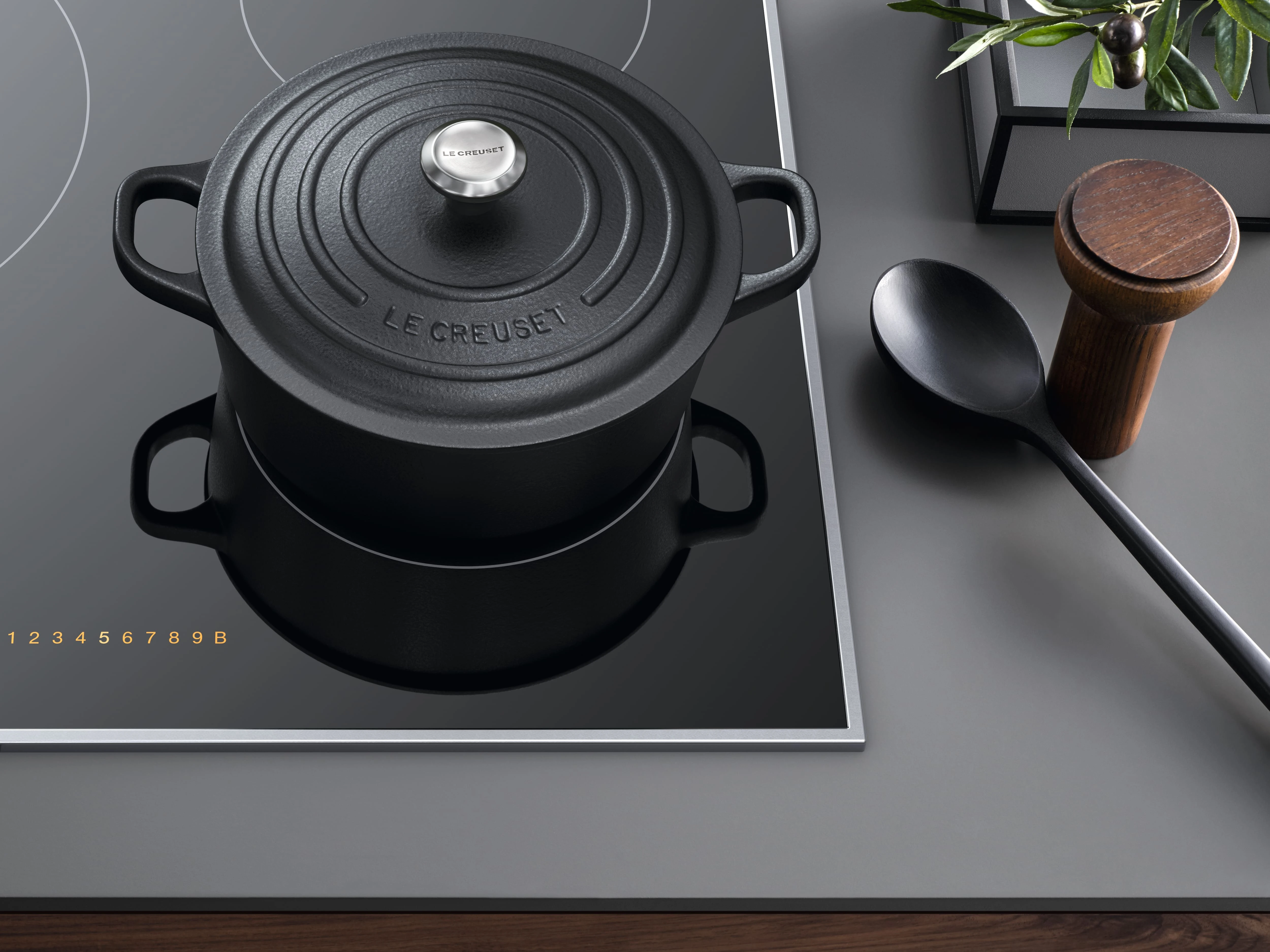

SmartSelect

Select power levels and cooking durations for each zone flexibly with SmartSelect. Each zone has its own easy-to-read numerical display with yellow backlighting. SmartSelect also makes it easier to set the timer. On the far left, you can set a separate short-term kitchen timer independently of cooking. In addition, you can set a switch-off timer for each zone, which automatically switches off the cooking zone when the time has elapsed.

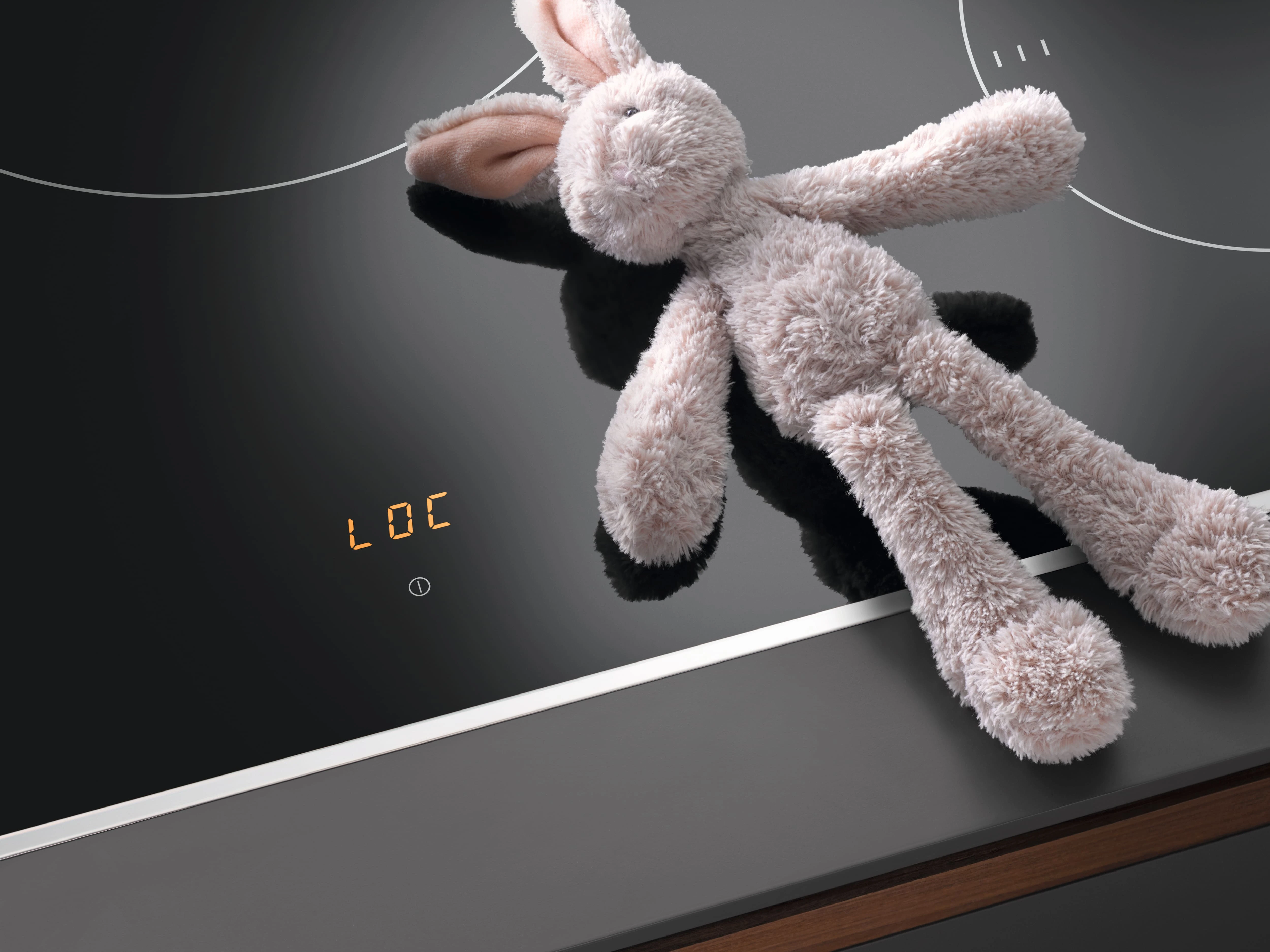

Safety functions

Optimum protection in every situation: The system lock reliably protects you from unauthorized or accidental switching on. If a cooking zone is operated for an unusually long time at the same power level or if there is no pot on a cooktop that is switched on, it switches off automatically. Another helpful tool worth noting is the residual heat indicator: It reminds you not to touch the cooking zones when they are still hot.

TwinBooster

When you need to get things done quickly, the exclusive TwinBooster function is an excellent aid. Harness the power of two cooking zones in one and heat up your favorite dishes in record time. Alternatively, distribute the induction power as required. This means you can now decide how quickly your food is ready, with complete flexibility.

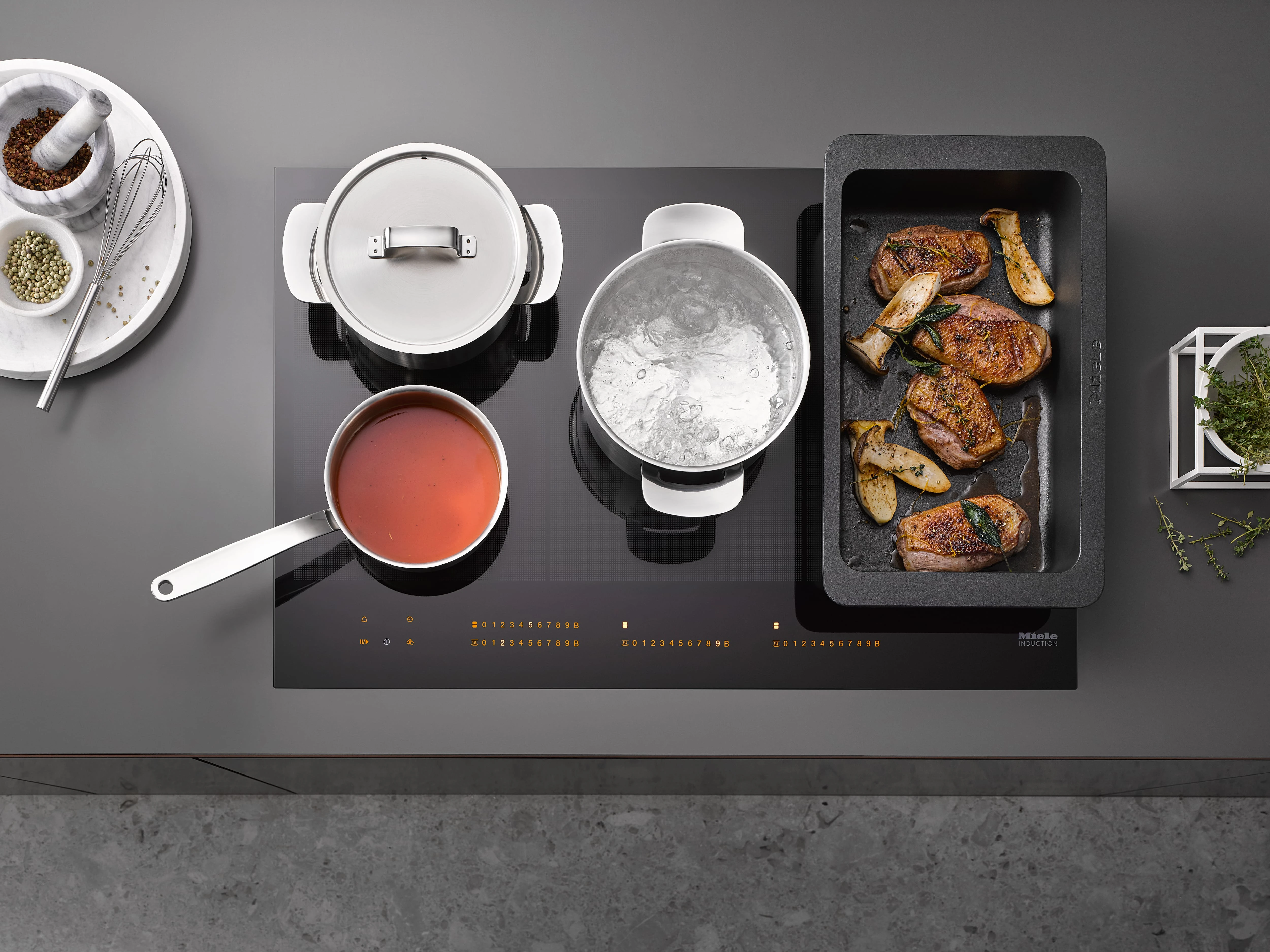

PowerFlex

Our PowerFlex cooking zones are just as versatile and varied as your cooking needs: Whether you are using individual pans, particularly large pots, or oven dishes – it can all be done without a hitch. And you will always save a considerable amount of time: The booster output of up to 7.3 kW provides an unsurpassed heating speed.

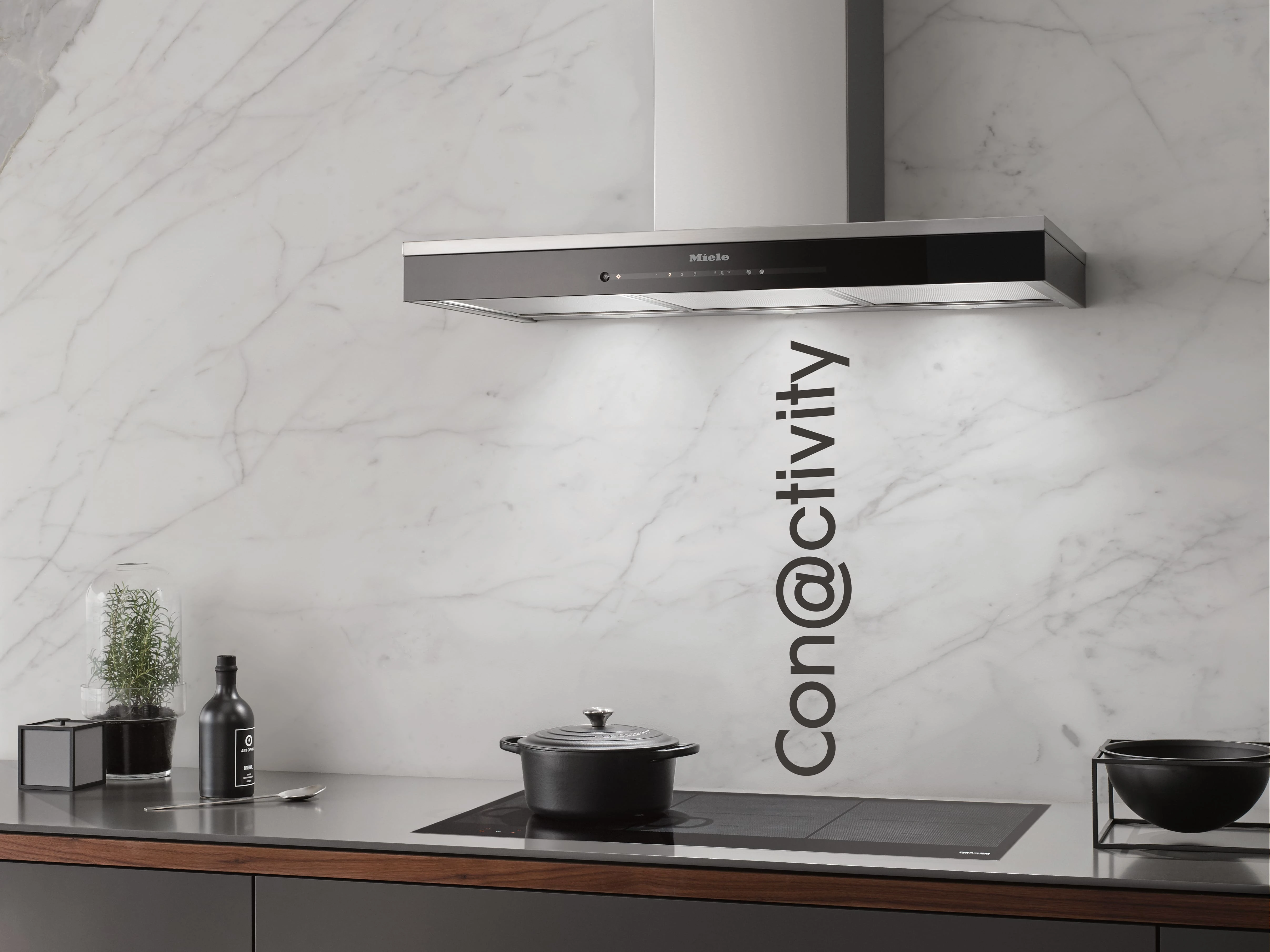

Con@ctivity 3.0

Concentrate fully on cooking: With Con@ctivity 3.0, your ventilation hood always knows exactly what to do. When the cooktop is switched on or off, the ventilation hood reacts automatically, adapting the extraction power to what’s happening on the cooktop and thus maintaining a pleasant room climate. The appliances communicate with each other via Wi-Fi. Con@ctivity 3.0 allows you to integrate the ventilation hood and cooktop into Miele@home

Convenient additional functions

More convenient cooking: With the Stop & Go function, you can reduce all cooking zones to power level 1 at the touch of a single button, so you can leave the cooktop unattended for a short time. Thanks to the automatic keeping warm function, your food stays at serving temperature. And another plus: If you set the timer, the cooking zone switches off automatically once this time has elapsed. The recall function saves your settings for 10 seconds.

Permanent pan recognition

You just have to switch on the cooktop – if a pan has already been placed on one of the cooking zones, the corresponding control element is activated automatically. So you no longer have to turn on the individual cooking zones manually. What's more, the size of the pot or pan is recognized automatically – for extremely energy-efficient operation.

Domestic appliance networking with Miele@home

With our innovative Miele@home system, you can exploit the full potential of your Miele appliances and make your everyday life even smarter. All intelligent Miele domestic appliances can be networked conveniently and securely. Operation is simple – whether you use the Miele app, voice control, or integration into existing Smart Home solutions. The appliances are networked via a home Wi-Fi router and the Miele Cloud.
